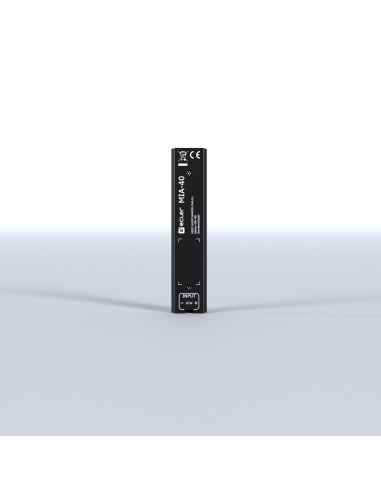

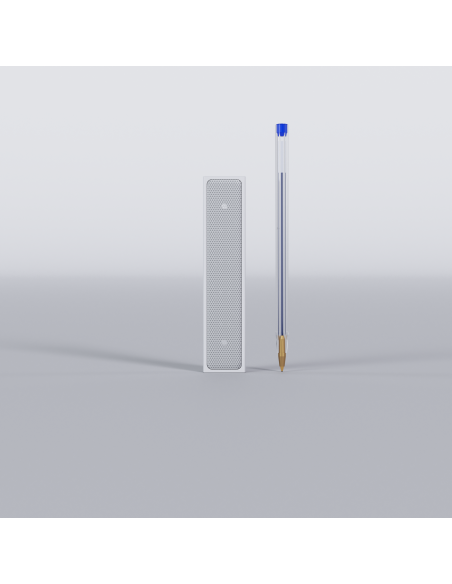

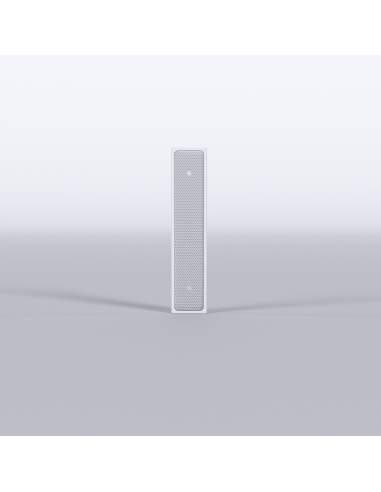

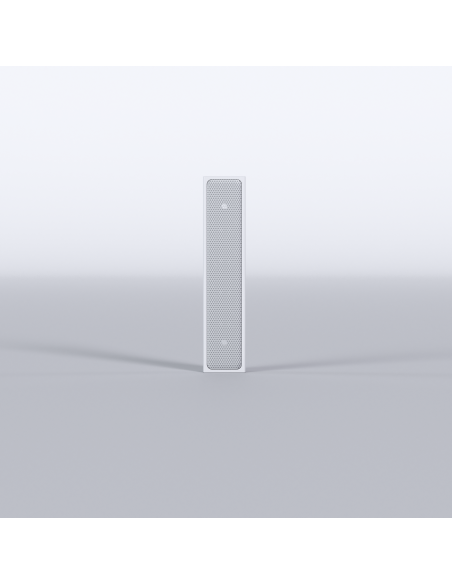

Mini Array Column Loudspeaker
MIA-40 is an ultra‑compact installation loudspeaker that redefines discreet audio by seamlessly blending into its surroundings. Created for near-invisible sound systems, it delivers high-quality audio that blends effortlessly any space. It integrates naturally into commercial, hospitality, museum, and corporate environments, offering a truly unobtrusive audio solution.
The sleek aluminium construction makes the MIA-40 ideal for projects where both aesthetics and performance matters. The IP44 rating makes it suitable for indoor and protected outdoor areas.
The MIA-40 features four 0.5-inch drivers, ensuring clear and consistent reproduction of both voice and ambient music. The column arrangement ensures an even horizontal dispersion whilst maintaining a tight 40-degree vertical beamwidth (4kHz to 20kHz).

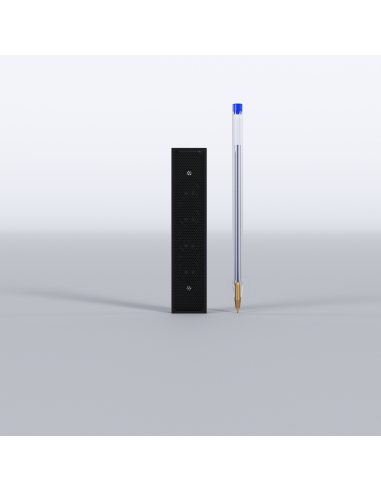

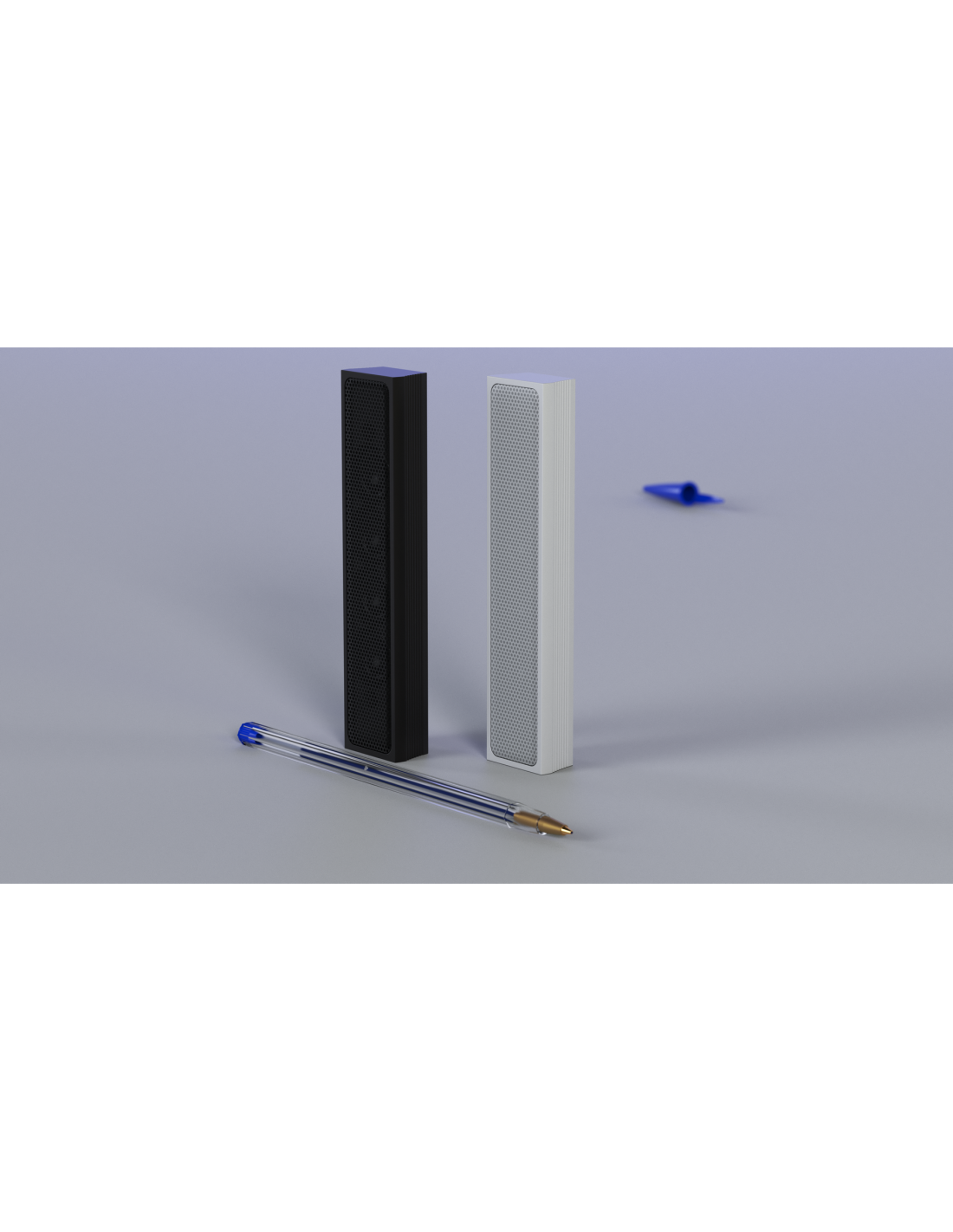

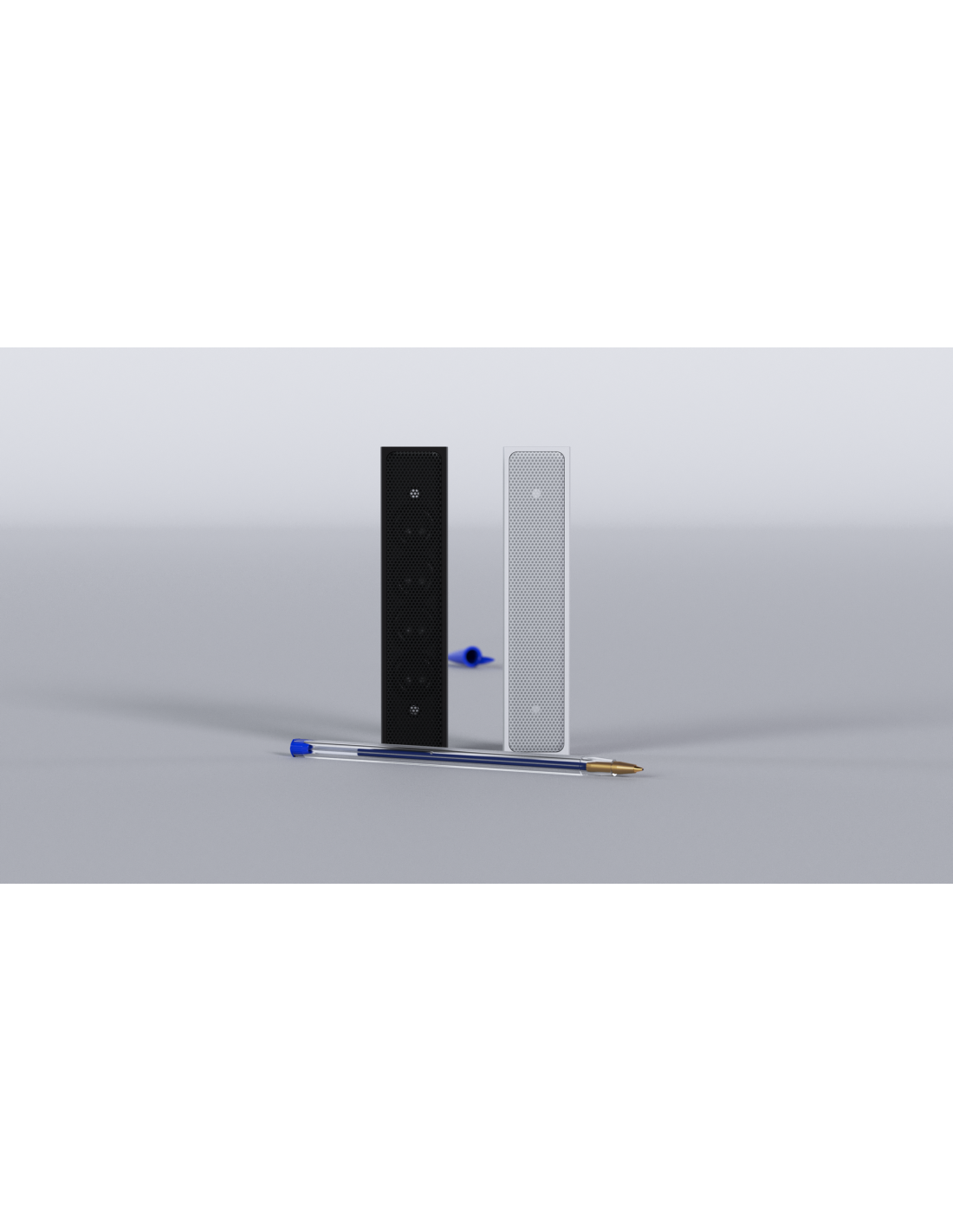

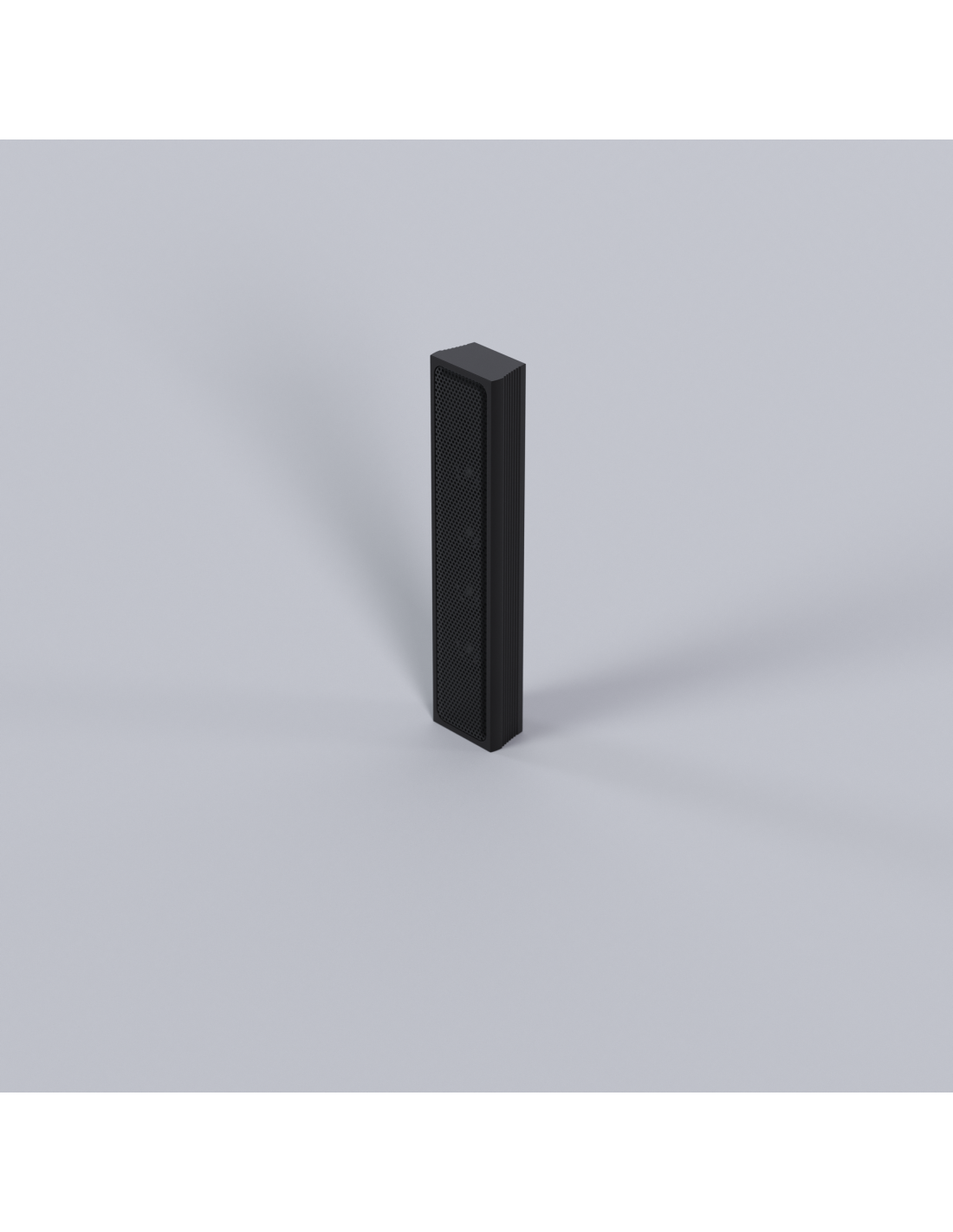

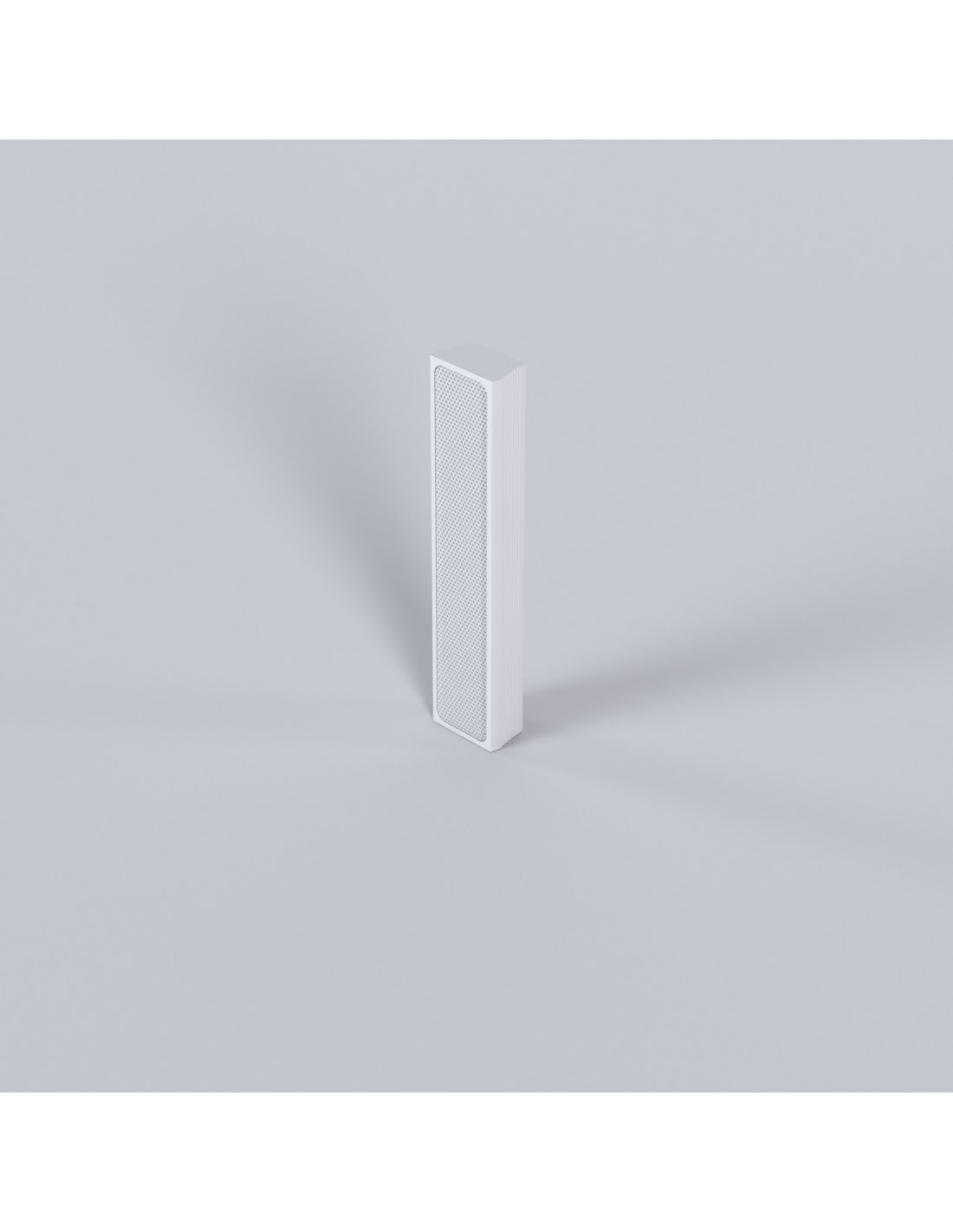

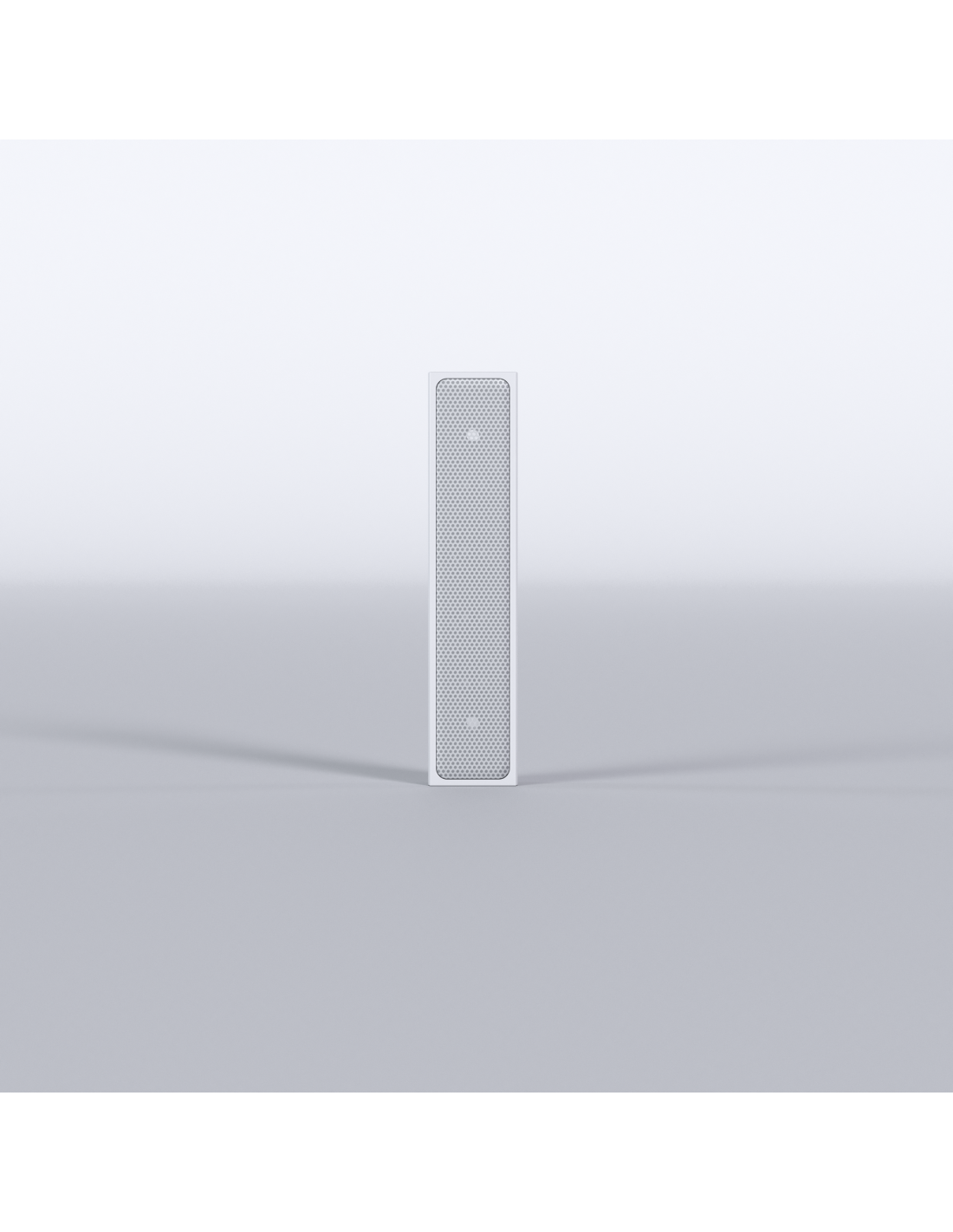

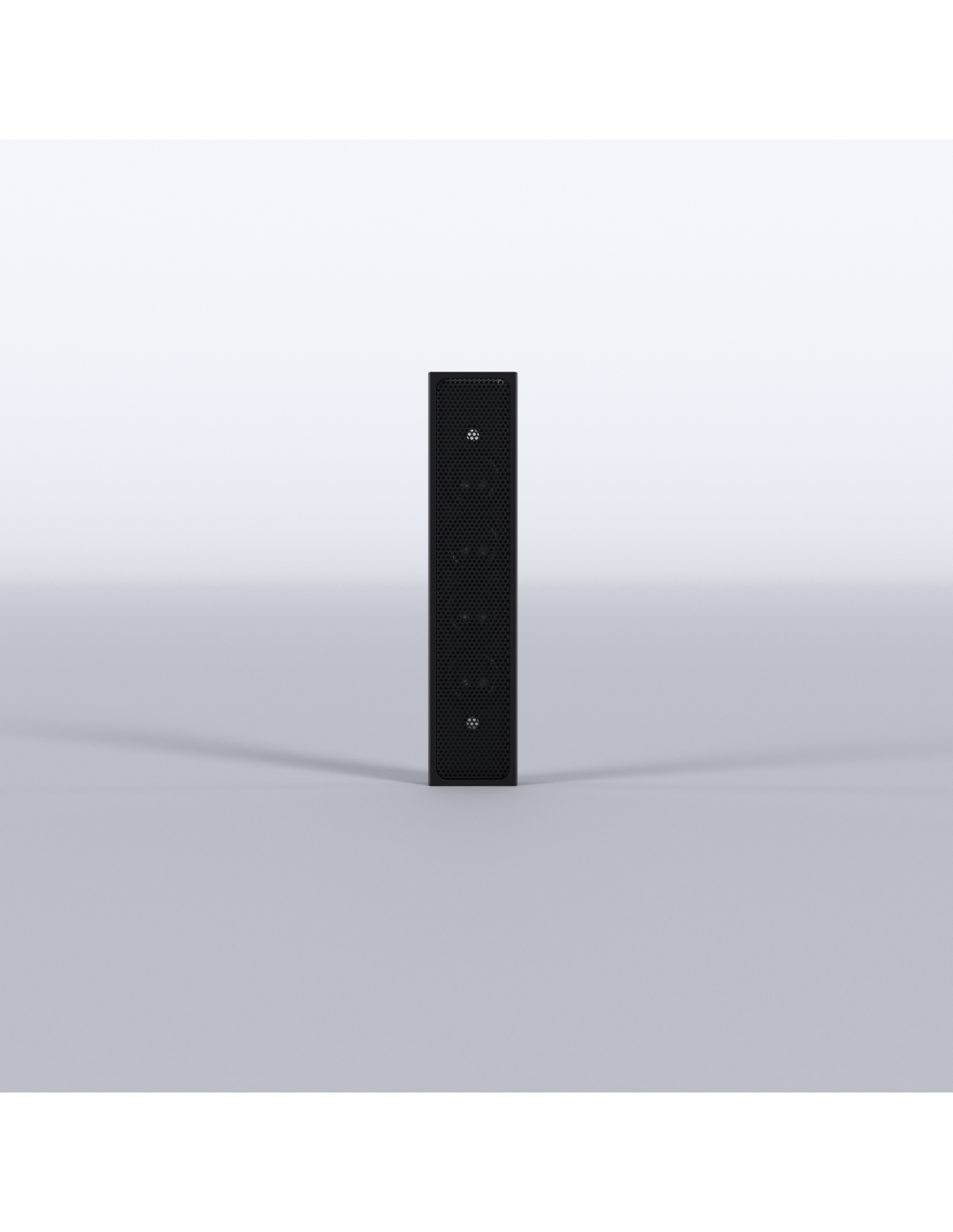

Available in black and white, the MIA-40 adapts easily to any design style. Pair it with the MIA-BR16 for a complete sound experience.
*Specifications measured with 2x MIA-40.
- Effective Freq. Range
- 725Hz-20KHz (-10dB)
- Coverage angle / Dispersion
- 180°H x 140°V
205°H x 200°V - Power handling
- 20W / 40W Program / 80W Peak
- Sensitivity
- 74 dB
76 dB - Maximum SPL
- 86 dB continuous / 92 dB peak
89 dB continuous / 95 dB peak - Recommended amplifier power
- 40W RMS
- Ways
- 1-way
- Nominal impedance
- 16Ω / 100V

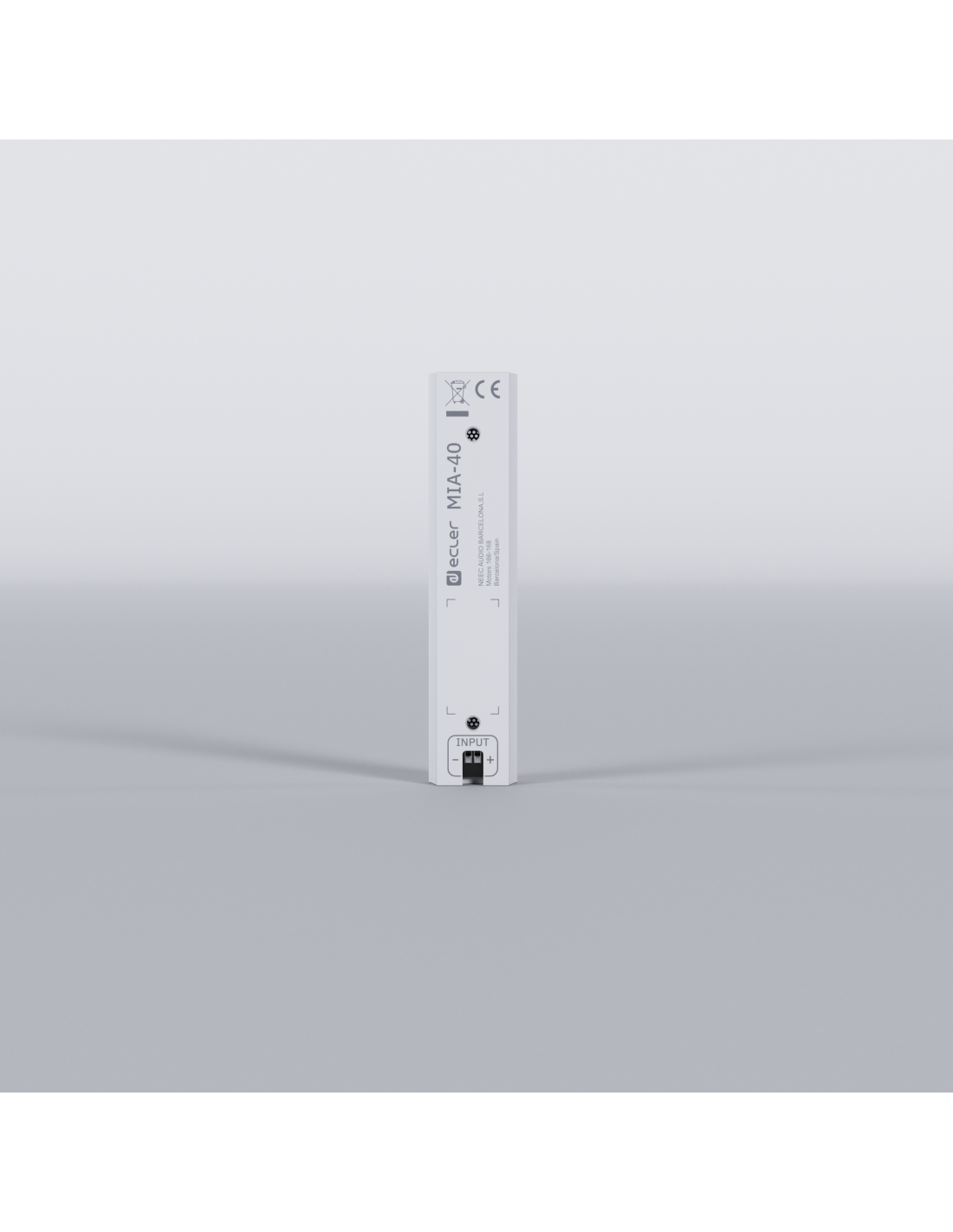

- Connection type

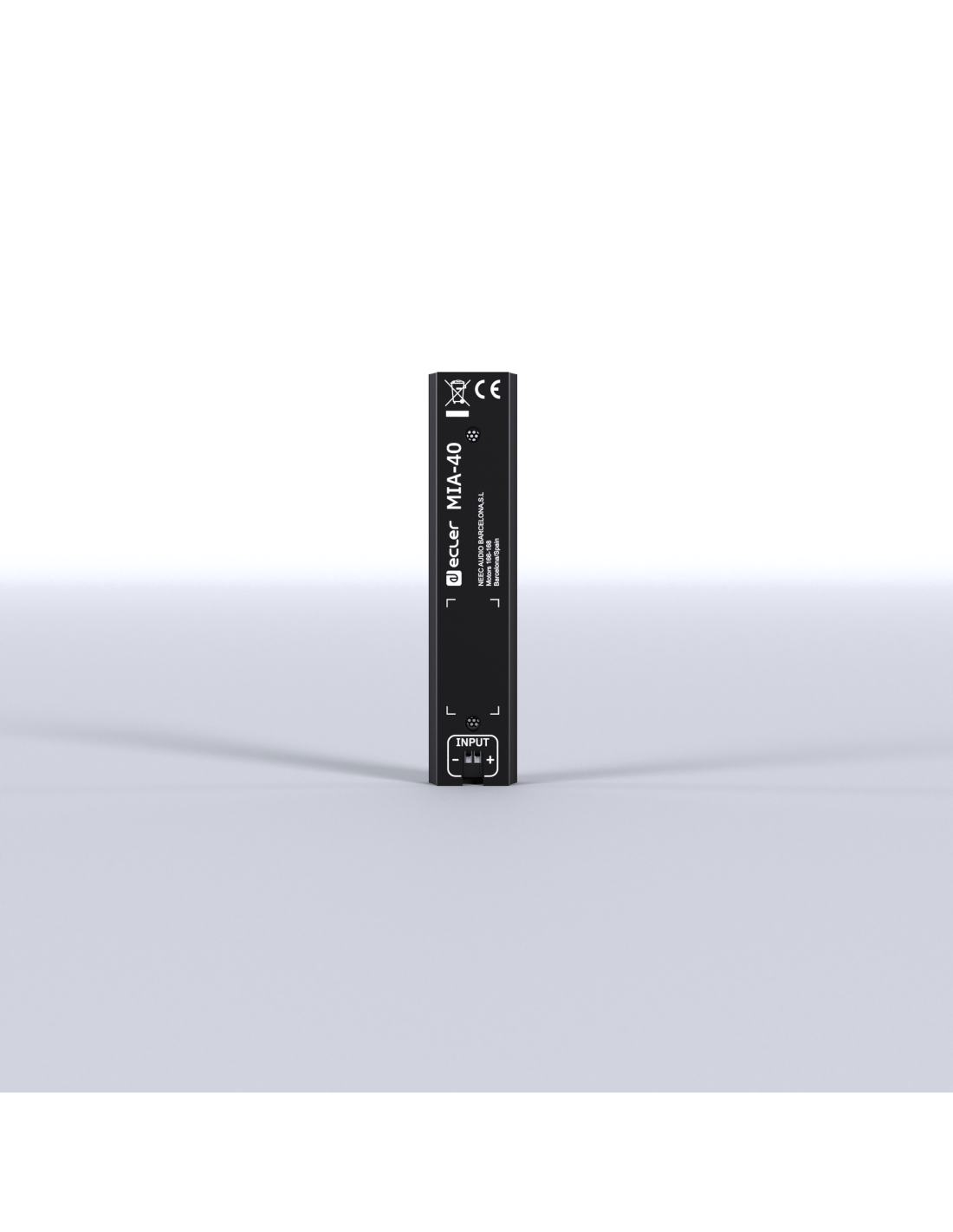

- mini PCB terminal block
- Installation options
- Wall mounting
- Environmental
- IP44
- Enclosure material
- Aluminium
- Grille material
- Aluminium
- Grille fixing system

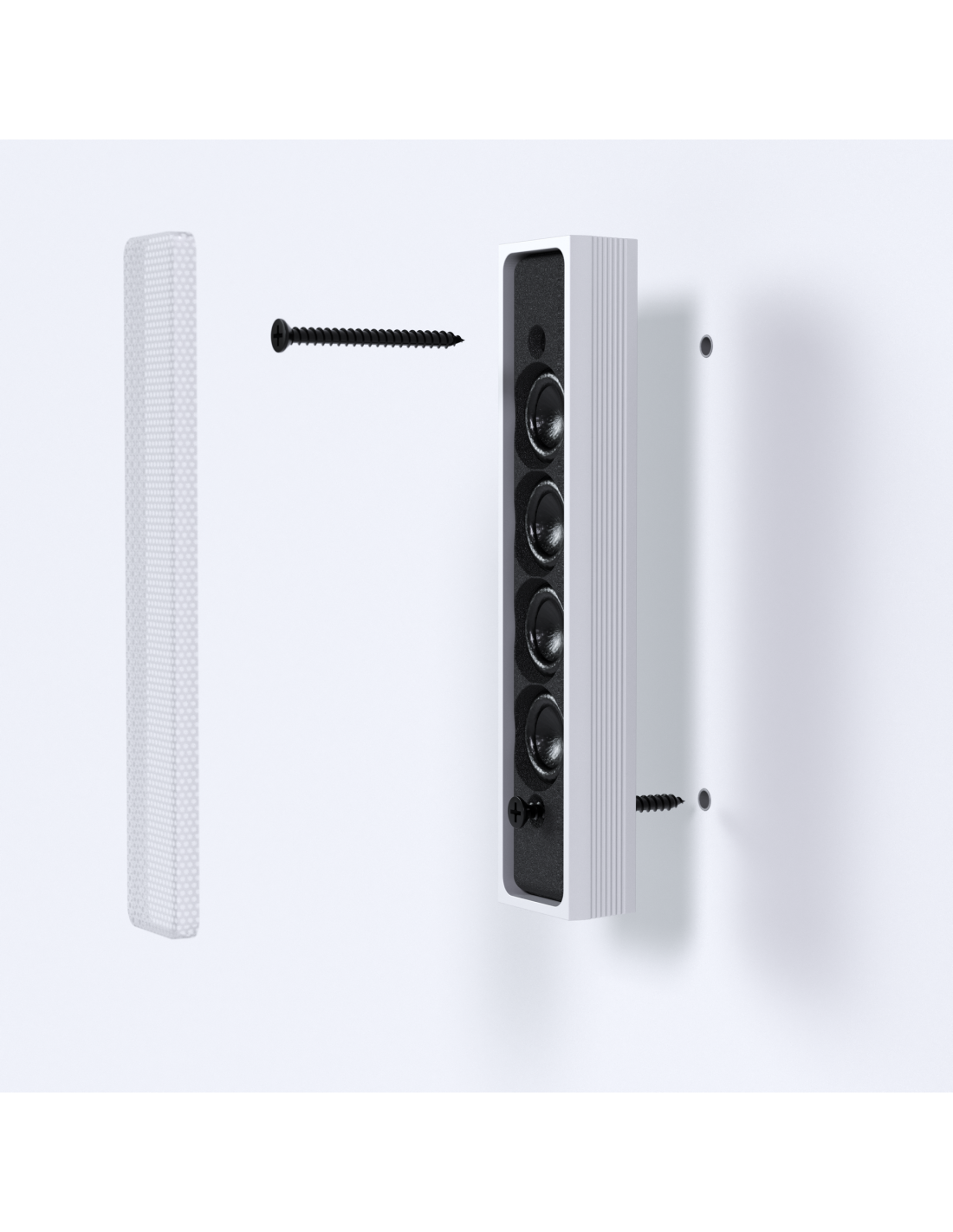

- Front Insertion mount system
- Operating temperature
- Min: -20°C / -4°F
Max: 65°C / 149°F
- Operating humidity
- 90% HR
- Storage temperature
- Min: -20°C / -4°F
Max: 65°C / 149°F
- Storage humidity
- 90% HR
- Included accessories
- 1x Bubble level, 2x MIA-40 wires (5m.), 4x Wall plug, 4x Wall screws, 1x Mini Screwdriver, 1x Wall Drilling template.
- Optional accessories
- No
- Finished colour
- White (RAL9003) or Black (RAL9005)
- Dimensions

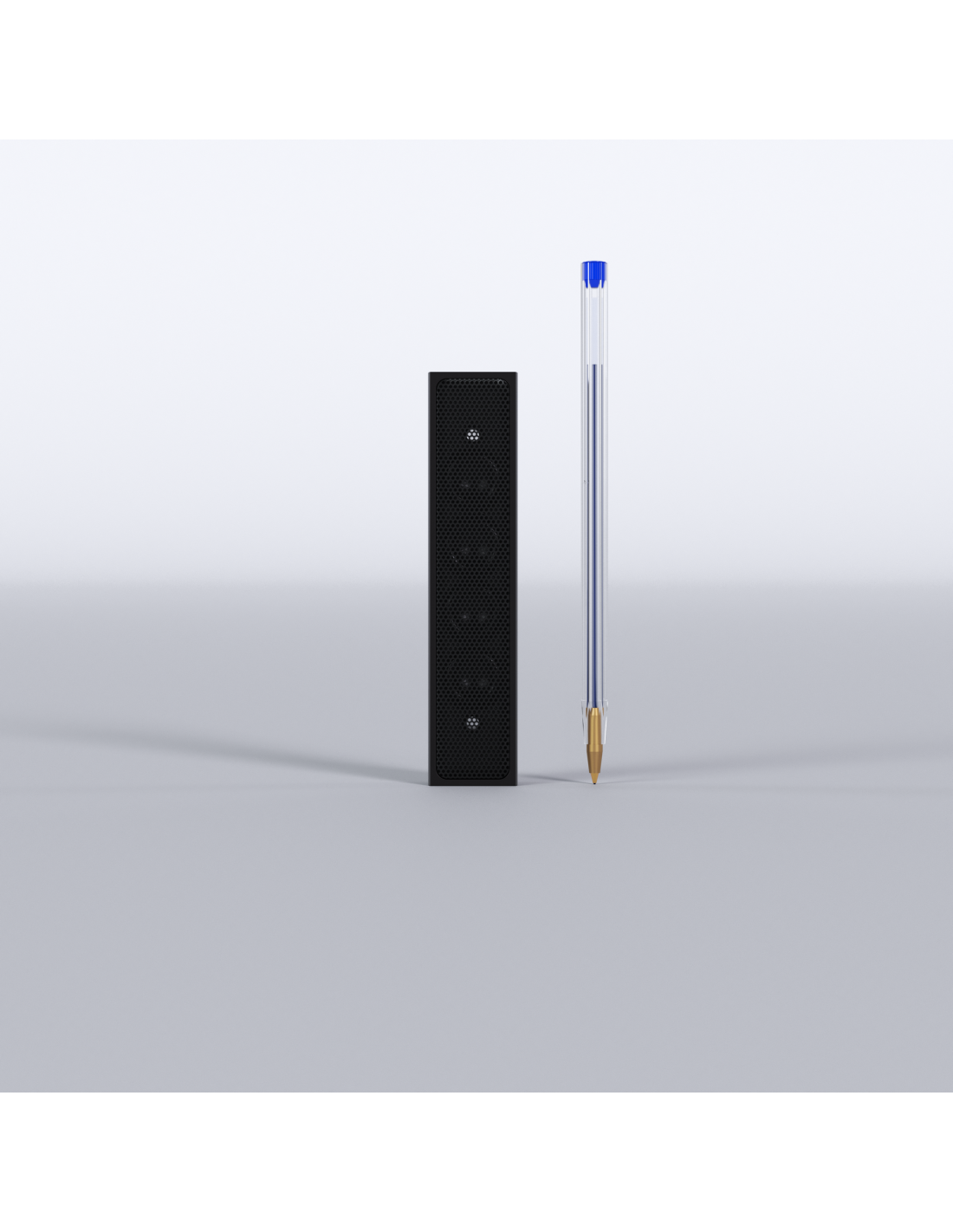

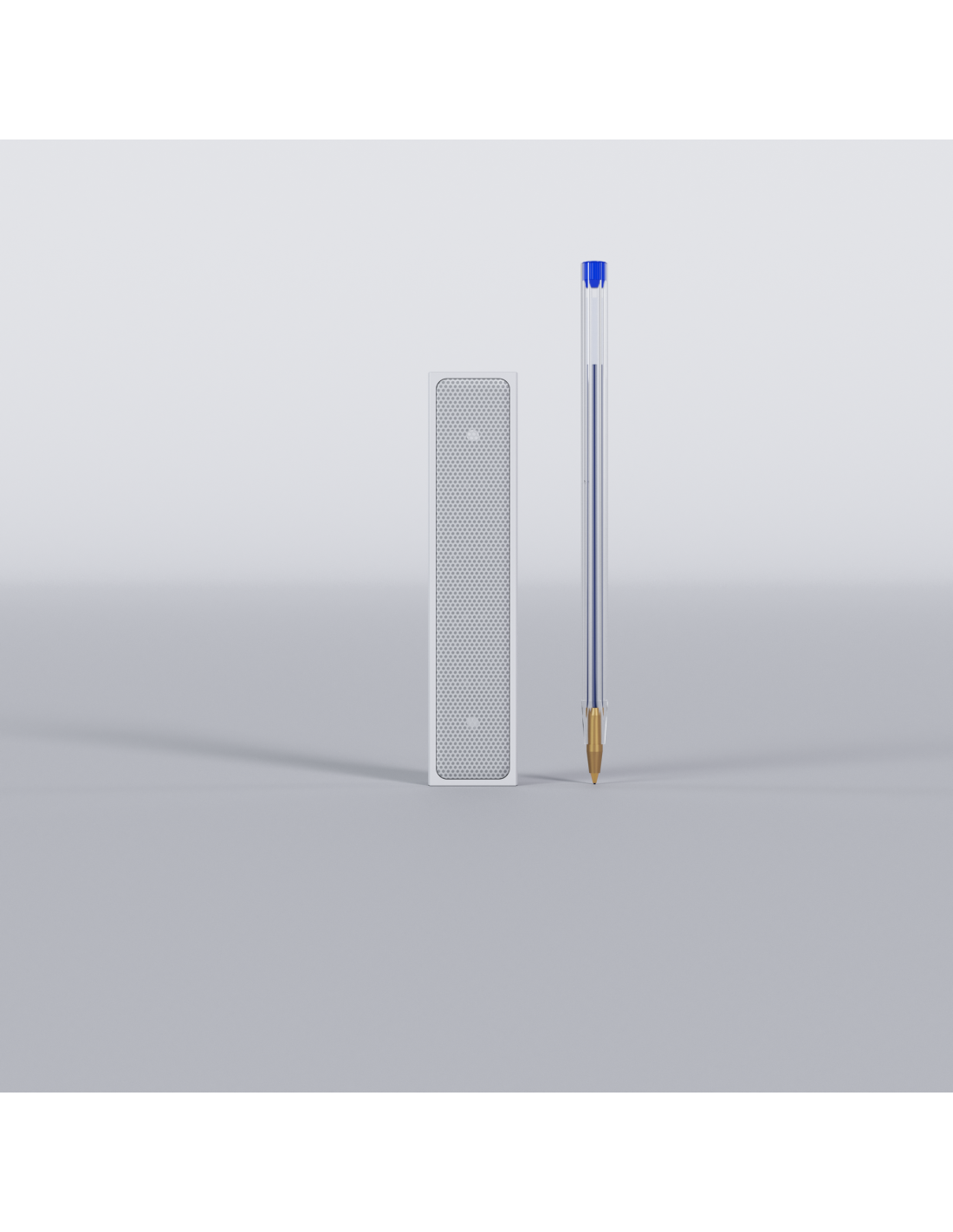

- 24.6 x 113 x 14.5 mm / 0.97 x 4.45 x 0.57 in. (WxHxD)
- Weight
- 0.072 kg / 0.16 lb
- Pieces per box
- 2
- Shipping dimensions
- 174 x 40 x 163 mm / 6.85 x 1.57 x 6.42 in. (WxHxD)
- Shipping weight
- 0.239 kg / 0.53 lb
- Mounting system
- with 2 screw in the wall
- Driver
- 4 x 0,5" Loudspeaker
SYSTEM
| Effective Freq. Range |
725Hz-20KHz (-10dB) |
|---|---|
| Coverage angle / Dispersion |
205°H x 200°V 180°H x 140°V |
| Power handling |
20W / 40W Program / 80W Peak |
| Sensitivity |
74 dB 76 dB |
| Maximum SPL |
86 dB continuous / 92 dB peak 89 dB continuous / 95 dB peak |
| Recommended amplifier power |
40W RMS |
TRANSDUCERS
| Ways |
1-way |
|---|---|
| Nominal impedance |
16Ω / 100V |
| Driver |
4 x 0,5" Loudspeaker |
PHYSICAL
| Connection type |
mini PCB terminal block |
|---|---|
| Installation options |
Wall mounting |
| Environmental |
IP44 |
| Enclosure material |
Aluminium |
| Grille material |
Aluminium |
| Grille fixing system |
Front Insertion mount system |
| Operating temperature |
Min: -20°C / -4°F
Max: 65°C / 149°F
|
| Operating humidity |
90% HR |
| Storage temperature |
Min: -20°C / -4°F
Max: 65°C / 149°F
|
| Storage humidity |
90% HR |
| Included accessories |
1x Bubble level, 2x MIA-40 wires (5m.), 4x Wall plug, 4x Wall screws, 1x Mini Screwdriver, 1x Wall Drilling template. |
| Optional accessories |
No |
| Finished colour |
White (RAL9003) or Black (RAL9005) |
| Dimensions |
24.6 x 113 x 14.5 mm / 0.97 x 4.45 x 0.57 in. (WxHxD) |
| Weight |
0.072 kg / 0.16 lb |
| Pieces per box |
2 |
| Shipping dimensions |
174 x 40 x 163 mm / 6.85 x 1.57 x 6.42 in. (WxHxD) |
| Shipping weight |
0.239 kg / 0.53 lb |
| Mounting system |
with 2 screw in the wall |
