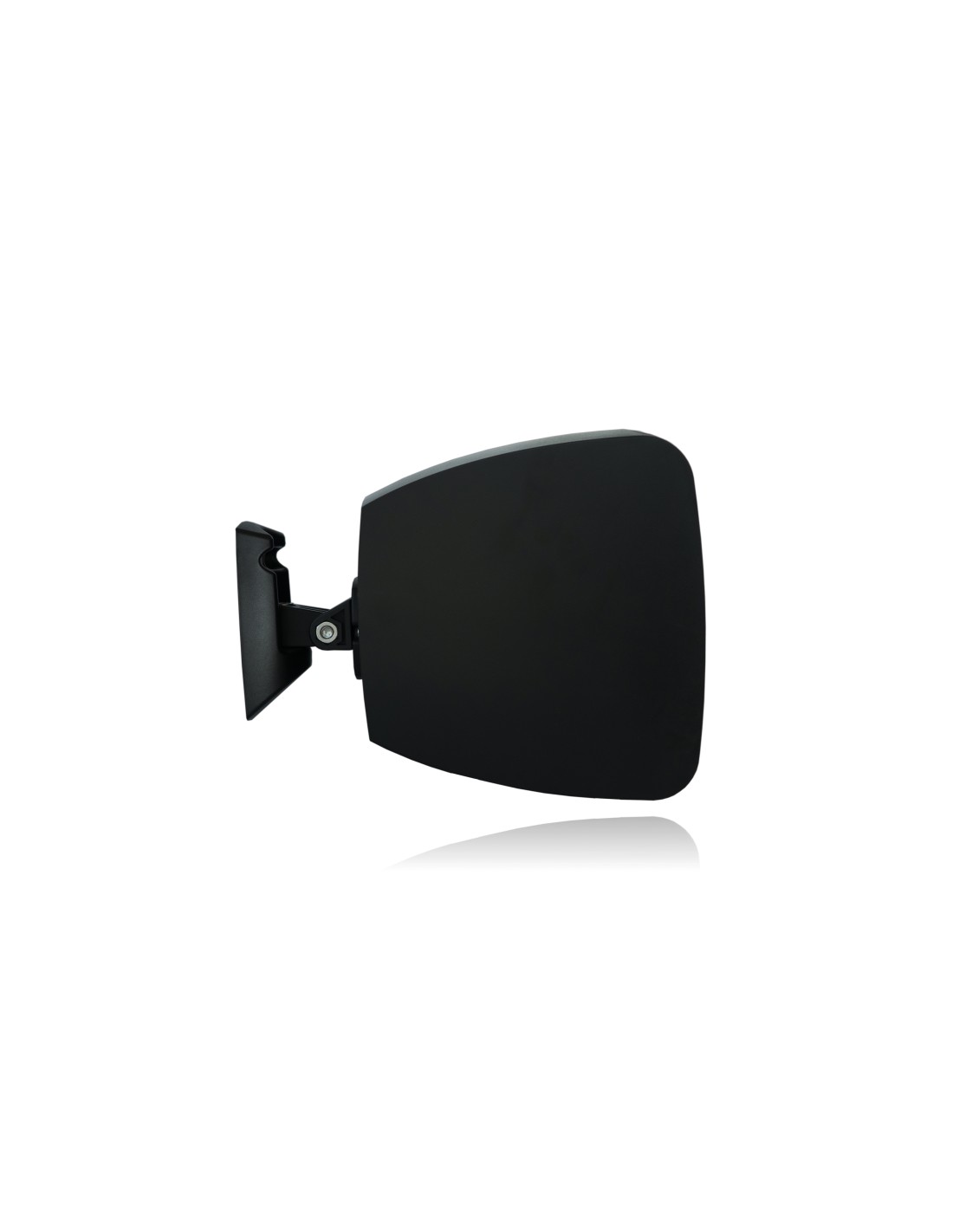

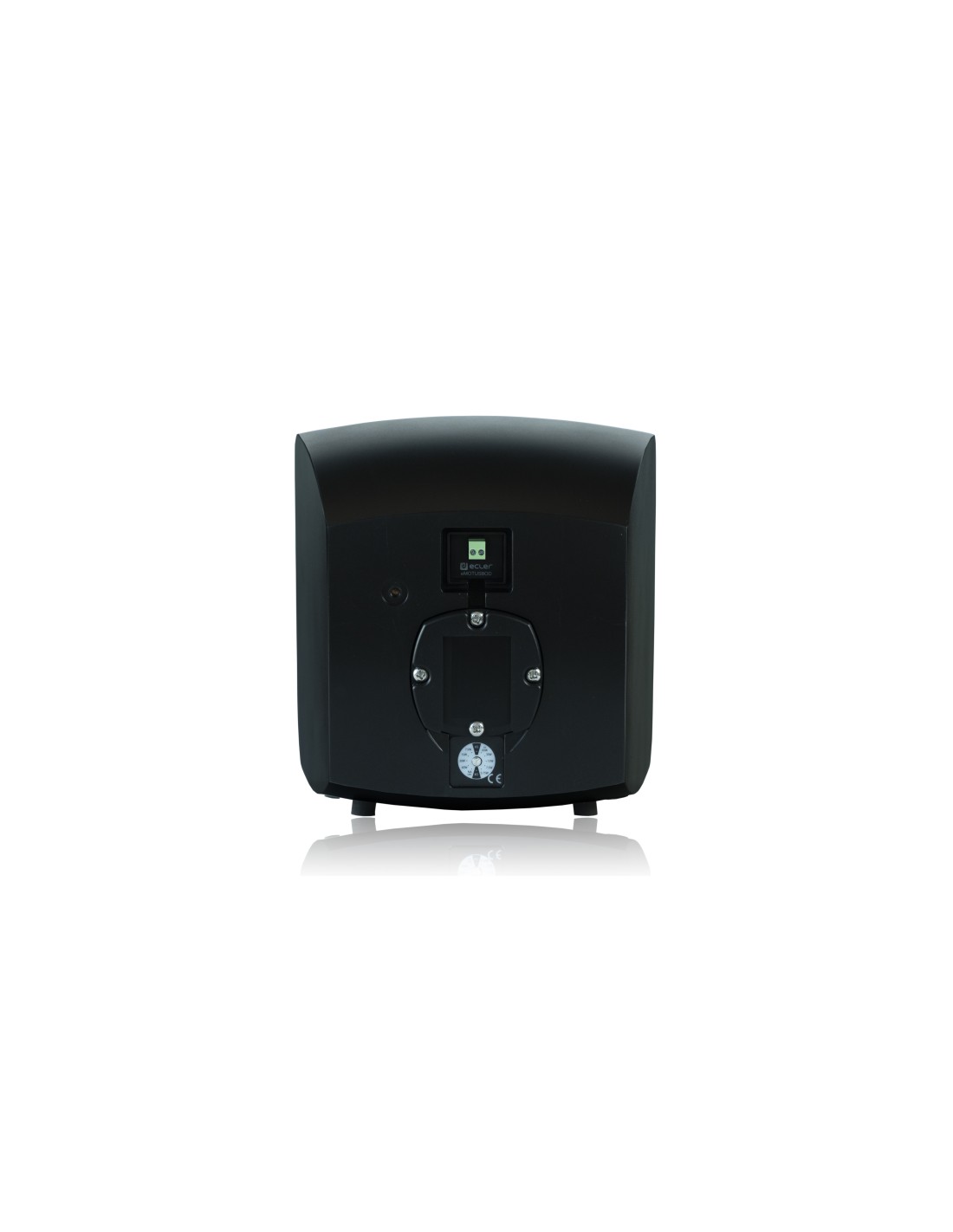

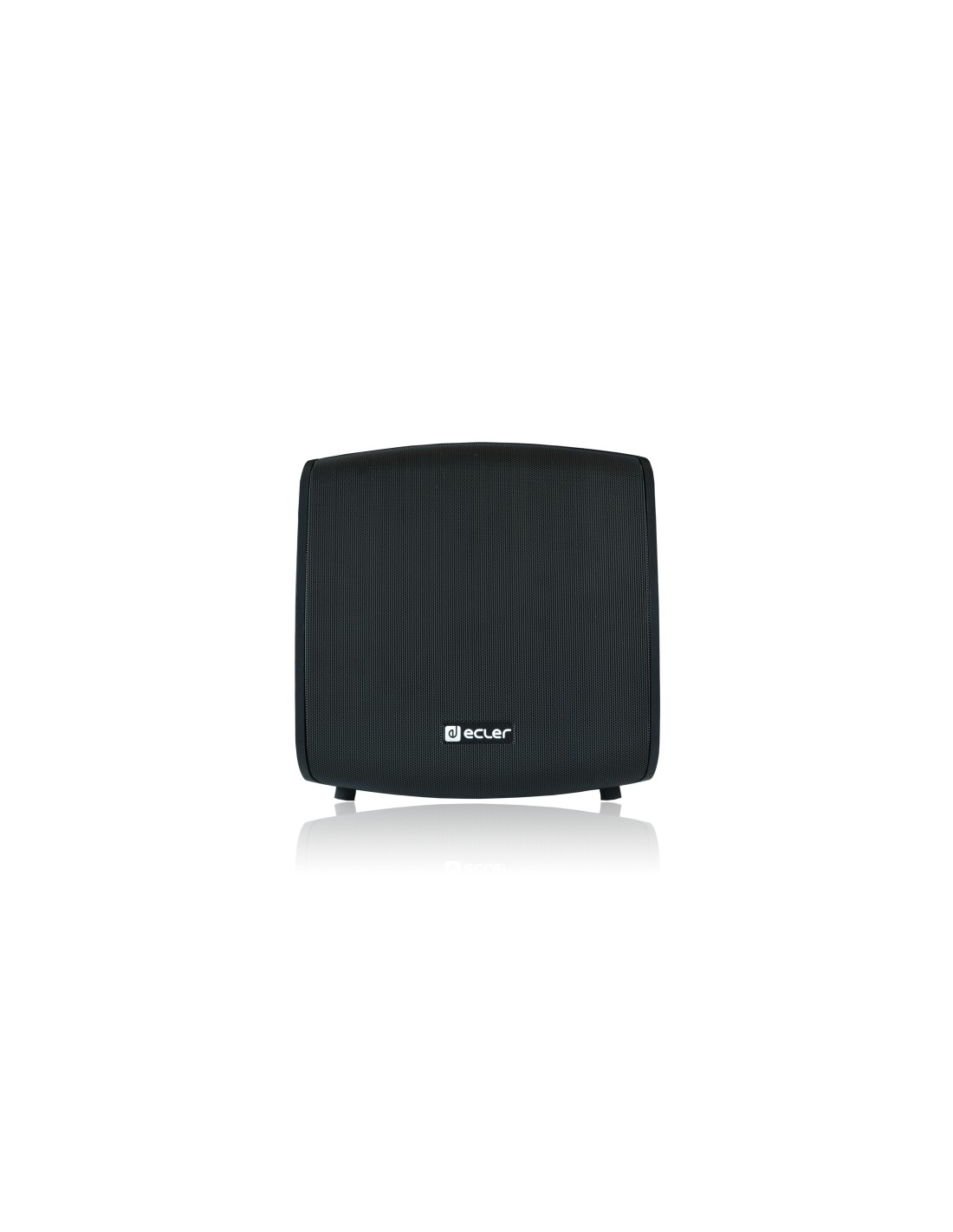

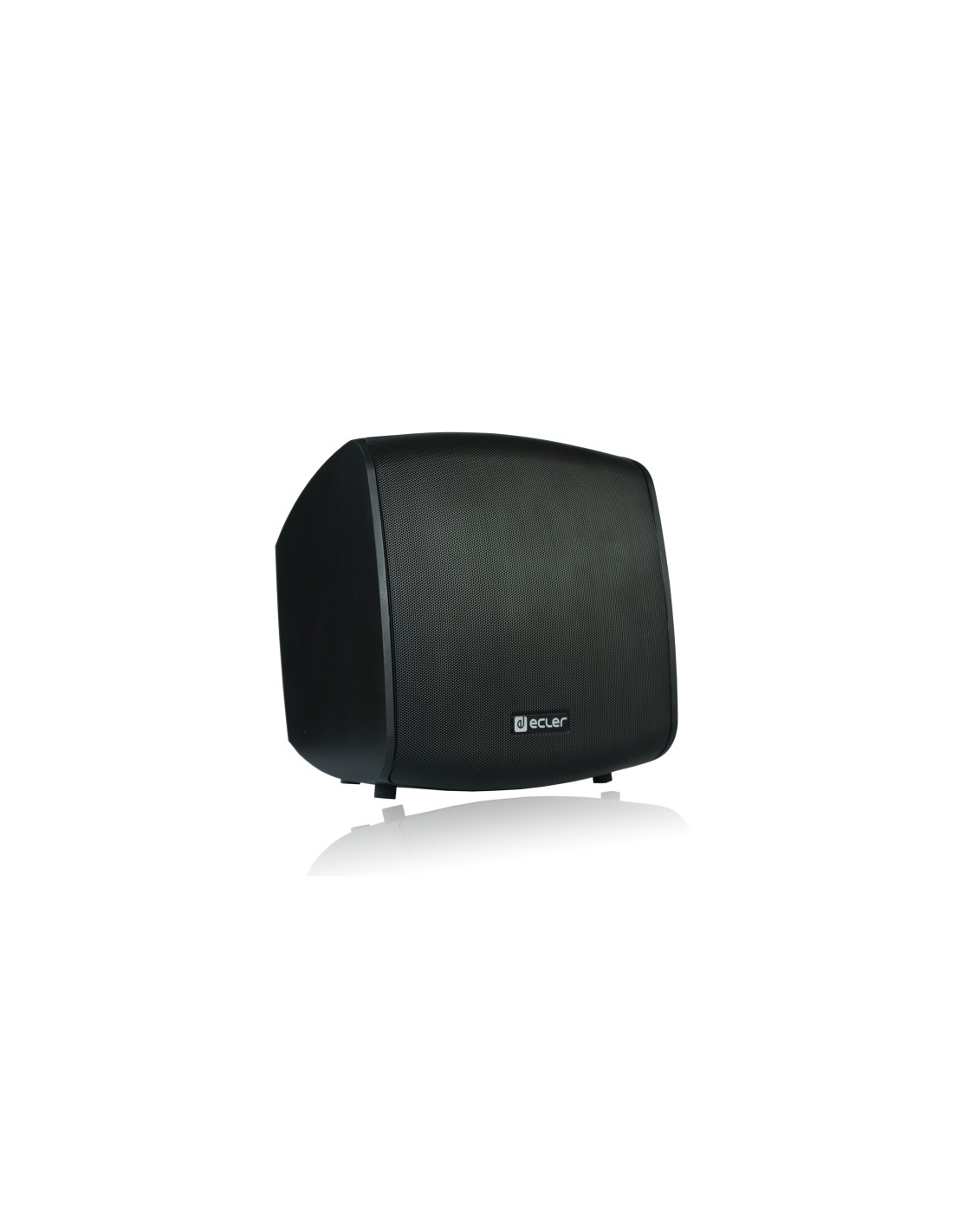

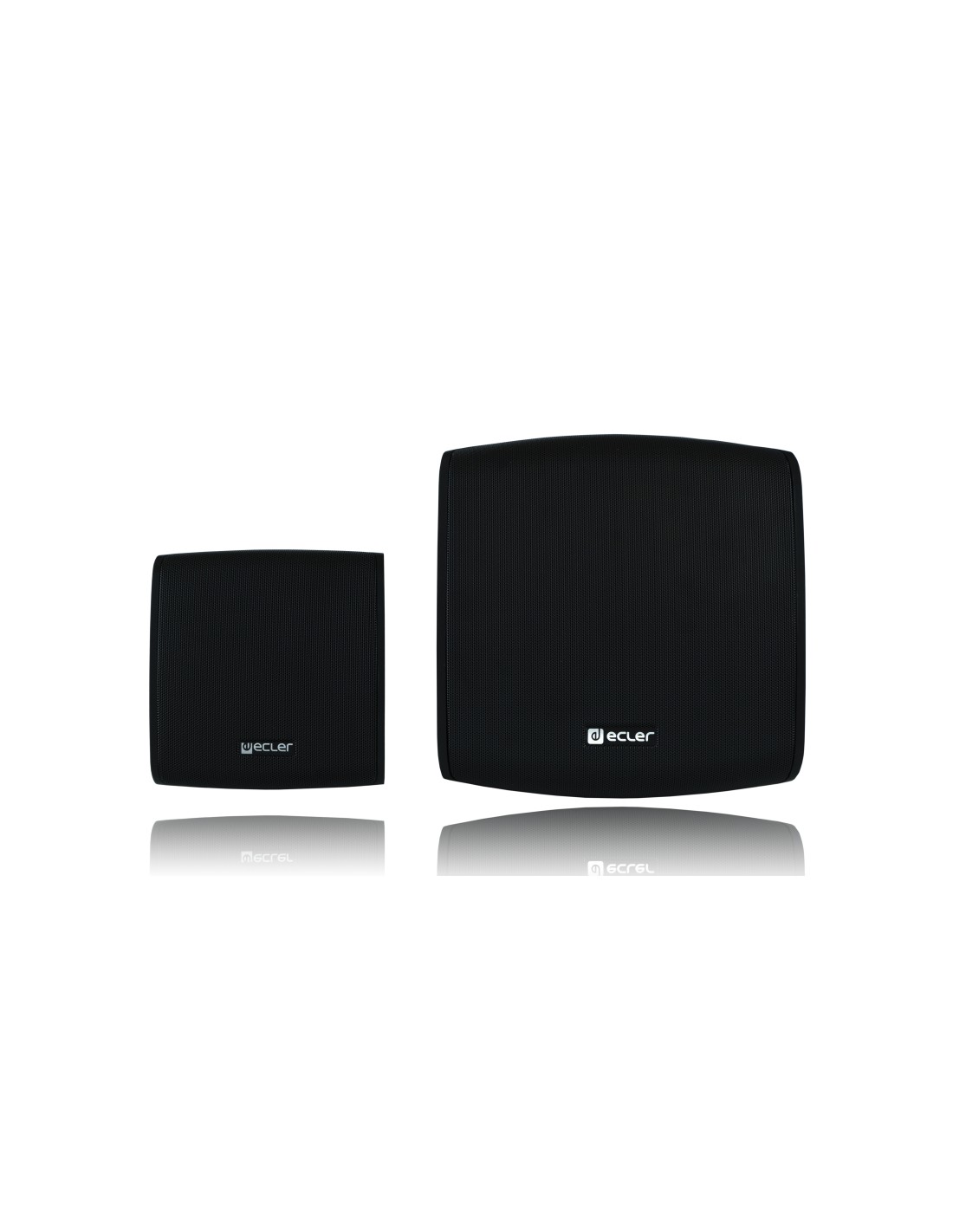

eMOTUS8OD BK
CEMOTUS8ODBK
Available
8" | 2-way | 100 WRMS | IP65 | outdoors
eMOTUS8OD is a 2-way full range loudspeaker cabinet with eMOTUS unique design. It features an 8” woofer and 1.4" tweeter and it’s suitable for low and high impedance lines, with different power tap options.
It is ready for indoor and outdoor applications, thanks to its aluminium grill and UV protection treatment (IP65-rated). Wall mount accessories and safety sling are included for an easy and secure installation.
- Effective Freq. Range
- 65 Hz-20 kHz (-10dB)
- Coverage angle / Dispersion
- 142°x142° (HxV)
- Power handling
- 100 W RMS / 400 W Peak
- Sensitivity
- 88 dB (1W/1m)
- Maximum SPL
- 108 db continuous / 114 dB peak
- Recommended amplifier power
- 200 W RMS
- Ways
- 2-ways full range
- Low frequency driver
- 8" woofer
- High frequency driver
- 1" tweeter
1.4" tweeter - Nominal impedance
- 8Ω
- Environmental
- IP65 rated
- Enclosure material
- ABS
- Grille material
- Aluminium
- Operating temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -20°C ; -4°F
Max: 70°C ; 158°F
- Operating humidity
- 85% HR
<85% HR
- Storage temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -20°C ; -4°F
Max: 70°C ; 158°F
- Storage humidity
- 90% HR
<90% HR
- Included accessories
- Wall-mount bracket, security steel cable
- Finished colour
- White (RAL 9003) or Black (RAL 9005)
- Dimensions
- 264 x 269 x 234 mm / 10.39 x 10.59 x 9.21 in. (WxHxD)
Including brackets: 264 x 269 x 322 mm / 10.39 x 10.59 x 12.68 in. (WxHxD) - Weight
- 4.25 kg / 9.37 lb
including accessories:
4.75 kg / 10.47 lb
- Pieces per box
- Sold in pairs
- Shipping dimensions
- 720 x 390 x 300 mm / 28.35 x 15.35 x 11.81 in. (WxHxD)
- Shipping weight
- 5.3 kg / 11.68 lb
- Status
- New
- Origin Production
- China
- EAN code
- BK: 8435071307918
WH: 8435071307871 - Tariff code
- 8518220000
- Shipping Location
- Spain
- Width (cm)
- 72.00
- Height (cm)
- 39.00
- Depth (cm)
- 30.00
- Vol. (dm3)
- 84.24
- Gross Weight (kg)
- 5.30
- Net Weight (kg)
- 4.25
- Format
- Unit
- Warranty (months)
- 36
- Mounting system
- Cabinet
- Power options (Hi Z Multi-tap)
- 100V: 60W / 30W / 15W / 7,5W / 8Ω
70V: 60W / 30W / 15W / 7,5W / 3,75W / 8Ω
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
65 Hz-20 kHz (-10dB) |
|---|---|
| Coverage angle / Dispersion |
142°x142° (HxV) |
| Power handling |
100 W RMS / 400 W Peak |
| Sensitivity |
88 dB (1W/1m) |
| Maximum SPL |
108 db continuous / 114 dB peak |
| Recommended amplifier power |
200 W RMS |
| Power options (Hi Z Multi-tap) |
100V: 60W / 30W / 15W / 7,5W / 8Ω
70V: 60W / 30W / 15W / 7,5W / 3,75W / 8Ω |
TRANSDUCERS
| Ways |
2-ways full range |
|---|---|
| Low frequency driver |
8" woofer |
| High frequency driver |
1" tweeter 1.4" tweeter |
| Nominal impedance |
8Ω |
PHYSICAL
| Environmental |
IP65 rated |
|---|---|
| Enclosure material |
ABS |
| Grille material |
Aluminium |
| Operating temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -20°C ; -4°F Max: 70°C ; 158°F |
| Operating humidity |
<85% HR
85% HR |
| Storage temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -20°C ; -4°F Max: 70°C ; 158°F |
| Storage humidity |
<90% HR
90% HR |
| Included accessories |
Wall-mount bracket, security steel cable |
| Finished colour |
White (RAL 9003) or Black (RAL 9005) |
| Dimensions |
264 x 269 x 234 mm / 10.39 x 10.59 x 9.21 in. (WxHxD)
Including brackets: 264 x 269 x 322 mm / 10.39 x 10.59 x 12.68 in. (WxHxD) |
| Weight |
4.25 kg / 9.37 lb
including accessories:
4.75 kg / 10.47 lb
|
| Pieces per box |
Sold in pairs |
| Shipping dimensions |
720 x 390 x 300 mm / 28.35 x 15.35 x 11.81 in. (WxHxD) |
| Shipping weight |
5.3 kg / 11.68 lb |
| Format |
Unit |
| Mounting system |
Cabinet |
LOGISTICS
| Status |
New |
|---|---|
| Origin Production |
China |
| EAN code |
BK: 8435071307918
WH: 8435071307871 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain |
| Width (cm) |
72.00 |
| Height (cm) |
39.00 |
| Depth (cm) |
30.00 |
| Vol. (dm3) |
84.24 |
| Gross Weight (kg) |
5.30 |
| Net Weight (kg) |
4.25 |
| Warranty (months) |
36 |
