eMOTUS5P WH
CEMOTUS5PWHC
Available
5" | 2-way | 2x25 WRMS | powered | stereo kit

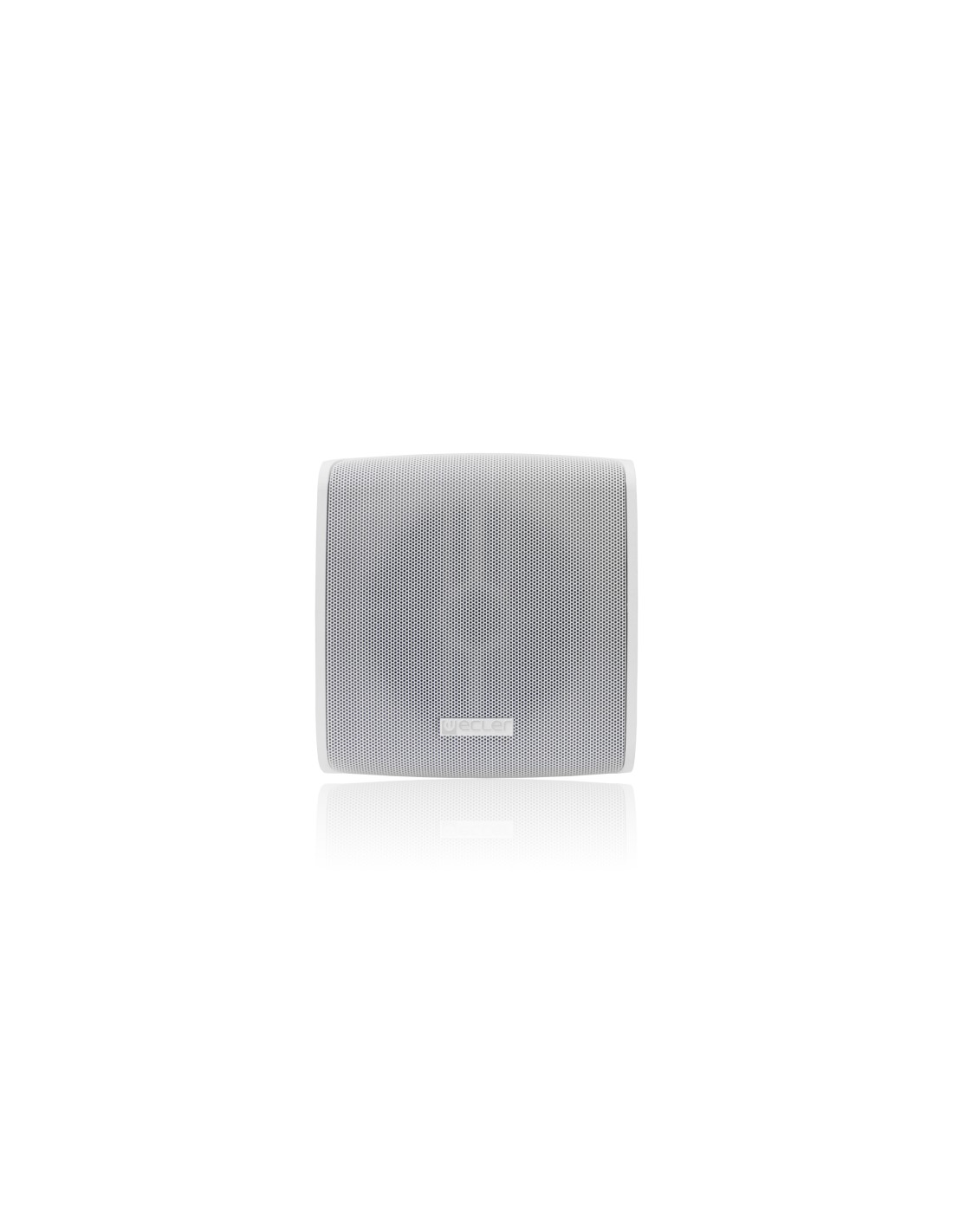

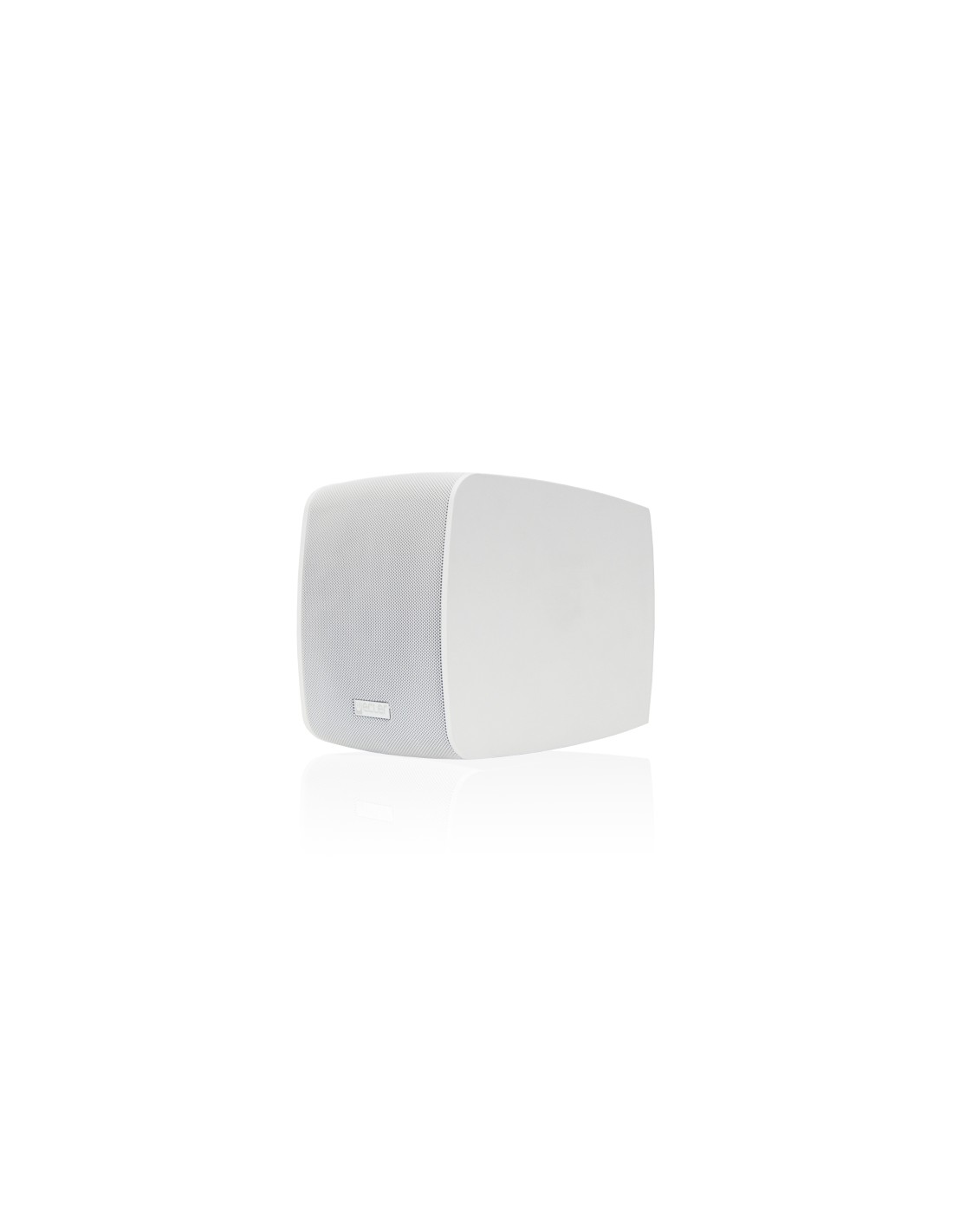

eMOTUS5P is a stereo loudspeaker kit including an active and a passive cabinet and performing 2 audio inputs: balanced and unbalanced. A professional and compact loudspeaker stereo kit, a user-friendly and cost-effective formula with a fantastic performance and a unique design that will easily fit in a massive number of multimedia applications: education classrooms, corporate meeting rooms, retail stores, etc. Available in black and white colours.
- Effective Freq. Range
- 85Hz – 20kHz (-10dB)
- Coverage angle / Dispersion
- 120°x120° (HxV)
- Power handling
- 25 W RMS / 100 W Peak
- Sensitivity
- 77 dB (1W/1m)
77 dB (1W/1m) - TBC - Maximum SPL
- 91 dB continuous / 97 dB peak
91 dB continuous / 97 dB peak - TBC - Recommended amplifier power
- 50 W RMS
- Ways
- 2 ways
- Low frequency driver
- 5" woofer
- High frequency driver
- 1" tweeter
- Nominal impedance
- 8Ω

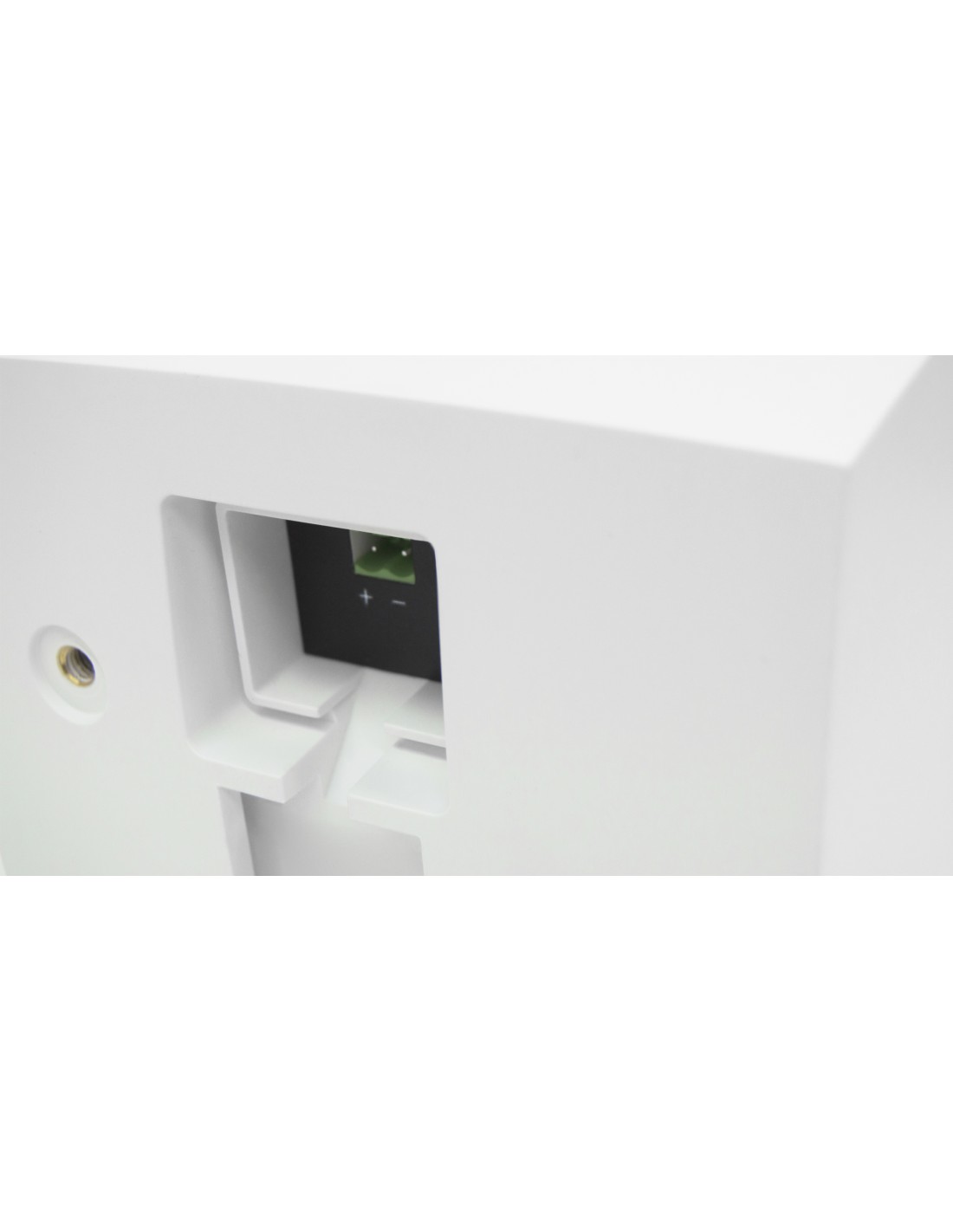

- Connection type
- Euroblock and RCA
- Enclosure material
- ABS

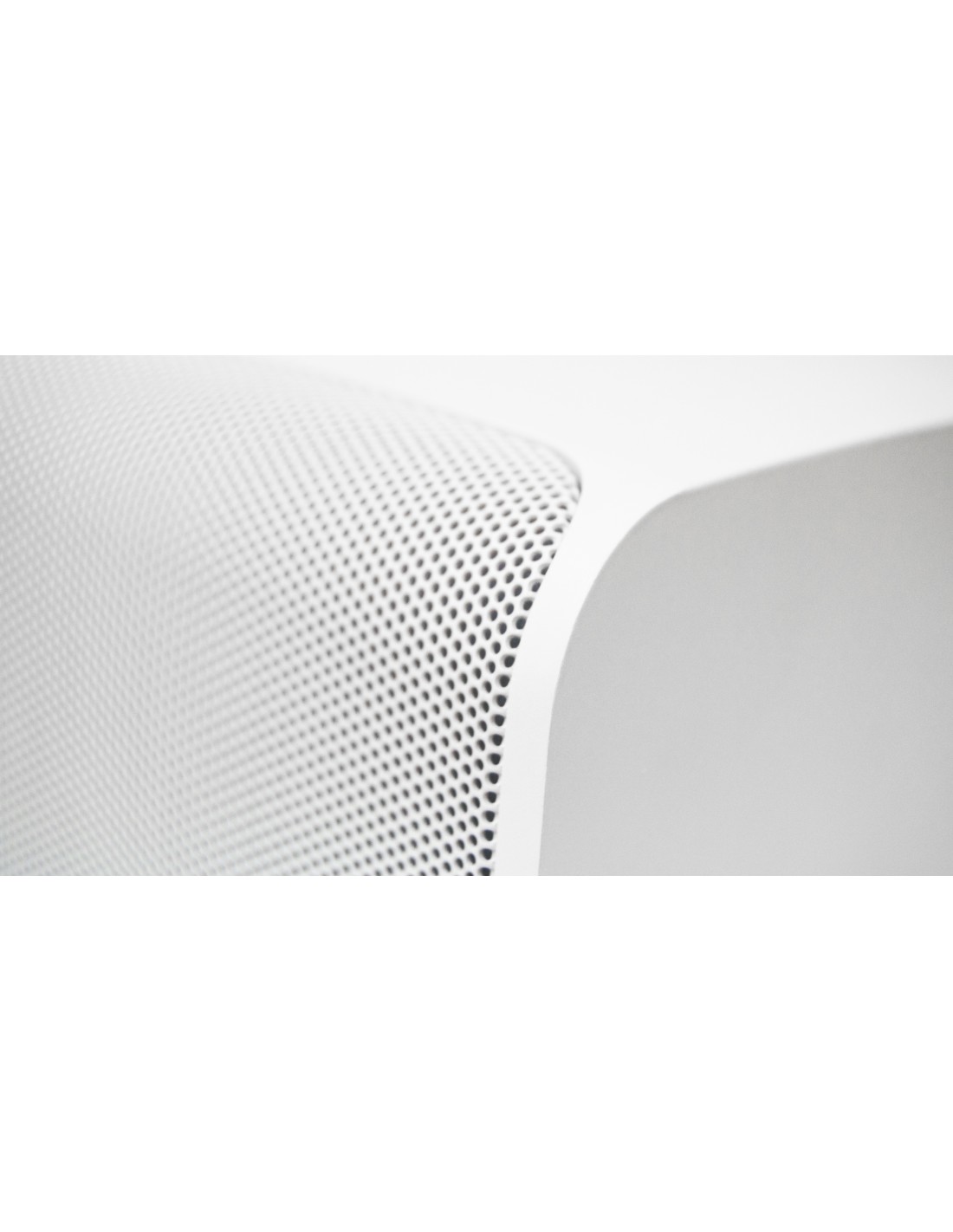

- Grille material
- Aluminium
- Operating temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -20°C ; -4°F
Max: 70°C ; 158°F
- Operating humidity
- 85% HR
<85% HR - Storage temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -20°C ; -4°F
Max: 70°C ; 158°F
- Storage humidity
- 90% HR
<90% HR - Included accessories

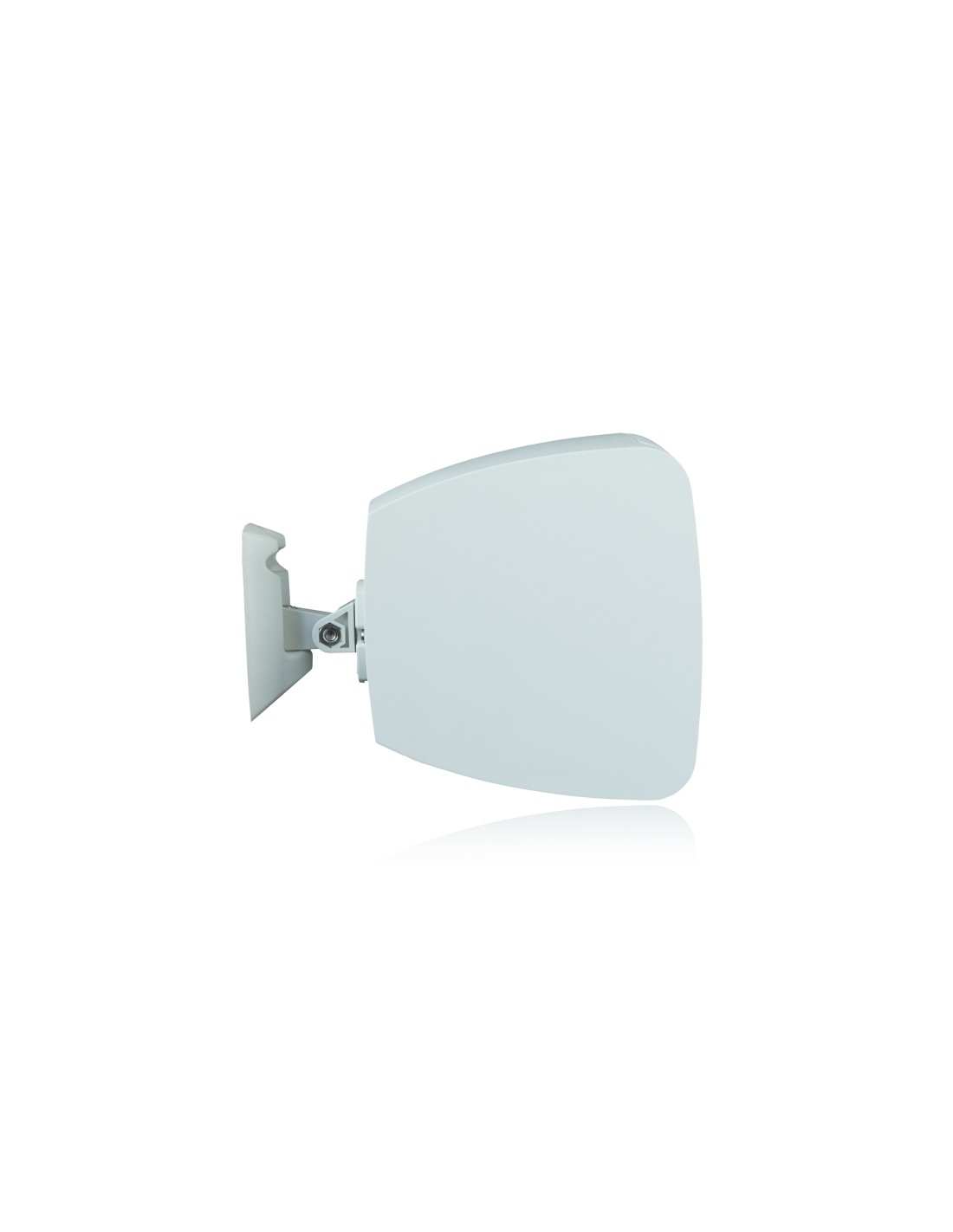

- Wall bracket and security steel cable
- Finished colour
- Available in black (RAL9005) and white (RAL9003)
White (RAL 9003) - Dimensions
- Not including brackets: 173 x 180 x 181mm / 6.81 x 7.09 x 7.13 in. (WxHxD)
Including brackets: 173 x 180 x 249 mm / 6.81 x 7.09 x 9.80 in. (WxHxD)
- Weight
- 4.2 kg / 9.26 lb
4.5 kg / 9.92 lb (including bracket) - Pieces per box
- Unit
- Shipping dimensions
- 230 x 220 x 460 mm / 9.06 x 8.66 x 18.11 in. (WxHxD)
- Shipping weight
- 5.7 kg / 12.57 lb
- Status
- Descat
- Origin Production
- China
- EAN code
- WH: 8435071306096
WH: 8435071308427 - Tariff code
- 8518220000
- Shipping Location
- Spain
- Width (cm)
- 23.00
- Height (cm)
- 22.00
- Depth (cm)
- 46.00
- Vol. (dm3)
- 23.28
- Gross Weight (kg)
- 5.70
- Net Weight (kg)
- 4.78
- Format
- Unit
- Warranty (months)
- 36
- Input sensitivity
- 525mV/22k Ω
- CMRR
- ≥80dB
- Power consumption
- 1/8 power @ 8ohm: ≤10.5W
1/3 power @ 8ohm: ≤23W - Mounting system
- Cabinet
- Power
- 2 x 25 W RMS / 100 W Peak

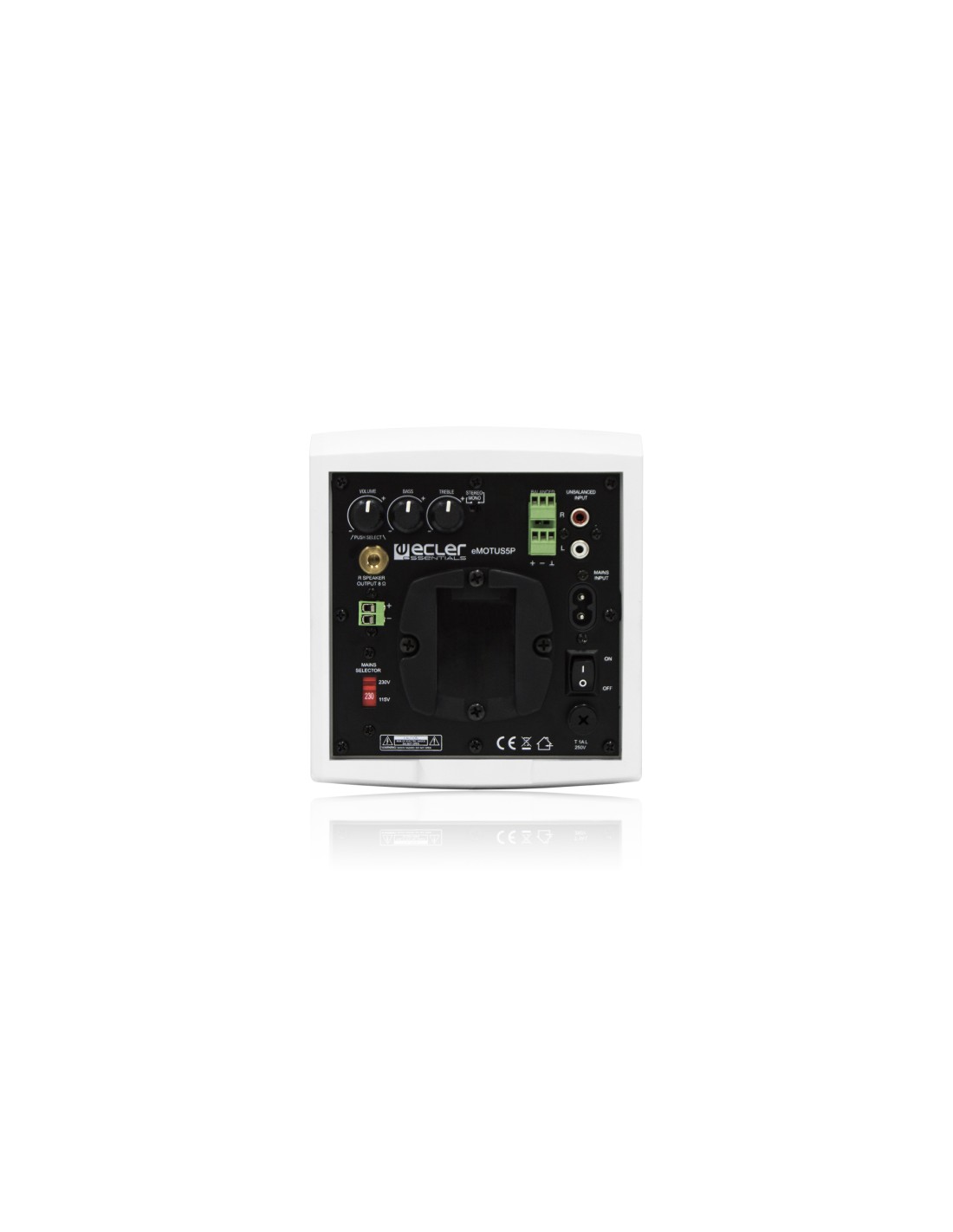

- Audio inputs
- 1x balanced, 1x unbalanced (stereo/mono switch)
- Mains
- 115 / 230VAC (selectable)
- THD + Noise
- ≤0.5% @ 1kHz Full PWR
- Tone control
- ±14dB
- Volume control
- TBC
- Signal Noise Ratio
- TBC
- Power consumption standby
- ≤3W
- Auto standby time
- 2'30" (if Auto Standby is ON)
TBC - Auto standby threshold
- TBC
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
85Hz – 20kHz (-10dB) |
|---|---|
| Coverage angle / Dispersion |
120°x120° (HxV) |
| Power handling |
25 W RMS / 100 W Peak |
| Sensitivity |
77 dB (1W/1m) - TBC 77 dB (1W/1m) |
| Maximum SPL |
91 dB continuous / 97 dB peak - TBC 91 dB continuous / 97 dB peak |
| Recommended amplifier power |
50 W RMS |
TRANSDUCERS
| Ways |
2 ways |
|---|---|
| Low frequency driver |
5" woofer |
| High frequency driver |
1" tweeter |
| Nominal impedance |
8Ω |
PHYSICAL
| Connection type |
Euroblock and RCA |
|---|---|
| Enclosure material |
ABS |
| Grille material |
Aluminium |
| Operating temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F Min: -20°C ; -4°F Max: 70°C ; 158°F |
| Operating humidity |
<85% HR 85% HR |
| Storage temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F Min: -20°C ; -4°F Max: 70°C ; 158°F |
| Storage humidity |
<90% HR 90% HR |
| Included accessories |
Wall bracket and security steel cable |
| Finished colour |
White (RAL 9003) Available in black (RAL9005) and white (RAL9003) |
| Dimensions |
Not including brackets: 173 x 180 x 181mm / 6.81 x 7.09 x 7.13 in. (WxHxD)
Including brackets: 173 x 180 x 249 mm / 6.81 x 7.09 x 9.80 in. (WxHxD)
|
| Weight |
4.2 kg / 9.26 lb
4.5 kg / 9.92 lb (including bracket) |
| Pieces per box |
Unit |
| Shipping dimensions |
230 x 220 x 460 mm / 9.06 x 8.66 x 18.11 in. (WxHxD) |
| Shipping weight |
5.7 kg / 12.57 lb |
| Format |
Unit |
| Mounting system |
Cabinet |
POWERED
| Power |
2 x 25 W RMS / 100 W Peak |
|---|---|
| Audio inputs |
1x balanced, 1x unbalanced (stereo/mono switch) |
| Mains |
115 / 230VAC (selectable) |
| Signal Noise Ratio |
TBC |
LOGISTICS
| Status |
Descat |
|---|---|
| Origin Production |
China |
| EAN code |
WH: 8435071306096
WH: 8435071308427 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain |
| Width (cm) |
23.00 |
| Height (cm) |
22.00 |
| Depth (cm) |
46.00 |
| Vol. (dm3) |
23.28 |
| Gross Weight (kg) |
5.70 |
| Net Weight (kg) |
4.78 |
| Warranty (months) |
36 |
ELECTRICAL
| Power consumption |
1/8 power @ 8ohm: ≤10.5W
1/3 power @ 8ohm: ≤23W |
|---|---|
| Power consumption standby |
≤3W |
ANALOGUE AUDIO INPUTS
| Input sensitivity |
525mV/22k Ω |
|---|
MONITORING AND CONTROL
| Tone control |
±14dB |
|---|---|
| Volume control |
TBC |
| Auto standby time |
TBC 2'30" (if Auto Standby is ON) |
| Auto standby threshold |
TBC |
LINE INPUTS
| CMRR |
≥80dB |
|---|
LINE OUTPUTS
| THD + Noise |
≤0.5% @ 1kHz Full PWR |
|---|
