eMOTUS5PB WH
CEMOTUS5PBWC
Available
5" | 2-way | 2x25 WRMS | powered | BT | stereo kit

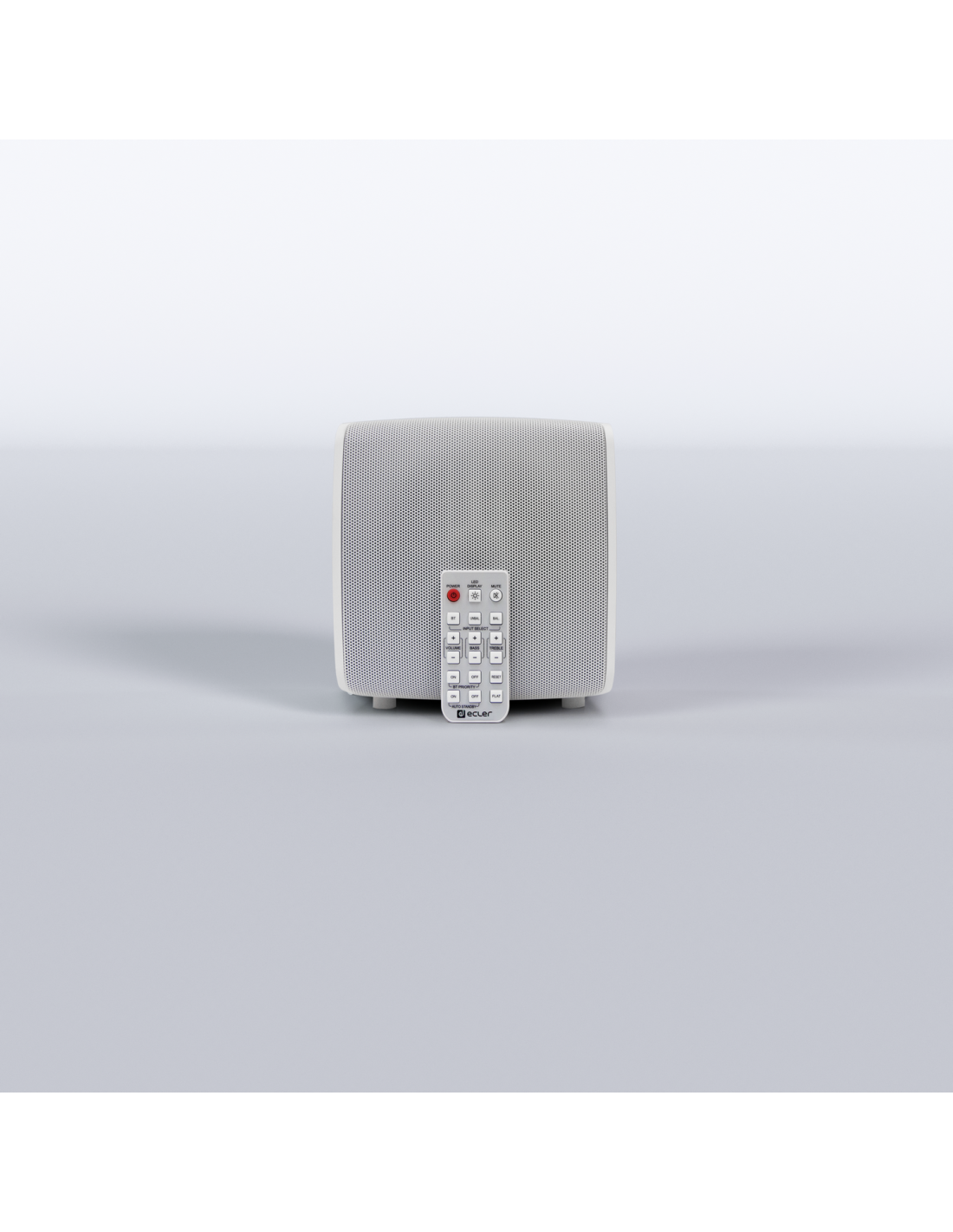

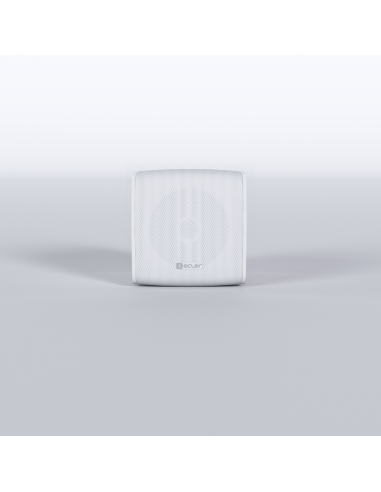

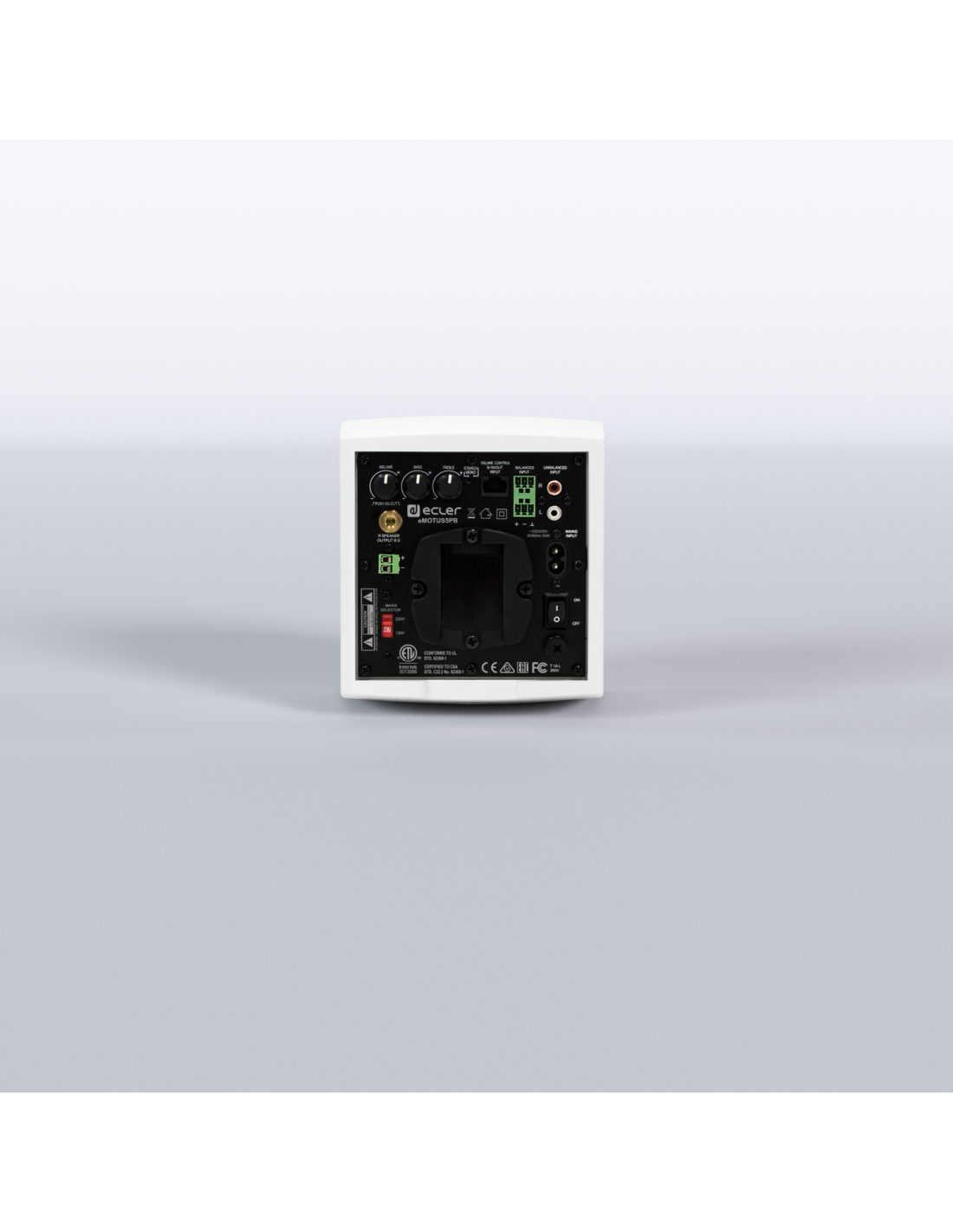

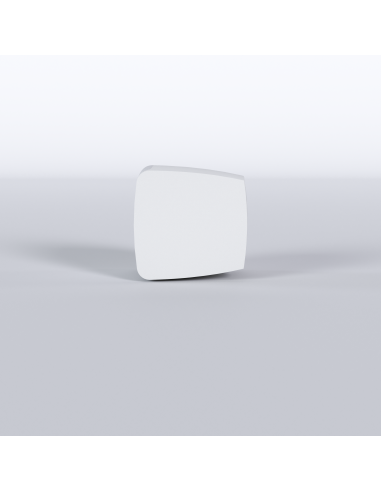

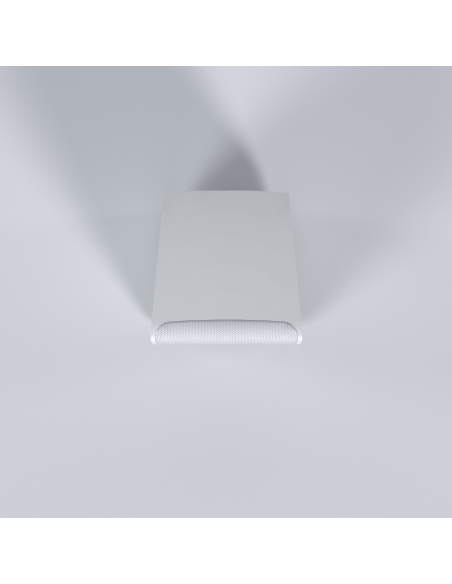

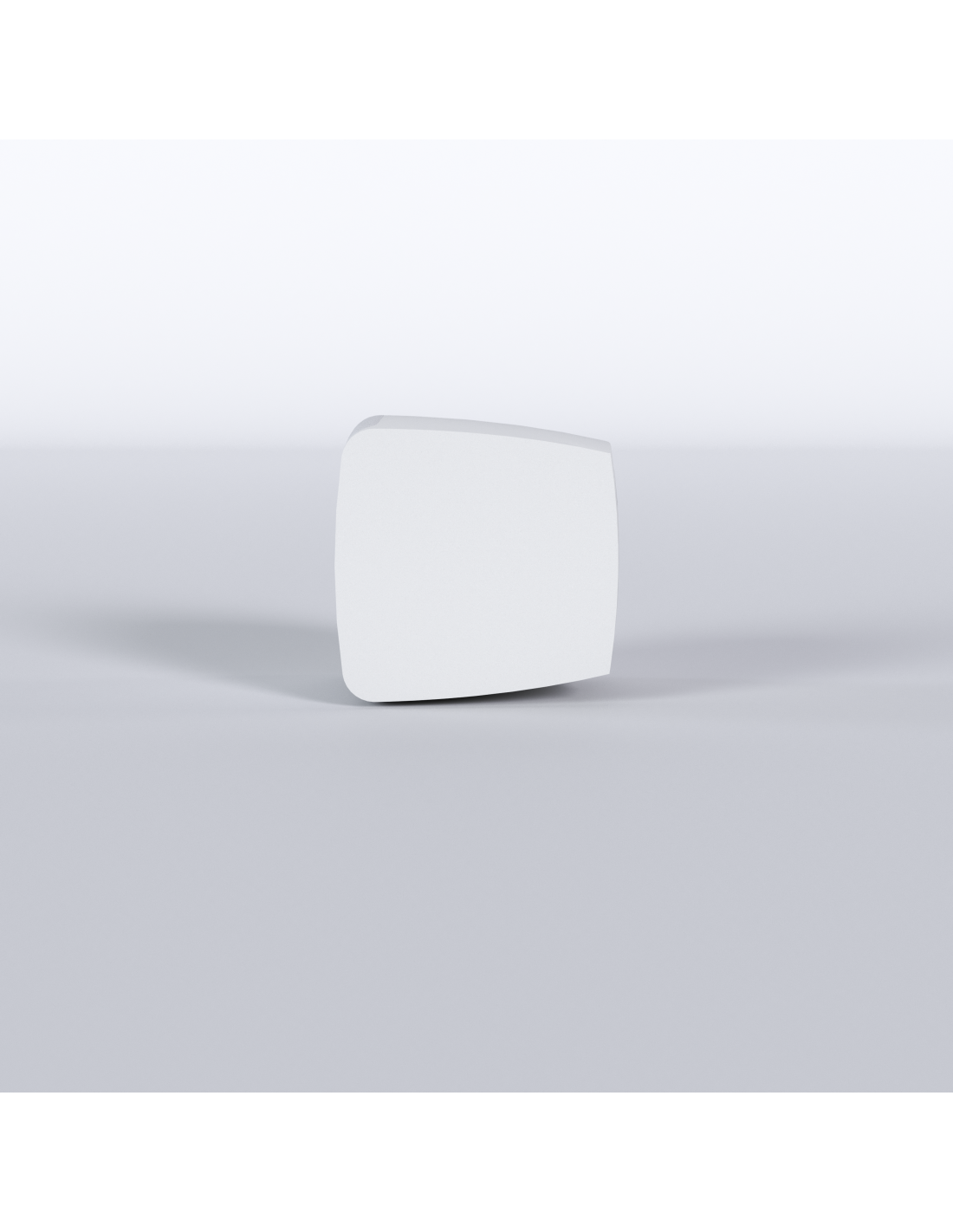

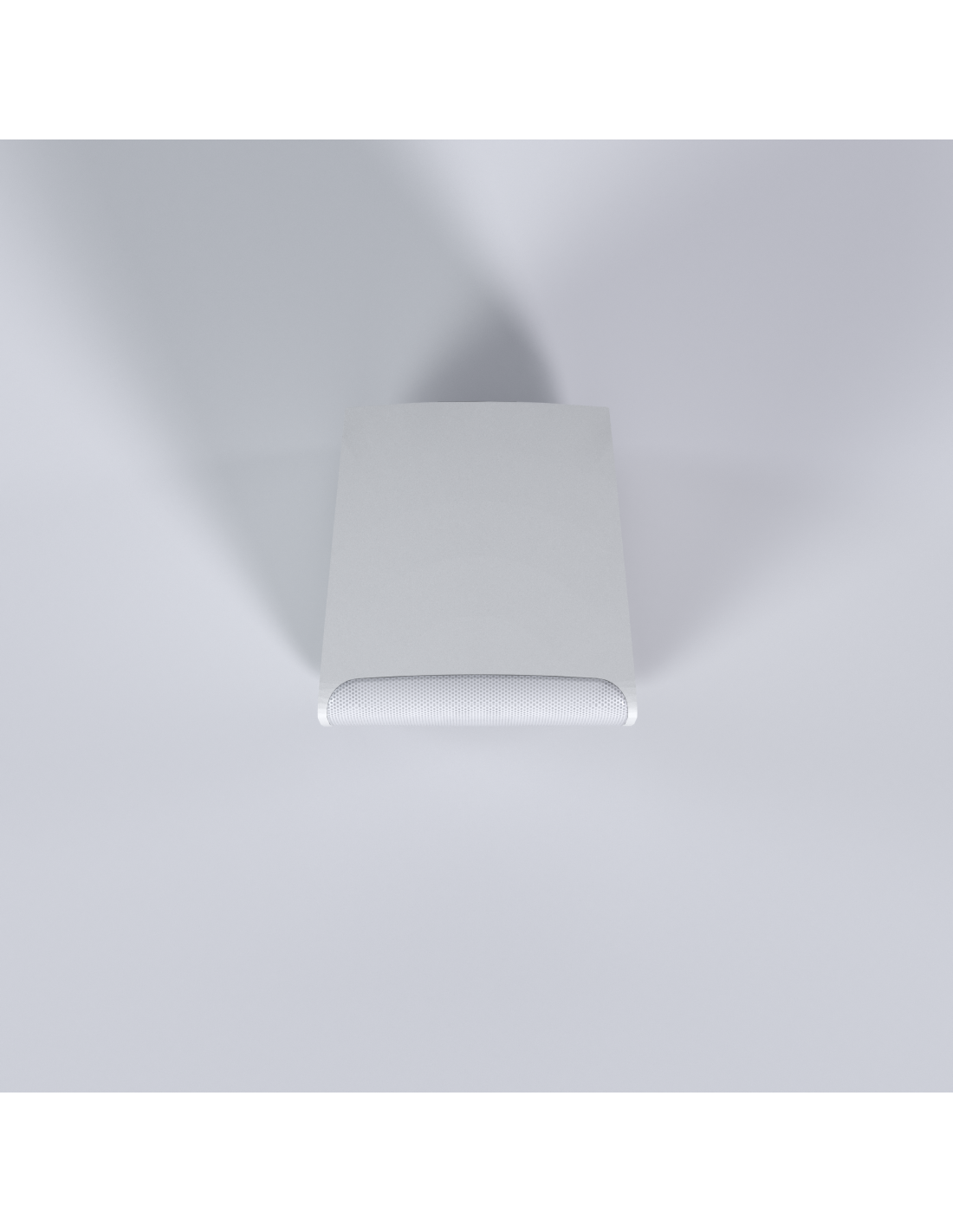

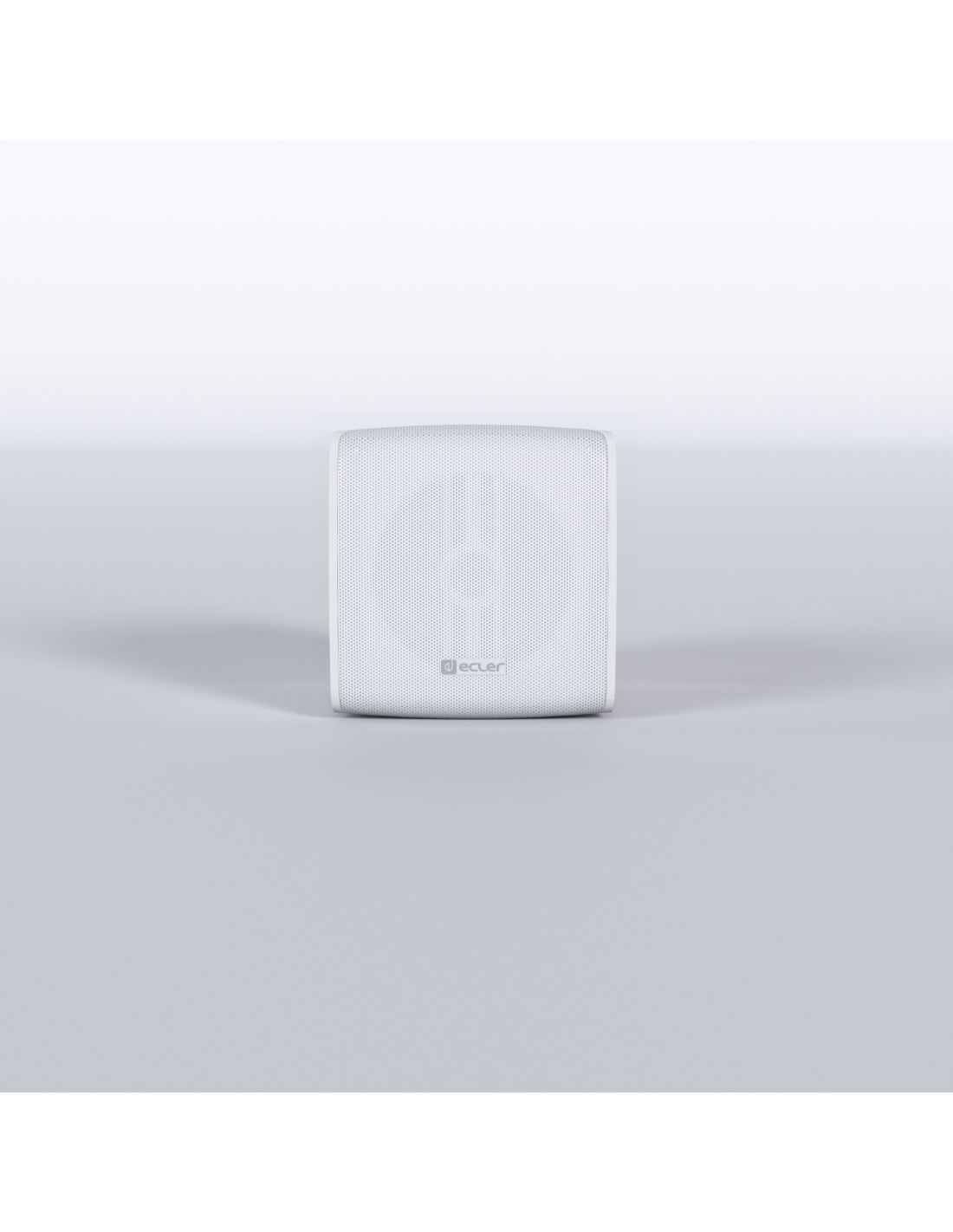

eMOTUS5PB is a stereo loudspeaker kit including an active and a passive cabinet. eMOTUS5PB performs BT connection, balanced and unbalanced audio inputs. Moreover, it includes an IR remote control and 0-10VDC remote port for volume control. A professional and compact loudspeaker stereo kit, a user-friendly and cost-effective formula with a fantastic performance and a unique design that will easily fit in a massive number of multimedia applications: education classrooms, corporate meeting rooms, retail stores, etc. Available in white colour.
- Effective Freq. Range
- 85Hz – 20kHz (-10dB)
- Coverage angle / Dispersion
- 124°x124° (HxV)
- Power handling
- 25W RMS / 100 W Peak
25W RMS / 100 W Peak - TBC - Sensitivity
- 77 dB (1W/1m)
77 dB (1W/1m) - TBC - Maximum SPL
- 91 dB continuous / 97 dB peak
- Recommended amplifier power
- 50 W RMS
- Ways
- 2 ways
- Low frequency driver
- 5" woofer
- High frequency driver
- 1" tweeter
- Nominal impedance
- 8Ω
- Connection type
- Euroblock and RCA
- Enclosure material
- ABS
- Grille material
- Aluminium
- Operating temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -20°C ; -4°F
Max: 70°C ; 158°F
- Operating humidity
- 85% HR
<85% HR - Storage temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -20°C ; -4°F
Max: 70°C ; 158°F
- Storage humidity
- 90% HR
<90% HR - Included accessories
- Remote control, wall bracket and security steel cable
- Finished colour
- White (RAL 9003)
- Dimensions
- Not including brackets: 173 x 180 x 181mm / 6.81 x 7.09 x 7.13 in. (WxHxD)
Including brackets: 173 x 180 x 249 mm / 6.81 x 7.09 x 9.80 in. (WxHxD) - Weight
- 4.8 kg / 10.58 lb
5.3 kg / 11.68 lb (including accessories) - Pieces per box
- Unit
- Shipping dimensions
- 230 x 220 x 460 mm / 9.06 x 8.66 x 18.11 in. (WxHxD)
- Shipping weight
- 5.7 kg / 12.57 lb
- Status
- New
- Origin Production
- China
- EAN code
- WH: 8435071308366
WH: 8435071306119 - Tariff code
- 8518220000
- Shipping Location
- Spain
- Width (cm)
- 23.00
- Height (cm)
- 22.00
- Depth (cm)
- 46.00
- Vol. (dm3)
- 23.28
- Gross Weight (kg)
- 5.70
- Net Weight (kg)
- 5.00
- Format
- Unit
- Warranty (months)
- 36
- Input sensitivity
- 525mV/22k Ω
- CMRR
- ≥80dB
- Power consumption
- 1/8 power @ 8ohm: ≤10.5W
1/3 power @ 8ohm: ≤23W - Mounting system
- Cabinet
- Power
- 2x25 W RMS / 100 W Peak
- Audio inputs
- 2 analogue audio inputs (balanced-Euroblock and unbalanced-RCA)
2 analogue audio inputs (balanced-Euroblock and unbalanced-RCA) + BT input - Mains
- 115 / 230VAC (selectable)
- THD + Noise
- ≤0.5% @ 1kHz Full PWR
- Tone control
- ±14dB
- Volume control
- Remote port (RJ-45) for volume control (WPaVOL compatible)
Remote port (RJ-45) for volume control (WPmVOL compatible) - Communication interfaces
- BT 4.0 module compliant
- Power consumption standby
- ≤3W
- Auto standby time
- 2'30" (if Auto Standby is ON)
