AMBIT-18 WH
CAMBIT18WH
Available
8" | 2-way | 100 WRMS | discreet design

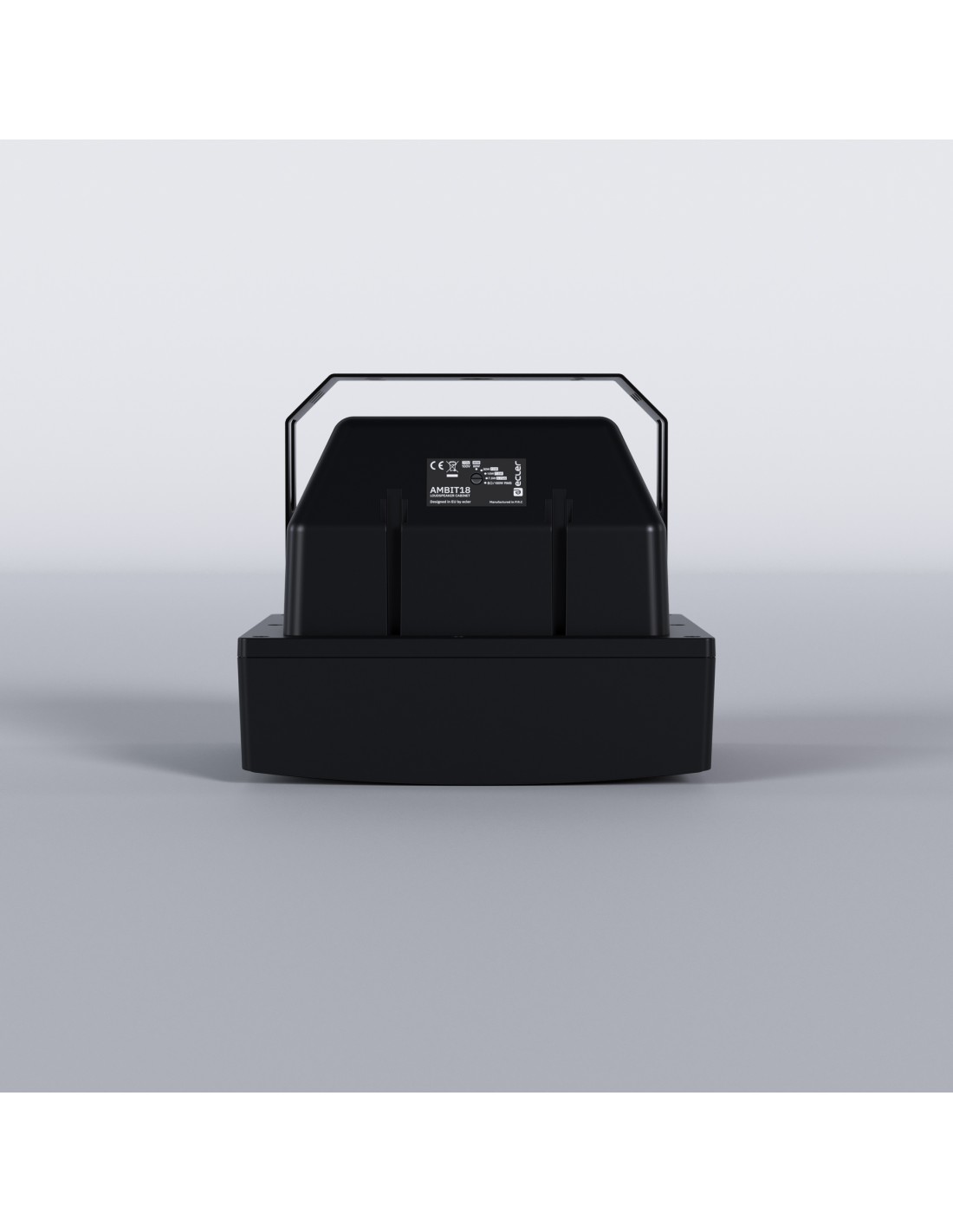

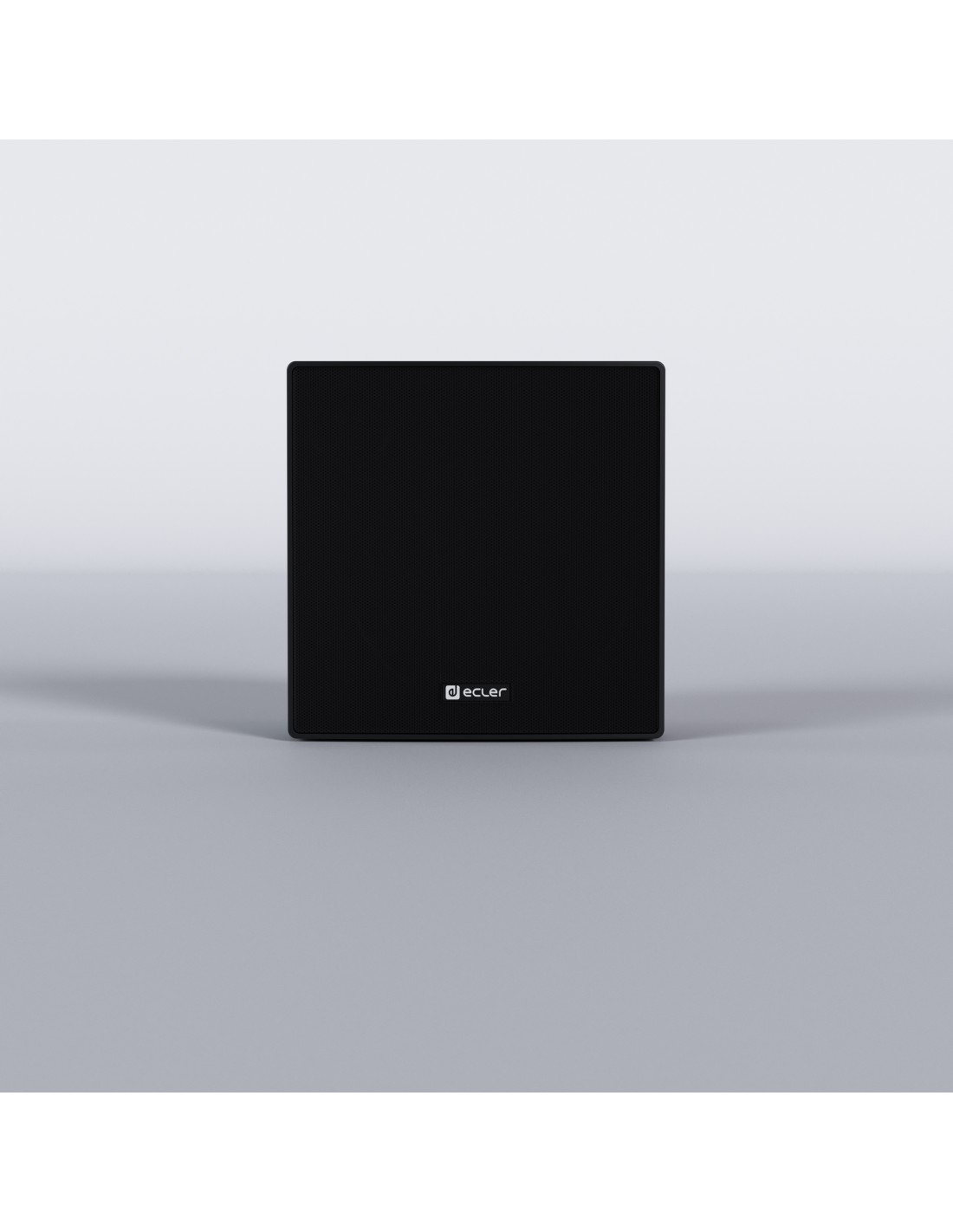

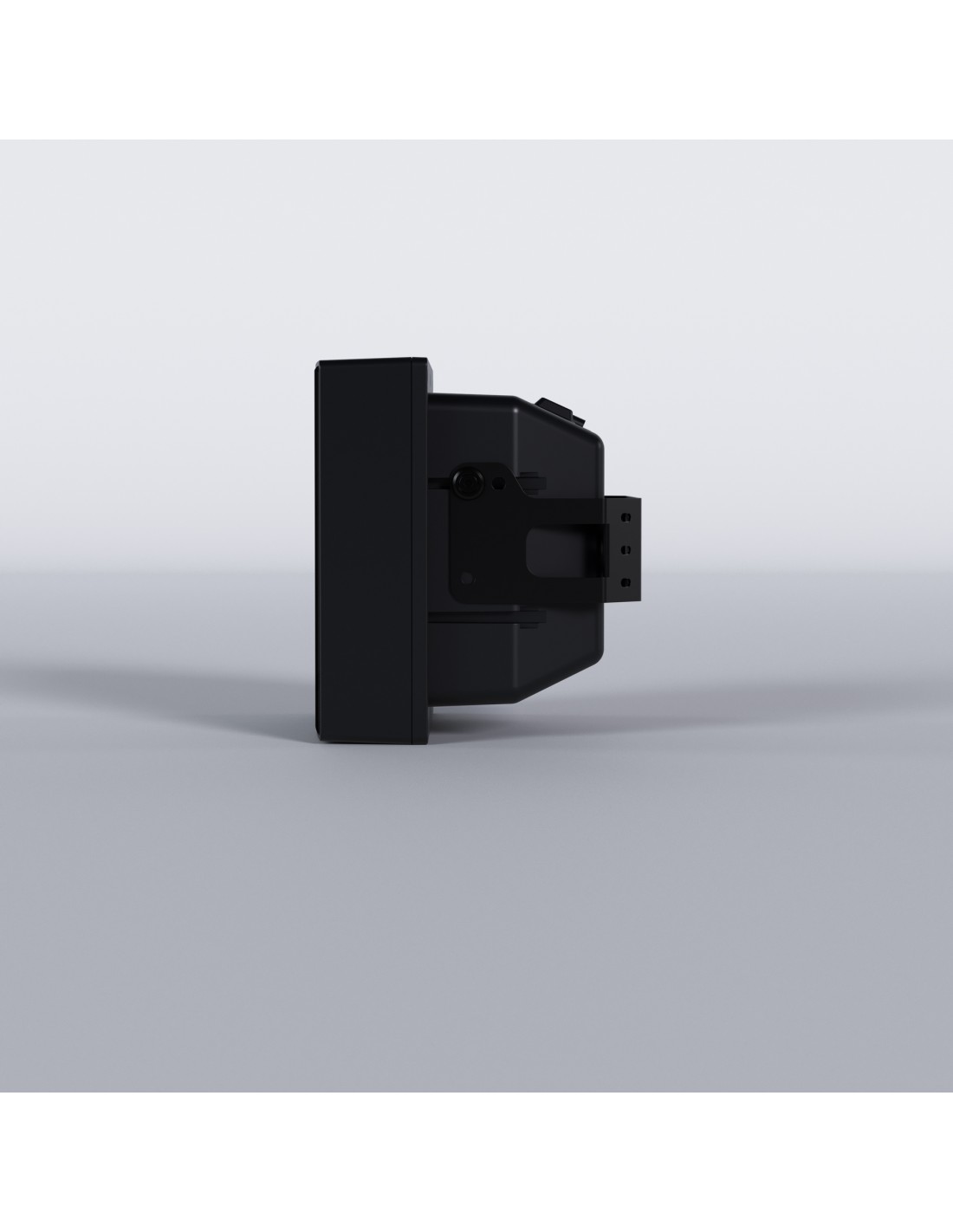

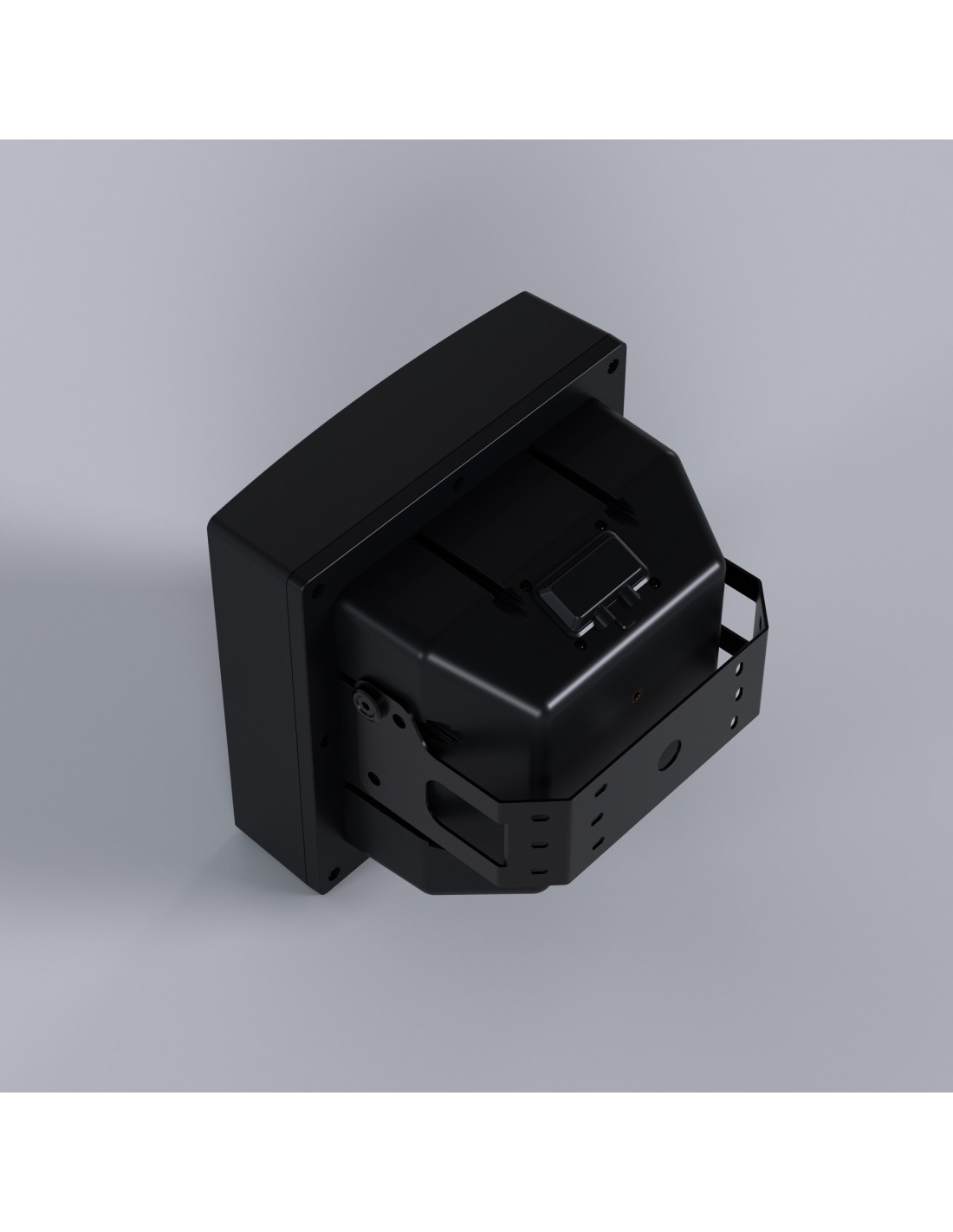

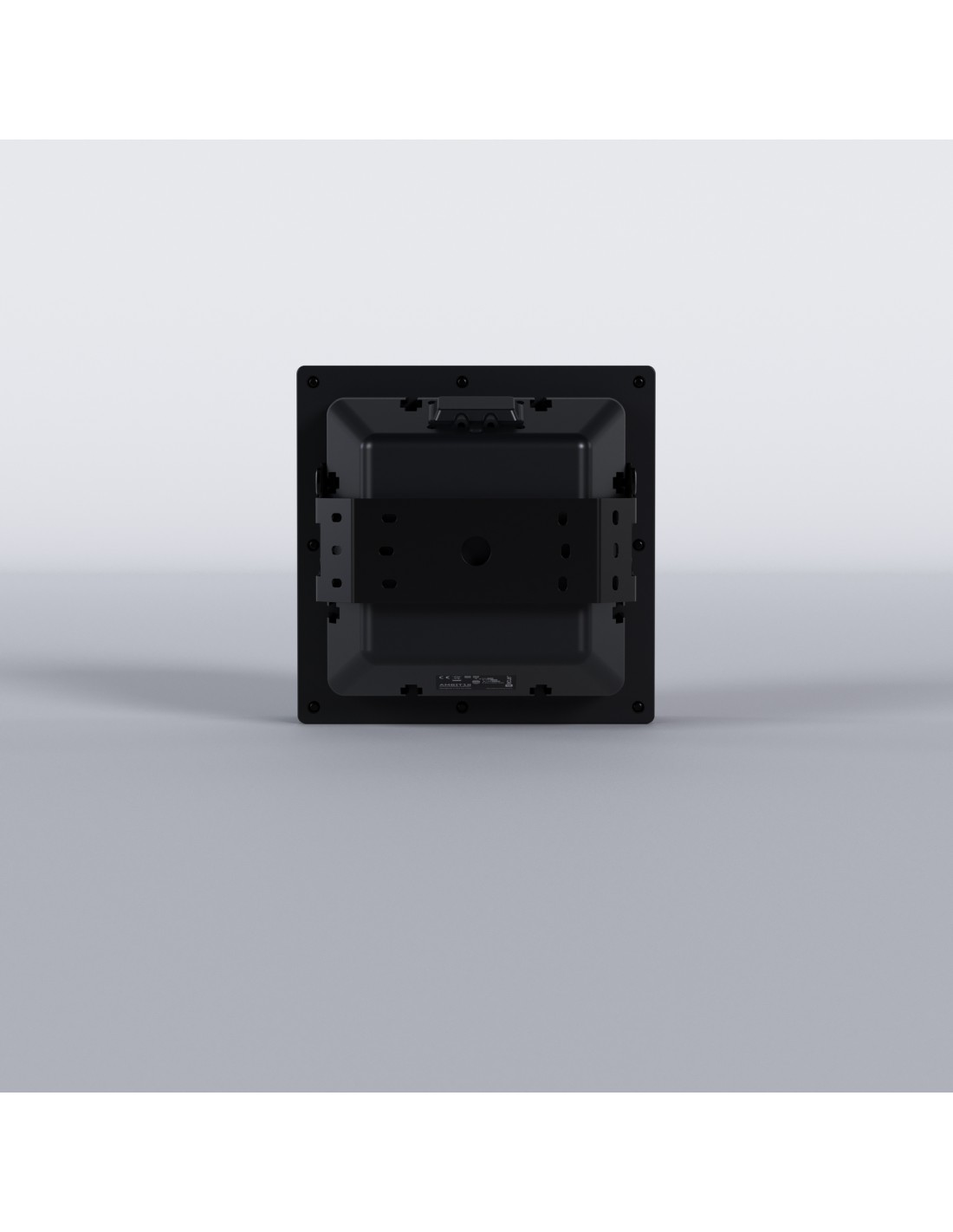

AMBIT-18 is a compact 2-way coaxial loudspeaker cabinet with neutral and discreet design. It mounts an 8” woofer and a 1.18" dome tweeter and it is suitable for low and high impedance lines. It is ready for indoor and outdoor applications, thanks to its aluminium grill and UV protection treatment (IP54-rated). Wall mount accessories and safety sling are included for an easy and secure installation.
- Effective Freq. Range
- 75Hz-20kHz (-10dB)
- Coverage angle / Dispersion
- 125°x120° (HxV)
- Power handling
- 100W RMS / 400W Peak
- Sensitivity
- 90dB (1W/1m)
- Maximum SPL
- 110dB continuous / 116dB peak
- Recommended amplifier power
- 200W RMS
- Ways
- 2-ways full range
- Low frequency driver
- 8" woofer
- High frequency driver
- 1.18" Dome Tweeter
- Nominal impedance
- 8Ω
- Crossover filter
- 2 KHz
- Connection type
- Spring loaded input terminals
- Installation options
- Surface (wall mount)
- Environmental
- IP54 rated
- Enclosure material
- ABS plastic
- Grille material
- Aluminium
- Operating temperature
- Min: -20°C ; -4°F
Max: 70°C ; 158°F
- Operating humidity
- 85% HR
- Storage temperature
- Min: -20°C ; -4°F
Max: 70°C ; 158°F
- Storage humidity
- 90% HR
- Included accessories
- Includes on-wall hardware, safety sling, screws and wrench for fast installation, and waterproof rubber cover for connectors
- Finished colour
- White (RAL 9016) / Black (RAL 9005)
- Dimensions
- 258 x 258 x 225 mm / 10.16 x 10.16 x 8.86 in (WxHxD)
- Weight
- 5.6 Kg / 12.35 lb
- Pieces per box
- 2
- Shipping dimensions
- 310 x 310 x 500 mm / 12.20 x 12.20 x 19.69 in (WxHxD)
- Shipping weight
- 12.10 Kg. / 26.68 lb
- Power options (Hi Z Multi-tap)
- 100V: 60W / 30W / 15W / 7.5W / 8Ω
70V: 30W / 15W / 7.5W / 3.75W / 8Ω
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
75Hz-20kHz (-10dB) |
|---|---|
| Coverage angle / Dispersion |
125°x120° (HxV) |
| Power handling |
100W RMS / 400W Peak |
| Sensitivity |
90dB (1W/1m) |
| Maximum SPL |
110dB continuous / 116dB peak |
| Recommended amplifier power |
200W RMS |
| Power options (Hi Z Multi-tap) |
100V: 60W / 30W / 15W / 7.5W / 8Ω
70V: 30W / 15W / 7.5W / 3.75W / 8Ω |
TRANSDUCERS
| Ways |
2-ways full range |
|---|---|
| Low frequency driver |
8" woofer |
| High frequency driver |
1.18" Dome Tweeter |
| Nominal impedance |
8Ω |
FILTERS
| Crossover filter |
2 KHz |
|---|
PHYSICAL
| Connection type |
Spring loaded input terminals |
|---|---|
| Installation options |
Surface (wall mount) |
| Environmental |
IP54 rated |
| Enclosure material |
ABS plastic |
| Grille material |
Aluminium |
| Operating temperature |
Min: -20°C ; -4°F
Max: 70°C ; 158°F
|
| Operating humidity |
85% HR |
| Storage temperature |
Min: -20°C ; -4°F
Max: 70°C ; 158°F
|
| Storage humidity |
90% HR |
| Included accessories |
Includes on-wall hardware, safety sling, screws and wrench for fast installation, and waterproof rubber cover for connectors |
| Finished colour |
White (RAL 9016) / Black (RAL 9005) |
| Dimensions |
258 x 258 x 225 mm / 10.16 x 10.16 x 8.86 in (WxHxD) |
| Weight |
5.6 Kg / 12.35 lb |
| Pieces per box |
2 |
| Shipping dimensions |
310 x 310 x 500 mm / 12.20 x 12.20 x 19.69 in (WxHxD) |
| Shipping weight |
12.10 Kg. / 26.68 lb |
