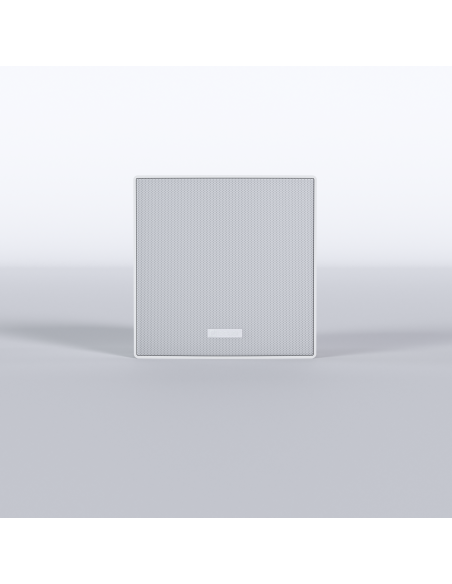

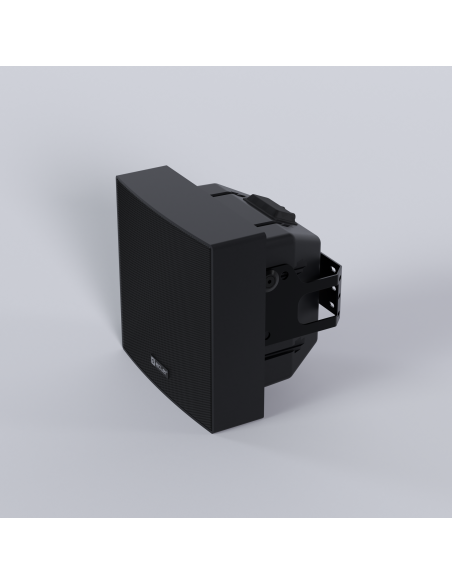

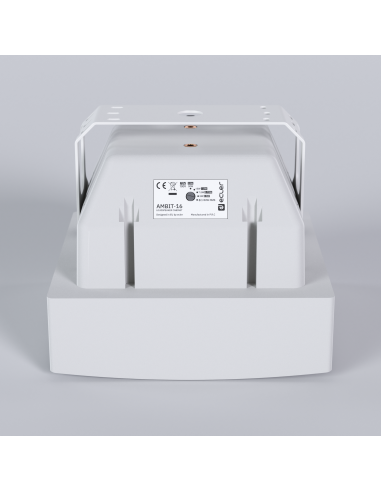

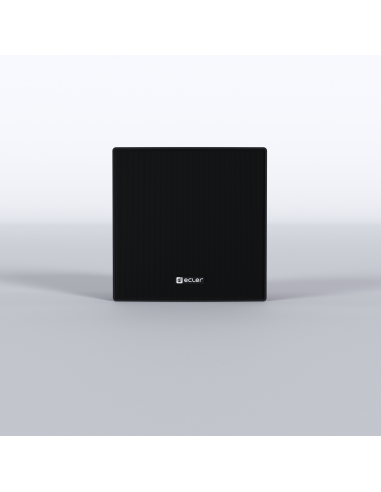

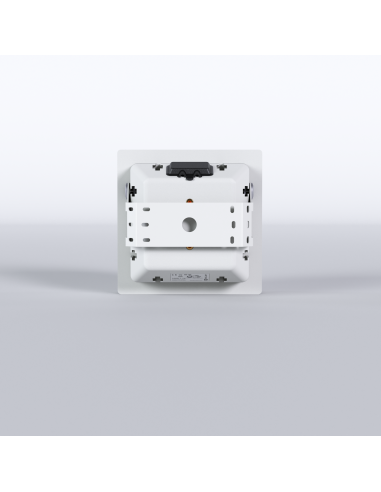

AMBIT-16 WH
CAMBIT16WH
Available
6.5" | 2-way | 50 WRMS | discreet design

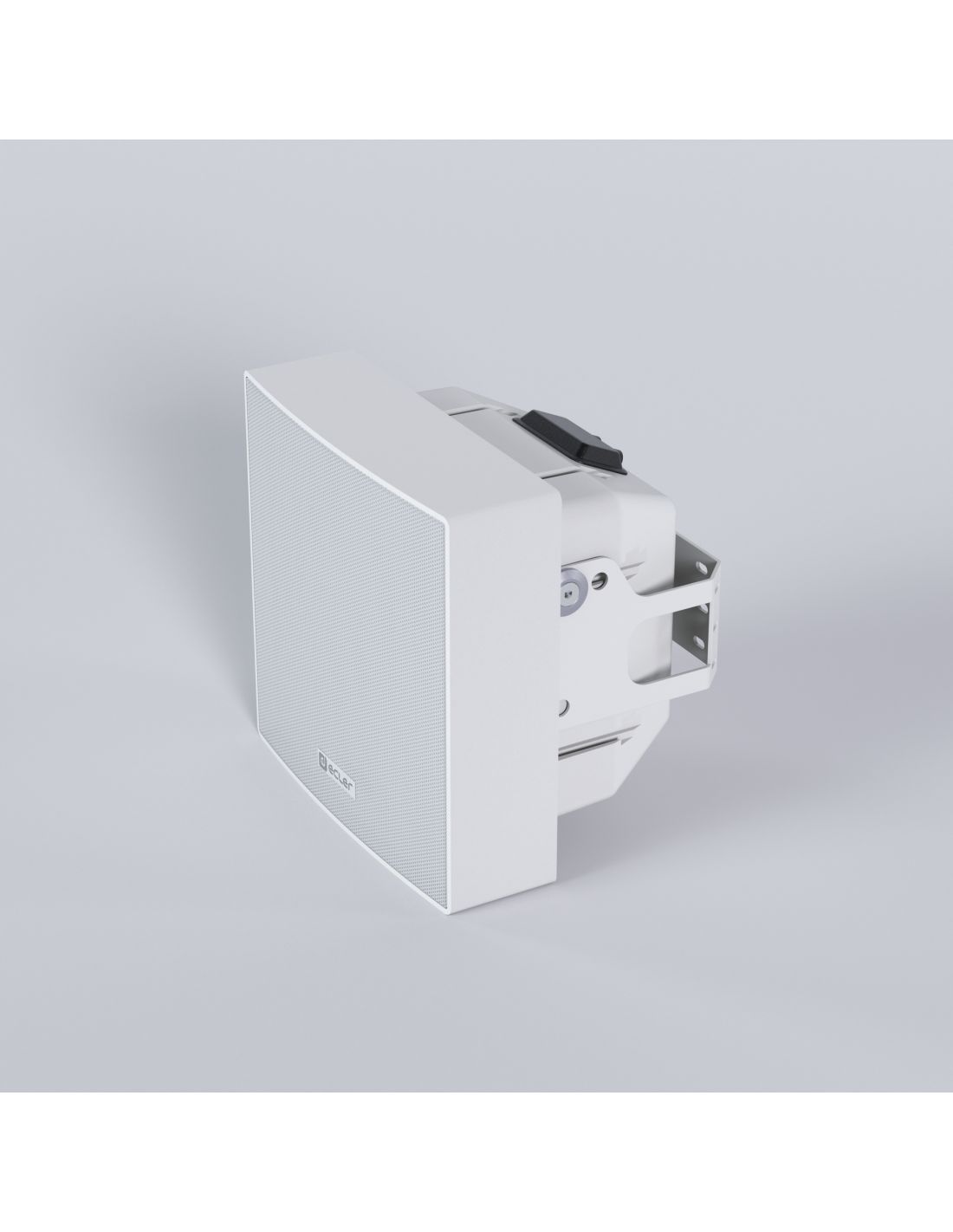

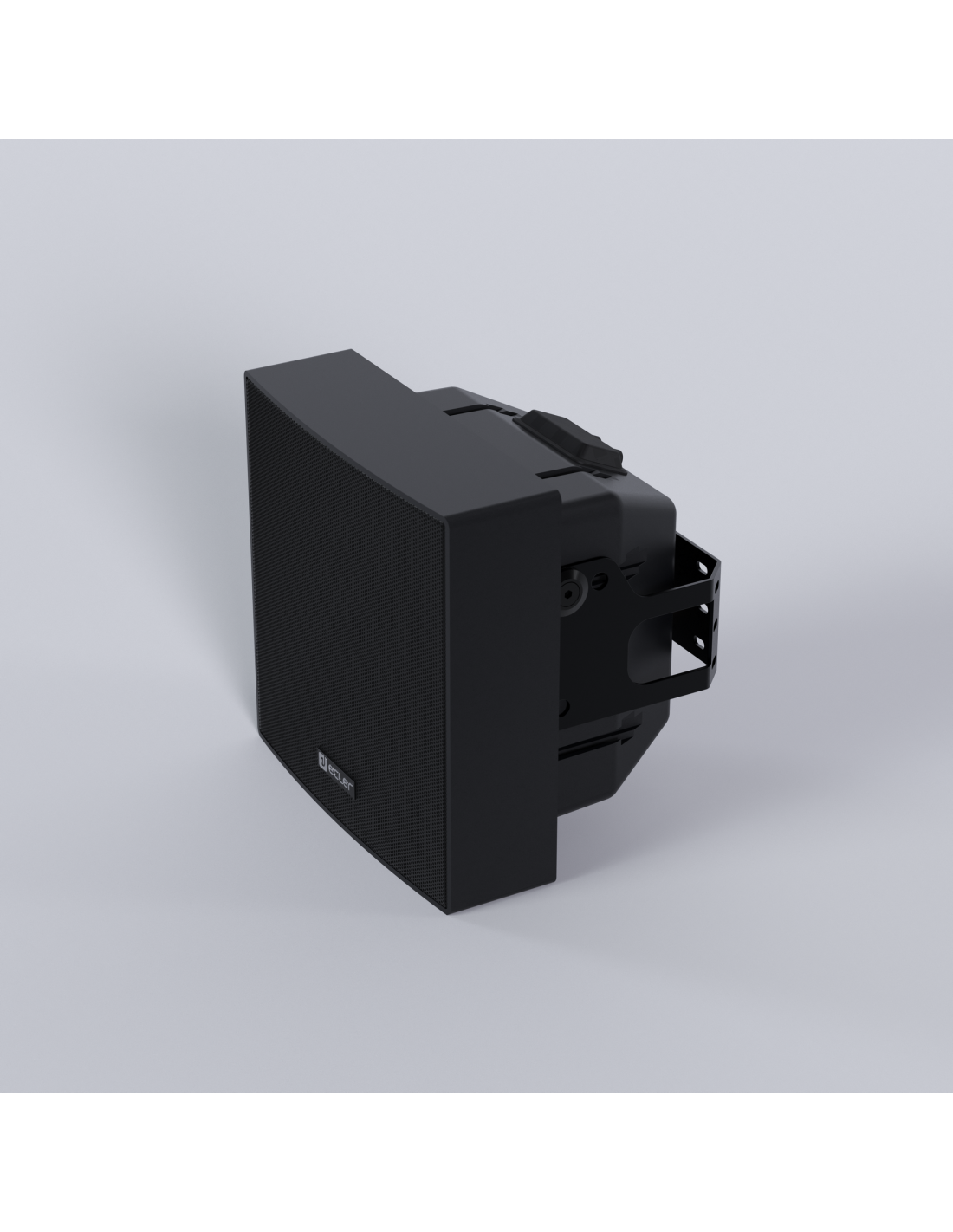

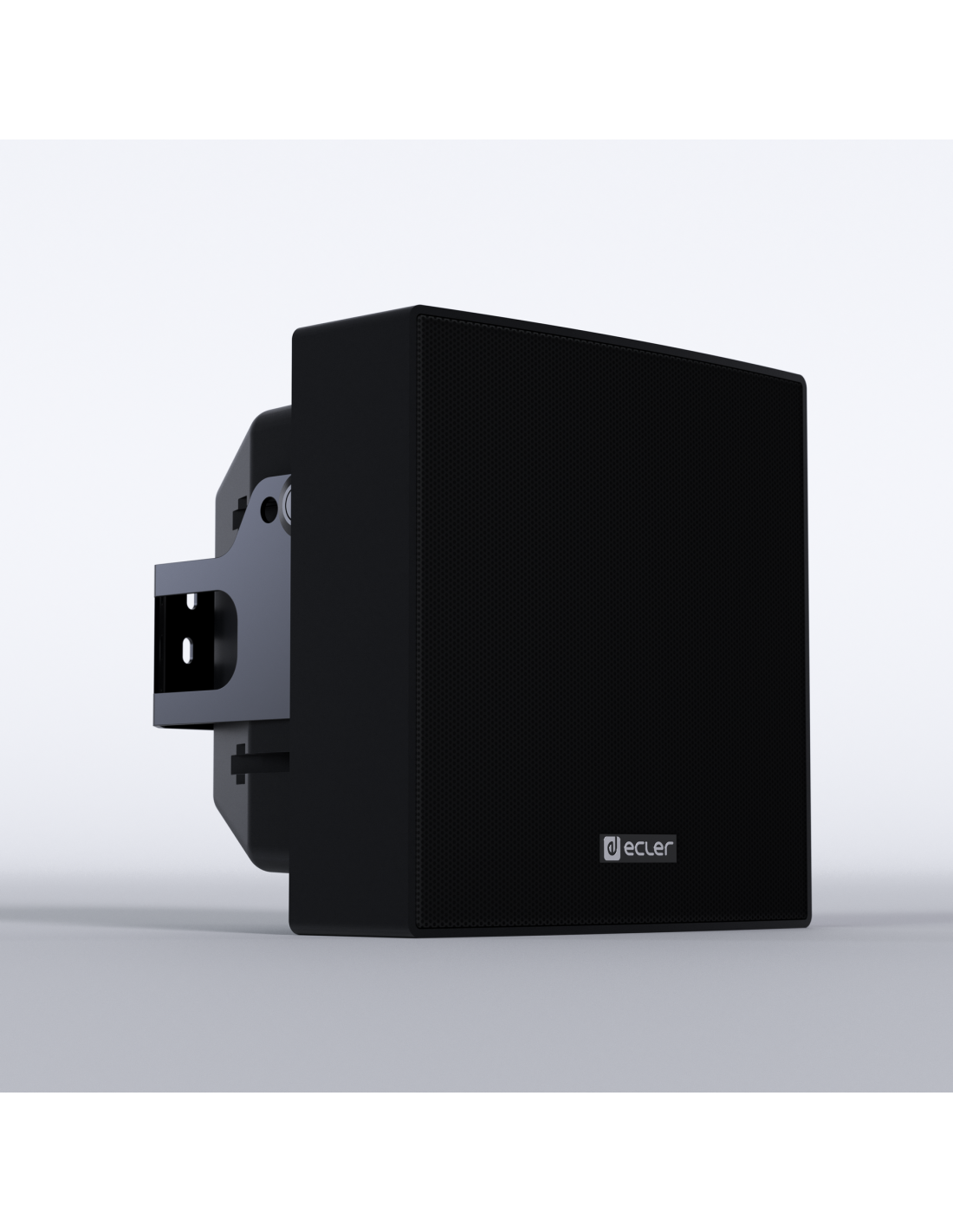

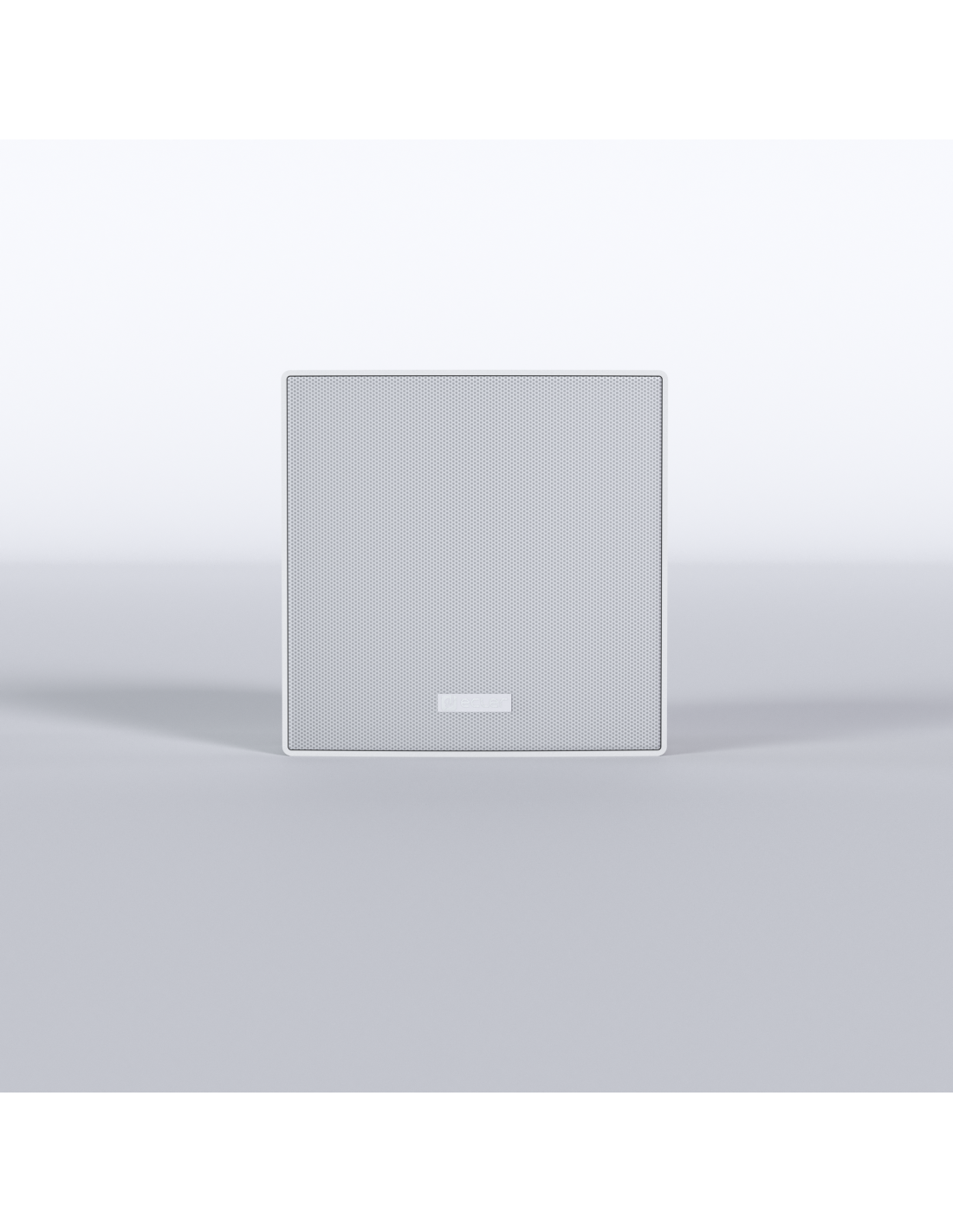

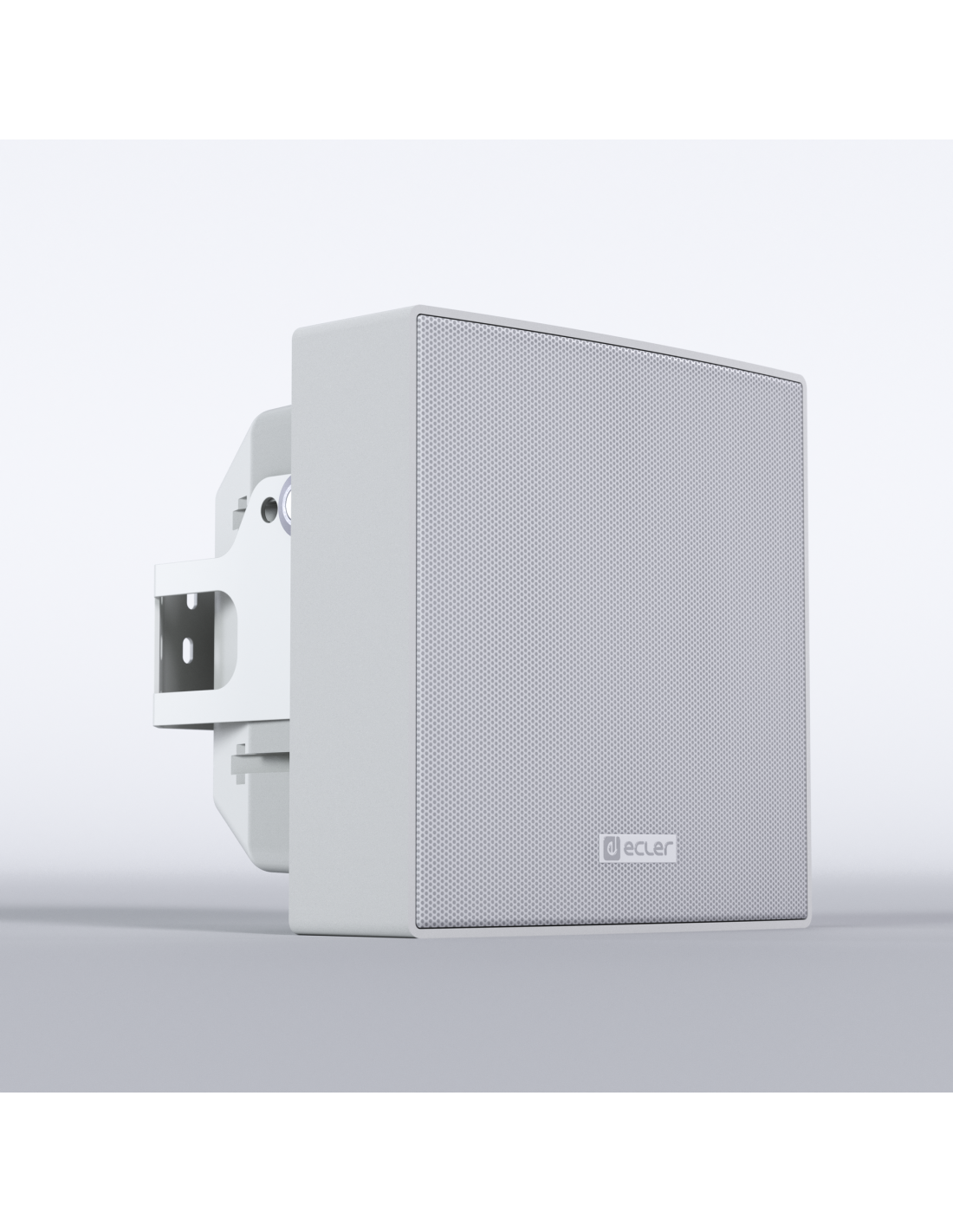

AMBIT-16 is a compact 2-way coaxial loudspeaker cabinet with neutral and discreet design. It mounts a 6.5” woofer and a 1" tweeter and it is suitable for low and high impedance lines. AMBIT-16 is ready for indoor and outdoor applications, thanks to its aluminium grill and UV protection treatment (IP54-rated). Wall mount accessories and safety sling are included for an easy and secure installation.
- Effective Freq. Range
- 97Hz-20kHz (-10dB)
- Coverage angle / Dispersion
- 143°x140° (HxV)
- Power handling
- 50 W RMS / 200 W Peak
- Sensitivity
- 91 dB (1W/1m)
- Maximum SPL
- 108 db continuous / 114 dB peak
- Recommended amplifier power
- 100 W RMS
- Ways
- 2-ways full range
- Low frequency driver
- 6,5" woofer
- High frequency driver
- 1" tweeter
- Nominal impedance
- 8Ω
- Connection type
- Spring loaded input terminals
- Installation options
- Surface, Ceiling, Corner (wall mount)
- Environmental
- IP54 rated
- Enclosure material
- ABS plastic
- Grille material
- Aluminium
- Operating temperature
- Min: -20°C ; -4°F
Max: 70°C ; 158°F - Operating humidity
- 85% HR
- Storage temperature
- Min: -20°C ; -4°F
Max: 70°C ; 158°F - Storage humidity
- 90% HR
- Included accessories
- Includes on-wall hardware, safety sling, screws and wrench for fast installation, and waterproof rubber cover for connectors.
- Finished colour
- White (RAL 9016) or black (RAL 9005)
- Dimensions
- 210 x 210 x 160 mm / 8.27 x 8.27 x 6.30 in (WxHxD)
- Weight
- 2.75 kg / 6.06 lb
- Pieces per box
- 2
- Shipping dimensions
- 420 x 272 x 465 mm / 16.54 x 10.71 x 18.31 (WxHxD)
- Shipping weight
- 6.10 kg / 13.45 lb
- Power options (Hi Z Multi-tap)
- 100V: 5W / 7.5W / 15W / 30W
70V: 2.5W / 3.75 W / 7.5W / 15W
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
97Hz-20kHz (-10dB) |
|---|---|
| Coverage angle / Dispersion |
143°x140° (HxV) |
| Power handling |
50 W RMS / 200 W Peak |
| Sensitivity |
91 dB (1W/1m) |
| Maximum SPL |
108 db continuous / 114 dB peak |
| Recommended amplifier power |
100 W RMS |
| Power options (Hi Z Multi-tap) |
100V: 5W / 7.5W / 15W / 30W
70V: 2.5W / 3.75 W / 7.5W / 15W |
TRANSDUCERS
| Ways |
2-ways full range |
|---|---|
| Low frequency driver |
6,5" woofer |
| High frequency driver |
1" tweeter |
| Nominal impedance |
8Ω |
PHYSICAL
| Connection type |
Spring loaded input terminals |
|---|---|
| Installation options |
Surface, Ceiling, Corner (wall mount) |
| Environmental |
IP54 rated |
| Enclosure material |
ABS plastic |
| Grille material |
Aluminium |
| Operating temperature |
Min: -20°C ; -4°F
Max: 70°C ; 158°F |
| Operating humidity |
85% HR |
| Storage temperature |
Min: -20°C ; -4°F
Max: 70°C ; 158°F |
| Storage humidity |
90% HR |
| Included accessories |
Includes on-wall hardware, safety sling, screws and wrench for fast installation, and waterproof rubber cover for connectors. |
| Finished colour |
White (RAL 9016) or black (RAL 9005) |
| Dimensions |
210 x 210 x 160 mm / 8.27 x 8.27 x 6.30 in (WxHxD) |
| Weight |
2.75 kg / 6.06 lb |
| Pieces per box |
2 |
| Shipping dimensions |
420 x 272 x 465 mm / 16.54 x 10.71 x 18.31 (WxHxD) |
| Shipping weight |
6.10 kg / 13.45 lb |
