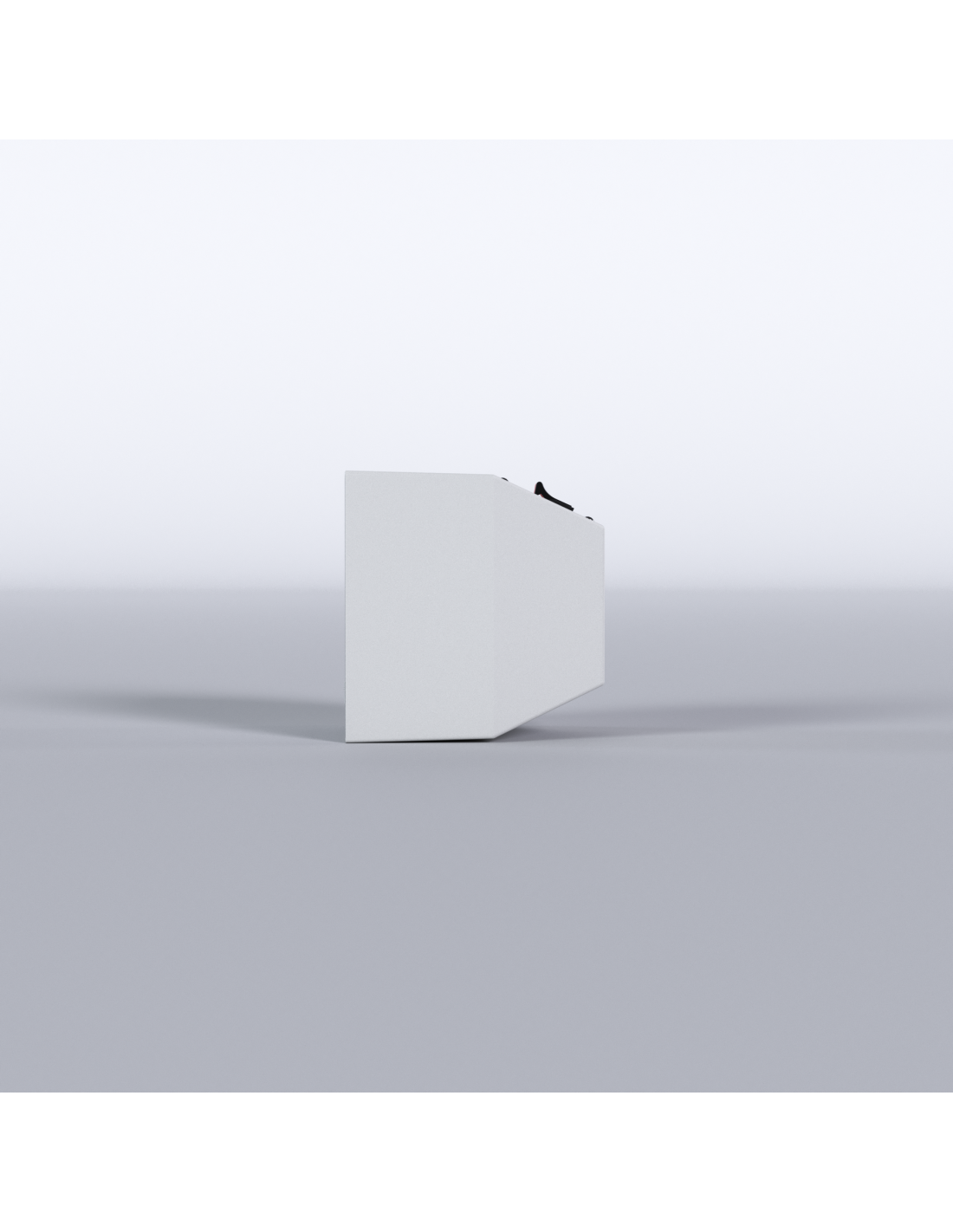

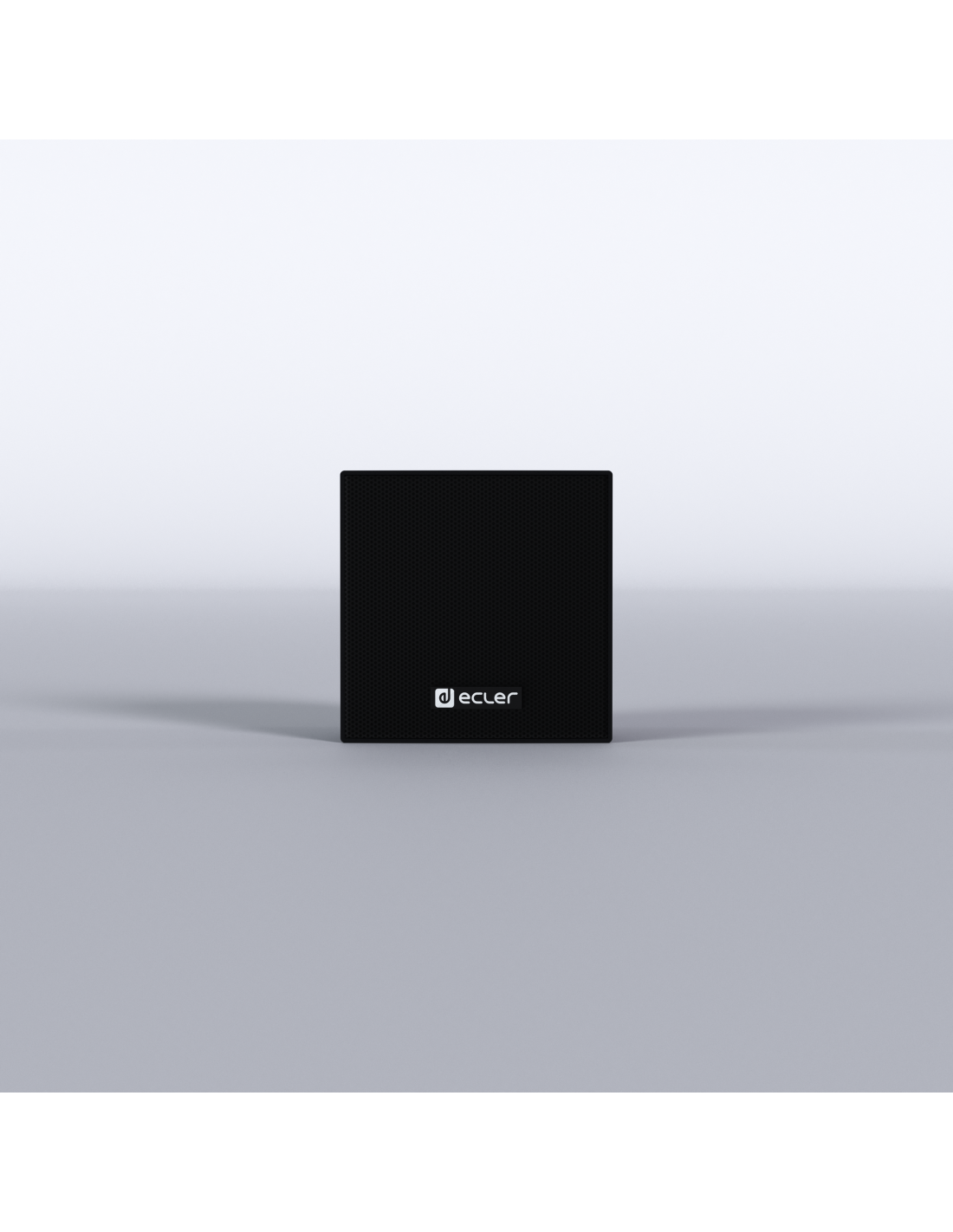

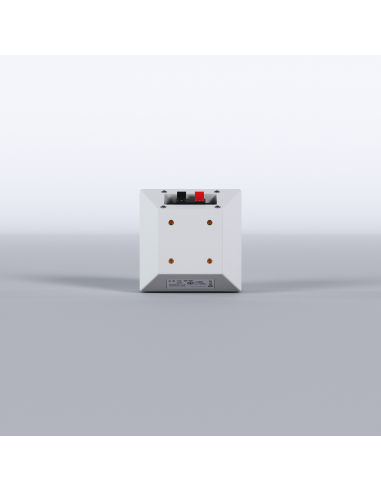

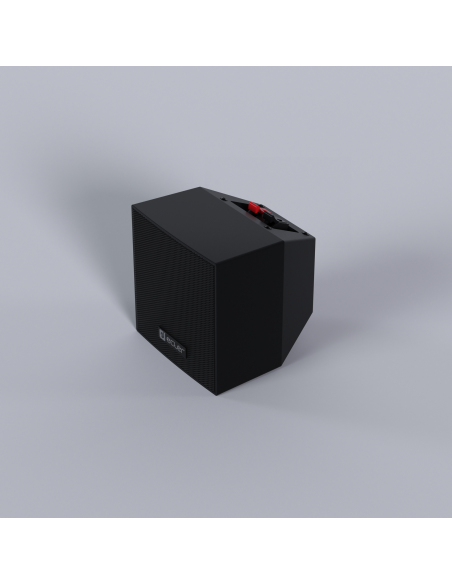

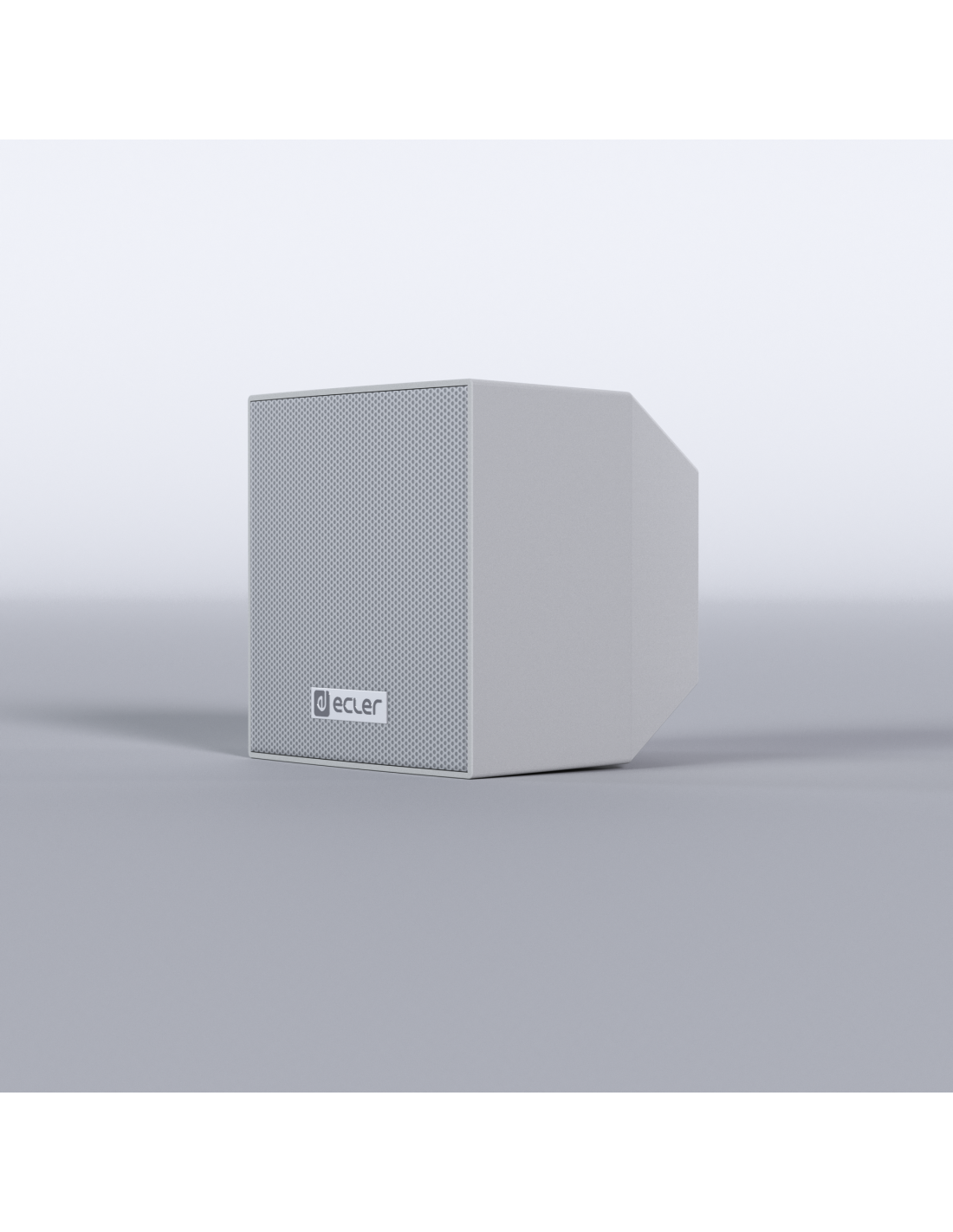

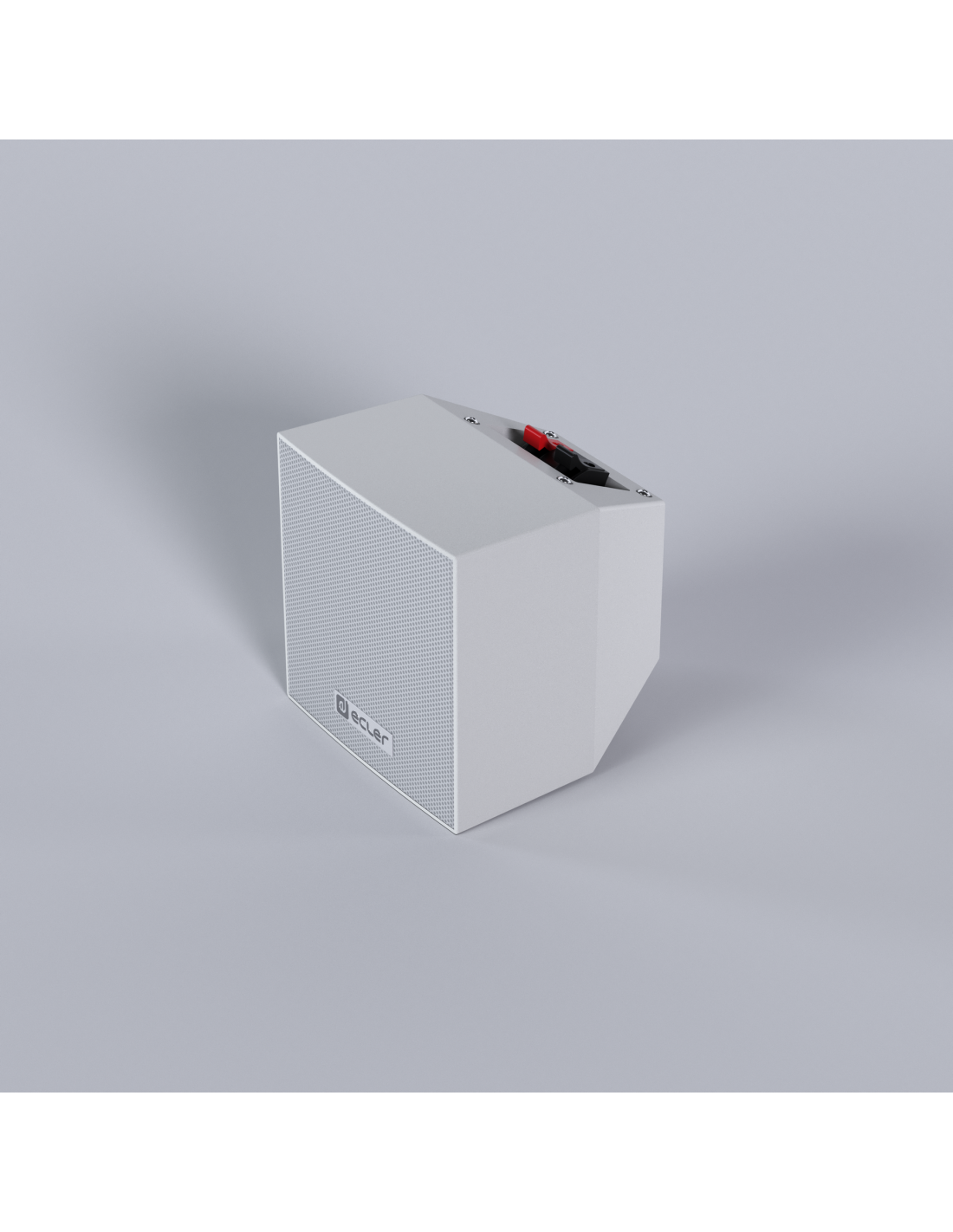

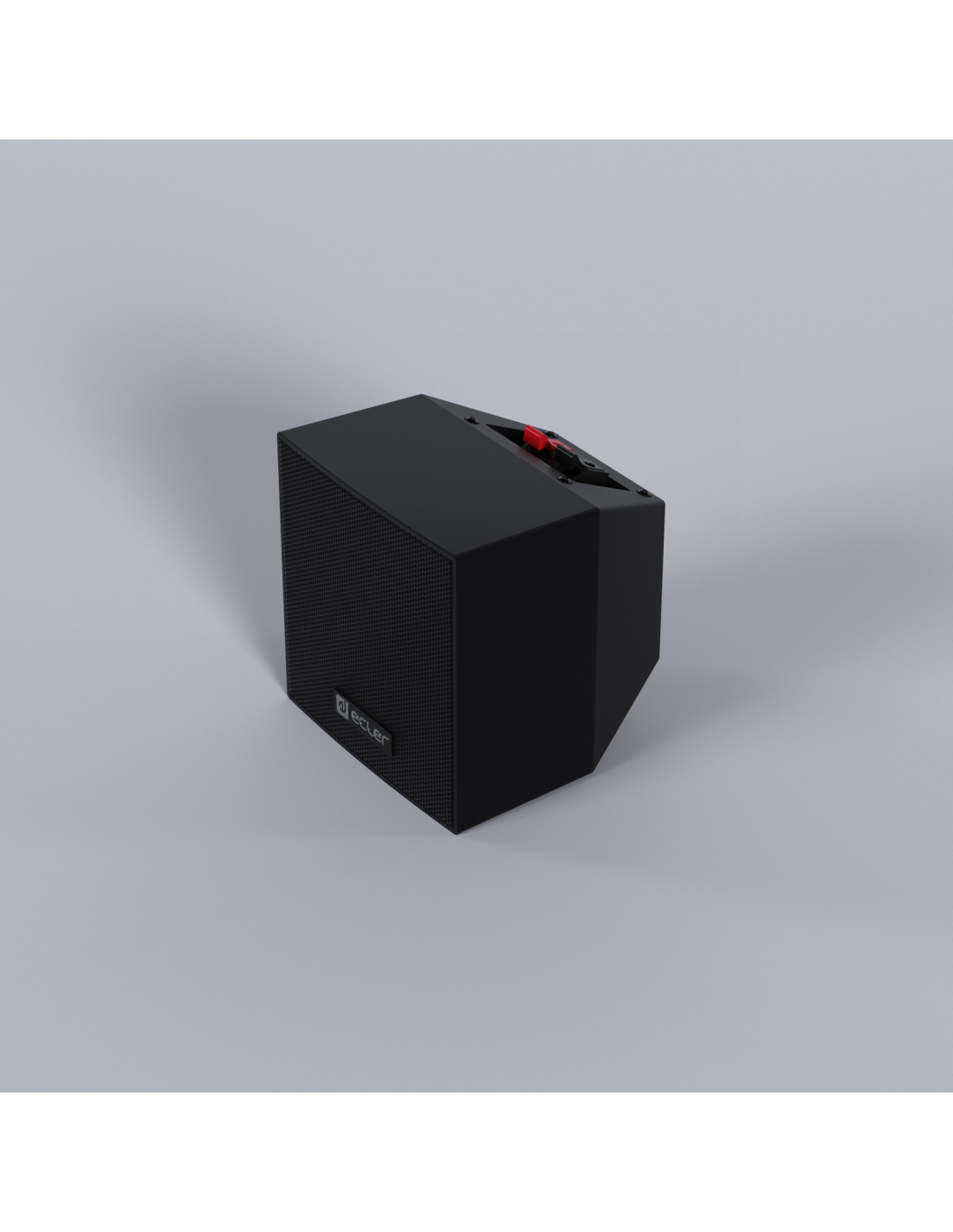

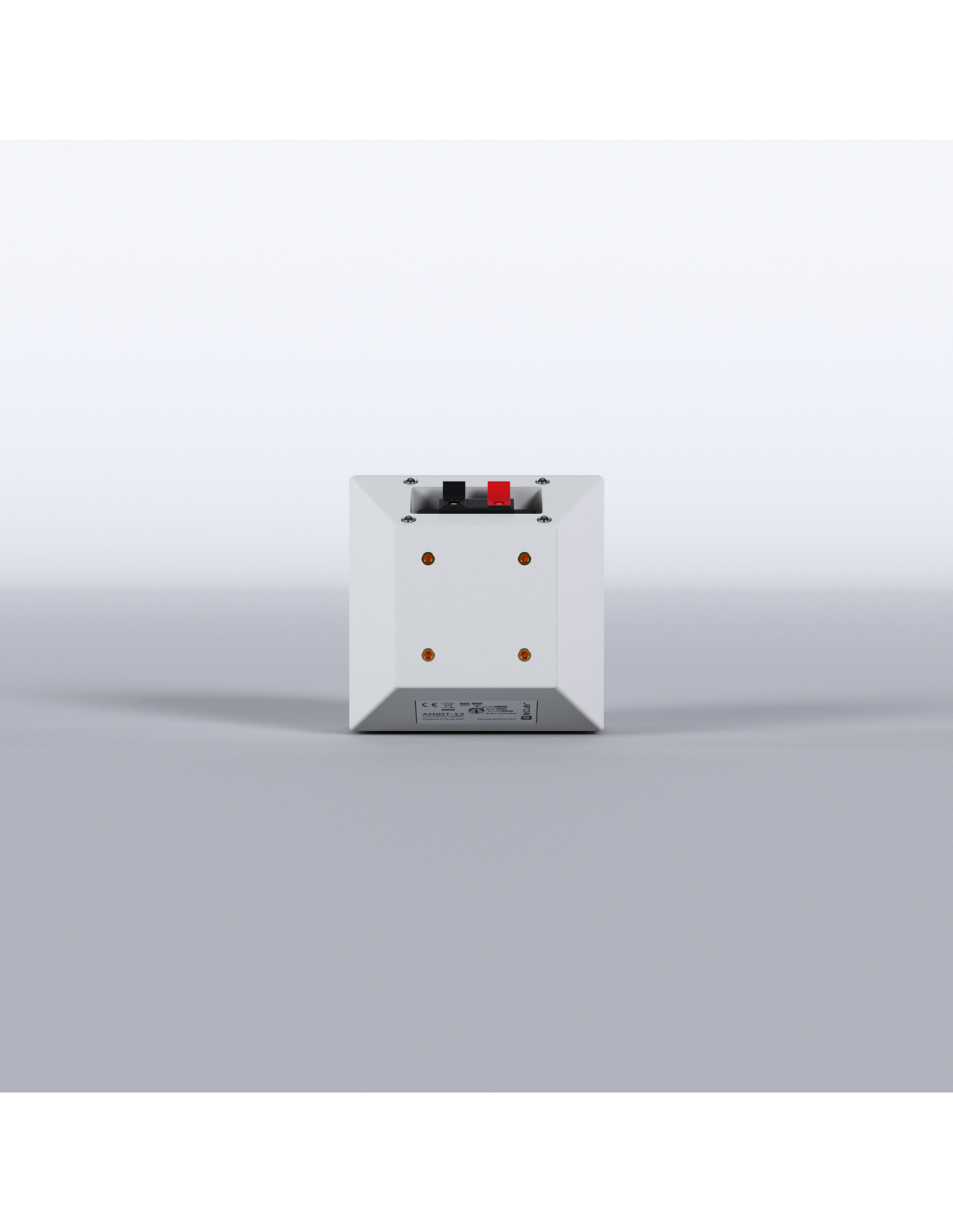

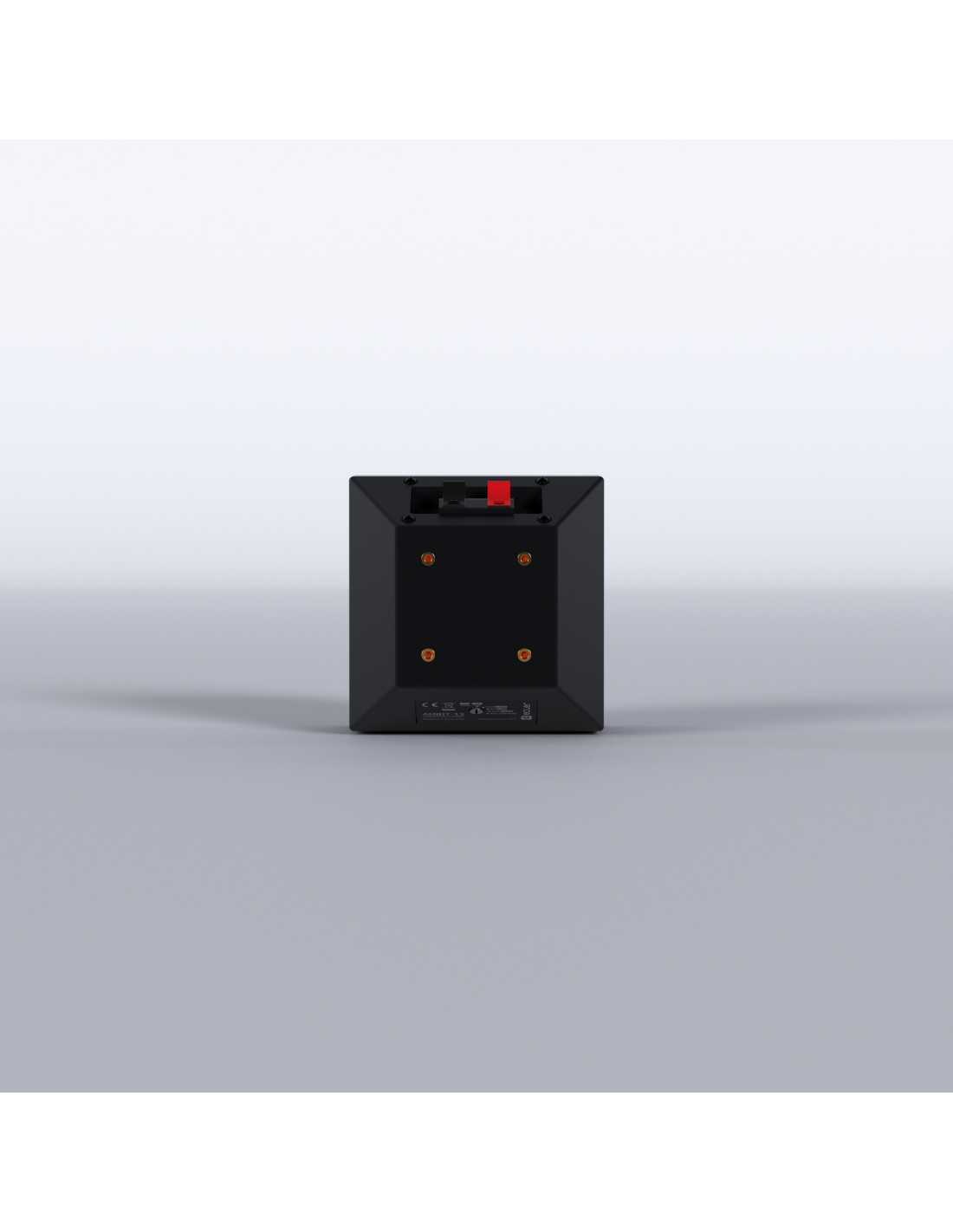

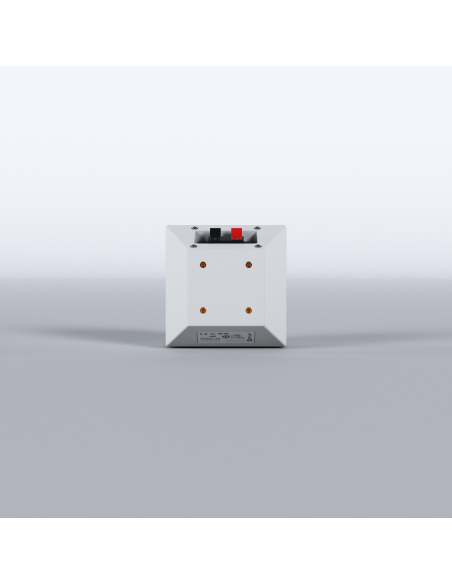

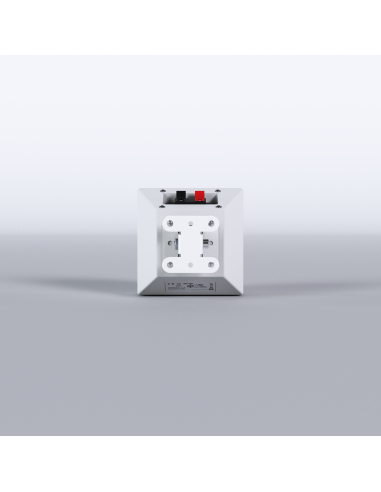

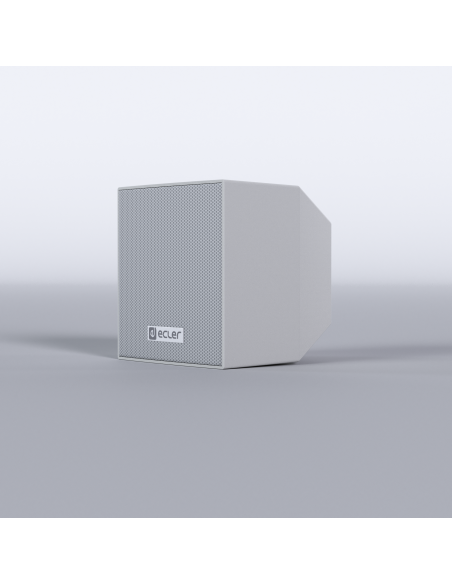

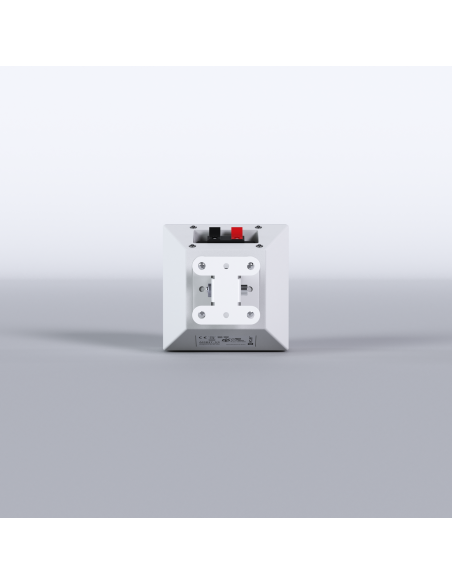

AMBIT-13 WH
CAMBIT13WH
Available
3.5" | 2-way | 25 WRMS | discreet design

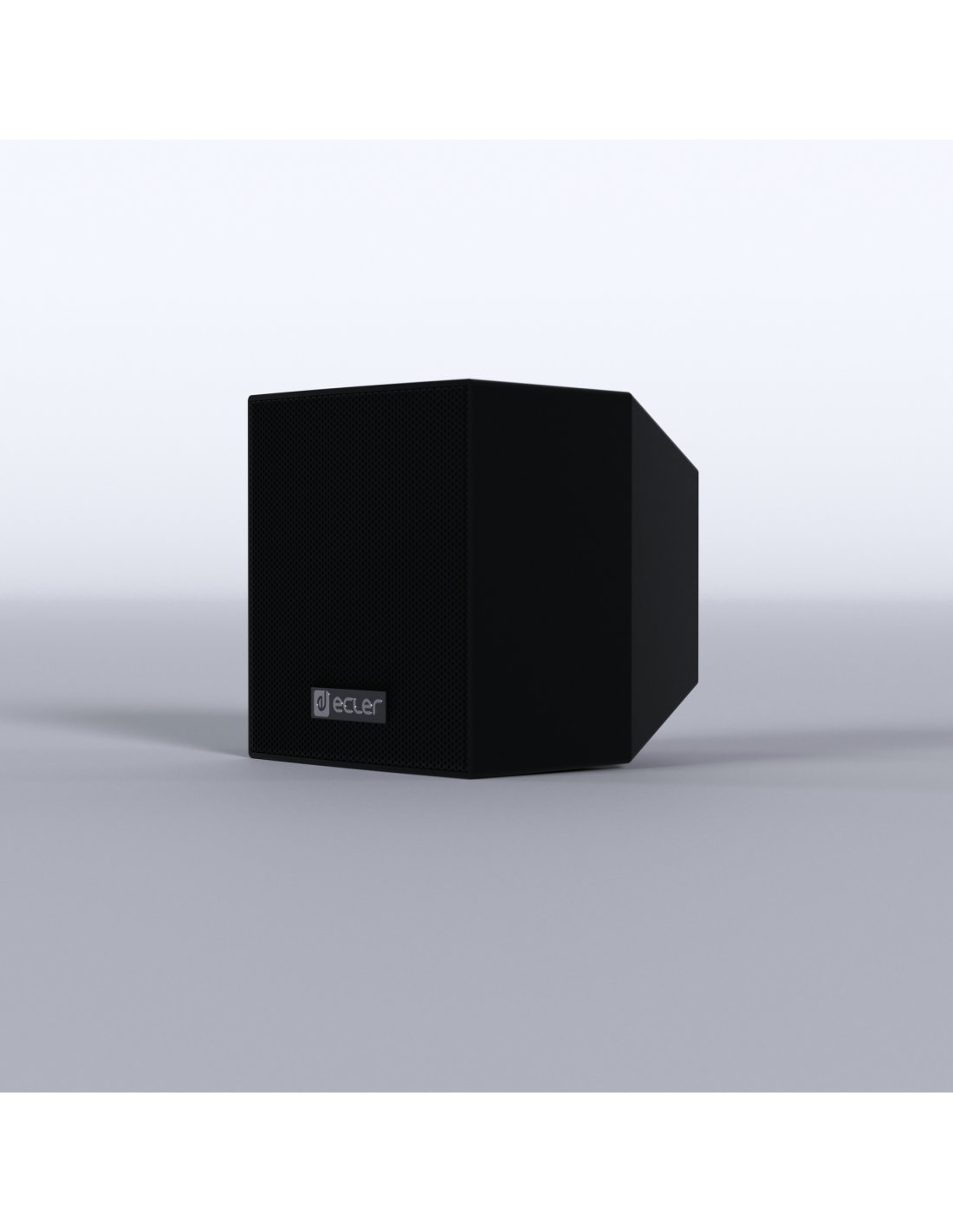

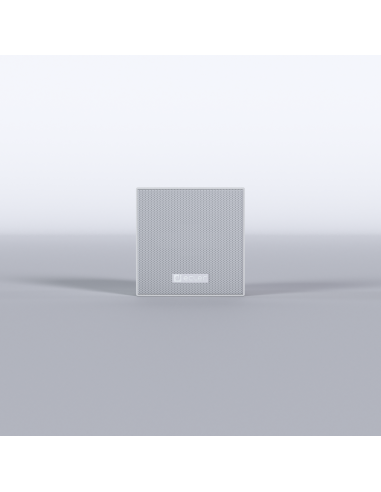

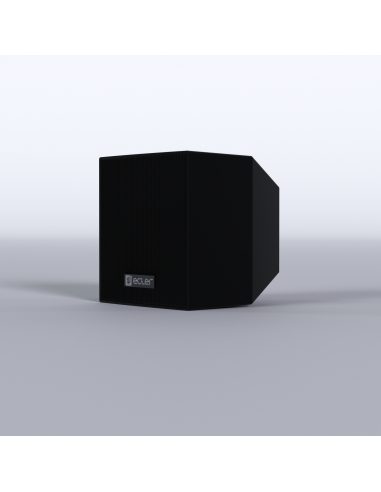

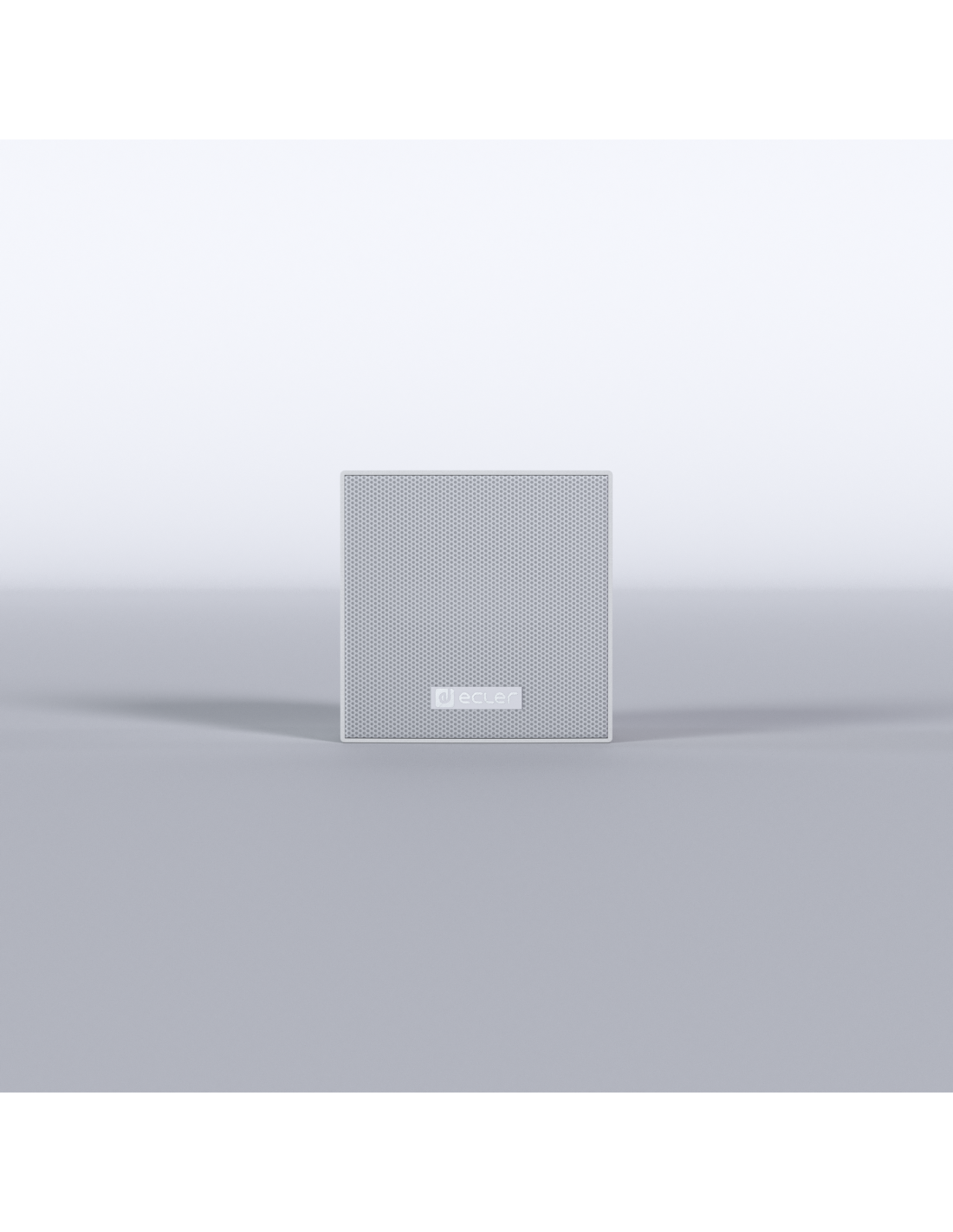

AMBIT-13 is an ultra- compact 2-way coaxial loudspeaker cabinet with neutral and discreet design. It features a 3.5” woofer and a 0.5" tweeter and it is suitable for low and high impedance lines. It is ready for indoor and outdoor applications, thanks to its aluminium grill and UV protection treatment (IP54-rated). Wall mount accessories and safety sling are included for an easy and secure installation. It is especially suitable for background music reinforcement in retail shops, restaurants, cafés, corporate premises and education rooms.
- Effective Freq. Range
- 120 Hz-22 kHz (-10dB)
- Coverage angle / Dispersion
- 180° H x 180° V
- Power handling
- 25W RMS / 50W Program / 100W Peak
- Sensitivity
- 87dB
- Maximum SPL
- 101dB continuous / 107dB peak
- Recommended amplifier power
- 50W RMS
- Ways
- 2-ways full range
- Low frequency driver
- 3,5" woofer
- High frequency driver
- 0,5" tweeter
- Nominal impedance
- 8Ω

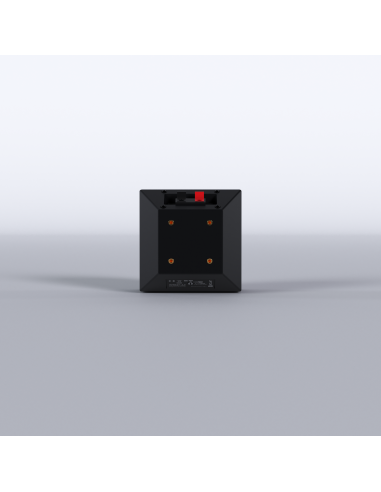

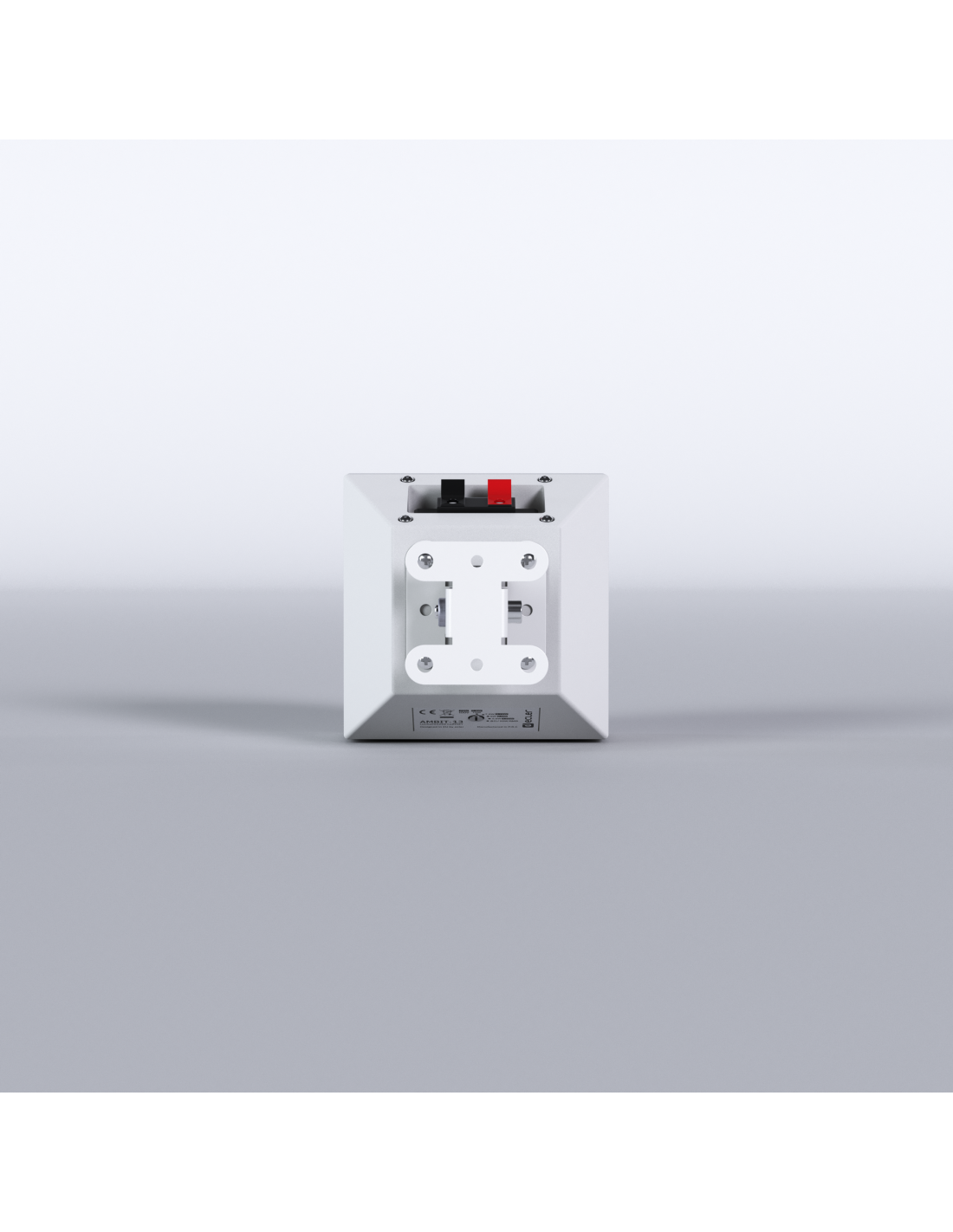

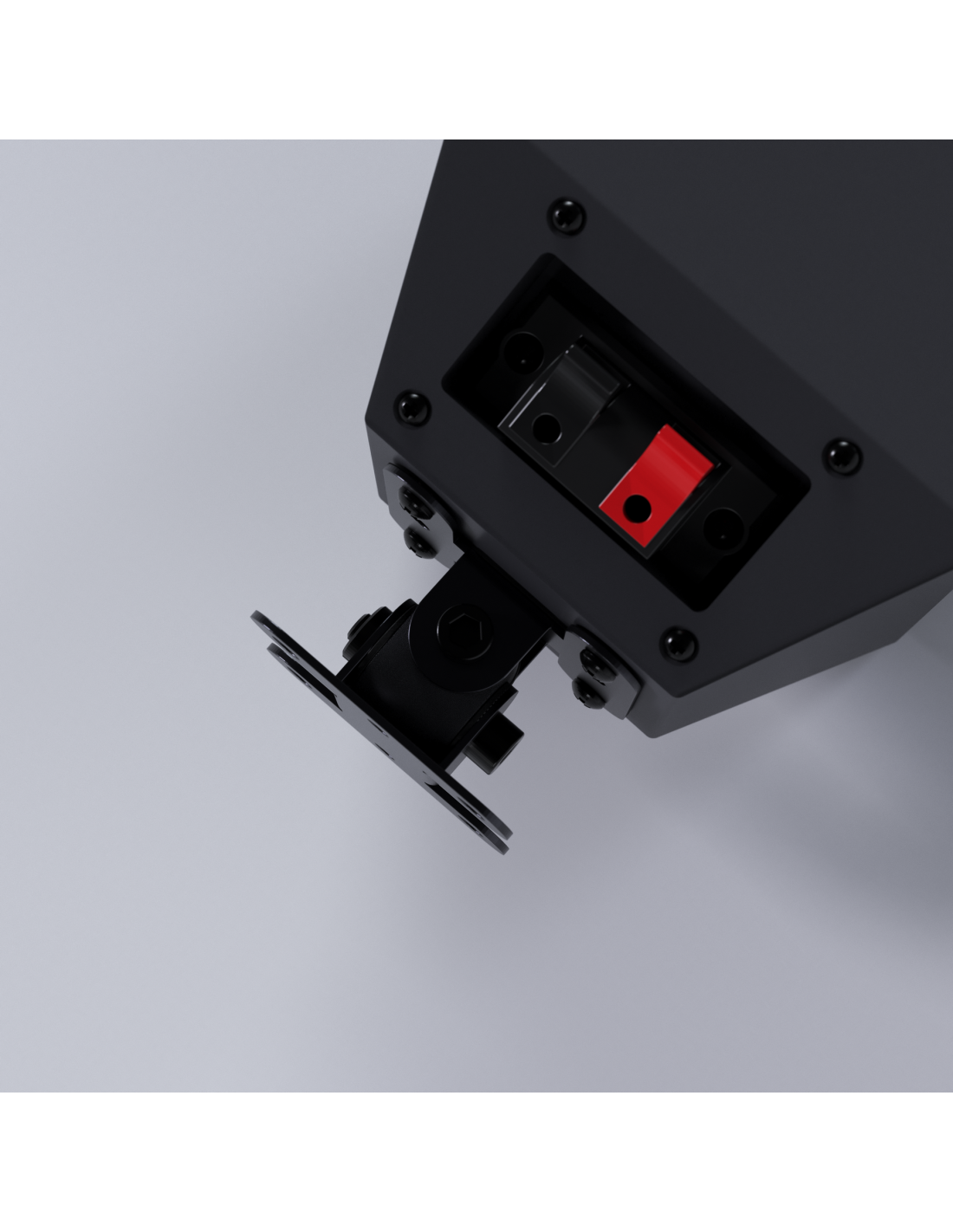

- Connection type
- Spring loaded input terminals
- Installation options
- Surface, Ceiling, Corner (wall mount)
- Environmental
- IP54
- Enclosure material
- ABS plastic
- Grille material
- Aluminium
- Operating temperature
- Min: -20°C / -4°F
Max: 70°C / 158°F - Operating humidity
- 85% HR
- Storage temperature
- Min: -20°C / -4°F
Max: 70°C / 158°F - Storage humidity
- 90% HR
- Included accessories
- Includes on-wall hardware, safety sling, screws and wrench for fast installation, and waterproof rubber cover for connectors
- Finished colour
- White (RAL 9016) / Black (RAL 9005)
- Dimensions
- 120 x 120 x 117 mm / 4.72 x 4.72 x 4.61 in.
- Weight
- 1.275 kg / 2.81 lb
- Pieces per box
- 2
- Shipping dimensions
- 300 x 170 x 210 mm / 11.81 x 6.69 x 8.27 in.
- Shipping weight
- 1.45 kg / 3.2 lb

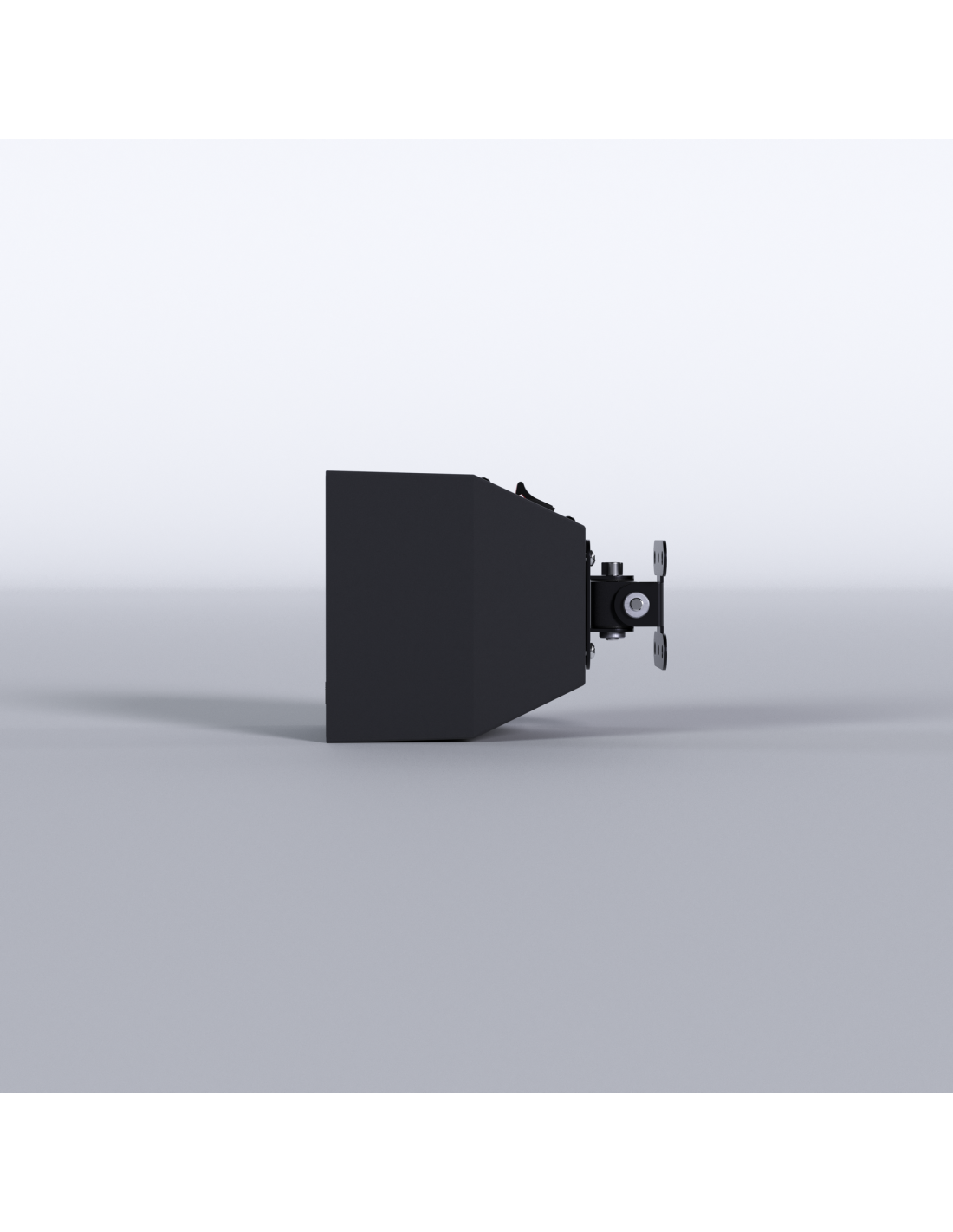

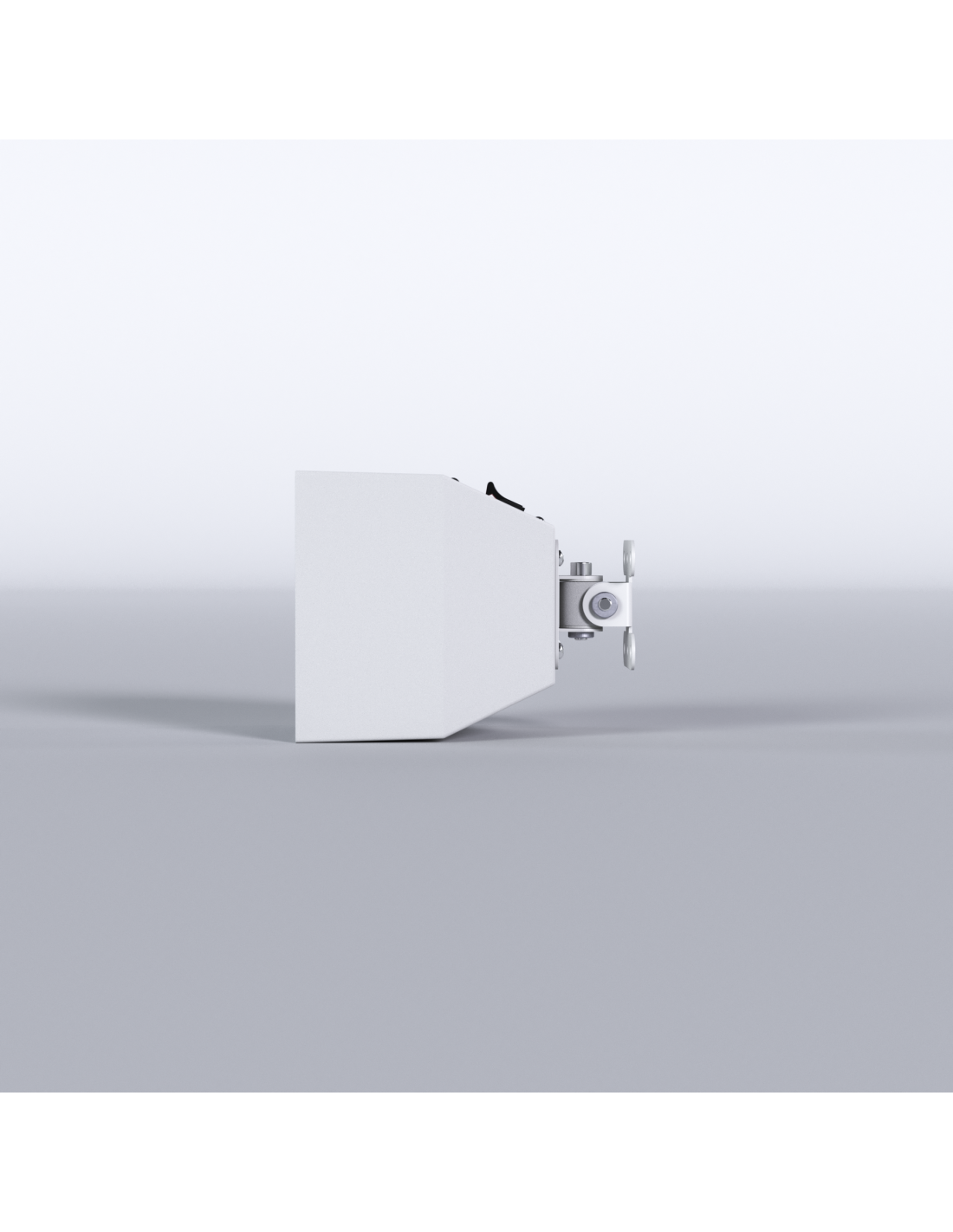

- Mounting system
- Wall bracket
- Power options (Hi Z Multi-tap)
- 100V: 15W / 7,5W / 5W /2,5W / 8Ω
70V: 7,5W / 5W /2,5W /1,25W / 8Ω
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
120 Hz-22 kHz (-10dB) |
|---|---|
| Coverage angle / Dispersion |
180° H x 180° V |
| Power handling |
25W RMS / 50W Program / 100W Peak |
| Sensitivity |
87dB |
| Maximum SPL |
101dB continuous / 107dB peak |
| Recommended amplifier power |
50W RMS |
| Power options (Hi Z Multi-tap) |
100V: 15W / 7,5W / 5W /2,5W / 8Ω
70V: 7,5W / 5W /2,5W /1,25W / 8Ω |
TRANSDUCERS
| Ways |
2-ways full range |
|---|---|
| Low frequency driver |
3,5" woofer |
| High frequency driver |
0,5" tweeter |
| Nominal impedance |
8Ω |
PHYSICAL
| Connection type |
Spring loaded input terminals |
|---|---|
| Installation options |
Surface, Ceiling, Corner (wall mount) |
| Environmental |
IP54 |
| Enclosure material |
ABS plastic |
| Grille material |
Aluminium |
| Operating temperature |
Min: -20°C / -4°F
Max: 70°C / 158°F |
| Operating humidity |
85% HR |
| Storage temperature |
Min: -20°C / -4°F
Max: 70°C / 158°F |
| Storage humidity |
90% HR |
| Included accessories |
Includes on-wall hardware, safety sling, screws and wrench for fast installation, and waterproof rubber cover for connectors |
| Finished colour |
White (RAL 9016) / Black (RAL 9005) |
| Dimensions |
120 x 120 x 117 mm / 4.72 x 4.72 x 4.61 in. |
| Weight |
1.275 kg / 2.81 lb |
| Pieces per box |
2 |
| Shipping dimensions |
300 x 170 x 210 mm / 11.81 x 6.69 x 8.27 in. |
| Shipping weight |
1.45 kg / 3.2 lb |
| Mounting system |
Wall bracket |
