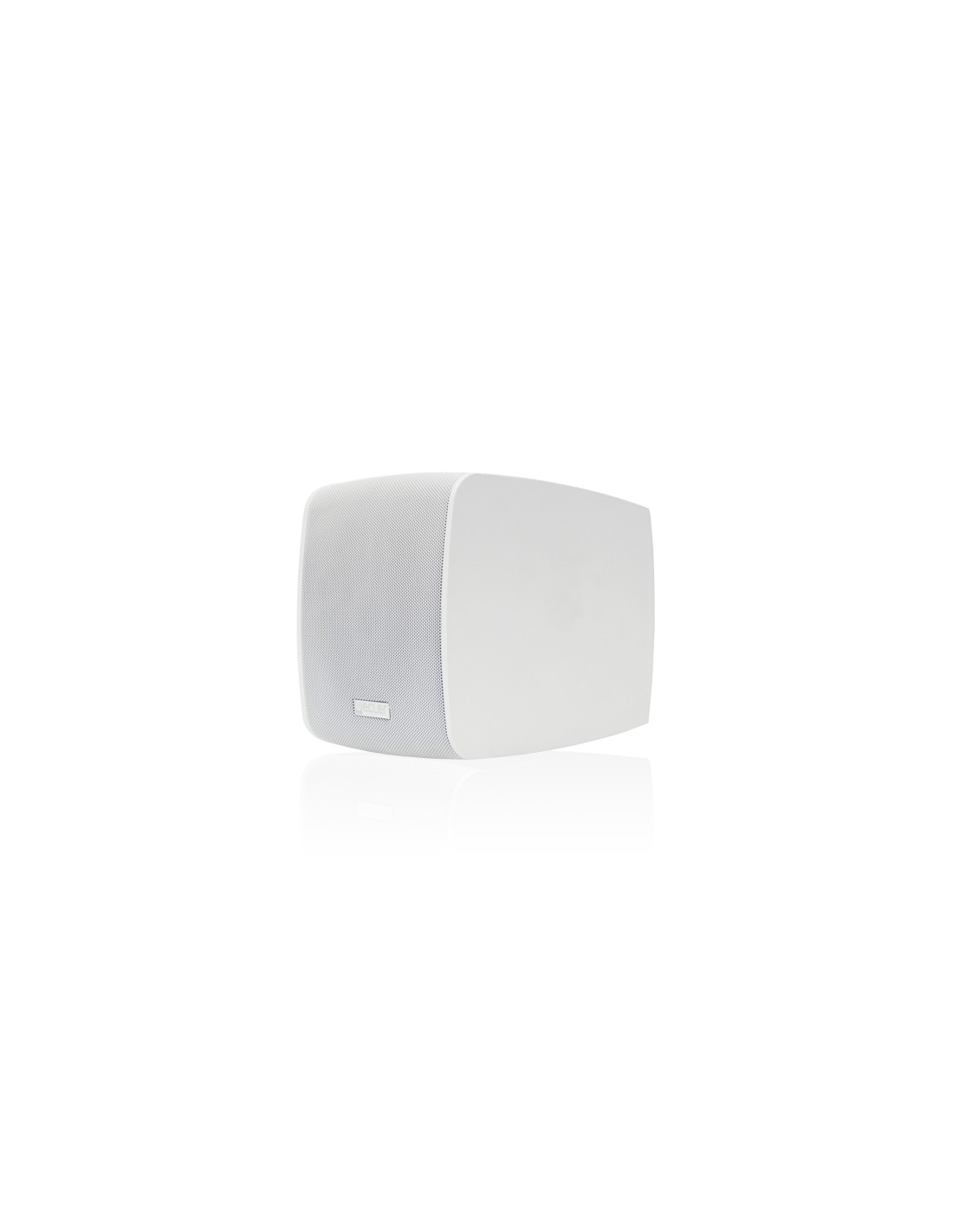

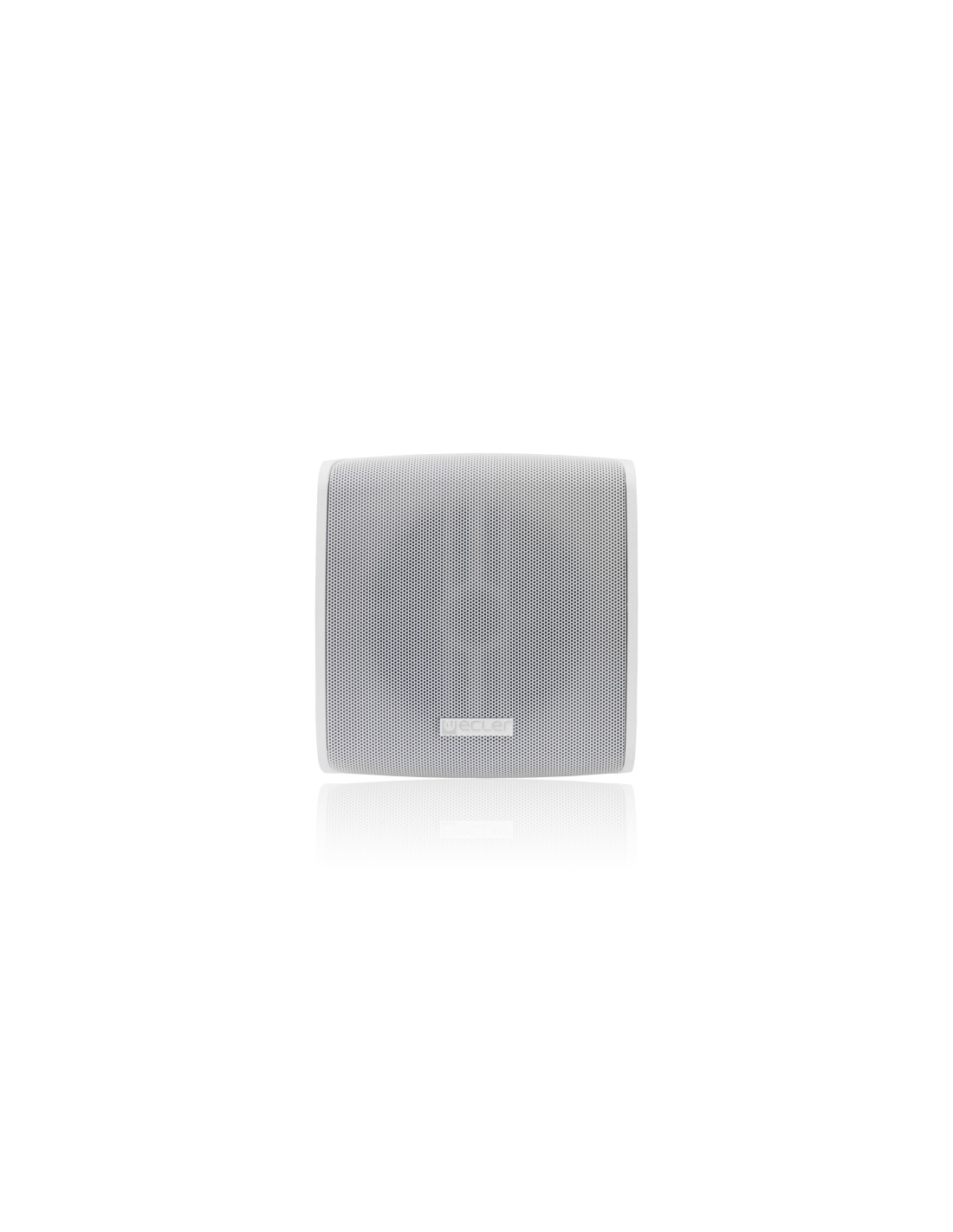

eMOTUS5OD WH
CEMOTUS5ODWH
Available
5" | 2-way | 40 WRMS | IP65 | outdoors
eMOTUS5OD is a 5" loudspeaker cabinet ready for outdoor installation. A professional and compact loudspeaker, cost-effective and with a unique design that will easily fit in a massive number of applications: theme parks, gardens, nature parks and urban spaces, leisure, health and sport centres, residential buildings, outdoor areas, etc. Available in black and white colour.
- Effective Freq. Range
- 77 Hz-20 kHz (-10dB)
- Coverage angle / Dispersion
- 150°x150° (HxV)
- Power handling
- 40 W RMS / 160 W Peak
- Sensitivity
- 85 dB (1W/1m)
- Maximum SPL
- 101 dB continuous / 107 dB Peak
- Recommended amplifier power
- 80 W RMS
- Ways
- 2-ways full range
- Low frequency driver
- 5" woofer
- High frequency driver
- 1" coaxial tweeter
- Nominal impedance
- 8Ω

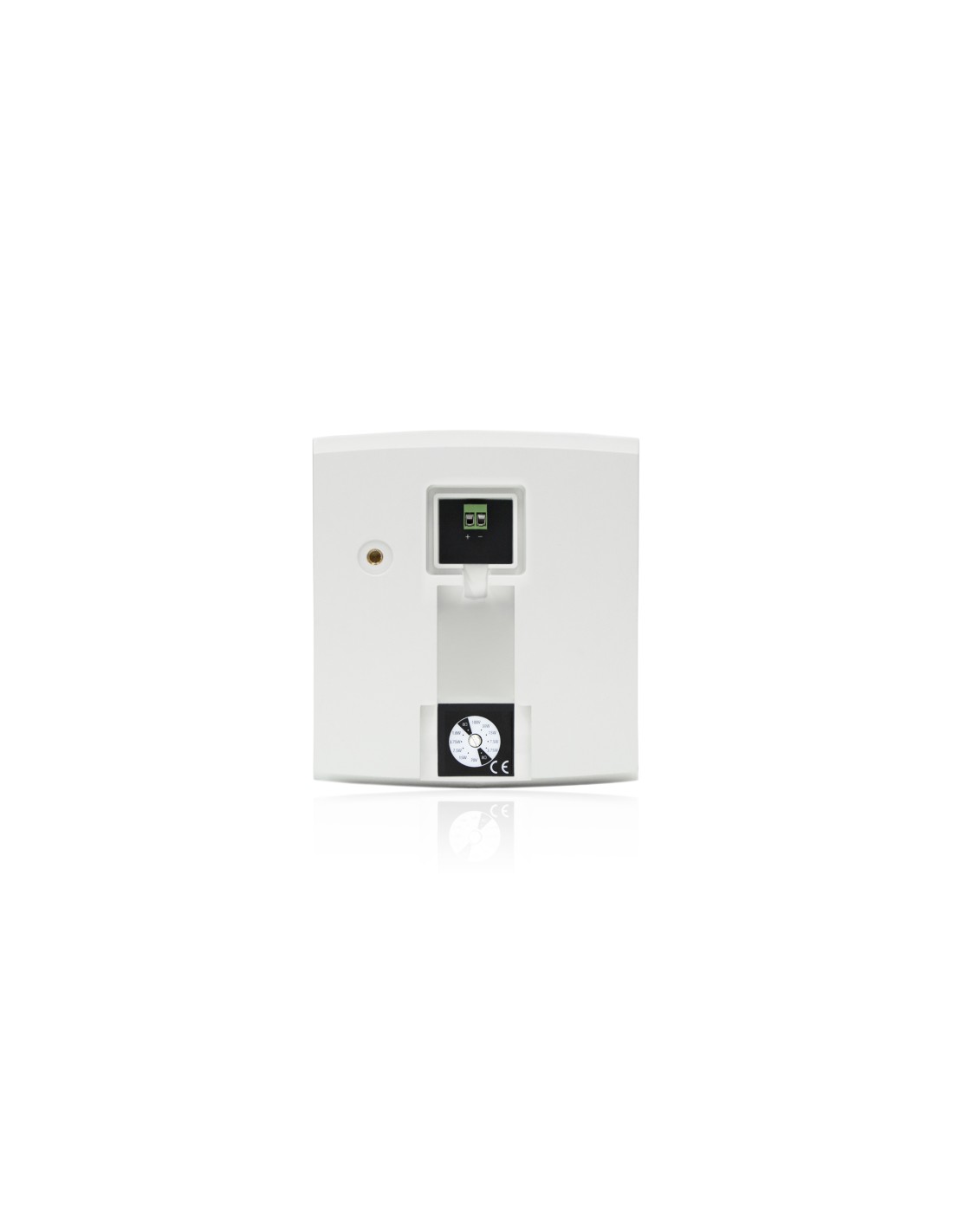

- Connection type
- 2-terminal input Euroblock connector (input)

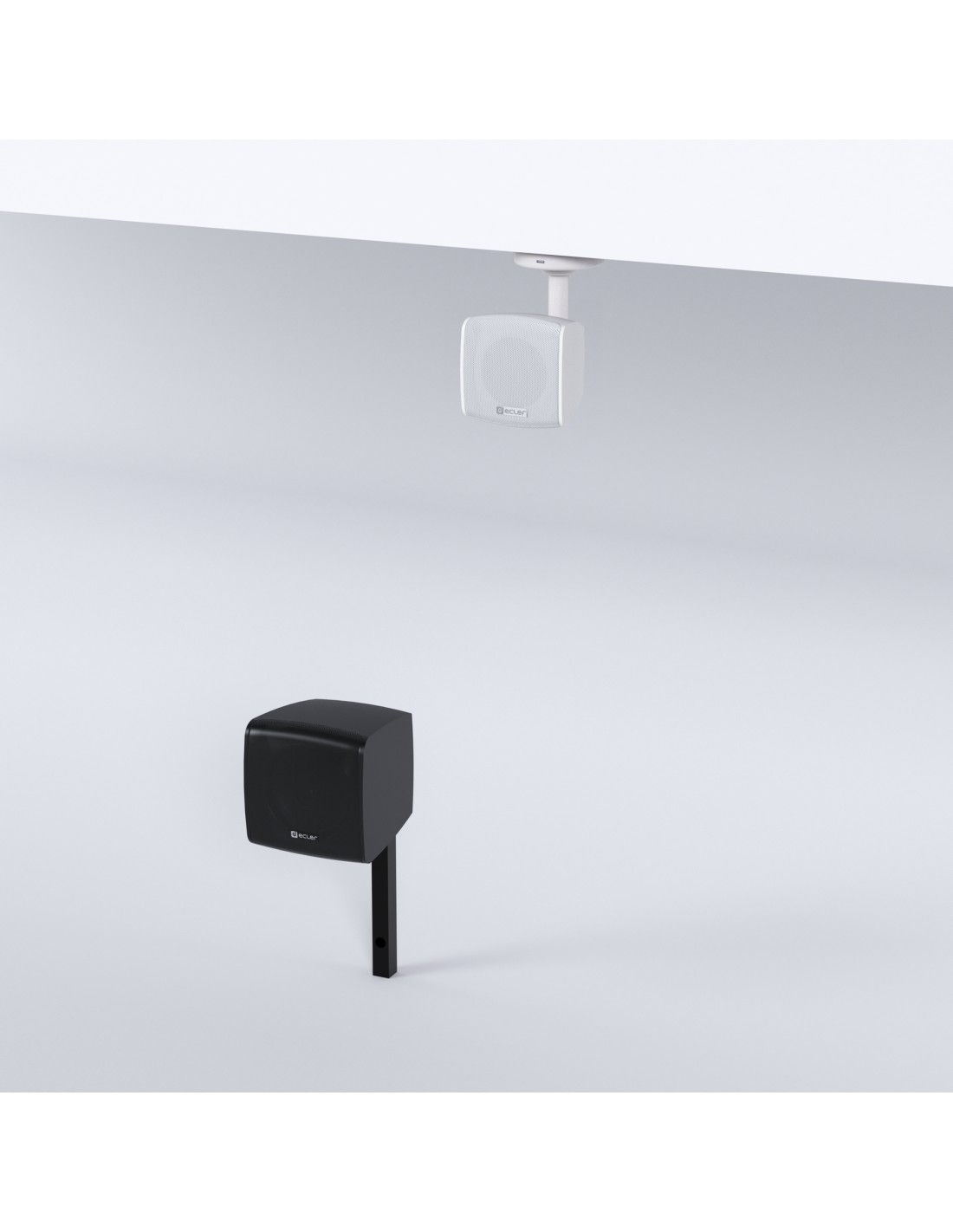

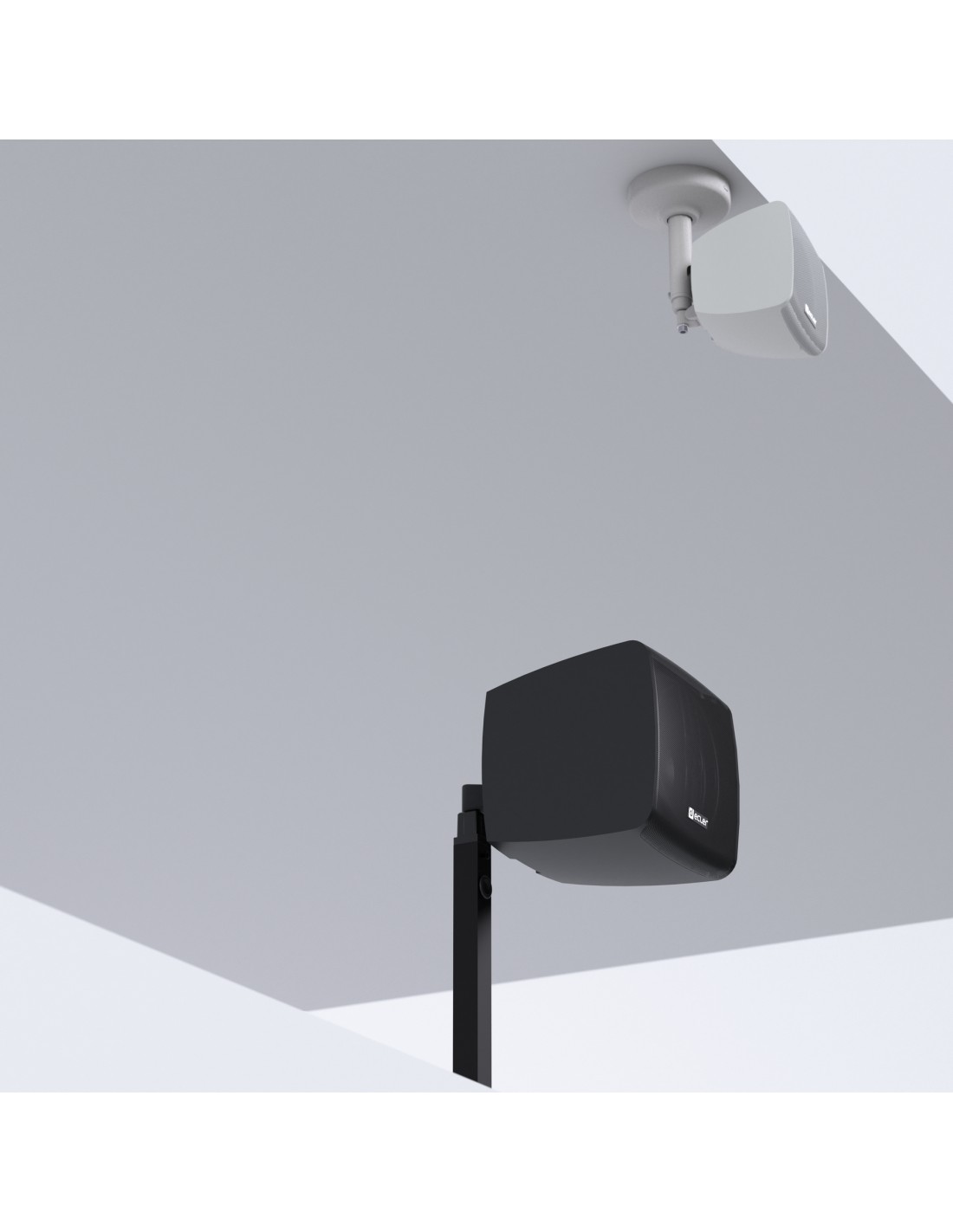

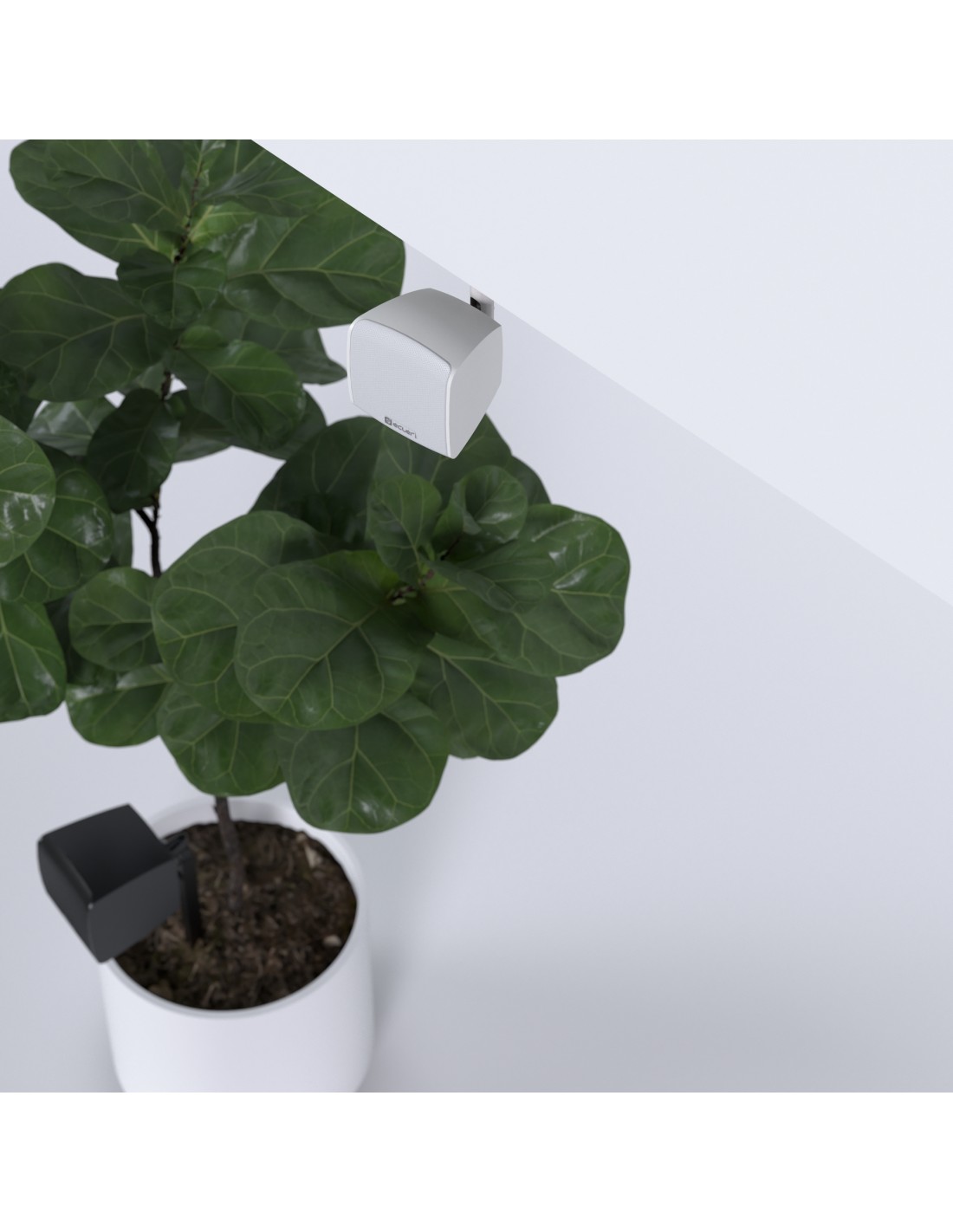

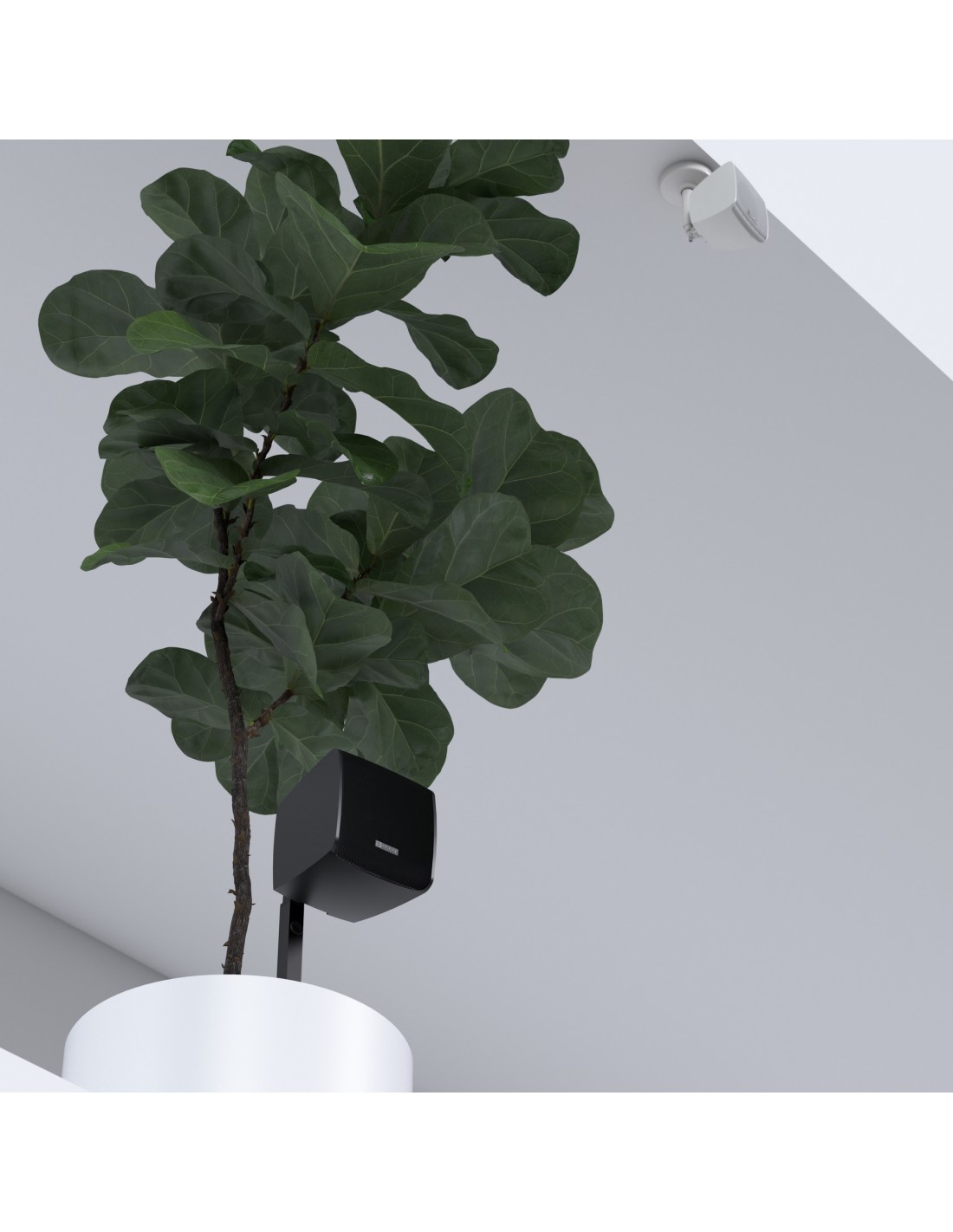

- Installation options
- Surface, desktop
- Environmental
- IP65 rated
- Enclosure material
- ABS cabinet

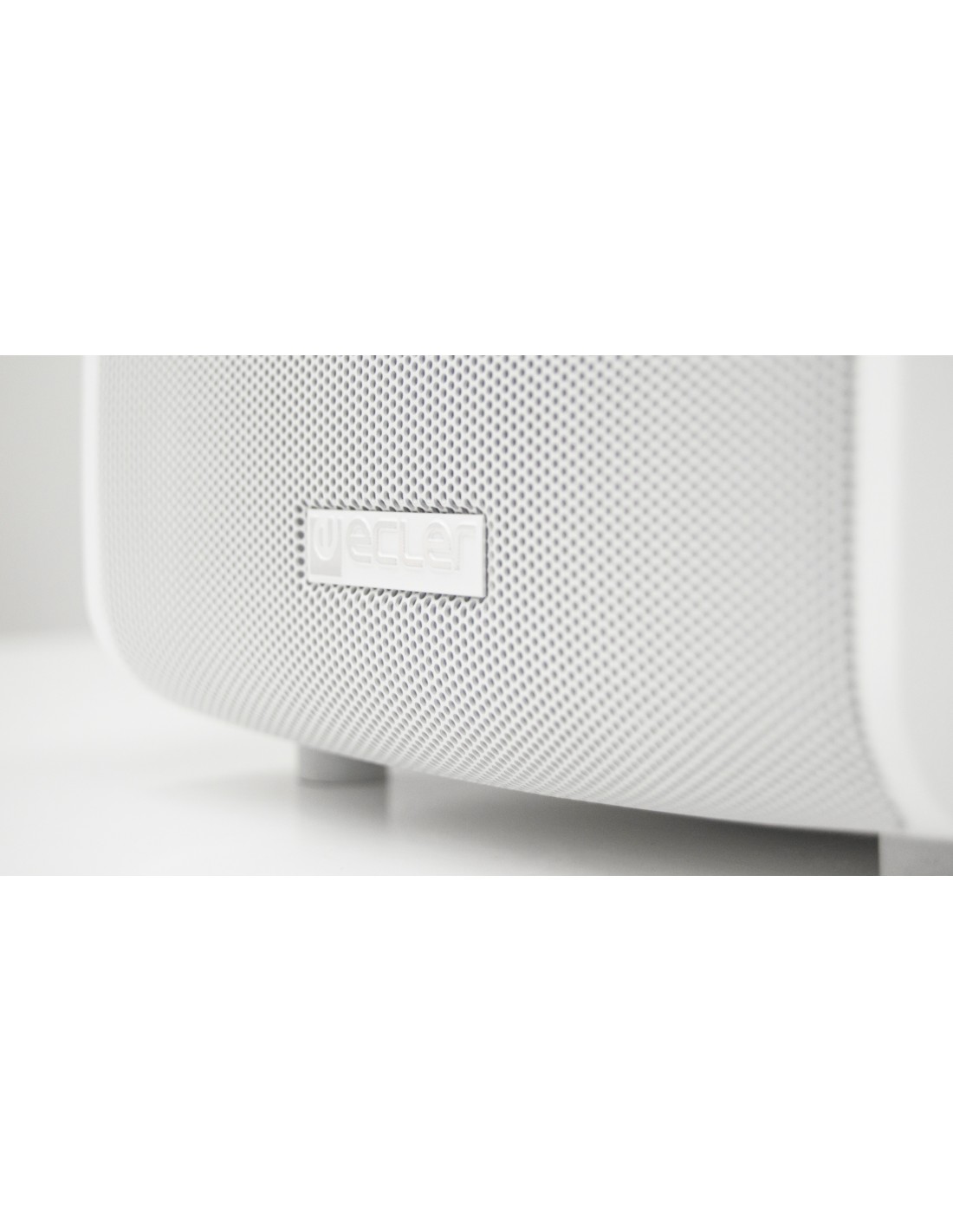

- Grille material
- Aluminium grille
- Operating temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -20°C ; -4°F
Max: 70°C ; 158°F
- Operating humidity
- 85% HR
<85% HR - Storage temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -20°C ; -4°F
Max: 70°C ; 158°F
- Storage humidity
- 90% HR
<90% HR - Included accessories

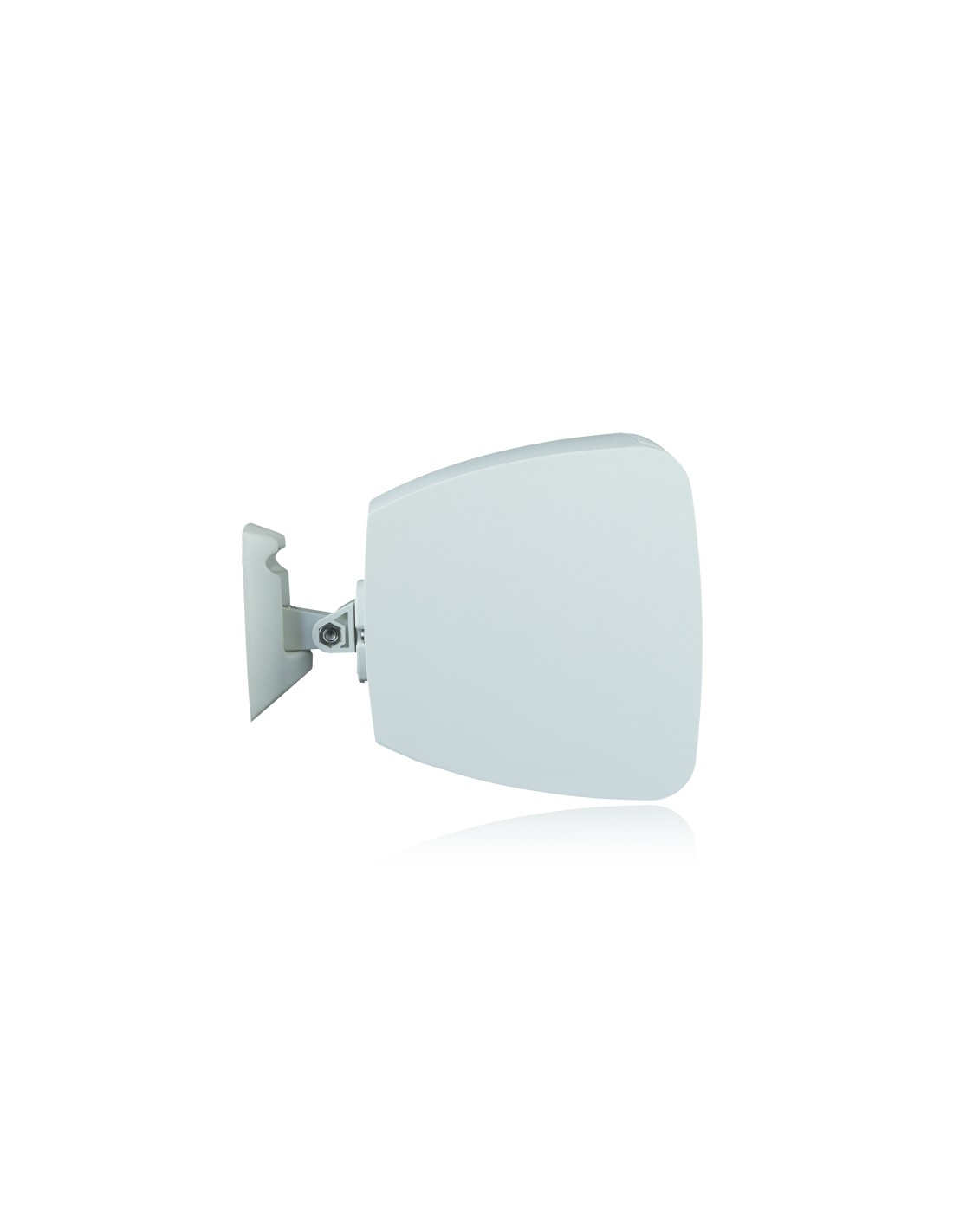

- Wall-mount bracket, adhesive legs, back rubber
cover & security steel cable - Optional accessories
- PCS124 cluster-mount system
- Finished colour
- White (RAL 9003) or Black (RAL 9005)
- Dimensions
- Not including brackets:
173 x 180 x 181 mm / 6.8 x 7.1 x 9.8 in. (WxHxD)
Including brackets:
173 x 180 x 248 mm / 7.1 x 6.8 x 9.8 in. (WxHxD)
- Weight
- Not including brackets: 2.2 kg / 4.9 lb
Including brackets: 2.5 kg / 5.5 lb - Pieces per box
- 2x pieces
- Shipping dimensions
- 230 x 220 x 460 mm / 9.1 x 9.1 x 18.1 in. (WxHxD)
- Shipping weight
- 5.0 kg / 11.0 lb
- Status
- New
- Origin Production
- China
- EAN code
- BK: 8435071306140
WH: 8435071306133 - Tariff code
- 8518220000
- Shipping Location
- Spain
- Width (cm)
- 23.00
- Height (cm)
- 22.00
- Depth (cm)
- 46.00
- Vol. (dm3)
- 23.28
- Gross Weight (kg)
- 2.50
- Net Weight (kg)
- 2.15
- Format
- Pair
- Warranty (months)
- 36
- Mounting system
- ABS bracket

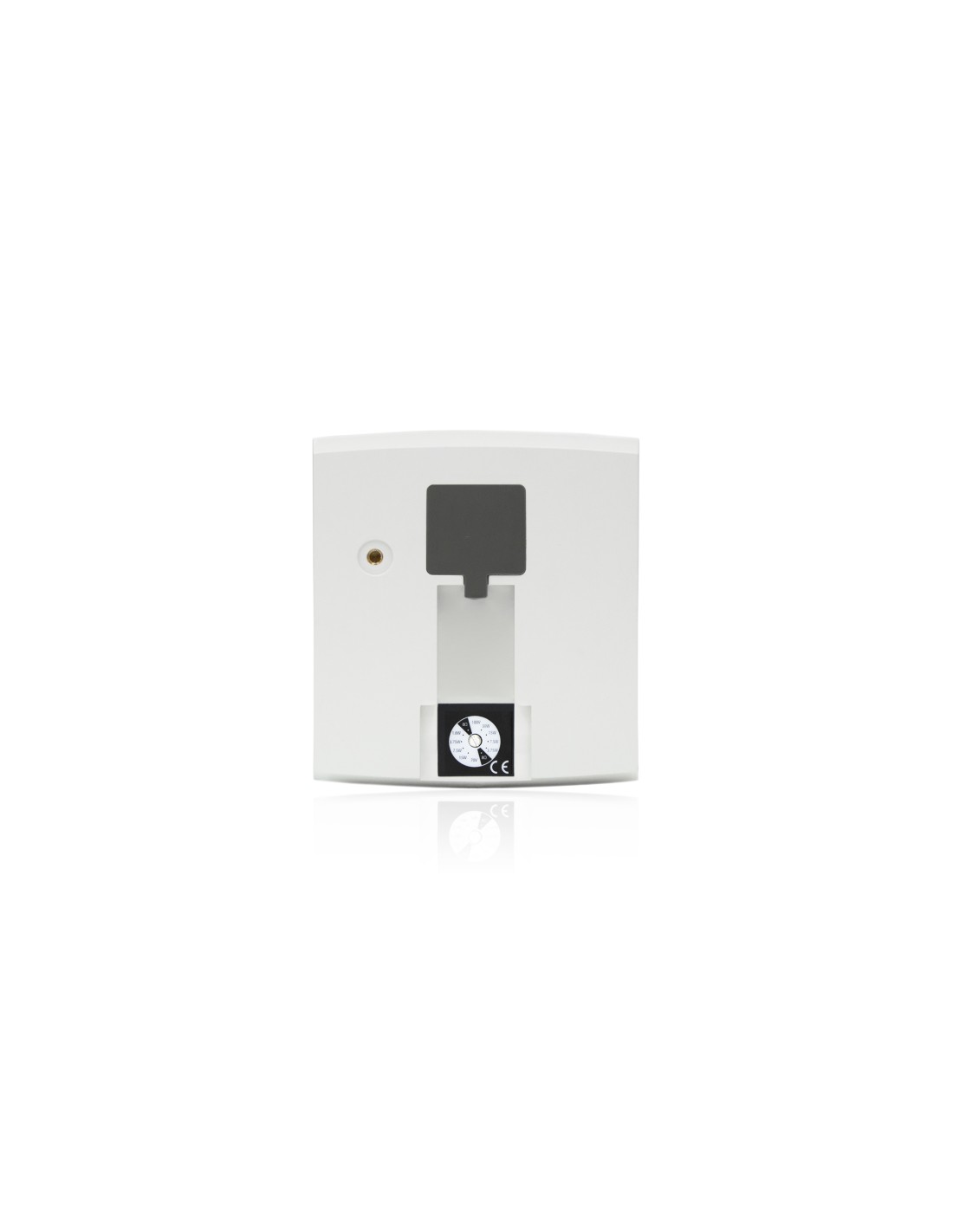

- Power options (Hi Z Multi-tap)
- 100V: 30W / 15W / 7,5W / 3,75W / 8Ω
70V: 15W / 7,5W / 3,75W /1,8W / 8Ω - Power type selector
- Selectable transformer tap
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
77 Hz-20 kHz (-10dB) |
|---|---|
| Coverage angle / Dispersion |
150°x150° (HxV) |
| Power handling |
40 W RMS / 160 W Peak |
| Sensitivity |
85 dB (1W/1m) |
| Maximum SPL |
101 dB continuous / 107 dB Peak |
| Recommended amplifier power |
80 W RMS |
| Power options (Hi Z Multi-tap) |
100V: 30W / 15W / 7,5W / 3,75W / 8Ω
70V: 15W / 7,5W / 3,75W /1,8W / 8Ω |
TRANSDUCERS
| Ways |
2-ways full range |
|---|---|
| Low frequency driver |
5" woofer |
| High frequency driver |
1" coaxial tweeter |
| Nominal impedance |
8Ω |
PHYSICAL
| Connection type |
2-terminal input Euroblock connector (input) |
|---|---|
| Installation options |
Surface, desktop |
| Environmental |
IP65 rated |
| Enclosure material |
ABS cabinet |
| Grille material |
Aluminium grille |
| Operating temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -20°C ; -4°F Max: 70°C ; 158°F |
| Operating humidity |
<85% HR 85% HR |
| Storage temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -20°C ; -4°F Max: 70°C ; 158°F |
| Storage humidity |
<90% HR 90% HR |
| Included accessories |
Wall-mount bracket, adhesive legs, back rubber
cover & security steel cable |
| Optional accessories |
PCS124 cluster-mount system |
| Finished colour |
White (RAL 9003) or Black (RAL 9005) |
| Dimensions |
Not including brackets:
173 x 180 x 181 mm / 6.8 x 7.1 x 9.8 in. (WxHxD)
Including brackets:
173 x 180 x 248 mm / 7.1 x 6.8 x 9.8 in. (WxHxD)
|
| Weight |
Not including brackets: 2.2 kg / 4.9 lb
Including brackets: 2.5 kg / 5.5 lb |
| Pieces per box |
2x pieces |
| Shipping dimensions |
230 x 220 x 460 mm / 9.1 x 9.1 x 18.1 in. (WxHxD) |
| Shipping weight |
5.0 kg / 11.0 lb |
| Format |
Pair |
| Mounting system |
ABS bracket |
| Power type selector |
Selectable transformer tap |
LOGISTICS
| Status |
New |
|---|---|
| Origin Production |
China |
| EAN code |
BK: 8435071306140
WH: 8435071306133 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain |
| Width (cm) |
23.00 |
| Height (cm) |
22.00 |
| Depth (cm) |
46.00 |
| Vol. (dm3) |
23.28 |
| Gross Weight (kg) |
2.50 |
| Net Weight (kg) |
2.15 |
| Warranty (months) |
36 |
