eUC106 WH
CEUC106
Available
6.5" | 2-way | 40 WRMS | pendant | spherical design

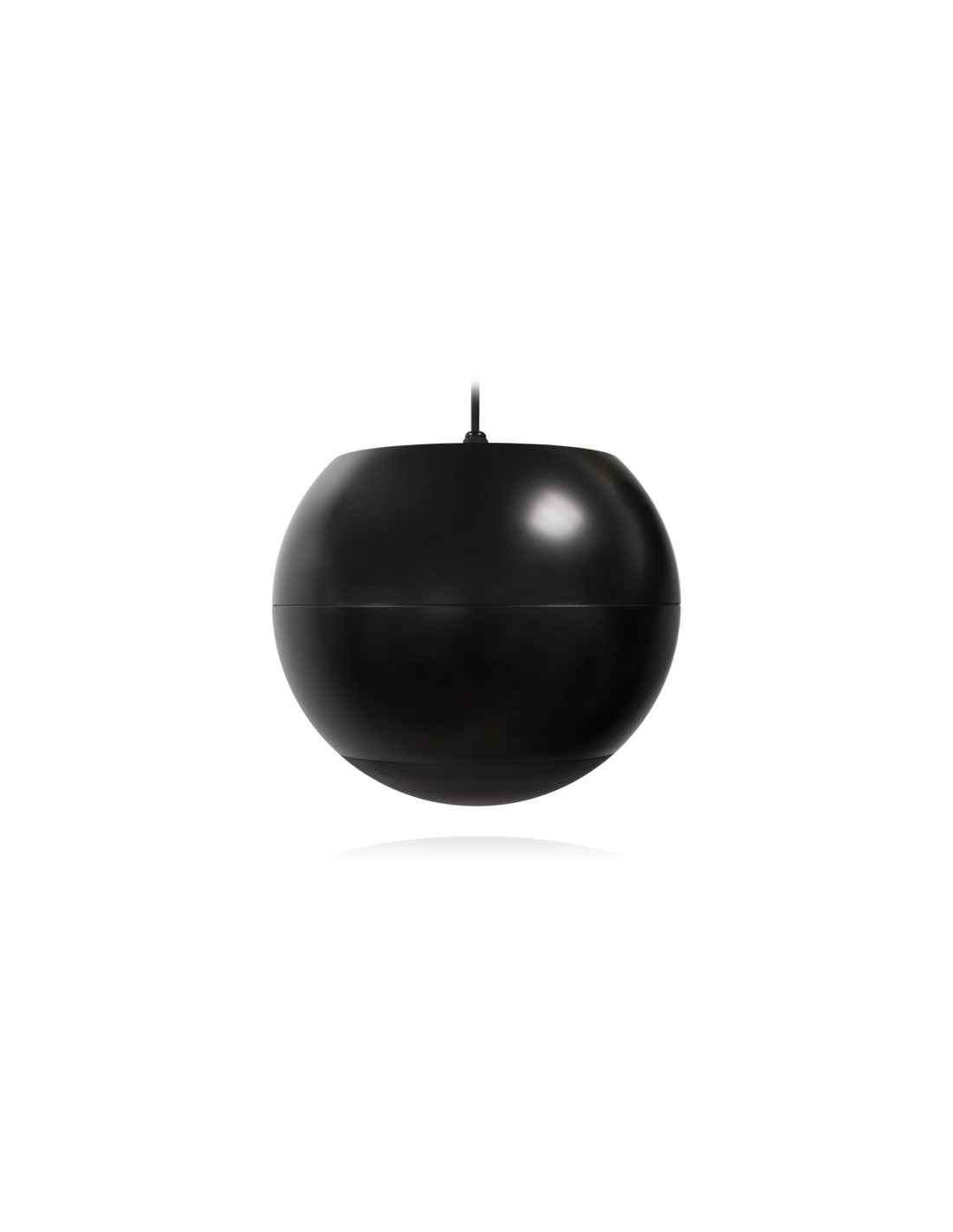

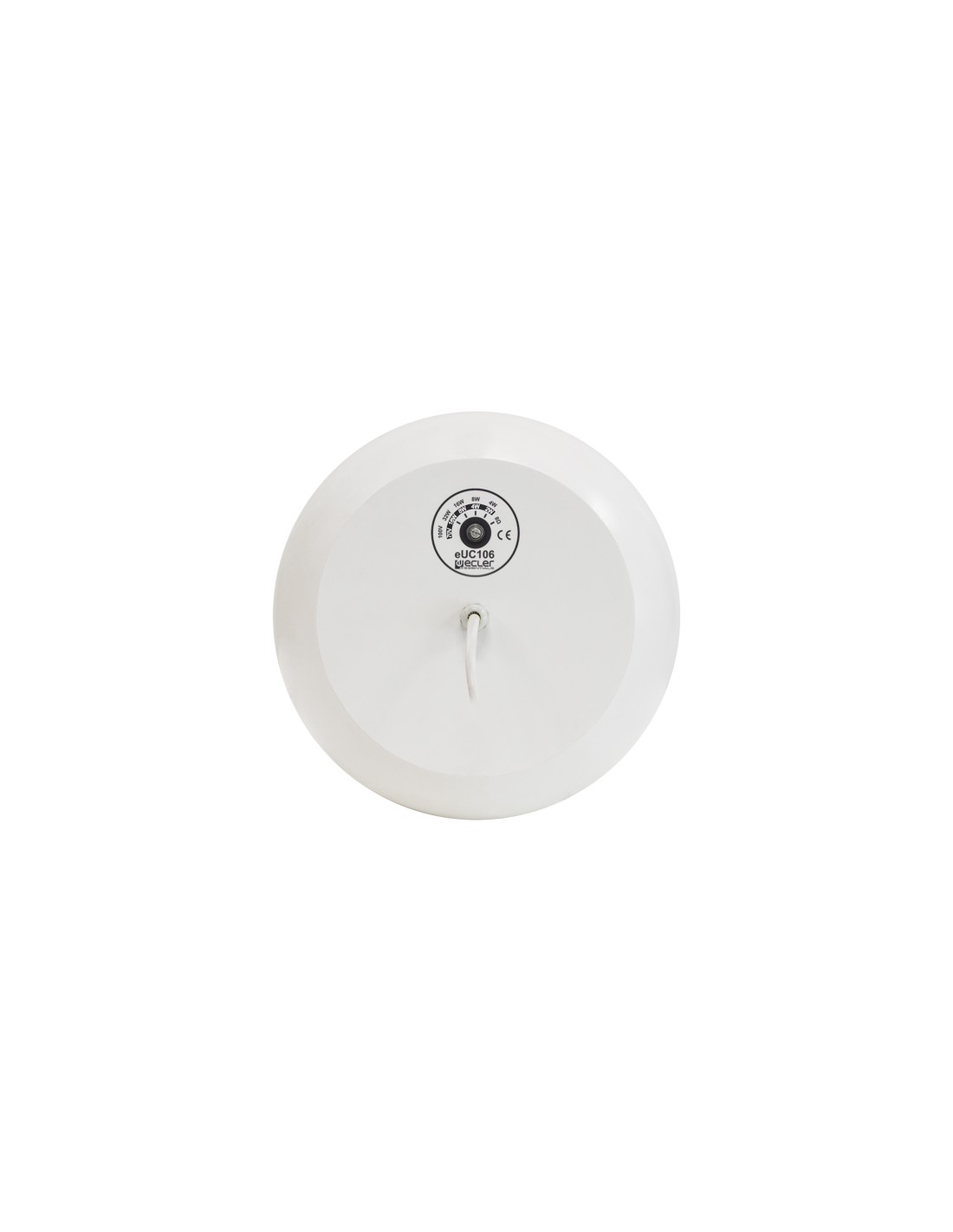

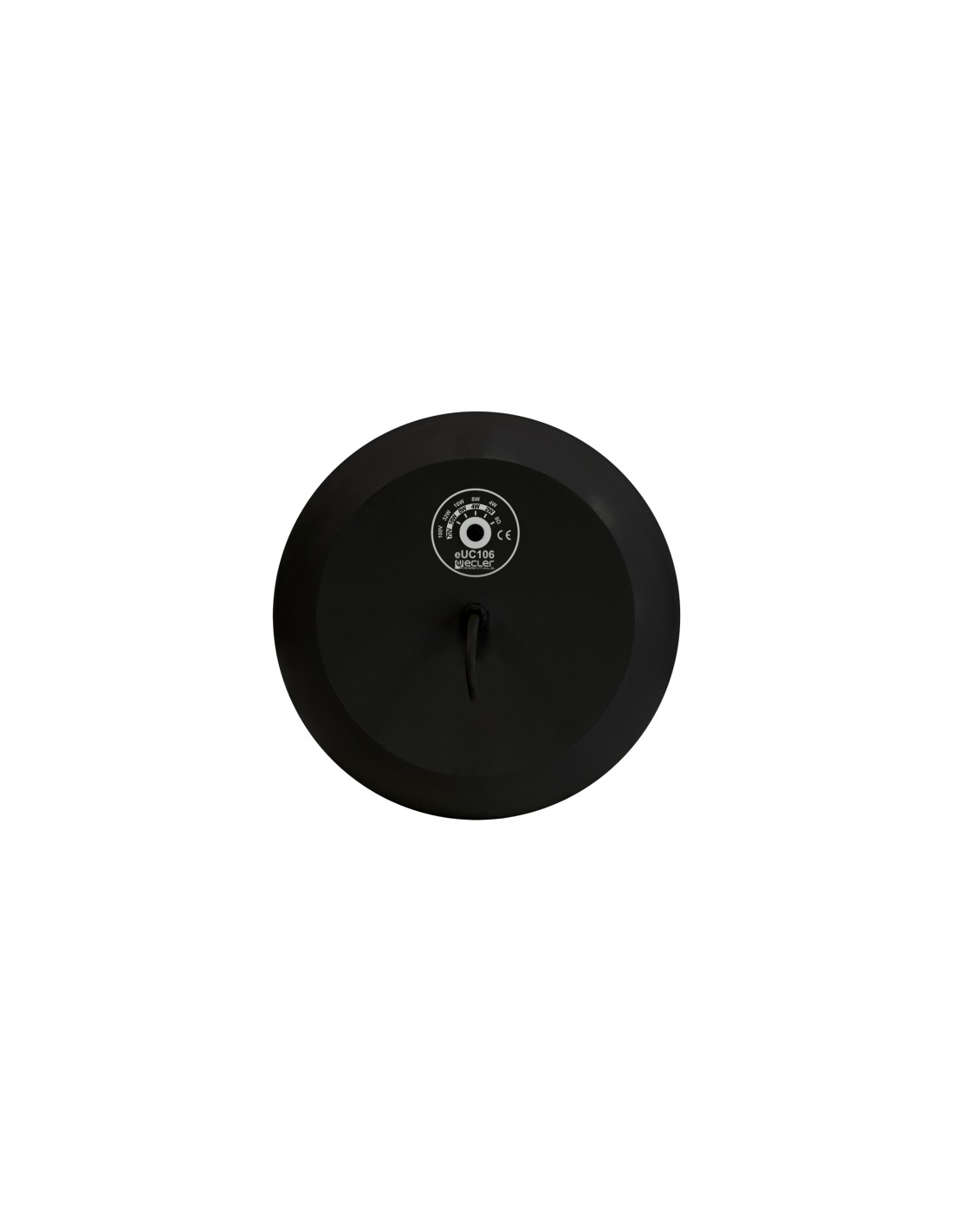

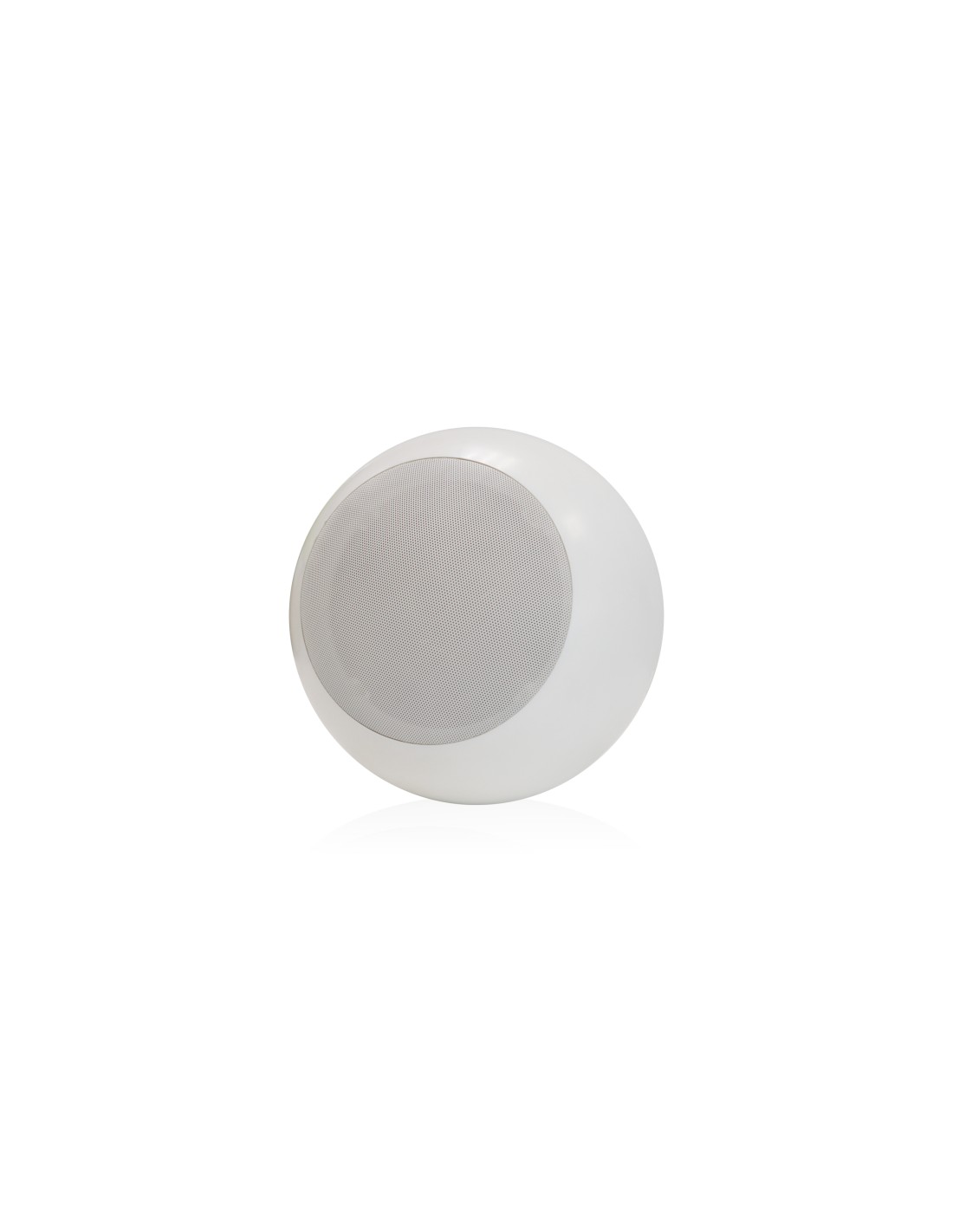

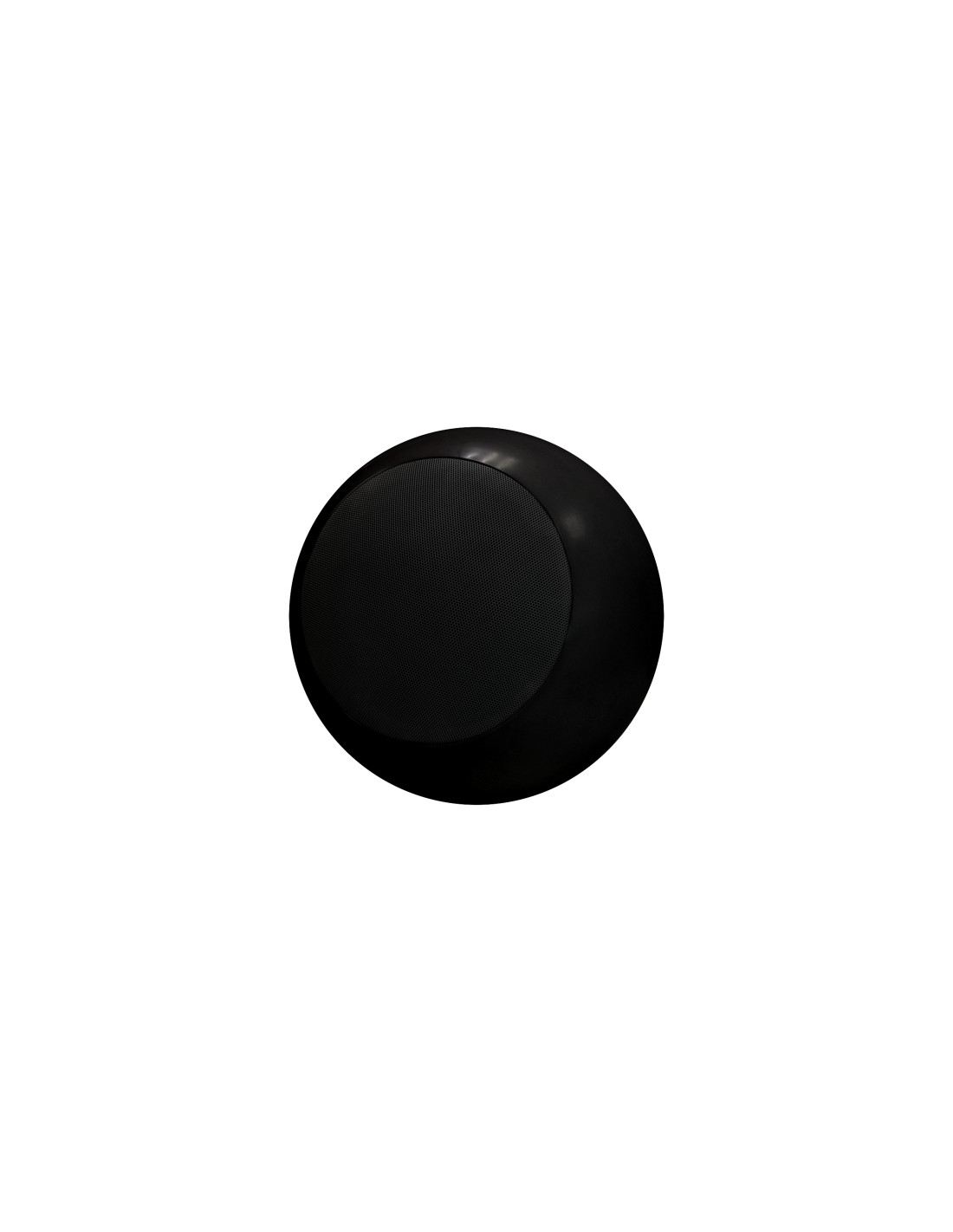

eUC106 is a spherical pendant loudspeaker featuring a 6.5” woofer, 1” tweeter and 70/100V transformer.
- Effective Freq. Range
- 74 Hz-20 kHz (-10dB)
- Coverage angle / Dispersion
- 151°x151° (HxV)
- Power handling
- 40 W RMS / 160 W Peak
- Sensitivity
- 90 dB (1W/1m)
- Maximum SPL
- 106 dB Continuous / 112 dB Peak
- Recommended amplifier power
- 80 W RMS
- Ways
- 2 ways
- Low frequency driver
- 6,5" woofer
- High frequency driver
- 1" tweeter
- Nominal impedance
- 8Ω
- Connection type
- Stripped wire
- Installation options
- Ceiling (pendant)
- Environmental
- IPX4 rated
- Enclosure material
- ABS
- Operating temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -20°C ; -4°F
Max: 70°C ; 158°F
- Operating humidity
- 85% HR
<85% HR
- Storage temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -20°C ; -4°F
Max: 70°C ; 158°F
- Storage humidity
- 90% HR
<90% HR
- Included accessories
- Mounting accessories
- Finished colour
- White (RAL 9003) or Black (RAL 9005)
- Dimensions
- 270 x 215 mm / 10.63 x 8.46 in. (ØxD)
- Weight
- 3.0 kg / 6.61 lb
- Pieces per box
- Unit
- Shipping dimensions
- 320 x 320 x 280 mm / 12.6 x 12.6 x 11.02 in. (WxHxD)
- Shipping weight
- 3.5 kg / 7.72 lb
- Status
- New
- Origin Production
- China
- EAN code
- WH: 8435071305723
BK: 8435071306027 - Tariff code
- 8518220000
- Shipping Location
- Spain
- Width (cm)
- 32.00
- Height (cm)
- 32.00
- Depth (cm)
- 28.00
- Vol. (dm3)
- 28.67
- Gross Weight (kg)
- 3.50
- Net Weight (kg)
- 3.40
- Format
- Unit
- Warranty (months)
- 36
- Mounting system
- Cabinet
- Power options (Hi Z Multi-tap)
- 100V: 32W / 16W / 8W / 4W / 8Ω
70V: 16W / 8W / 4W / 2W / 8Ω - Cable length
- 3m
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
74 Hz-20 kHz (-10dB) |
|---|---|
| Coverage angle / Dispersion |
151°x151° (HxV) |
| Power handling |
40 W RMS / 160 W Peak |
| Sensitivity |
90 dB (1W/1m) |
| Maximum SPL |
106 dB Continuous / 112 dB Peak |
| Recommended amplifier power |
80 W RMS |
| Power options (Hi Z Multi-tap) |
100V: 32W / 16W / 8W / 4W / 8Ω
70V: 16W / 8W / 4W / 2W / 8Ω |
TRANSDUCERS
| Ways |
2 ways |
|---|---|
| Low frequency driver |
6,5" woofer |
| High frequency driver |
1" tweeter |
| Nominal impedance |
8Ω |
PHYSICAL
| Connection type |
Stripped wire |
|---|---|
| Installation options |
Ceiling (pendant) |
| Environmental |
IPX4 rated |
| Enclosure material |
ABS |
| Operating temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -20°C ; -4°F Max: 70°C ; 158°F |
| Operating humidity |
<85% HR
85% HR |
| Storage temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -20°C ; -4°F Max: 70°C ; 158°F |
| Storage humidity |
<90% HR
90% HR |
| Included accessories |
Mounting accessories |
| Finished colour |
White (RAL 9003) or Black (RAL 9005) |
| Dimensions |
270 x 215 mm / 10.63 x 8.46 in. (ØxD) |
| Weight |
3.0 kg / 6.61 lb |
| Pieces per box |
Unit |
| Shipping dimensions |
320 x 320 x 280 mm / 12.6 x 12.6 x 11.02 in. (WxHxD) |
| Shipping weight |
3.5 kg / 7.72 lb |
| Format |
Unit |
| Mounting system |
Cabinet |
| Cable length |
3m |
LOGISTICS
| Status |
New |
|---|---|
| Origin Production |
China |
| EAN code |
WH: 8435071305723
BK: 8435071306027 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain |
| Width (cm) |
32.00 |
| Height (cm) |
32.00 |
| Depth (cm) |
28.00 |
| Vol. (dm3) |
28.67 |
| Gross Weight (kg) |
3.50 |
| Net Weight (kg) |
3.40 |
| Warranty (months) |
36 |
