eMOTUS3OD WH
CEMOTUS3ODWH
Available
3" | 25 WRMS | IP65 | outdoors

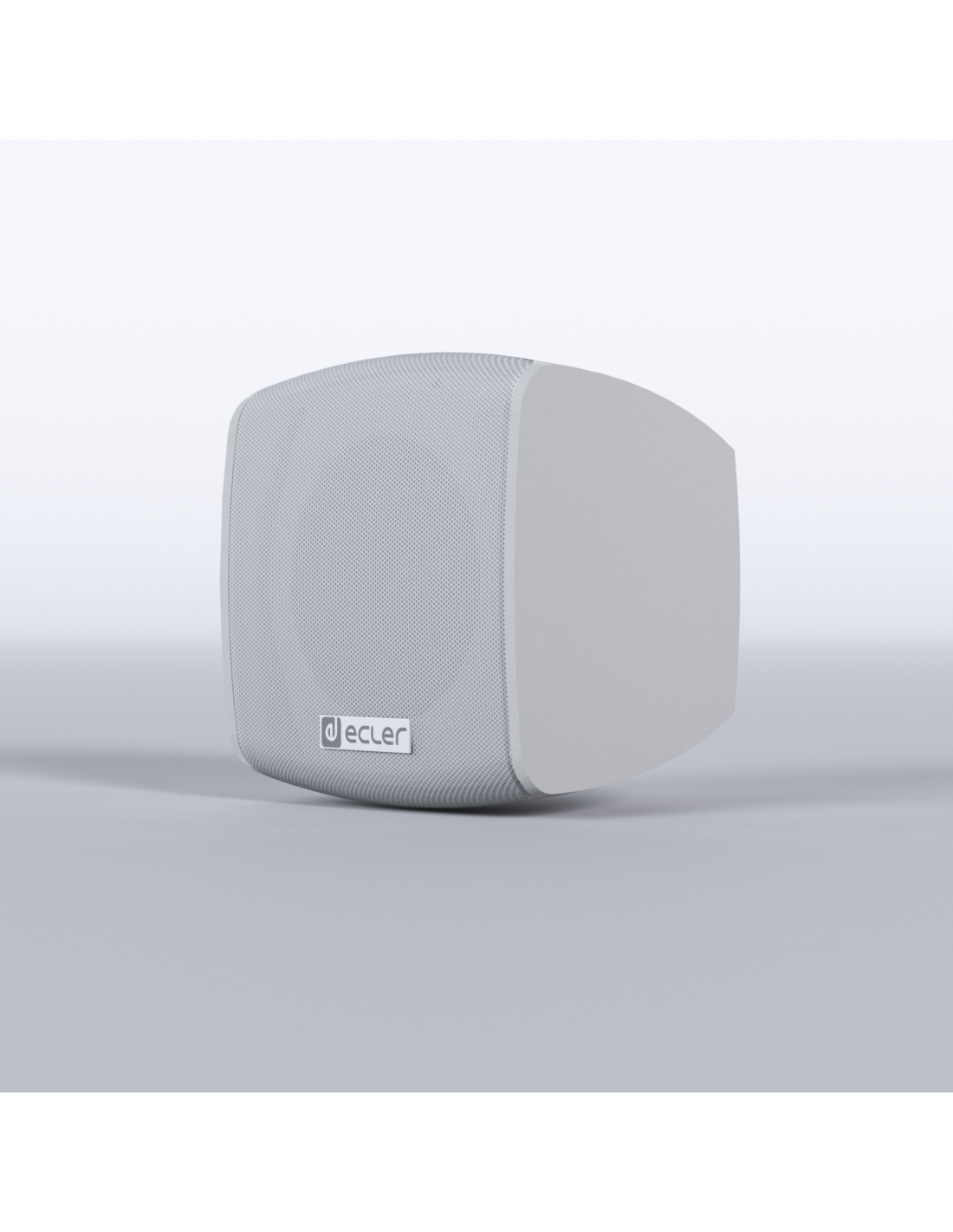

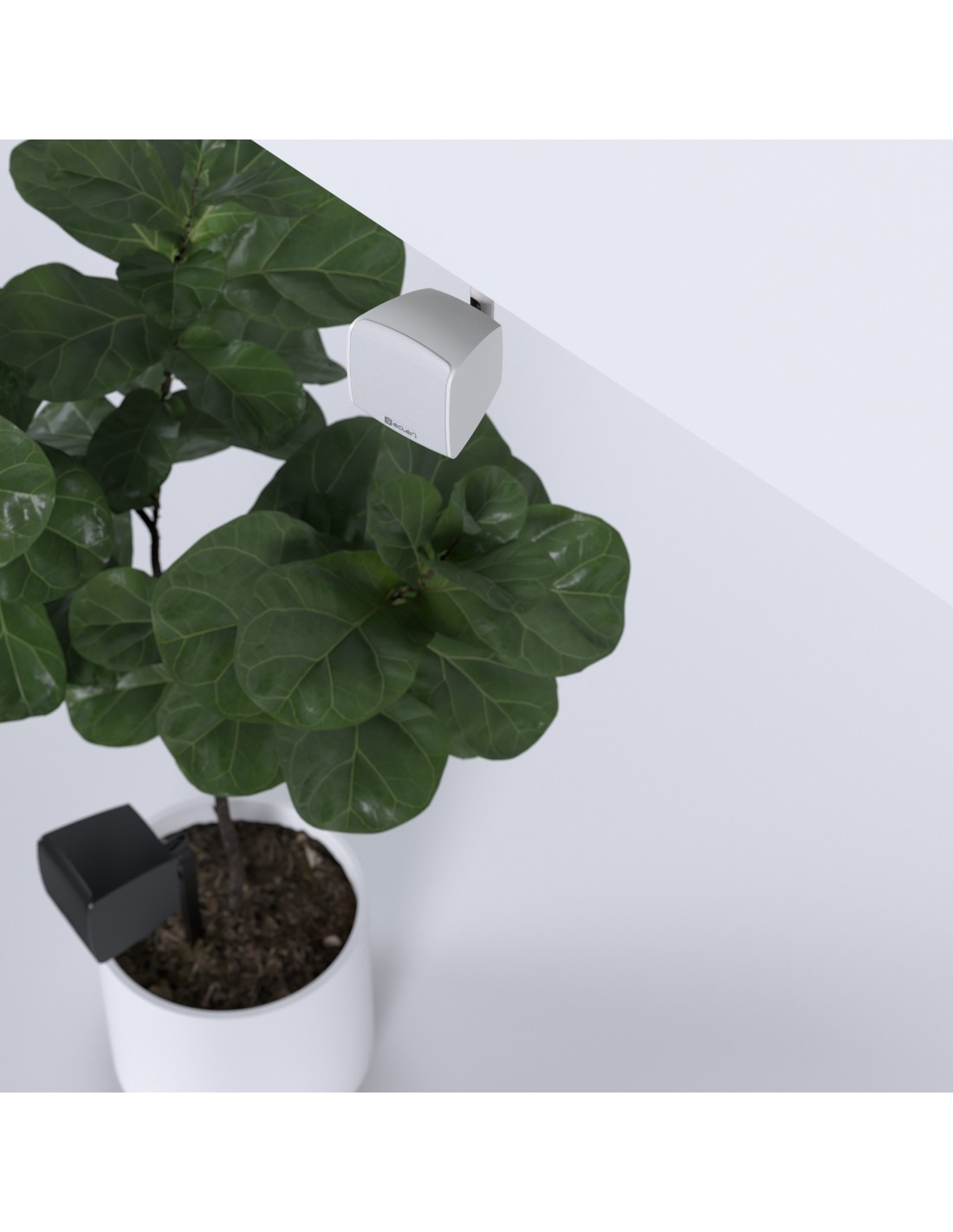

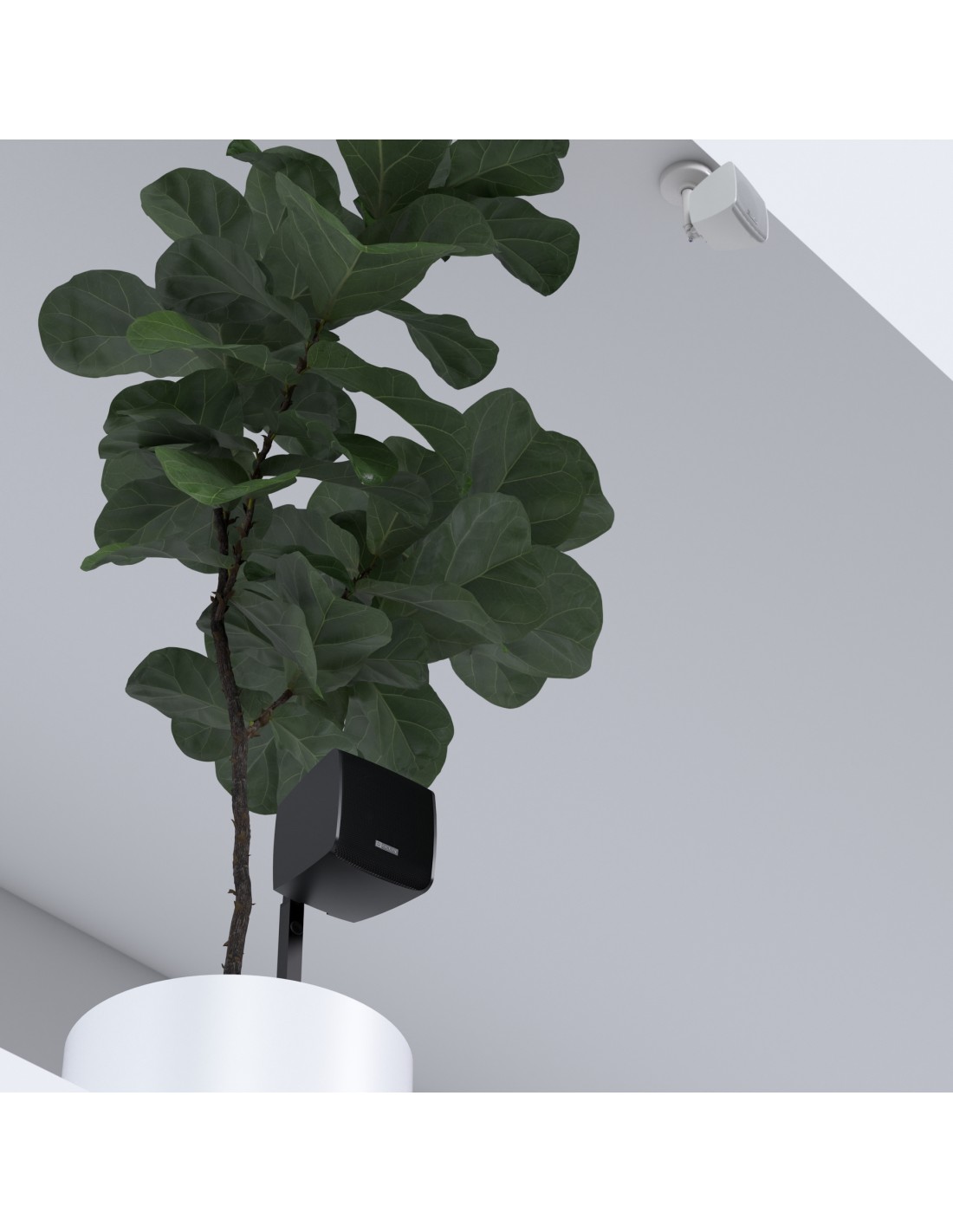

eMOTUS3OD is a loudspeaker cabinet, 3” woofer with eMOTUS unique design. Ready for indoor and outdoor applications, thanks to its aluminium grill and UV protection treatment (IP65-rated). A professional and compact loudspeaker, cost-effective and with a unique design that will easily fit in a massive number of applications: theme parks, gardens, nature parks and urban spaces, leisure, health and sport centres, residential buildings, outdoor areas, etc.

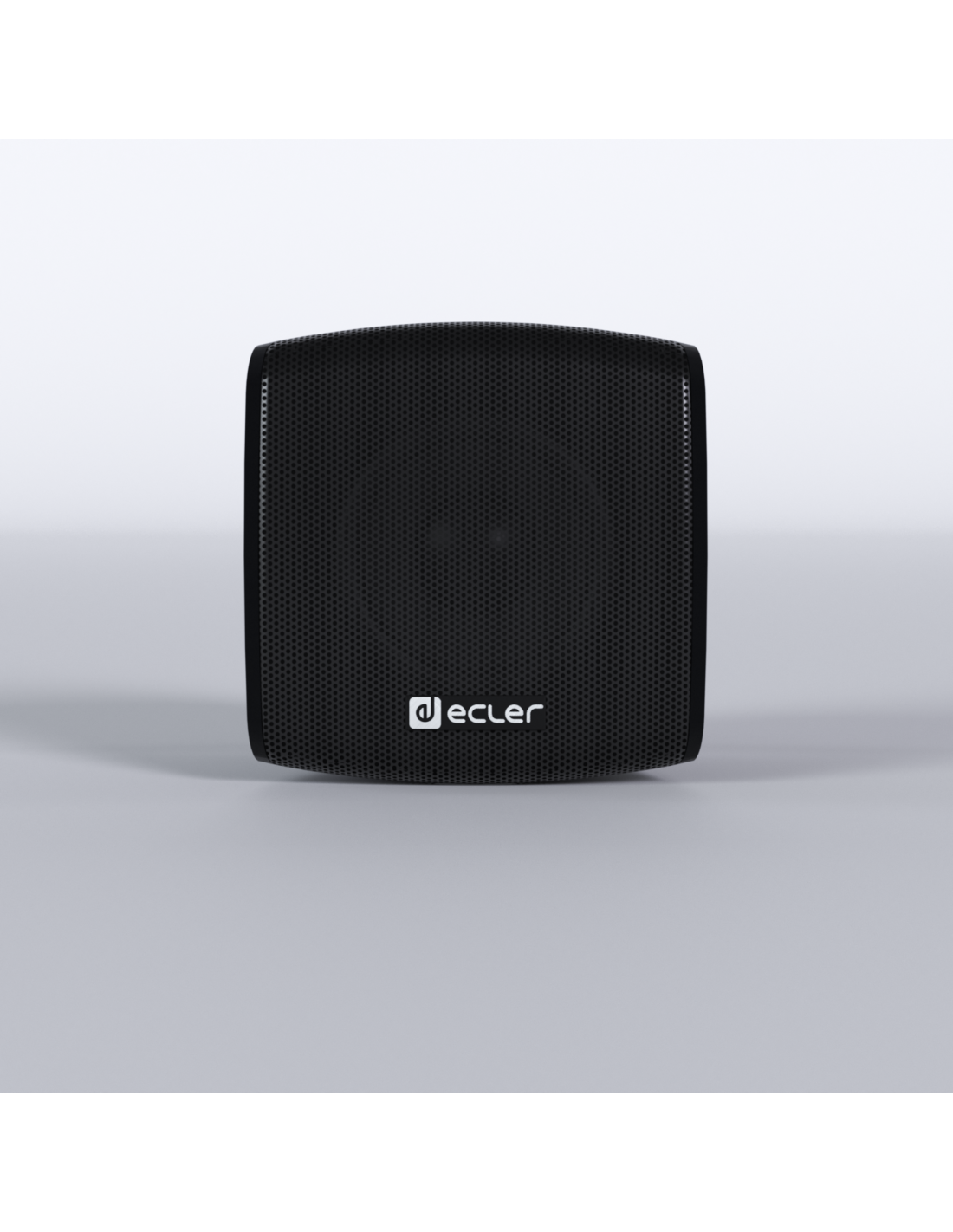

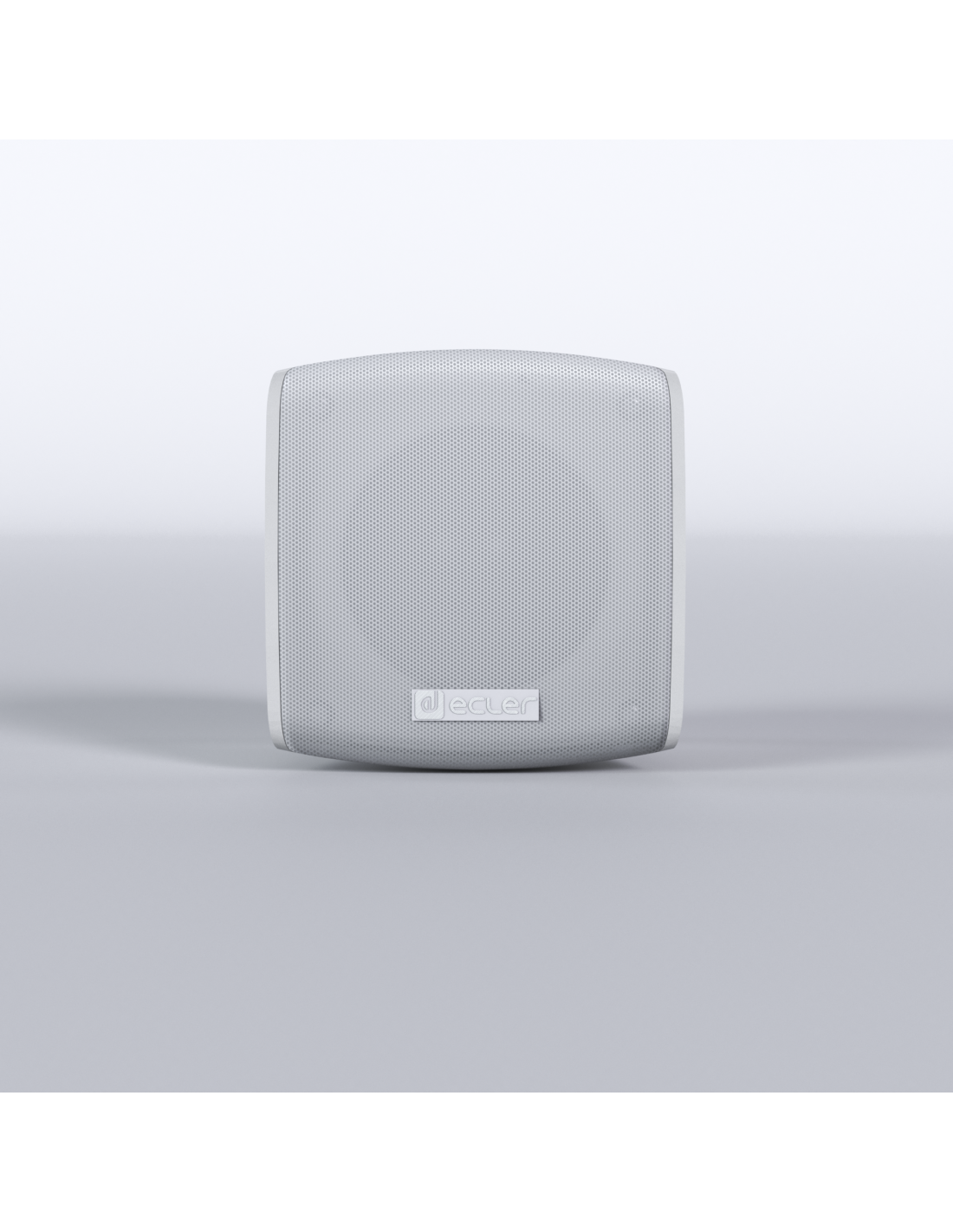

Available in black and white colour. Wall mount accessories and safety sling are included for an easy and secure installation.
- Effective Freq. Range
- 120 Hz - 20 kHz (-10dB)
- Coverage angle / Dispersion
- 196°x187° (HxV)
- Power handling
- 25W RMS / 100W Peak
- Sensitivity
- 85dB (1W/1m)
- Maximum SPL
- 99dB continuous / 105dB peak
- Recommended amplifier power
- 50W
- Ways
- 1-way
- Low frequency driver
- 3" woofer
- Nominal impedance
- 8Ω
- Connection type

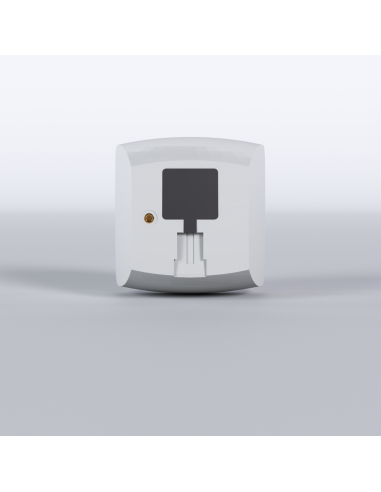

- 2-terminal Euroblock connector (Input)
- Installation options
- Surface (wall mount), desktop
- Environmental
- IP65 rated
- Enclosure material
- ABS plastic
- Grille material
- Aluminium
- Operating temperature
- Min: -20°C ; -4°F
Max: 70°C ; 158°F - Operating humidity
- 85% HR
- Storage temperature
- Min: -20°C ; -4°F
Max: 70°C ; 158°F - Storage humidity
- 90% HR
- Included accessories
- Wall-mount bracket, adhesive legs, back rubber cover & security steel cable
- Optional accessories
- Cover & security steel cable
- Finished colour
- White (RAL 9003) or Black (RAL 9005)
- Dimensions
- 132x134.5x115.5 mm / 5.20x5.30x4.55 in. (WxHxD)
- Weight
- 1.3 kg. / 2.87 lb.
- Pieces per box
- 2

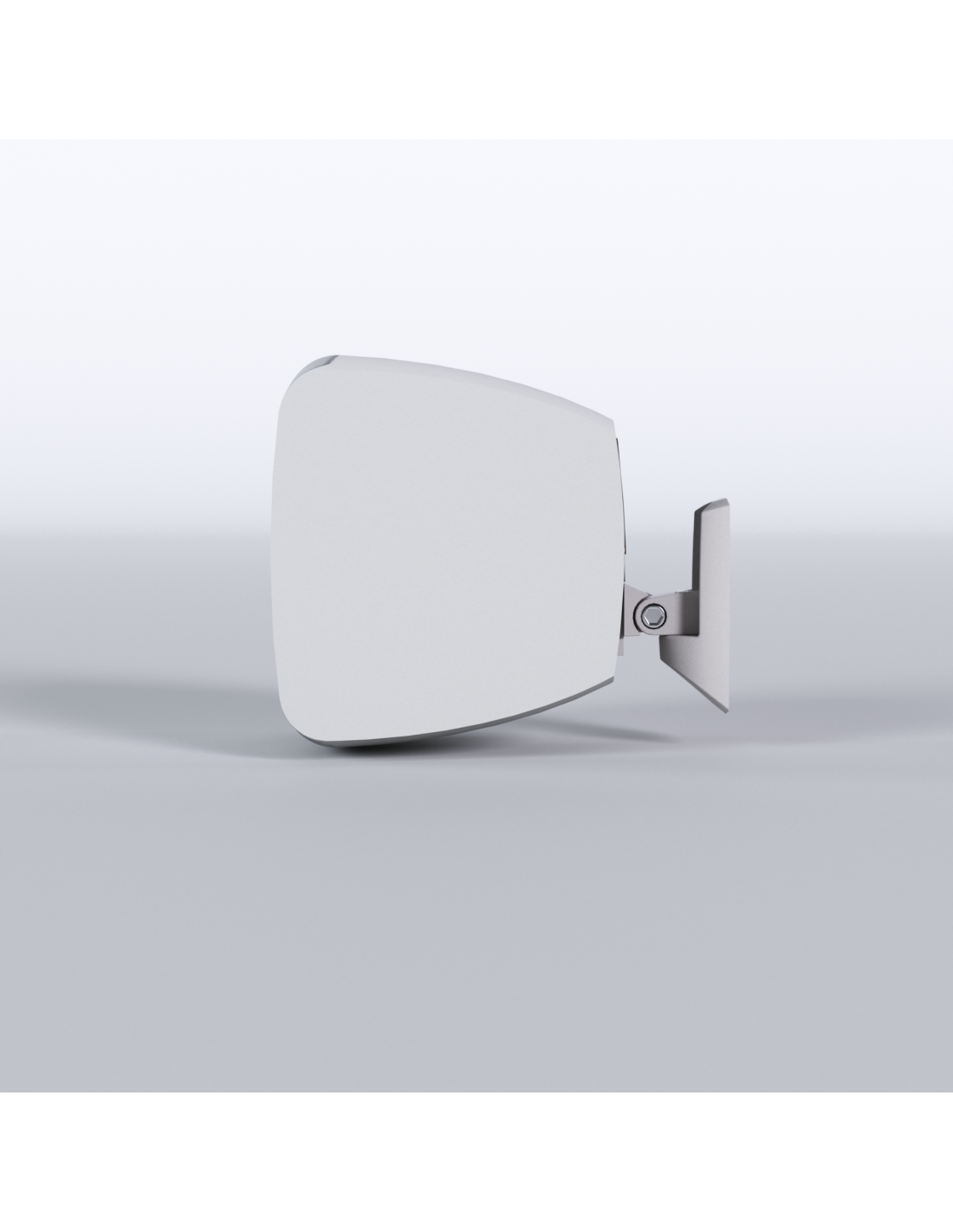

- Mounting system
- ABS bracket
- Power options (Hi Z Multi-tap)
- 2.5W/5W/7.5W/15W @ 100V and 8Ω
1.25W/2.5W/3.75W/7.5W @ 70V and 8Ω
- Power type selector
- Selectable transformer tap
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
120 Hz - 20 kHz (-10dB) |
|---|---|
| Coverage angle / Dispersion |
196°x187° (HxV) |
| Power handling |
25W RMS / 100W Peak |
| Sensitivity |
85dB (1W/1m) |
| Maximum SPL |
99dB continuous / 105dB peak |
| Recommended amplifier power |
50W |
| Power options (Hi Z Multi-tap) |
2.5W/5W/7.5W/15W @ 100V and 8Ω
1.25W/2.5W/3.75W/7.5W @ 70V and 8Ω
|
TRANSDUCERS
| Ways |
1-way |
|---|---|
| Low frequency driver |
3" woofer |
| Nominal impedance |
8Ω |
PHYSICAL
| Connection type |
2-terminal Euroblock connector (Input) |
|---|---|
| Installation options |
Surface (wall mount), desktop |
| Environmental |
IP65 rated |
| Enclosure material |
ABS plastic |
| Grille material |
Aluminium |
| Operating temperature |
Min: -20°C ; -4°F
Max: 70°C ; 158°F |
| Operating humidity |
85% HR |
| Storage temperature |
Min: -20°C ; -4°F
Max: 70°C ; 158°F |
| Storage humidity |
90% HR |
| Included accessories |
Wall-mount bracket, adhesive legs, back rubber cover & security steel cable |
| Optional accessories |
Cover & security steel cable |
| Finished colour |
White (RAL 9003) or Black (RAL 9005) |
| Dimensions |
132x134.5x115.5 mm / 5.20x5.30x4.55 in. (WxHxD) |
| Weight |
1.3 kg. / 2.87 lb. |
| Pieces per box |
2 |
| Mounting system |
ABS bracket |
| Power type selector |
Selectable transformer tap |
