ZEN-15
CZEN15SD
Only a few left
5” Outdoor Speaker

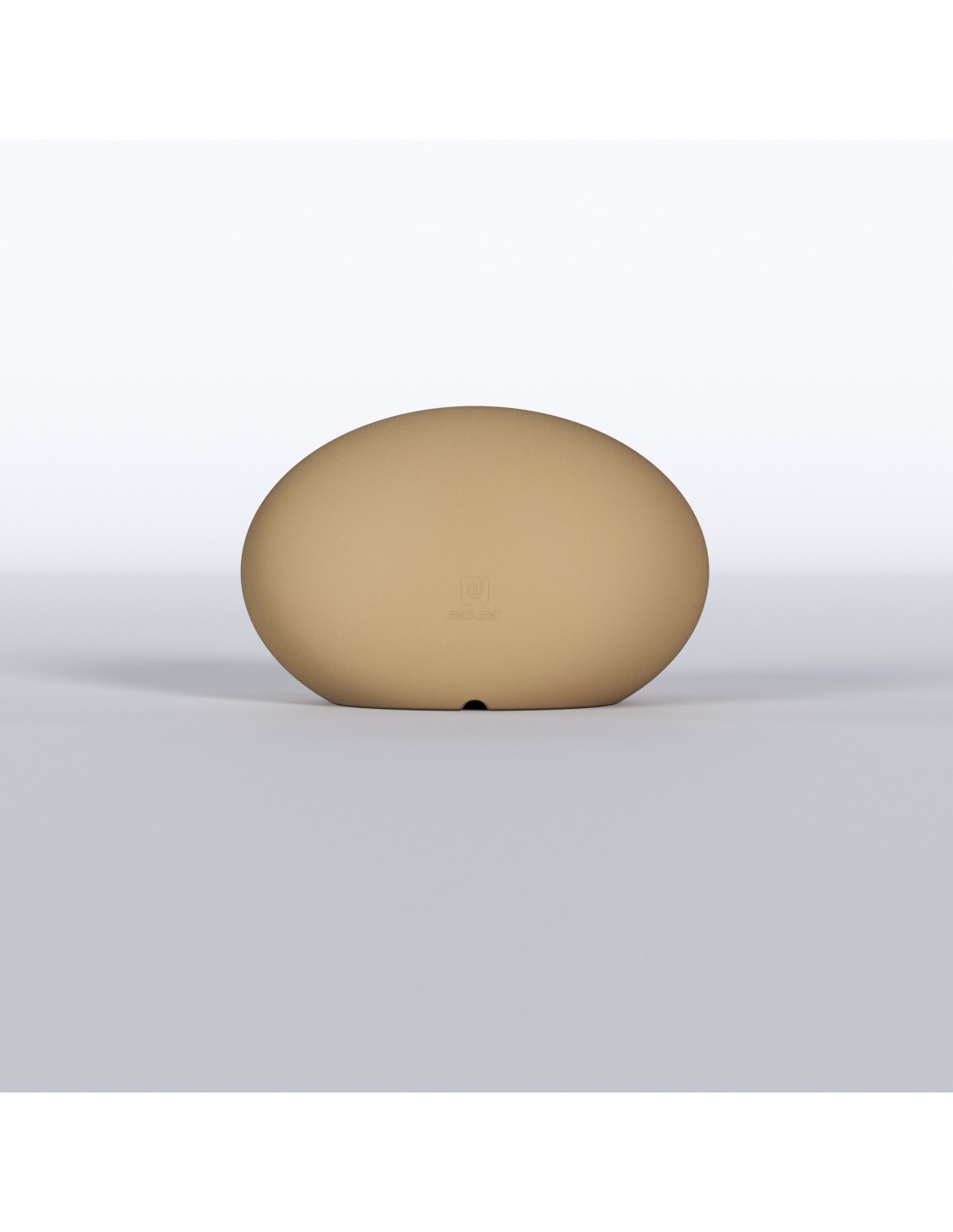

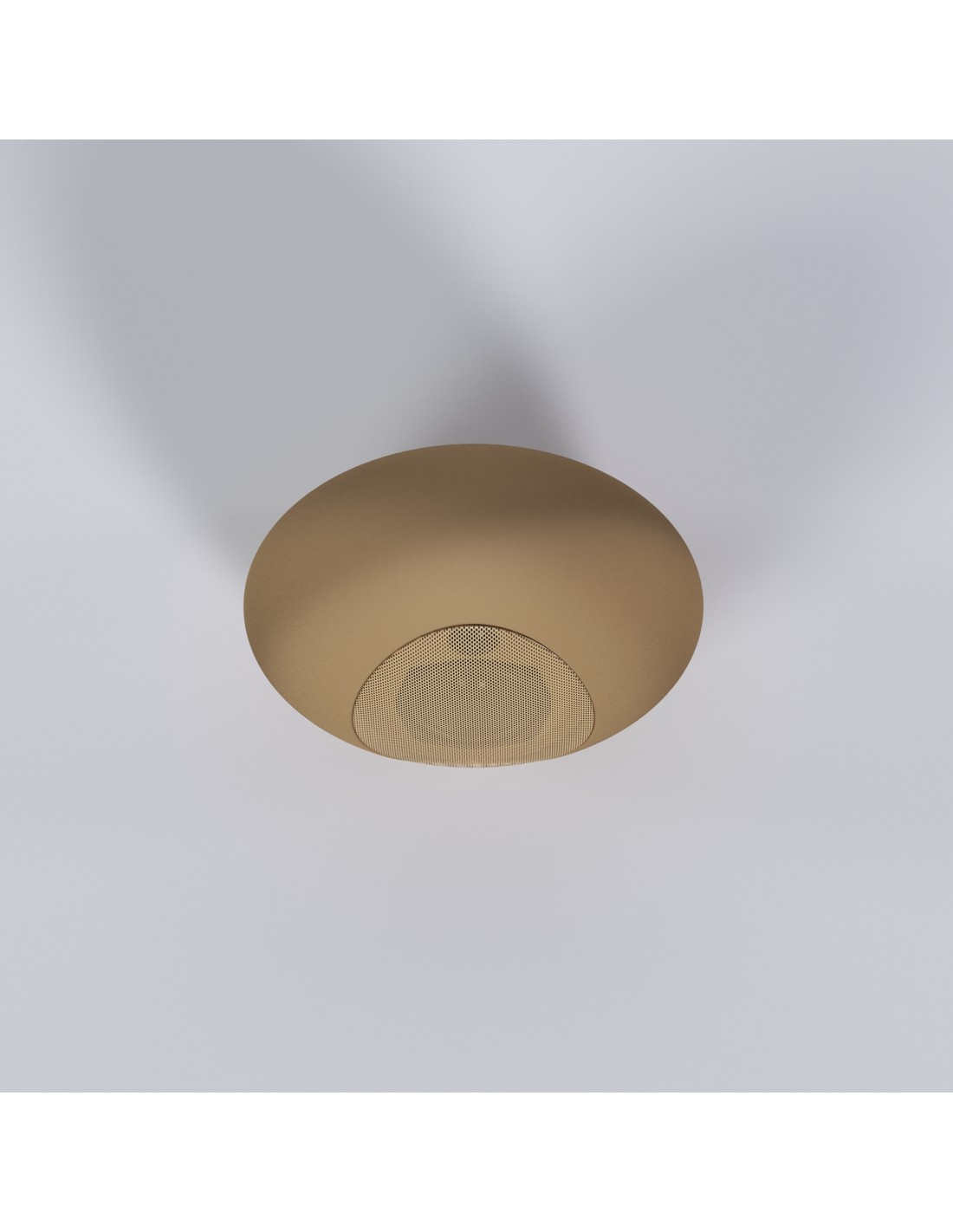

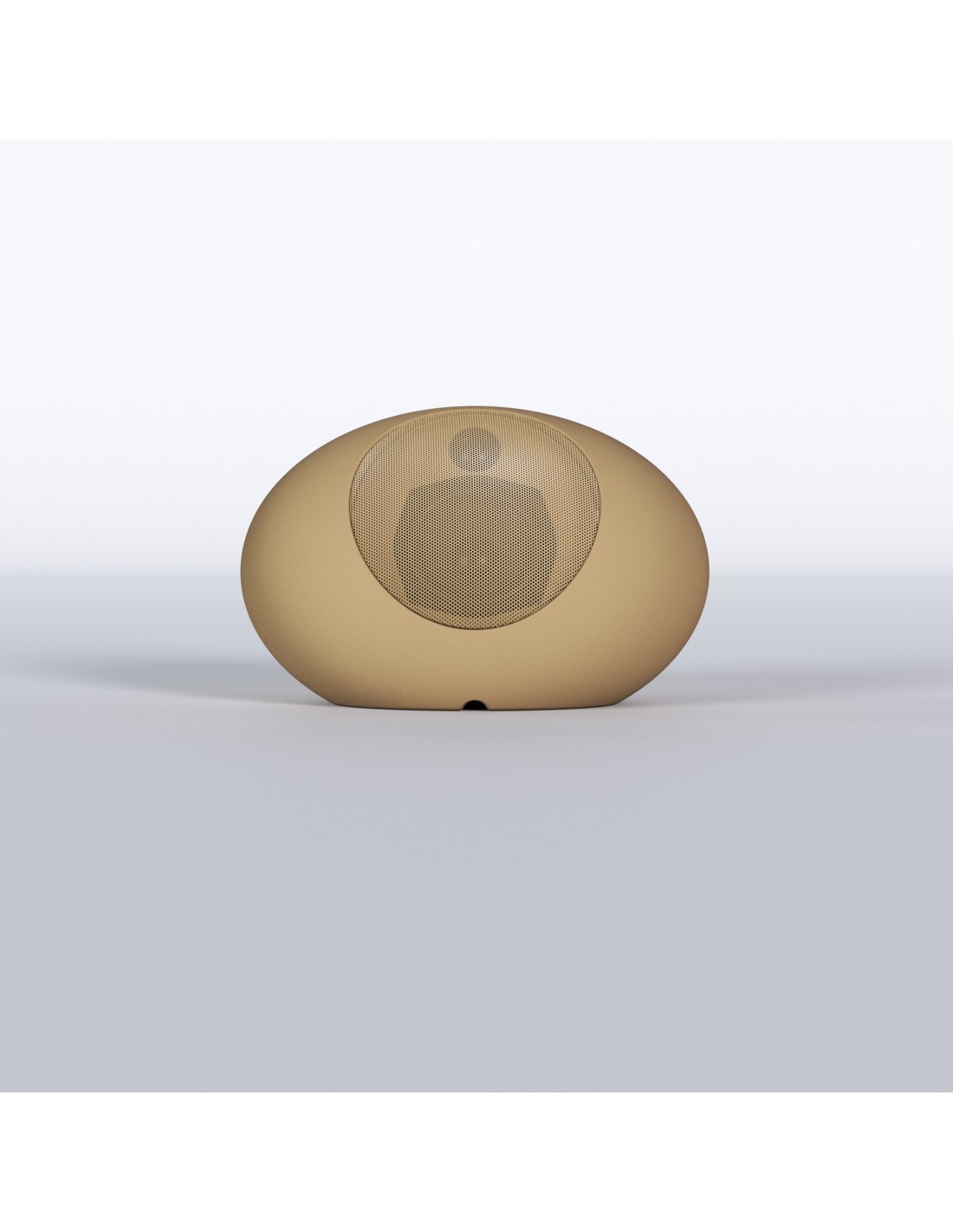

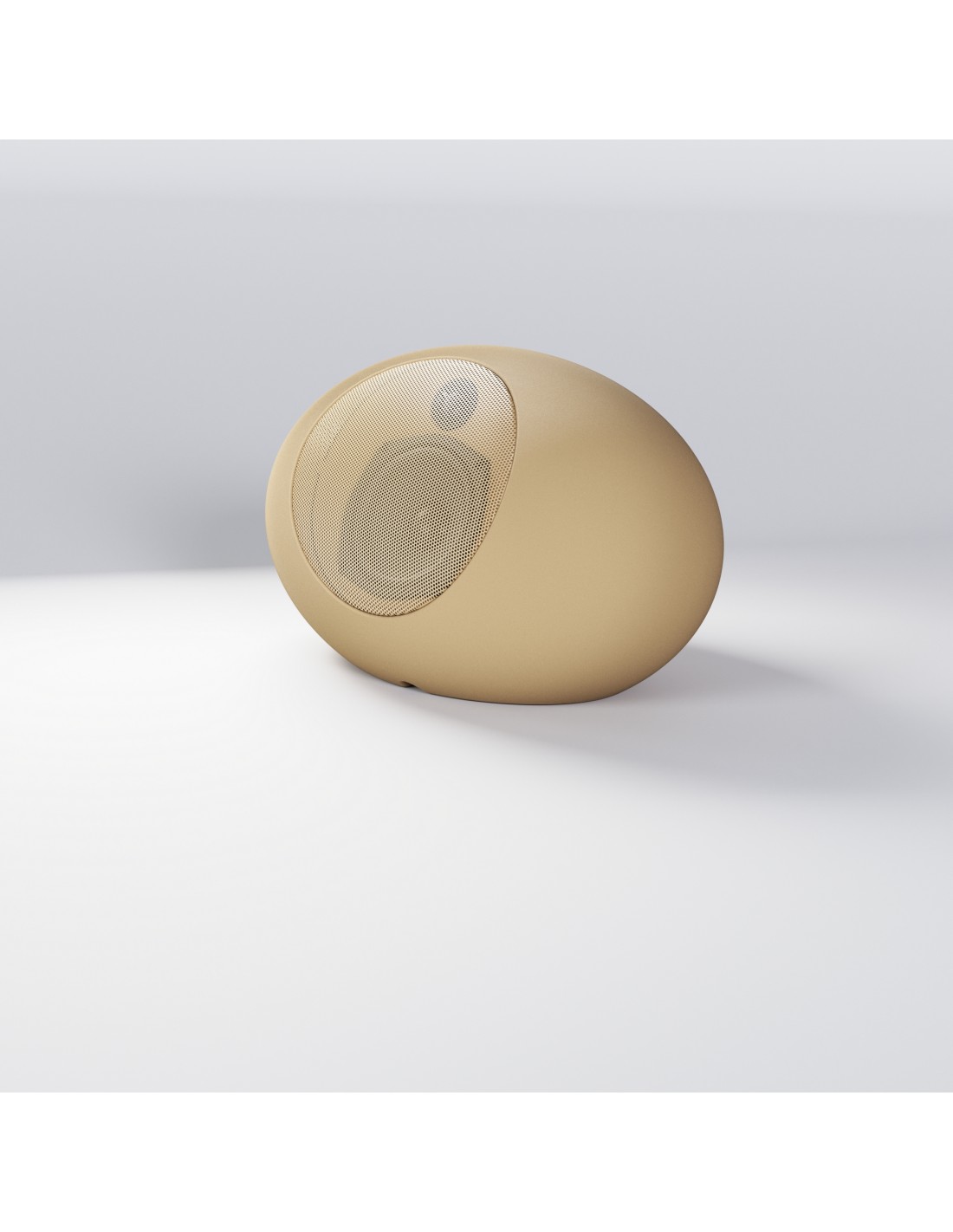

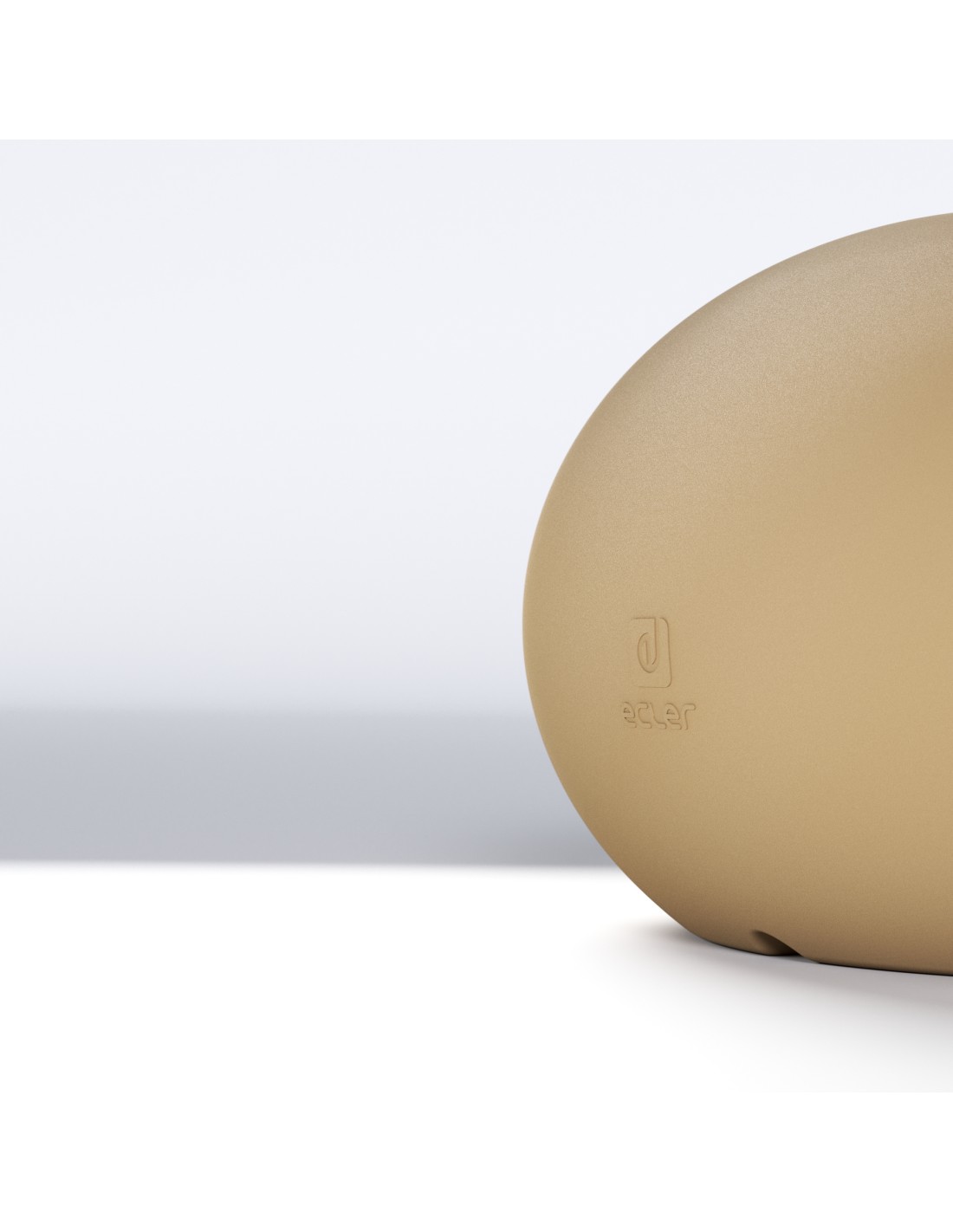

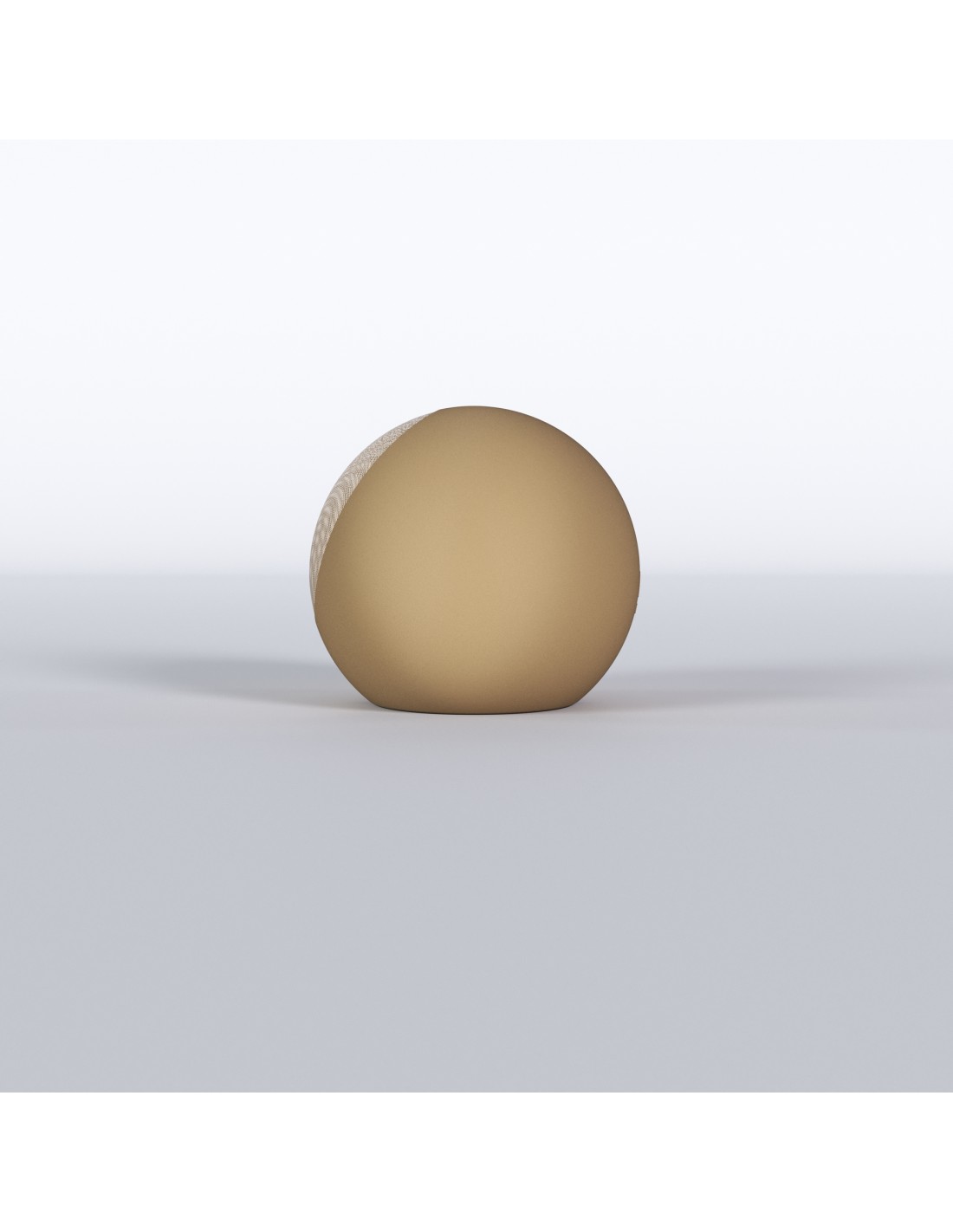

ZEN-15 is an above-ground mounting loudspeaker with an elegant, rounded shape that seamlessly blends the world of audio technology with the aesthetics of nature. This discreet outdoor audio solution effortlessly integrates into outdoor environments, providing a harmonious balance between functionality and visual appeal.
- Effective Freq. Range
- 70Hz-20kHz (-10dB)
- Coverage angle / Dispersion
- 191°x150° (HxV)
- Power handling
- 70W RMS / 280W Peak
- Sensitivity
- 84dB (1W/1m)
- Maximum SPL
- 102dB continuous / 108dB peak
- Recommended amplifier power
- 140W RMS
- Ways
- 2-ways full range
- Low frequency driver
- 5,25" woofer
- High frequency driver
- 1" silk dome tweeter
- Nominal impedance
- 8Ω
- Crossover filter
- 1,65 kHz

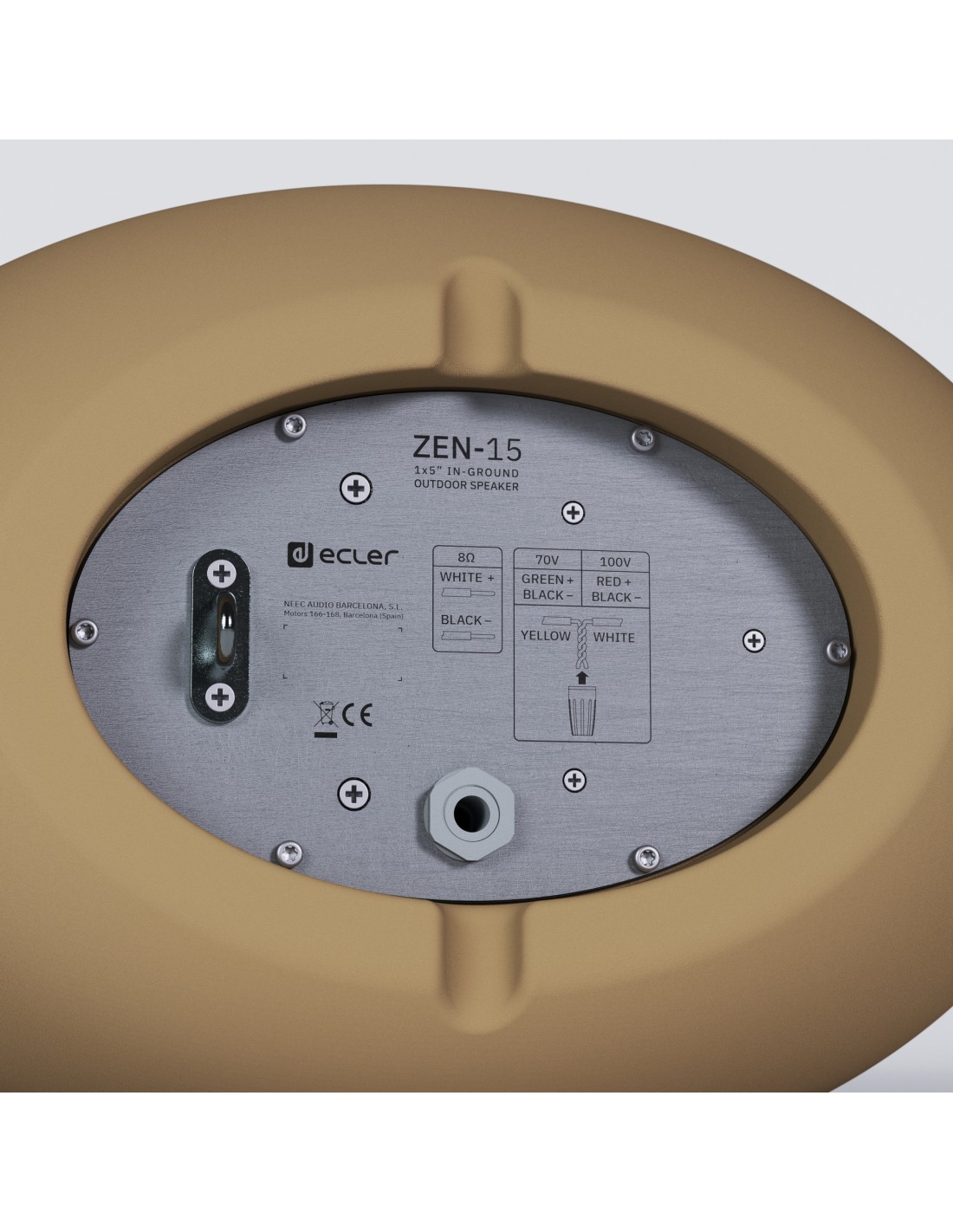

- Connection type
- External multi-wire cable with waterproof connection plug included
- Installation options
- Above-ground mounting
- Environmental
- IP65
- Enclosure material
- Polyethylene
- Grille material
- Aluminium
- Operating temperature
- Min: -20°C; -4°F
Max: 70°C; 158°F - Operating humidity
- 85% HR
- Storage temperature
- Min: -20°C; -4°F
Max: 70°C; 158°F - Storage humidity
- 90% HR
- Included accessories
- Waterproof 4-wire connector
- Finished colour
- sand (RAL7042) or grey (RAL1001)
- Dimensions
- 410 x 260 x 290 mm / 16.14 x 10.24 x 11.42 in (WxHxD)
- Weight
- 4.4Kg / 9.7lb
- Pieces per box
- 1
- Shipping dimensions
- 500 x 350 x 370 mm / 19.69 x 13.78 x 14.57 in. (WxHxD)
- Shipping weight
- 6.6Kg. / 14.55lb
- Status
- New
- Origin Production
- Spain
- EAN code
- 8435071344265
8435071344272 - Width (cm)
- 37
- Height (cm)
- 35
- Depth (cm)
- 50
- Vol. (dm3)
- 64.75
- Gross Weight (kg)
- 6.6
- Net Weight (kg)
- 4.05
- Format
- Unit
- Warranty (months)
- 60
- Power options (Hi Z Multi-tap)
- 100V: 60W / 8Ω
70V: 60W / 8Ω - Cable length
- 1m
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
70Hz-20kHz (-10dB) |
|---|---|
| Coverage angle / Dispersion |
191°x150° (HxV) |
| Power handling |
70W RMS / 280W Peak |
| Sensitivity |
84dB (1W/1m) |
| Maximum SPL |
102dB continuous / 108dB peak |
| Recommended amplifier power |
140W RMS |
| Power options (Hi Z Multi-tap) |
100V: 60W / 8Ω
70V: 60W / 8Ω |
TRANSDUCERS
| Ways |
2-ways full range |
|---|---|
| Low frequency driver |
5,25" woofer |
| High frequency driver |
1" silk dome tweeter |
| Nominal impedance |
8Ω |
FILTERS
| Crossover filter |
1,65 kHz |
|---|
PHYSICAL
| Connection type |
External multi-wire cable with waterproof connection plug included |
|---|---|
| Installation options |
Above-ground mounting |
| Environmental |
IP65 |
| Enclosure material |
Polyethylene |
| Grille material |
Aluminium |
| Operating temperature |
Min: -20°C; -4°F
Max: 70°C; 158°F |
| Operating humidity |
85% HR |
| Storage temperature |
Min: -20°C; -4°F
Max: 70°C; 158°F |
| Storage humidity |
90% HR |
| Included accessories |
Waterproof 4-wire connector |
| Finished colour |
sand (RAL7042) or grey (RAL1001) |
| Dimensions |
410 x 260 x 290 mm / 16.14 x 10.24 x 11.42 in (WxHxD) |
| Weight |
4.4Kg / 9.7lb |
| Pieces per box |
1 |
| Shipping dimensions |
500 x 350 x 370 mm / 19.69 x 13.78 x 14.57 in. (WxHxD) |
| Shipping weight |
6.6Kg. / 14.55lb |
| Format |
Unit |
| Cable length |
1m |
LOGISTICS
| Status |
New |
|---|---|
| Origin Production |
Spain |
| EAN code |
8435071344265
8435071344272 |
| Width (cm) |
37 |
| Height (cm) |
35 |
| Depth (cm) |
50 |
| Vol. (dm3) |
64.75 |
| Gross Weight (kg) |
6.6 |
| Net Weight (kg) |
4.05 |
| Warranty (months) |
60 |
