eLPA2-950
eLPA2-950
eLPA2-950
eLPA2-950

eLPA2-950

CELPA2950
Available
2x950 WRMS | lightweight | stereo | amplifier
See more Features Resources

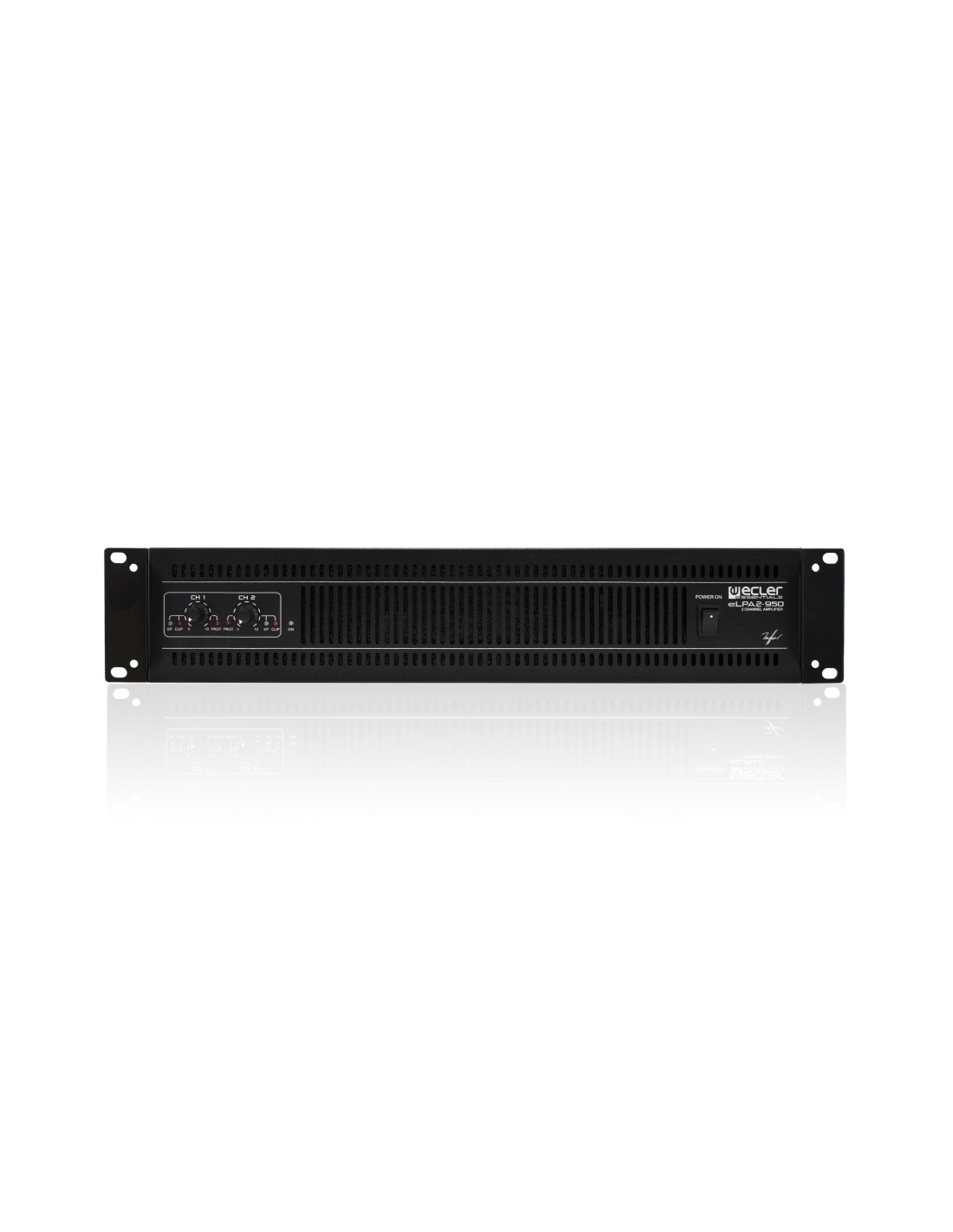

eLPA2-950 is a stereo amplifier delivering 950 W. eLPA series brings all the classic, well-known reliability and amplification quality of ECLER to a new light-weight format that is versatile and affordable.
Installation options
19" rack format (2RU)
Operating temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Operating humidity
85% HR
<85% HR
Storage temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Storage humidity
90% HR
<90% HR
Dimensions
482.6 x 266 x 88 mm / 19 x 10.47 x 3.46 in. (WxHxD)
Weight
6.15 kg / 13.56 lb
Shipping dimensions
430 x 160 x 590 mm / 16.93 x 6.3 x 23.23 in. (WxHxD)
Shipping weight
7.5 kg / 16.54
Status
New
Origin Production
China
EAN code
8435071306522
Tariff code
8518400000
Shipping Location
Spain
Width (cm)
43.00
Height (cm)
16.00
Depth (cm)
59.00
Vol. (dm3)
40.59
Gross Weight (kg)
7.50
Net Weight (kg)
6.15
Format
Unit
Warranty (months)
36
Frequency response
20Hz – 25kHz
CMRR
55dB
>55dB
Crosstalk
TBC
AC mains requirement
100-240 V @ 50-60Hz
AC mains connector
AC socket connector (IEC)
SNR
85dB
>85dB

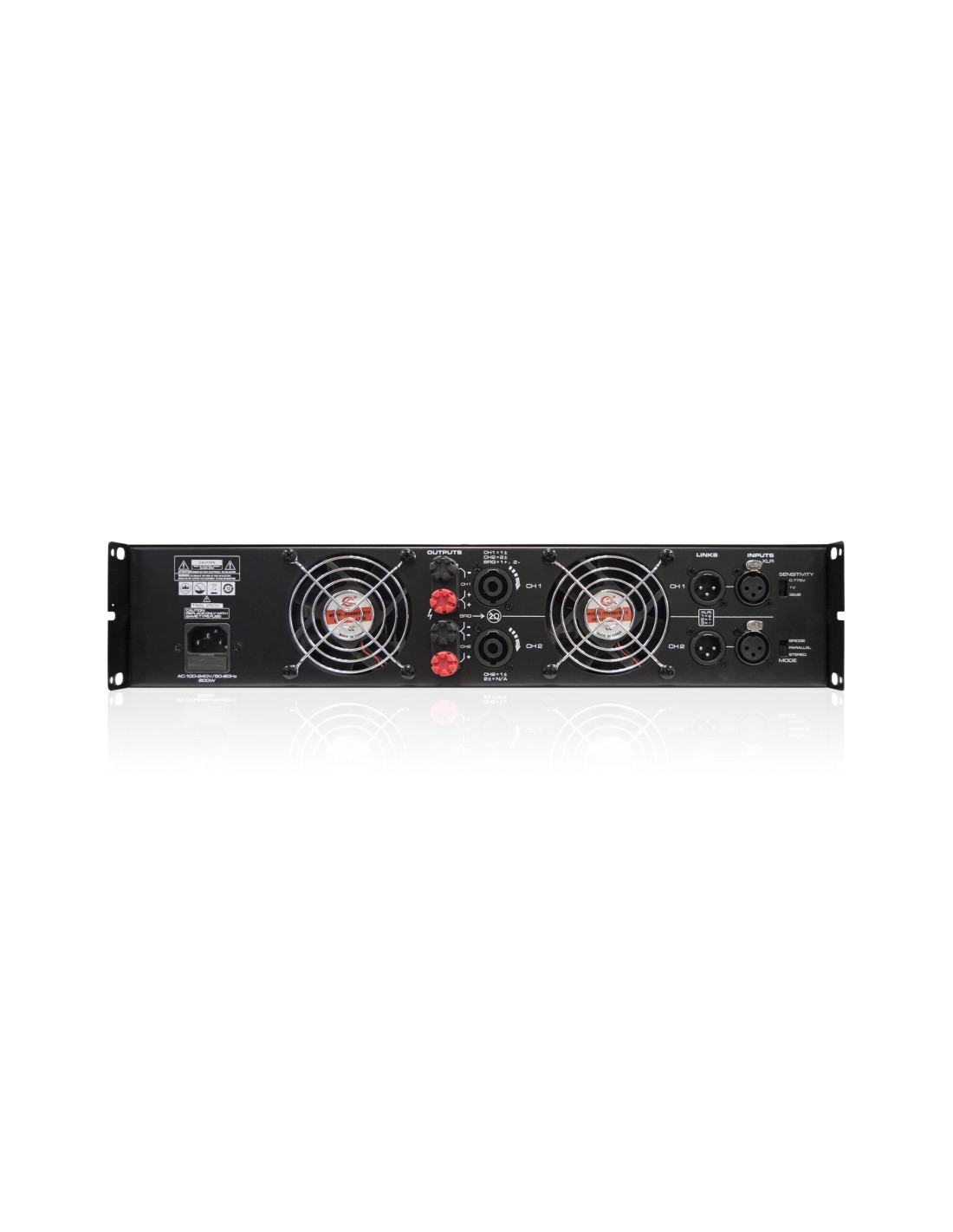

Output connection type
Speakon & binding posts
Number of output channels
2
Number of input channels
2
Input connection type
XLR3, balanced
Input impedance
20kΩ (10kΩ unbalanced)
THD + Noise
0,1%
<0,1%
Damping factor
TBC
Cooling
Efficient progressive ventilation system, rear to front airflow.
Gain
0,775V/1V/32dB
Power Consumption (IDLE)
39.5 W
Output configuration
2 x 950 W RMS @ 4Ω
Input configuration
Analogue audio inputs
Power Consumption (1/3 POWER, @ 4Ω)
788.0 W
Power Consumption (1/8 POWER, @ 4Ω)
308.0 W
AC protection
No
DC protection
Yes
VHF protection
No
Short-circuit protection
Yes
Clip limiter
Yes
Long term limiter
No
Thermal protection
Yes
Attenuators
Front panel knobs per channel
Output settings
Output mode selector: STEREO, PARALLEL and BRIDGE
Signal Present
SP LED (Green) per channel (-40dB)
Cliping
CLIP LED (Red) per channel
Power ON/OFF
Front panel switch & indicator
Protect
PROT LED (Red) per channel
Power Consumption (1/3 POWER, @ 4Ω all channels driven)
788.0 W
Power Consumption (1/8 POWER, @ 4Ω all channels driven)
308.0 W

Services and facilities implemented

see solutions

Ecler at Áltima

Multi-zone sound system installation designed to improve speech intelligibility and ensure consistent coverage across indoor and outdoor ceremony spaces.

Centers of worship

Void at Dido The Real Show

Immersive sound that complements gastronomy, live entertainment and music in every corner of the venue.

Leisure

Opus | Auracast™ at Eurovisión 2026

Auracast™ enabled assisted listening at Eurovision 2026 in an extremely complex RF environment, ensuring audio accessibility without the need for wired infrastructure.

Leisure

LYNX EN TERRAZA BAGHEERA

Terraza Bagheera in Toledo debuts its new sound system, delivering balanced coverage across all areas, from the dance floor to the most remote corners.

Leisure

New Ecler price list available

News

Void Acoustics Air 12 now available

News

Ecler en Zegna

Retail

Void at Dido The Real Show

Immersive sound that enhances gastronomy, live performance, and music in every corner.

Void Acoustics

Ecler en el campo del CD Tondela

Sports & Wellness

Void Acoustics en primera edición Soundit Festiv

Void Acoustics

¿Necesitas ayuda?

Contacta con el comercial más cercano

Encuentra a tu comercial

Si ya conoces a tu comercial asignado inicia sesión para contactar directamente

O déjanos aquí tus dudas y nuestros expertos te ayudarán

SYSTEM
Number of input channels 2
PHYSICAL
Installation options 19" rack format (2RU)
Operating temperature Min: -10°C ; 14°F Max: 40°C ; 104°F
Operating humidity <85% HR
85% HR
Storage temperature Min: -10°C ; 14°F Max: 40°C ; 104°F
Storage humidity <90% HR
90% HR
Dimensions 482.6 x 266 x 88 mm / 19 x 10.47 x 3.46 in. (WxHxD)
Weight 6.15 kg / 13.56 lb
Shipping dimensions 430 x 160 x 590 mm / 16.93 x 6.3 x 23.23 in. (WxHxD)
Shipping weight 7.5 kg / 16.54
Format Unit
LOGISTICS
Status New
Origin Production China
EAN code 8435071306522
Tariff code 8518400000
Shipping Location Spain
Width (cm) 43.00
Height (cm) 16.00
Depth (cm) 59.00
Vol. (dm3) 40.59
Gross Weight (kg) 7.50
Net Weight (kg) 6.15
Warranty (months) 36
ELECTRICAL
AC mains requirement 100-240 V @ 50-60Hz
AC mains connector AC socket connector (IEC)
ANALOGUE AUDIO OUTPUT PORTS
Crosstalk TBC
CHANNELS
Number of output channels 2
Output configuration 2 x 950 W RMS @ 4Ω
Input configuration Analogue audio inputs
SIGNAL
SNR >85dB
85dB
Damping factor TBC
POWER CONSUMPTION
Power Consumption (IDLE) 39.5 W
Power Consumption (1/3 POWER, @ 4Ω) 788.0 W
Power Consumption (1/8 POWER, @ 4Ω) 308.0 W
Power Consumption (1/3 POWER, @ 4Ω all channels driven) 788.0 W
Power Consumption (1/8 POWER, @ 4Ω all channels driven) 308.0 W
TECHNOLOGIES
Cooling Efficient progressive ventilation system, rear to front airflow.
PROTECTIONS
AC protection No
DC protection Yes
VHF protection No
Short-circuit protection Yes
Clip limiter Yes
Long term limiter No
Thermal protection Yes
SETTINGS
Gain 0,775V/1V/32dB
Output settings Output mode selector: STEREO, PARALLEL and BRIDGE
MONITORING
Signal Present SP LED (Green) per channel (-40dB)
Cliping CLIP LED (Red) per channel
Protect PROT LED (Red) per channel
LINE INPUTS
CMRR >55dB
55dB
Input connection type XLR3, balanced
Input impedance 20kΩ (10kΩ unbalanced)
LINE OUTPUTS
Frequency response 20Hz – 25kHz
Output connection type Speakon & binding posts
THD + Noise <0,1%
0,1%
LOCAL CONTROL
Attenuators Front panel knobs per channel
Power ON/OFF Front panel switch & indicator
OUTPUT POWER - All channels driven @ 1%THD
