eLPA2-650
eLPA2-650
eLPA2-650
eLPA2-650

eLPA2-650

CELPA2650
Available
2x650 WRMS | lightweight | stereo | amplifier
See more Features Resources

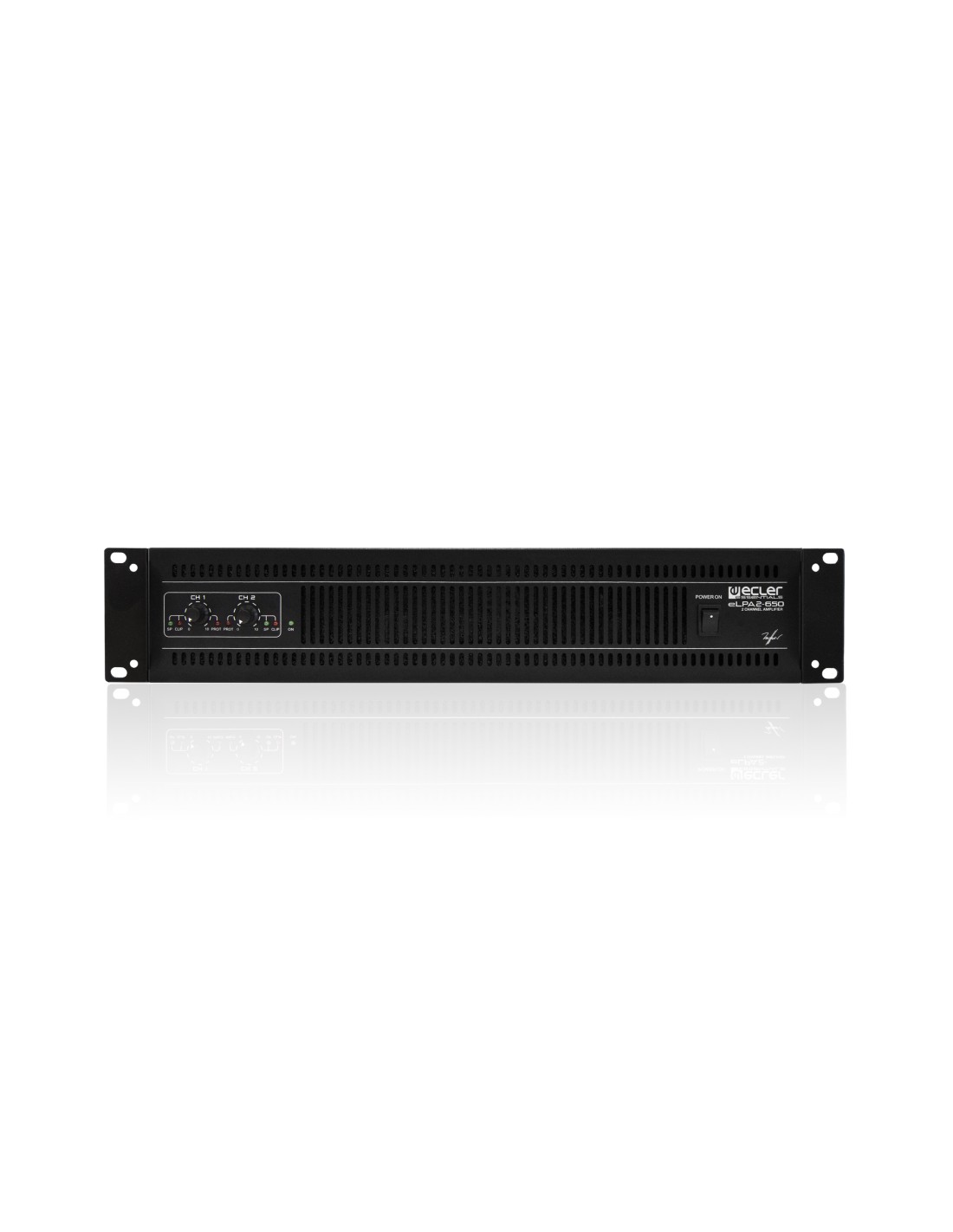

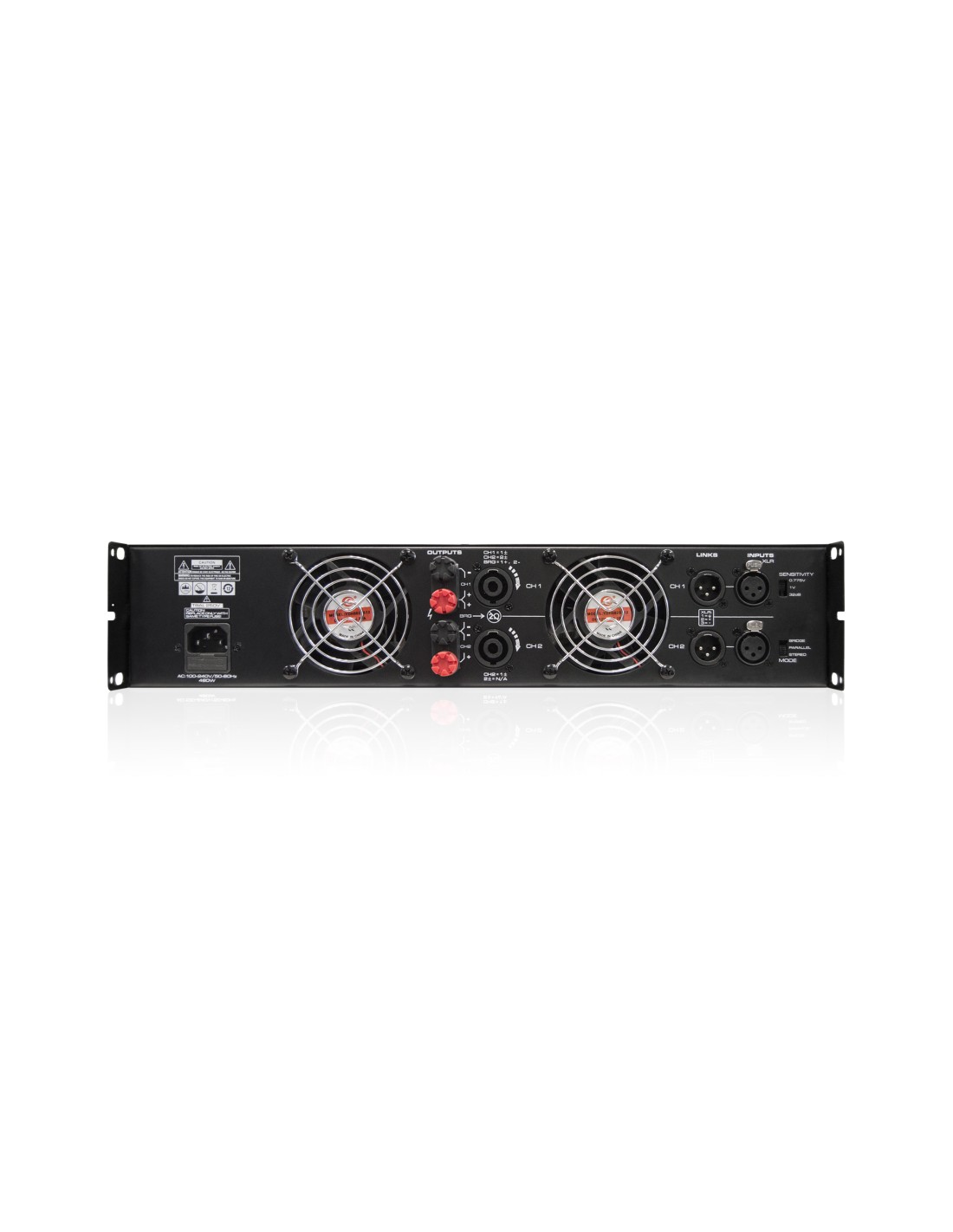

eLPA2-650 is a stereo amplifier delivering 650 W. eLPA series brings all the classic, well-known reliability and amplification quality of ECLER to a new light-weight format that is versatile and affordable.
Installation options
19" rack format (2RU)
Operating temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Operating humidity
85% HR
<85% HR
Storage temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Storage humidity
90% HR
<90% HR
Dimensions
482.6 x 88 x 266 mm / 19 x 3.46 x 10.47 in. (WxHxD)
Weight
5.5 kg / 12.13 lb
Shipping dimensions
430 x 160 x 590 mm / 16.93 x 6.3 x 23.23 in. (WxHxD)
Shipping weight
7.5 kg / 16.54 lb
Status
New
Origin Production
China
EAN code
8435071306515
Tariff code
8518400000
Shipping Location
Spain
Width (cm)
43.00
Height (cm)
16.00
Depth (cm)
59.00
Vol. (dm3)
40.59
Gross Weight (kg)
7.50
Net Weight (kg)
6.00
Format
Unit
Warranty (months)
36
Frequency response
20Hz - 25kHz (-1dB, -3dB)
CMRR
55dB
>55dB
AC mains requirement
100-240 V @ 50-60Hz
AC mains connector
AC socket connector (IEC)
SNR
85dB 20Hz-20kHz @ 1W/4Ω
>85dB 20Hz-20kHz @ 1W/4Ω
Output connection type
Speakon & binding posts
Number of output channels
2
Number of input channels
2
Input connection type
XLR3, balanced
Input impedance
20kΩ (10kΩ unbalanced)
THD + Noise
0,1% @1kHz Full Power
<0,1% @1kHz Full Power
Cooling
Efficient progressive ventilation system, rear to front airflow.
Gain
0,775V/1V/32dB
Power Consumption (IDLE)
32.0 W
Output configuration
2 x 630 W RMS @ 4Ω
Input configuration
Analogue audio inputs
Power Consumption (1/3 POWER, @ 4Ω)
542.0 W
Power Consumption (1/8 POWER, @ 4Ω)
223.5 W
AC protection
No
DC protection
Yes
VHF protection
No
Short-circuit protection
Yes
Clip limiter
Yes
Long term limiter
No
Thermal protection
Yes
Attenuators
Front panel knobs per channel
Output settings
Output mode selector: STEREO, PARALLEL and BRIDGE
Signal Present
SP LED (Green) per channel (-40dB)
Cliping
CLIP LED (Red) per channel
Power ON/OFF
Front panel switch & indicator
Protect
PROT LED (Red) per channel
Power Consumption (1/3 POWER, @ 4Ω all channels driven)
542.0 W
Power Consumption (1/8 POWER, @ 4Ω all channels driven)
223.5 W

Services and facilities implemented
