IC3 BK
CIC3BK
Available
3" | 1-way | 10 WRMS | discreet frame

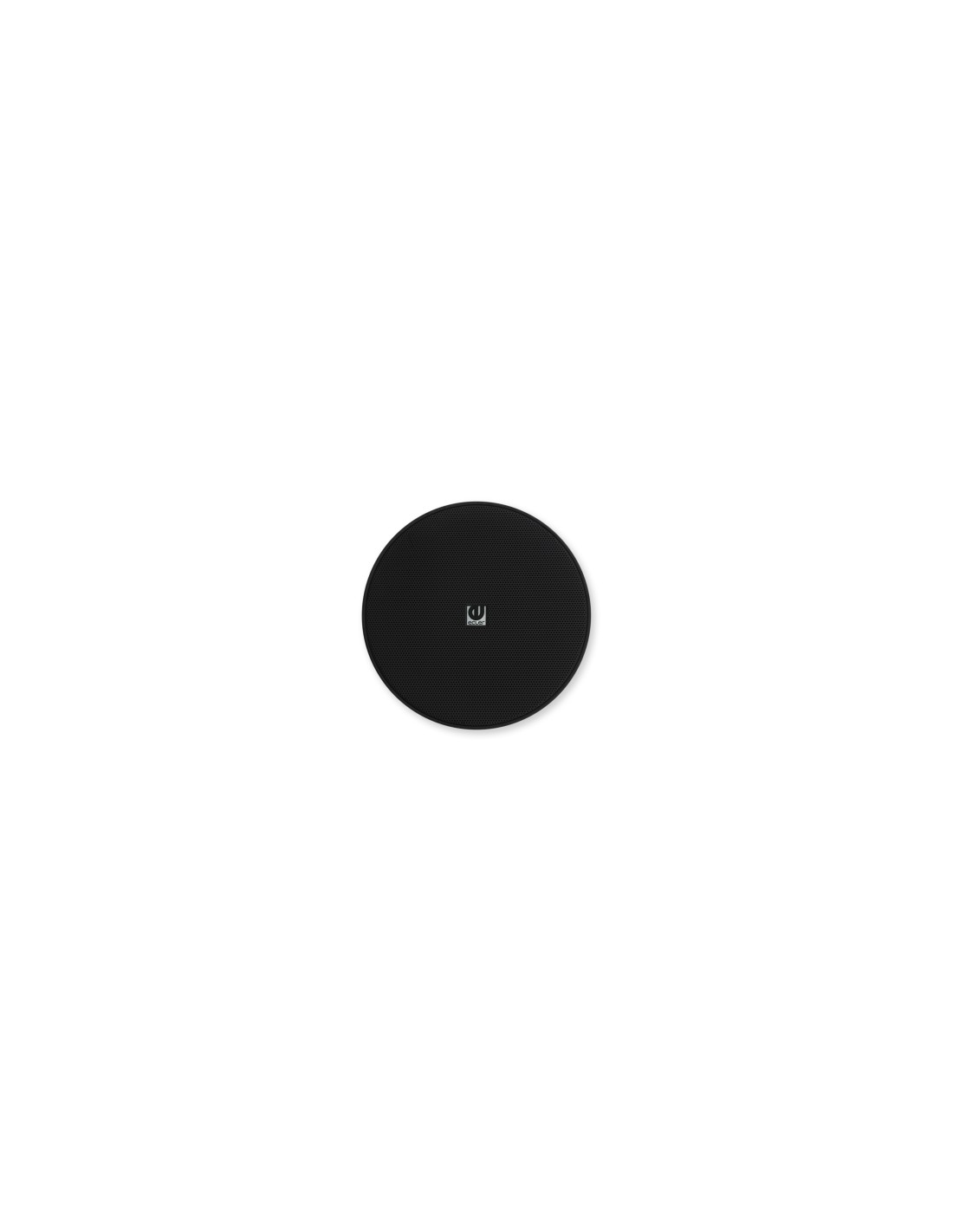

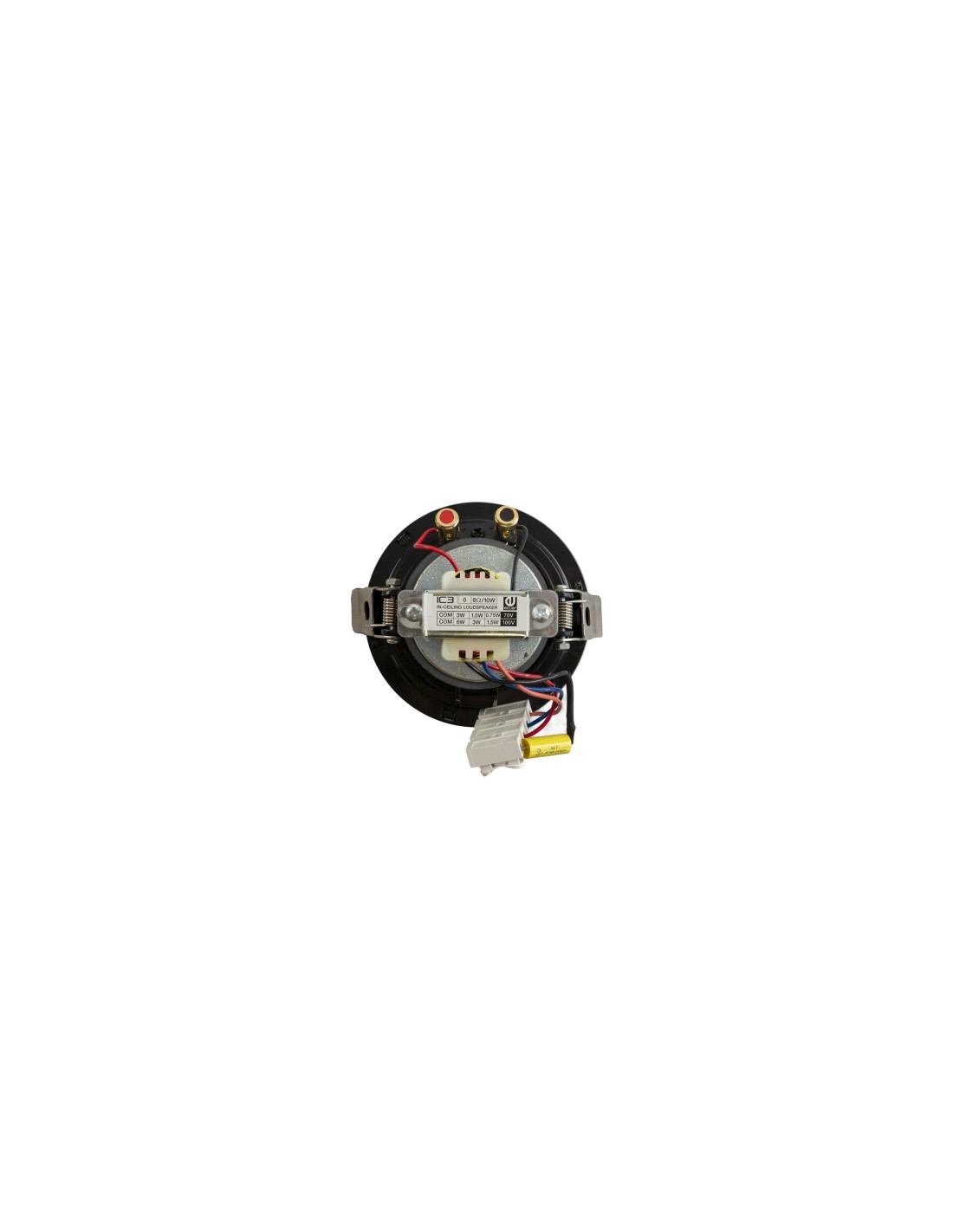

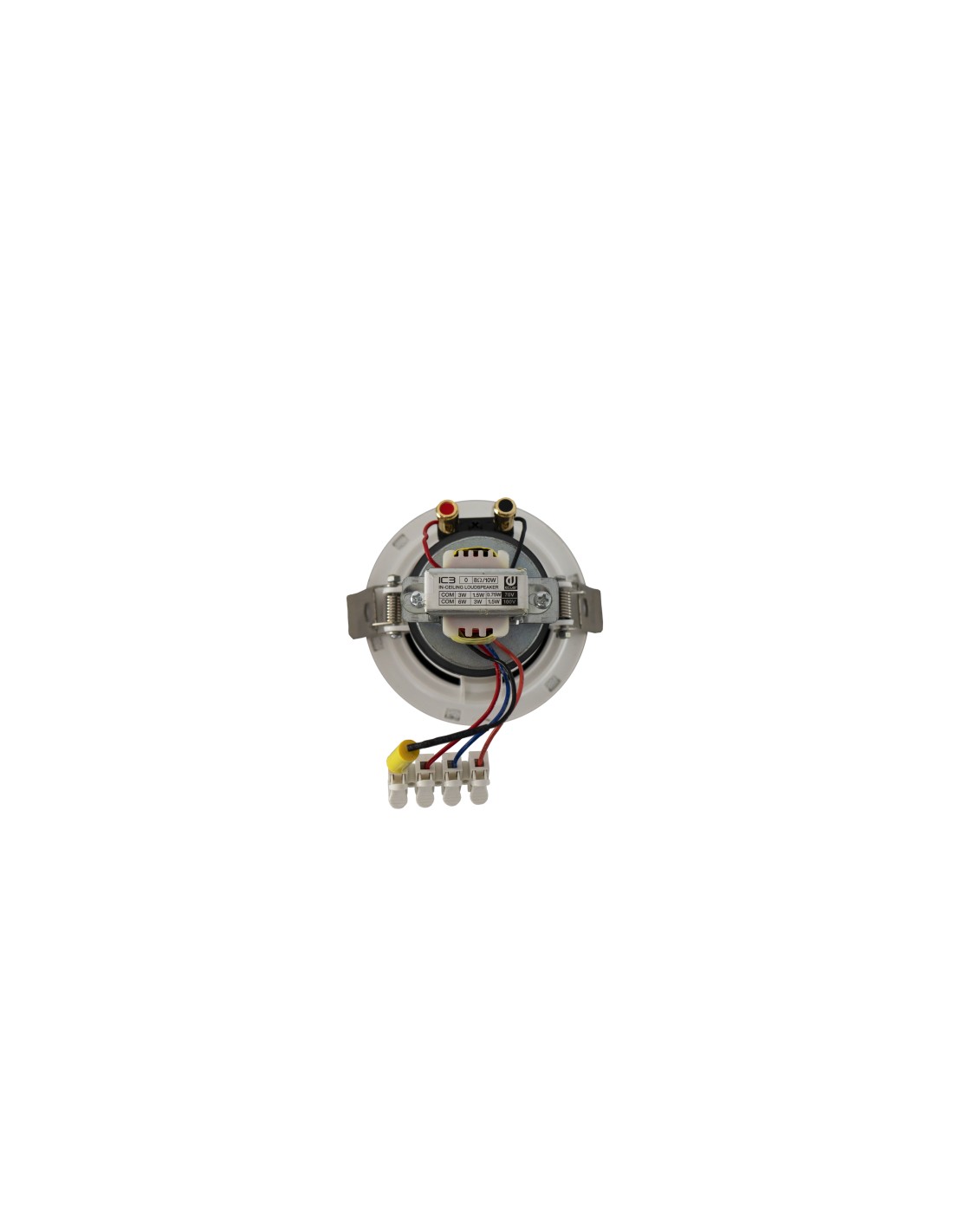

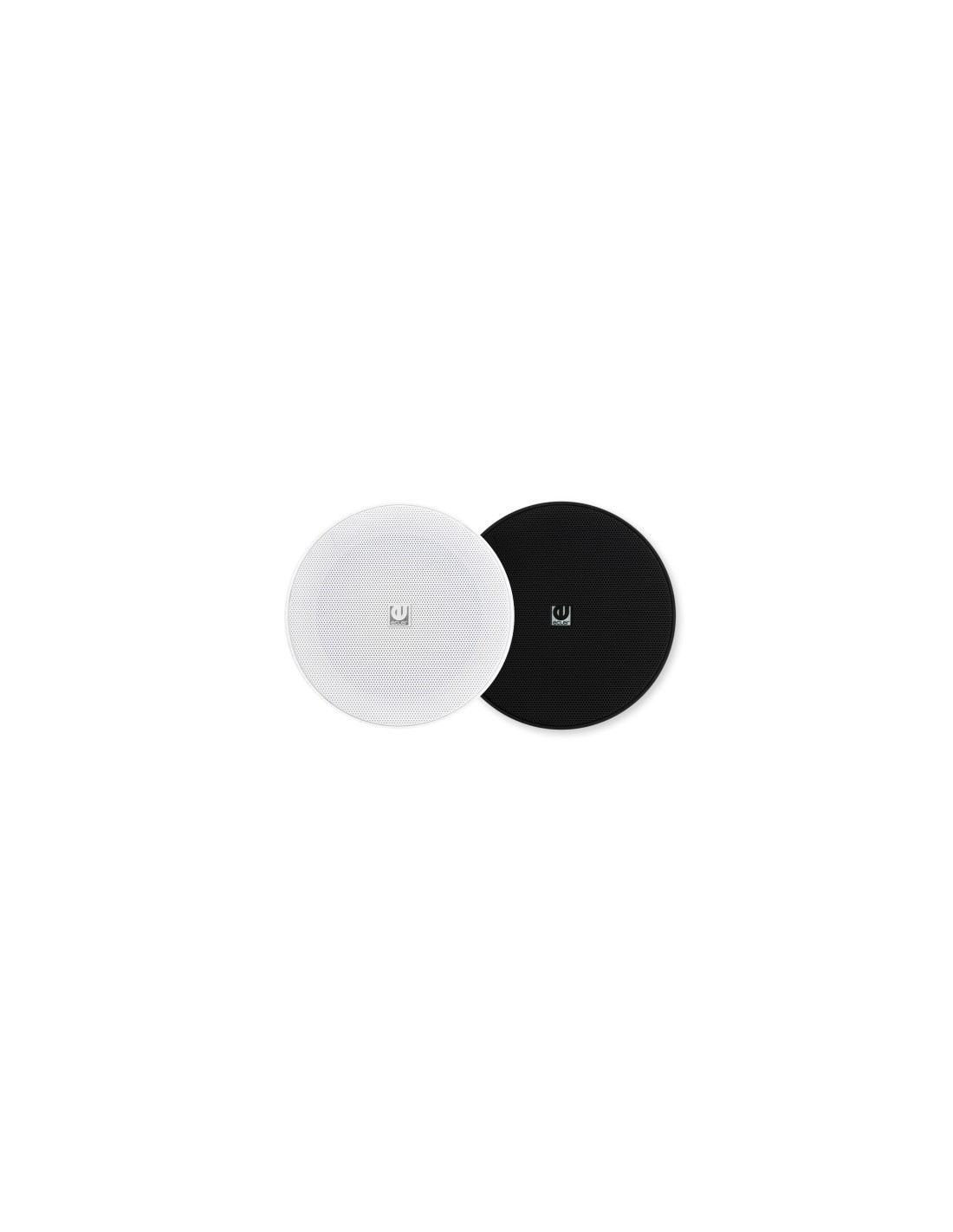

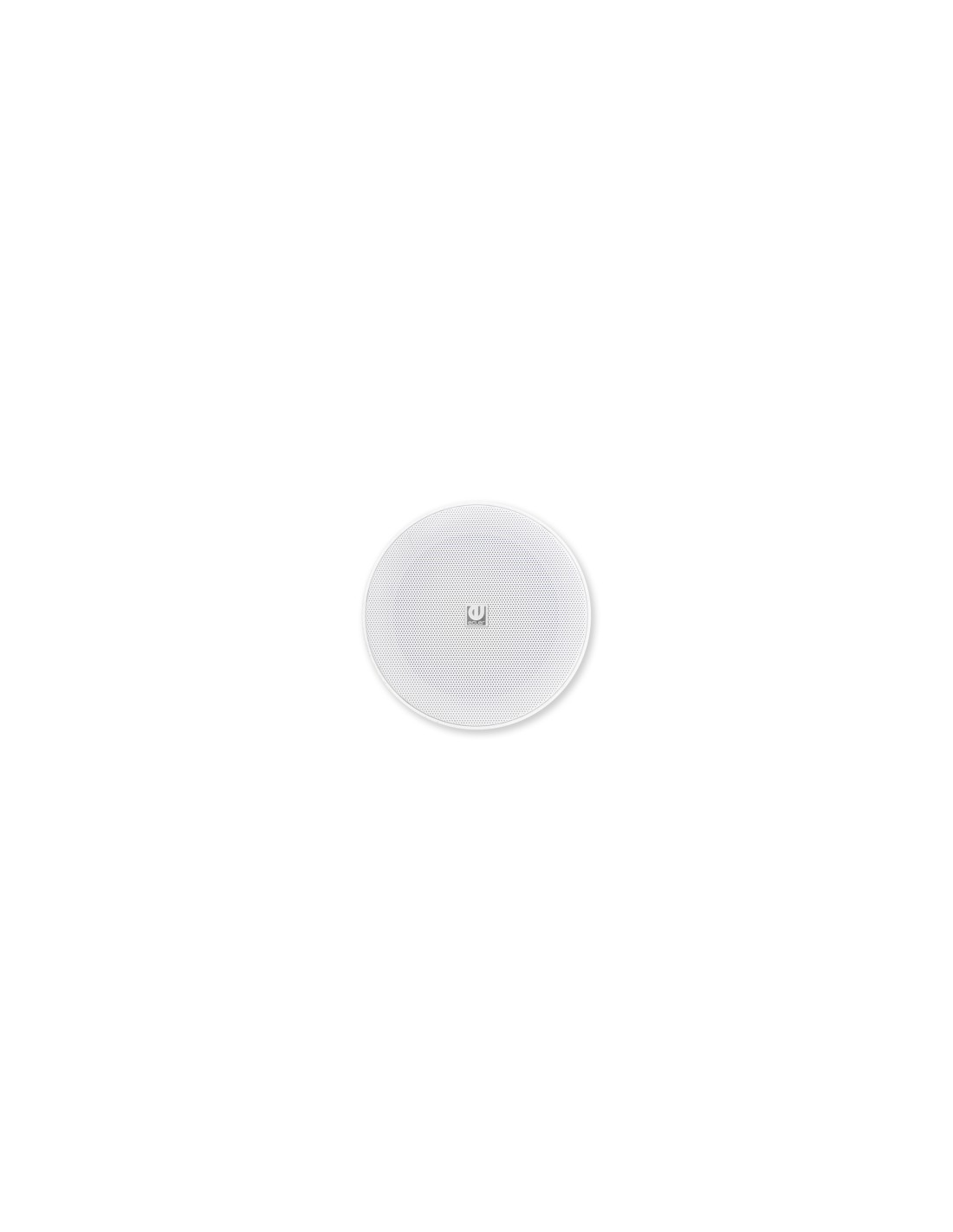

IC3 is an in-ceiling installation loudspeaker with a great sound performance despite its compact design - halogen light shape. It features a 3" driver, 10 WRMS @ 8 ohm nominal power and 70/100V line transformer with 1,5 / 3 / 6 W power connections. It performs an aluminum grill with a refined frame. Available in white and black.
IC series provide excellent sound quality thanks to their infinite baffle philosophy and a top-performance high frequency transducer.
- Effective Freq. Range
- 110 Hz-20 kHz (-10dB)
- Coverage angle / Dispersion
- 147°x147° (HxV)
- Power handling
- 10 W RMS / 40 W Peak
- Sensitivity
- 86 dB (1W/1m)
- Maximum SPL
- 96 dB continuous / 102 dB peak
- Recommended amplifier power
- 20 W RMS
- Ways
- 1-way
- Nominal impedance
- 8Ω
- Connection type
- Terminal block
- Installation options
- Ceiling, wall
- Enclosure material
- ABS
- Grille material
- Aluminium rust proof
- Operating temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -20°C ; -4°F
Max: 70°C ; 158°F
- Operating humidity
- 85% HR
<85% HR - Storage temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -20°C ; -4°F
Max: 70°C ; 158°F
- Storage humidity
- 90% HR
<90% HR - Finished colour
- White (RAL 9003) or black (RAL 9004)
- Weight
- 0.5 kg / 1.10 lb
- Pieces per box
- 2 units
- Shipping dimensions
- 120 x 130 x 230 mm / 4.7 x 5.1 x 9.0 in. (WxHxD)
- Shipping weight
- 0.6 kg. / 4.18 lb
- Status
- New
- Origin Production
- China
- EAN code
- BK: 8435071307130
WH: 8435071307123 - Tariff code
- 8518210000
- Shipping Location
- Spain
- Width (cm)
- 12.00
- Height (cm)
- 13.00
- Depth (cm)
- 23.00
- Vol. (dm3)
- 3.59
- Gross Weight (kg)
- 0.60
- Net Weight (kg)
- 0.30
- Format
- Pair
- Warranty (months)
- 36
- Mounting system
- Spring clips (installation without tools)
- Driver
- 3" woofer
- Power options (Hi Z Multi-tap)
- 100V: 6W / 3W / 1,5W / 8Ω
70V: 3W / 1,5W / 0,75W / 8Ω
- Power type selector
- Built-in selector
- Recommended cut out diameter
- 85 mm / 3.35"
- External diameter
- 100 mm / 3.94"
- Required depth
- 95 mm / 3.74"
- Ceiling thickness
- No limit min
50mm / 1.96” max
- Internal diameter
- 85 mm / 3.35"
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
110 Hz-20 kHz (-10dB) |
|---|---|
| Coverage angle / Dispersion |
147°x147° (HxV) |
| Power handling |
10 W RMS / 40 W Peak |
| Sensitivity |
86 dB (1W/1m) |
| Maximum SPL |
96 dB continuous / 102 dB peak |
| Recommended amplifier power |
20 W RMS |
| Power options (Hi Z Multi-tap) |
100V: 6W / 3W / 1,5W / 8Ω
70V: 3W / 1,5W / 0,75W / 8Ω
|
TRANSDUCERS
| Ways |
1-way |
|---|---|
| Nominal impedance |
8Ω |
| Driver |
3" woofer |
PHYSICAL
| Connection type |
Terminal block |
|---|---|
| Installation options |
Ceiling, wall |
| Enclosure material |
ABS |
| Grille material |
Aluminium rust proof |
| Operating temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F Min: -20°C ; -4°F Max: 70°C ; 158°F |
| Operating humidity |
<85% HR 85% HR |
| Storage temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F Min: -20°C ; -4°F Max: 70°C ; 158°F |
| Storage humidity |
<90% HR 90% HR |
| Finished colour |
White (RAL 9003) or black (RAL 9004) |
| Weight |
0.5 kg / 1.10 lb |
| Pieces per box |
2 units |
| Shipping dimensions |
120 x 130 x 230 mm / 4.7 x 5.1 x 9.0 in. (WxHxD) |
| Shipping weight |
0.6 kg. / 4.18 lb |
| Format |
Pair |
| Mounting system |
Spring clips (installation without tools) |
| Power type selector |
Built-in selector |
| Recommended cut out diameter |
85 mm / 3.35" |
| External diameter |
100 mm / 3.94" |
| Required depth |
95 mm / 3.74" |
| Ceiling thickness |
No limit min
50mm / 1.96” max
|
| Internal diameter |
85 mm / 3.35" |
LOGISTICS
| Status |
New |
|---|---|
| Origin Production |
China |
| EAN code |
BK: 8435071307130
WH: 8435071307123 |
| Tariff code |
8518210000 |
| Shipping Location |
Spain |
| Width (cm) |
12.00 |
| Height (cm) |
13.00 |
| Depth (cm) |
23.00 |
| Vol. (dm3) |
3.59 |
| Gross Weight (kg) |
0.60 |
| Net Weight (kg) |
0.30 |
| Warranty (months) |
36 |
