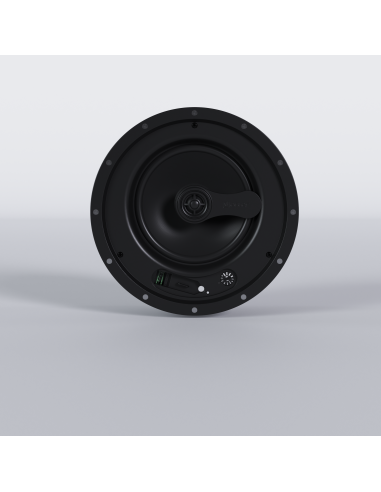

NIC-8 WH
CNIC8
Available
8" | 2-way | 70 WRMS | ART Technology Back-can | IP66
NIC‑8 is a high‑performance 2‑way in‑ceiling / in‑wall loudspeaker designed for 70/100 V line and low‑impedance installations, delivering 70 W RMS and featuring an 8” woofer + 1” dome tweeter for powerful, controlled sound with excellent intelligibility.
As part of the NIC Series, NIC‑8 integrates ART (Acoustic Resonator Technology), validated by laboratory measurements. ART significantly reduces low‑frequency distortion and mechanical vibration, minimising energy transfer to ceiling structures and reducing resonance, coloration and unwanted low‑frequency excitation in false ceilings.
Designed with system integrators in mind, NIC‑8 features front‑accessible Euroblock connections and power selection, allowing wiring and tapping adjustments even after installation. The loudspeaker is IP66 rated for reliable operation in demanding conditions and includes a magnetic frameless front grill with removable logo for a sleek, minimalist finish.
- Effective Freq. Range
- 59Hz-20kHz (-10dB)
- Coverage angle / Dispersion
- 109° conical
151° conical - Power handling
- 70W RMS / 140W Program / 280W Peak
- Sensitivity
- 86dB
88dB - Maximum SPL
- 104dB continuous / 110dB peak
106dB continuous / 112dB peak - Recommended amplifier power
- 140W RMS
- Ways
- 2-ways full range
- Low frequency driver
- 8" woofer
- High frequency driver
- 1" Steerable Dome Tweeter
- Nominal impedance
- 8Ω
- Connection type
- 4‑pin Euroblock connector, mounted on the front of the baffle. Accepts cable sizes from 18 AWG (0.8 mm²) to 14 AWG (2.5 mm²)
- Installation options
- In-ceiling / In-wall
- Environmental
- IP66
- Enclosure material
- ABS plastic
- Grille material
- Iron
- Grille fixing system
- Magnets
- Operating temperature
- Min: -30°C / -22°F
Max: 65°C / 149°F - Operating humidity
- 85% HR
- Storage temperature
- Min: -30°C / -22°F
Max: 65°C / 149°F - Storage humidity
- 85% HR
- Included accessories
- 4‑pin connector, 1 cutting template
- Optional accessories
- - NICRG8BK (Grille Black accessory RAL 9005).
- NIC-TB8 (tile bridge)
- Finished colour
- White (RAL 9003)
- Dimensions
- 314 x 314 x 181 mm / 12.36 x 12.36 x 7.13 in. (WxHxD)
- Weight
- 4 Kg / 8.82 lb
- Pieces per box
- 1
- Shipping dimensions
- 365 x 355 x 260 mm / 14.37 x 13.98 x 10.24 in. (WxHxD)
- Shipping weight
- 5.7 kg / 12.57 lb
- Mounting system
- 3 rotating tabs
- Power options (Hi Z Multi-tap)
- 100V: 8.75 /17.5 / 35 / 70W
70V: 4.37 / 8.75 /17.5 / 35W - Recommended cut out diameter
- 278 mm / 10.94 in
- External diameter
- 314 mm / 12.36 in.
- Required depth
- 200 mm / 7.87 in.
- Ceiling thickness
- Min: 10 mm / 0.39 in.
Max: 60 mm / 2.37 in. - Internal diameter
- 276 mm / 10.87 in.
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
59Hz-20kHz (-10dB) |
|---|---|
| Coverage angle / Dispersion |
151° conical 109° conical |
| Power handling |
70W RMS / 140W Program / 280W Peak |
| Sensitivity |
88dB 86dB |
| Maximum SPL |
106dB continuous / 112dB peak 104dB continuous / 110dB peak |
| Recommended amplifier power |
140W RMS |
| Power options (Hi Z Multi-tap) |
100V: 8.75 /17.5 / 35 / 70W
70V: 4.37 / 8.75 /17.5 / 35W |
TRANSDUCERS
| Ways |
2-ways full range |
|---|---|
| Low frequency driver |
8" woofer |
| High frequency driver |
1" Steerable Dome Tweeter |
| Nominal impedance |
8Ω |
PHYSICAL
| Connection type |
4‑pin Euroblock connector, mounted on the front of the baffle. Accepts cable sizes from 18 AWG (0.8 mm²) to 14 AWG (2.5 mm²) |
|---|---|
| Installation options |
In-ceiling / In-wall |
| Environmental |
IP66 |
| Enclosure material |
ABS plastic |
| Grille material |
Iron |
| Grille fixing system |
Magnets |
| Operating temperature |
Min: -30°C / -22°F
Max: 65°C / 149°F |
| Operating humidity |
85% HR |
| Storage temperature |
Min: -30°C / -22°F
Max: 65°C / 149°F |
| Storage humidity |
85% HR |
| Included accessories |
4‑pin connector, 1 cutting template |
| Optional accessories |
- NICRG8BK (Grille Black accessory RAL 9005).
- NIC-TB8 (tile bridge)
|
| Finished colour |
White (RAL 9003) |
| Dimensions |
314 x 314 x 181 mm / 12.36 x 12.36 x 7.13 in. (WxHxD) |
| Weight |
4 Kg / 8.82 lb |
| Pieces per box |
1 |
| Shipping dimensions |
365 x 355 x 260 mm / 14.37 x 13.98 x 10.24 in. (WxHxD) |
| Shipping weight |
5.7 kg / 12.57 lb |
| Mounting system |
3 rotating tabs |
| Recommended cut out diameter |
278 mm / 10.94 in |
| External diameter |
314 mm / 12.36 in. |
| Required depth |
200 mm / 7.87 in. |
| Ceiling thickness |
Min: 10 mm / 0.39 in.
Max: 60 mm / 2.37 in. |
| Internal diameter |
276 mm / 10.87 in. |
