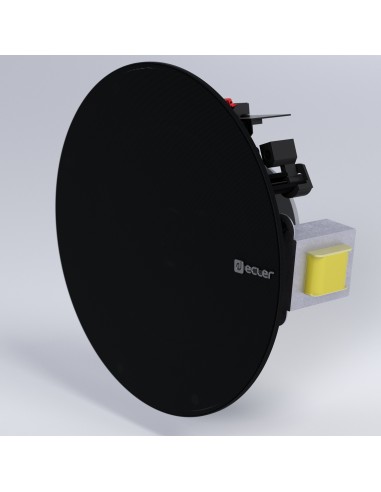

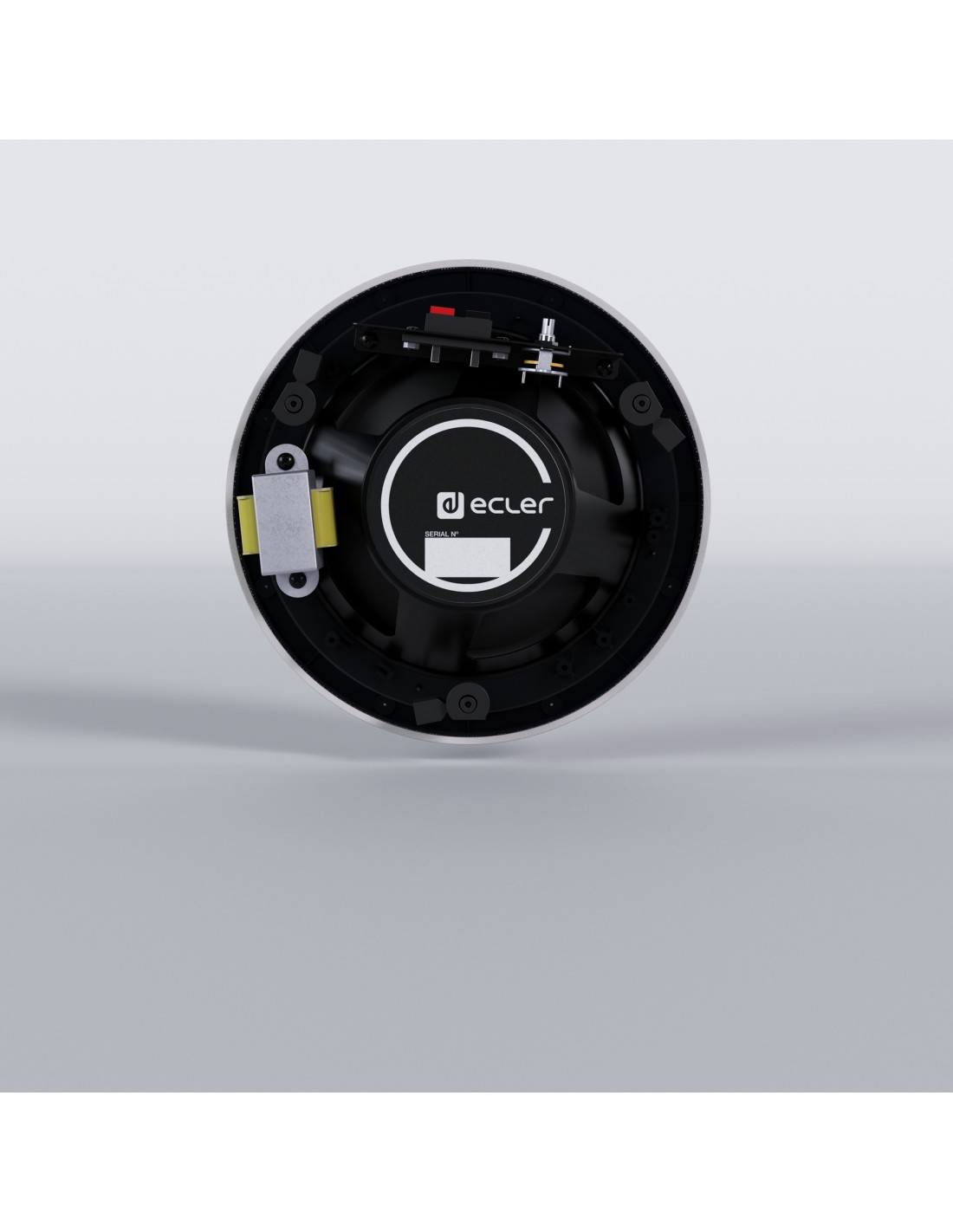

IC8i BK
CIC8IBK
Check availability

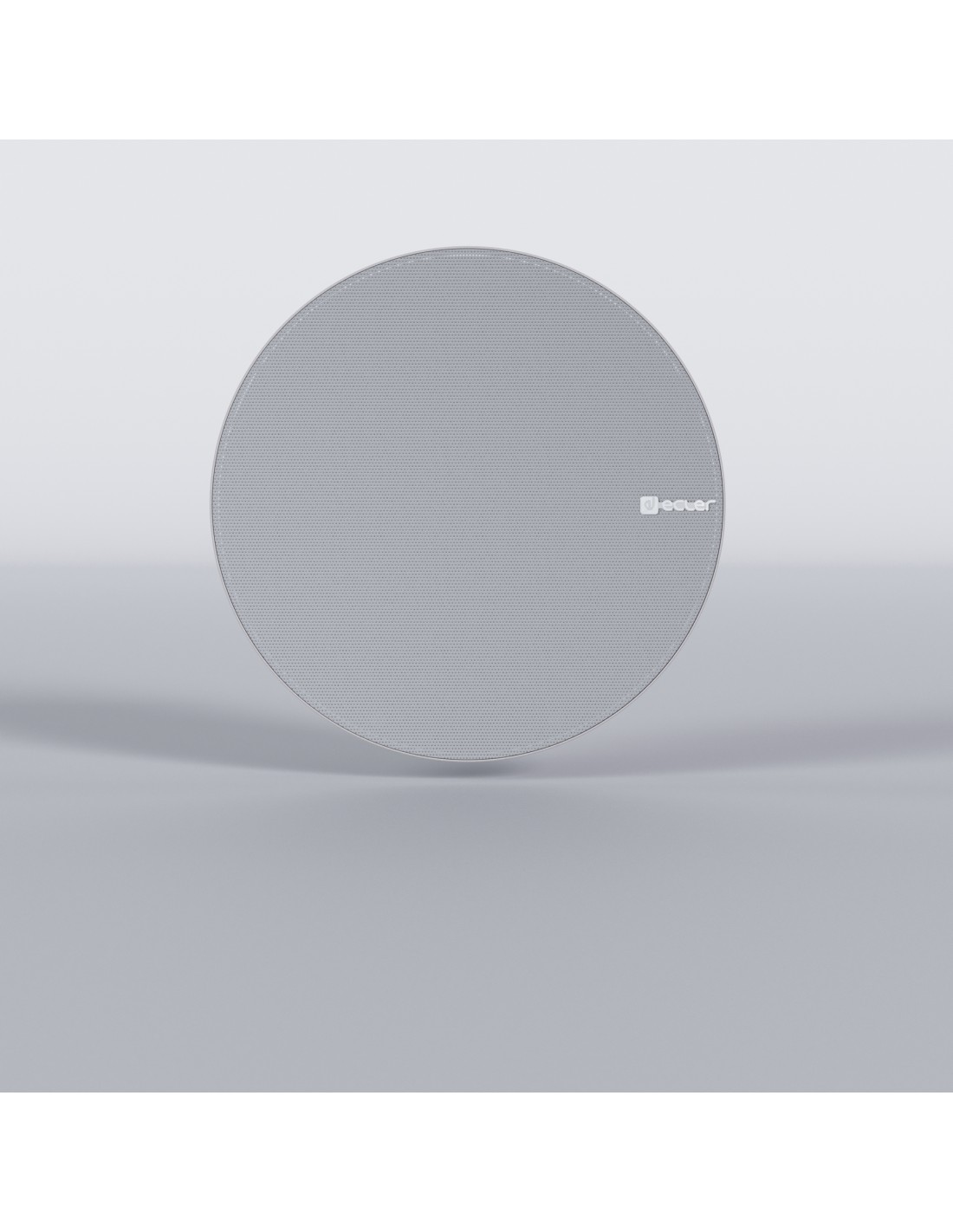

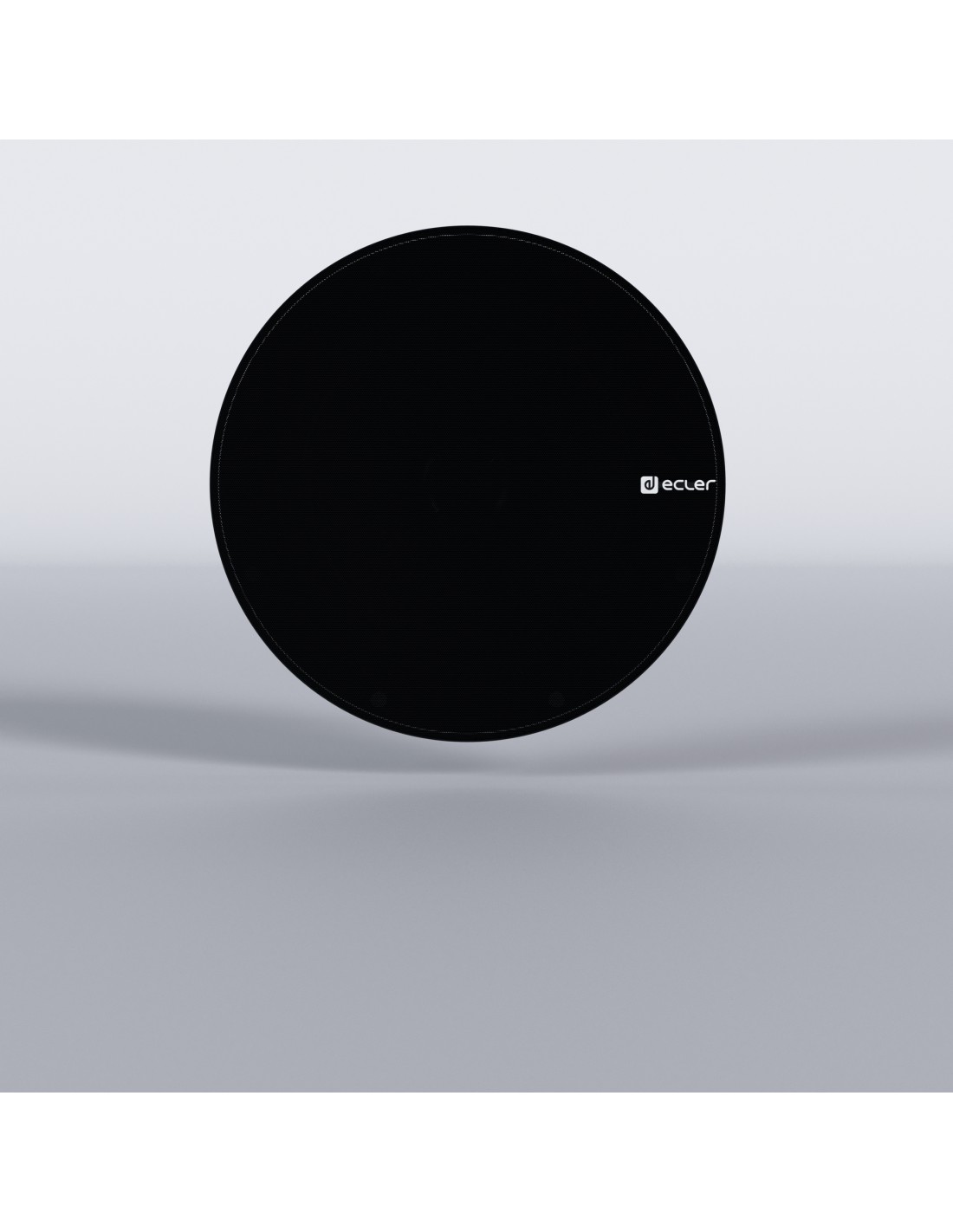

8" | 2-way | 60 WRMS | Frameless magnetic grill
IC8i 2-way loudspeaker is the perfect option for 70/100 V and low impedance sound solutions. It mounts an 8” woofer and 1" dome tweeter in a discreet design.
IC series provide excellent sound quality thanks to their infinite baffle philosophy and a top-performance high frequency
transducer.
- Effective Freq. Range
- 65Hz-20kHz (-10dB)
- Coverage angle / Dispersion
- 152° conical
- Power handling
- 60W RMS / 240W Peak
- Sensitivity
- 92dB (1W/1m)
94dB (1W/1m) - Maximum SPL
- 110dB continuous / 116dB peak
112dB continuous / 118dB peak - Recommended amplifier power
- 120W RMS
- Ways
- 2-ways full range
- Low frequency driver

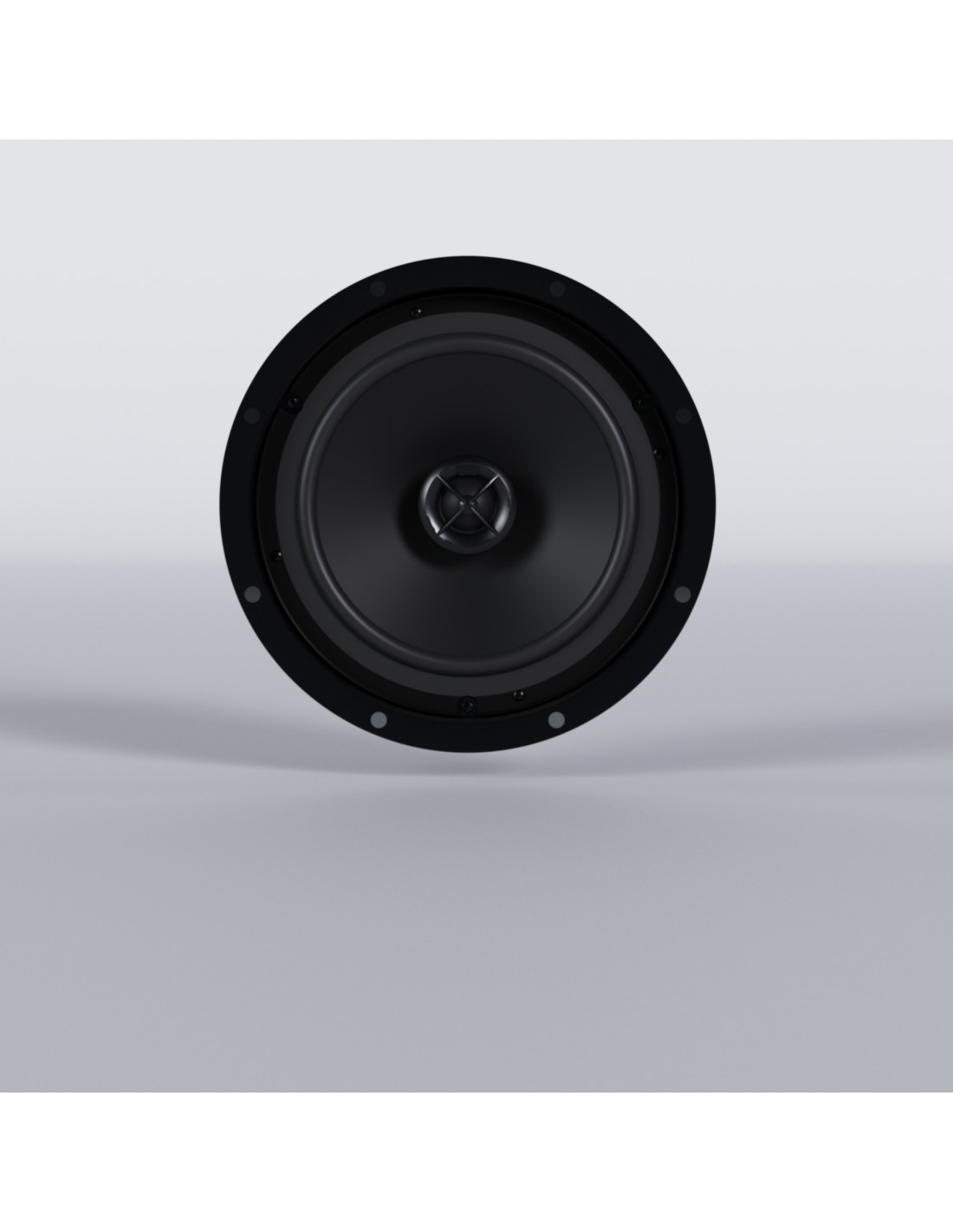

- 8" woofer
- High frequency driver
- 1" dome tweeter
- Nominal impedance
- 8Ω
- Connection type

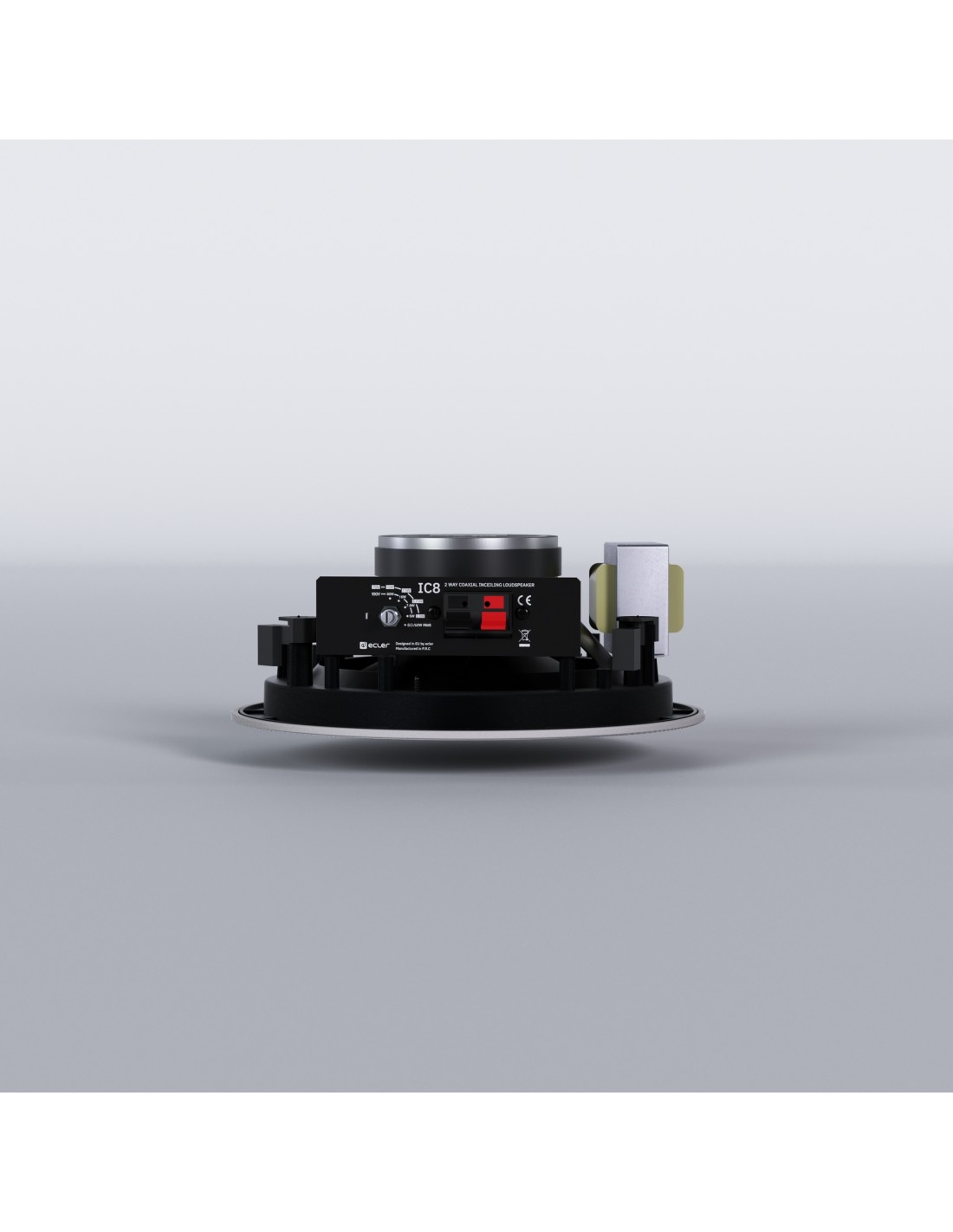

- Clip-type input terminals
- Installation options
- In-ceiling / In-wall
- Enclosure material
- ABS plastic
- Grille material
- Iron
- Grille fixing system
- Magnets
- Operating temperature
- Min: -20°C ; -4°F
Max: 70°C ; 158°F
- Operating humidity
- 85% HR
- Storage temperature
- Min: -20°C ; -4°F
Max: 70°C ; 158°F
- Storage humidity
- 90% HR
- Included accessories
- Cutting template
- Optional accessories
- Ecler IC-TB8
- Finished colour

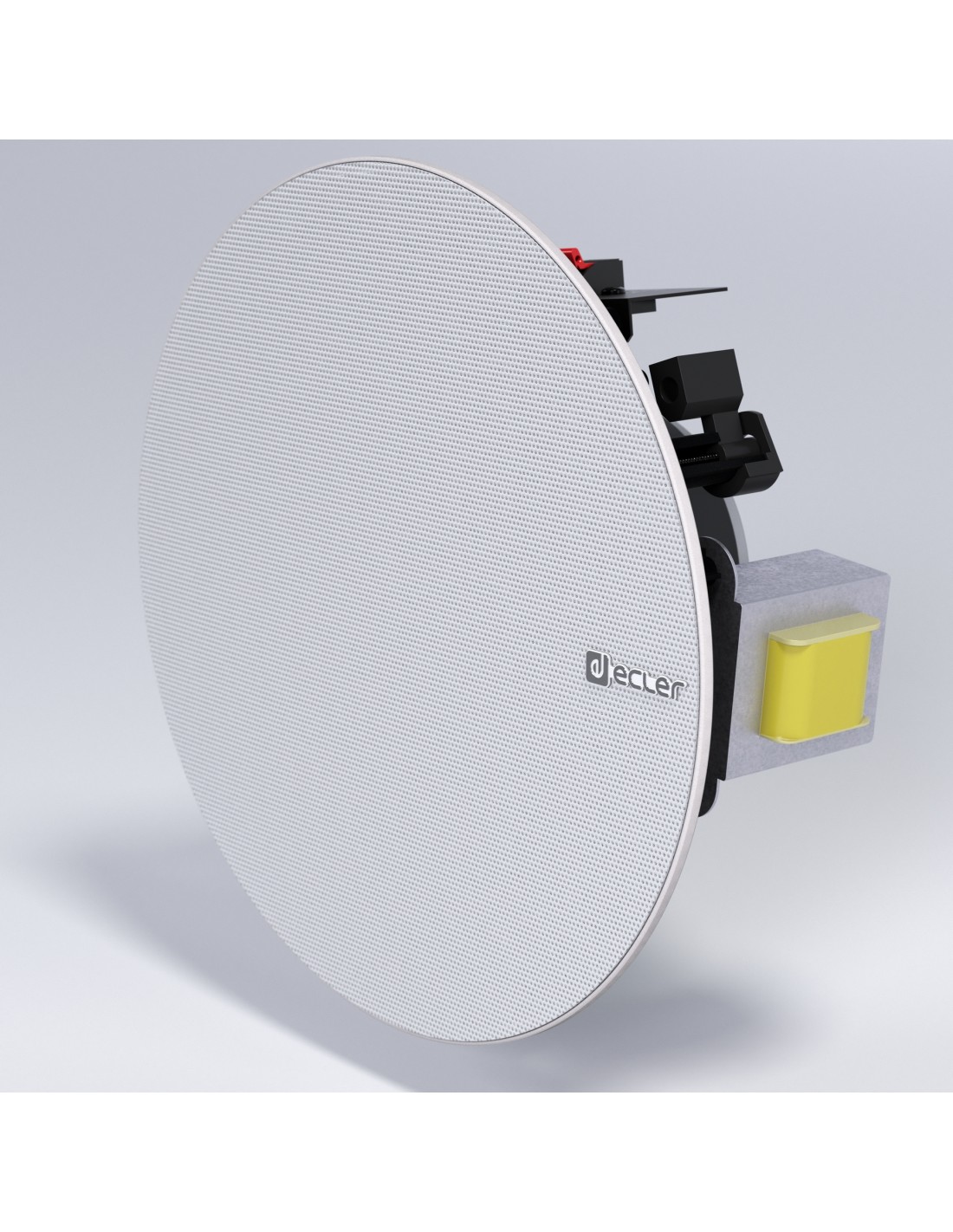

- White (RAL 9003) / Black (RAL 9005)
- Dimensions
- 254 x 254 x 93 mm. / 10 x 10 x 3.66 in. (WxHxD)
- Weight
- 2.35 Kg / 5.18 lb
- Pieces per box
- 2
- Shipping dimensions
- 305 x 300 x 295 mm. / 12.01 x 11.81 x 11.61 in. (WxHxD)
- Shipping weight
- 4.75 kg / 10.47 lb
- Mounting system
- 3 rotating tabs
- Power options (Hi Z Multi-tap)
- 100V: 5 / 7.5 / 15 / 30W
70V: 2.5 / 3.75 / 7.5 / 15W
- Recommended cut out diameter
- 222 mm / 8.74 in.
- External diameter
- 254 mm / 10 in.
- Required depth
- 94 mm / 3.70 in.
- Internal diameter
- 219 mm / 8.62 in.
246 mm / 9.69 in.
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
65Hz-20kHz (-10dB) |
|---|---|
| Coverage angle / Dispersion |
152° conical |
| Power handling |
60W RMS / 240W Peak |
| Sensitivity |
92dB (1W/1m) 94dB (1W/1m) |
| Maximum SPL |
110dB continuous / 116dB peak 112dB continuous / 118dB peak |
| Recommended amplifier power |
120W RMS |
| Power options (Hi Z Multi-tap) |
100V: 5 / 7.5 / 15 / 30W
70V: 2.5 / 3.75 / 7.5 / 15W
|
TRANSDUCERS
| Ways |
2-ways full range |
|---|---|
| Low frequency driver |
8" woofer |
| High frequency driver |
1" dome tweeter |
| Nominal impedance |
8Ω |
PHYSICAL
| Connection type |
Clip-type input terminals |
|---|---|
| Installation options |
In-ceiling / In-wall |
| Enclosure material |
ABS plastic |
| Grille material |
Iron |
| Grille fixing system |
Magnets |
| Operating temperature |
Min: -20°C ; -4°F
Max: 70°C ; 158°F
|
| Operating humidity |
85% HR |
| Storage temperature |
Min: -20°C ; -4°F
Max: 70°C ; 158°F
|
| Storage humidity |
90% HR |
| Included accessories |
Cutting template |
| Optional accessories |
Ecler IC-TB8 |
| Finished colour |
White (RAL 9003) / Black (RAL 9005) |
| Dimensions |
254 x 254 x 93 mm. / 10 x 10 x 3.66 in. (WxHxD) |
| Weight |
2.35 Kg / 5.18 lb |
| Pieces per box |
2 |
| Shipping dimensions |
305 x 300 x 295 mm. / 12.01 x 11.81 x 11.61 in. (WxHxD) |
| Shipping weight |
4.75 kg / 10.47 lb |
| Mounting system |
3 rotating tabs |
| Recommended cut out diameter |
222 mm / 8.74 in. |
| External diameter |
254 mm / 10 in. |
| Required depth |
94 mm / 3.70 in. |
| Internal diameter |
246 mm / 9.69 in. 219 mm / 8.62 in. |
