eIC51FM
CEIC51FM
Available
4.5" | 1-way | 6 WRMS | fast-mount

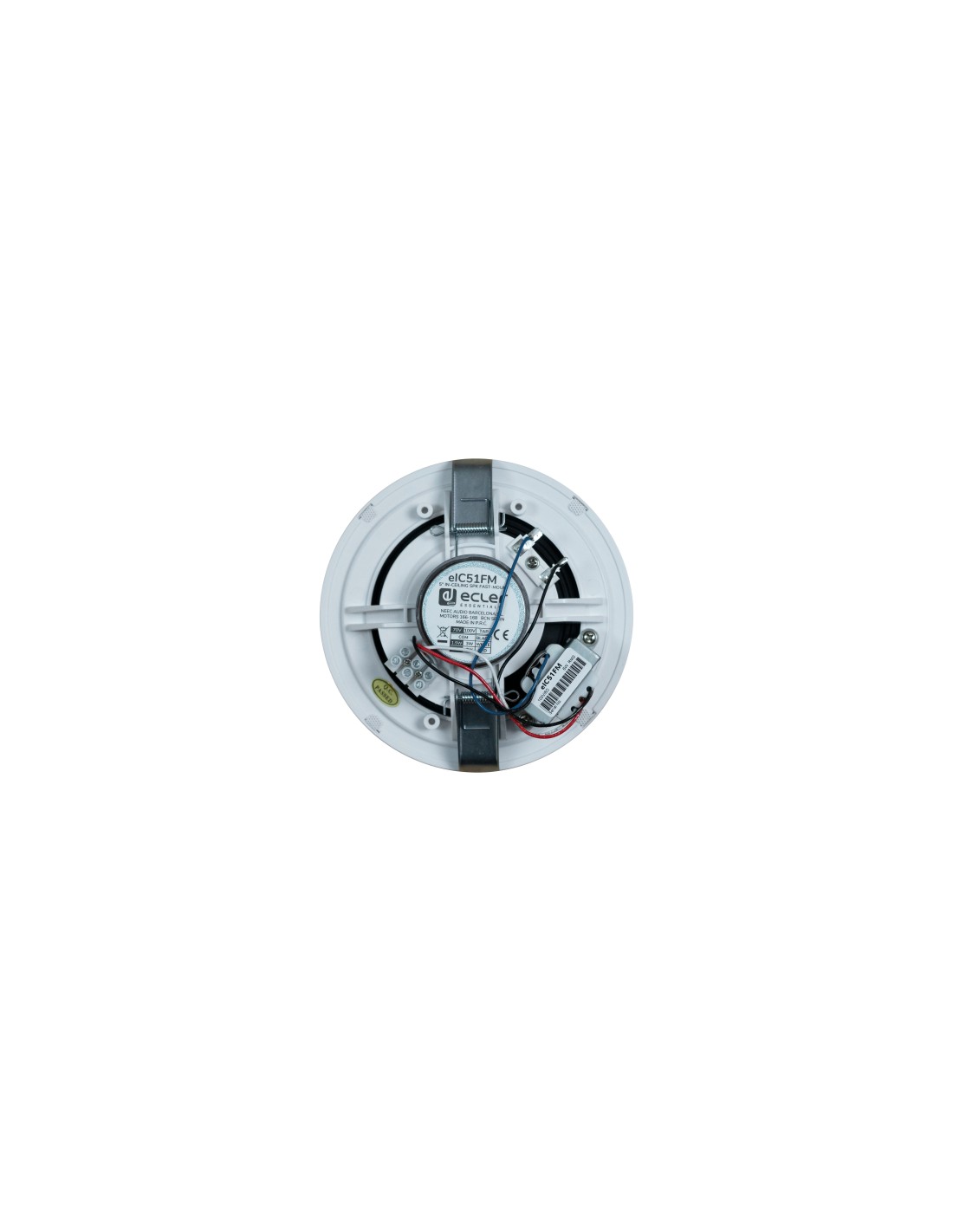

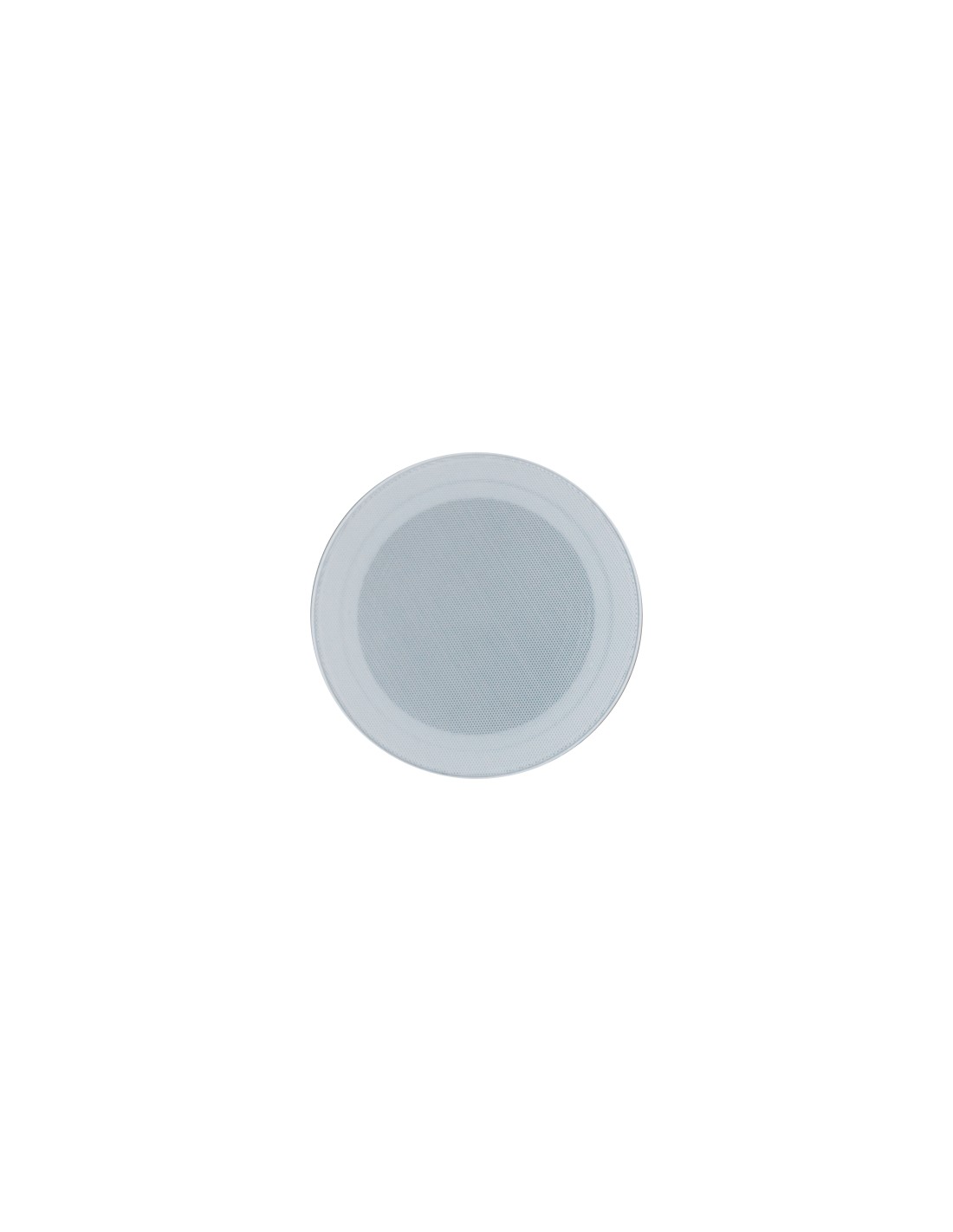

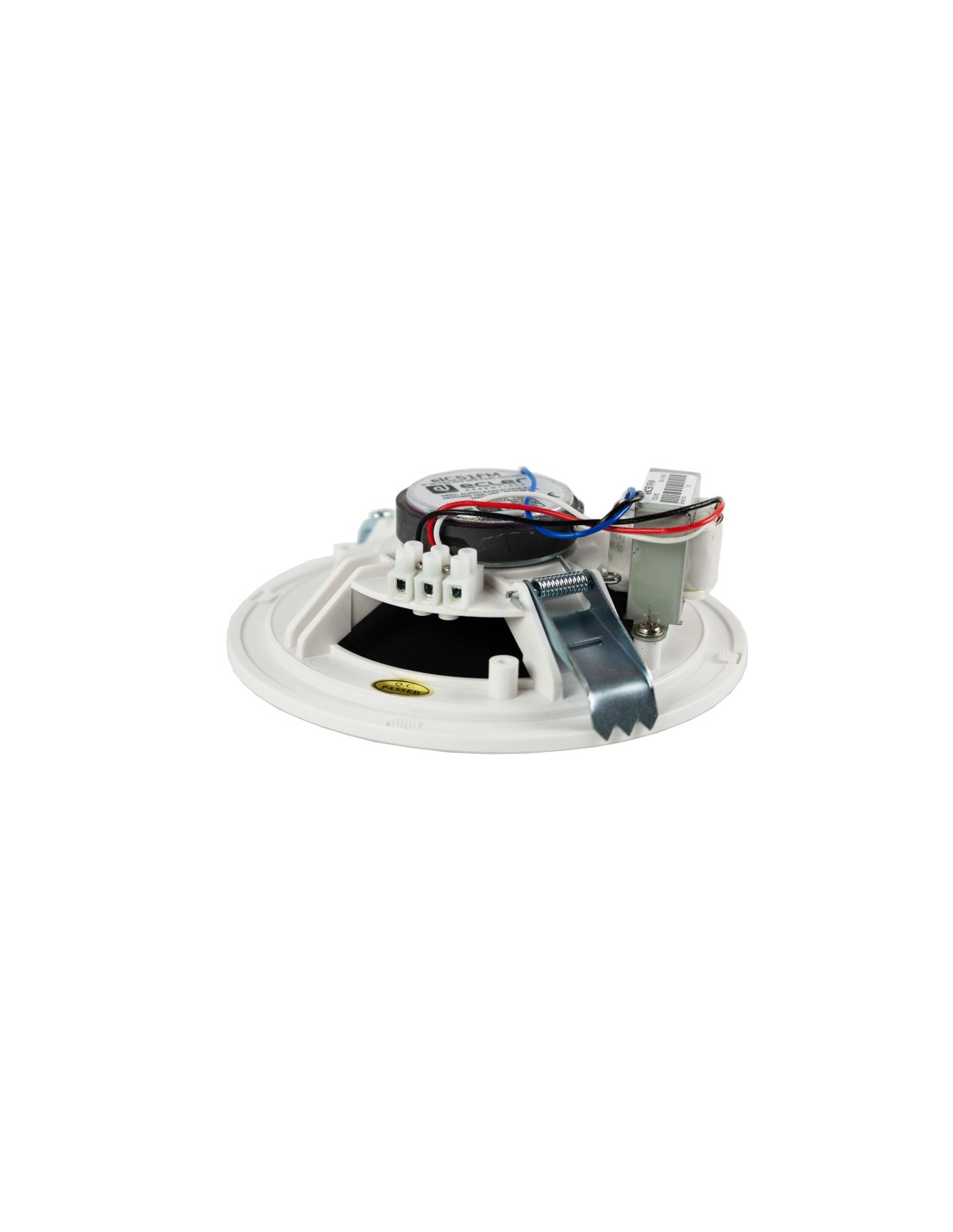

eIC51FM is a cost-effective in-ceiling installation loudspeaker with a great sound performance and a Fast-mounting system. It features a 4.5" woofer and 70/100V line transformer with 3 and 6 W power options.
- Effective Freq. Range
- 115 Hz-17 kHz (-10dB)
- Coverage angle / Dispersion
- 157°x157° (HxV)
- Power handling
- 6 W RMS / 24 W Peak
- Sensitivity
- 91 dB (1W/1m)
- Maximum SPL
- 99 dB continuous / 105 dB peak
- Recommended amplifier power
- 12 W RMS
- Ways
- 1-way full range
- Nominal impedance
- 8Ω
- Connection type
- Screw terminals
- Installation options
- In-ceiling, in-wall
- Environmental
- IP50 rated
- Enclosure material
- ABS plastic
- Grille material
- Powder coated iron
- Operating temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -20°C ; -4°F
Max: 70°C ; 158°F
- Operating humidity
- 85% HR
<85% HR - Storage temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -20°C ; -4°F
Max: 70°C ; 158°F
- Storage humidity
- 90% HR
<90% HR - Finished colour
- White (RAL 9016)
- Weight
- 0,5 kg / 1.1 lb
- Pieces per box
- 1 unit
- Shipping dimensions
- 178 x 178 x 63 mm / 7.0 x 7.0 x 2.5 in. (WxHxD)
- Shipping weight
- 0.75 kg / 1.7 lb
- Status
- New
- Origin Production
- China
- EAN code
- 8435071312493
- Tariff code
- 8518210000
- Shipping Location
- Spain
- Width (cm)
- 18.00
- Height (cm)
- 7.00
- Depth (cm)
- 18.00
- Vol. (dm3)
- 2.27
- Gross Weight (kg)
- 0.75
- Net Weight (kg)
- 0.50
- Format
- 12 Units
- Warranty (months)
- 36
- Mounting system
- Spring clamps
- Driver
- 4.5" woofer, ferrite magnet and paper cone
- Power options (Hi Z Multi-tap)
- 100V: 6W / 3W
70V: 3W / 1,5W - Power type selector
- Color code connection (rear panel)
- Recommended cut out diameter
- 145 mm / 5.7”
- External diameter
- 160 mm / 6.3"
- Required depth
- 54 mm / 2.1”
>54 mm / 2.1” - Ceiling thickness
- No limit min
55mm / 2.17" max
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
115 Hz-17 kHz (-10dB) |
|---|---|
| Coverage angle / Dispersion |
157°x157° (HxV) |
| Power handling |
6 W RMS / 24 W Peak |
| Sensitivity |
91 dB (1W/1m) |
| Maximum SPL |
99 dB continuous / 105 dB peak |
| Recommended amplifier power |
12 W RMS |
| Power options (Hi Z Multi-tap) |
100V: 6W / 3W
70V: 3W / 1,5W |
TRANSDUCERS
| Ways |
1-way full range |
|---|---|
| Nominal impedance |
8Ω |
| Driver |
4.5" woofer, ferrite magnet and paper cone |
PHYSICAL
| Connection type |
Screw terminals |
|---|---|
| Installation options |
In-ceiling, in-wall |
| Environmental |
IP50 rated |
| Enclosure material |
ABS plastic |
| Grille material |
Powder coated iron |
| Operating temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F Min: -20°C ; -4°F Max: 70°C ; 158°F |
| Operating humidity |
<85% HR 85% HR |
| Storage temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F Min: -20°C ; -4°F Max: 70°C ; 158°F |
| Storage humidity |
<90% HR 90% HR |
| Finished colour |
White (RAL 9016) |
| Weight |
0,5 kg / 1.1 lb |
| Pieces per box |
1 unit |
| Shipping dimensions |
178 x 178 x 63 mm / 7.0 x 7.0 x 2.5 in. (WxHxD) |
| Shipping weight |
0.75 kg / 1.7 lb |
| Format |
12 Units |
| Mounting system |
Spring clamps |
| Power type selector |
Color code connection (rear panel) |
| Recommended cut out diameter |
145 mm / 5.7” |
| External diameter |
160 mm / 6.3" |
| Required depth |
>54 mm / 2.1” 54 mm / 2.1” |
| Ceiling thickness |
No limit min
55mm / 2.17" max |
LOGISTICS
| Status |
New |
|---|---|
| Origin Production |
China |
| EAN code |
8435071312493 |
| Tariff code |
8518210000 |
| Shipping Location |
Spain |
| Width (cm) |
18.00 |
| Height (cm) |
7.00 |
| Depth (cm) |
18.00 |
| Vol. (dm3) |
2.27 |
| Gross Weight (kg) |
0.75 |
| Net Weight (kg) |
0.50 |
| Warranty (months) |
36 |
