VICSB8X
CVICSB8X
Available
8” | 1-way | 80 WRMS | crossover filter | back can + tile bridge
VICSB8X is an in-ceiling subwoofer reinforcement loudspeaker with a great sound performance. It features an 8” woofer, 80WRMS @ 8ohm nominal power and 70/100V line transformer with 60/30/15/7.5/3.75W power connections and it integrates a crossover filter. VIC series provide excellent sound quality thanks to their infinite baffle philosophy and a top-performance high frequency transducer.

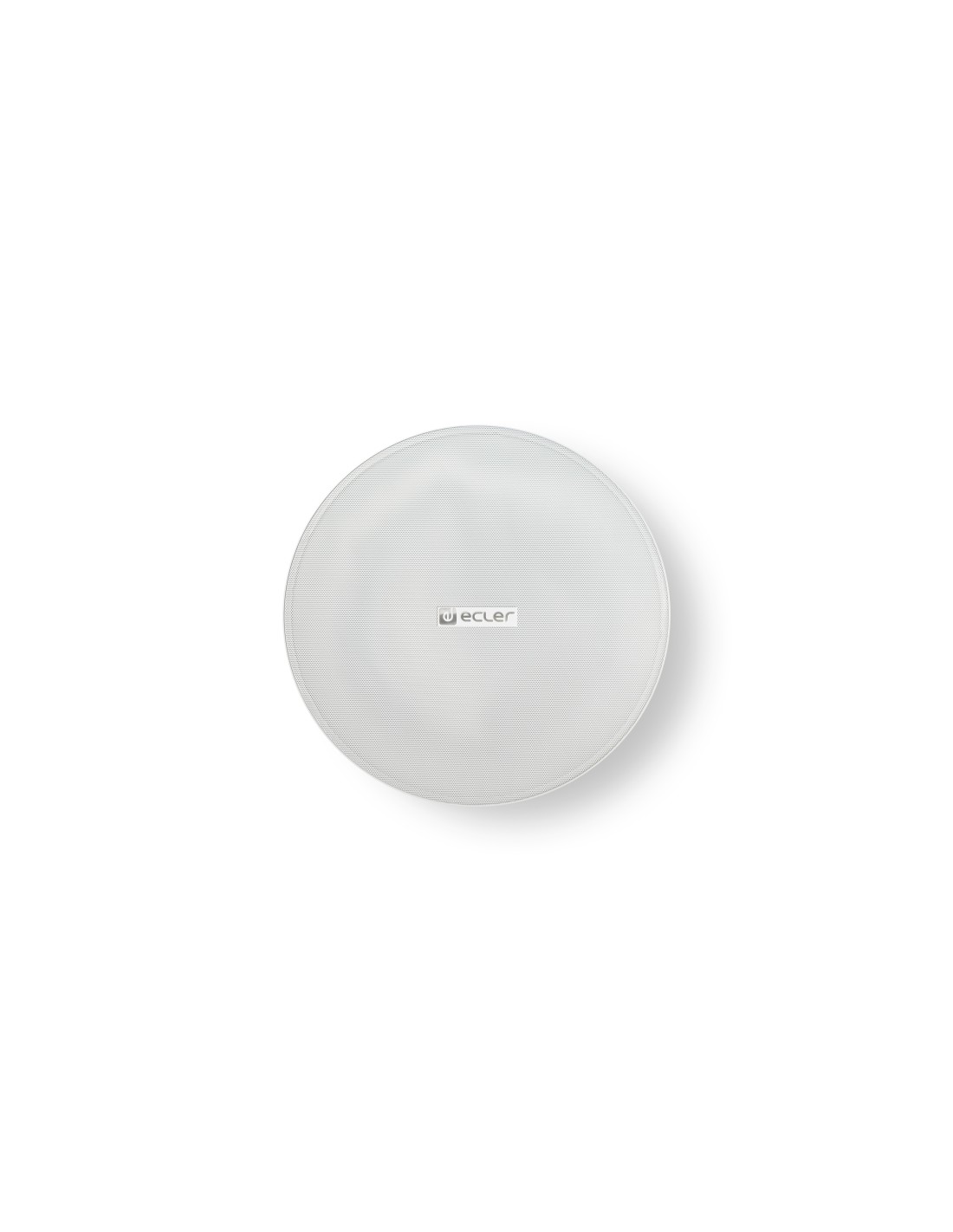

The VIC series features a sleek, minimalist design with a magnetic grille that easily attaches to the speaker. This not only makes installation easy, but also allows the grille to be painted to match the décor of the space. VIC series provide a careful selection of components in a user-friendly design that seeks speed and versatility of installation on any surface, while maintaining excellent sound quality.

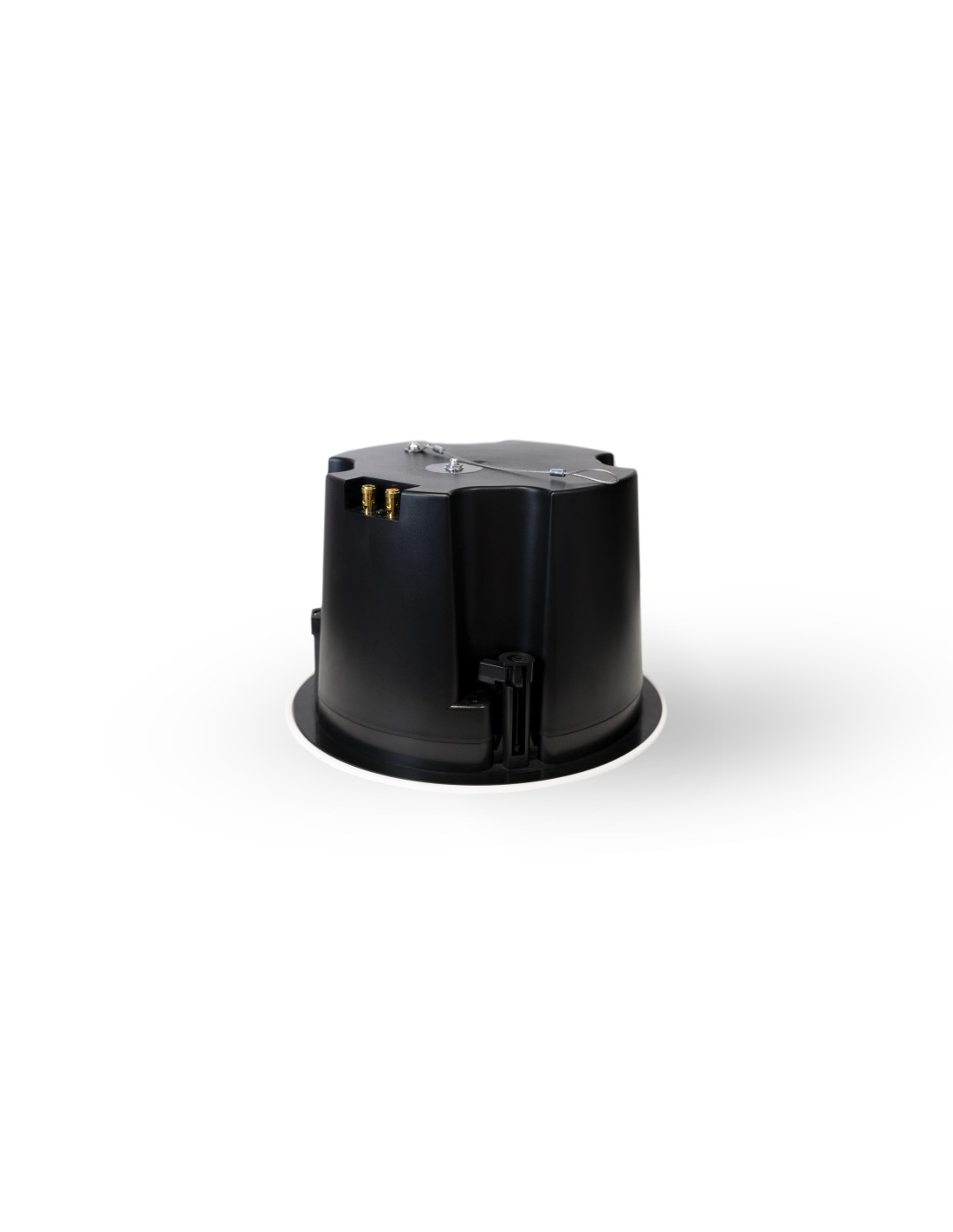

Includes back can and tile bridge to provide more flexibility and versatile installation choices.
- Effective Freq. Range
- 35Hz-185Hz (-10dB)
70Hz – 390Hz (-10dB) - Power handling
- 80 W RMS / 320 W Peak
- Sensitivity
- 88 dB (1W/1m)
89 dB (1W/1m) - Maximum SPL
- 107 dB continuous / 113 dB peak
108 db continuous / 114 dB peak - Recommended amplifier power
- 160 W RMS
- Ways
- 1-way subwoofer
- Nominal impedance
- 8Ω
- Installation options
- Ceiling
- Environmental
- IPX4 rated
- Grille material
- Magnetic, paintable metal alloy
Paintable metallic alloy - Operating temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -20°C ; -4°F
Max: 70°C ; 158°F - Operating humidity
- 85% HR
<85% HR - Storage temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -20°C ; -4°F
Max: 70°C ; 158°F - Storage humidity
- 90% HR
<90% HR - Included accessories
- Tile bridge and Back can
- Finished colour
- White (RAL 9010)
- Dimensions
- 282 x 200 mm /11.1 x 7.9 in. (ØxD)
- Weight
- 3.9 kg / 8.59 lb
- Pieces per box
- Unit
- Shipping dimensions
- 300 x 240 x 585 mm / 11.81 x 9.45 x 23.03 in. (WxHxD)
- Shipping weight
- 8.5 kg / 18.74 lb
- Status
- New
- Origin Production
- China
- EAN code
- 8435071307451
- Tariff code
- 8518210000
- Shipping Location
- Spain
- Width (cm)
- 30.00
- Height (cm)
- 24.00
- Depth (cm)
- 58.50
- Vol. (dm3)
- 42.12
- Gross Weight (kg)
- 8.50
- Net Weight (kg)
- 7.40
- Format
- Unit
- Warranty (months)
- 36
- Driver
- LF 8" woofer
- Power options (Hi Z Multi-tap)
- 100V: 60W / 30W / 15W / 7.5W / 8Ω
70V: 60W / 30W / 15W / 7.5W / 3.75W / 8Ω - Recommended cut out diameter
- 246 mm/ 9.69"
- External diameter
- 282 mm / 11.10 in
- Required depth
- 200 mm / 7.87 in
- Ceiling thickness
- 10mm / 0.39" min
50mm / 1.97" max - Internal diameter
- 245 mm / 9.64 in
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
70Hz – 390Hz (-10dB) 35Hz-185Hz (-10dB) |
|---|---|
| Power handling |
80 W RMS / 320 W Peak |
| Sensitivity |
89 dB (1W/1m) 88 dB (1W/1m) |
| Maximum SPL |
107 dB continuous / 113 dB peak 108 db continuous / 114 dB peak |
| Recommended amplifier power |
160 W RMS |
| Power options (Hi Z Multi-tap) |
100V: 60W / 30W / 15W / 7.5W / 8Ω
70V: 60W / 30W / 15W / 7.5W / 3.75W / 8Ω |
TRANSDUCERS
| Ways |
1-way subwoofer |
|---|---|
| Nominal impedance |
8Ω |
| Driver |
LF 8" woofer |
PHYSICAL
| Installation options |
Ceiling |
|---|---|
| Environmental |
IPX4 rated |
| Grille material |
Paintable metallic alloy Magnetic, paintable metal alloy |
| Operating temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F Min: -20°C ; -4°F Max: 70°C ; 158°F |
| Operating humidity |
<85% HR 85% HR |
| Storage temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F Min: -20°C ; -4°F Max: 70°C ; 158°F |
| Storage humidity |
<90% HR 90% HR |
| Included accessories |
Tile bridge and Back can |
| Finished colour |
White (RAL 9010) |
| Dimensions |
282 x 200 mm /11.1 x 7.9 in. (ØxD) |
| Weight |
3.9 kg / 8.59 lb |
| Pieces per box |
Unit |
| Shipping dimensions |
300 x 240 x 585 mm / 11.81 x 9.45 x 23.03 in. (WxHxD) |
| Shipping weight |
8.5 kg / 18.74 lb |
| Format |
Unit |
| Recommended cut out diameter |
246 mm/ 9.69" |
| External diameter |
282 mm / 11.10 in |
| Required depth |
200 mm / 7.87 in |
| Ceiling thickness |
10mm / 0.39" min
50mm / 1.97" max |
| Internal diameter |
245 mm / 9.64 in |
LOGISTICS
| Status |
New |
|---|---|
| Origin Production |
China |
| EAN code |
8435071307451 |
| Tariff code |
8518210000 |
| Shipping Location |
Spain |
| Width (cm) |
30.00 |
| Height (cm) |
24.00 |
| Depth (cm) |
58.50 |
| Vol. (dm3) |
42.12 |
| Gross Weight (kg) |
8.50 |
| Net Weight (kg) |
7.40 |
| Warranty (months) |
36 |
