VICSB8
CVICSB81
Available
8” | 1-way | 80 WRMS | crossover filter

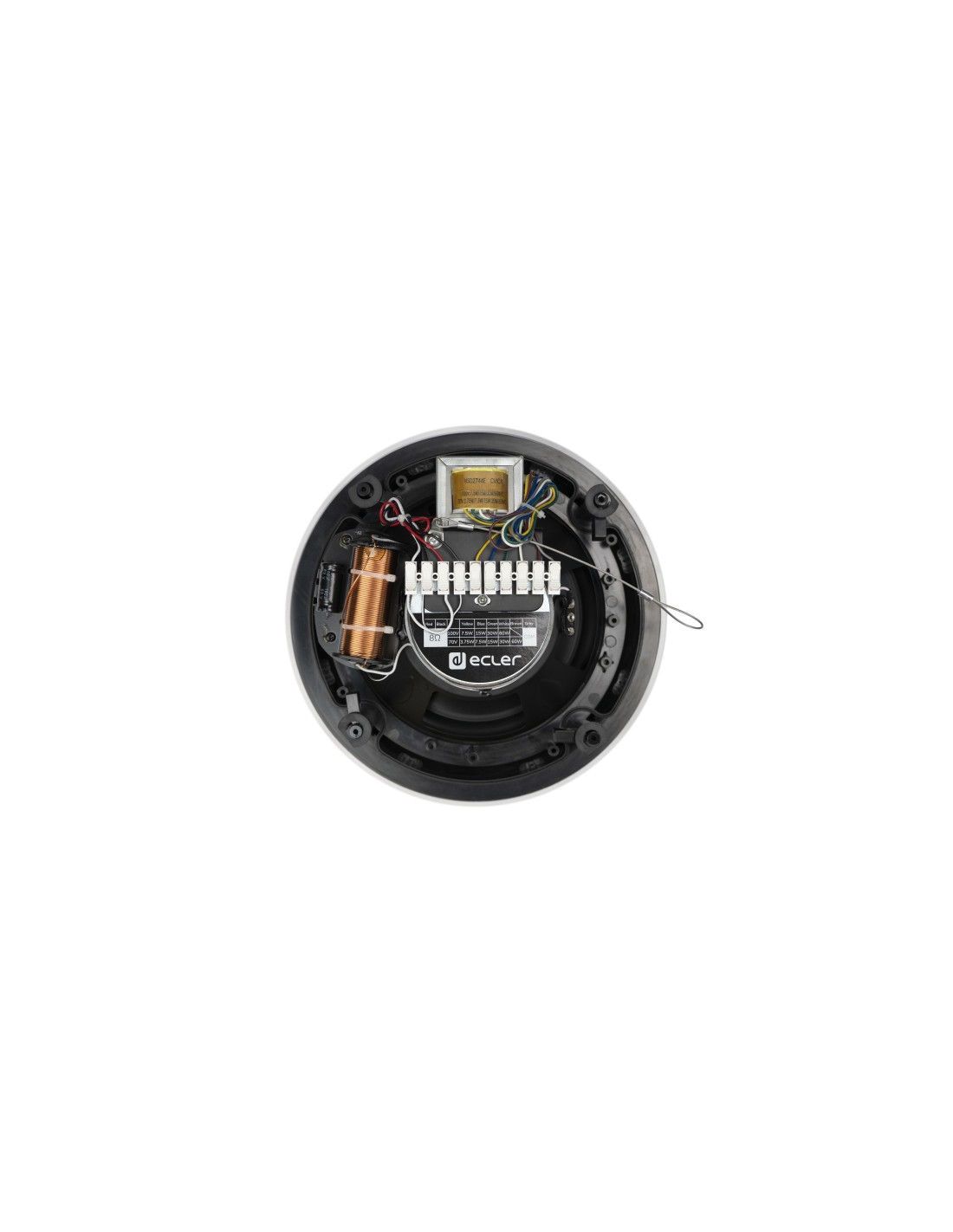

VICSB8 is an in-ceiling subwoofer reinforcement loudspeaker with a great sound performance. It features an 8” woofer, 80WRMS @ 8ohm nominal power and 70/100V line transformer with 60/30/15/7.5/3.75W power connections and it integrates a crossover filter. VIC series provide excellent sound quality thanks to their infinite baffle philosophy.

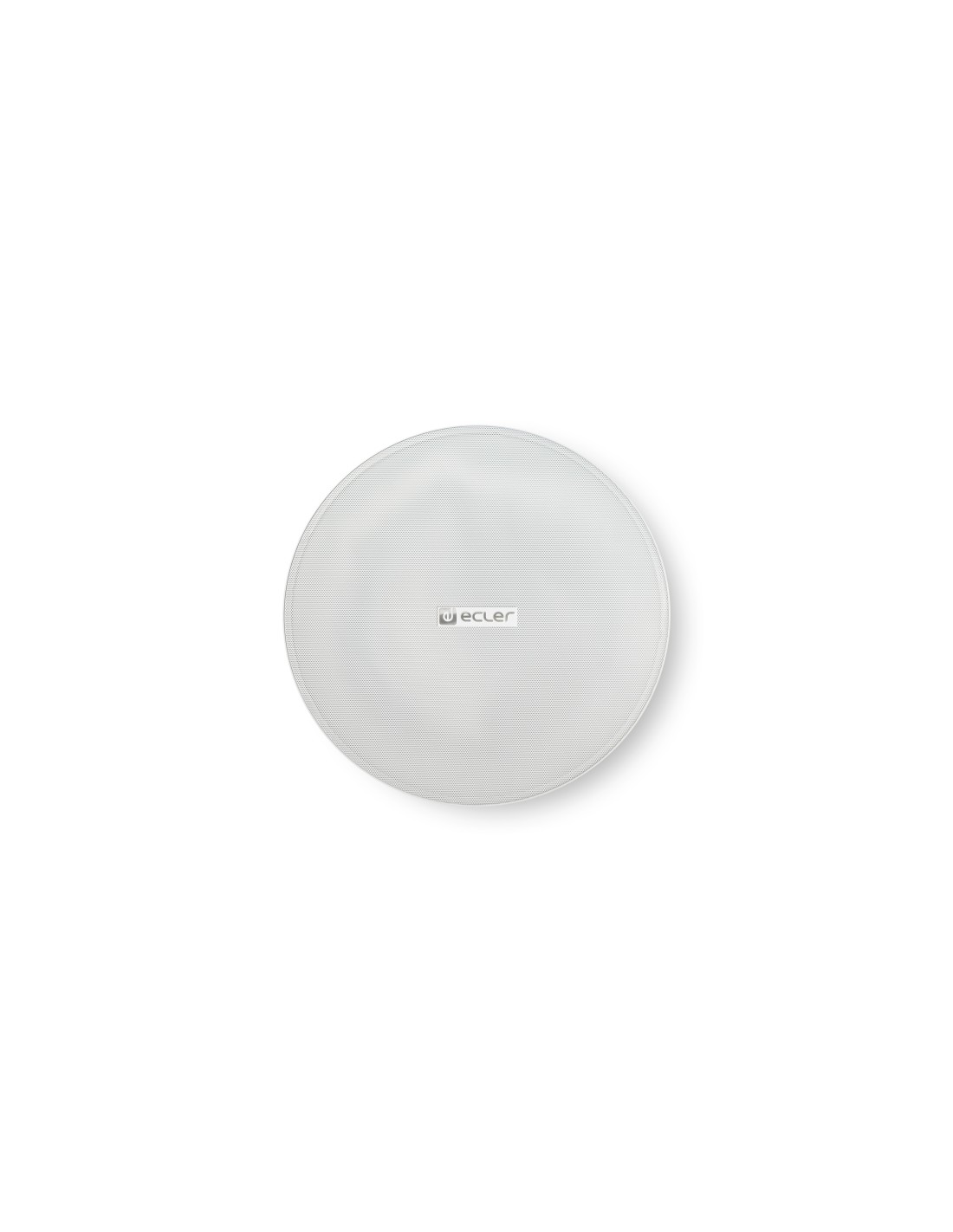

The VIC series features a sleek, minimalist design with a magnetic grille that easily attaches to the speaker. This not only makes installation easy, but also allows the grille to be painted to match the décor of the space. VIC series provide a careful selection of components in a user-friendly design that seeks speed and versatility of installation on any surface, while maintaining excellent sound quality.
- Effective Freq. Range
- 35Hz – 2kHz (-10dB)
38Hz-180Hz (-10dB)
72Hz-410 Hz - Power handling
- 80 W RMS / 320 W Peak
- Sensitivity
- 76 dB (1W/1m)
78 dB (1W/1m)
87 dB (1W/1m) - Maximum SPL
- 95 dB continuous / 101 dB peak
97 dB continuous / 103 dB peak - Recommended amplifier power
- 160 W RMS
- Ways
- 1-way subwoofer
- Nominal impedance
- 8Ω
- Installation options
- Ceiling
- Environmental
- IPX4 rated
- Grille material
- Magnetic, paintable metal alloy
- Operating temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -20°C ; -4°F
Max: 70°C ; 158°F
- Operating humidity
- 85% HR
- Storage temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -20°C ; -4°F
Max: 70°C ; 158°F
- Storage humidity
- 90% HR
- Finished colour
- White (RAL 9010)
- Dimensions
- 282 x 135 mm / 11.1 x 5.3 in. (ØxD)
- Weight
- 3.2 kg / 7.05 lb
- Pieces per box
- Unit
- Shipping dimensions
- 300 x 150 x 300 mm / 11.81 x 5.91 x 11.81 in. (WxHxD)
- Shipping weight
- 3.7 kg / 8.16 lb
- Driver
- LF 8" woofer
- Power options (Hi Z Multi-tap)
- 100V: 60W / 30W / 15W / 7.5W / 8Ω
70V: 60W / 30W / 15W / 7.5W / 3.75W / 8Ω - Recommended cut out diameter
- 246 mm / 9.69 in
- External diameter
- 282 mm / 11.10 in
- Required depth
- 135 mm / 5.31 in
- Ceiling thickness
- 10mm / 0.39" min
50mm / 1.97" max - Internal diameter
- 245 mm / 9.64 in
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
35Hz – 2kHz (-10dB) 72Hz-410 Hz 38Hz-180Hz (-10dB) |
|---|---|
| Power handling |
80 W RMS / 320 W Peak |
| Sensitivity |
87 dB (1W/1m) 76 dB (1W/1m) 78 dB (1W/1m) |
| Maximum SPL |
95 dB continuous / 101 dB peak 97 dB continuous / 103 dB peak |
| Recommended amplifier power |
160 W RMS |
| Power options (Hi Z Multi-tap) |
100V: 60W / 30W / 15W / 7.5W / 8Ω
70V: 60W / 30W / 15W / 7.5W / 3.75W / 8Ω |
TRANSDUCERS
| Ways |
1-way subwoofer |
|---|---|
| Nominal impedance |
8Ω |
| Driver |
LF 8" woofer |
PHYSICAL
| Installation options |
Ceiling |
|---|---|
| Environmental |
IPX4 rated |
| Grille material |
Magnetic, paintable metal alloy |
| Operating temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F Min: -20°C ; -4°F Max: 70°C ; 158°F |
| Operating humidity |
85% HR |
| Storage temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F Min: -20°C ; -4°F Max: 70°C ; 158°F |
| Storage humidity |
90% HR |
| Finished colour |
White (RAL 9010) |
| Dimensions |
282 x 135 mm / 11.1 x 5.3 in. (ØxD) |
| Weight |
3.2 kg / 7.05 lb |
| Pieces per box |
Unit |
| Shipping dimensions |
300 x 150 x 300 mm / 11.81 x 5.91 x 11.81 in. (WxHxD) |
| Shipping weight |
3.7 kg / 8.16 lb |
| Recommended cut out diameter |
246 mm / 9.69 in |
| External diameter |
282 mm / 11.10 in |
| Required depth |
135 mm / 5.31 in |
| Ceiling thickness |
10mm / 0.39" min
50mm / 1.97" max |
| Internal diameter |
245 mm / 9.64 in |
