VIC8X
CVIC8X
Available
8” | 2-way | 60 WRMS | steerable tweeter | back can + tile bridge

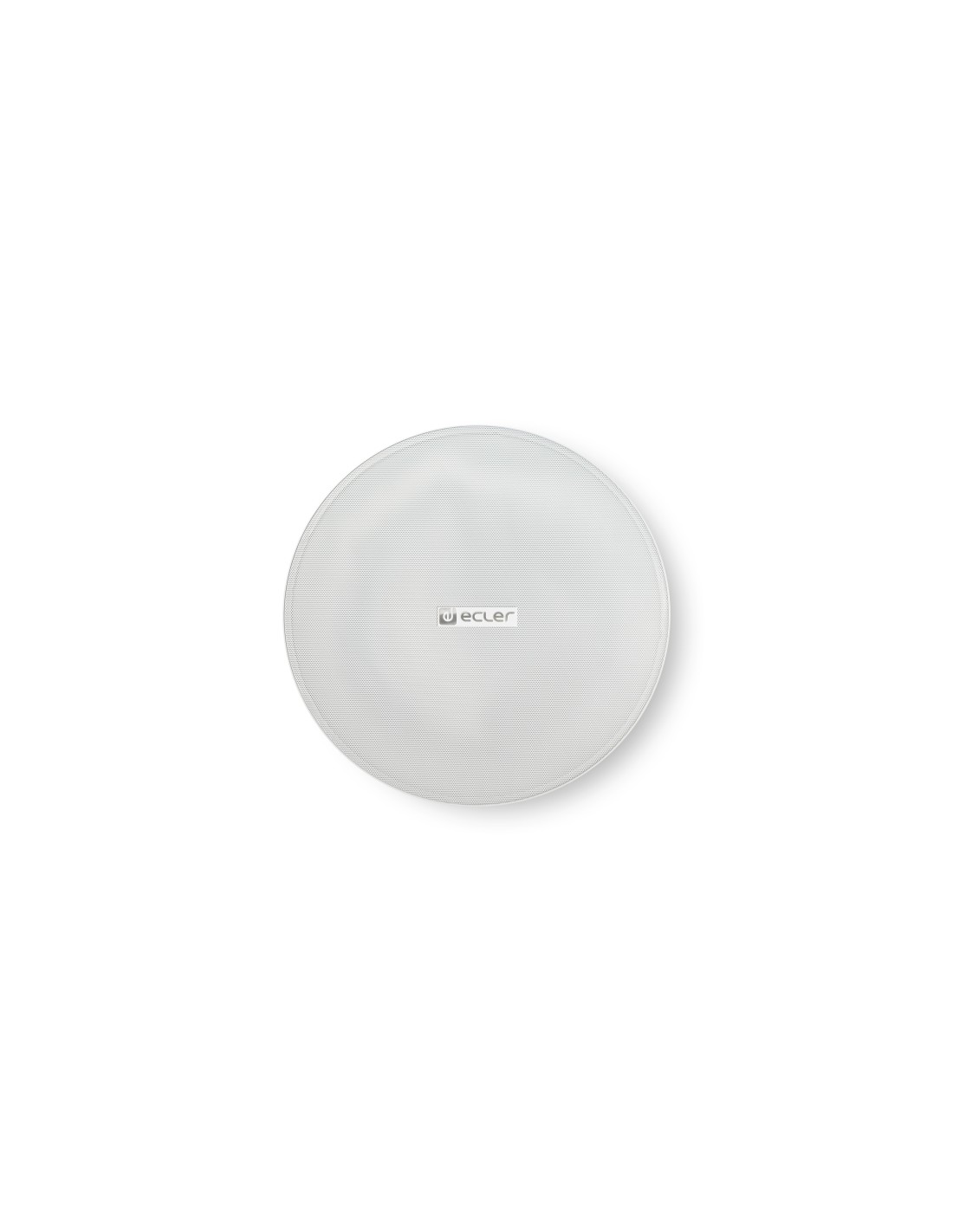

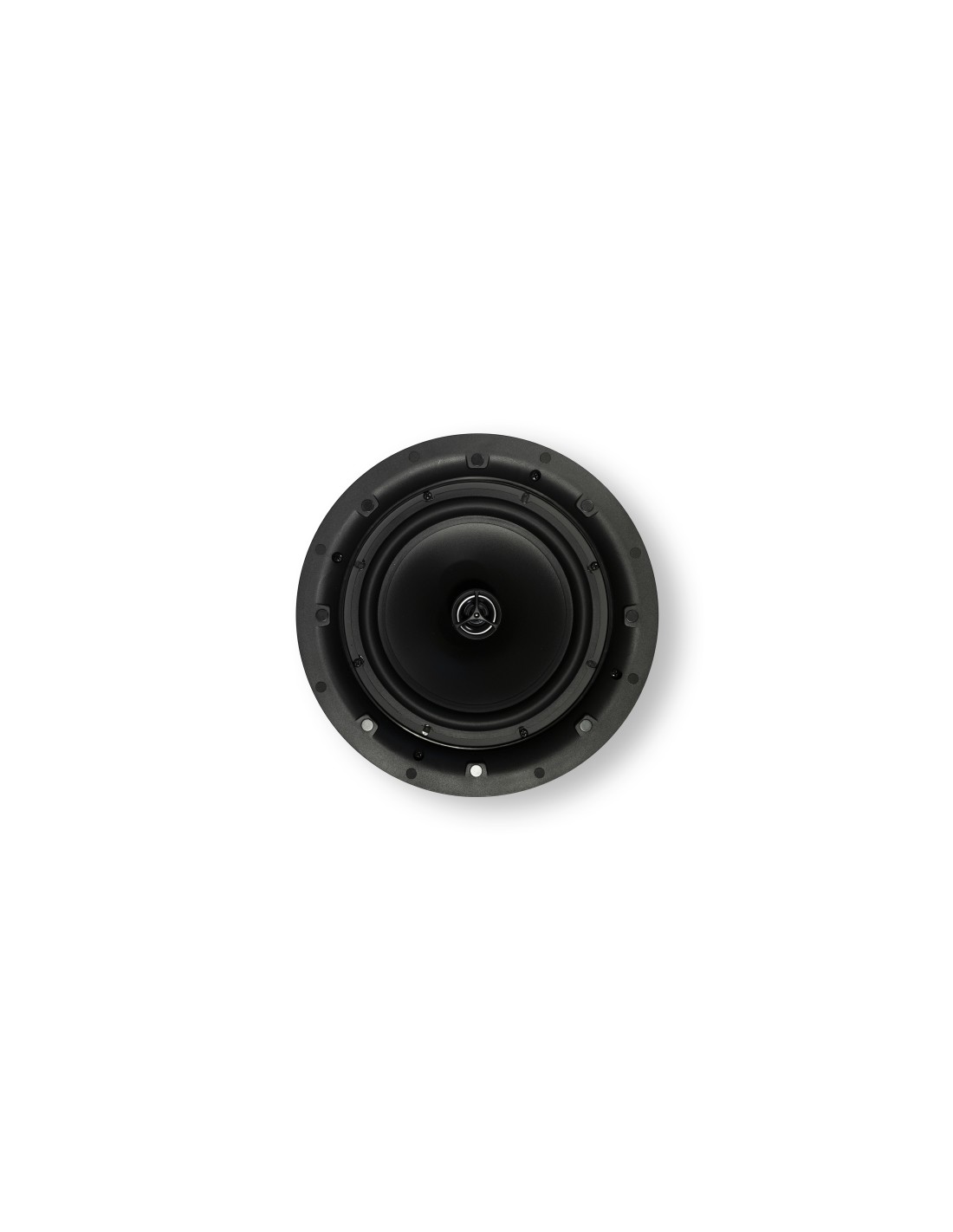

VIC8X is an in-ceiling loudspeaker with a great sound performance. It features a 8” woofer + 0.5” steerable tweeter, 40WRMS @ 8Ω nominal power and 70/100V line transformer with 60/30/15/7,5/3.75W power connections. VIC series provide excellent sound quality thanks to their infinite baffle philosophy and a top-performance high frequency transducer.
The VIC series features a sleek, minimalist design with a magnetic grille that easily attaches to the speaker. This not only makes installation easy, but also allows the grille to be painted to match the décor of the space. VIC series provide a careful selection of components in a user-friendly design that seeks speed and versatility of installation on any surface, while maintaining excellent sound quality.

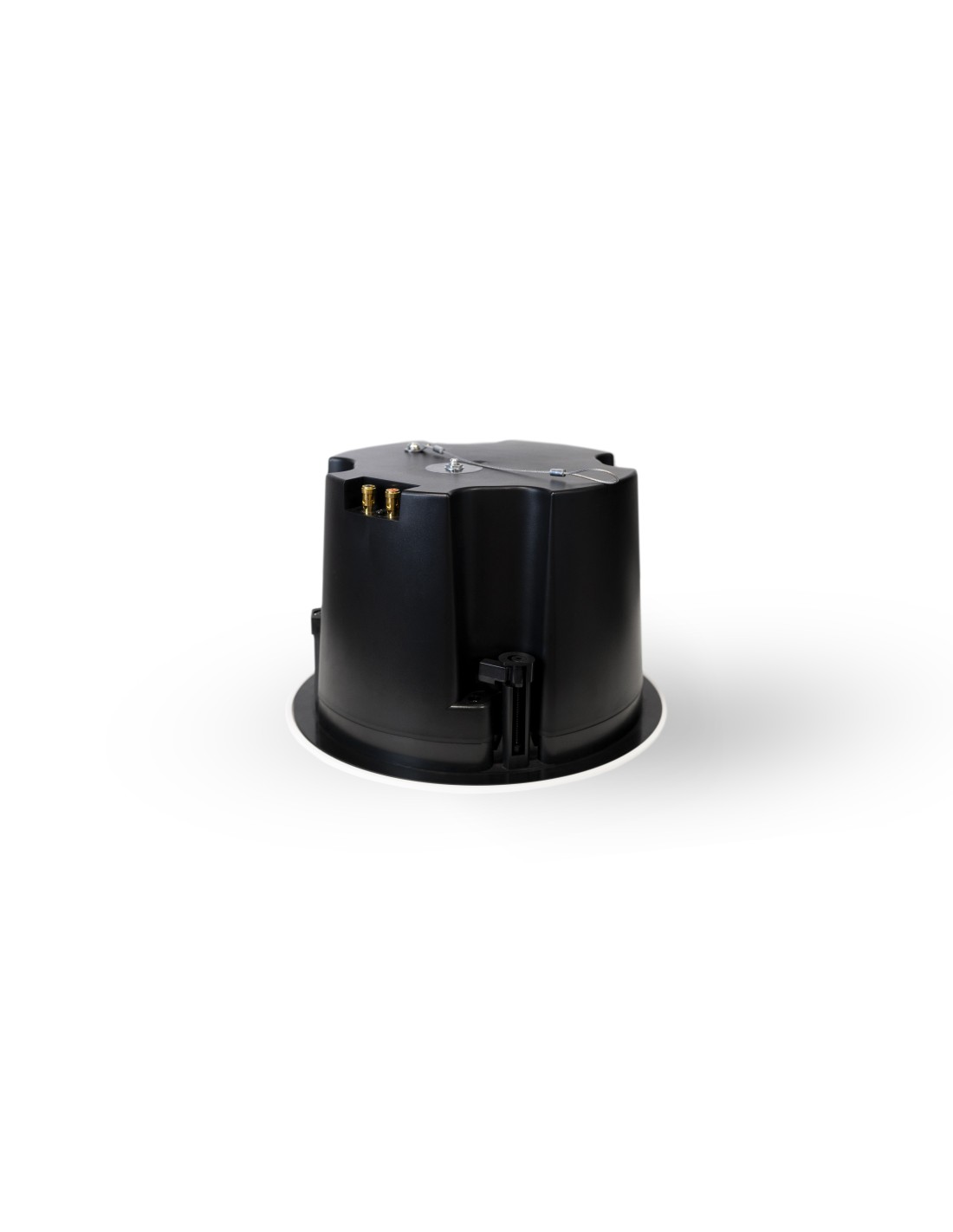

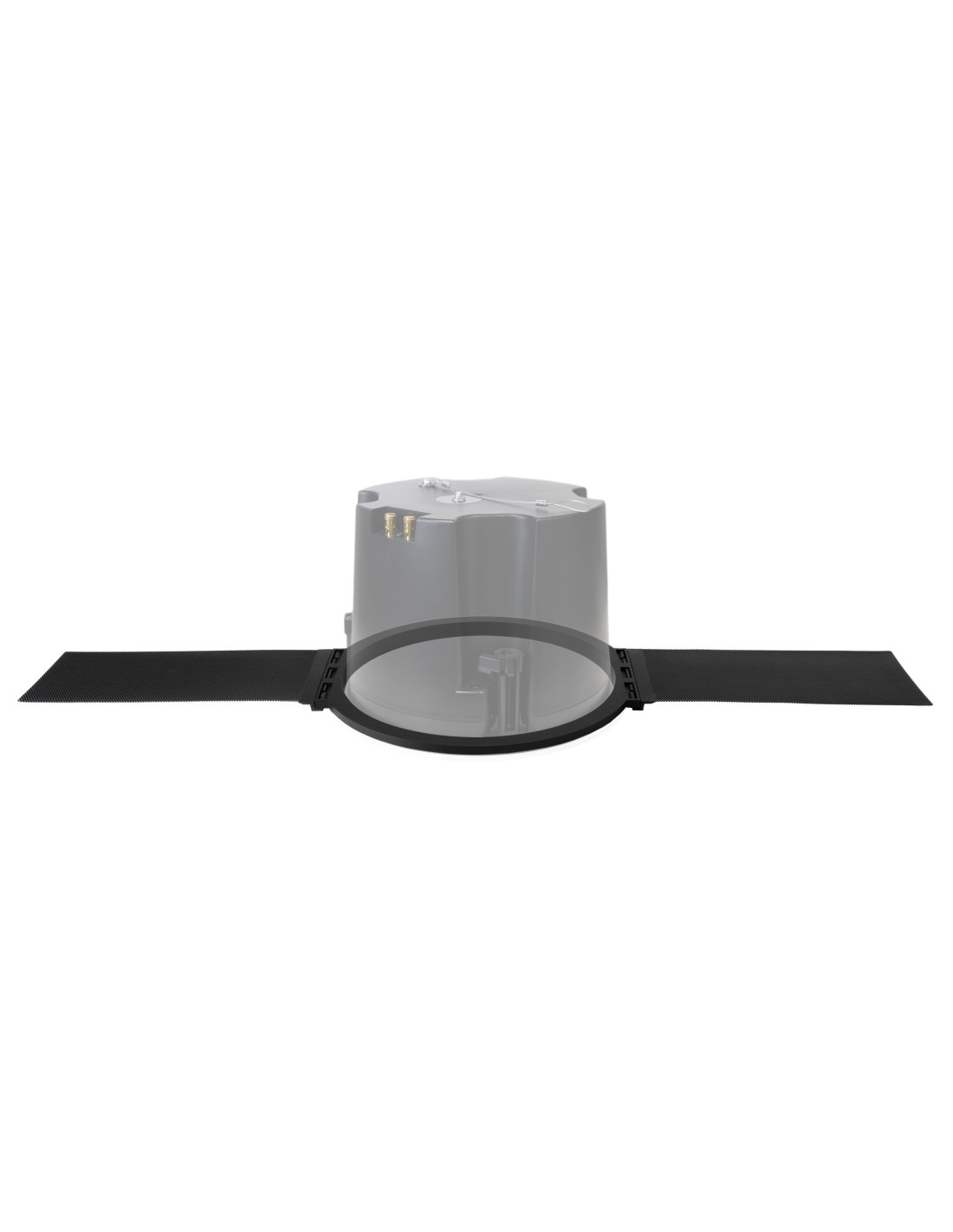

Includes back can and tile bridge to provide more flexibility and versatile installation choices.
- Effective Freq. Range
- 75 Hz-20 kHz (-10dB)
- Coverage angle / Dispersion
- 163° conical
- Power handling
- 60 W RMS / 240 W Peak
- Sensitivity
- 93 dB (1W/1m)
- Maximum SPL
- 111 dB continuous / 117 dB peak
- Recommended amplifier power
- 120 W RMS
- Ways
- 2 ways
- Low frequency driver
- 8" woofer
- High frequency driver
- 0,5" steerable tweeter
- Nominal impedance
- 8Ω
- Installation options
- Ceiling
- Environmental
- IPX4 rated
- Grille material
- Magnetic, paintable metal alloy
Paintable metallic alloy - Operating temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -20°C ; -4°F
Max: 70°C ; 158°F
- Operating humidity
- 85% HR
<85% HR - Storage temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -20°C ; -4°F
Max: 70°C ; 158°F
- Storage humidity
- 90% HR
<90% HR - Included accessories
- Back-can and tile bridge
- Finished colour
- White (RAL 9010)
- Dimensions
- 282 x 200 mm / 11.1 x 7.9 in. (ØxD)
- Weight
- 3.1 kg / 6.8 lb
- Pieces per box
- Pair
- Shipping dimensions
- 300 x 240 x 585 mm / 11.81 x 9.45 x 23.03 in. (WxHxD)
- Shipping weight
- 7.0 kg / 15.43 lb
- Status
- New
- Origin Production
- China
- EAN code
- 8435071307444
- Tariff code
- 8518210000
- Shipping Location
- Spain
- Width (cm)
- 30.00
- Height (cm)
- 24.00
- Depth (cm)
- 58.50
- Vol. (dm3)
- 42.12
- Gross Weight (kg)
- 7.00
- Net Weight (kg)
- 5.80
- Format
- Pair
- Warranty (months)
- 36
- Power options (Hi Z Multi-tap)
- 100: 60W / 30W / 15W / 7,5W / 8Ω
70: 60W / 30W / 15W / 7,5W / 3,75W / 8Ω - Recommended cut out diameter
- 246 mm/ 9.69"
- External diameter
- 282 mm / 11.10"
- Required depth
- 200 mm / 7.9"
- Ceiling thickness
- 10mm / 0.39" min
50mm / 1.97" max - Internal diameter
- 245 mm / 9.64"
