VIC6
CVIC6
Available
6,5” | 2-way | 40 WRMS | steerable tweeter

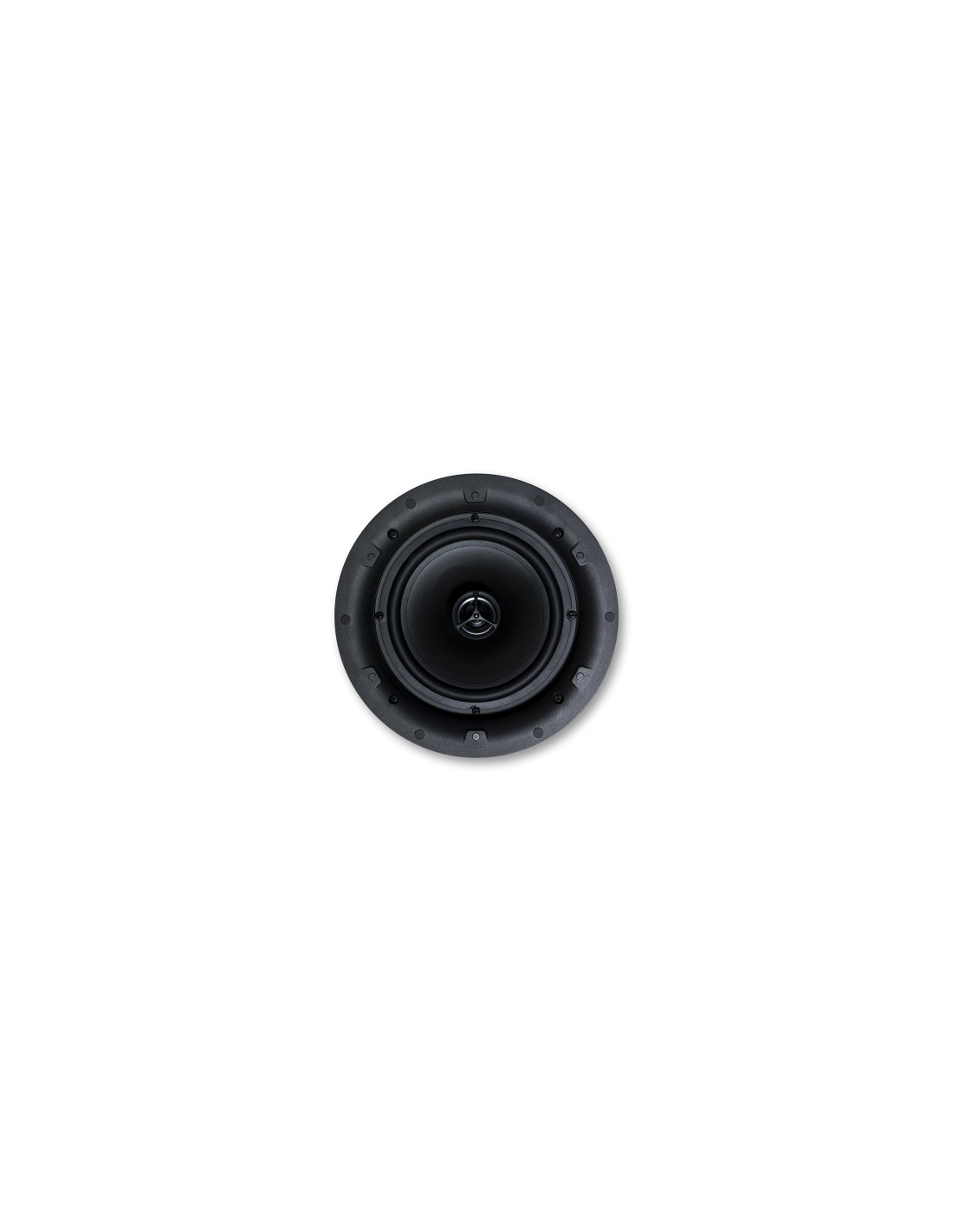

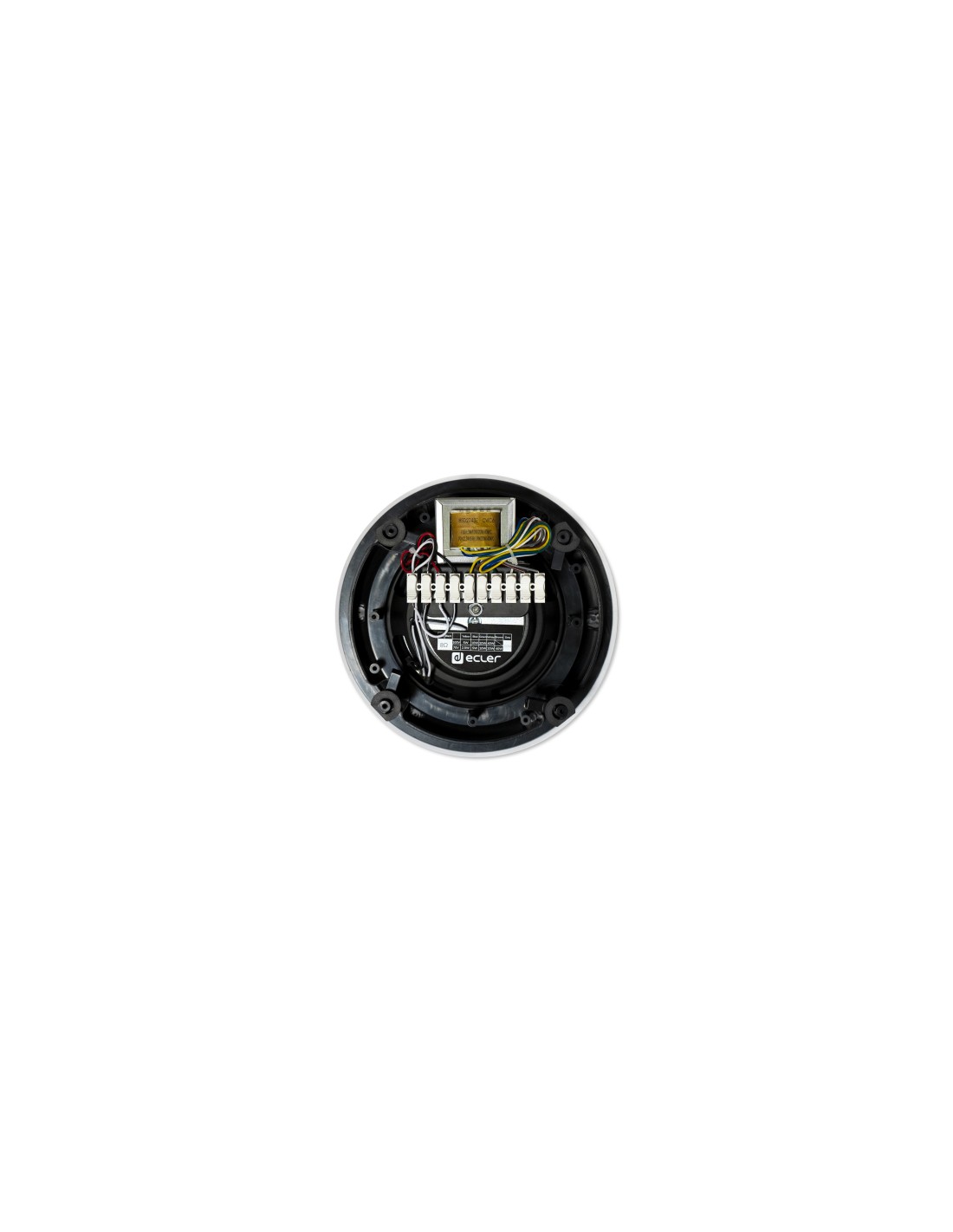

VIC6 is an in-ceiling loudspeaker with a great sound performance. It features a 6.5” woofer + 0.5” steerable tweeter, 40WRMS @ 8ohm nominal power and 70/100V line transformer with 40/20/10/5/2,5W power connections. VIC series provide excellent sound quality thanks to their infinite baffle philosophy and a top-performance high frequency transducer.

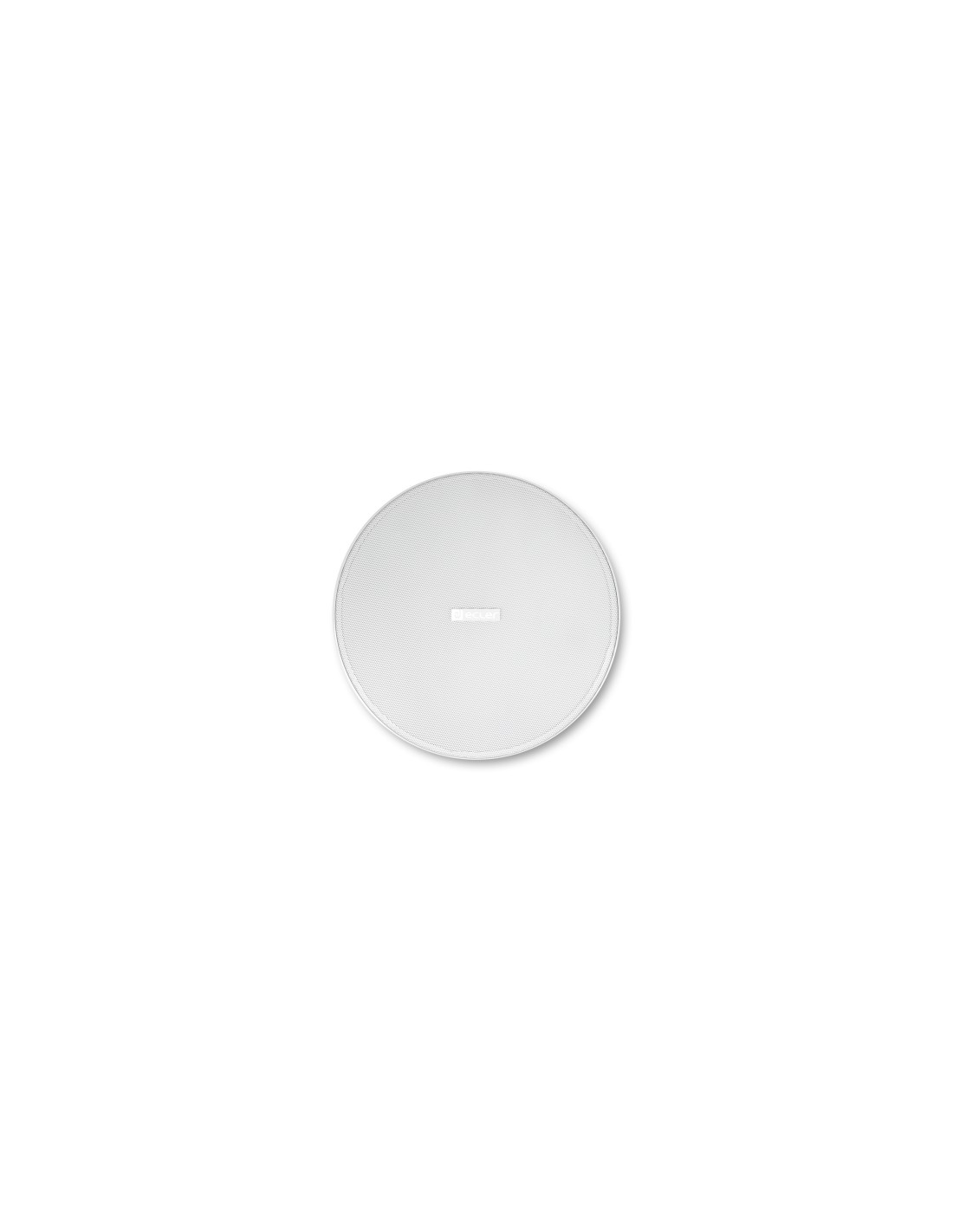

The VIC series features a sleek, minimalist design with a magnetic grille that easily attaches to the speaker. This not only makes installation easy, but also allows the grille to be painted to match the décor of the space. VIC series provide a careful selection of components in a user-friendly design that seeks speed and versatility of installation on any surface, while maintaining excellent sound quality.
- Effective Freq. Range
- 61 Hz-20 kHz (-10dB)
- Coverage angle / Dispersion
- 124° conical
- Power handling
- 40 W RMS / 160 W Peak
- Sensitivity
- 89 dB (1W/1m)
- Maximum SPL
- 105 dB continuous / 111 dB peak
- Recommended amplifier power
- 80 W RMS
- Ways
- 2-ways
- Low frequency driver
- 6,5" woofer
- High frequency driver
- 0,5" steerable tweeter
- Nominal impedance
- 8Ω
- Installation options
- Ceiling
- Environmental
- IPX4 rated
- Grille material
- Magnetic, paintable metal alloy
Paintable metallic alloy - Operating temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -20°C ; -4°F
Max: 70°C ; 158°F
- Operating humidity
- 85% HR
<85% HR
- Storage temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -20°C ; -4°F
Max: 70°C ; 158°F
- Storage humidity
- 90% HR
<90% HR
- Finished colour
- White (RAL 9010)
- Dimensions
- 232 x 105 mm / 8.07 x 4.13 in. (ØxD)
- Weight
- 1.8 kg / 3.97 lb
- Pieces per box
- Pair
- Shipping dimensions
- 250 x 260 x 250 mm / 9.84 x 10.24 x 9.84 in. (WxHxD)
- Shipping weight
- 4.0 kg / 8.82 lb
- Status
- New
- Origin Production
- China
- EAN code
- 8435071307390
- Tariff code
- 8518210000
- Shipping Location
- Spain
- Width (cm)
- 25.00
- Height (cm)
- 26.00
- Depth (cm)
- 25.00
- Vol. (dm3)
- 16.25
- Gross Weight (kg)
- 4.00
- Net Weight (kg)
- 3.20
- Format
- Pair
- Warranty (months)
- 36
- Power options (Hi Z Multi-tap)
- 100V: 40W / 20W / 10W / 5W / 8Ω
70V: 40W / 20W / 10W / 5W / 2,5W / 8Ω - Recommended cut out diameter
- 206 mm / 8,11"
- External diameter
- 232 mm / 9.13"
- Required depth
- 110 mm / 4.33"
- Ceiling thickness
- 10mm / 0.39" min
50mm / 1.97" max - Internal diameter
- 205 mm / 8.07"
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
61 Hz-20 kHz (-10dB) |
|---|---|
| Coverage angle / Dispersion |
124° conical |
| Power handling |
40 W RMS / 160 W Peak |
| Sensitivity |
89 dB (1W/1m) |
| Maximum SPL |
105 dB continuous / 111 dB peak |
| Recommended amplifier power |
80 W RMS |
| Power options (Hi Z Multi-tap) |
100V: 40W / 20W / 10W / 5W / 8Ω
70V: 40W / 20W / 10W / 5W / 2,5W / 8Ω |
TRANSDUCERS
| Ways |
2-ways |
|---|---|
| Low frequency driver |
6,5" woofer |
| High frequency driver |
0,5" steerable tweeter |
| Nominal impedance |
8Ω |
PHYSICAL
| Installation options |
Ceiling |
|---|---|
| Environmental |
IPX4 rated |
| Grille material |
Paintable metallic alloy Magnetic, paintable metal alloy |
| Operating temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -20°C ; -4°F Max: 70°C ; 158°F |
| Operating humidity |
<85% HR
85% HR |
| Storage temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -20°C ; -4°F Max: 70°C ; 158°F |
| Storage humidity |
<90% HR
90% HR |
| Finished colour |
White (RAL 9010) |
| Dimensions |
232 x 105 mm / 8.07 x 4.13 in. (ØxD) |
| Weight |
1.8 kg / 3.97 lb |
| Pieces per box |
Pair |
| Shipping dimensions |
250 x 260 x 250 mm / 9.84 x 10.24 x 9.84 in. (WxHxD) |
| Shipping weight |
4.0 kg / 8.82 lb |
| Format |
Pair |
| Recommended cut out diameter |
206 mm / 8,11" |
| External diameter |
232 mm / 9.13" |
| Required depth |
110 mm / 4.33" |
| Ceiling thickness |
10mm / 0.39" min
50mm / 1.97" max |
| Internal diameter |
205 mm / 8.07" |
LOGISTICS
| Status |
New |
|---|---|
| Origin Production |
China |
| EAN code |
8435071307390 |
| Tariff code |
8518210000 |
| Shipping Location |
Spain |
| Width (cm) |
25.00 |
| Height (cm) |
26.00 |
| Depth (cm) |
25.00 |
| Vol. (dm3) |
16.25 |
| Gross Weight (kg) |
4.00 |
| Net Weight (kg) |
3.20 |
| Warranty (months) |
36 |
