Cyclone 55.1 - Blanco
CVOIT2805
Available

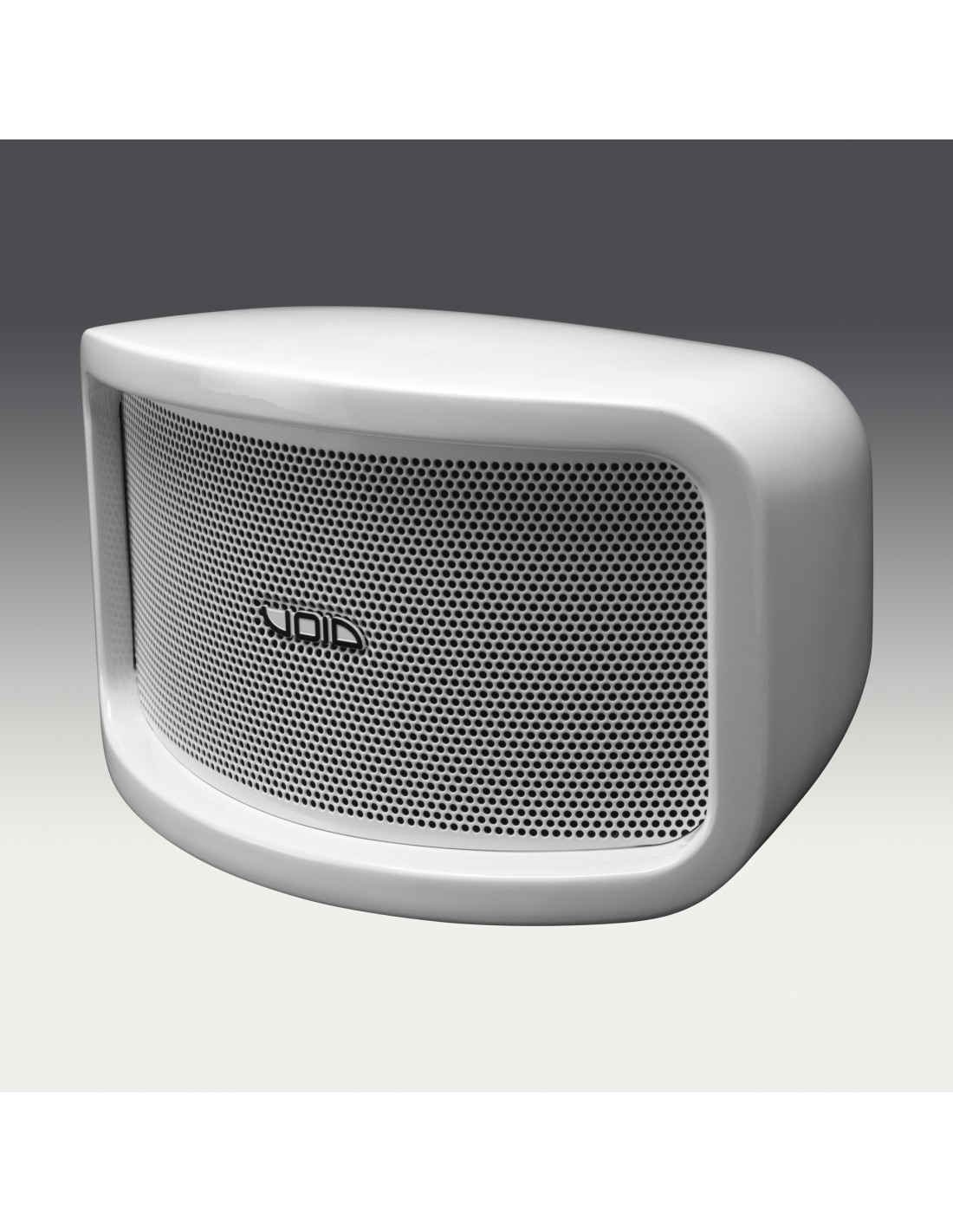

Double 5" weatherproof (IP55) acoustic enclosure for installation. Includes wall bracket.
The Cyclone 55 offers high levels of fidelity and definition from an ultra-compact and visually appealing format, in a weather-protected package with an IP-55 rating that is ideally suited to coastal outdoor environments, ranging from beach bars, resorts and cruise ships, to hotels and public spaces. With a dedicated bracket, the Cyclone 55 can be installed quickly and securely, and its wide range of adjustment allows the loudspeaker’s wide dispersion pattern to be accurately aimed at large audiences, using the least number of loudspeakers.
The loudspeaker shall be a passive two-way system consisting of two high power 5” (125 mm) direct radiating reflex loaded low frequency (LF) transducers
and 1” (25 mm) diameter co-axial soft dome tweeters high frequency (HF) transducers mounted in an open V-baffle enclosure.
- Effective Freq. Range
- 70 Hz - 23 kHz ±3 dB
- Coverage angle / Dispersion
- 110°H x 70°V
- Power handling
- 120 W AES
- Sensitivity
- 92 dB 1W/1m
- Maximum SPL
- 110 dB cont, 114 dB peak
112 dB cont, 118 dB peak - Low frequency driver
- 2 x 5” LF, 2 x 1” soft dome HF tweeters
- Nominal impedance
- 16 Ω
- Crossover filter
- 3.6 kHz passive

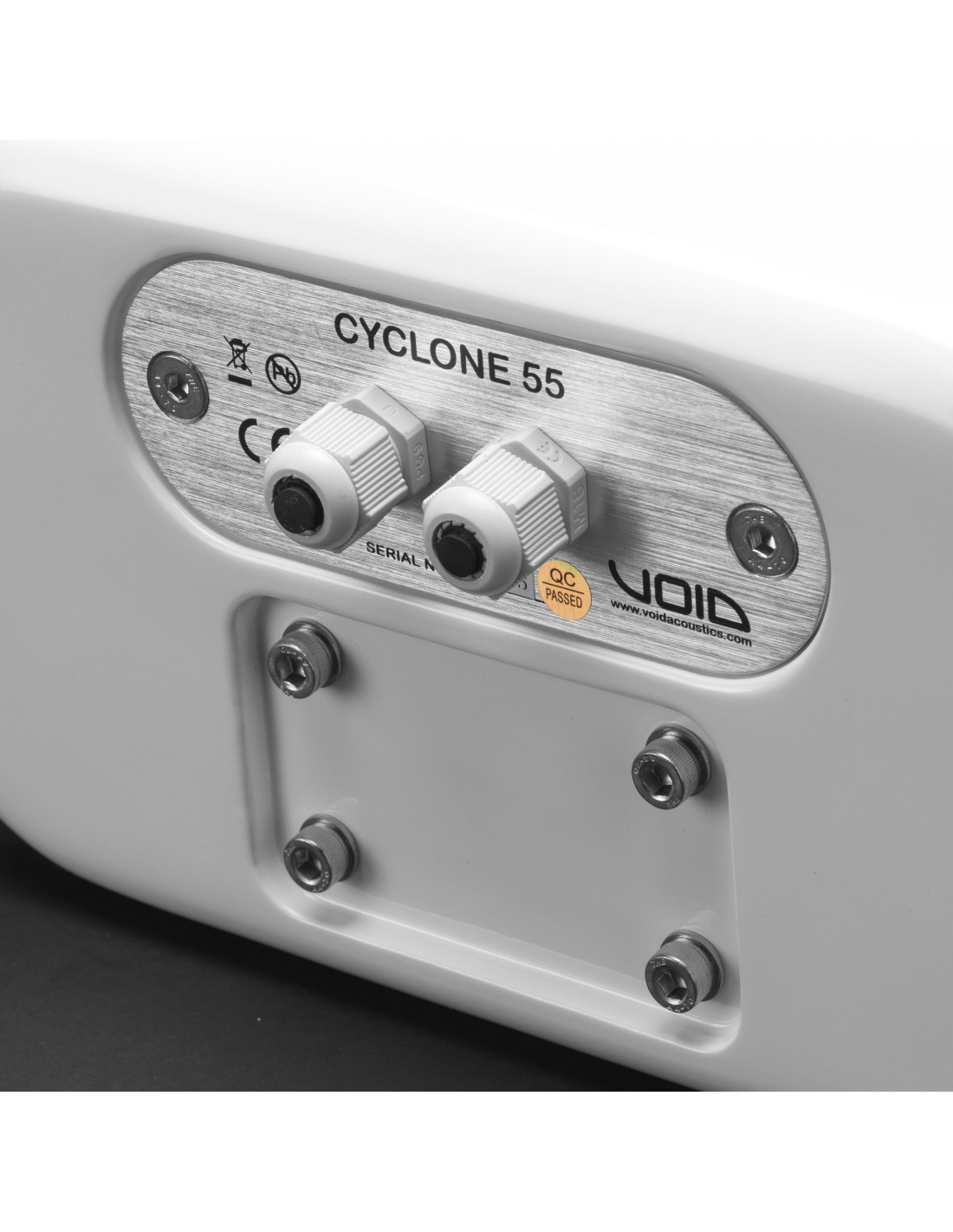

- Connection type
- Phoenix connectors with link out
- Environmental
- IP-55 (BS EN 60529:1992 +A2:2013)
- Enclosure material
- Fibreglass
- Weight
- 3.2 kg (7.1 lbs)
- Status
- New
- EAN code
- IT2804
IT2805
IT2807
IT2805 - Tariff code
- 8518220000
- Shipping Location
- Spain
- Mounting system
- Wall bracket included
Type 51 plate - Finish
- Smooth cellulose
- Rigging
- Wall bracket included, type 51 plate
- Driver
- 2 x 5” LF, 2 x 1” soft dome HF tweeters
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
70 Hz - 23 kHz ±3 dB |
|---|---|
| Coverage angle / Dispersion |
110°H x 70°V |
| Power handling |
120 W AES |
| Sensitivity |
92 dB 1W/1m |
| Maximum SPL |
110 dB cont, 114 dB peak 112 dB cont, 118 dB peak |
TRANSDUCERS
| Low frequency driver |
2 x 5” LF, 2 x 1” soft dome HF tweeters |
|---|---|
| Nominal impedance |
16 Ω |
| Driver |
2 x 5” LF, 2 x 1” soft dome HF tweeters |
FILTERS
| Crossover filter |
3.6 kHz passive |
|---|
PHYSICAL
| Connection type |
Phoenix connectors with link out |
|---|---|
| Environmental |
IP-55 (BS EN 60529:1992 +A2:2013) |
| Enclosure material |
Fibreglass |
| Weight |
3.2 kg (7.1 lbs) |
| Mounting system |
Wall bracket included
Type 51 plate |
| Finish |
Smooth cellulose |
| Rigging |
Wall bracket included, type 51 plate |
LOGISTICS
| Status |
New |
|---|---|
| EAN code |
IT2804
IT2805
IT2807 IT2805 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain |
