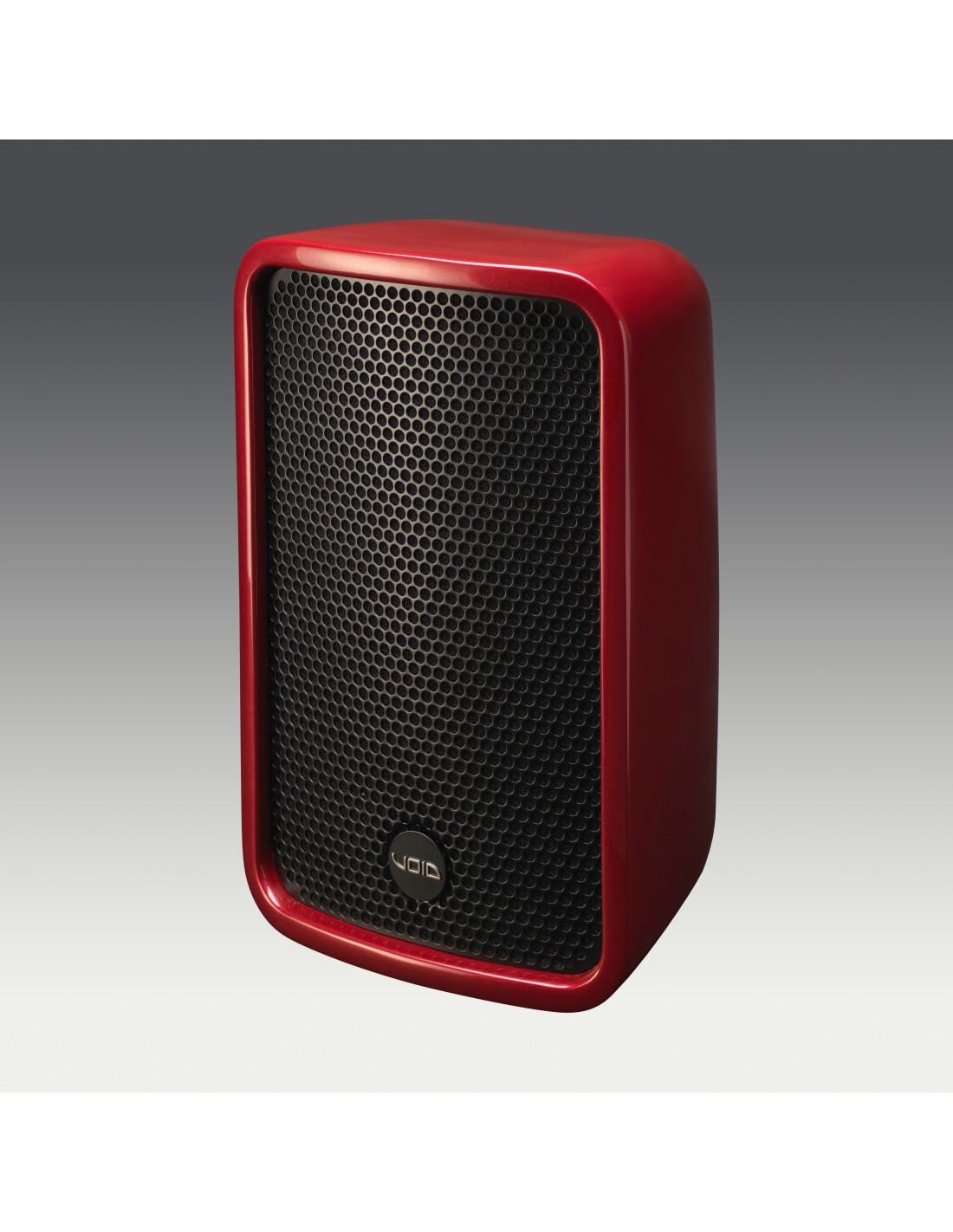

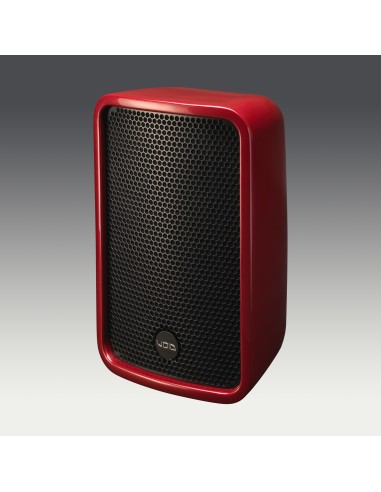

Cyclone 10.1 - Rojo
CVOIT2803
Only a few left
Weatherproof 10" acoustic enclosure (IP55) for installation.
The Cyclone 10’s beautifully sculpted fibreglass enclosure is paired with a smooth cellulose finish to create a weather-protected package with an IP-55 rating for years of great sound and trouble-free outdoor use, even in humid environments such as beach bars, resorts, cruise ships, hotels and public spaces. The Easy Hang XL bracket enables the Cyclone 10 to be installed quickly and securely with a wide range of adjustment.
The loudspeaker shall be a passive two-way system consisting of one high power 10” (250 mm), direct radiating, reflex loaded low frequency (LF) transducer and one 1” (25 mm) diameter composite plastic exit high frequency (HF) compression driver mounted on a user rotatable constant directivity horn in a moulded fibreglass trapezoidal enclosure.
- Effective Freq. Range
- 52 Hz - 22 kHz ±3 dB
- Coverage angle / Dispersion
- 90°H x 60°V
- Power handling
- 350 W AES
- Sensitivity
- 97 dB 1W/1m
- Maximum SPL
- 123 dB cont, 126 dB peak
- Low frequency driver
- 1 x 10” LF, 1 x 1” HF compression driver
- Nominal impedance
- 8 Ω
- Crossover filter
- 2.1 kHz passive

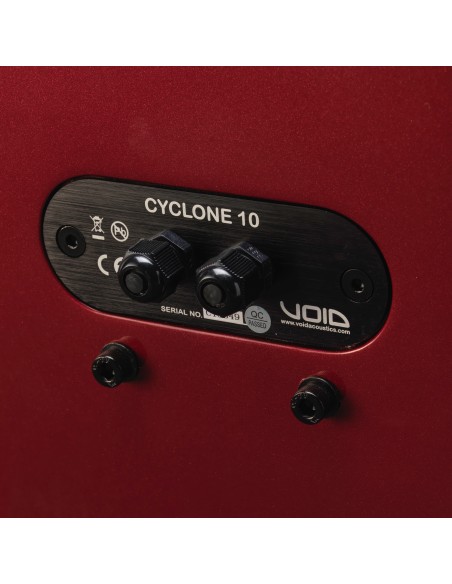

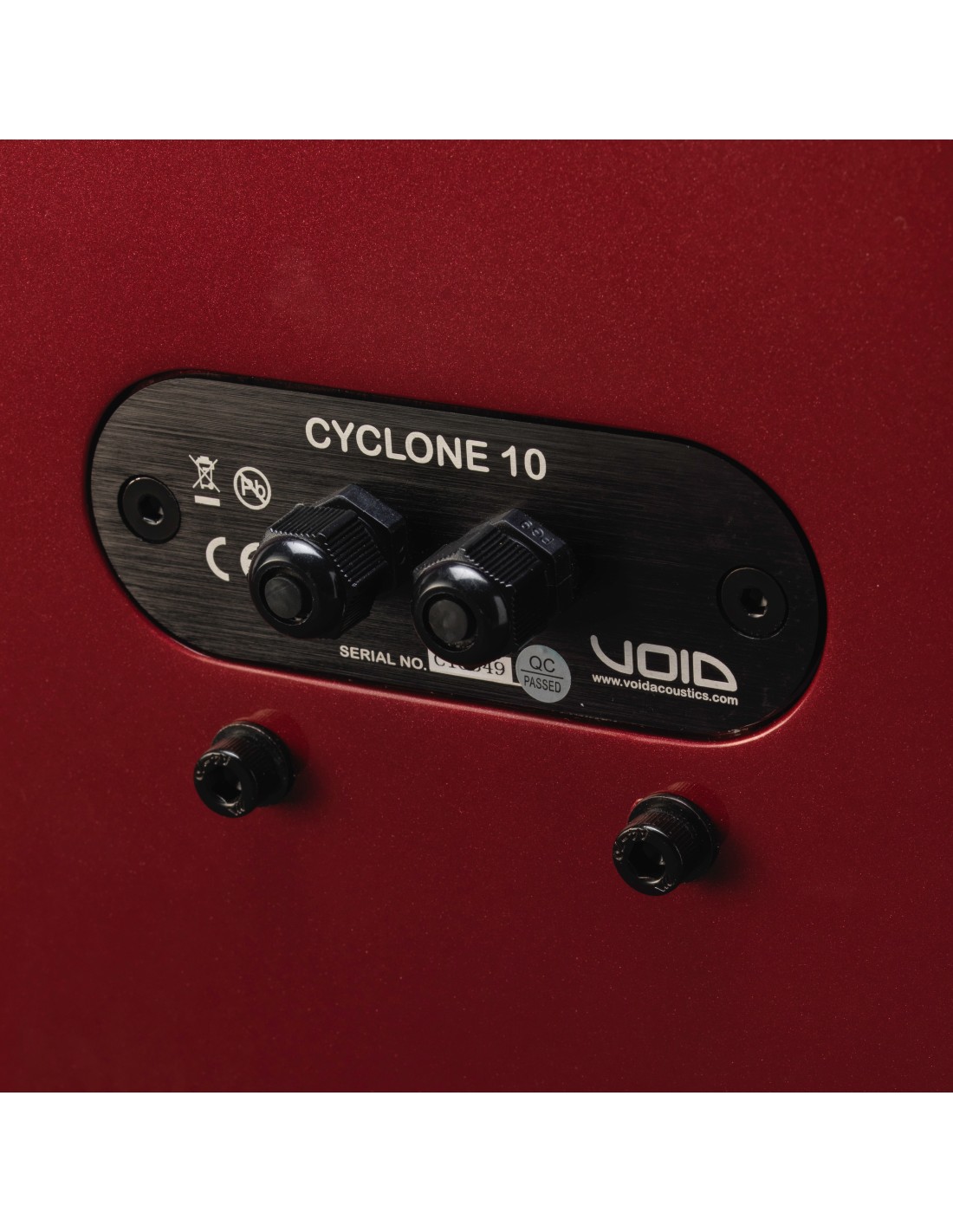

- Connection type
- Phoenix connectors with link out
- Environmental
- IP-55 (BS EN 60529:1992 +A2:2013)
- Enclosure material
- Fibreglass
- Weight
- 14.5 kg (32 lbs)
- Status
- New
- EAN code
- IT2800
IT2801
IT2803
IT2803 - Tariff code
- 8518220000
- Shipping Location
- Spain
- Mounting system
- Optional Easy Hang XL wall bracket
- Finish
- Smooth cellulose
- Rigging
- Optional Easy Hang XL wall bracket
- Driver
- 1 x 10” LF, 1 x 1” HF compression driver
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
52 Hz - 22 kHz ±3 dB |
|---|---|
| Coverage angle / Dispersion |
90°H x 60°V |
| Power handling |
350 W AES |
| Sensitivity |
97 dB 1W/1m |
| Maximum SPL |
123 dB cont, 126 dB peak |
TRANSDUCERS
| Low frequency driver |
1 x 10” LF, 1 x 1” HF compression driver |
|---|---|
| Nominal impedance |
8 Ω |
| Driver |
1 x 10” LF, 1 x 1” HF compression driver |
FILTERS
| Crossover filter |
2.1 kHz passive |
|---|
PHYSICAL
| Connection type |
Phoenix connectors with link out |
|---|---|
| Environmental |
IP-55 (BS EN 60529:1992 +A2:2013) |
| Enclosure material |
Fibreglass |
| Weight |
14.5 kg (32 lbs) |
| Mounting system |
Optional Easy Hang XL wall bracket |
| Finish |
Smooth cellulose |
| Rigging |
Optional Easy Hang XL wall bracket |
LOGISTICS
| Status |
New |
|---|---|
| EAN code |
IT2800
IT2801
IT2803 IT2803 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain |
