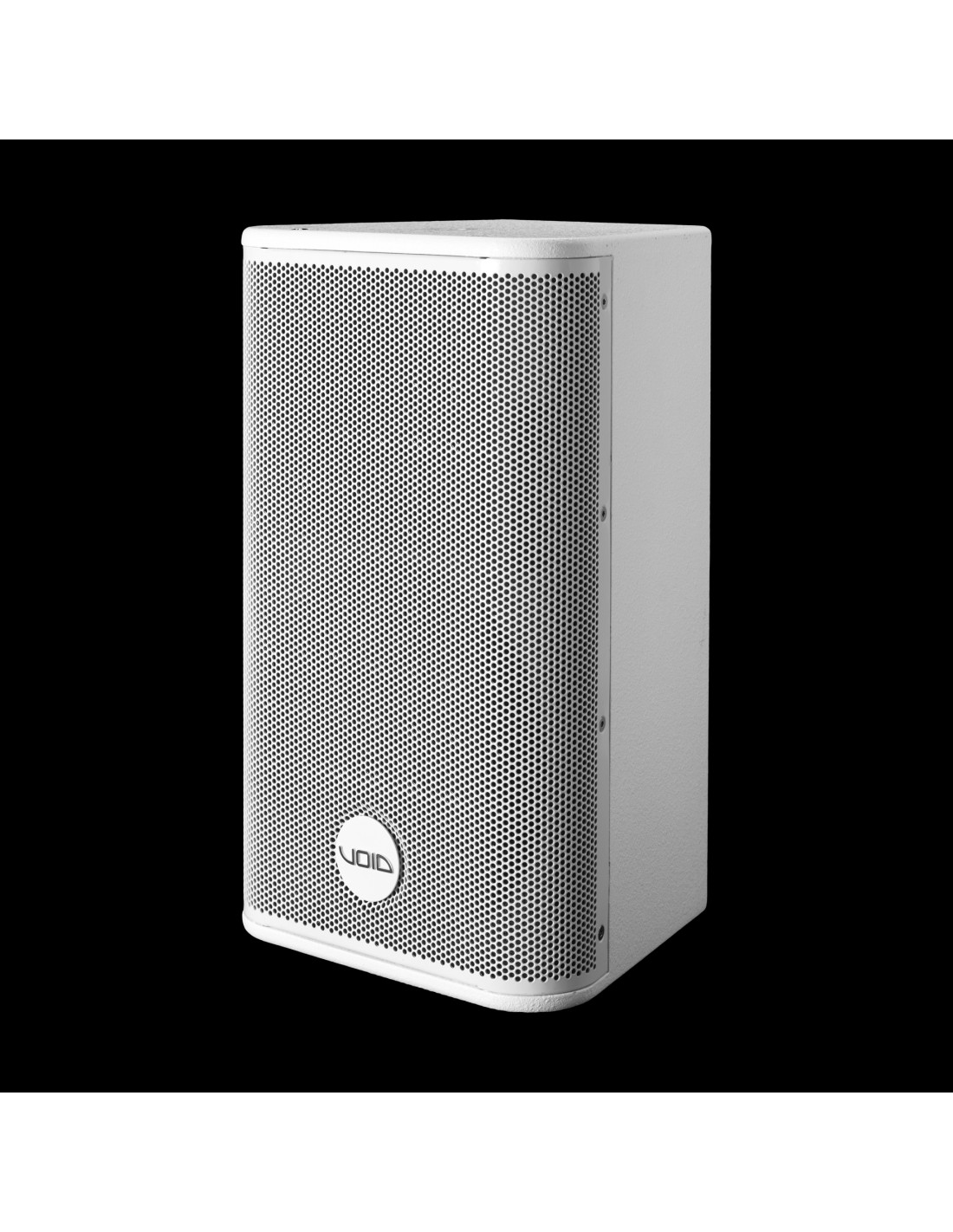

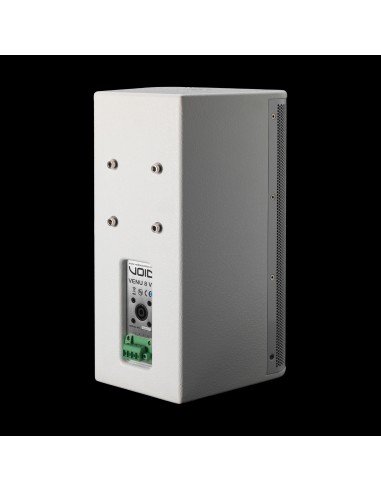

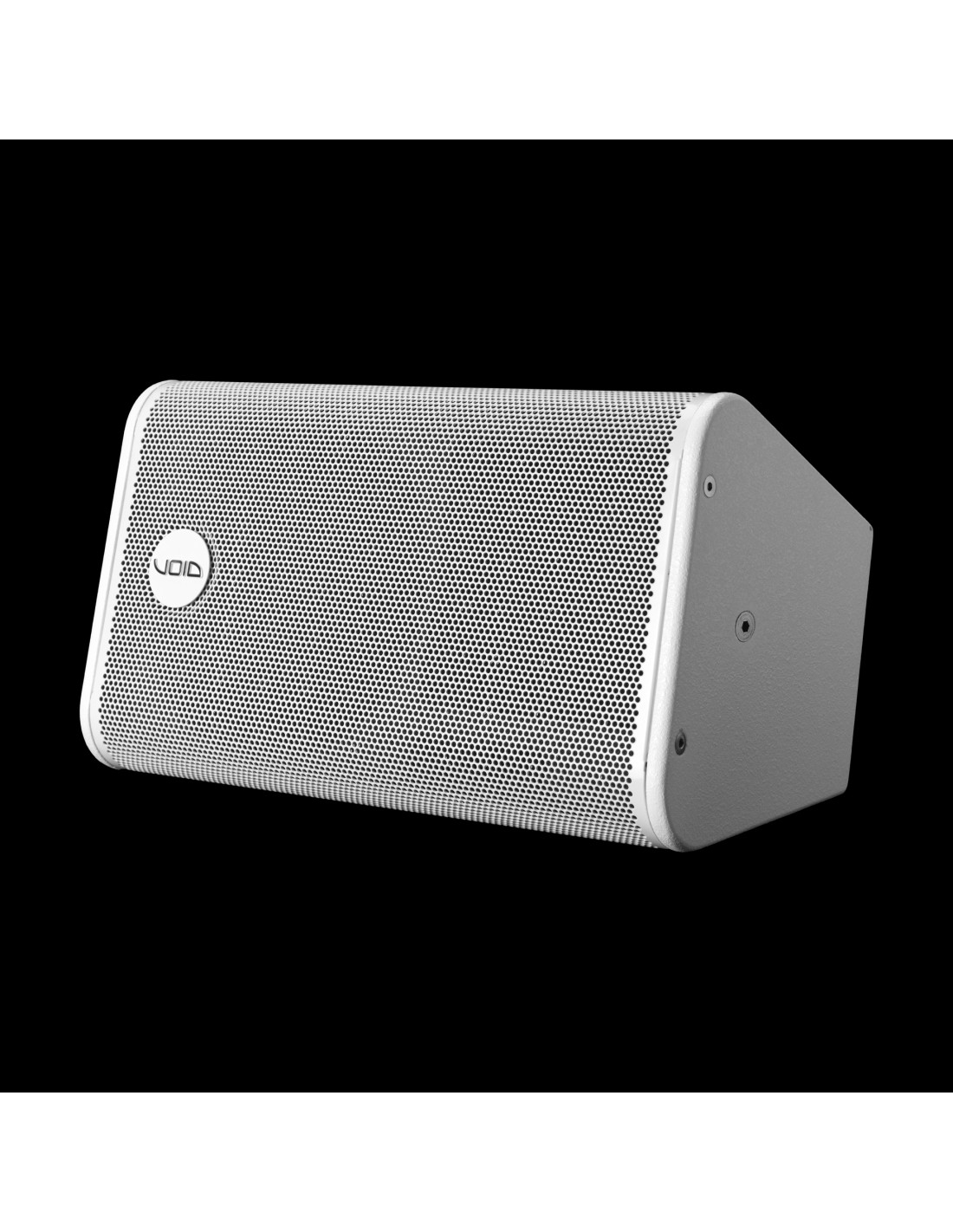

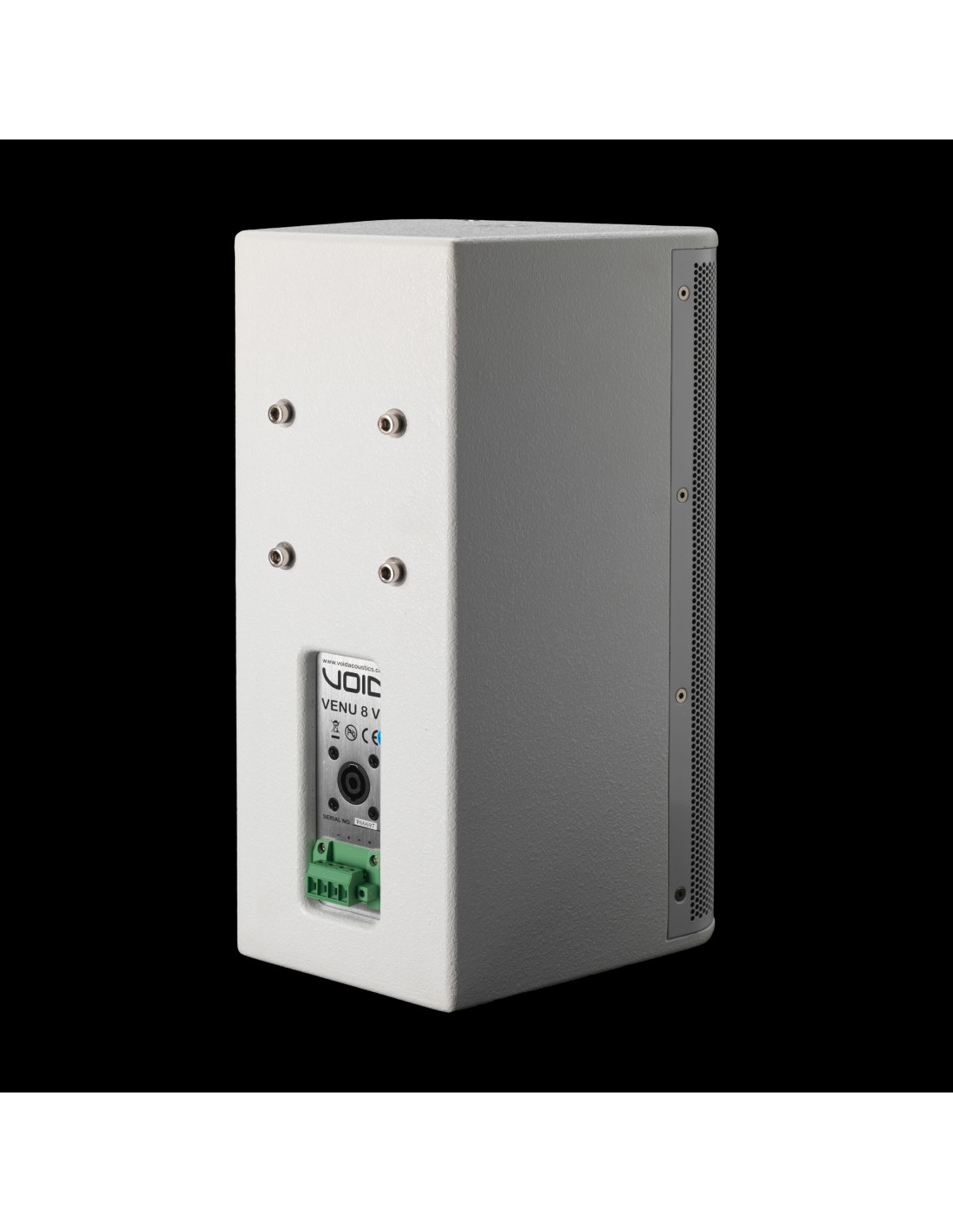

Venu 8 V2 - Blanco
CVOIT2633
Check availability
8" acoustic enclosure for installation.
The 8” based Venu 8 V2 has been designed with noteworthy enhancements to both its aesthetics and functionality. Offering a frequency response of 70 Hz – 20 kHz ±3 dB and efficiency of 97 dB, this loudspeaker is ideal for providing fill-in music in larger restaurants, bars and clubs.
The loudspeaker shall be a passive two-way system consisting of one high power 8” (203.2 mm), direct radiating, reflex loaded, low frequency (LF) transducer and 1” (25 mm) diameter composite plastic exit, high frequency (HF) compression driver mounted on a user rotatable asymmetrical horn in a trapezoidal enclosure fitted with a wraparound grille and rotatable badge.
- Effective Freq. Range
- 70 Hz - 20 kHz ±3 dB
- Coverage angle / Dispersion
- 90°-40°H x 60°V rotatable
- Power handling
- 300 W AES
- Sensitivity
- 97 dB 1W/1m
- Maximum SPL
- 1 dB cont, 124 dB peak
121 dB cont, 127 dB peak - Low frequency driver
- 1 x 8” LF, 1 x 1” HF compression driver
- Nominal impedance
- 8 Ω
- Crossover filter
- 2.3 kHz passive
- Connection type
- 1 x Phoenix with link out and 1 x speakON™ with link out
- Enclosure material
- 15 mm birch plywood
- Grille material
- Perforated steel with foam filter
- Weight
- 12 kg (26.5 lbs)
- Status
- New
- EAN code
- IT2216
IT2633
IT2633 - Tariff code
- 8518220000
- Shipping Location
- Spain
- Mounting system
- Yoke bracket positions 4 x M8 fixing points for type 80 plate Optional top hat
- Finish
- Textured polyurethane
- Rigging
- Yoke bracket positions, 4 x M8 fixing points for type 80 plate, optional top hat
- Driver
- 1 x 8” LF, 1 x 1” HF compression driver
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
70 Hz - 20 kHz ±3 dB |
|---|---|
| Coverage angle / Dispersion |
90°-40°H x 60°V rotatable |
| Power handling |
300 W AES |
| Sensitivity |
97 dB 1W/1m |
| Maximum SPL |
1 dB cont, 124 dB peak 121 dB cont, 127 dB peak |
TRANSDUCERS
| Low frequency driver |
1 x 8” LF, 1 x 1” HF compression driver |
|---|---|
| Nominal impedance |
8 Ω |
| Driver |
1 x 8” LF, 1 x 1” HF compression driver |
FILTERS
| Crossover filter |
2.3 kHz passive |
|---|
PHYSICAL
| Connection type |
1 x Phoenix with link out and 1 x speakON™ with link out |
|---|---|
| Enclosure material |
15 mm birch plywood |
| Grille material |
Perforated steel with foam filter |
| Weight |
12 kg (26.5 lbs) |
| Mounting system |
Yoke bracket positions 4 x M8 fixing points for type 80 plate Optional top hat |
| Finish |
Textured polyurethane |
| Rigging |
Yoke bracket positions, 4 x M8 fixing points for type 80 plate, optional top hat |
LOGISTICS
| Status |
New |
|---|---|
| EAN code |
IT2216
IT2633 IT2633 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain |
