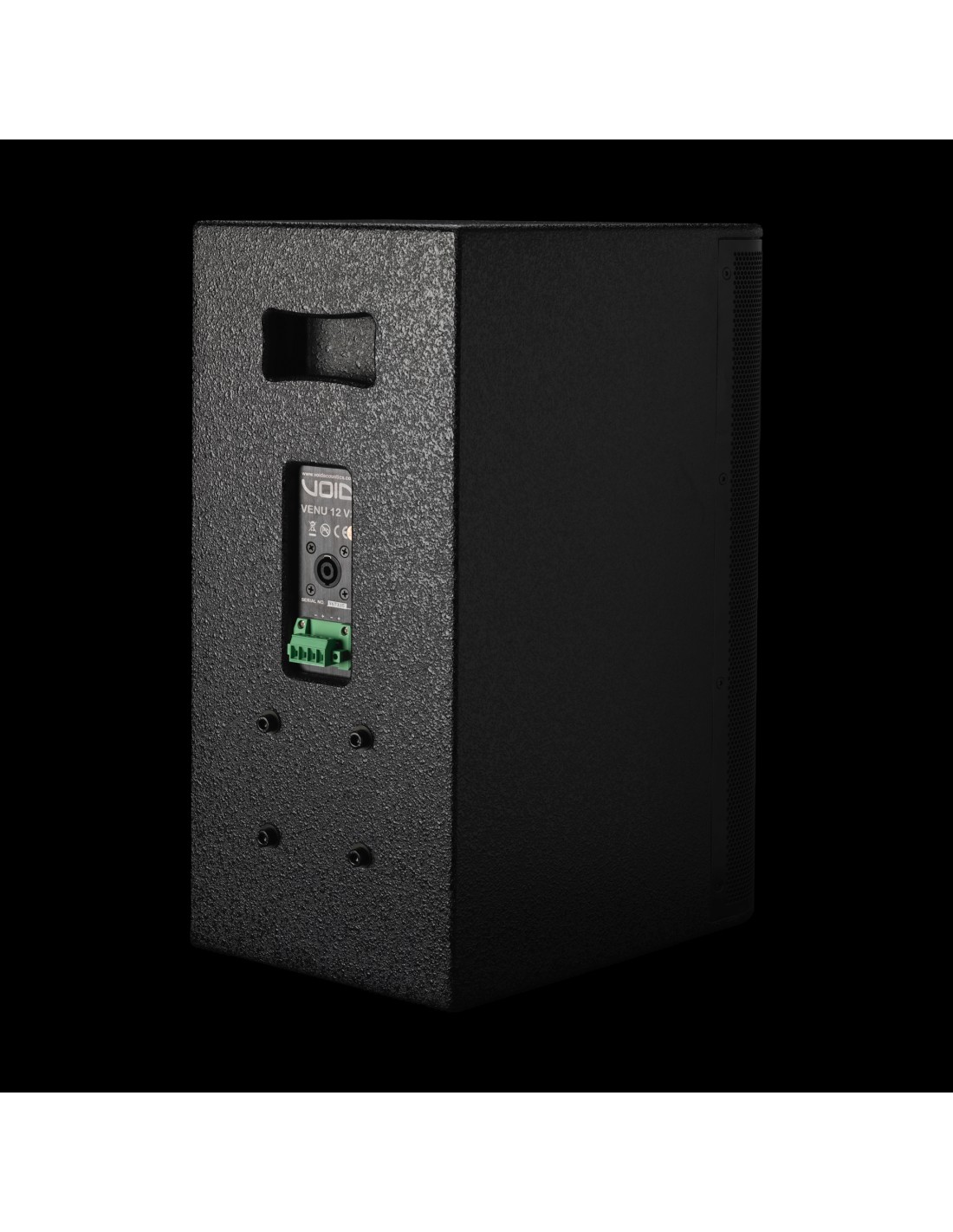

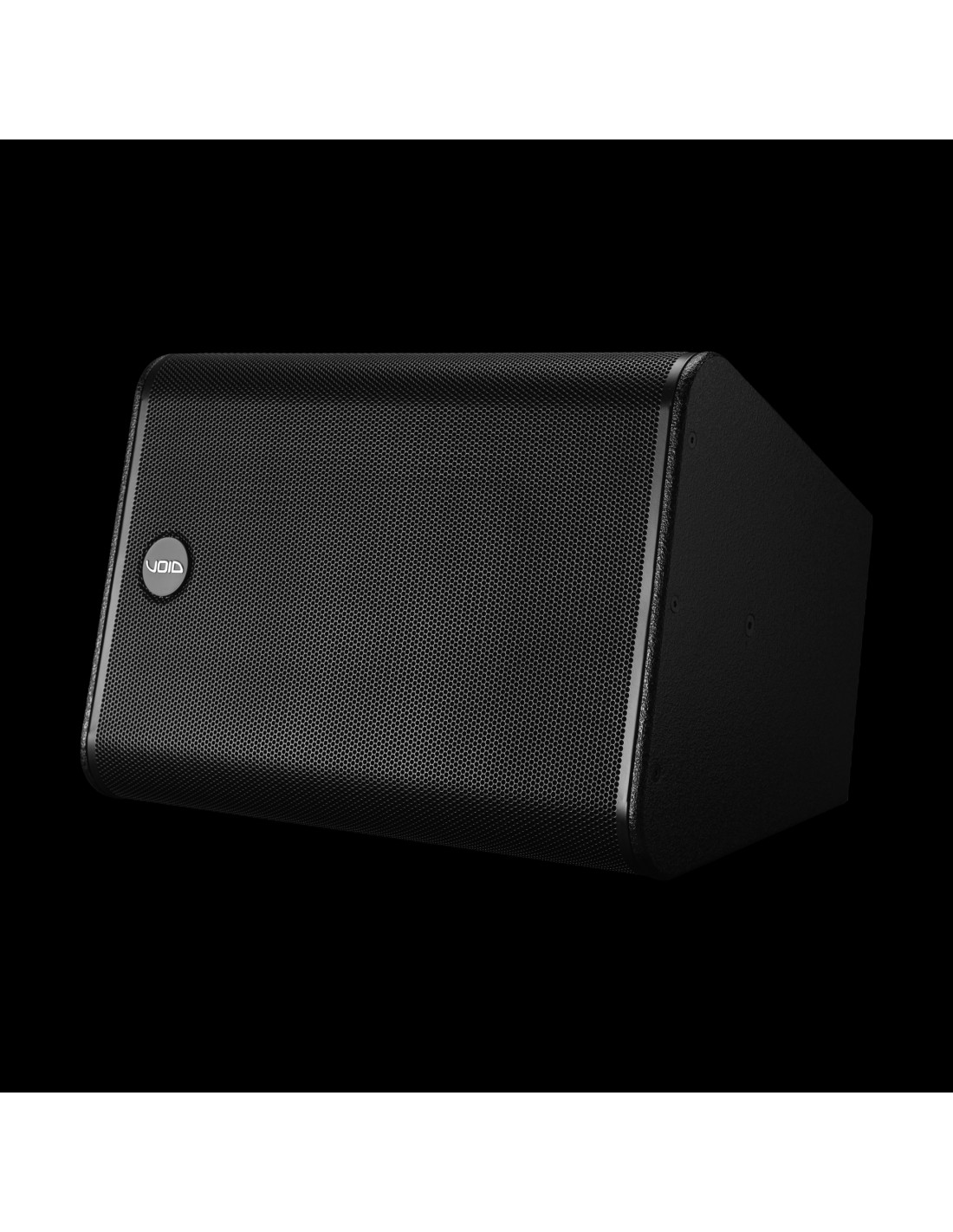

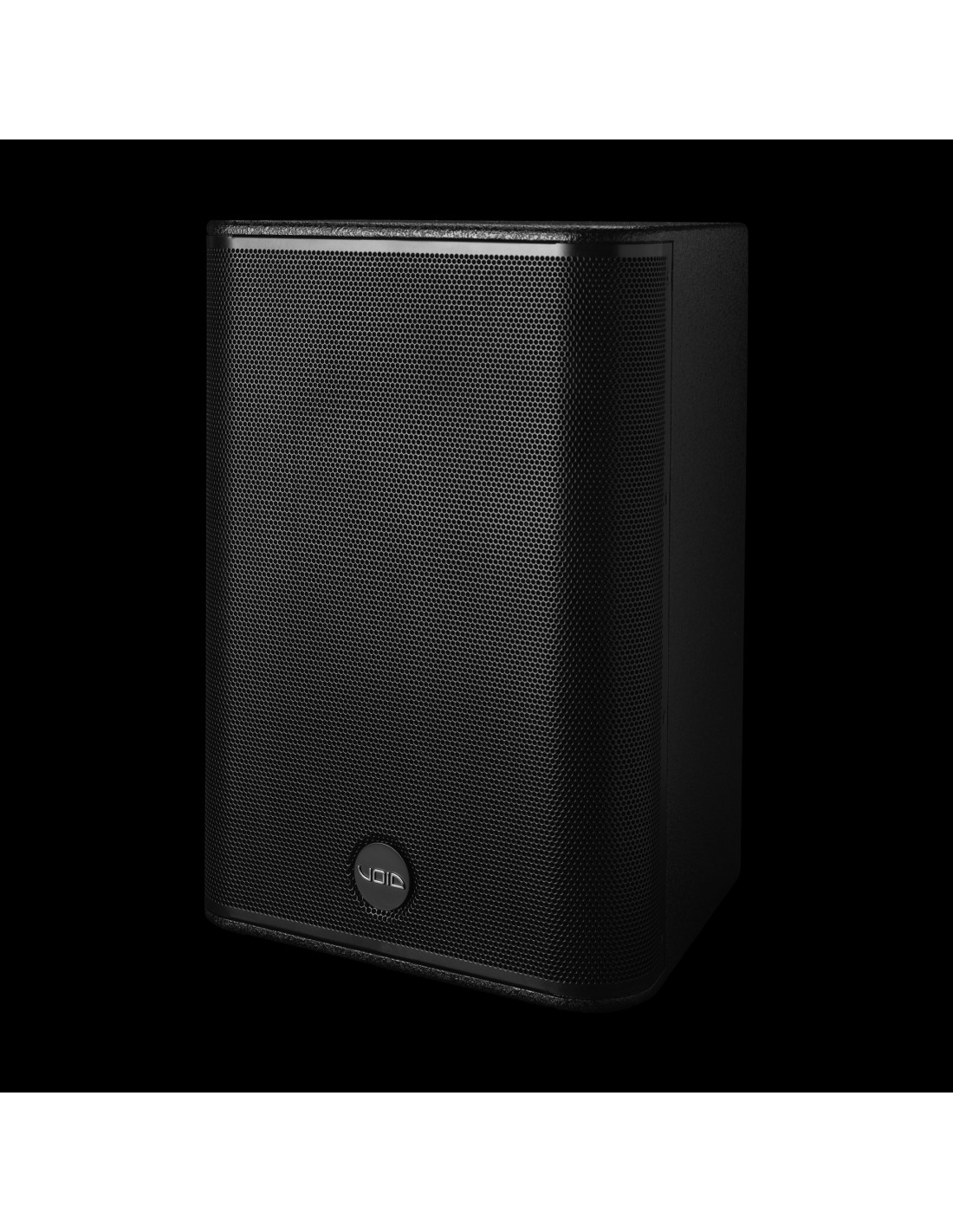

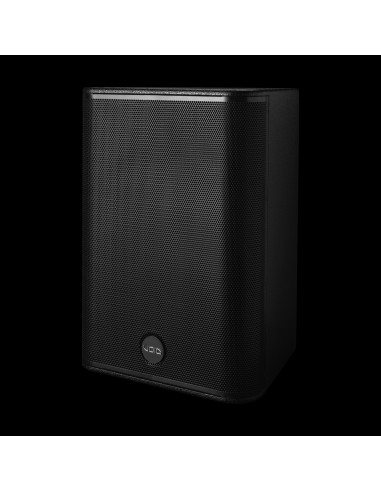

Venu 12 V2 - Negro
CVOIT2218
Check availability
12" acoustic enclosure for installation.
The 12” based Venu 12 V2 has a new design, enhancing both its aesthetics and functionality. With a frequency response of 60 Hz – 20 kHz ±3 dB and efficiency of 98 dB, the Venu 12 V2 will comfortably provide enough bass for a smaller dance floor.
The loudspeaker shall be a passive two-way system consisting of one high power 12” (304.8 mm), direct radiating, reflex loaded, low frequency (LF) transducer and 1” (25 mm) diameter composite plastic exit, high frequency (HF) compression driver mounted on a user rotatable asymmetrical horn in a trapezoidal enclosure fitted with a wrap around grille and rotatable badge.
- Effective Freq. Range
- 60 Hz - 20 kHz ±3 dB
- Coverage angle / Dispersion
- 90°-40°H x 60°V rotatable
- Power handling
- 400 W AES
- Sensitivity
- 98 dB 1W/1m
- Maximum SPL
- 124 dB cont, 127 dB peak
124 dB cont, 130 dB peak - Low frequency driver
- 1 x 12” LF, 1 x 1” HF compression driver
- Nominal impedance
- 8 Ω
- Crossover filter
- 2.1 kHz passive
- Connection type
- 1 x Phoenix with link out and 1 x speakON™ with link out
- Enclosure material
- 15 mm birch plywood
- Grille material
- Perforated steel with foam filter
- Weight
- 22 kg (48.5 lbs)
- Status
- New
- EAN code
- IT2218
IT2218
IT2832 - Tariff code
- 8518220000
- Shipping Location
- Spain
- Mounting system
- Yoke bracket positions 4 x M8 fixing points for type 80 plate Optional top hat
- Finish
- Textured polyurethane
- Rigging
- Yoke bracket positions, 4 x M8 fixing points for type 80 plate, optional top hat
- Driver
- 1 x 12” LF, 1 x 1” HF compression driver
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
60 Hz - 20 kHz ±3 dB |
|---|---|
| Coverage angle / Dispersion |
90°-40°H x 60°V rotatable |
| Power handling |
400 W AES |
| Sensitivity |
98 dB 1W/1m |
| Maximum SPL |
124 dB cont, 127 dB peak 124 dB cont, 130 dB peak |
TRANSDUCERS
| Low frequency driver |
1 x 12” LF, 1 x 1” HF compression driver |
|---|---|
| Nominal impedance |
8 Ω |
| Driver |
1 x 12” LF, 1 x 1” HF compression driver |
FILTERS
| Crossover filter |
2.1 kHz passive |
|---|
PHYSICAL
| Connection type |
1 x Phoenix with link out and 1 x speakON™ with link out |
|---|---|
| Enclosure material |
15 mm birch plywood |
| Grille material |
Perforated steel with foam filter |
| Weight |
22 kg (48.5 lbs) |
| Mounting system |
Yoke bracket positions 4 x M8 fixing points for type 80 plate Optional top hat |
| Finish |
Textured polyurethane |
| Rigging |
Yoke bracket positions, 4 x M8 fixing points for type 80 plate, optional top hat |
LOGISTICS
| Status |
New |
|---|---|
| EAN code |
IT2218
IT2832 IT2218 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain |
