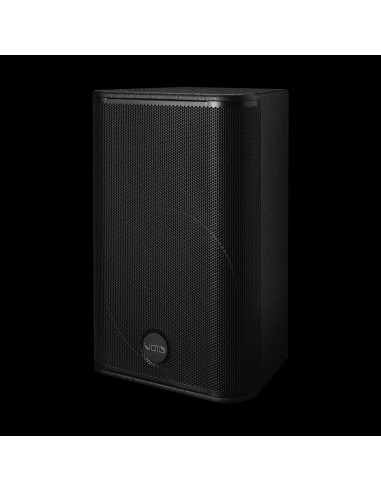

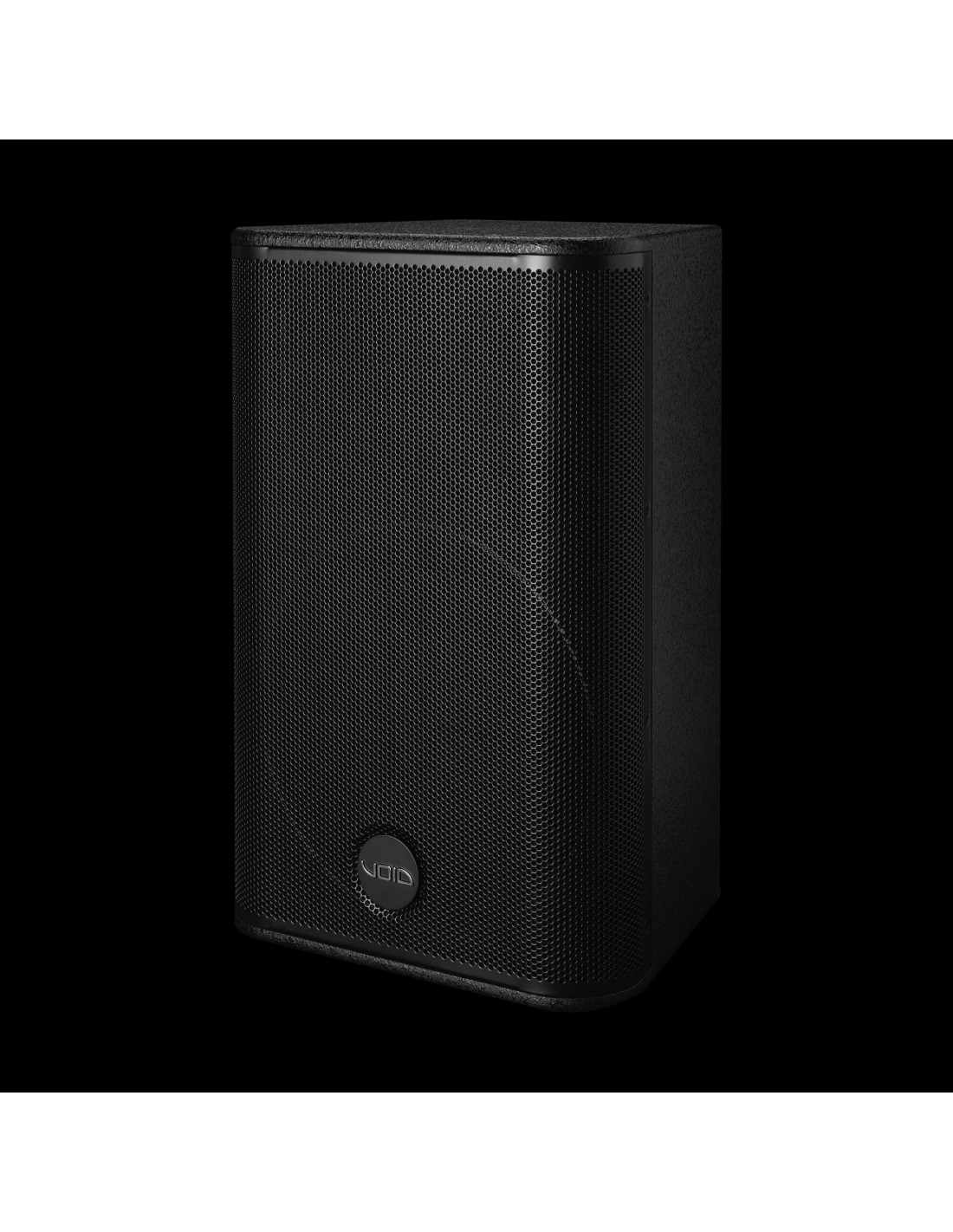

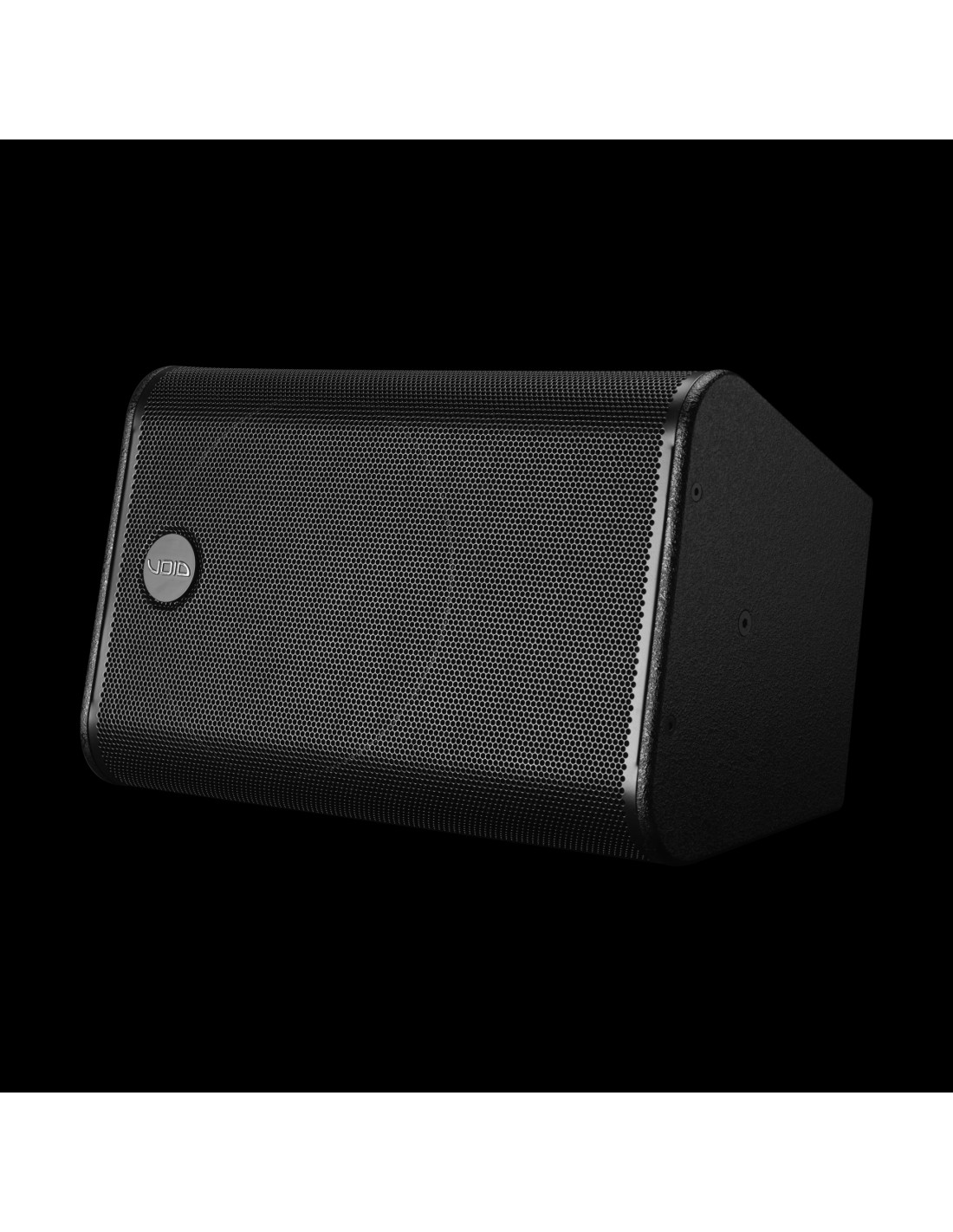

Venu 10 V2 - Negro
CVOIT2094
Check availability
10" acoustic enclosure for installation.
The new design of the 10” based Venu 10 V2 has specially enhanced aesthetics and functionality. Providing a frequency response of 65 Hz – 20 kHz ±3 dB and efficiency of 97 dB, this loudspeaker is ideally suited for playing fill-in music in larger restaurants, bars and clubs.
The loudspeaker shall be a passive two-way system consisting of one high power 10” (250 mm), direct radiating, reflex loaded, low frequency (LF) transducer and 1” (25 mm) diameter composite plastic exit, high frequency (HF) compression driver mounted on a user rotatable asymmetrical horn in a trapezoidal enclosure fitted with a wraparound grille and rotatable badge.
- Effective Freq. Range
- 65 Hz - 20 kHz ±3 dB
- Coverage angle / Dispersion
- 90°-40°H x 60°V rotatable
- Power handling
- 350 W AES
- Sensitivity
- 97 dB 1W/1m
- Maximum SPL
- 122 dB cont, 128 dB peak
123 dB cont, 126 dB peak - Low frequency driver
- 1 x 10” LF, 1 x 1” HF compression driver
- Nominal impedance
- 8 Ω
- Crossover filter
- 2.1 kHz passive

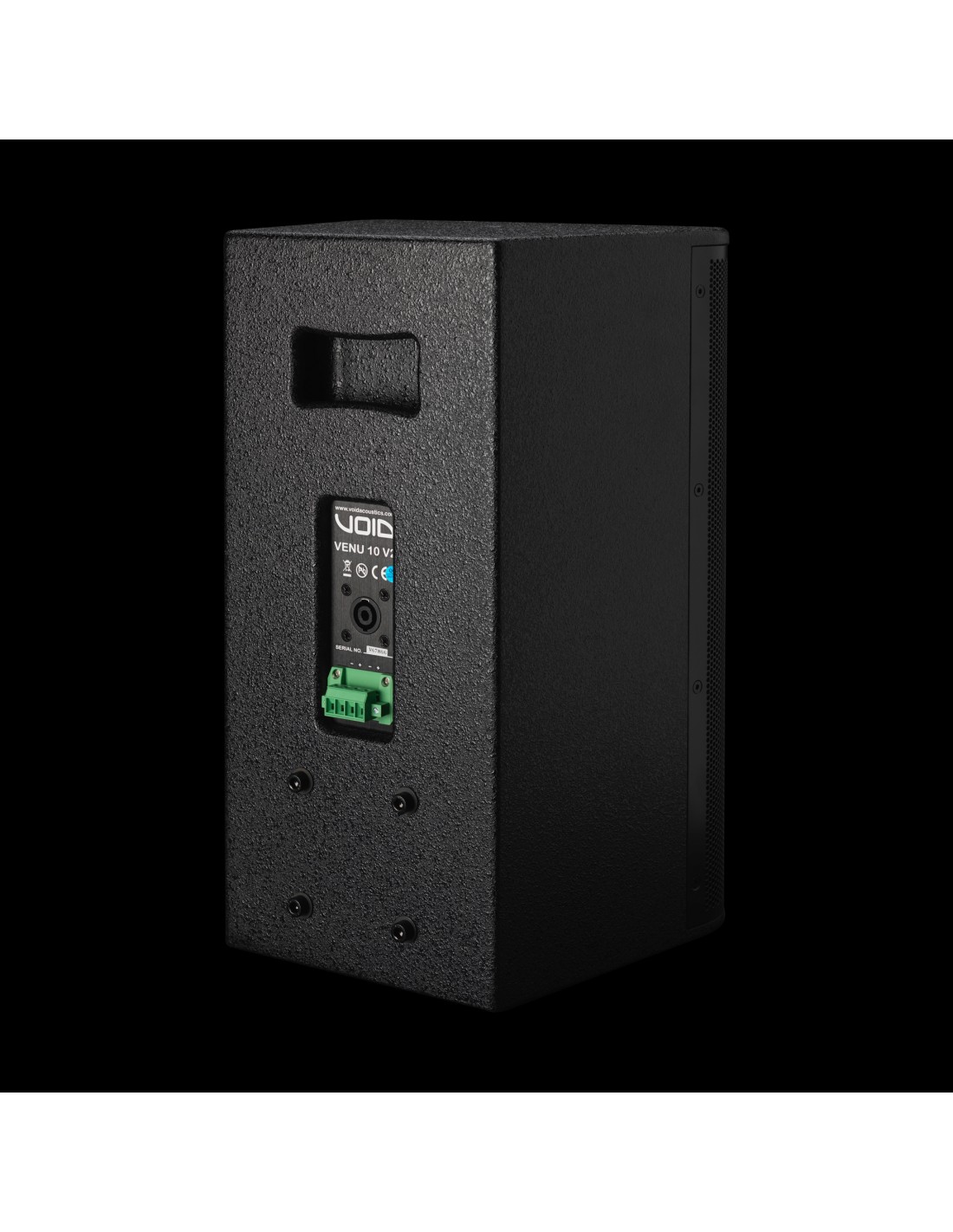

- Connection type
- 1 x Phoenix with link out and 1 x speakON™ with link out
- Enclosure material
- 15 mm birch plywood
- Grille material
- Perforated steel with foam filter
- Weight
- 16 kg (35.3 lbs)
- Status
- New
- EAN code
- IT2094
IT2094
IT2634 - Tariff code
- 8518220000
- Shipping Location
- Spain
- Mounting system
- Yoke bracket positions 4 x M8 fixing points for type 80 plate Optional top hat
- Finish
- Textured polyurethane
- Rigging
- Yoke bracket positions, 4 x M8 fixing points for type 80 plate. optional top hat
- Driver
- 1 x 10” LF, 1 x 1” HF compression driver
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
65 Hz - 20 kHz ±3 dB |
|---|---|
| Coverage angle / Dispersion |
90°-40°H x 60°V rotatable |
| Power handling |
350 W AES |
| Sensitivity |
97 dB 1W/1m |
| Maximum SPL |
123 dB cont, 126 dB peak 122 dB cont, 128 dB peak |
TRANSDUCERS
| Low frequency driver |
1 x 10” LF, 1 x 1” HF compression driver |
|---|---|
| Nominal impedance |
8 Ω |
| Driver |
1 x 10” LF, 1 x 1” HF compression driver |
FILTERS
| Crossover filter |
2.1 kHz passive |
|---|
PHYSICAL
| Connection type |
1 x Phoenix with link out and 1 x speakON™ with link out |
|---|---|
| Enclosure material |
15 mm birch plywood |
| Grille material |
Perforated steel with foam filter |
| Weight |
16 kg (35.3 lbs) |
| Mounting system |
Yoke bracket positions 4 x M8 fixing points for type 80 plate Optional top hat |
| Finish |
Textured polyurethane |
| Rigging |
Yoke bracket positions, 4 x M8 fixing points for type 80 plate. optional top hat |
LOGISTICS
| Status |
New |
|---|---|
| EAN code |
IT2094
IT2634 IT2094 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain |
