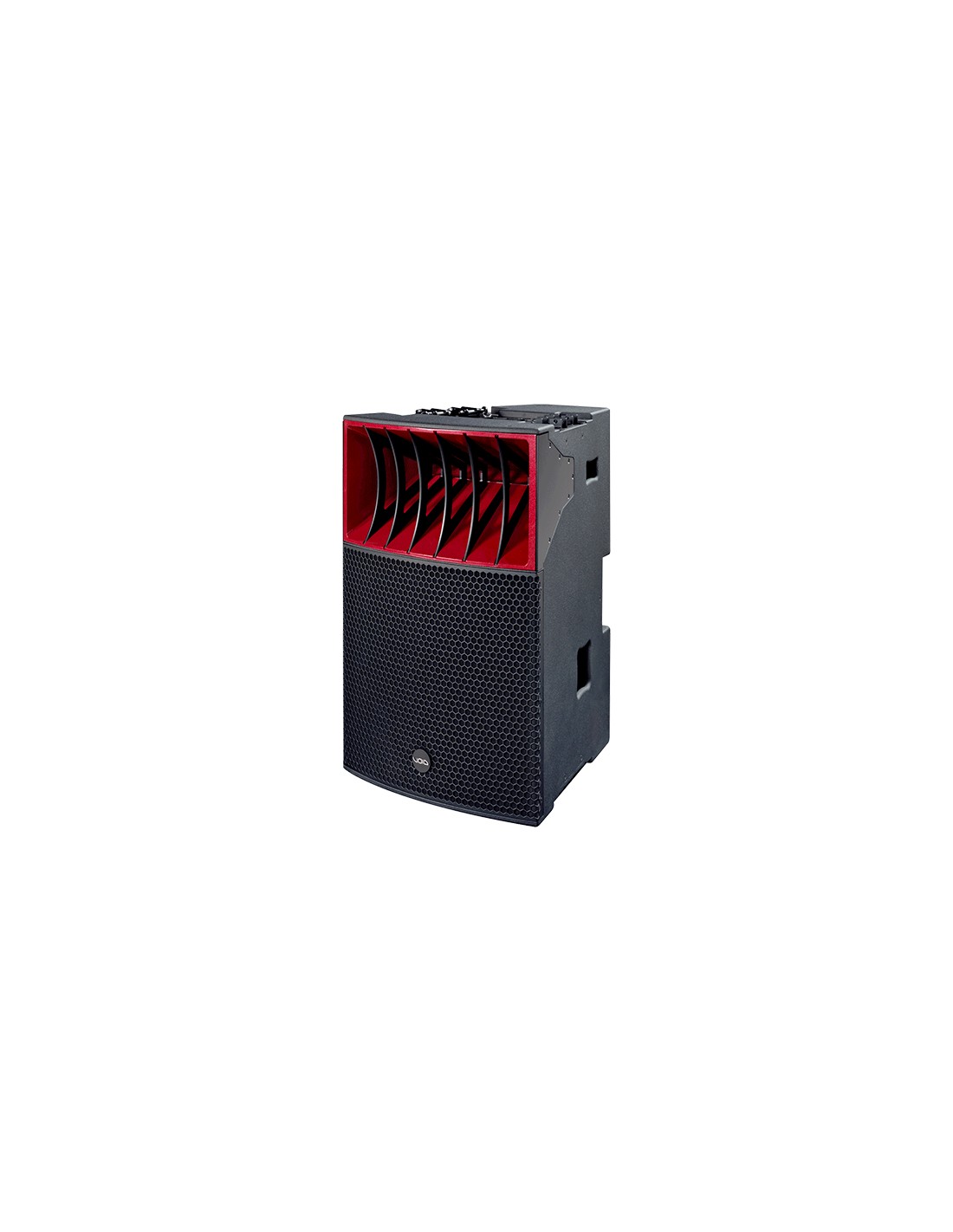

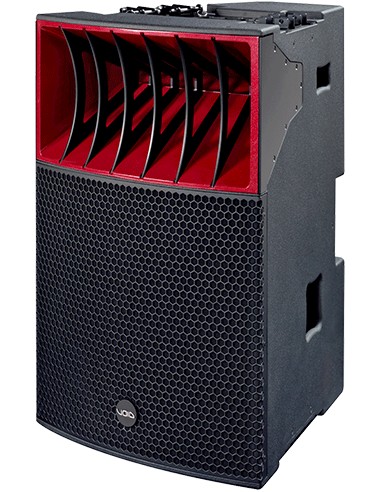

Arclite - Negro (Rigging Incluido)

Arclite - Negro (Rigging Incluido)

CVOIT4269
Check availability
See more Features Resources

Effective Freq. Range
45 Hz - 18 kHz ±3 dB
Coverage angle / Dispersion
35° H x 60° V (25° up - 35° down)
Power handling
LF: 1000 W, MHF 190 W
Sensitivity
MHF: 113 dB 1 W / 1 m LF: 98 dB 1 W / 1 m
Maximum SPL
133 dB Cont, 139 Peak
Nominal impedance
LF: 8 Ω, MHF: 16 Ω
Connection type
2 x 4-pole speakON™ NL4
Enclosure material
15 mm birch plywood
Weight
44 kg (97 lbs)
Status
New
EAN code
IT4269
Tariff code
8518220000
Shipping Location
Spain
Mounting system
Ground stack or suspended
Finish
Textured ‘TourCoat’ polyurea
Driver
1 x 15” LF, 1 x 4” MF, 1 x 2.5” HF
SYSTEM
Effective Freq. Range 45 Hz - 18 kHz ±3 dB
Coverage angle / Dispersion 35° H x 60° V (25° up - 35° down)
Power handling LF: 1000 W, MHF 190 W
Sensitivity MHF: 113 dB 1 W / 1 m LF: 98 dB 1 W / 1 m
Maximum SPL 133 dB Cont, 139 Peak
TRANSDUCERS
Nominal impedance LF: 8 Ω, MHF: 16 Ω
Driver 1 x 15” LF, 1 x 4” MF, 1 x 2.5” HF
PHYSICAL
Connection type 2 x 4-pole speakON™ NL4
Enclosure material 15 mm birch plywood
Weight 44 kg (97 lbs)
Mounting system Ground stack or suspended
Finish Textured ‘TourCoat’ polyurea
LOGISTICS
Status New
EAN code IT4269
Tariff code 8518220000
Shipping Location Spain
