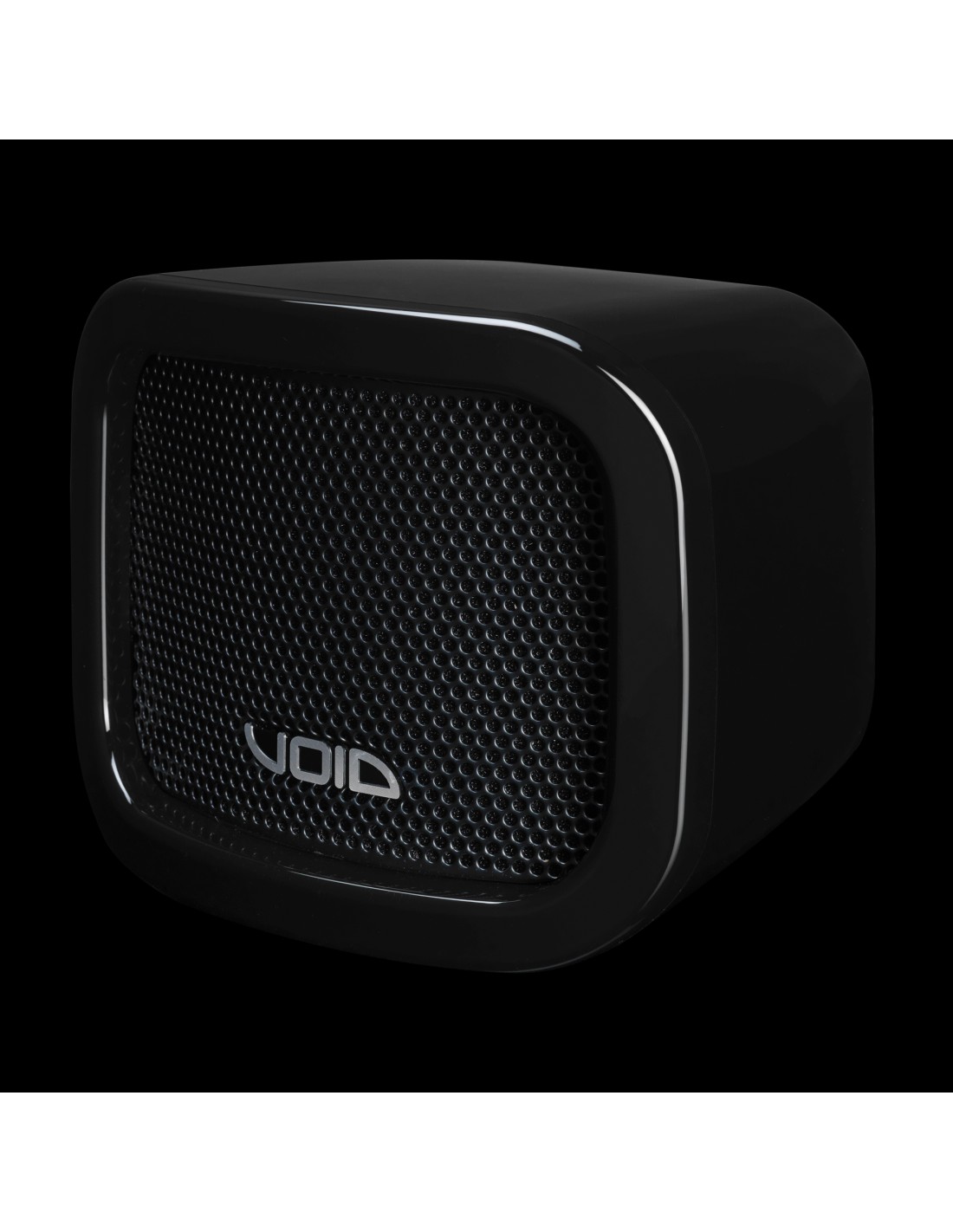

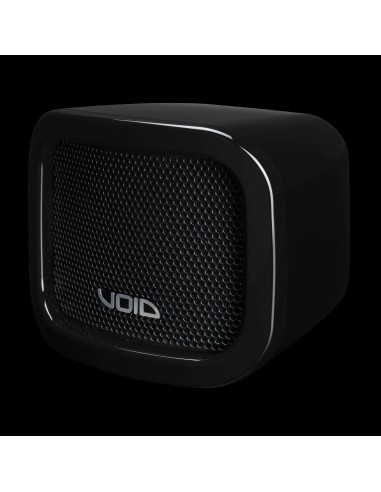

Cyclone 4 - Negro
CVOIT3692
Only a few left
4" weatherproof (IP55) acoustic enclosure for installation. Includes wall bracket.
Providing exceptional sound quality in an ultra-compact IP-55 rated enclosure, Cyclone 4 is the latest addition to this extremely popular range. With its weather-protected casing, UV resilient paint and marine grade aluminium bracket, Cyclone 4 is the perfect audio solution for all-weather applications.
Cyclone 4 is the most compact loudspeaker within the range and contains a single 4” LF transducer with a 0.75” soft dome HF tweeter. Supplied as standard with a conventional wall bracket, the Cyclone 4 can also make use of the wide range of brackets that are available for the larger models, allowing for a quick and easy installation.
- Effective Freq. Range
- 90 Hz - 17.8 kHz ±3 dB
- Coverage angle / Dispersion
- 80°H x 80°V
- Power handling
- 30 W AES
W AES - Sensitivity
- 87 dB 1W/1m
- Maximum SPL
- 101 dB cont, 107 dB peak
- Low frequency driver
- 1 x 4” LF, 1 x 0.75” soft dome HF tweeter
- Nominal impedance
- 16 Ω
- Connection type
- Phoenix connectors with link out
- Enclosure material
- ABS
ABS IP rating3 IP-55 - Weight
- 1.3 kg (2.7 lbs)
- Status
- New
- EAN code
- IT3691
IT3692
IT3983
IT3692 - Tariff code
- 8518220000
- Shipping Location
- Spain
- Mounting system
- Wall bracket included Type 51 plate
- Finish
- Smooth cellulose
- Rigging
- Wall bracket included Type 51 plate
- Driver
- 1 x 4” LF, 1 x 0.75” soft dome HF tweeter
SYSTEM
| Effective Freq. Range |
90 Hz - 17.8 kHz ±3 dB |
|---|---|
| Coverage angle / Dispersion |
80°H x 80°V |
| Power handling |
W AES 30 W AES |
| Sensitivity |
87 dB 1W/1m |
| Maximum SPL |
101 dB cont, 107 dB peak |
TRANSDUCERS
| Low frequency driver |
1 x 4” LF, 1 x 0.75” soft dome HF tweeter |
|---|---|
| Nominal impedance |
16 Ω |
| Driver |
1 x 4” LF, 1 x 0.75” soft dome HF tweeter |
PHYSICAL
| Connection type |
Phoenix connectors with link out |
|---|---|
| Enclosure material |
ABS ABS IP rating3 IP-55 |
| Weight |
1.3 kg (2.7 lbs) |
| Mounting system |
Wall bracket included Type 51 plate |
| Finish |
Smooth cellulose |
| Rigging |
Wall bracket included Type 51 plate |
LOGISTICS
| Status |
New |
|---|---|
| EAN code |
IT3691
IT3692
IT3983 IT3692 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain |
