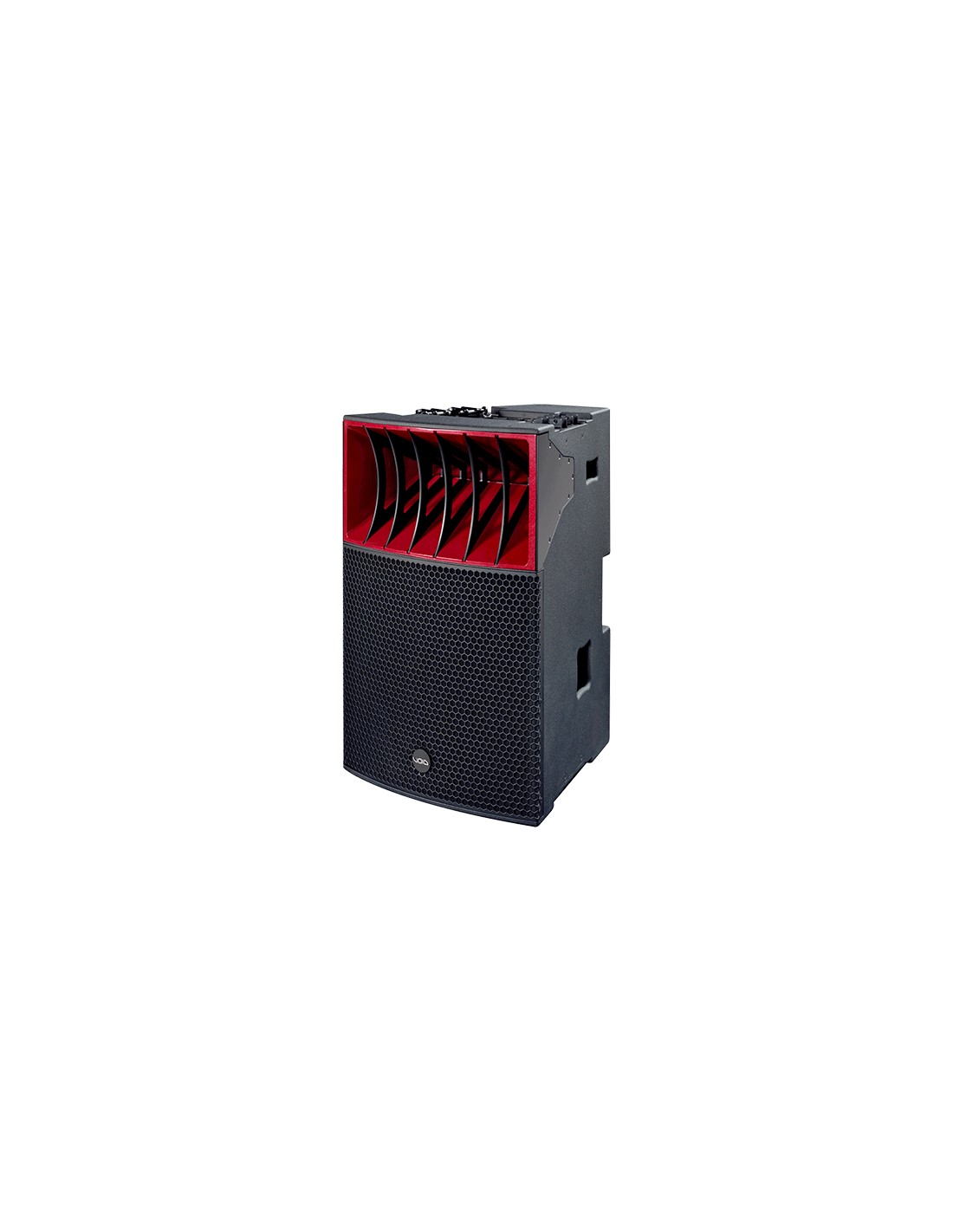

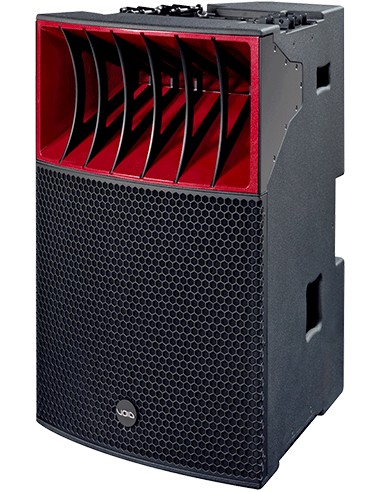

Pack 2x Arclite - Negro Flightcase

Pack 2x Arclite - Negro Flightcase

CVOIT5871
Check availability
Two-way active point source, steerable in three directions
See more Features Resources

Matrixable point font Designed to pair with Arcline 218 and 118 subwoofers, Arclite functions as an array-capable two-way and three-way active point source loudspeaker. A true point source alternative to the Arcline 8, offering scalability with maximum output and consistency. Predictable and reliable behavior Designed for audio integrators and touring sound engineers. They guarantee predictable behavior in the most demanding applications. The dispersion and sound pressure levels of the arrays can be precisely configured to meet any requirement.
Effective Freq. Range
45 Hz - 18 kHz ±3 dB
Coverage angle / Dispersion
35° H x 60° V (25° up - 35° down)
Power handling
LF: 1000 W, MHF 190 W
Sensitivity
MHF: 113 dB 1 W / 1 m LF: 98 dB 1 W / 1 m
Maximum SPL
133 dB Cont, 139 Peak
Nominal impedance
LF: 8 Ω, MHF: 16 Ω
Connection type
2 x 4-pole speakON™ NL4
Enclosure material
15 mm birch plywood
Weight
44 kg (97 lbs)
Mounting system
Ground stack or suspended
Finish
Textured ‘TourCoat’ polyurea
Driver
1 x 15” LF, 1 x 4” MF, 1 x 2.5” HF
