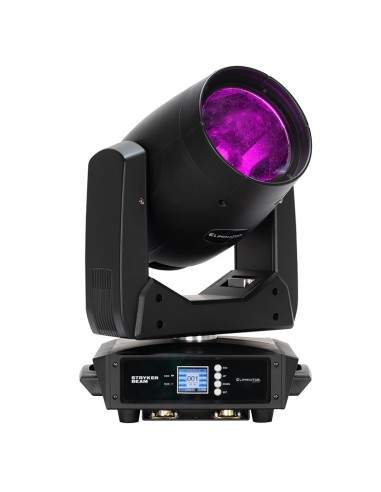

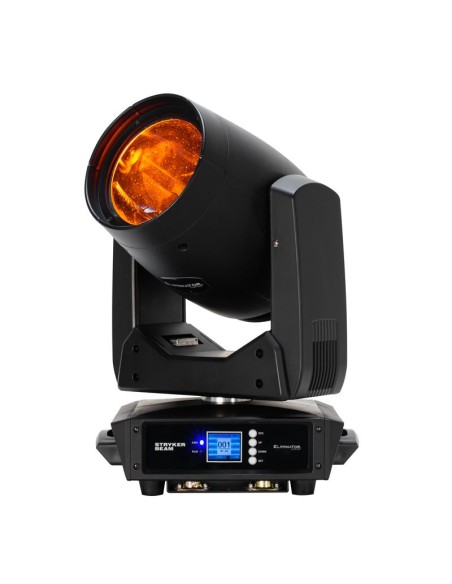

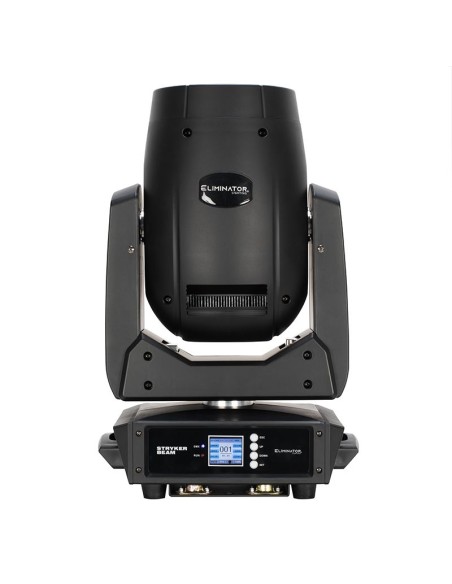

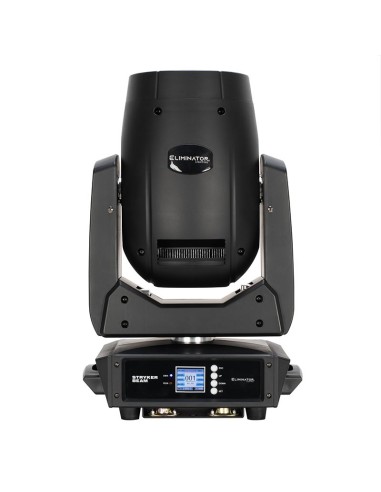

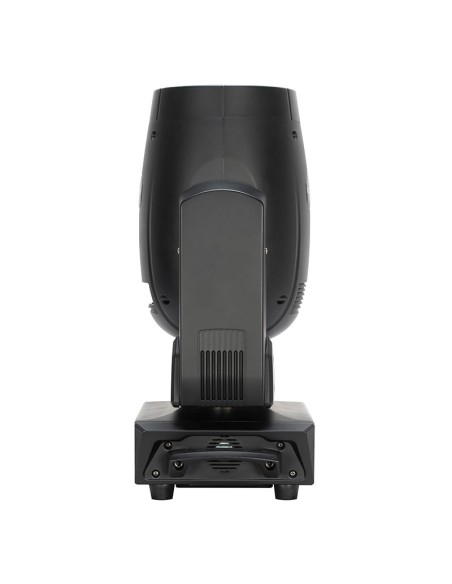

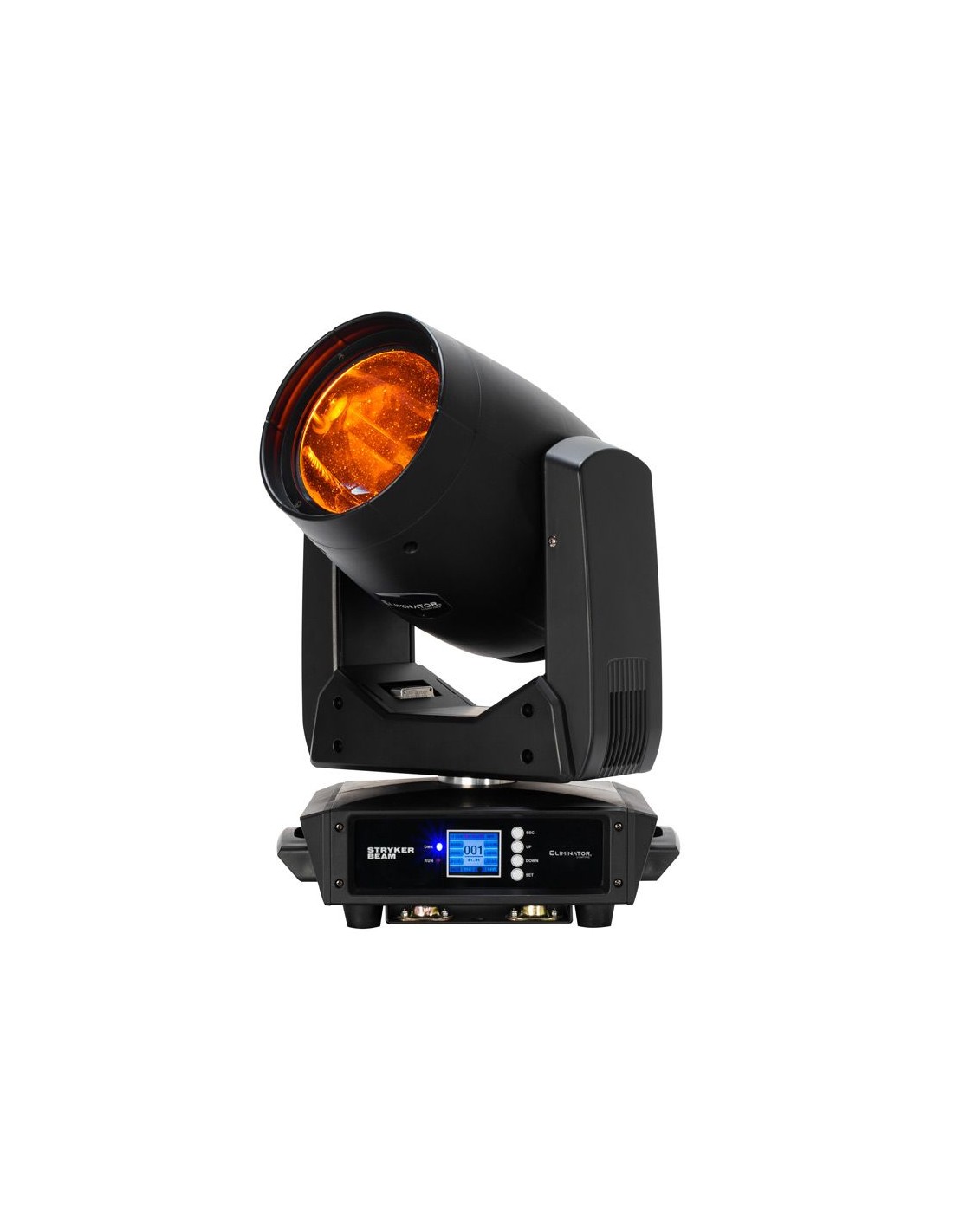

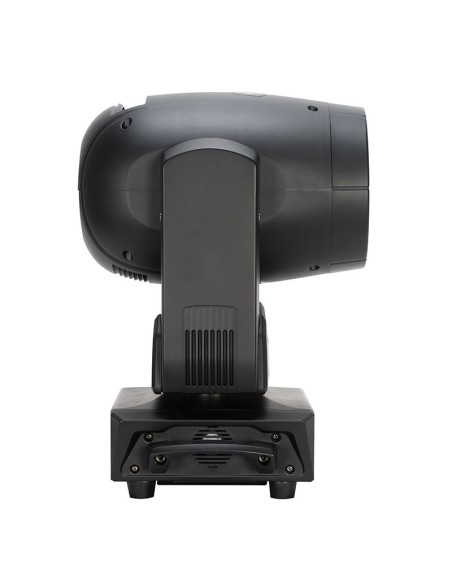

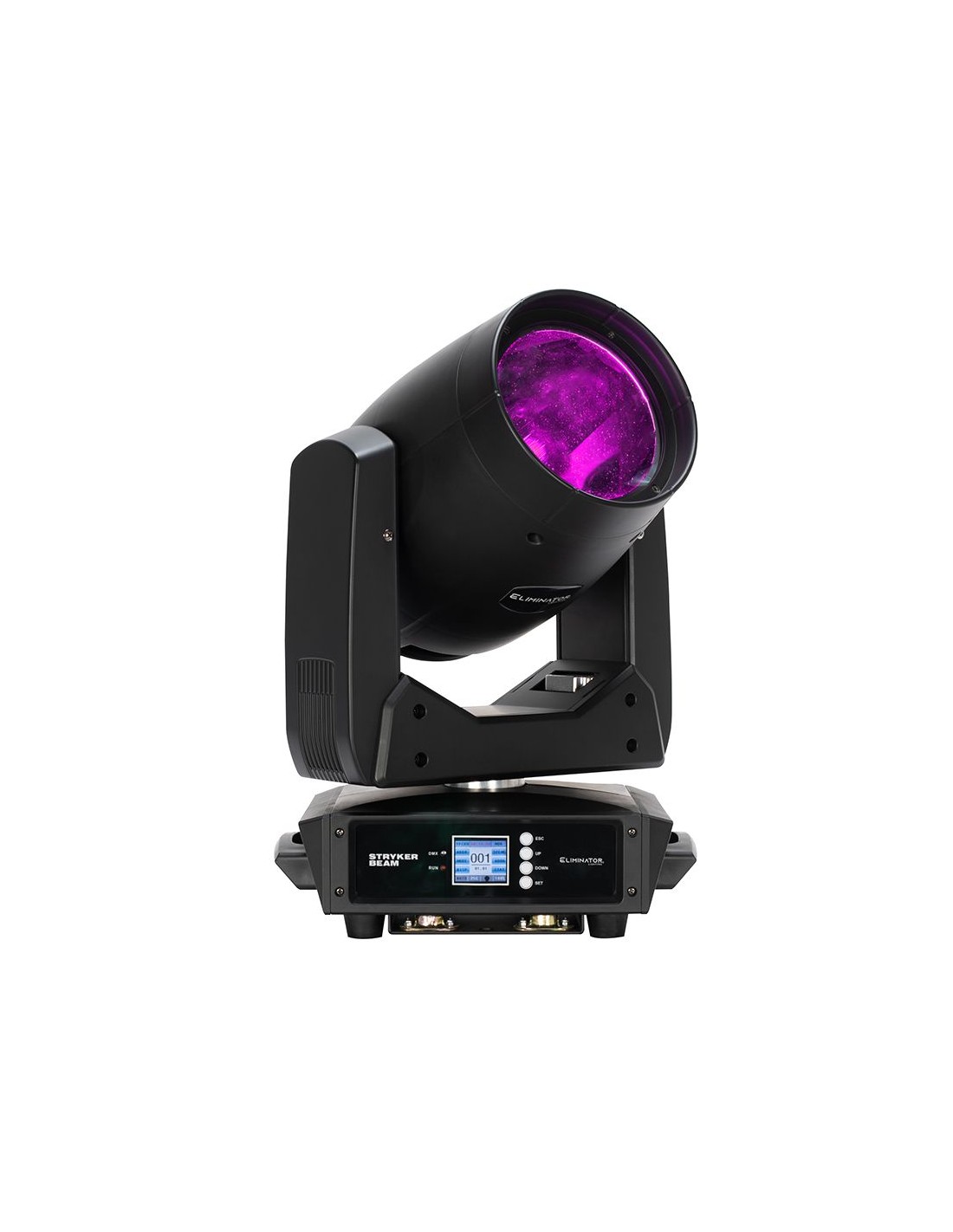

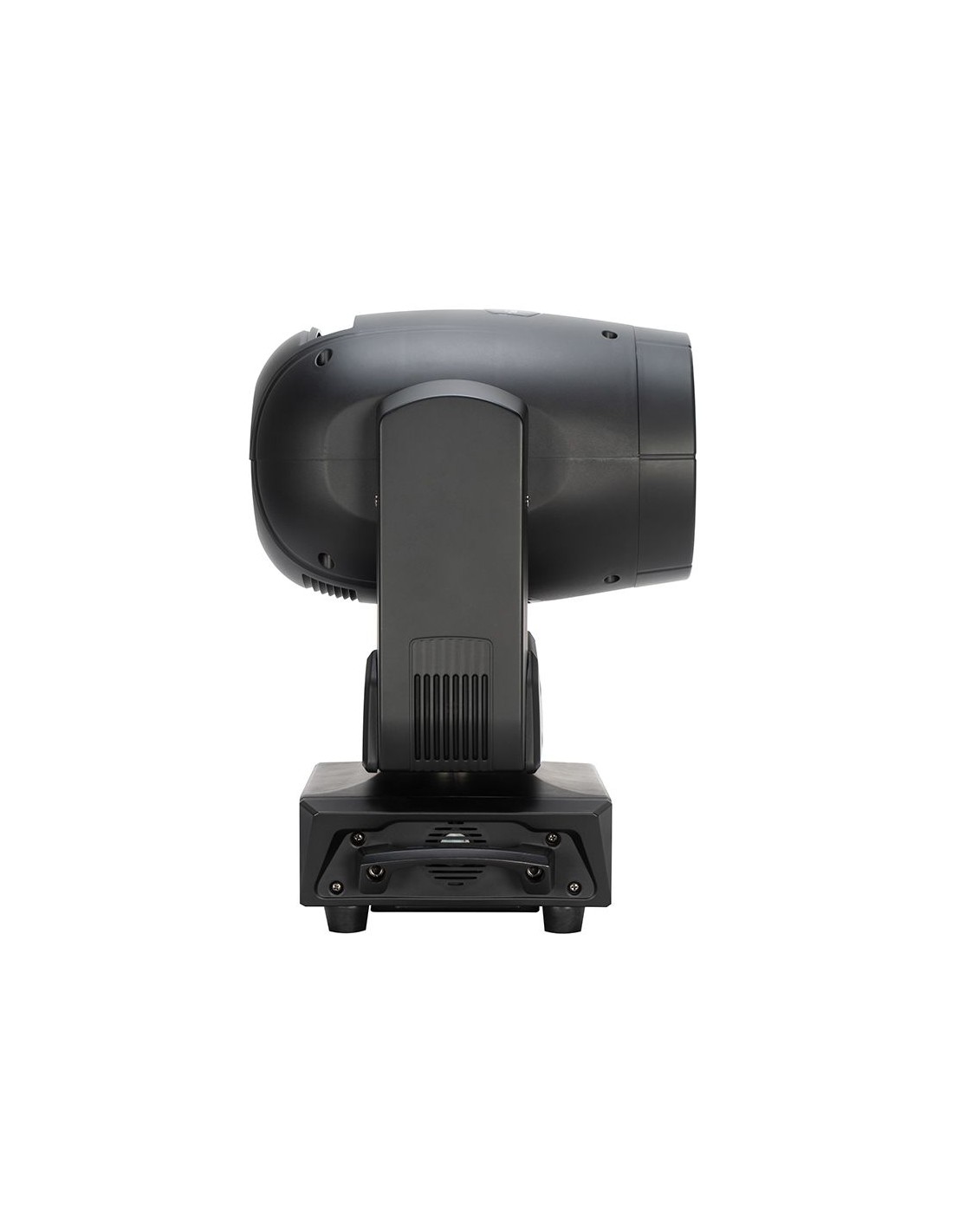

Moving head - Stryker Beam
Suitable for installation in nightclubs and other entertainment venues, as well as for mobile use by production companies and entertainers, Eliminator Lighting’s Stryker Beam is a potent moving head beam fixture. It focuses the light from a powerful 100W LED light engine through high quality optics to create a razor-sharp output that will punch through background lighting to create piercing mid-air effects. The Stryker Beam offers fast, precise movement as well as a diverse collection of beam-shaping tools, which provide lighting designers lots of creative potential. A dedicated GOBO wheel features 11 die-cut metal shapes (plus open), which include two beam reducer options alongside a carefully curated selection of patterns designed for generating aerial effects. A motorized focus function allows GOBOs to be kept sharp, while a separate color wheel offers 13 vibrant options (plus white) and an additional 6-color flag allows the creation of multi-colored beam effects, A built-in frost filter allows the fixture to switch from a hard-edge beam to a soft wash of light. Finally, two circular rotating prisms are provided, 8-facet and 16-facet, which can be used to split up the narrow beam into a wider break-apart effect. Both prisms may be layered for an animated effect. For a fixture of its class, the Stryker Beam is a compact and lightweight moving head, which is easily portable.
- Weight
- 12.8 kg
- Power supply

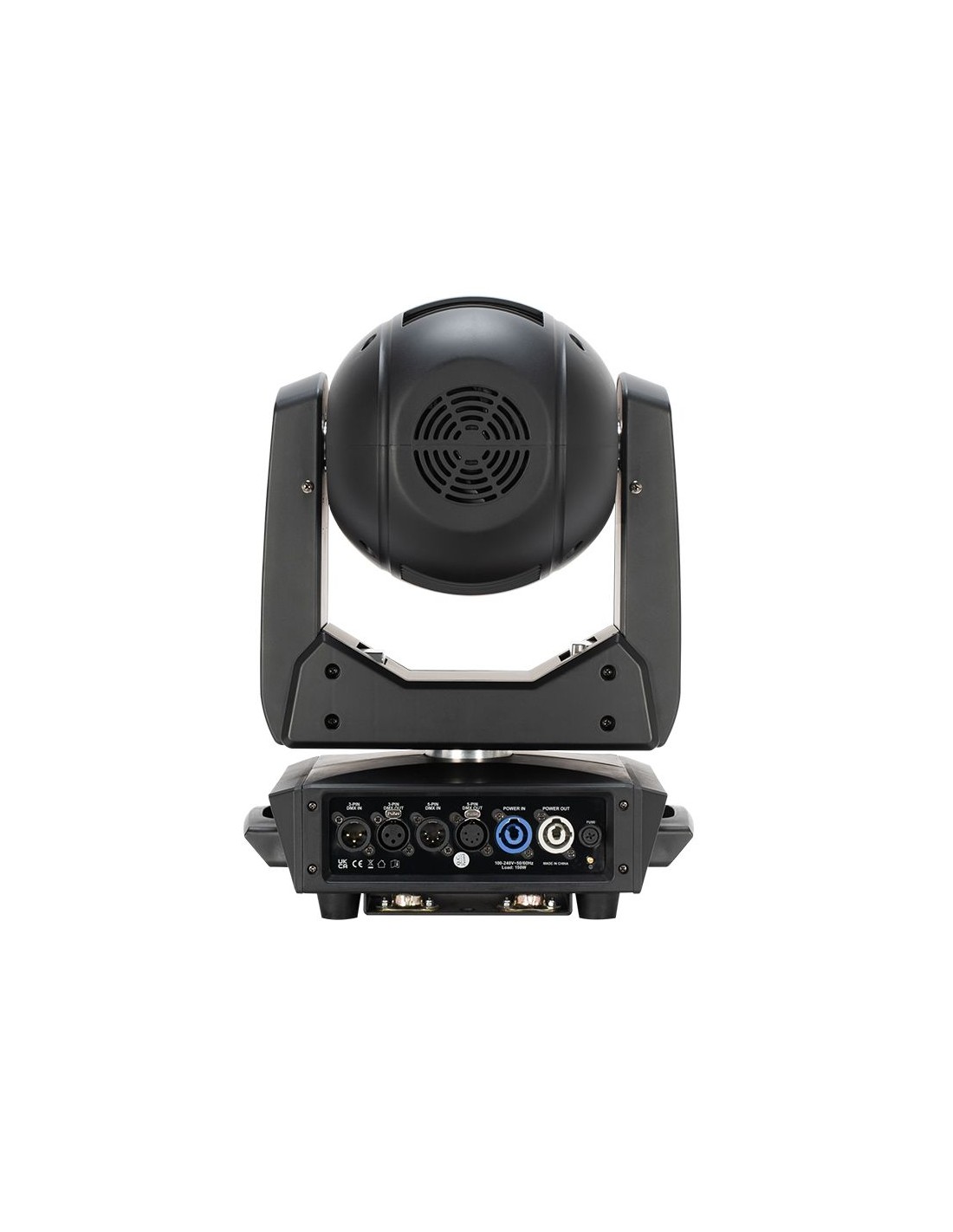

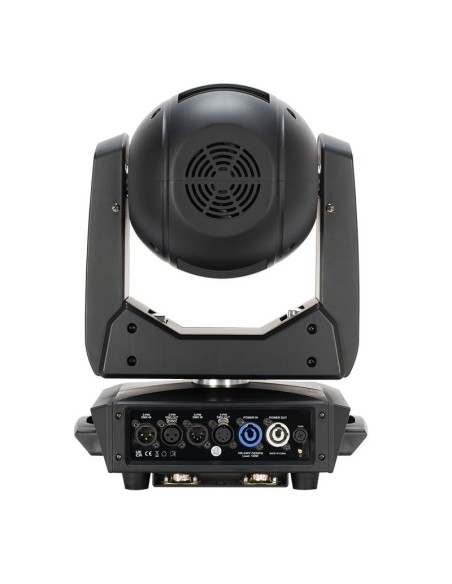

- Power In: Blue Locking indoor power connection
Power Out: White Locking indoor power connection
- Modos de trabajo DMX
- 2 DMX channel modes: 6 & 19 channels
- Control
- DMX Data In/Out: 3-pin & 5-pin connections
- Tensión de alimentación
- Multi-voltage operation: AC 100-24V, 50/60Hz
- Consumo máximo
- 150W
- Longitud
- 200 mm
- Amplitud
- 302 mm
- Altura vertical
- 465 mm
- Rueda de color
- 13 colors + open
- Movimiento PAN / TILT
- Pan/Tilt: 540-degrees / 270-degrees
- Protocolos
- DMX-512, RDM, Auto and Primary/Secondary control modes
- Wireless
- With Wired Digital Communication Network
PHYSICAL
| Weight |
12.8 kg |
|---|
ELECTRICAL
| Power supply |
Power In: Blue Locking indoor power connection
Power Out: White Locking indoor power connection
|
|---|
CONTROL
| Modos de trabajo DMX |
2 DMX channel modes: 6 & 19 channels |
|---|---|
| Movimiento PAN / TILT |
Pan/Tilt: 540-degrees / 270-degrees |
| Protocolos |
DMX-512, RDM, Auto and Primary/Secondary control modes
|
| Wireless |
With Wired Digital Communication Network |
COLOR
| Rueda de color |
13 colors + open |
|---|
CONEXIONES
| Control |
DMX Data In/Out: 3-pin & 5-pin connections |
|---|
ALIMENTACION y TEMPERATURA
| Tensión de alimentación |
Multi-voltage operation: AC 100-24V, 50/60Hz |
|---|---|
| Consumo máximo |
150W |
DIMENSIONES Y PESO
| Longitud |
200 mm |
|---|---|
| Amplitud |
302 mm |
| Altura vertical |
465 mm |
