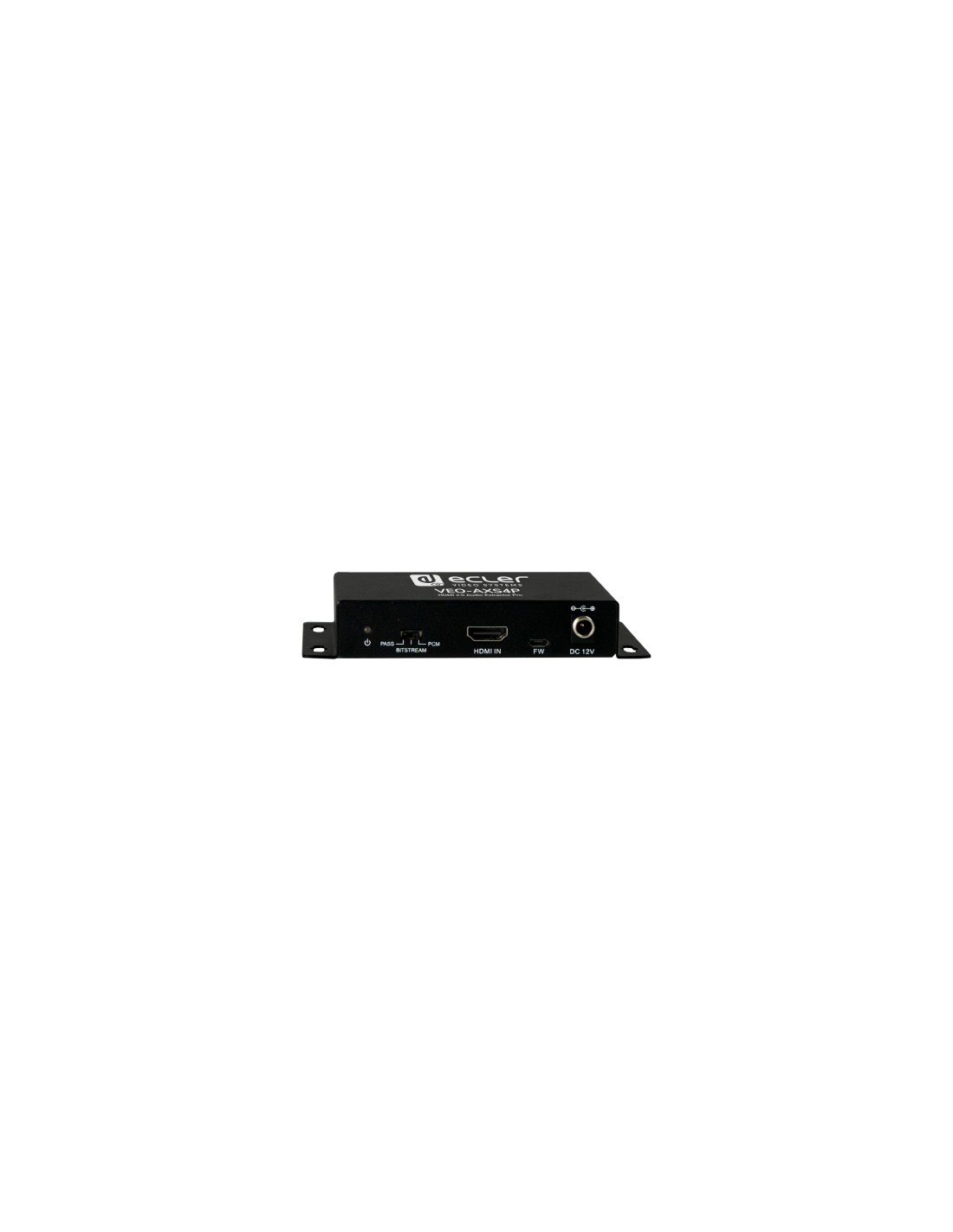

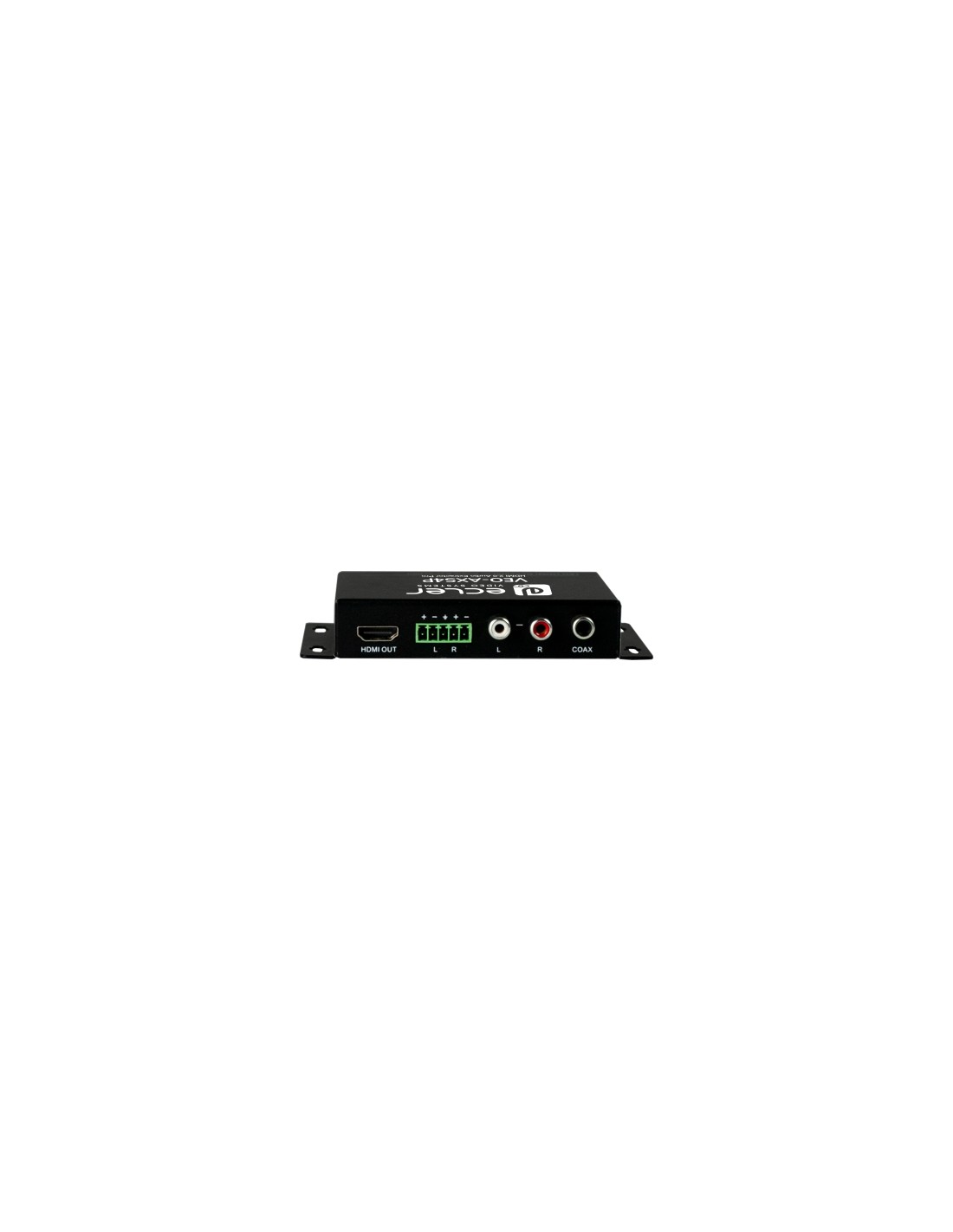

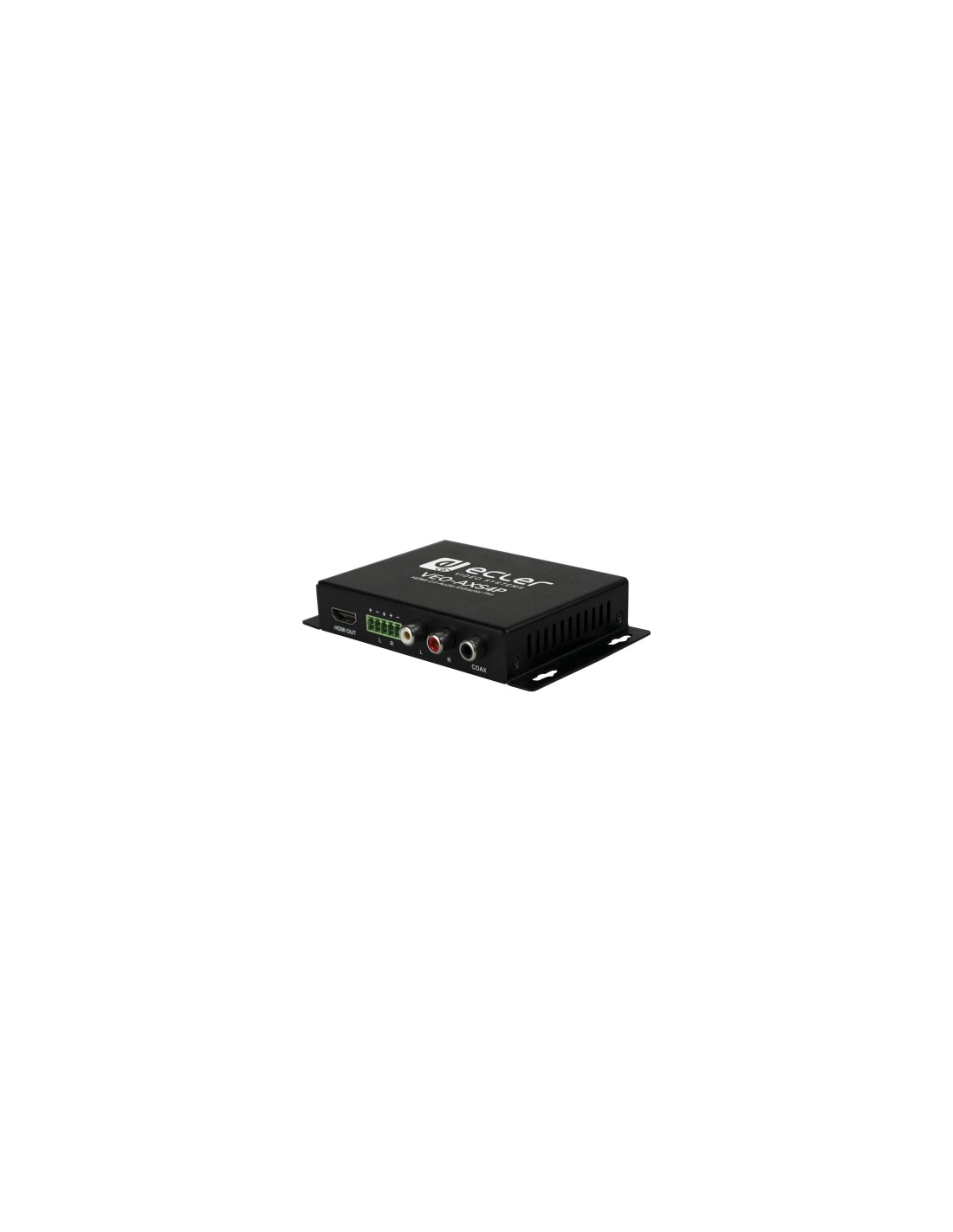

VEO-AXS4P
CVEOAXS4P
Only a few left
HDMI® audio Extractor
VEO-AXS4P is a professional HDMI® audio extractor that allows to de-embed audio from a HDMI® signal, including audio from 4K sources. VEO-AXS4P provides uncompressed LPCM analogue stereo signal through RCA and Phoenix balanced output as well as Dolby Digital and DTS multichannel signals through the coaxial S/PDIF digital output.
- Installation options
- Desktop, VEO-RACK19
- Operating temperature
- Min: -10°C ; 14°F
Max: 55°C ; 131°F - Operating humidity
- 10 to 90% non-condensing
- Included accessories
- 1 x International DC 5V Power Supply - TBC
- Finished colour
- Black
- Dimensions
- 21.5 x 77 x 129 mm / 0.85 x 3.03 x 5.08 in. (WxHxD)
- Weight
- 0.244 kg / 0.538 lb
- Shipping dimensions
- 195 x 65 x 145 mm / 7.68 x 2.56 x 5.71 in. (WxHxD)
- Shipping weight
- 0.6 kg / 1.32 lb
- Status
- New
- Origin Production
- China
- EAN code
- 8435071312301
- Tariff code
- 8517620000
- Shipping Location
- Spain
- Width (cm)
- 19.50
- Height (cm)
- 6.50
- Depth (cm)
- 14.50
- Vol. (dm3)
- 1.84
- Power consumption
- 3W Maximum
- Video Input Connectors
- HDMI Type A Female, 2.0, 18 Gbps
HDMI® Type A Female, 2.0, 18 Gbps - Video Output Connectors
- HDMI Type A Female, 2.0, 18 Gbps
HDMI® Type A Female, 2.0, 18 Gbps - Video Input Resolutions
- up to 4k @ 60Hz
- Video Output Resolutions
- up to 4k @ 60Hz
- Chroma Subsampling
- 4:4:4
- Colour Depth
- 8-bit, 10-bit, 12-bit
- Colour Space
- RGB, YCbCr
- HDCP
- 2.2/1.4 Compliant
- HDR
- HDR10
- HDMI Distance
- up to 10 meters with Ecler VEO cables
- Audio Output Connectors
- Euroblock 5-pin Balanced output, RCA Unbalanced stereo output, S/PDIF Coaxial output
- Audio Formats
- LPCM 2.0, LPCM 5.1, Dolby Digital, DTS-HD Master Audio,
Dolby true-HD - Sample Rate
- 32KHz, 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz,
192KHz - Bit Depth
- Support of 24-bit
- Control Buttons
- 1 x EDID selector
- EDID Management
- Auto / 2.0 CH / 5.1CH
- Status Indicators
- Power/HDMI status indicator
Power/HDMI® status indicator - Pass-through Connectors
- HDMI
HDMI® - Power supply
- AC 100V - 240V 50/60Hz Output: DC 12V - 1A
- DC mains connector
- DC 12V connector
- Chassis material
- Metal
- Pass-through Protocols
- CEC
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
PHYSICAL
| Installation options |
Desktop, VEO-RACK19 |
|---|---|
| Operating temperature |
Min: -10°C ; 14°F
Max: 55°C ; 131°F |
| Operating humidity |
10 to 90% non-condensing |
| Included accessories |
1 x International DC 5V Power Supply - TBC |
| Finished colour |
Black |
| Dimensions |
21.5 x 77 x 129 mm / 0.85 x 3.03 x 5.08 in. (WxHxD) |
| Weight |
0.244 kg / 0.538 lb |
| Shipping dimensions |
195 x 65 x 145 mm / 7.68 x 2.56 x 5.71 in. (WxHxD) |
| Shipping weight |
0.6 kg / 1.32 lb |
| Chassis material |
Metal |
LOGISTICS
| Status |
New |
|---|---|
| Origin Production |
China |
| EAN code |
8435071312301 |
| Tariff code |
8517620000 |
| Shipping Location |
Spain |
| Width (cm) |
19.50 |
| Height (cm) |
6.50 |
| Depth (cm) |
14.50 |
| Vol. (dm3) |
1.84 |
ELECTRICAL
| Power consumption |
3W Maximum |
|---|---|
| Power supply |
AC 100V - 240V 50/60Hz Output: DC 12V - 1A |
| DC mains connector |
DC 12V connector |
DEVICE CONTROL
| Control Buttons |
1 x EDID selector |
|---|---|
| EDID Management |
Auto / 2.0 CH / 5.1CH |
| Status Indicators |
Power/HDMI status indicator Power/HDMI® status indicator |
VIDEO PERFOMANCES
| Video Input Connectors |
HDMI Type A Female, 2.0, 18 Gbps HDMI® Type A Female, 2.0, 18 Gbps |
|---|---|
| Video Output Connectors |
HDMI Type A Female, 2.0, 18 Gbps HDMI® Type A Female, 2.0, 18 Gbps |
| Video Input Resolutions |
up to 4k @ 60Hz |
| Video Output Resolutions |
up to 4k @ 60Hz |
| Chroma Subsampling |
4:4:4 |
| Colour Depth |
8-bit, 10-bit, 12-bit |
| Colour Space |
RGB, YCbCr |
| HDCP |
2.2/1.4 Compliant |
| HDR |
HDR10 |
| HDMI Distance |
up to 10 meters with Ecler VEO cables |
AUDIO PERFORMANCES
| Audio Output Connectors |
Euroblock 5-pin Balanced output, RCA Unbalanced stereo output, S/PDIF Coaxial output |
|---|---|
| Audio Formats |
LPCM 2.0, LPCM 5.1, Dolby Digital, DTS-HD Master Audio,
Dolby true-HD |
| Sample Rate |
32KHz, 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz,
192KHz |
| Bit Depth |
Support of 24-bit |
PASS-THROUGH CONTROL
| Pass-through Connectors |
HDMI HDMI® |
|---|---|
| Pass-through Protocols |
CEC |
