VEO-AXS4
CVEOAXS4
Available

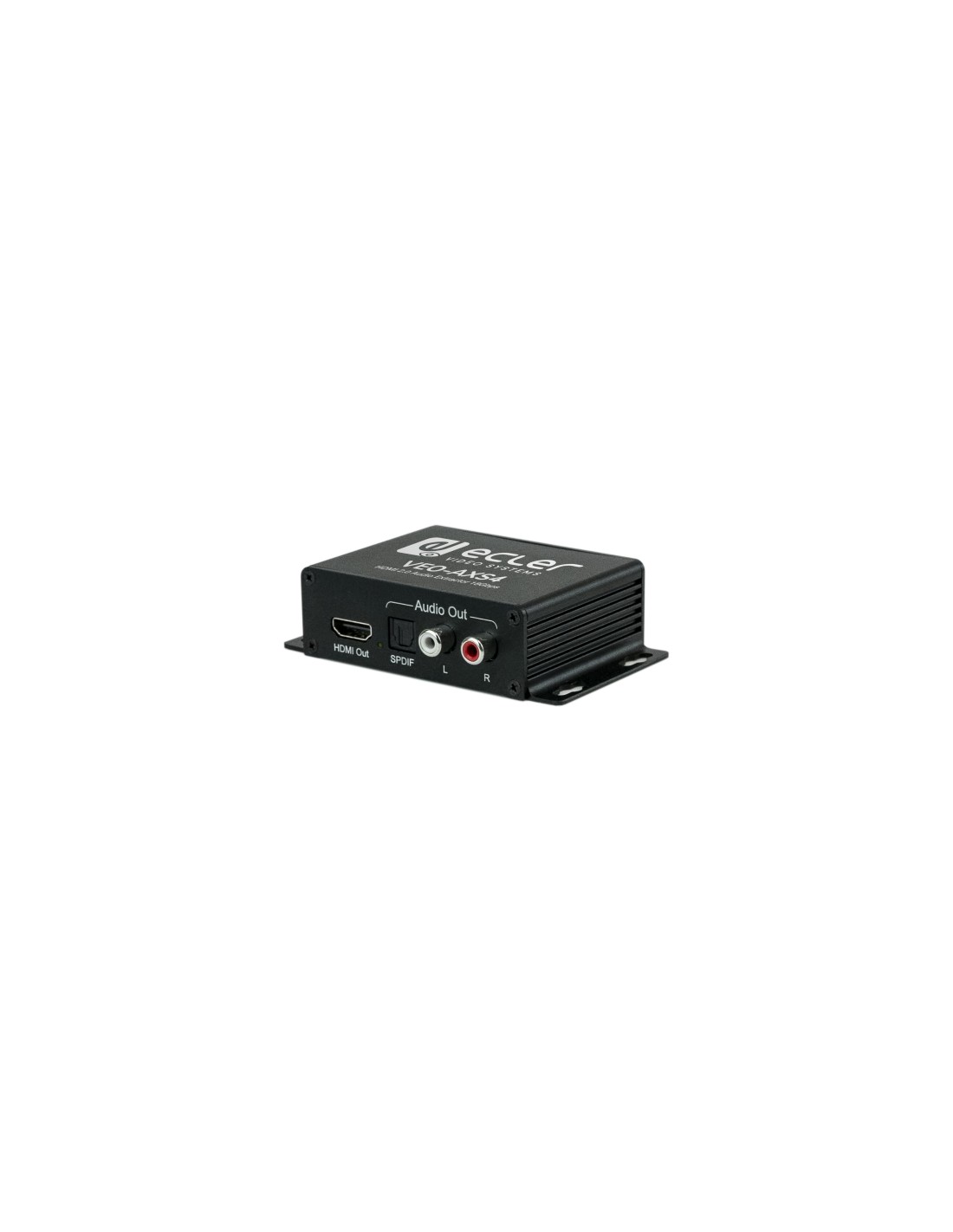

HDMI® audio De-embedder
VEO-AXS4 allows to extract audio signals from HDMI® signals up to 4K. It provides a stereo analog output on RCA connectors or a 5.1 digital output on Toslink connector, selectable through the onboard switch.
- Installation options
- Desktop, VEO-RACK19
- Operating temperature
- Min: 5°C ; 41°F
Max: 35°C ; 95°F - Operating humidity
- 5 to 90% non-condensing
- Included accessories
- 1 x International DC 5V Power Supply
- Finished colour
- Black
- Dimensions
- 65 x 29 x 105 mm / 2.56 x 1.14 x 4.13 in. (WxHxD)
- Weight
- 0.175 kg / 0.386 lb
- Shipping dimensions
- 150 x 60 x 210 mm / 5.91 x 2.36 x 8.27 in. (WxHxD)
- Shipping weight
- 0.5 kg / 1.1 lb
- Status
- New
- EAN code
- 8435071307581
- Tariff code
- 8517620000
- Shipping Location
- Spain
- Power consumption
- 2W Maximum

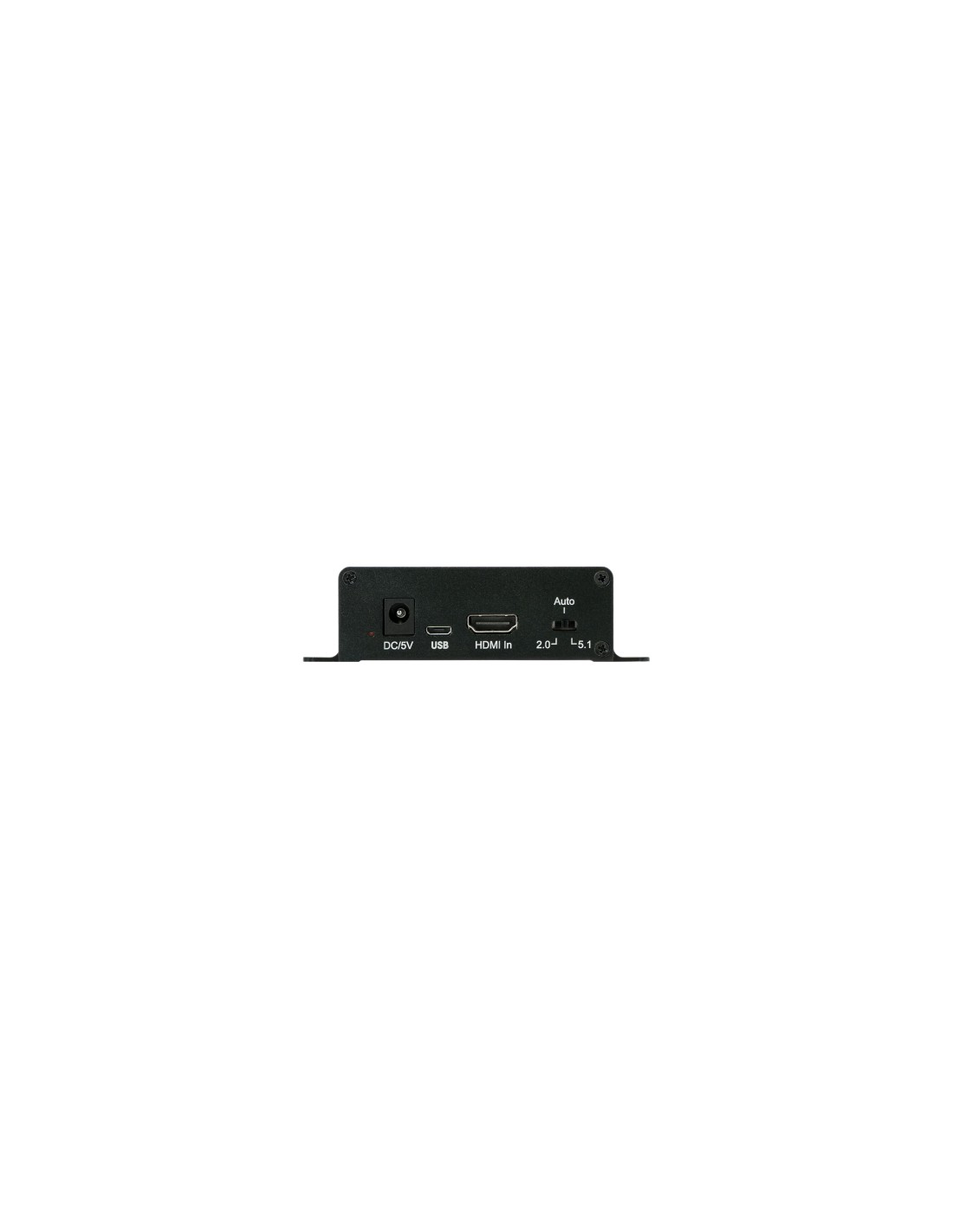

- Video Input Connectors
- HDMI Type A Female, 2.0, 18 Gbps
HDMI® Type A Female, 2.0, 18 Gbps - Video Output Connectors
- HDMI Type A Female, 2.0, 18 Gbps
HDMI® Type A Female, 2.0, 18 Gbps - Video Input Resolutions
- 4Kx2K@60Hz/1080P/1080i/720p/576p/576i/480p/480i
- Video Output Resolutions
- 4Kx2K@60Hz/1080P/1080i/720p/576p/576i/480p/480i
- Chroma Subsampling
- 4:4:4
- Colour Depth
- 8-bit, 10-bit, 12-bit
- Colour Space
- RGB, YCbCr
- HDCP
- 2.2/1.4 Compliant
- HDR
- HDR10
- HDMI Distance
- up to 10 meters (33 feet) with Ecler VEO cables

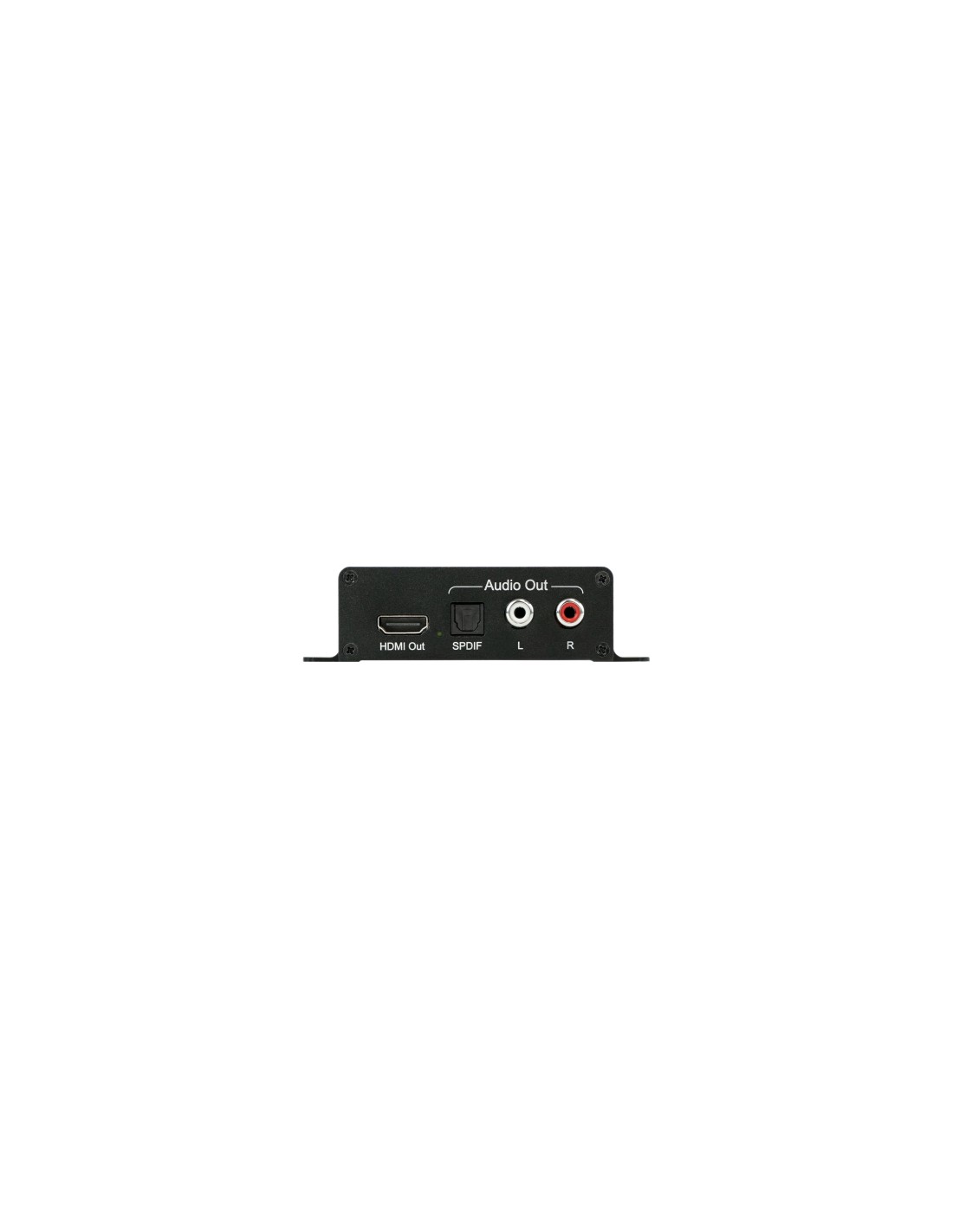

- Audio Output Connectors
- Analog stereo RCA and 5.1 S/PDIF output
- Audio Formats
- LPCM 2.0, LPCM 5.1, Dolby Digital, DTS-HD Master
Audio, Dolby true-HD - Sample Rate
- 32KHz, 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz,
192KHz - Bit Depth
- Supports 24-bit
- Control Buttons
- 1 x Switch for 2.0CH Audio, Auto mode (pass-through) or 5.1CH Audio
- EDID Management
- Auto / 2.0 CH / 5.1CH
- Status Indicators
- Power LED, HDMI Link indicator
Power LED, HDMI® Link indicator - Pass-through Connectors
- HDMI
HDMI® - Power supply
- AC 100V - 240V 50/60Hz Output: DC5V 1A
- DC mains connector
- DC 5V Connector
- Chassis material
- Metal
- Pass-through Protocols
- CEC
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
PHYSICAL
| Installation options |
Desktop, VEO-RACK19 |
|---|---|
| Operating temperature |
Min: 5°C ; 41°F
Max: 35°C ; 95°F |
| Operating humidity |
5 to 90% non-condensing |
| Included accessories |
1 x International DC 5V Power Supply |
| Finished colour |
Black |
| Dimensions |
65 x 29 x 105 mm / 2.56 x 1.14 x 4.13 in. (WxHxD) |
| Weight |
0.175 kg / 0.386 lb |
| Shipping dimensions |
150 x 60 x 210 mm / 5.91 x 2.36 x 8.27 in. (WxHxD) |
| Shipping weight |
0.5 kg / 1.1 lb |
| Chassis material |
Metal |
LOGISTICS
| Status |
New |
|---|---|
| EAN code |
8435071307581 |
| Tariff code |
8517620000 |
| Shipping Location |
Spain |
ELECTRICAL
| Power consumption |
2W Maximum |
|---|---|
| Power supply |
AC 100V - 240V 50/60Hz Output: DC5V 1A |
| DC mains connector |
DC 5V Connector |
DEVICE CONTROL
| Control Buttons |
1 x Switch for 2.0CH Audio, Auto mode (pass-through) or 5.1CH Audio |
|---|---|
| EDID Management |
Auto / 2.0 CH / 5.1CH |
| Status Indicators |
Power LED, HDMI Link indicator Power LED, HDMI® Link indicator |
VIDEO PERFOMANCES
| Video Input Connectors |
HDMI Type A Female, 2.0, 18 Gbps HDMI® Type A Female, 2.0, 18 Gbps |
|---|---|
| Video Output Connectors |
HDMI Type A Female, 2.0, 18 Gbps HDMI® Type A Female, 2.0, 18 Gbps |
| Video Input Resolutions |
4Kx2K@60Hz/1080P/1080i/720p/576p/576i/480p/480i |
| Video Output Resolutions |
4Kx2K@60Hz/1080P/1080i/720p/576p/576i/480p/480i |
| Chroma Subsampling |
4:4:4 |
| Colour Depth |
8-bit, 10-bit, 12-bit |
| Colour Space |
RGB, YCbCr |
| HDCP |
2.2/1.4 Compliant |
| HDR |
HDR10
|
| HDMI Distance |
up to 10 meters (33 feet) with Ecler VEO cables |
AUDIO PERFORMANCES
| Audio Output Connectors |
Analog stereo RCA and 5.1 S/PDIF output |
|---|---|
| Audio Formats |
LPCM 2.0, LPCM 5.1, Dolby Digital, DTS-HD Master
Audio, Dolby true-HD |
| Sample Rate |
32KHz, 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz,
192KHz |
| Bit Depth |
Supports 24-bit
|
PASS-THROUGH CONTROL
| Pass-through Connectors |
HDMI HDMI® |
|---|---|
| Pass-through Protocols |
CEC |
