VEO-AEXS4
CVEOAEXS4
Available
HDMI® audio Embedder/De-Embedder

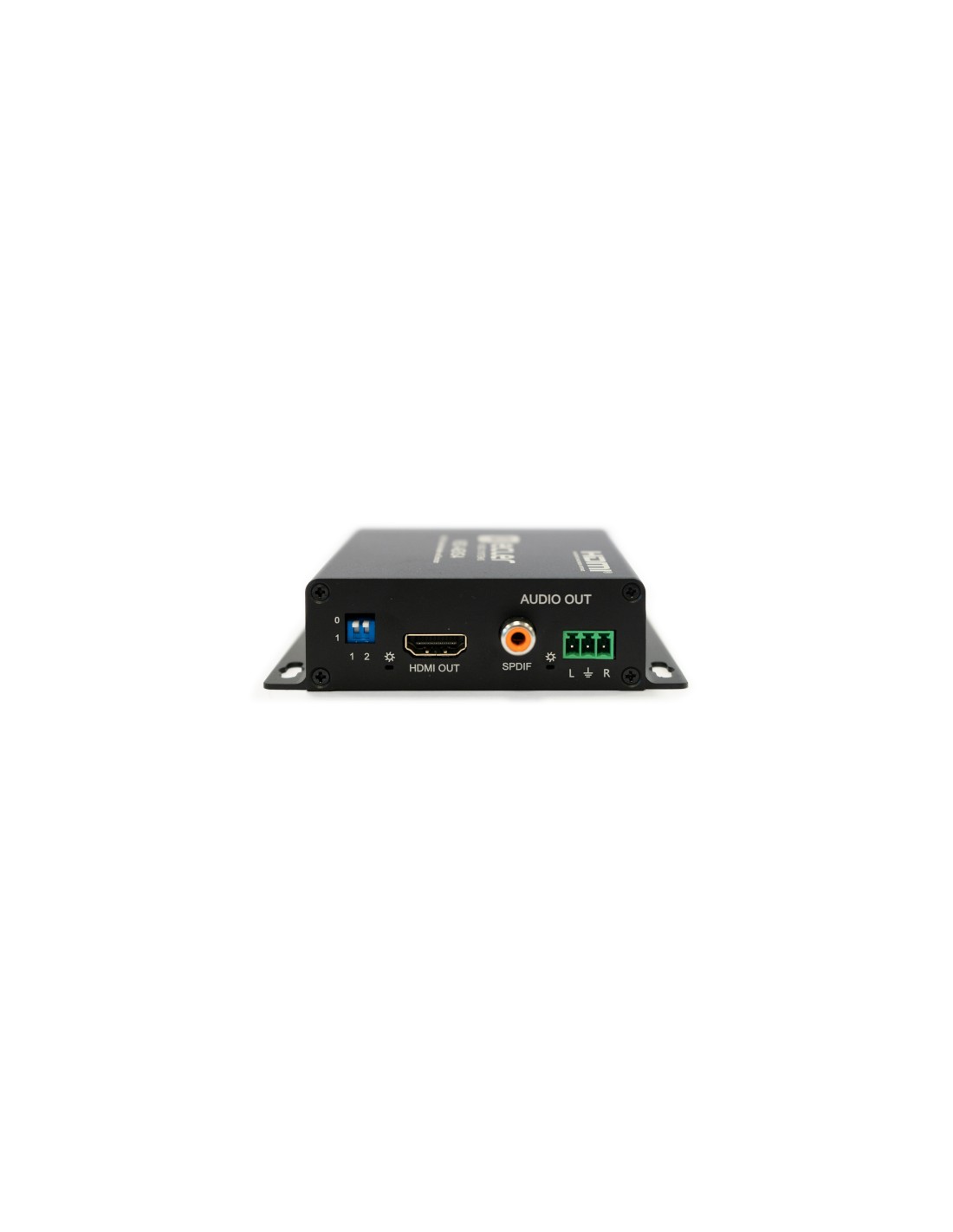

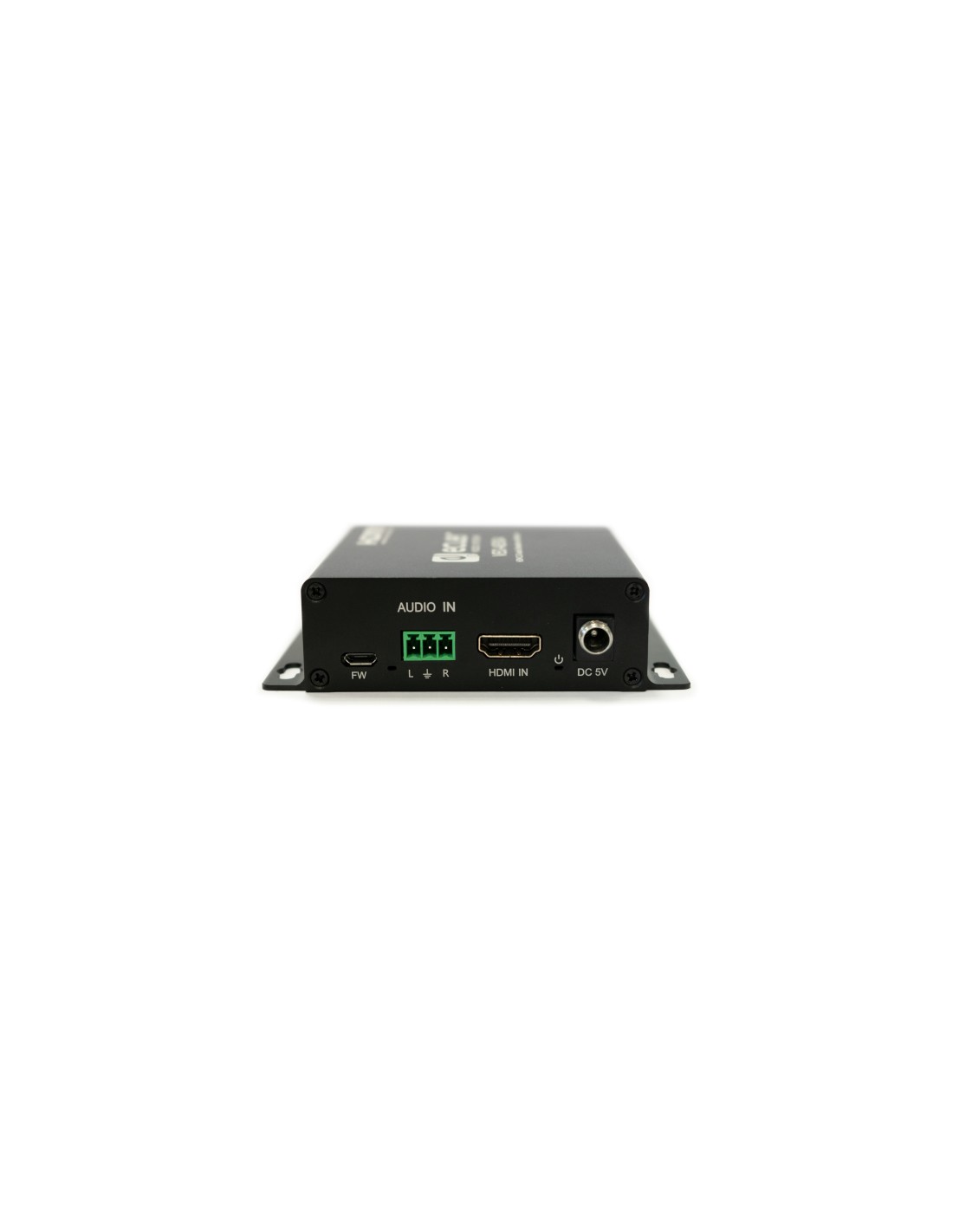

VEO-AEXS4 allows to extract and embed audio signals from the HDMI® input with support up to 4K video. It includes an unbalanced stereo analogue input and output with Euroblock connectors and a digital S/PDIF output with a coaxial connector. Function mode is selectable through the onboard dip-switch.
- Installation options
- Desktop, VEO-RACK19
- Operating temperature
- -5 to +40°C (+23 to +104 °F)
- Operating humidity
- 5 - 90% RH (no condensation)
- Included accessories
- Power Supply, 2x3pins Euroblock, Warranty Card
- Optional accessories
- VEO-RACK19
- Finished colour
- Black
- Dimensions
- 104.4 x 89 x 28.3mm (4.11” x 3.50” x 1.11”)
- Weight
- 155g / 0.342lbs
- Shipping dimensions
- 210 x 60 x 150mm
- Shipping weight
- 0.4 Kg
- Status
- New
- Origin Production
- China
- EAN code
- 8435071315890
- Tariff code
- 8517620000
- Shipping Location
- Spain
- Width (cm)
- 21
- Height (cm)
- 6
- Depth (cm)
- 15
- Vol. (dm3)
- 1.89
- Gross Weight (kg)
- 0.4
- Net Weight (kg)
- 0.14
- Format
- Unit
- Warranty (months)
- 36
- Frequency response
- 20Hz-20KHz (±3dB)
- AC mains connector
- External PSU. Included 4 region power blades
- Power consumption
- 2
- Video Input Connectors
- HDMI 2.0
HDMI® 2.0 - Video Output Connectors
- HDMI 2.0
HDMI® 2.0 - Video Input Resolutions
- 4096x2160@60Hz, UHD@60Hz, 1080p@60Hz
- Video Output Resolutions
- 4096x2160@60Hz, UHD@60Hz, 1080p@60Hz
- Chroma Subsampling
- 4:4:4 4:2:2
- Colour Depth
- 8-bit, 10-bit, 12-bit
- Colour Space
- RGB, YCbCr
- HDCP
- 2.0 compliant
- HDR
- HDR10, Dolby Vision
- HDMI Distance
- 10m with Ecler VEO Cables
- Audio Input Connectors
- 3-pins unbalanced Euroblock
- Audio Output Connectors
- 3-pins unbalanced Euroblock - SPDIF Coaxial
- Audio Formats
- Dolby True-HD, DTS-HD Master Audio, PCM
- Sample Rate
- up to 192KHZ
- Bit Depth
- Up to 24-bit
- ARC/eARC
- No
- Control Buttons
- EDID selector (2 x dip-switch)
- EDID Management
- Passtrough, PCM2.0, 5.1
- Status Indicators
- ON LED, HDMI Active LED, AUDIO Active LED indicators
ON LED, HDMI® Active LED, AUDIO Active LED indicators - Pass-through Connectors
- HDMI
- Power supply
- AC 100V - 240V 50/60Hz
Output: DC 5V-1A
- DC mains connector
- DC Coaxial
- Chassis material
- Metal
- Release Date
- 16/06/2022
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
PHYSICAL
| Installation options |
Desktop, VEO-RACK19 |
|---|---|
| Operating temperature |
-5 to +40°C (+23 to +104 °F) |
| Operating humidity |
5 - 90% RH (no condensation) |
| Included accessories |
Power Supply, 2x3pins Euroblock, Warranty Card |
| Optional accessories |
VEO-RACK19 |
| Finished colour |
Black |
| Dimensions |
104.4 x 89 x 28.3mm (4.11” x 3.50” x 1.11”) |
| Weight |
155g / 0.342lbs |
| Shipping dimensions |
210 x 60 x 150mm |
| Shipping weight |
0.4 Kg |
| Format |
Unit |
| Chassis material |
Metal |
LOGISTICS
| Status |
New |
|---|---|
| Origin Production |
China |
| EAN code |
8435071315890
|
| Tariff code |
8517620000 |
| Shipping Location |
Spain |
| Width (cm) |
21 |
| Height (cm) |
6 |
| Depth (cm) |
15 |
| Vol. (dm3) |
1.89 |
| Gross Weight (kg) |
0.4 |
| Net Weight (kg) |
0.14 |
| Warranty (months) |
36 |
| Release Date |
16/06/2022 |
ELECTRICAL
| AC mains connector |
External PSU. Included 4 region power blades |
|---|---|
| Power consumption |
2 |
| Power supply |
AC 100V - 240V 50/60Hz
Output: DC 5V-1A
|
| DC mains connector |
DC Coaxial |
DEVICE CONTROL
| Control Buttons |
EDID selector (2 x dip-switch) |
|---|---|
| EDID Management |
Passtrough, PCM2.0, 5.1 |
| Status Indicators |
ON LED, HDMI Active LED, AUDIO Active LED indicators ON LED, HDMI® Active LED, AUDIO Active LED indicators |
LINE OUTPUTS
| Frequency response |
20Hz-20KHz (±3dB) |
|---|
VIDEO PERFOMANCES
| Video Input Connectors |
HDMI 2.0 HDMI® 2.0 |
|---|---|
| Video Output Connectors |
HDMI 2.0 HDMI® 2.0 |
| Video Input Resolutions |
4096x2160@60Hz, UHD@60Hz, 1080p@60Hz |
| Video Output Resolutions |
4096x2160@60Hz, UHD@60Hz, 1080p@60Hz |
| Chroma Subsampling |
4:4:4 4:2:2 |
| Colour Depth |
8-bit, 10-bit, 12-bit |
| Colour Space |
RGB, YCbCr |
| HDCP |
2.0 compliant |
| HDR |
HDR10, Dolby Vision |
| HDMI Distance |
10m with Ecler VEO Cables |
AUDIO PERFORMANCES
| Audio Input Connectors |
3-pins unbalanced Euroblock |
|---|---|
| Audio Output Connectors |
3-pins unbalanced Euroblock - SPDIF Coaxial |
| Audio Formats |
Dolby True-HD, DTS-HD Master Audio, PCM |
| Sample Rate |
up to 192KHZ |
| Bit Depth |
Up to 24-bit |
| ARC/eARC |
No |
PASS-THROUGH CONTROL
| Pass-through Connectors |
HDMI |
|---|
