WPaMIX-TUS
CWPAMIXTUS
Available

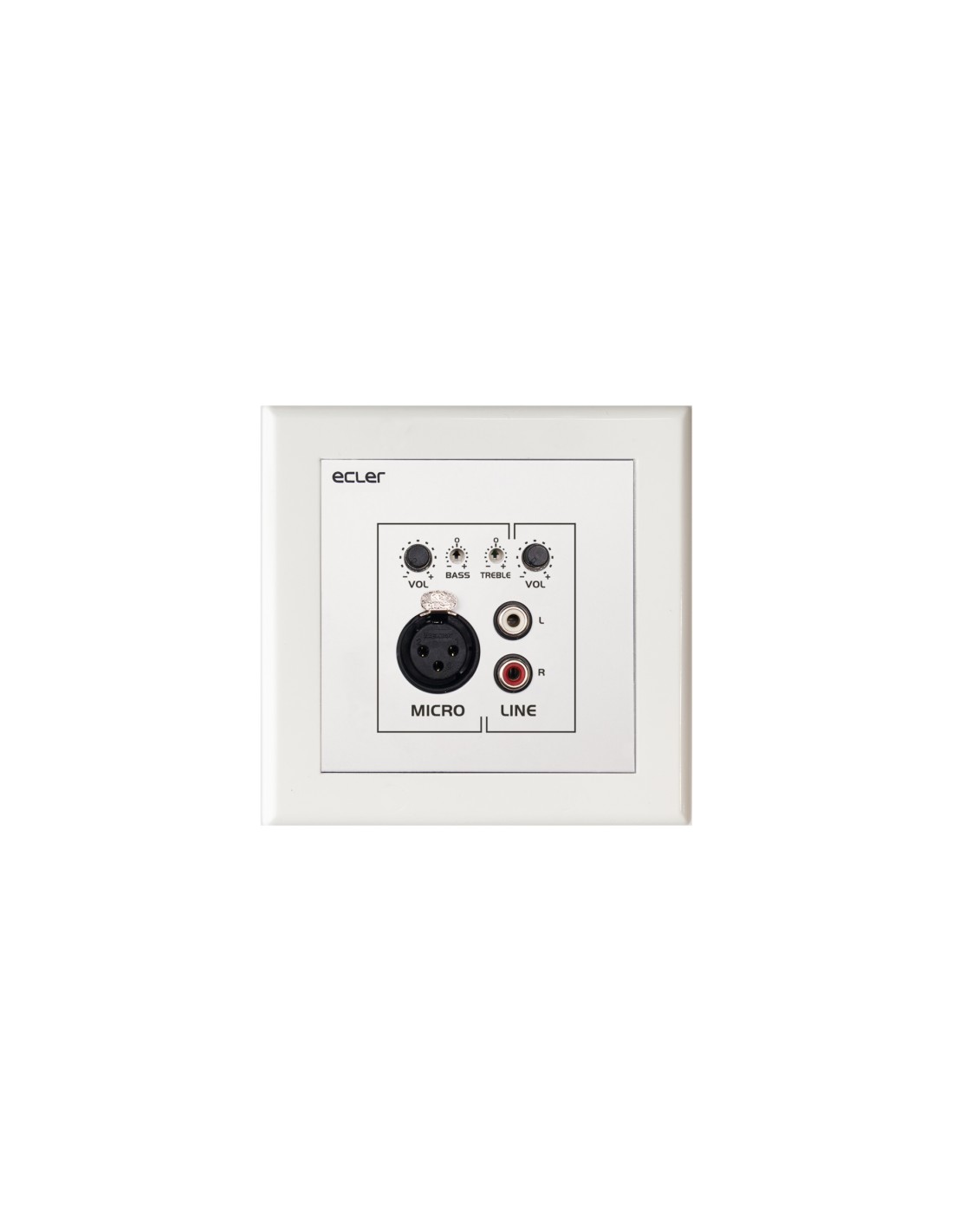

Remote Wall Micro-Mixer (US model)
WPaMIX-TUS is a 2 channel micro-mixer which keeps the standard wall-panel format of the WPa series (US model). It allows to a mix a stereo unbalanced signal (2 x RCA) with a microphone signal (XLR), getting a balanced mono output that can be sent to a preamplifier, amplifier, mixer, digital or analogue matrix, etc., thus saving inputs in the receiver device.
The MIC input includes a 2 band EQ (BASS, TREBLE) and it can use the talk-over function to override the line signal when the microphone exceeds the talk-over detection threshold. Power supply not included (WP24-PSU). Surface-mount installation box included.
WPa is a series of remote control wall panels for systems and interconnecting audio signals, with a modern, elegant, discrete aesthetic, designed in collaboration with Italdesign Giugiaro.
- Installation options
- Wall-panel format
- Operating temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Operating humidity
- 85% HR
<85% HR - Storage temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Storage humidity
- 90% HR
<90% HR - Included accessories

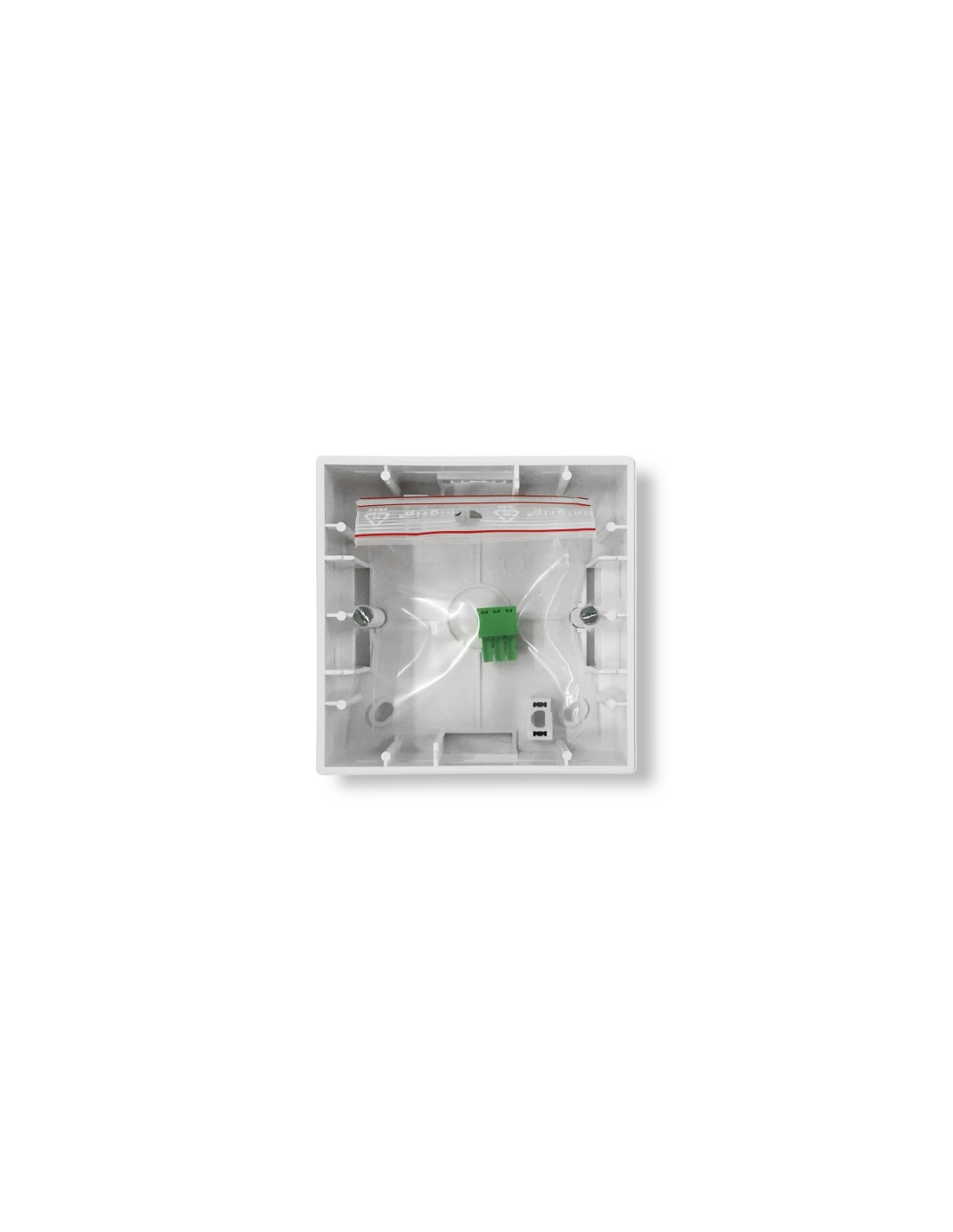

- Surface-mount box
- Optional accessories
- Power adapter
- Finished colour
- White (RAL 9016)
- Dimensions
- 116.5 x 114.8 x 30 mm / 4.6 x 4.5 x 1.2 in. (WxHxD) - Compatible with US electrical box
- Weight
- 0.125 kg / 0.28 lb
- Pieces per box
- 1 unit
- Shipping dimensions
- 145 x 700 x 135 mm / 5.71 x 27.56 x 5.31 in. (WxHxD)
- Shipping weight
- 0.25 kg / 0.55 lb
- Status
- New
- EAN code
- 8435071308779
- Tariff code
- 8518400000
- Format
- Single-gang US format
- Type
- 2 channel micro-mixer with talkover
PHYSICAL
| Installation options |
Wall-panel format |
|---|---|
| Operating temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Operating humidity |
<85% HR 85% HR |
| Storage temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Storage humidity |
<90% HR 90% HR |
| Included accessories |
Surface-mount box |
| Optional accessories |
Power adapter |
| Finished colour |
White (RAL 9016) |
| Dimensions |
116.5 x 114.8 x 30 mm / 4.6 x 4.5 x 1.2 in. (WxHxD) - Compatible with US electrical box |
| Weight |
0.125 kg / 0.28 lb |
| Pieces per box |
1 unit |
| Shipping dimensions |
145 x 700 x 135 mm / 5.71 x 27.56 x 5.31 in. (WxHxD) |
| Shipping weight |
0.25 kg / 0.55 lb |
| Format |
Single-gang US format |
| Type |
2 channel micro-mixer with talkover |
LOGISTICS
| Status |
New |
|---|---|
| EAN code |
8435071308779 |
| Tariff code |
8518400000 |
