WPaH-AT40
CWPAHAT40
Available

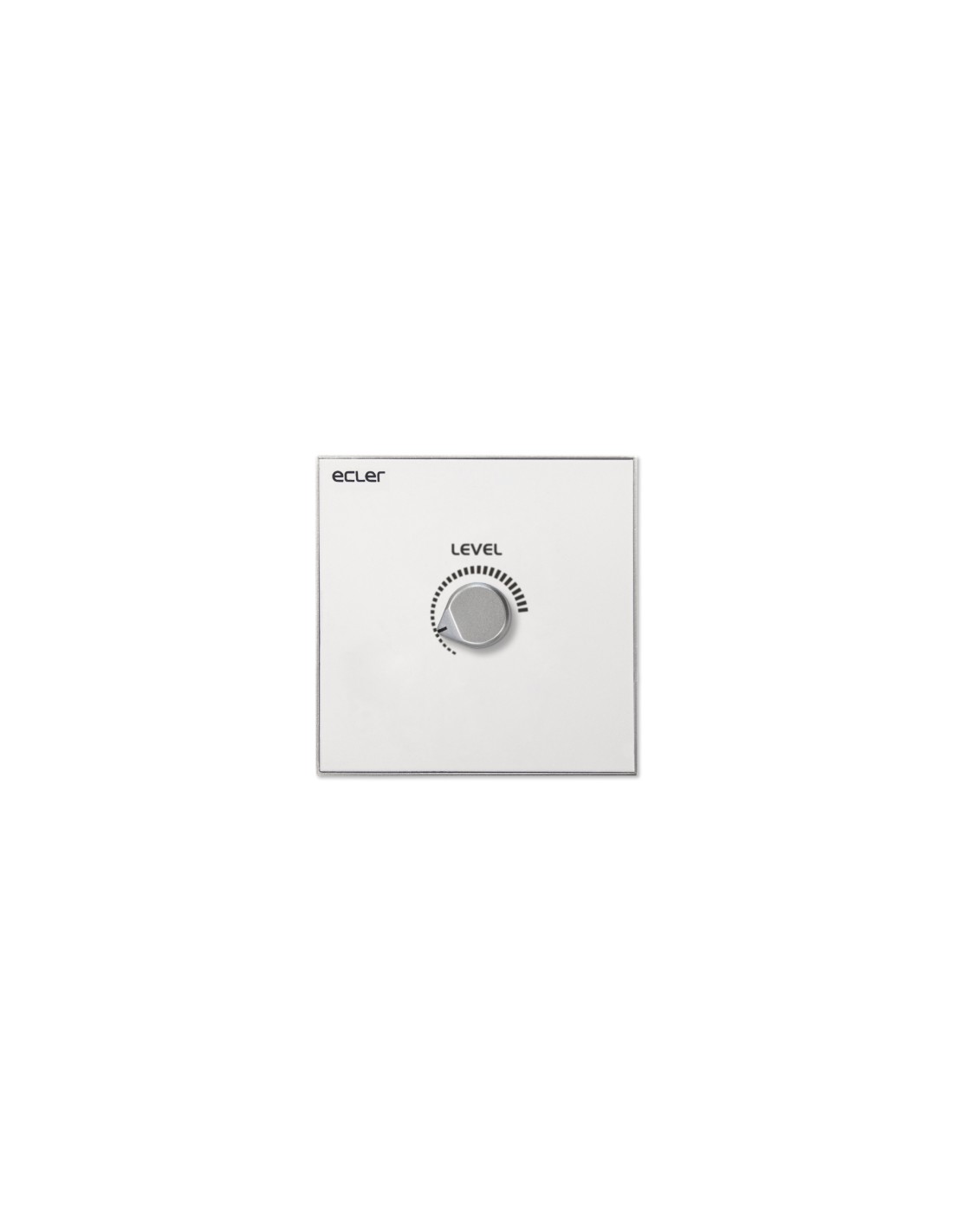

Remote Wall Attenuator

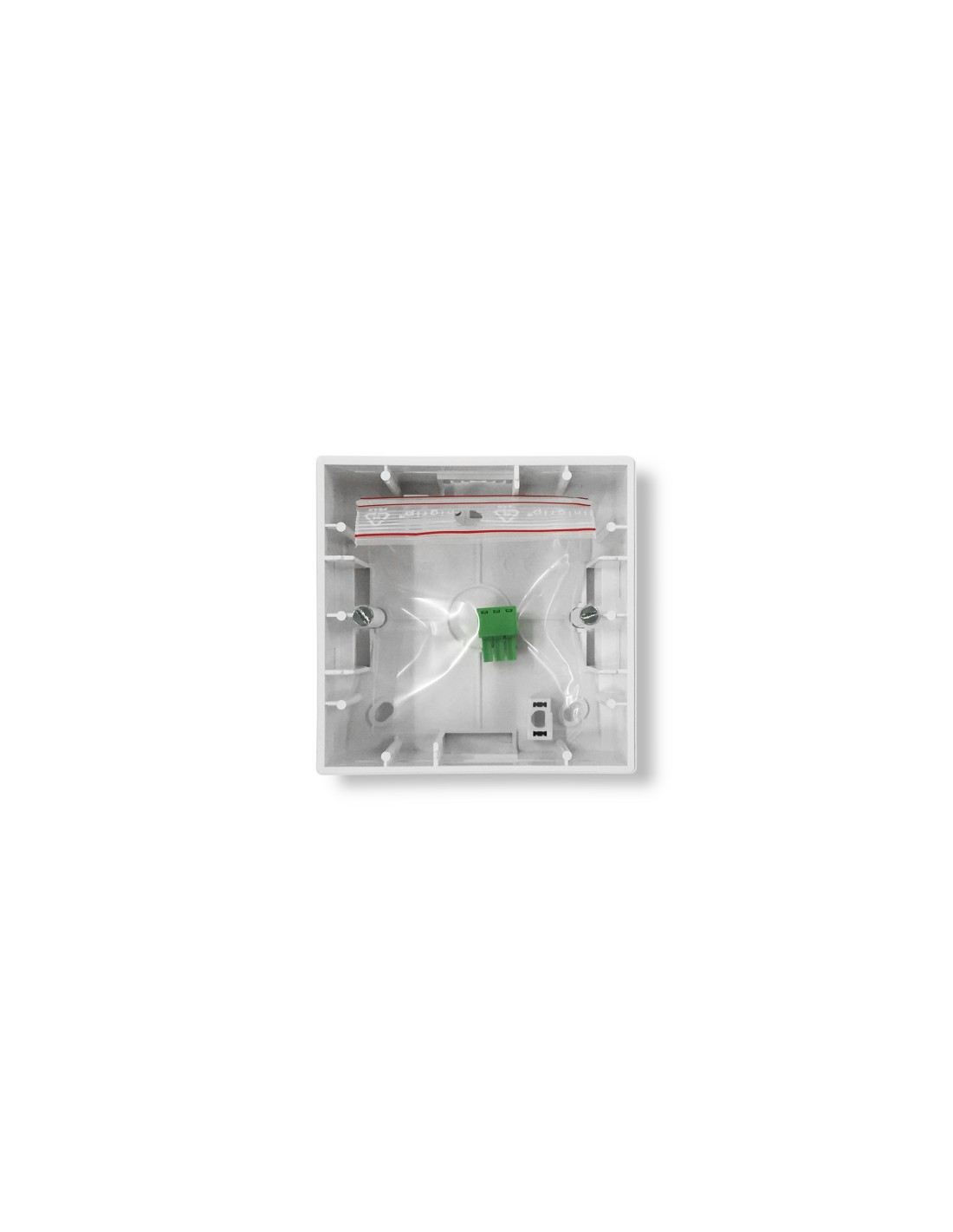

WPaH-AT40 is a 70 / 100V line attenuator with integrated 24 VDC priority relay.40W maximum output power. Surface-mount installation box included (WxHxD = 86 x 86 x 38mm).
WPa is a series of remote control wall panels for systems and interconnecting audio signals, with a modern, elegant, discrete aesthetic, designed in collaboration with Italdesign Giugiaro.
- Installation options
- Surface, in-wall
- Operating temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Operating humidity
- 85% HR
<85% HR - Storage temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Storage humidity
- 90% HR
<90% HR - Included accessories
- Surface-moun box
- Finished colour
- White (RAL 9016)
- Dimensions
- 86 x 86 x 50 mm / 3.38 x 3.38 x 1.97 in. (WxHxD) with surface-mount box
- Weight
- 0.5 kg / 1.1 lb
- Pieces per box
- 1 unit
- Shipping dimensions
- 110 x 70 x 200 mm / 4.33 x 2.76 x 7.87 in. (WxHxD)
- Shipping weight
- 0.6 kg / 1.32 lb
- Status
- New
- Origin Production
- Spain
- EAN code
- 8435071309080
- Tariff code
- 8518400000
- Shipping Location
- Spain
- Width (cm)
- 11
- Height (cm)
- 7
- Depth (cm)
- 20
- Vol. (dm3)
- 1.54
- Gross Weight (kg)
- 0.6
- Net Weight (kg)
- 0.5
- Format
- Single-gang EU format - TBC
Unit - Warranty (months)
- 36
- Type
- 40W 70/100 V line attenuator, with an integrated 24 VDC priority relay
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
PHYSICAL
| Installation options |
Surface, in-wall |
|---|---|
| Operating temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Operating humidity |
<85% HR 85% HR |
| Storage temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Storage humidity |
<90% HR 90% HR |
| Included accessories |
Surface-moun box |
| Finished colour |
White (RAL 9016) |
| Dimensions |
86 x 86 x 50 mm / 3.38 x 3.38 x 1.97 in. (WxHxD) with surface-mount box |
| Weight |
0.5 kg / 1.1 lb |
| Pieces per box |
1 unit |
| Shipping dimensions |
110 x 70 x 200 mm / 4.33 x 2.76 x 7.87 in. (WxHxD) |
| Shipping weight |
0.6 kg / 1.32 lb |
| Format |
Unit Single-gang EU format - TBC |
| Type |
40W 70/100 V line attenuator, with an integrated 24 VDC priority relay |
LOGISTICS
| Status |
New |
|---|---|
| Origin Production |
Spain |
| EAN code |
8435071309080 |
| Tariff code |
8518400000 |
| Shipping Location |
Spain |
| Width (cm) |
11 |
| Height (cm) |
7 |
| Depth (cm) |
20 |
| Vol. (dm3) |
1.54 |
| Gross Weight (kg) |
0.6 |
| Net Weight (kg) |
0.5 |
| Warranty (months) |
36 |
