WPaBT
CWPABT
Available

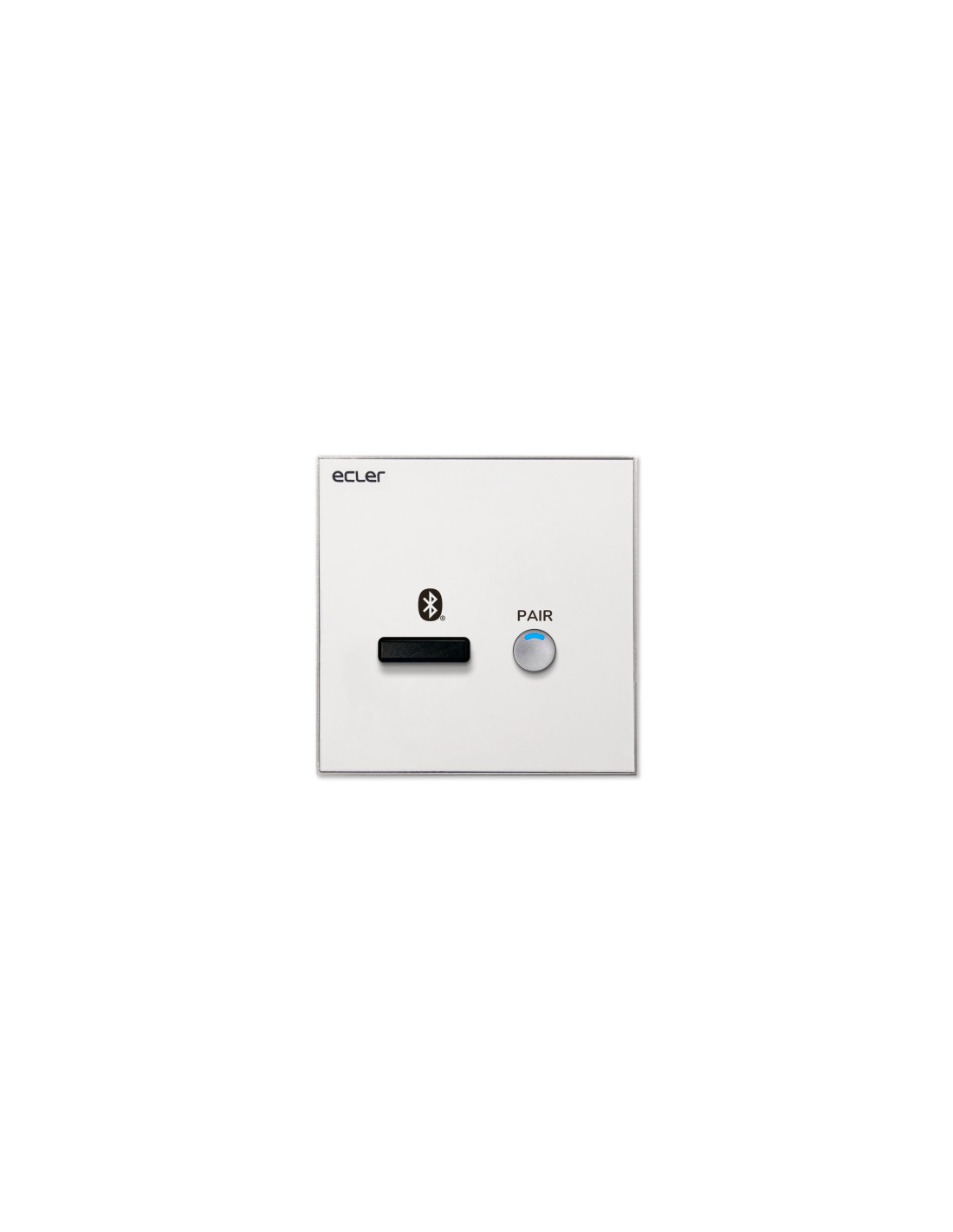

Bluetooth® Wall Panel Receiver
WPaBT is a Class 1 Bluetooth® receiver with balanced stereo Euroblock output. Surface-mount installation box included (WxHxD = 86 x 86 x 38mm).
WPa is a series of remote control wall panels for systems and interconnecting audio signals, with a modern, elegant, discrete aesthetic, designed in collaboration with Italdesign Giugiaro.
- Installation options
- Surface, In-wall
- Enclosure material
- Zincor front panel, plastic frame
- Operating temperature
- Min: 0°C ; 32°F
Max: 35°C ; 95°F - Operating humidity
- 85% HR
<85% HR - Storage temperature
- Min: -10°C ; 14°F
Max: 50°C ; 122°F - Storage humidity
- 90% HR
<90% HR - Included accessories

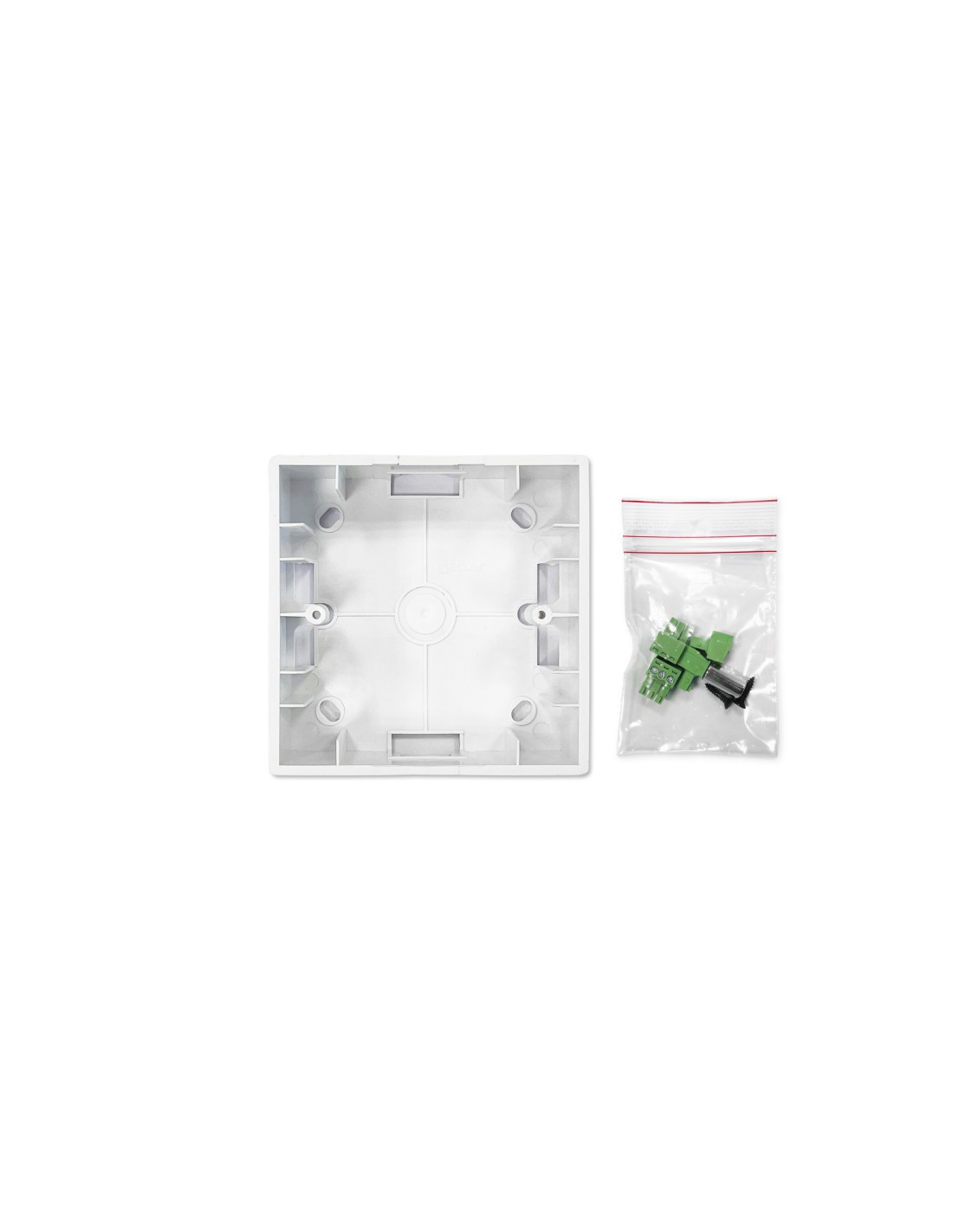

- Euroblock connectors, Surface mount box,
Warranty card, Getting started card, Magnet and
Screws - Optional accessories
- WP-PSU 24V
- Finished colour
- White (RAL 9003)
- Dimensions
- 86 x 86 x 25 mm / 3.4 x 3.4 x 1 in (WxHxD)
- Weight
- 0.14 kg / 0.3 lb
- Pieces per box
- 1 unit
- Shipping dimensions
- 21.5 x 7.5 x 12 mm / 8.5 x 3 x 0.5 in (WxHxD)
- Shipping weight
- 0.29 kg / 0.64 lb
- Status
- New
- Origin Production
- Spain
- EAN code
- 8435071313810
- Tariff code
- 8517620000
- Shipping Location
- Spain
- Width (cm)
- 12
- Height (cm)
- 21
- Depth (cm)
- 8
- Vol. (dm3)
- 2.02
- Gross Weight (kg)
- 0.1
- Net Weight (kg)
- 0.03
- Format
- Double Gang EU Forma
Unit - Warranty (months)
- 36
- Type
- Bluetooth® Receiver
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
PHYSICAL
| Installation options |
Surface, In-wall
|
|---|---|
| Enclosure material |
Zincor front panel, plastic frame |
| Operating temperature |
Min: 0°C ; 32°F
Max: 35°C ; 95°F |
| Operating humidity |
<85% HR 85% HR |
| Storage temperature |
Min: -10°C ; 14°F
Max: 50°C ; 122°F |
| Storage humidity |
<90% HR 90% HR |
| Included accessories |
Euroblock connectors, Surface mount box,
Warranty card, Getting started card, Magnet and
Screws |
| Optional accessories |
WP-PSU 24V |
| Finished colour |
White (RAL 9003) |
| Dimensions |
86 x 86 x 25 mm / 3.4 x 3.4 x 1 in (WxHxD) |
| Weight |
0.14 kg / 0.3 lb
|
| Pieces per box |
1 unit |
| Shipping dimensions |
21.5 x 7.5 x 12 mm / 8.5 x 3 x 0.5 in (WxHxD) |
| Shipping weight |
0.29 kg / 0.64 lb
|
| Format |
Unit Double Gang EU Forma |
| Type |
Bluetooth® Receiver |
LOGISTICS
| Status |
New |
|---|---|
| Origin Production |
Spain |
| EAN code |
8435071313810 |
| Tariff code |
8517620000 |
| Shipping Location |
Spain |
| Width (cm) |
12 |
| Height (cm) |
21 |
| Depth (cm) |
8 |
| Vol. (dm3) |
2.02 |
| Gross Weight (kg) |
0.1 |
| Net Weight (kg) |
0.03 |
| Warranty (months) |
36 |
