WPaCNX-CBO
WPaCNX-CBO
WPaCNX-CBO
WPaCNX-CBO

WPaCNX-CBO

CWPACNXCBO2
Available
Remote Wall Panel Connection
See more Features Resources

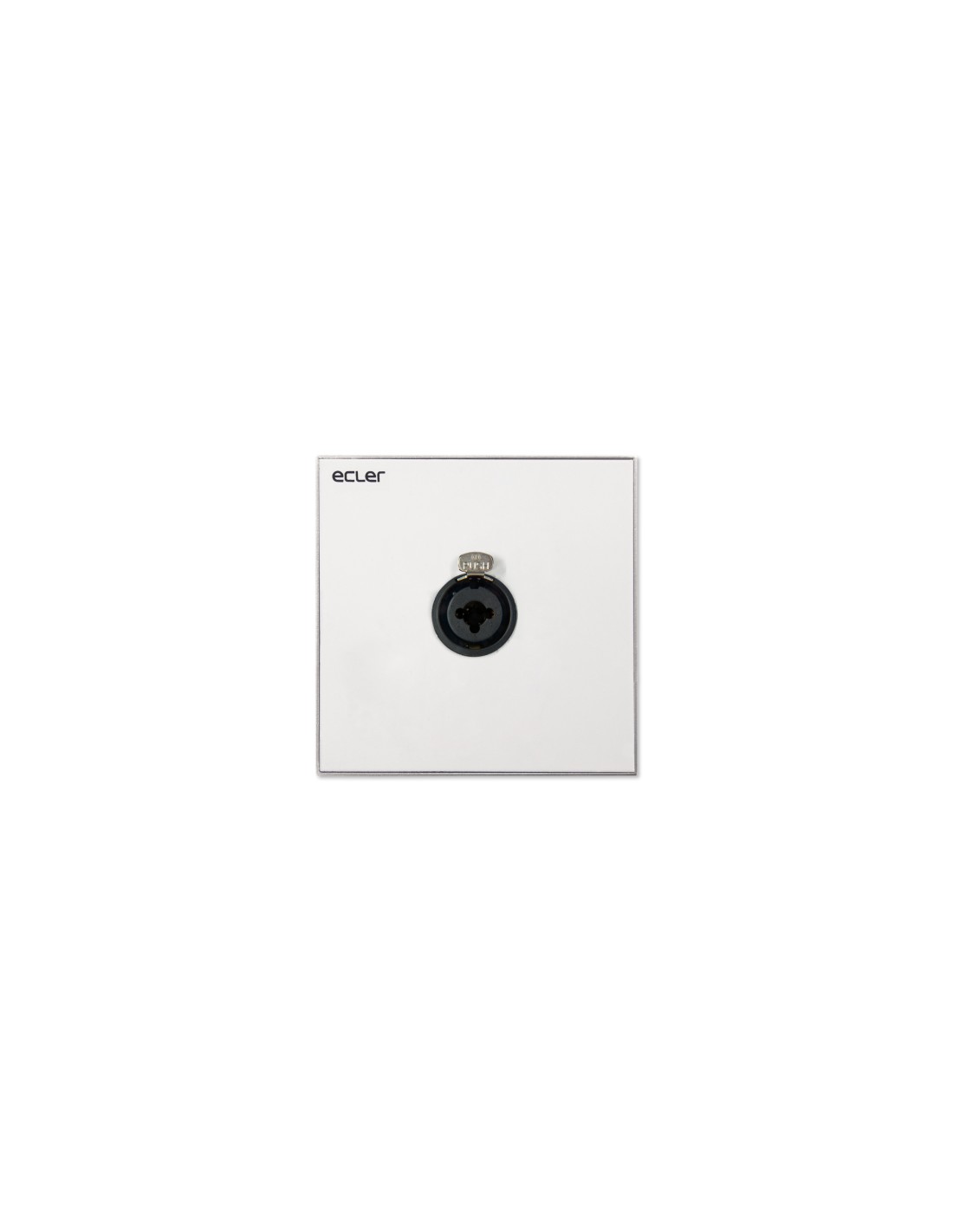

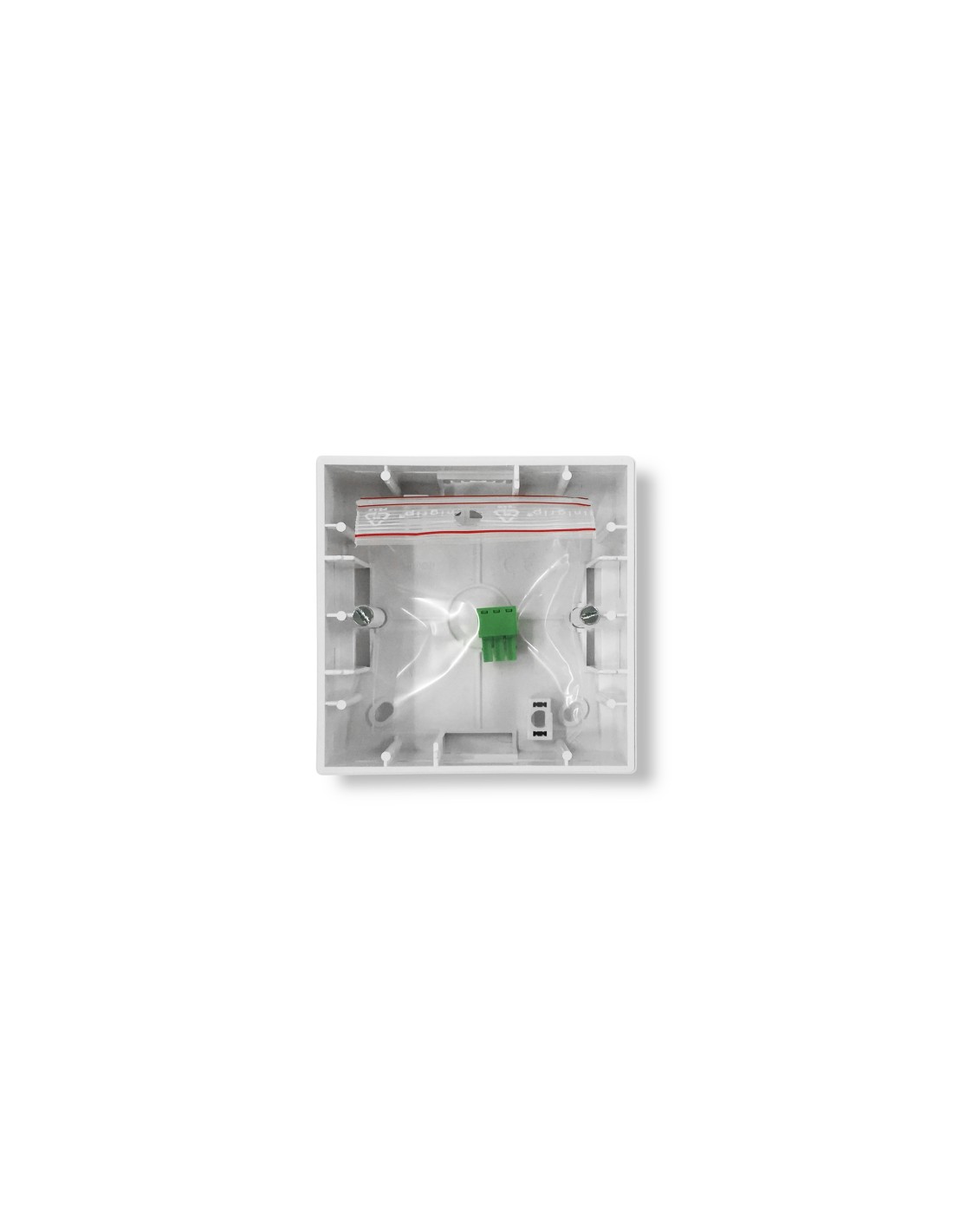

WPaCNX-CBO is a connection Wall Plate with Female 3 pin XLR connector + Jackk ST (combo connector). Screw-type connector at the back (no solder needed). Surface-mount installation box included (WxHxD = 86 x 86 x 38mm). WPa is a series of remote control wall panels for systems and interconnecting audio signals, with a modern, elegant, discrete aesthetic, designed in collaboration with Italdesign Giugiaro.
Installation options
Surface, in-wall
Operating temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Operating humidity
85% HR
Storage temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Storage humidity
90% HR
Included accessories
Surface-mount box
Finished colour
White (RAL 9016)
Dimensions
86 x 86 x 38 mm / 3.38 x 3.38 x 1.49 in. (WxHxD) with surface-mount box
Weight
0.13 kg / 0.28 lb
Pieces per box
Unit
Shipping dimensions
120 x 210 x 80 mm / 4.72 x 8.27 x 3.15 in. (WxHxD)
Shipping weight
0.26 kg / 0.57 lb
Format
Single-gang EU format - TBC
Type
Wall-mounted remote control, with an XLR female, 3-pin + stereo jack (combo connector)
