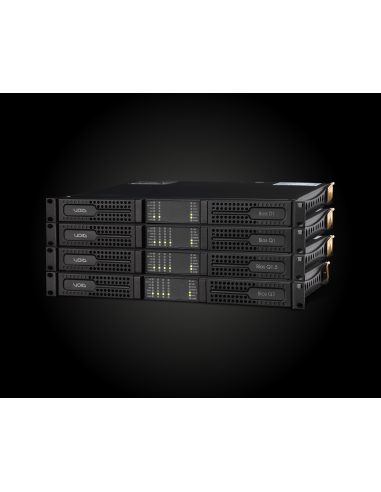

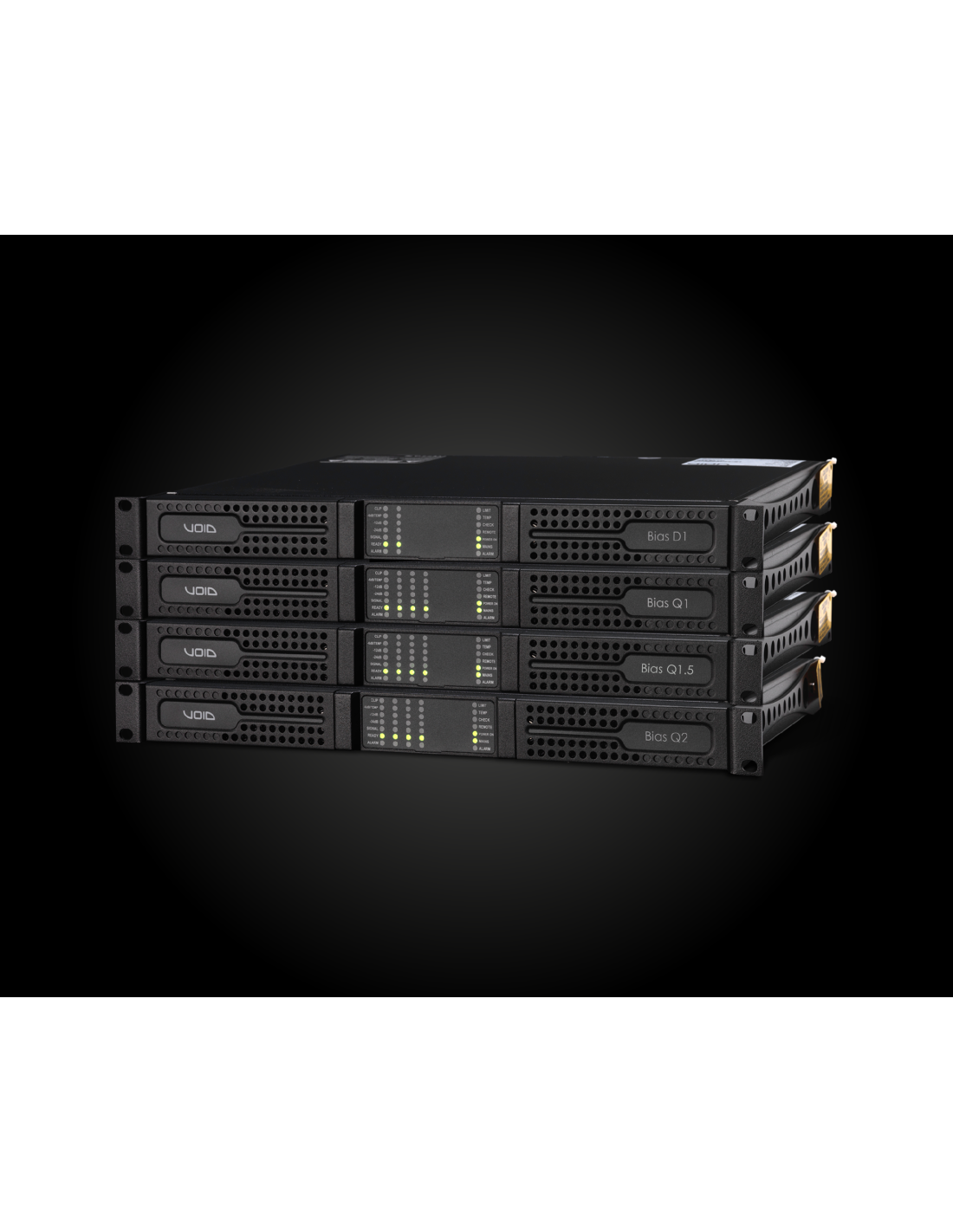

"Bias Patch Panel Panel with SpeakOn™ and XLR connections for 1-stage Bias Q1, Q2 or 2-stage Bias D1
Bias D1: The highly versatile Bias D1 amplifier is simple and easy to set up. Its front panel LED display provides status feedback, which can alternatively be obtained by connecting the amp to a PC running Armonia Pro Audio Suite™ software. A fully integrated, state-of-the-art DSP offers extensive system management features, including sound shaping and limiter functionality. DSP+D versions of the Bias D1 extend system performance, supported by Dante™ digital audio networking architecture and the on-board, high-end signal processing.
Bias Q1: For reliable premier-grade power and headroom in the lightest possible package size, look no further than this four channel Bias Q1 DSP+D amplifier. With smaller dimensions and a lighter weight than the Bias Q5, it is still durable and maintains an impressive sound quality.
Bias Q2: For reliable premier-grade power and headroom in the lightest possible package size, look no further than this four channel Bias Q2 DSP+D amplifier. With smaller dimensions and a lighter weight than the Bias Q5, it is still durable and maintains an impressive sound quality.
- Dimensions
- 483 x 44.5 x 358 mm
19.0 x 1.75 x 14.1 in - Weight
- 7.0 Kg (15.4 lb)
- Status
- New
- EAN code
- IT2098
- Tariff code
- 8518400000
- Shipping Location
- Spain
- Frequency response
- 20 Hz - 20 kHz ( ±0.5 dB , 1 W @ 8 Ω)
- Input sensitivity
- 20 kΩ balanced
- Crosstalk
- typical -70 dB @ 1 kHz
- Power supply
- Universal regulated switch mode with PFC, SRM ( 0.95 (pOWER FACTOR ( 500 W ouput)
Universal regulated switch mode with PFC, SRM (> 0.95 (pOWER FACTOR (> 500 W ouput) - Max input level
- 20 dBu
- THD + Noise
- 0.1% (typical 0.05%)
< 0.1% (typical < 0.05%) - Damping factor
- 500 @ 8 Ω, 20 Hz - 100 Hz
> 500 @ 8 Ω, 20 Hz - 100 Hz - Slew rate
- 50 V/μs @ 8 Ω, input filter bypassed
> 50 V/μs @ 8 Ω, input filter bypassed - Cooling
- Fan, continuously variable speed, temperature controlled, front to rear airflow
- Gain
- 26/ 29/ 32/ 35 dB
- AD converters
- 24 Bit Tandem™ @ 48 kHz
- DA converters
- 24 Bit Tandem™ @ 48 kHz
- Sample rate converter
- 24 Bit @ 44.1 kHz to 192 kHz
- Internal precision
- 32 bit floating point
- Latency
- 2.5 ms fixed latency architecture
- Memory/Presets
- 128 MB (RAM) plus 512 MB flash for presets
- Delay
- 2 s (input) + 100 ms (output) for time alignment
- Equalizer
- Raised-cosine, custom FIR, parametric IIR:
- Crossover
- linear phase (FIR), Butterworth, Linkwitz-Riley, Bessel: 6 dB/oct to 48 dB/oct (IIR)
- Limiters
- TruePower™, RMS voltage, RMS current, Peak limiter
- Damping control
- Active DampingControl™ and LiveImpedance™ measurement
PHYSICAL
| Dimensions |
483 x 44.5 x 358 mm
19.0 x 1.75 x 14.1 in |
|---|---|
| Weight |
7.0 Kg (15.4 lb) |
LOGISTICS
| Status |
New |
|---|---|
| EAN code |
IT2098 |
| Tariff code |
8518400000 |
| Shipping Location |
Spain |
ELECTRICAL
| Power supply |
Universal regulated switch mode with PFC, SRM (> 0.95 (pOWER FACTOR (> 500 W ouput) Universal regulated switch mode with PFC, SRM ( 0.95 (pOWER FACTOR ( 500 W ouput) |
|---|
AUDIO CONVERTERS
| Latency |
2.5 ms fixed latency architecture |
|---|
ANALOGUE AUDIO OUTPUT PORTS
| Crosstalk |
typical -70 dB @ 1 kHz |
|---|
SIGNAL
| Damping factor |
> 500 @ 8 Ω, 20 Hz - 100 Hz 500 @ 8 Ω, 20 Hz - 100 Hz |
|---|---|
| Slew rate |
> 50 V/μs @ 8 Ω, input filter bypassed 50 V/μs @ 8 Ω, input filter bypassed |
TECHNOLOGIES
| Cooling |
Fan, continuously variable speed, temperature controlled, front to rear airflow |
|---|
SETTINGS
| Gain |
26/ 29/ 32/ 35 dB |
|---|
DSP
| AD converters |
24 Bit Tandem™ @ 48 kHz
|
|---|---|
| DA converters |
24 Bit Tandem™ @ 48 kHz
|
| Sample rate converter |
24 Bit @ 44.1 kHz to 192 kHz
|
| Internal precision |
32 bit floating point |
| Memory/Presets |
128 MB (RAM) plus 512 MB flash for presets |
| Delay |
2 s (input) + 100 ms (output) for time alignment |
| Equalizer |
Raised-cosine, custom FIR, parametric IIR:
|
| Crossover |
linear phase (FIR), Butterworth, Linkwitz-Riley, Bessel: 6 dB/oct to 48 dB/oct (IIR) |
| Limiters |
TruePower™, RMS voltage, RMS current, Peak limiter |
| Damping control |
Active DampingControl™ and LiveImpedance™ measurement |
ANALOGUE AUDIO INPUTS
| Input sensitivity |
20 kΩ balanced |
|---|
LINE INPUTS
| Max input level |
20 dBu |
|---|
LINE OUTPUTS
| Frequency response |
20 Hz - 20 kHz ( ±0.5 dB , 1 W @ 8 Ω) |
|---|---|
| THD + Noise |
< 0.1% (typical < 0.05%) 0.1% (typical 0.05%) |
