PAGENETDN
CPAGENETDN
Stock disponible
Pantalla táctil de 10" | UCP | PoE DC | Dante™ | EclerNet

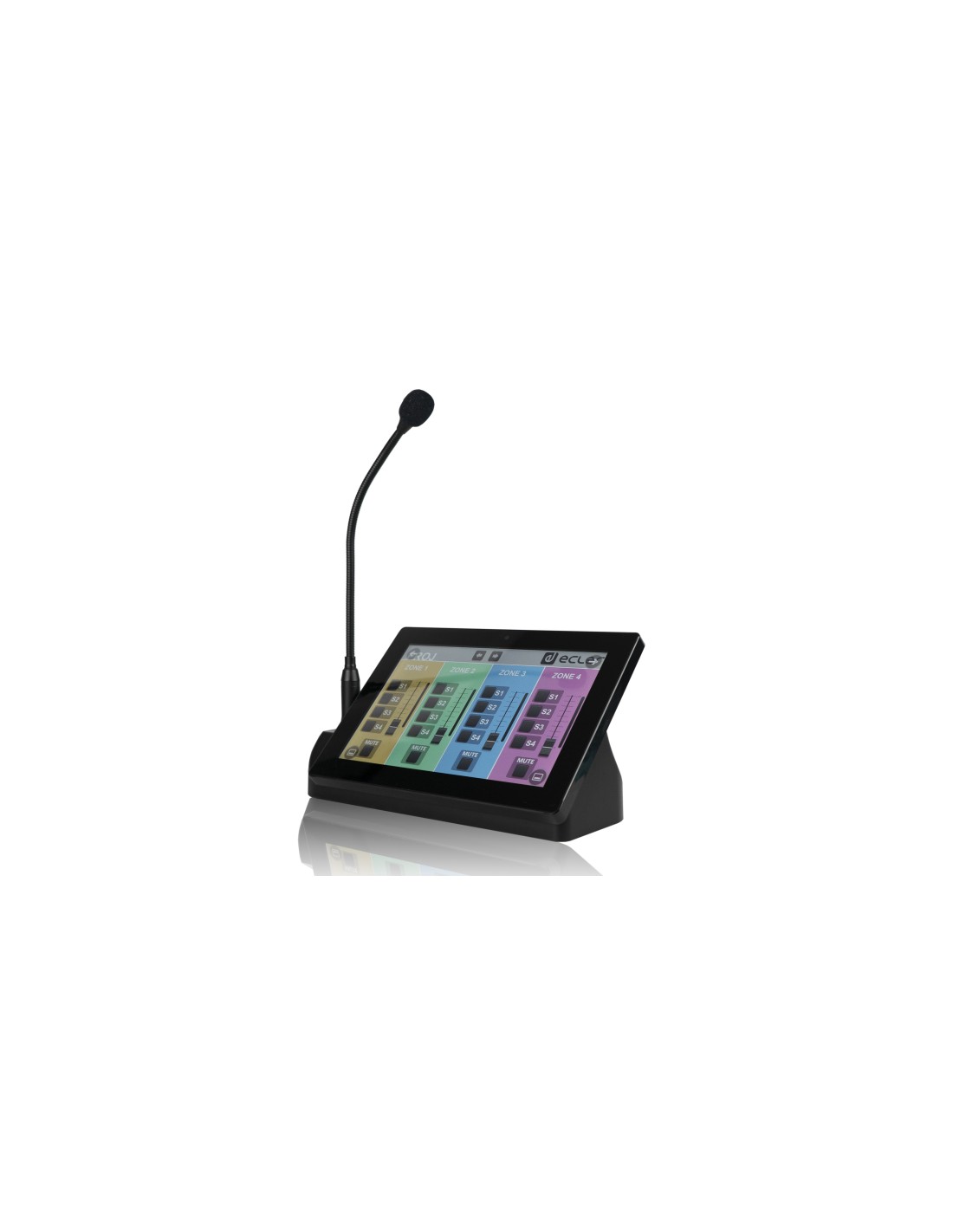

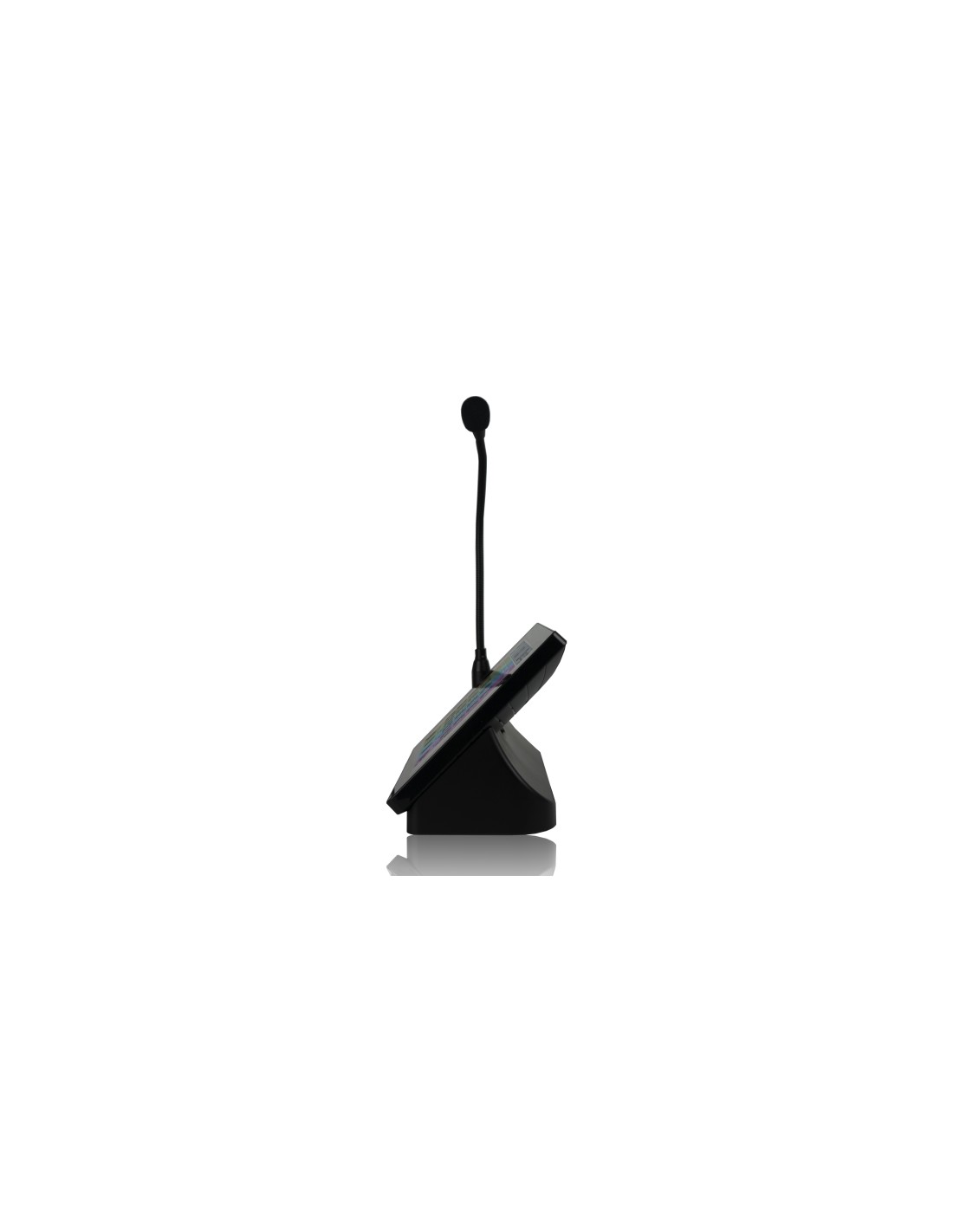

PAGENETDN es una estación de sobremesa para avisos de megafonía con transporte de audio sobre IP Dante™/AES67, ideal para la gestión de grandes proyectos zonificados, en combinación con la matriz MIMO7272DN.
- Opciones de instalación
- Desktop
- Temperatura de funcionamiento
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Humedad de funcionamiento
- 85% HR
<85% HR - Temperatura de almacenamiento
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Humedad de almacenamiento
- 90% HR
<90% HR - Accesorios incluidos
- Gooseneck microphone + anti-pop screen, External PSU, 24V – 12A, universal, multi AC plug, Euroblock 3p aerial connector, Quick User Guide and Warranty Card
- Dimensiones
- 295 x 155 x 135 mm / 11.6 x 6.1 x 5.3 in. (WxHxD)
- Peso
- 1.5 kg / 3.3 lb
- Dimensiones de envío
- 240 x 150 x 450 mm / 9.45 x 5.91 x 17.72 in. (WxHxD)
- Peso del envío
- 2.5 kg / 5.51 lb
- Estado
- New
- Código EAN
- 8435071307338
- Código arancelario
- 8518400000
- Lugar de envío
- Spain
- Processor
- Quad core processor, clocked 1.6G
- Resolution
- 1280x800
- Frequency response
- 50Hz – 18KHz (-10dB)
- Programing and control
- EclerNet manager
- AC mains requirement
- 100-240VAC + External PSU 12VDC
- AC mains connector
- Multi-plug AC set - TBC
- Alimentación
- External and universal, 12VDC
- Microphone type
- Removable gooseneck condenser microphone
(eMCN1) - Polar pattern
- Unidireccional
- Phantom power
- 48VDC, ON/OFF by internal JUMPER
- Output connection type
- Balanced, analog Phoenix connector (symmetric)
- Max power consumption
- 12W from 12V External Power Supply Voltage
15W from PoE - Number of output channels
- 2 DANTE™/AES67
- Number of input channels
- 1 AUX
- Input connection type
- RCA
XLR connection - Input impedance
- 10kΩ
>10kΩ - Latency
- 1 / 2 / 5 ms (selectable)
- Ethernet
- Ethernet Base-Tx 10/100Mb / 1GB CAT5e or
better up to 100m. Supports PoE - Filters
- HPF: 100Hz 12dB/oct ON/OFF by internal JUMPER
- Visor
- IPS, 218x135mm
- Protocols
- Dante™ / AES67
Dante™ / AES67 (2 flows) - Number of digital input ports
- 2
- Interfaces
- 1 x RJ45
- Number of paging zones
- EclerNet configurable
- Type
- Programmable paging station
- Touch-panel
- Capacitive multi-touch
- PoE
- PoE: class 0 802.3af Poe PD compliant
- Input Gain
- -20dBV / 0dBV
- Size
- 10.1”
- Contrast Ratio
- 1300
- Brigthness
- 300 cdm2
- Scale
- 16:9
- Backlight
- LED
Servicios e instalaciones implementadas
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SISTEMA
| Processor |
Quad core processor, clocked 1.6G |
|---|---|
| Number of input channels |
1 AUX |
| Number of paging zones |
EclerNet configurable |
FÍSICO
| Opciones de instalación |
Desktop |
|---|---|
| Temperatura de funcionamiento |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Humedad de funcionamiento |
<85% HR 85% HR |
| Temperatura de almacenamiento |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Humedad de almacenamiento |
<90% HR 90% HR |
| Accesorios incluidos |
Gooseneck microphone + anti-pop screen, External PSU, 24V – 12A, universal, multi AC plug, Euroblock 3p aerial connector, Quick User Guide and Warranty Card
|
| Dimensiones |
295 x 155 x 135 mm / 11.6 x 6.1 x 5.3 in. (WxHxD) |
| Peso |
1.5 kg / 3.3 lb
|
| Dimensiones de envío |
240 x 150 x 450 mm / 9.45 x 5.91 x 17.72 in. (WxHxD) |
| Peso del envío |
2.5 kg / 5.51 lb |
| Type |
Programmable paging station |
LOGÍSTICA
| Estado |
New |
|---|---|
| Código EAN |
8435071307338 |
| Código arancelario |
8518400000 |
| Lugar de envío |
Spain |
MICS
| Microphone type |
Removable gooseneck condenser microphone
(eMCN1) |
|---|---|
| Polar pattern |
Unidireccional |
ELECTRICAL
| AC mains requirement |
100-240VAC + External PSU 12VDC |
|---|---|
| AC mains connector |
Multi-plug AC set - TBC |
| Alimentación |
External and universal, 12VDC |
| Max power consumption |
12W from 12V External Power Supply Voltage
15W from PoE |
| PoE |
PoE: class 0 802.3af Poe PD compliant |
AUDIO CONVERTERS
| Latency |
1 / 2 / 5 ms (selectable) |
|---|
AUDIO OVER IP
| Protocols |
Dante™ / AES67 Dante™ / AES67 (2 flows) |
|---|---|
| Number of digital input ports |
2 |
| Interfaces |
1 x RJ45 |
CONNECTIVITY
| Programing and control |
EclerNet manager |
|---|---|
| Ethernet |
Ethernet Base-Tx 10/100Mb / 1GB CAT5e or
better up to 100m. Supports PoE |
CHANNELS
| Number of output channels |
2 DANTE™/AES67 |
|---|
MIC INPUTS
| Phantom power |
48VDC, ON/OFF by internal JUMPER |
|---|---|
| Filters |
HPF: 100Hz 12dB/oct ON/OFF by internal JUMPER |
LINE INPUTS
| Input connection type |
XLR connection RCA |
|---|---|
| Input impedance |
>10kΩ 10kΩ |
| Input Gain |
-20dBV / 0dBV |
LINE OUTPUTS
| Frequency response |
50Hz – 18KHz (-10dB)
|
|---|---|
| Output connection type |
Balanced, analog Phoenix connector (symmetric) |
SCREEN/DISPLAY
| Resolution |
1280x800 |
|---|---|
| Visor |
IPS, 218x135mm |
| Touch-panel |
Capacitive multi-touch |
| Size |
10.1” |
| Contrast Ratio |
1300
|
| Brigthness |
300 cdm2 |
| Scale |
16:9 |
| Backlight |
LED |
