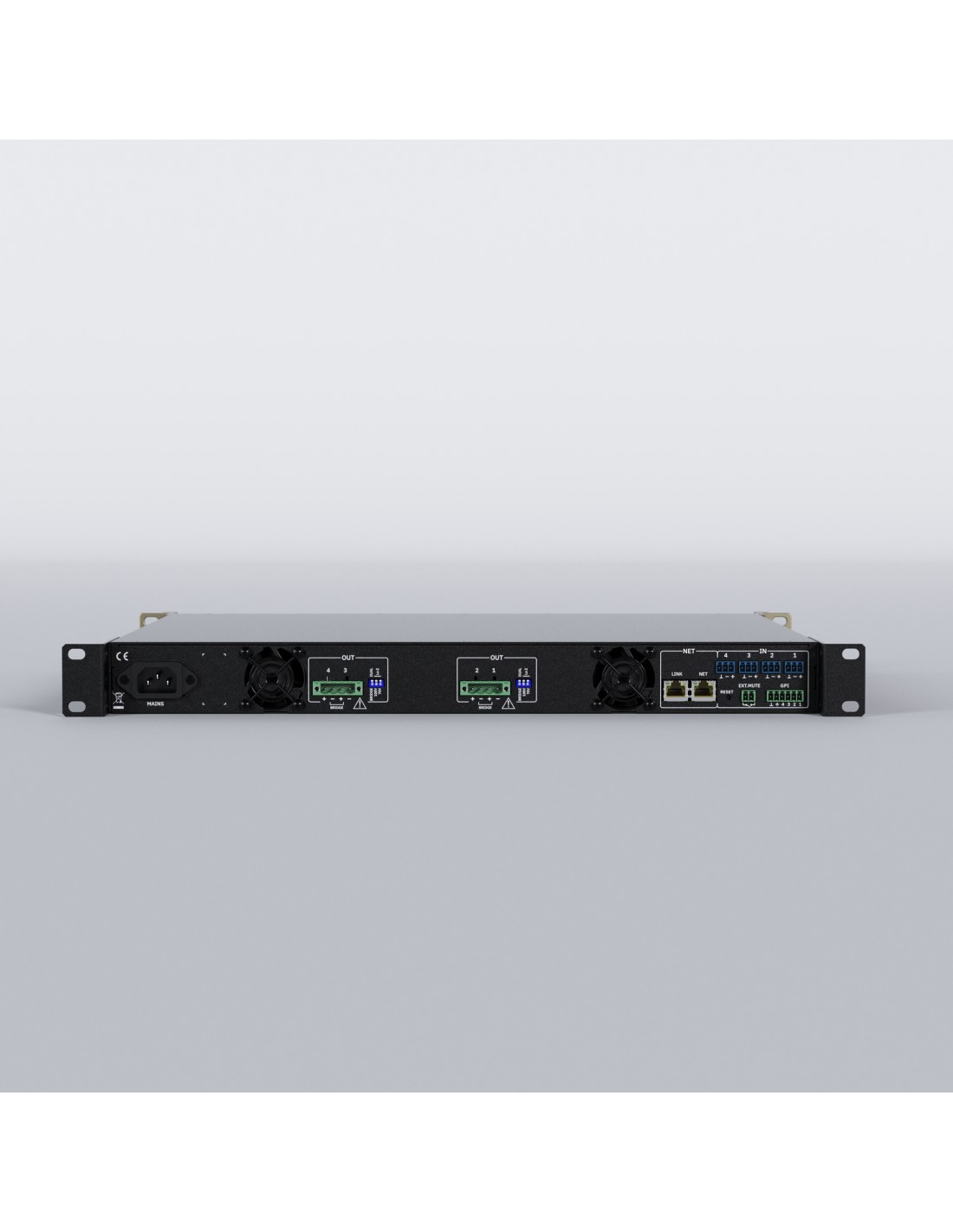

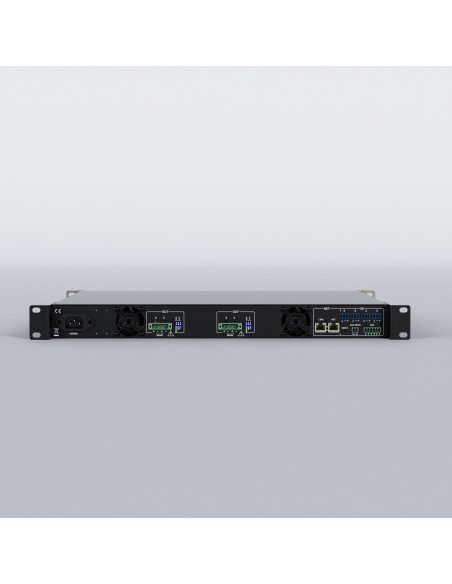

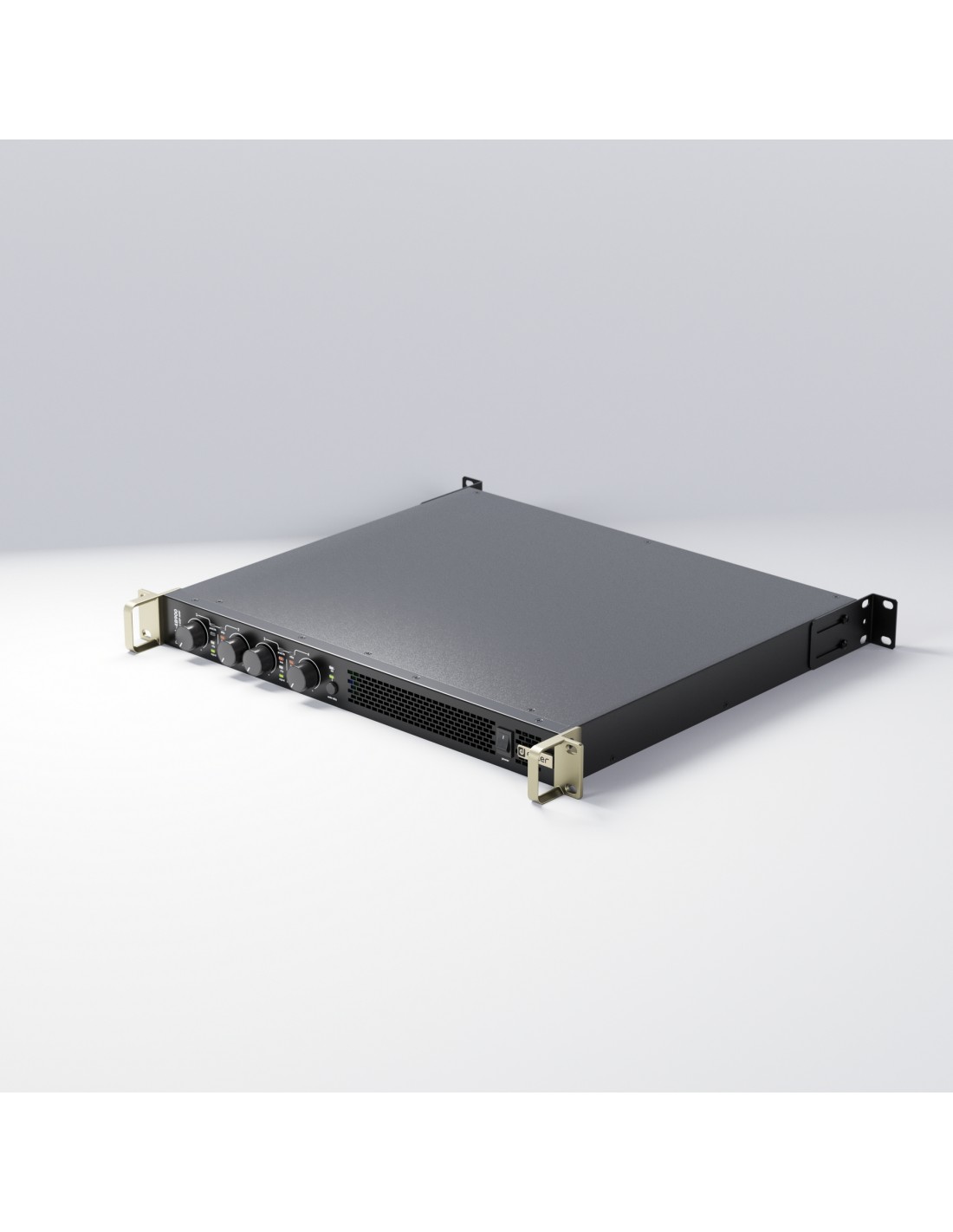

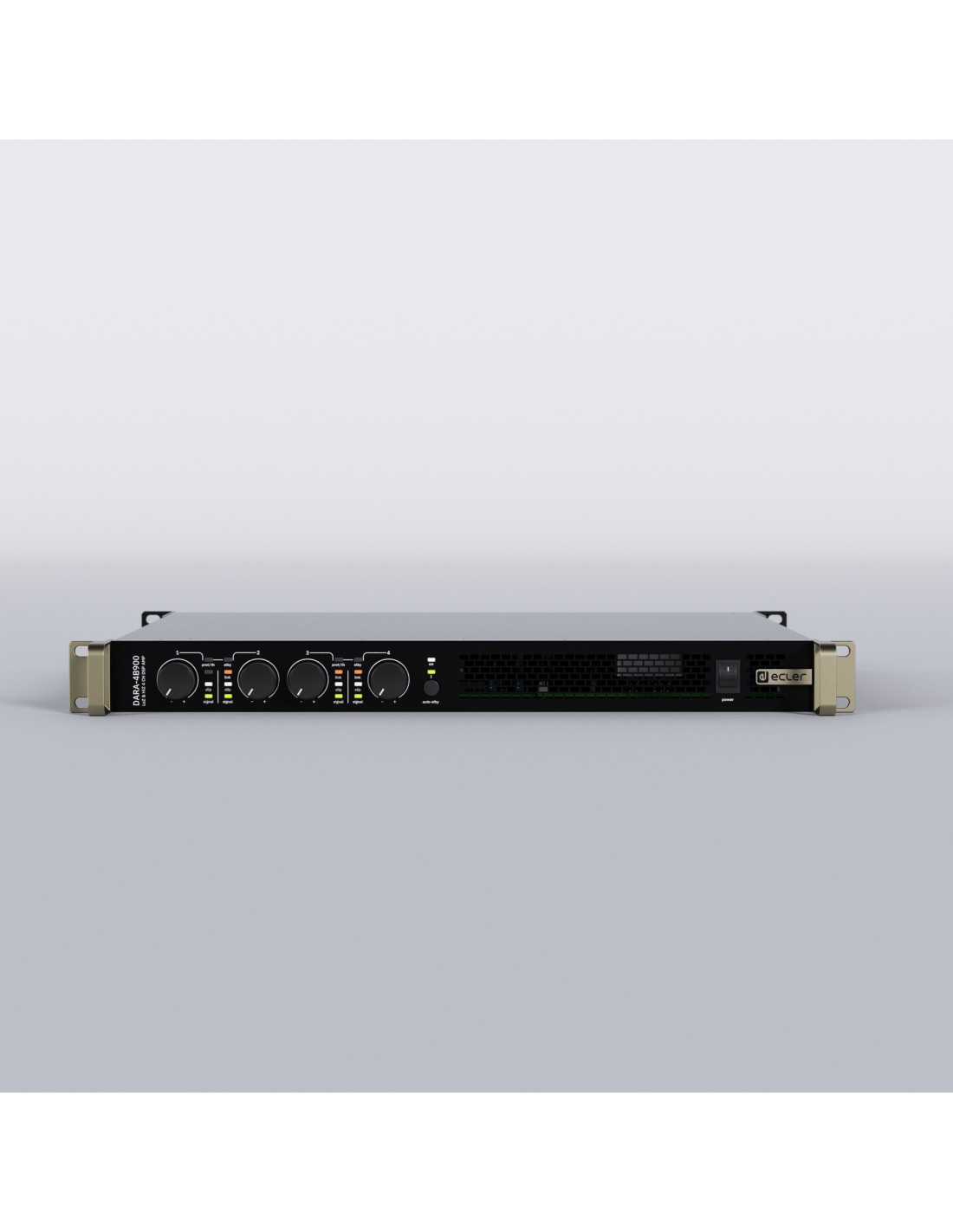

DARA-4B900
CDARA4B900
Consultar disponibilidad
4x900 W RMS @ 4 Ω | Alta y Baja impedancia | DSP | Clase D
DARA-4B900 es un amplificador de potencia Clase D de alto rendimiento, habilitado para red, desarrollado para instalaciones de audio profesional que requieren flexibilidad, eficiencia y un control del sistema fiable. Con una potencia de hasta 4 × 900 W RMS a 4 Ω, admite sistemas de altavoces de baja y alta impedancia (70 V / 100 V), así como el modo Bridge, configurable por pares de canales para adaptarse a una amplia variedad de necesidades de instalación.
Equipado con un DSP integrado con matriz interna y doble puerto Ethernet con switch integrado, el DARA-4B900 permite una gestión precisa del audio y una integración fluida en sistemas en red escalables. La compatibilidad total con la serie PULSO permite el control y la supervisión remotos mediante aplicaciones móviles o interfaz web, lo que lo convierte en una solución perfecta para instalaciones fijas en múltiples aplicaciones.
- Opciones de instalación
- Rack 19" installation & desktop
- Temperatura de funcionamiento
- -20⁰ to 40⁰ C
-4⁰ to 104⁰ F - Humedad de funcionamiento
- 10-90% RH, non-condensing
- Temperatura de almacenamiento
- -40⁰ to 70⁰ C
-40⁰ to 158⁰ F - Humedad de almacenamiento
- 10-95% RH, non-condensing
- Accesorios incluidos
- EU power cord, UK,US and CN power cord adapters, IEC Power Cord, Remote Volume connector (GPI), External Mute connector x4 Euroblock 3-pin connectors (Inputs), x2 Euroblock 4-pin connectors (Outputs), Warranty Card, Rear Rack Kit, 3M rubber foot (4pcs)
- Dimensiones
- 482.6 x 44 x 414 mm / 19 x 1.73 x 16.30 in. (WxHxD)
- Peso
- 7,65 kg / 16,87 lb
- Dimensiones de envío
- 590 x 80 x 590 mm / 23.23 x 3.15 x 23.23 in. (WxHxD)
- Peso del envío
- 10.74 kg / 23.68 lb
- Processor
- 32 bits
- Sampling rate
- 48 kHz
- Resolution
- 24 bits
- Frequency response
- 15Hz - 22kHz (-3dB, 1W any load)
- Sensibilidad de entrada
- 0 dBV
2,21 dBu
1 Vrms - CMRR
- 52 Typ (from 20Hz to 20kHz)
- Crosstalk
- 90 dB (@1kHz)
- Programing and control
- Embedded web application
- GPIs
- x4 GPIs (0-10V)
- AC mains requirement
- 100-240 V @ 50-60Hz (±10%)
- AC mains connector
- IEC C14 inlet
- Alimentación
- Universal, regulated SMPS with PFC
- SNR
- 97,8 dBa
- Output connection type
- 2-pin Euroblock. Pitch: 5,08 mm
- Potencia
- 4,2 W
27,3 VA
4,8 W
81 VA
97,6 W
118 VA
100 W
163 VA
692,5 W
744 VA
725 W
739 VA
1236 W
1300 VA
1321 W
1337 VA - Number of output channels
- 4
- Number of input channels
- 4
- Input connection type
- 3-pin Euroblock, balanced, pitch 3,5 mm
- Max output power @ 100V
- 900 W
- Max output power @ 70V
- 900 W
- Input impedance
- 20kΩ balanced
- Max input level
- +20,8dBV
23 dBu - THD + Ruido
- 0,1% ( @1kHz, from 0,1W to Full Power)
- Cooling
- 2 fans
- AD converters
- 24 Bit Tandem™ @ 48 kHz
105 dB-A Dynamic Range - 0.0018% THD+N
32 Bit @ 48 kHz
112 dB-A Dynamic Range - 0.005% THD+N - DA converters
- 24 Bit Tandem™ @ 48 kHz
120 dB Dynamic Range - 0.001% THD+N
32 Bit @ 48 kHz
112 dB-A Dynamic Range - 0.005% THD+N - Sample rate converter
- 24 bits @ 48 kHz
- Internal precision
- 32 bits floating point
- Latency
- 1,5 ms
- Memory/Presets
- 15 amplifiers presets, ? Speakers presets
15 amplifiers presets
40 Speakers presets (22 Ecler presets + 18 Custom presets) - Delay
- 20 ms (input) + 300 ms (output) for time alignment
- Equalizer
- Custom FIR, Parametric IIR: Peaking, Low Shelf, High Shelf, AllPass 1st, AllPass 2nd, General Low, General High, Butterworth Low, Butterworth High, Bessel Low, Bessel High
- Limiters
- RMS and Peak voltage limiter
- Maximum fan noise
- 57 dBA
- Ethernet
- Ethernet Base-Tx 100Mb CAT5 up to 100m
Secondary RJ-45 port for Daisy-Chaining - Output configuration
- 2Ω, 4Ω, 8Ω, 100V, 70V and 4/8Ω in Bridge Mode
- Input configuration
- Digital Matrix 4 In x 4 Out
- Efficiency
- 74% (1/4 POWER, @ 4Ω)
- AC protection
- Yes
- DC protection
- Yes
- Short-circuit protection
- Yes
- Clip limiter
- Yes
- Thermal protection
- Yes
- External MUTE
- Yes, contact
- Attenuators
- Assignable front panel knobs
- Output settings
- 2Ω/4Ω/8Ω/70V/100V/Bridge Mode output selection by pair of channels
- Signal Present
- SIGNAL LED (Green) per channel
- Cliping
- CLIP LED (Red) per channel
- Standby
- STANDBY (Orange) per channel
- Tiempo de espera automático
- 90 seconds
- Umbral de espera automático
- -40dB
- Dynamic range
- 112 dB
- Amplification technology
- Class D
- Power ON/OFF
- Front panel switch
- Thermal
- TH/PROT LED (Red) per channel
- Protect
- TH/PROT LED (Red) per channel
- Voltage gain
- 36dB
- Power factor correction
- 0,96
- HF protection
- Yes
- Output mode settings
- Back panel Dipswitch by pairs of channels
BRIDGE/2Ω/4Ω/8Ω/70V/100V - Limit
- TH/PROT LED (Red)
- Data
- DATA LED (White) per unit
- On
- ON LED (Green) per unit
- Digital processing
- 32 bits
- Inputs processing
- Delay, Parametric and Graphic EQ, Compressor
- Outputs processing
- Delay, Parametric and Graphic EQ, Polarity, Compressor, FIR filters, RMS and Peak Limiter
- Others
- Presets management, Panels and Users, Internal matrix, Linking and Stereo options, Selectable Auto-standby, Panel Operating Range, Knobs and GPI Matrix, Custom and Ecler speakers settings, Network Parameters, Finder
Presets management, Panels and Users, Internal matrix, Linking and Stereo options, Selectable Auto-standby, Panel Operating Range, Knobs and GPI Matrix, Custom and Ecler speakers settings, Network Parameters, Finder, Remote control and configuration via - Energy saving
- Auto standby function selectable
- Current Draw
- 0,23 Arms
0,35
0,71 Arms
0,97 Arms
3,25 Arms
5,7 Arms
6,27 Arms
11,45 Arms - Thermal Loss
- 3,6 kcal/h
14,3 BTU/h
4,1 kcal/h
16,4 BTU/h
83 kcal/h
329,4 BTU/h
86 kcal/h
341,3 BTU/h
208,6 kcal/h
827,7 BTU/h
236,5 kcal/h
289 kcal/h
1146 BTU/h
362,1 kcal/h
1436,9 BTU/h - Auto standby function
- Settings by embedded web application
- RUN/SLEEP mode
- Auto standby function
Forced standby
(Settings by embedded web application) - Mute
- MUTE LED (White) per channel
Servicios e instalaciones implementadas
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SISTEMA
| Processor |
32 bits |
|---|---|
| Number of input channels |
4 |
FÍSICO
| Opciones de instalación |
Rack 19" installation & desktop |
|---|---|
| Temperatura de funcionamiento |
-20⁰ to 40⁰ C
-4⁰ to 104⁰ F |
| Humedad de funcionamiento |
10-90% RH, non-condensing |
| Temperatura de almacenamiento |
-40⁰ to 70⁰ C
-40⁰ to 158⁰ F |
| Humedad de almacenamiento |
10-95% RH, non-condensing |
| Accesorios incluidos |
EU power cord, UK,US and CN power cord adapters, IEC Power Cord, Remote Volume connector (GPI), External Mute connector x4 Euroblock 3-pin connectors (Inputs), x2 Euroblock 4-pin connectors (Outputs), Warranty Card, Rear Rack Kit, 3M rubber foot (4pcs) |
| Dimensiones |
482.6 x 44 x 414 mm / 19 x 1.73 x 16.30 in. (WxHxD) |
| Peso |
7,65 kg / 16,87 lb |
| Dimensiones de envío |
590 x 80 x 590 mm / 23.23 x 3.15 x 23.23 in. (WxHxD) |
| Peso del envío |
10.74 kg / 23.68 lb |
POTENCIADO
| Potencia |
97,6 W
118 VA 1236 W 1300 VA 692,5 W 744 VA 100 W 163 VA 4,8 W 81 VA 1321 W 1337 VA 725 W 739 VA 4,2 W 27,3 VA |
|---|
ELECTRICAL
| AC mains requirement |
100-240 V @ 50-60Hz (±10%) |
|---|---|
| AC mains connector |
IEC C14 inlet |
| Alimentación |
Universal, regulated SMPS with PFC |
| Power factor correction |
0,96 |
AUDIO CONVERTERS
| Sampling rate |
48 kHz |
|---|---|
| Latency |
1,5 ms |
| Dynamic range |
112 dB |
ANALOGUE AUDIO OUTPUT PORTS
| Crosstalk |
90 dB (@1kHz) |
|---|
CONNECTIVITY
| Programing and control |
Embedded web application |
|---|---|
| Ethernet |
Ethernet Base-Tx 100Mb CAT5 up to 100m
Secondary RJ-45 port for Daisy-Chaining |
REMOTE CONTROL CONNECTIONS
| GPIs |
x4 GPIs (0-10V) |
|---|
CHANNELS
| Number of output channels |
4 |
|---|---|
| Output configuration |
2Ω, 4Ω, 8Ω, 100V, 70V and 4/8Ω in Bridge Mode |
| Input configuration |
Digital Matrix 4 In x 4 Out |
SIGNAL
| SNR |
97,8 dBa |
|---|---|
| Voltage gain |
36dB |
TECHNOLOGIES
| Cooling |
2 fans |
|---|---|
| Maximum fan noise |
57 dBA |
| Efficiency |
74% (1/4 POWER, @ 4Ω) |
| Amplification technology |
Class D |
| Energy saving |
Auto standby function selectable |
PROTECTIONS
| AC protection |
Yes |
|---|---|
| DC protection |
Yes |
| Short-circuit protection |
Yes |
| Clip limiter |
Yes |
| Thermal protection |
Yes |
| HF protection |
Yes |
SETTINGS
| Output settings |
2Ω/4Ω/8Ω/70V/100V/Bridge Mode output selection by pair of channels |
|---|---|
| Auto standby function |
Settings by embedded web application |
MONITORING
| Signal Present |
SIGNAL LED (Green) per channel |
|---|---|
| Cliping |
CLIP LED (Red) per channel |
| Standby |
STANDBY (Orange) per channel |
| Thermal |
TH/PROT LED (Red) per channel |
| Protect |
TH/PROT LED (Red) per channel |
| Limit |
TH/PROT LED (Red) |
| Data |
DATA LED (White) per unit |
| On |
ON LED (Green) per unit |
| Mute |
MUTE LED (White) per channel |
DSP
| AD converters |
32 Bit @ 48 kHz
112 dB-A Dynamic Range - 0.005% THD+N 24 Bit Tandem™ @ 48 kHz 105 dB-A Dynamic Range - 0.0018% THD+N |
|---|---|
| DA converters |
32 Bit @ 48 kHz
112 dB-A Dynamic Range - 0.005% THD+N 24 Bit Tandem™ @ 48 kHz 120 dB Dynamic Range - 0.001% THD+N |
| Sample rate converter |
24 bits @ 48 kHz |
| Internal precision |
32 bits floating point |
| Memory/Presets |
15 amplifiers presets, ? Speakers presets 15 amplifiers presets 40 Speakers presets (22 Ecler presets + 18 Custom presets) |
| Delay |
20 ms (input) + 300 ms (output) for time alignment |
| Equalizer |
Custom FIR, Parametric IIR: Peaking, Low Shelf, High Shelf, AllPass 1st, AllPass 2nd, General Low, General High, Butterworth Low, Butterworth High, Bessel Low, Bessel High |
| Limiters |
RMS and Peak voltage limiter |
| Digital processing |
32 bits |
| Inputs processing |
Delay, Parametric and Graphic EQ, Compressor |
| Outputs processing |
Delay, Parametric and Graphic EQ, Polarity, Compressor, FIR filters, RMS and Peak Limiter |
| Others |
Presets management, Panels and Users, Internal matrix, Linking and Stereo options, Selectable Auto-standby, Panel Operating Range, Knobs and GPI Matrix, Custom and Ecler speakers settings, Network Parameters, Finder Presets management, Panels and Users, Internal matrix, Linking and Stereo options, Selectable Auto-standby, Panel Operating Range, Knobs and GPI Matrix, Custom and Ecler speakers settings, Network Parameters, Finder, Remote control and configuration via |
ANALOGUE AUDIO INPUTS
| Sensibilidad de entrada |
0 dBV
2,21 dBu
1 Vrms |
|---|
CONTROL CONNECTIVITY
| External MUTE |
Yes, contact |
|---|
MONITORING AND CONTROL
| Tiempo de espera automático |
90 seconds |
|---|---|
| Umbral de espera automático |
-40dB |
LINE INPUTS
| CMRR |
52 Typ (from 20Hz to 20kHz) |
|---|---|
| Input connection type |
3-pin Euroblock, balanced, pitch 3,5 mm |
| Input impedance |
20kΩ balanced |
| Max input level |
+20,8dBV
23 dBu |
LINE OUTPUTS
| Frequency response |
15Hz - 22kHz (-3dB, 1W any load) |
|---|---|
| Output connection type |
2-pin Euroblock. Pitch: 5,08 mm |
| THD + Ruido |
0,1% ( @1kHz, from 0,1W to Full Power) |
SCREEN/DISPLAY
| Resolution |
24 bits |
|---|
LOCAL CONTROL
| Attenuators |
Assignable front panel knobs |
|---|---|
| Power ON/OFF |
Front panel switch |
| Output mode settings |
Back panel Dipswitch by pairs of channels
BRIDGE/2Ω/4Ω/8Ω/70V/100V |
| RUN/SLEEP mode |
Auto standby function
Forced standby
(Settings by embedded web application) |
OUTPUT POWER - All channels driven @ 1%THD
| Max output power @ 100V |
900 W |
|---|---|
| Max output power @ 70V |
900 W |
POWER & HEAT @120VAC - STANDBY/SLEEP MODE
| Current Draw |
0,71 Arms 0,23 Arms 5,7 Arms 3,25 Arms 0,35 11,45 Arms 6,27 Arms 0,97 Arms |
|---|---|
| Thermal Loss |
3,6 kcal/h
14,3 BTU/h 289 kcal/h 1146 BTU/h 208,6 kcal/h 827,7 BTU/h 86 kcal/h 341,3 BTU/h 4,1 kcal/h 16,4 BTU/h 362,1 kcal/h 1436,9 BTU/h 236,5 kcal/h 83 kcal/h 329,4 BTU/h |
