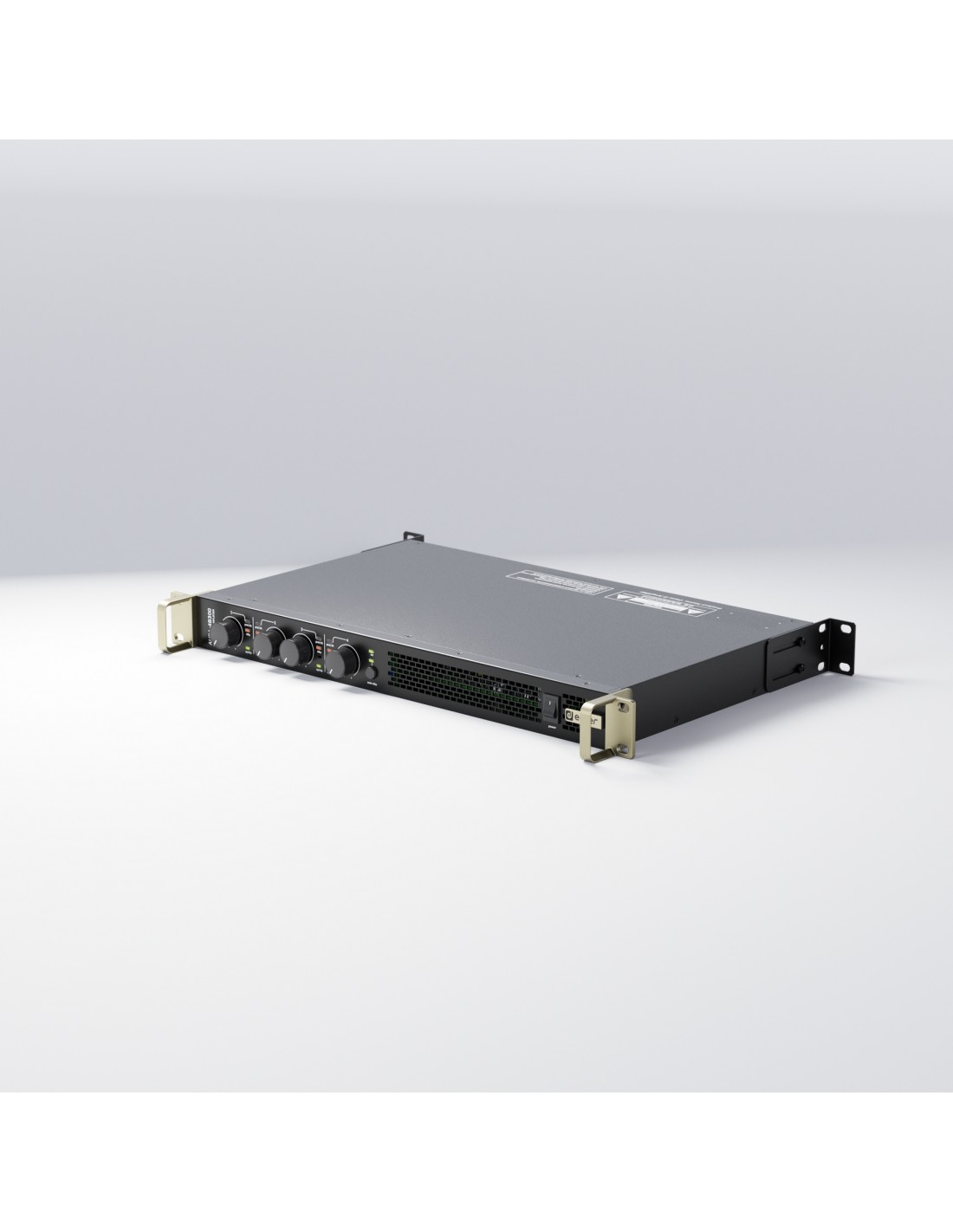

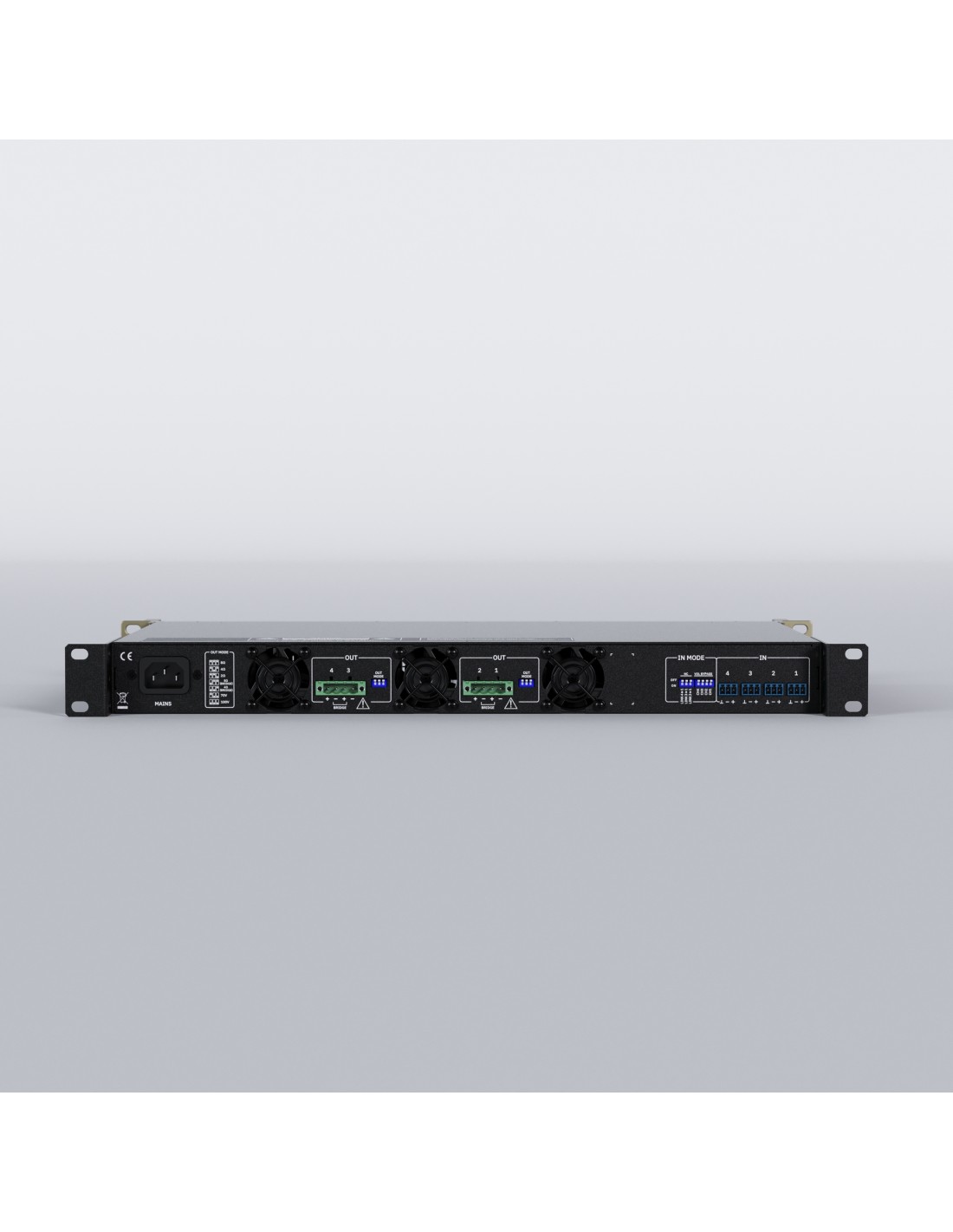

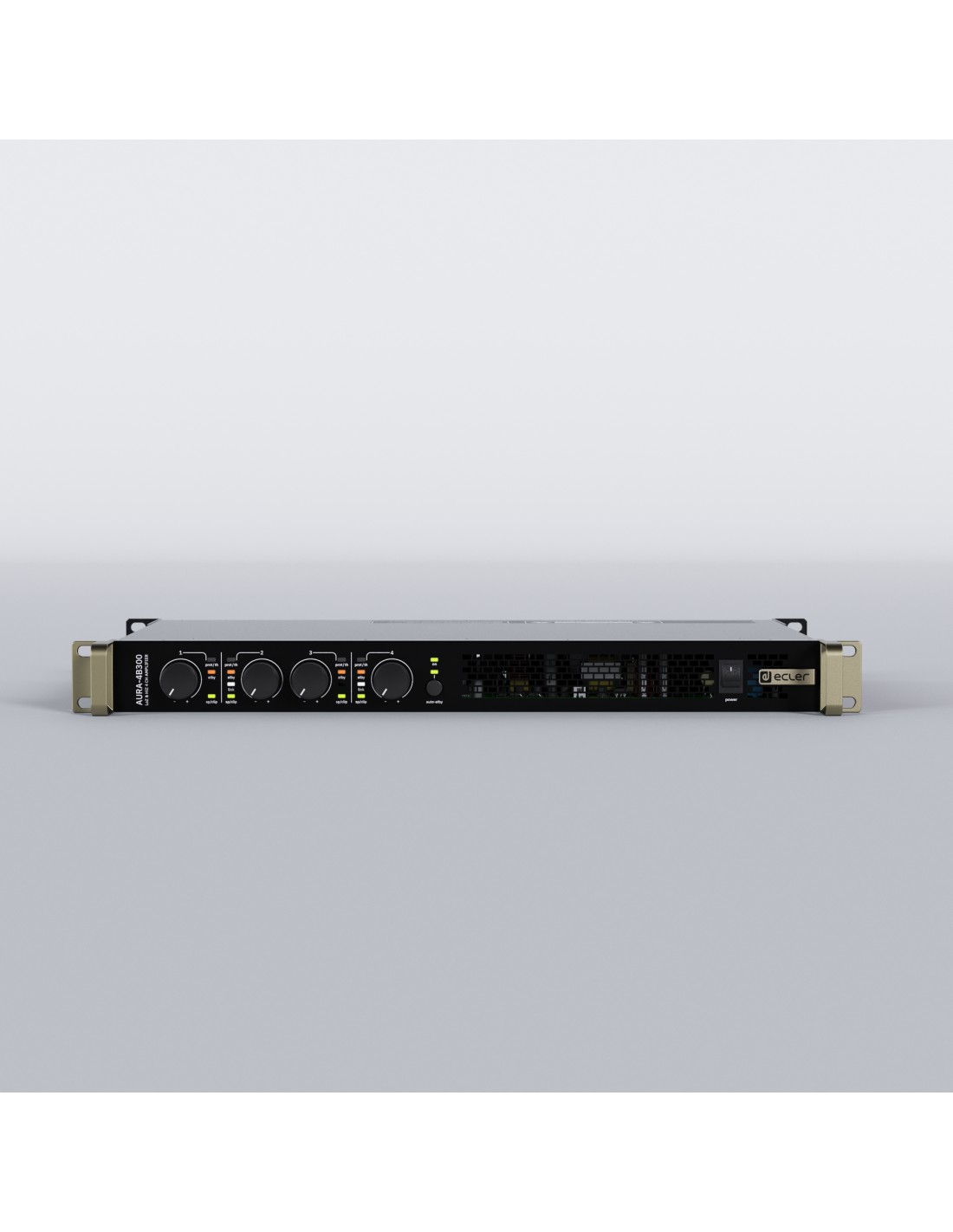

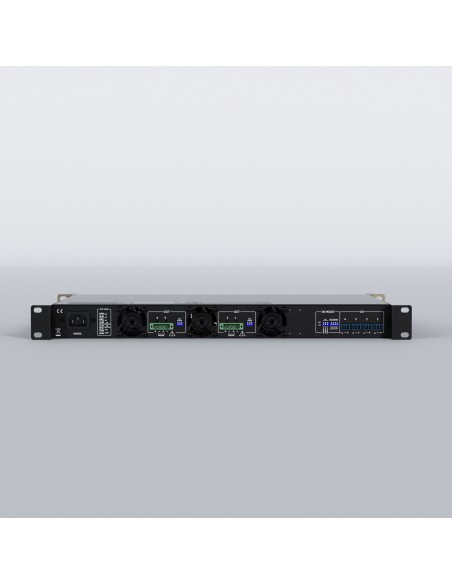

AURA-4B300

Referencia CAURA4B300

Consultar disponibilidad

Amplificador multicanal | 4x300 W RMS @ 4Ω | Alta y Baja impedancia | Clase D

Ver más Características Recursos

AURA-4B300 es un amplificador multicanal de alta eficiencia (clase D), 4x300 W RMS @4Ω. Compatible con configuraciones de baja y alta impedancia y con modo dual o puente (@4/8Ω). La Serie AURA está construida con la máxima robustez para ofrecer prestaciones duraderas, con circuitos de alimentación especiales diseñados para optimizar el consumo eléctrico y con sistema de refrigeración por ventilación forzada. La Serie AURA también cuenta con la posibilidad de enlazar canales a la primera entrada seleccionándola en el panel trasero, así como con auto stand-by, protección térmica y contra sobrecargas, PFC y sistema anti-clipping. Además, los mandos de volumen del panel frontal se pueden bloquear mediante interruptores en el panel trasero para mayor seguridad.

Opciones de instalación: Rack 19" installation & desktop
Temperatura de funcionamiento: -20⁰ to 40⁰ C
-4⁰ to 104⁰ F
Humedad de funcionamiento: 10-90% RH, non-condensing
Temperatura de almacenamiento: -40⁰ to 70⁰ C
-40⁰ to 158⁰ F
Humedad de almacenamiento: 10-95% RH, non-condensing
Accesorios incluidos: 1x EU & IEC power cords, UK,US & CN plug adapters, 4x Desktop feet, 1x Rack 19" installation hardware, 6x Euroblock connectors (4x 3-pin blue for inputs and 2x 4-pin green for outputs), 2x Euroblock jumper.
EU power cord, UK,US and CN power cord adapters, IEC Power Cord, x4 Euroblock 3-pin connectors (blue for Inputs), x2 Euroblock 4-pin connectors (green for Outputs), Rear Rack Kit, 3M rubber foot (4pcs)
Dimensiones: 484 x 44 x 296.6 mm / 19 x 1.73 x 11.67 in.
Peso: 5 kg / 11,02 lb
Dimensiones de envío: 590 x 80 x 474 mm / 23.23 x 3.15 x 18.66 in.
Peso del envío: 7.6 kg / 16.76 lb
Frequency response: 15Hz - 30kHz
15Hz - 30kHz (-3dB, 1W any load)
Sensibilidad de entrada: 0 dBV
2,21 dBu
1 Vrms
CMRR: 70 (from 20Hz to 20kHz)
70 Typ
Crosstalk: 70dB
70dB (@1kHz)
AC mains requirement: 100-240 V @ 50-60Hz (±10%)
AC mains connector: IEC C14 inlet
Alimentación: Universal, regulated SMPS with PFC
SNR: 91,9dBA
Output connection type: 2-pin Euroblock. Pitch: 5,08 mm
4-pin Euroblock. Pitch: 5,08 mm
Potencia: 1,5 W
23,9 VA
2,3 W
81,4 VA

60 W
164,4 VA

99,4 W
844 VA
463,9 W
516 VA
467,7 W
489 VA

799,2 W
859 VA
828,5 W
844 VA
Number of input channels: 4
Input connection type: 3-pin Euroblock, balanced, pitch 3,5 mm
Max output power @ 100V: 300 w
300W
Max output power @ 70V: 300 w
300W
Input impedance: 20kΩ balanced
Max input level: +18dBV
20,21 dBu
THD + Ruido: 0,1%
0,1% ( @1kHz, from 0,1W to Full Power)
Damping factor: 150
Cooling: 2 fans
Maximum fan noise: 57 dBA
Output configuration: 2Ω, 4Ω, 8Ω, 100V, 70V and 4/8Ω in Bridge Mode
Input configuration: Input link to CH1 selector per input
Efficiency: 61%
AC protection: Yes
DC protection: Yes
Short-circuit protection: Yes
Clip limiter: Yes
Thermal protection: Yes
Attenuators: Front panel knobs per channel
Front panel knobs per channel
VOL (default)/BYPASS option
Output settings: 2Ω/4Ω/8Ω/70V/100V/Bridge Mode output selection by pair of channels
Lo-Z/Hi-Z/70V/100V output selection by pair of channels
Signal Present: SIGNAL LED (Green) per channel
Cliping: CLIP LED (Red) per channel
Standby: AUTO STANDBY ON/OFF LED (Green) per unit
Tiempo de espera automático: 90 seconds
Umbral de espera automático: -40dB
Amplification technology: Class D
Power ON/OFF: Front panel switch
Thermal: TH/PROT LED (Red) per channel
Protect: TH/PROT LED (Red) per channel
Voltage gain: 34 dB
Power factor correction: 0,92
HF protection: Yes
Output mode settings: Back panel Dipswitch by pairs of channels
BRIDGE/2Ω/4Ω/8Ω/70V/100V
Back panel Dipswitch by pairs of channels
DUAL/BRIDGE
LoZ/70V/100V
Standby / Mute: STANDBY (Orange) per channel
Limit: TH/PROT LED (Red)
On: ON LED (Green) per unit
Energy saving: Auto standby function selectable
Current Draw: 0,20 Arms
0,35 Arms
0,70 Arms
1,02 Arms
2,24 Arms
3,75 Arms
4,31 Arms
7,50 Arms
Thermal Loss: 1,3 kcal/h
5,01 BTU/h
2,0 kcal/h
7,8 BTU/h
51,6 kcal/h
204,8 BTU/h
85,5 kcal/h
339,3 BTU/h

141,0 kcal/h
559,4 BTU/h
152,01 kcal/h
603,1 BTU/h

171,3 kcal/h
679,9 BTU/h
196,5 kcal/h
779,8 BTU/h
Auto standby function: Front panel button
RUN/SLEEP mode: Auto standby function
Front panel button
Link: LINK (White)

Mechanical Diagram CAURA4B300

Descargas (1.08MB)

Mechanical Diagram II CAURA4B300

Descargas (531.28KB)

CE CAURA4B300

Descargas (77.8KB)

Data sheet CAURA4B300

Descargas (456.17KB)

Quick Guide CAURA4B300

Descargas (89.88KB)

User Manual PDF EN CAURA4B300

Descargas (4.33MB)

User Manual PDF ES CAURA4B300

Descargas (4.2MB)

User Manual PDF DE CAURA4B300

Descargas (4.33MB)

User Manual PDF FR CAURA4B300

Descargas (4.35MB)

User Manual PDF EN CAURA4B300

Descargas (4.35MB)

User Manual PDF ES CAURA4B300

Descargas (4.24MB)

User Manual PDF DE CAURA4B300

Descargas (4.36MB)

User Manual PDF FR CAURA4B300

Descargas (4.36MB)

SISTEMA

Number of input channels	4

FÍSICO

Opciones de instalación	Rack 19" installation & desktop
Temperatura de funcionamiento	-20⁰ to 40⁰ C -4⁰ to 104⁰ F
Humedad de funcionamiento	10-90% RH, non-condensing
Temperatura de almacenamiento	-40⁰ to 70⁰ C -40⁰ to 158⁰ F
Humedad de almacenamiento	10-95% RH, non-condensing
Accesorios incluidos	EU power cord, UK,US and CN power cord adapters, IEC Power Cord, x4 Euroblock 3-pin connectors (blue for Inputs), x2 Euroblock 4-pin connectors (green for Outputs), Rear Rack Kit, 3M rubber foot (4pcs) 1x EU & IEC power cords, UK,US & CN plug adapters, 4x Desktop feet, 1x Rack 19" installation hardware, 6x Euroblock connectors (4x 3-pin blue for inputs and 2x 4-pin green for outputs), 2x Euroblock jumper.
Dimensiones	484 x 44 x 296.6 mm / 19 x 1.73 x 11.67 in.
Peso	5 kg / 11,02 lb
Dimensiones de envío	590 x 80 x 474 mm / 23.23 x 3.15 x 18.66 in.
Peso del envío	7.6 kg / 16.76 lb

POTENCIADO

Potencia	799,2 W 859 VA 463,9 W 516 VA 828,5 W 844 VA 99,4 W 844 VA 1,5 W 23,9 VA 60 W 164,4 VA 2,3 W 81,4 VA 467,7 W 489 VA

ELECTRICAL

AC mains requirement	100-240 V @ 50-60Hz (±10%)
AC mains connector	IEC C14 inlet
Alimentación	Universal, regulated SMPS with PFC
Power factor correction	0,92

ANALOGUE AUDIO OUTPUT PORTS

Crosstalk	70dB 70dB (@1kHz)

CHANNELS

Output configuration	2Ω, 4Ω, 8Ω, 100V, 70V and 4/8Ω in Bridge Mode
Input configuration	Input link to CH1 selector per input

SIGNAL

SNR	91,9dBA
Damping factor	150
Voltage gain	34 dB

TECHNOLOGIES

Cooling	2 fans
Maximum fan noise	57 dBA
Efficiency	61%
Amplification technology	Class D
Energy saving	Auto standby function selectable

PROTECTIONS

AC protection	Yes
DC protection	Yes
Short-circuit protection	Yes
Clip limiter	Yes
Thermal protection	Yes
HF protection	Yes

SETTINGS

Output settings	2Ω/4Ω/8Ω/70V/100V/Bridge Mode output selection by pair of channels Lo-Z/Hi-Z/70V/100V output selection by pair of channels
Auto standby function	Front panel button

MONITORING

Signal Present	SIGNAL LED (Green) per channel
Cliping	CLIP LED (Red) per channel
Standby	AUTO STANDBY ON/OFF LED (Green) per unit
Thermal	TH/PROT LED (Red) per channel
Protect	TH/PROT LED (Red) per channel
Standby / Mute	STANDBY (Orange) per channel
Limit	TH/PROT LED (Red)
On	ON LED (Green) per unit
Link	LINK (White)

ANALOGUE AUDIO INPUTS

Sensibilidad de entrada	0 dBV 2,21 dBu 1 Vrms

MONITORING AND CONTROL

Tiempo de espera automático	90 seconds
Umbral de espera automático	-40dB

LINE INPUTS

CMRR	70 Typ 70 (from 20Hz to 20kHz)
Input connection type	3-pin Euroblock, balanced, pitch 3,5 mm
Input impedance	20kΩ balanced
Max input level	+18dBV 20,21 dBu

LINE OUTPUTS

Frequency response	15Hz - 30kHz 15Hz - 30kHz (-3dB, 1W any load)
Output connection type	2-pin Euroblock. Pitch: 5,08 mm 4-pin Euroblock. Pitch: 5,08 mm
THD + Ruido	0,1% 0,1% ( @1kHz, from 0,1W to Full Power)

LOCAL CONTROL

Attenuators	Front panel knobs per channel Front panel knobs per channel VOL (default)/BYPASS option
Power ON/OFF	Front panel switch
Output mode settings	Back panel Dipswitch by pairs of channels DUAL/BRIDGE LoZ/70V/100V Back panel Dipswitch by pairs of channels BRIDGE/2Ω/4Ω/8Ω/70V/100V
RUN/SLEEP mode	Auto standby function Front panel button

OUTPUT POWER - All channels driven @ 1%THD

Max output power @ 100V	300 w 300W
Max output power @ 70V	300 w 300W

POWER & HEAT @120VAC - STANDBY/SLEEP MODE

Current Draw	0,35 Arms 0,70 Arms 0,20 Arms 3,75 Arms 2,24 Arms 7,50 Arms 4,31 Arms 1,02 Arms
Thermal Loss	171,3 kcal/h 679,9 BTU/h 141,0 kcal/h 559,4 BTU/h 51,6 kcal/h 204,8 BTU/h 2,0 kcal/h 7,8 BTU/h 1,3 kcal/h 5,01 BTU/h 152,01 kcal/h 603,1 BTU/h 85,5 kcal/h 339,3 BTU/h 196,5 kcal/h 779,8 BTU/h
