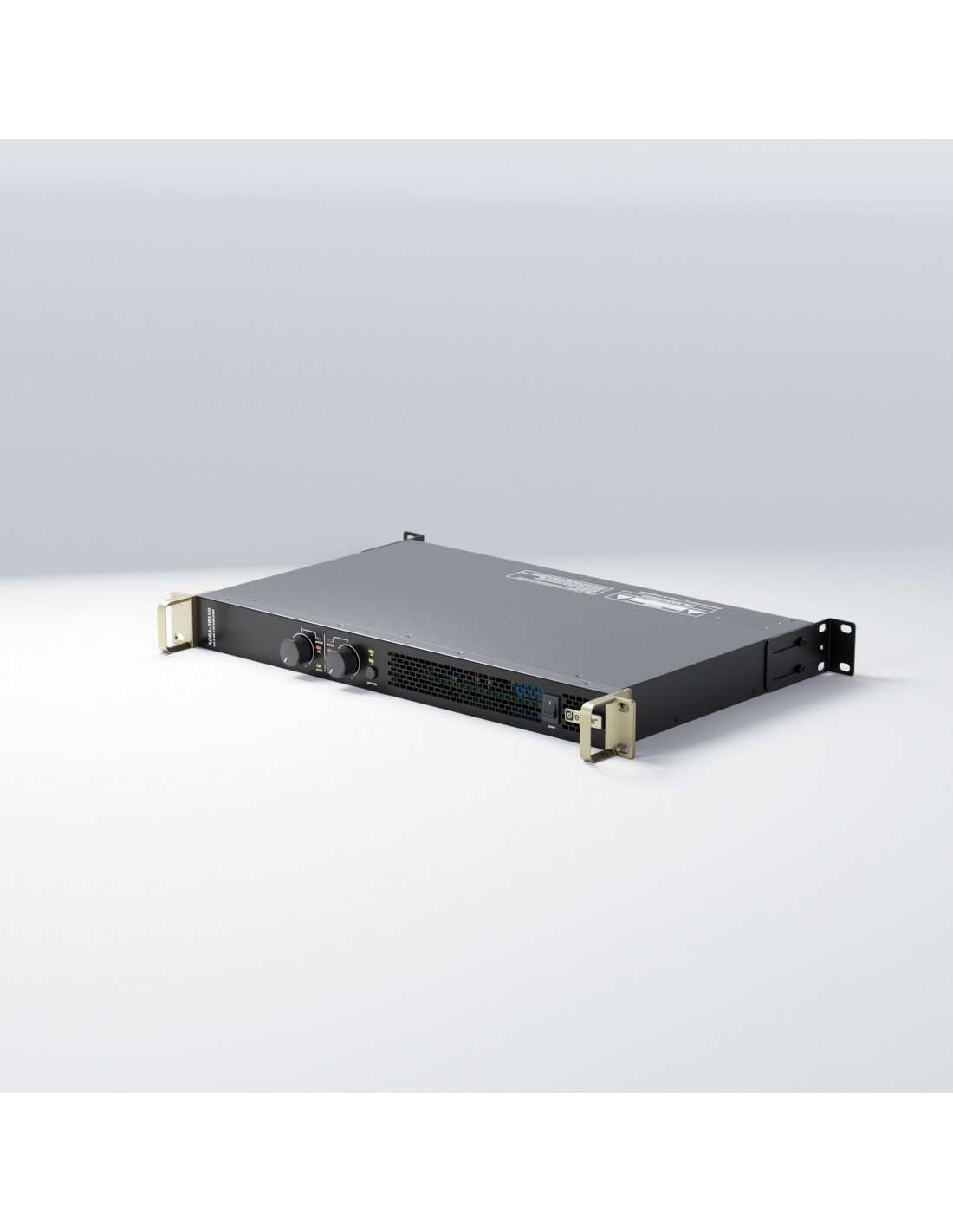

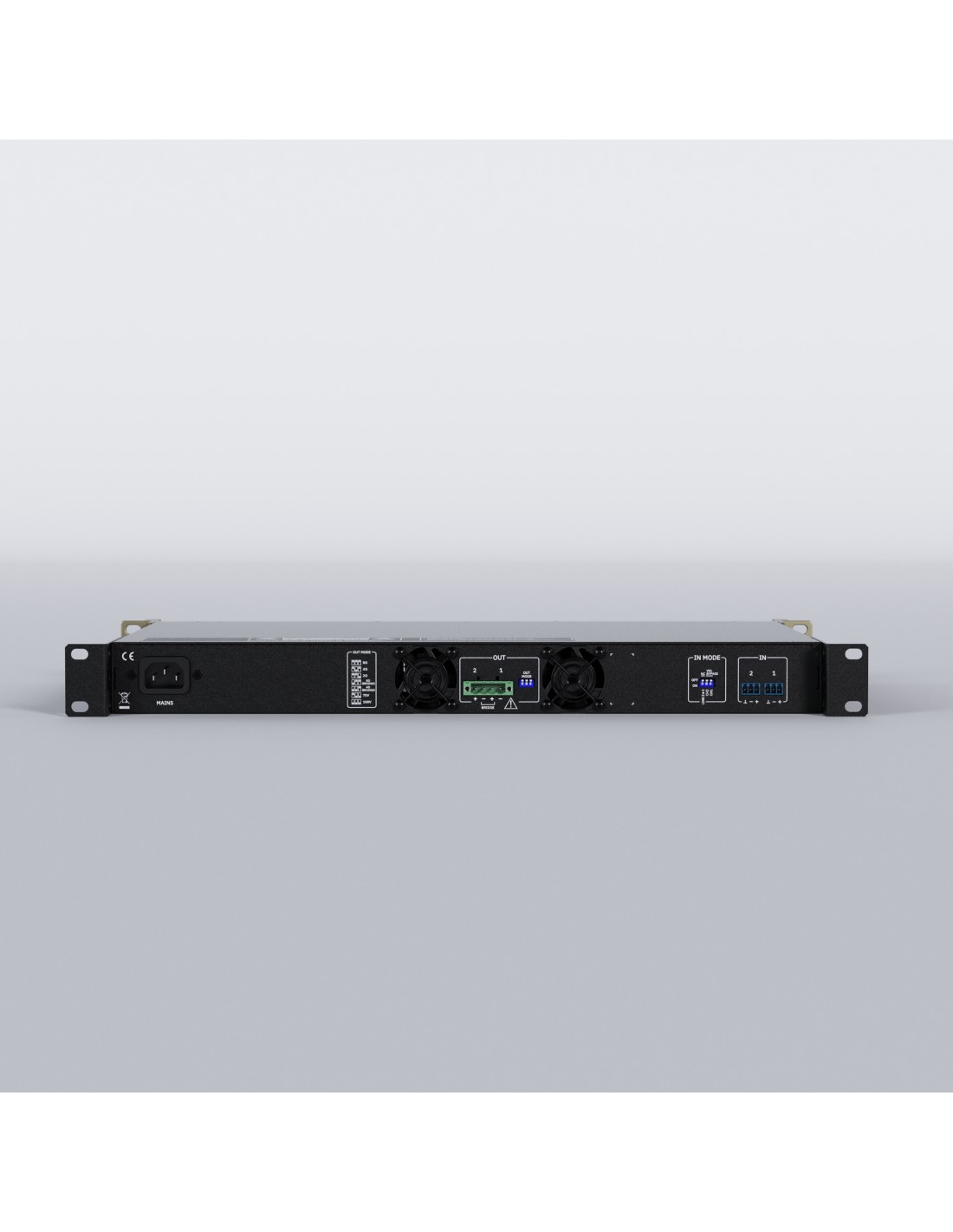

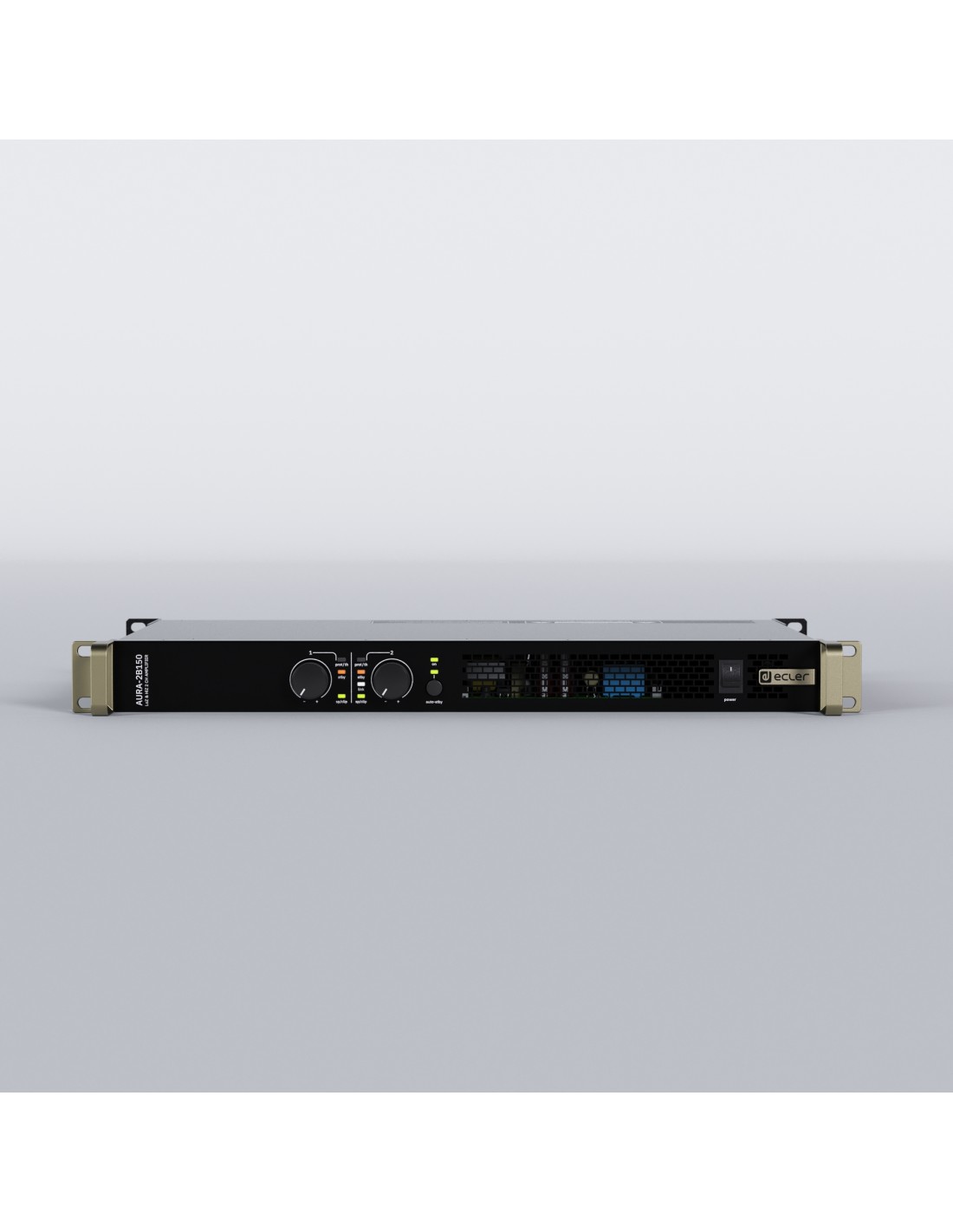

AURA-2B150

Referencia CAURA2B150

Consultar disponibilidad

Amplificador dos canales | 2x150 W RMS @ 4Ω | Alta y Baja impedancia | Clase D

Ver más Características Recursos

AURA-2B150 es un amplificador de alta eficiencia (clase D) de dos canales, 2x150 W RMS @4Ω. Compatible con configuraciones de baja y alta impedancia y con modo dual o puente (@4/8Ω). La Serie AURA está construida con la máxima robustez para ofrecer prestaciones duraderas, con circuitos de alimentación especiales diseñados para optimizar el consumo eléctrico y con sistema de refrigeración por ventilación forzada. La Serie AURA también cuenta con la posibilidad de enlazar canales a la primera entrada seleccionándola en el panel trasero, así como con auto stand-by, protección térmica y contra sobrecargas, PFC y sistema anti-clipping. Además, los mandos de volumen del panel frontal se pueden bloquear mediante interruptores en el panel trasero para mayor seguridad.

Opciones de instalación: Rack 19" installation & desktop
Temperatura de funcionamiento: -20⁰ to 40⁰ C
-4⁰ to 104⁰ F
Humedad de funcionamiento: 10-90% RH, non-condensing
Temperatura de almacenamiento: -40⁰ to 70⁰ C
-40⁰ to 158⁰ F
Humedad de almacenamiento: 10-95% RH, non-condensing
Accesorios incluidos: 1x EU & IEC power cords, UK,US & CN plug adapters, 4x Desktop feet, 1x Rack 19" installation hardware, 3x Euroblock connectors (2x 3-pin blue for inputs and 1x 4-pin green for outputs), 1x Euroblock jumper.
EU power cord, UK,US and CN power cord adapters, IEC Power Cord, x2 Euroblock 3-pin connectors (Inputs), x1 Euroblock 4-pin connectors (Outputs), Warranty Card, Rear Rack Kit, 3M rubber foot (4pcs)
EU power cord, UK,US and CN power cord adapters, IEC Power Cord, x2 Euroblock 3-pin connectors (blue for Inputs), x1 Euroblock 4-pin connectors (green for Outputs), Rear Rack Kit, 3M rubber foot (4pcs)
Dimensiones: 484 x 44 x 296.6 mm / 19 x 1.73 x 11.67 in. (WxHxD)
Peso: 4.3 kg / 9.48 lb
Dimensiones de envío: 590 x 80 x 474 mm / 23.23 x 3.15 x 18.66 in. (WxHxD)
Peso del envío: 6.9 kg / 15.2 lb
Frequency response: 15Hz - 30kHz
15Hz - 30kHz (-3dB, 1W any load)
Sensibilidad de entrada: 0 dBV
2,21 dBu
1 Vrms
CMRR: 55 Typ
55 Typ (from 20Hz to 20kHz)
Crosstalk: 70dB
70dB (@1kHz)
AC mains requirement: 100-240 V @ 50-60Hz (±10%)
AC mains connector: IEC C14 inlet
Alimentación: Universal, regulated SMPS with PFC
SNR: 93,2dBA
Output connection type: 2-pin Euroblock. Pitch: 5,08 mm
4-pin Euroblock. Pitch: 5,08 mm
Potencia: 1,3 W
24 VA
2,2 W
82 VA

62,4 W
129 VA

62,8 W
81 VA
226,2 W
278 VA
226,7 W
239 VA

380 W
430 VA
380,6 W
393 VA
Number of output channels: 2
Number of input channels: 2
Input connection type: 3-pin Euroblock, balanced, pitch 3,5 mm
Max output power @ 100V: 150 W
Max output power @ 70V: 150 W
Input impedance: 20kΩ balanced
Max input level: +20,8dBV
23 dBu
THD + Ruido: 0,1%
0,1% ( @1kHz, from 0,1W to Full Power)
Cooling: 2 fans
Maximum fan noise: 57 dBA
Output configuration: 2Ω, 4Ω, 8Ω, 100V, 70V and 4/8Ω in Bridge Mode
Input configuration: Input link to CH1 selector per input
Efficiency: 47%
AC protection: Yes
DC protection: Yes
Short-circuit protection: Yes
Clip limiter: Yes
Thermal protection: Yes
Attenuators: Front panel knobs per channel
Front panel knobs per channel
VOL (default)/BYPASS option
Output settings: Lo-Z/Hi-Z/70V/100V/Bridge Mode output selection by pair of channels
Signal Present: SIGNAL LED (Green) per channel
Cliping: CLIP LED (Red) per channel
Standby: AUTO STANDBY ON/OFF LED (Green) per unit
Tiempo de espera automático: 90 seconds
Umbral de espera automático: -40dB
Amplification technology: Class D
Power ON/OFF: Front panel switch
Thermal: TH/PROT LED (Red) per channel
Protect: TH/PROT LED (Red) per channel
Voltage gain: 34 dB
Power factor correction: 0,8
HF protection: Yes
Output mode settings: Back panel Dipswitch by pairs of channels
BRIDGE/2Ω/4Ω/8Ω/70V/100V
Back panel Dipswitch by pairs of channels
DUAL/BRIDGE
LoZ/70V/100V
Standby / Mute: STANDBY (Orange) per channel
Limit: TH/PROT LED (Red)
On: ON LED (Green) per unit
Energy saving: Auto standby function selectable
Current Draw: 0,20 Arms
0,35 Arms
0,56 Arms
0,70 Arms
1,20 Arms
1,86 Arms
2,09 Arms
3,45 Arms
Thermal Loss: 1,1 kcal/h
4,4 BTU/h
1,8 kcal/h
7,3 BTU/h
53,7 kcal/h
212,9 BTU/h

54,01 kcal/h
214,3 BTU/h

65,5 kcal/h
260,1 BTU/h
66,01 kcal/h
261,8 BTU/h

68,8 kcal/h
273 BTU/h
69,3 kcal/h
275,1 BTU/h
Auto standby function: Front panel button
RUN/SLEEP mode: Auto standby function
Front panel button
Link: LINK (White)

CE CAURA2B150

Descargas (78KB)

Mechanical Diagram CAURA2B150

Descargas (784.4KB)

Mechanical Diagram II CAURA2B150

Descargas (356.06KB)

Data sheet CAURA2B150

Descargas (346.88KB)

User Manual PDF EN CAURA2B150

Descargas (4.33MB)

User Manual PDF ES CAURA2B150

Descargas (4.2MB)

User Manual PDF DE CAURA2B150

Descargas (4.33MB)

User Manual PDF FR CAURA2B150

Descargas (4.35MB)

User Manual PDF EN CAURA2B150

Descargas (4.35MB)

User Manual PDF ES CAURA2B150

Descargas (4.24MB)

User Manual PDF DE CAURA2B150

Descargas (4.36MB)

User Manual PDF FR CAURA2B150

Descargas (4.36MB)

SISTEMA

Number of input channels	2

FÍSICO

Opciones de instalación	Rack 19" installation & desktop
Temperatura de funcionamiento	-20⁰ to 40⁰ C -4⁰ to 104⁰ F
Humedad de funcionamiento	10-90% RH, non-condensing
Temperatura de almacenamiento	-40⁰ to 70⁰ C -40⁰ to 158⁰ F
Humedad de almacenamiento	10-95% RH, non-condensing
Accesorios incluidos	EU power cord, UK,US and CN power cord adapters, IEC Power Cord, x2 Euroblock 3-pin connectors (Inputs), x1 Euroblock 4-pin connectors (Outputs), Warranty Card, Rear Rack Kit, 3M rubber foot (4pcs) EU power cord, UK,US and CN power cord adapters, IEC Power Cord, x2 Euroblock 3-pin connectors (blue for Inputs), x1 Euroblock 4-pin connectors (green for Outputs), Rear Rack Kit, 3M rubber foot (4pcs) 1x EU & IEC power cords, UK,US & CN plug adapters, 4x Desktop feet, 1x Rack 19" installation hardware, 3x Euroblock connectors (2x 3-pin blue for inputs and 1x 4-pin green for outputs), 1x Euroblock jumper.
Dimensiones	484 x 44 x 296.6 mm / 19 x 1.73 x 11.67 in. (WxHxD)
Peso	4.3 kg / 9.48 lb
Dimensiones de envío	590 x 80 x 474 mm / 23.23 x 3.15 x 18.66 in. (WxHxD)
Peso del envío	6.9 kg / 15.2 lb

POTENCIADO

Potencia	380 W 430 VA 226,2 W 278 VA 380,6 W 393 VA 62,8 W 81 VA 1,3 W 24 VA 62,4 W 129 VA 2,2 W 82 VA 226,7 W 239 VA

ELECTRICAL

AC mains requirement	100-240 V @ 50-60Hz (±10%)
AC mains connector	IEC C14 inlet
Alimentación	Universal, regulated SMPS with PFC
Power factor correction	0,8

ANALOGUE AUDIO OUTPUT PORTS

Crosstalk	70dB 70dB (@1kHz)

CHANNELS

Number of output channels	2
Output configuration	2Ω, 4Ω, 8Ω, 100V, 70V and 4/8Ω in Bridge Mode
Input configuration	Input link to CH1 selector per input

SIGNAL

SNR	93,2dBA
Voltage gain	34 dB

TECHNOLOGIES

Cooling	2 fans
Maximum fan noise	57 dBA
Efficiency	47%
Amplification technology	Class D
Energy saving	Auto standby function selectable

PROTECTIONS

AC protection	Yes
DC protection	Yes
Short-circuit protection	Yes
Clip limiter	Yes
Thermal protection	Yes
HF protection	Yes

SETTINGS

Output settings	Lo-Z/Hi-Z/70V/100V/Bridge Mode output selection by pair of channels
Auto standby function	Front panel button

MONITORING

Signal Present	SIGNAL LED (Green) per channel
Cliping	CLIP LED (Red) per channel
Standby	AUTO STANDBY ON/OFF LED (Green) per unit
Thermal	TH/PROT LED (Red) per channel
Protect	TH/PROT LED (Red) per channel
Standby / Mute	STANDBY (Orange) per channel
Limit	TH/PROT LED (Red)
On	ON LED (Green) per unit
Link	LINK (White)

ANALOGUE AUDIO INPUTS

Sensibilidad de entrada	0 dBV 2,21 dBu 1 Vrms

MONITORING AND CONTROL

Tiempo de espera automático	90 seconds
Umbral de espera automático	-40dB

LINE INPUTS

CMRR	55 Typ 55 Typ (from 20Hz to 20kHz)
Input connection type	3-pin Euroblock, balanced, pitch 3,5 mm
Input impedance	20kΩ balanced
Max input level	+20,8dBV 23 dBu

LINE OUTPUTS

Frequency response	15Hz - 30kHz 15Hz - 30kHz (-3dB, 1W any load)
Output connection type	2-pin Euroblock. Pitch: 5,08 mm 4-pin Euroblock. Pitch: 5,08 mm
THD + Ruido	0,1% 0,1% ( @1kHz, from 0,1W to Full Power)

LOCAL CONTROL

Attenuators	Front panel knobs per channel Front panel knobs per channel VOL (default)/BYPASS option
Power ON/OFF	Front panel switch
Output mode settings	Back panel Dipswitch by pairs of channels DUAL/BRIDGE LoZ/70V/100V Back panel Dipswitch by pairs of channels BRIDGE/2Ω/4Ω/8Ω/70V/100V
RUN/SLEEP mode	Auto standby function Front panel button

OUTPUT POWER - All channels driven @ 1%THD

Max output power @ 100V	150 W
Max output power @ 70V	150 W

POWER & HEAT @120VAC - STANDBY/SLEEP MODE

Current Draw	1,86 Arms 1,20 Arms 0,56 Arms 0,35 Arms 3,45 Arms 2,09 Arms 0,70 Arms 0,20 Arms
Thermal Loss	68,8 kcal/h 273 BTU/h 65,5 kcal/h 260,1 BTU/h 1,8 kcal/h 7,3 BTU/h 1,1 kcal/h 4,4 BTU/h 53,7 kcal/h 212,9 BTU/h 69,3 kcal/h 275,1 BTU/h 66,01 kcal/h 261,8 BTU/h 54,01 kcal/h 214,3 BTU/h
