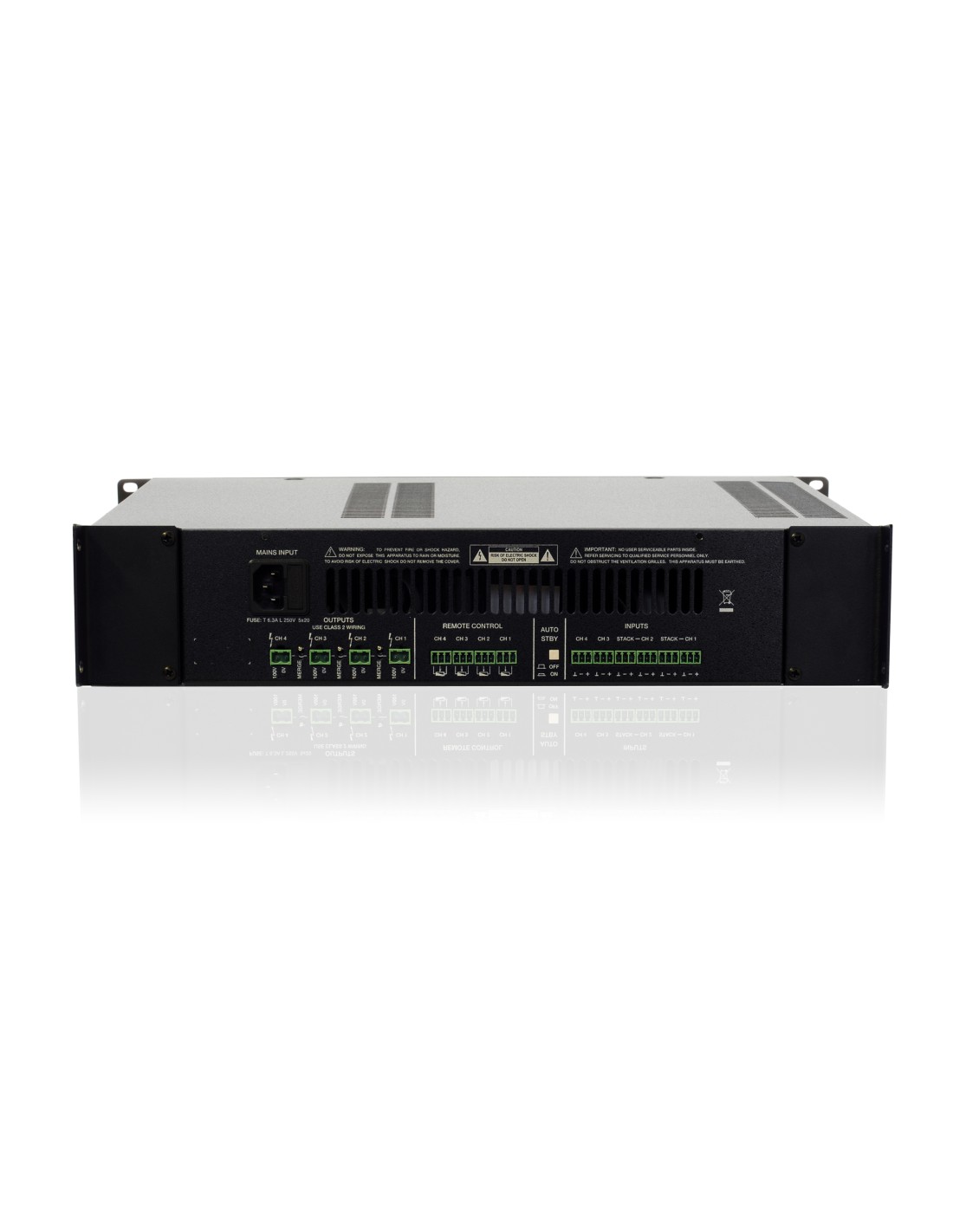

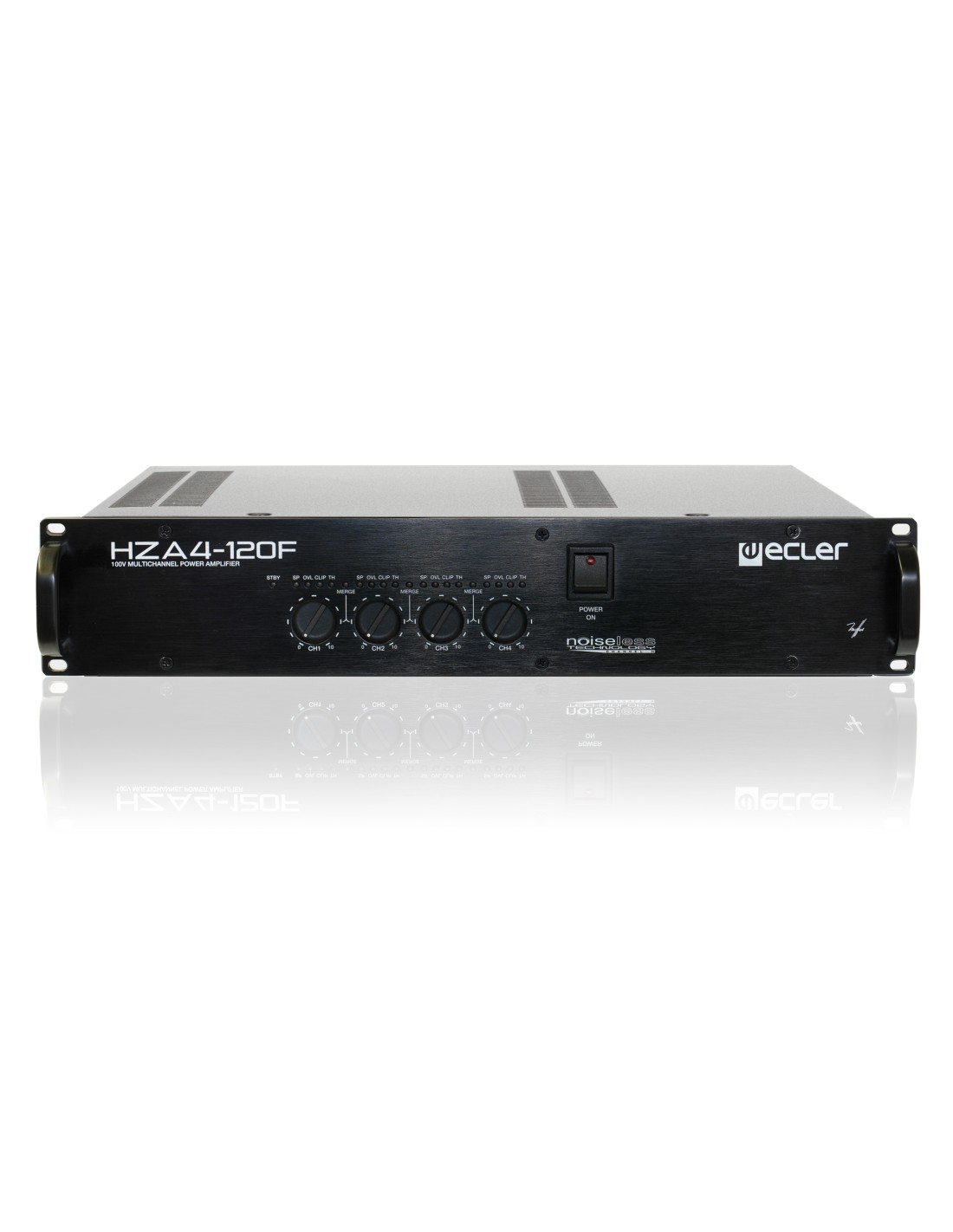

z_z-Amplificador 4 canales 120W 100V

Referencia CHZA4120F

Consultar disponibilidad

Ver más Características

Descripción
Detalles del producto

Opciones de instalación: 19" rack format (2RU)
Temperatura de funcionamiento: Min: -10°C ; 14°F
Max: 40°C ; 104°F
Humedad de funcionamiento: 85% HR
<85% HR
Temperatura de almacenamiento: Min: -10°C ; 14°F
Max: 40°C ; 104°F
Humedad de almacenamiento: 90% HR
<90% HR
Accesorios opcionales: WPaVol for remote control
Dimensiones: 482.6 x 88 x 392 mm / 19 x 3.46 x 15.43 in. (WxHxD)
Peso: 13.60 kg / 29.98 lb
Dimensiones de envío: 500 x 120 x 550 mm / 19.69 x 4.73 x 21.66 in. (WxHxD)
Peso del envío: 16.40 kg / 36.16 lb
Estado: Eol
Origen Producción: Spain
Código EAN: 8435071304528
Código arancelario: 8518400000
Lugar de envío: Spain
Anchura (cm): 50.00
Altura (cm): 12.00
Profundidad (cm): 55.00
Vol. (dm3): 33.00
Peso bruto (kg): 16.40
Peso neto (kg): 13.60
Formato: Unit
Garantía (meses): 36
Frequency response: 30Hz - 55kHz (-3dB)
Sensibilidad de entrada: 0dB
Crosstalk: 90dB @ 1kHz/100V
>90dB @ 1kHz/100V
GPIs: x4 GPIs (0-10VDC) for volume control
AC mains requirement: 115V/230V @ 47-63Hz. Voltage changed internally (NOT BY SWITCH)
AC mains connector: AC socket connector (IEC)
SNR: 90dB @ 100V
>90dB @ 100V
Output connection type: Euroblock
Number of output channels: 4
Number of input channels: 4
Input connection type: Euroblock
Max output power @ 100V: 1 Channel 114 W
2 Merged Channels 195 W
3 Merged Channels 290 W
4 Merged Channels 356 W
Input impedance: 20kW
>20kW
THD + Ruido: 0.03% typ. 0.2% max. @ 1kHz Full Power
<0.03% typ. 0.2% max. @ 1kHz Full Power
Cooling: Convection
Power Consumption (STBY): <3 W
Output configuration: 4 x 120 W RMS @ 100 V line
Input configuration: Balanced and line level analogue signal inputs
Power Consumption (1/3 POWER, @ 4Ω): pink noise, 470 VA @ 136Ω
Power Consumption (1/8 POWER, @ 4Ω): pink noice, 340 VA @ 136Ω
Energy save: Auto standby function
AC protection: No
DC protection: No
VHF protection: No
Short-circuit protection: Yes
Clip limiter: Yes
Long term limiter: No
Thermal protection: Yes
Attenuators: Front panel knobs per channel
Auto stand-by function: Back panel button
Auto stand-by time: 120 seconds
Signal Present: SP LED (Green) per channel (-35dB)
Cliping: CLIP LED (Red) per channel
Standby: STBY LED (Red)
Filters: 70Hz 3rd order Butterworth High-Pass filter
Tiempo de espera automático: 120 seconds
Umbral de espera automático: -30dB aprox
Auto stand-by threshold: > -30dB aprox
Amplification technology: SPM 100
Power ON/OFF: Front panel switch & indicator
Thermal: TH LED (Red) per channel
Protect: PROT LED (Red) per channel
Energy saving: Auto standby function
Power Consumption (STBY/SLEEP): 3 W
Auto standby function: Back panel button
Power Consumption (1/3 POWER, @ 4Ω all channels driven): pink noise, 470 VA @ 136Ω
Power Consumption (1/8 POWER, @ 4Ω all channels driven): pink noice, 340 VA @ 136Ω

SISTEMA

Number of input channels	4

FÍSICO

Opciones de instalación	19" rack format (2RU)
Temperatura de funcionamiento	Min: -10°C ; 14°F Max: 40°C ; 104°F
Humedad de funcionamiento	<85% HR 85% HR
Temperatura de almacenamiento	Min: -10°C ; 14°F Max: 40°C ; 104°F
Humedad de almacenamiento	<90% HR 90% HR
Accesorios opcionales	WPaVol for remote control
Dimensiones	482.6 x 88 x 392 mm / 19 x 3.46 x 15.43 in. (WxHxD)
Peso	13.60 kg / 29.98 lb
Dimensiones de envío	500 x 120 x 550 mm / 19.69 x 4.73 x 21.66 in. (WxHxD)
Peso del envío	16.40 kg / 36.16 lb
Formato	Unit

LOGÍSTICA

Estado	Eol
Origen Producción	Spain
Código EAN	8435071304528
Código arancelario	8518400000
Lugar de envío	Spain
Anchura (cm)	50.00
Altura (cm)	12.00
Profundidad (cm)	55.00
Vol. (dm3)	33.00
Peso bruto (kg)	16.40
Peso neto (kg)	13.60
Garantía (meses)	36

ELECTRICAL

AC mains requirement	115V/230V @ 47-63Hz. Voltage changed internally (NOT BY SWITCH)
AC mains connector	AC socket connector (IEC)

ANALOGUE AUDIO OUTPUT PORTS

Crosstalk	>90dB @ 1kHz/100V 90dB @ 1kHz/100V

REMOTE CONTROL CONNECTIONS

GPIs	x4 GPIs (0-10VDC) for volume control

CHANNELS

Number of output channels	4
Output configuration	4 x 120 W RMS @ 100 V line
Input configuration	Balanced and line level analogue signal inputs

SIGNAL

SNR	>90dB @ 100V 90dB @ 100V

POWER CONSUMPTION

Power Consumption (STBY)	<3 W
Power Consumption (1/3 POWER, @ 4Ω)	pink noise, 470 VA @ 136Ω
Power Consumption (1/8 POWER, @ 4Ω)	pink noice, 340 VA @ 136Ω
Power Consumption (STBY/SLEEP)	3 W
Power Consumption (1/3 POWER, @ 4Ω all channels driven)	pink noise, 470 VA @ 136Ω
Power Consumption (1/8 POWER, @ 4Ω all channels driven)	pink noice, 340 VA @ 136Ω

TECHNOLOGIES

Cooling	Convection
Energy save	Auto standby function
Amplification technology	SPM 100
Energy saving	Auto standby function

PROTECTIONS

AC protection	No
DC protection	No
VHF protection	No
Short-circuit protection	Yes
Clip limiter	Yes
Long term limiter	No
Thermal protection	Yes

SETTINGS

Auto stand-by function	Back panel button
Auto stand-by time	120 seconds
Auto stand-by threshold	> -30dB aprox
Auto standby function	Back panel button

MONITORING

Signal Present	SP LED (Green) per channel (-35dB)
Cliping	CLIP LED (Red) per channel
Standby	STBY LED (Red)
Thermal	TH LED (Red) per channel
Protect	PROT LED (Red) per channel

ANALOGUE AUDIO INPUTS

Sensibilidad de entrada	0dB

MONITORING AND CONTROL

Tiempo de espera automático	120 seconds
Umbral de espera automático	-30dB aprox

MIC INPUTS

Filters	70Hz 3rd order Butterworth High-Pass filter

LINE INPUTS

Input connection type	Euroblock
Input impedance	>20kW 20kW

LINE OUTPUTS

Frequency response	30Hz - 55kHz (-3dB)
Output connection type	Euroblock
THD + Ruido	<0.03% typ. 0.2% max. @ 1kHz Full Power 0.03% typ. 0.2% max. @ 1kHz Full Power

LOCAL CONTROL

Attenuators	Front panel knobs per channel
Power ON/OFF	Front panel switch & indicator

OUTPUT POWER - All channels driven @ 1%THD

Max output power @ 100V	1 Channel 114 W 2 Merged Channels 195 W 3 Merged Channels 290 W 4 Merged Channels 356 W
