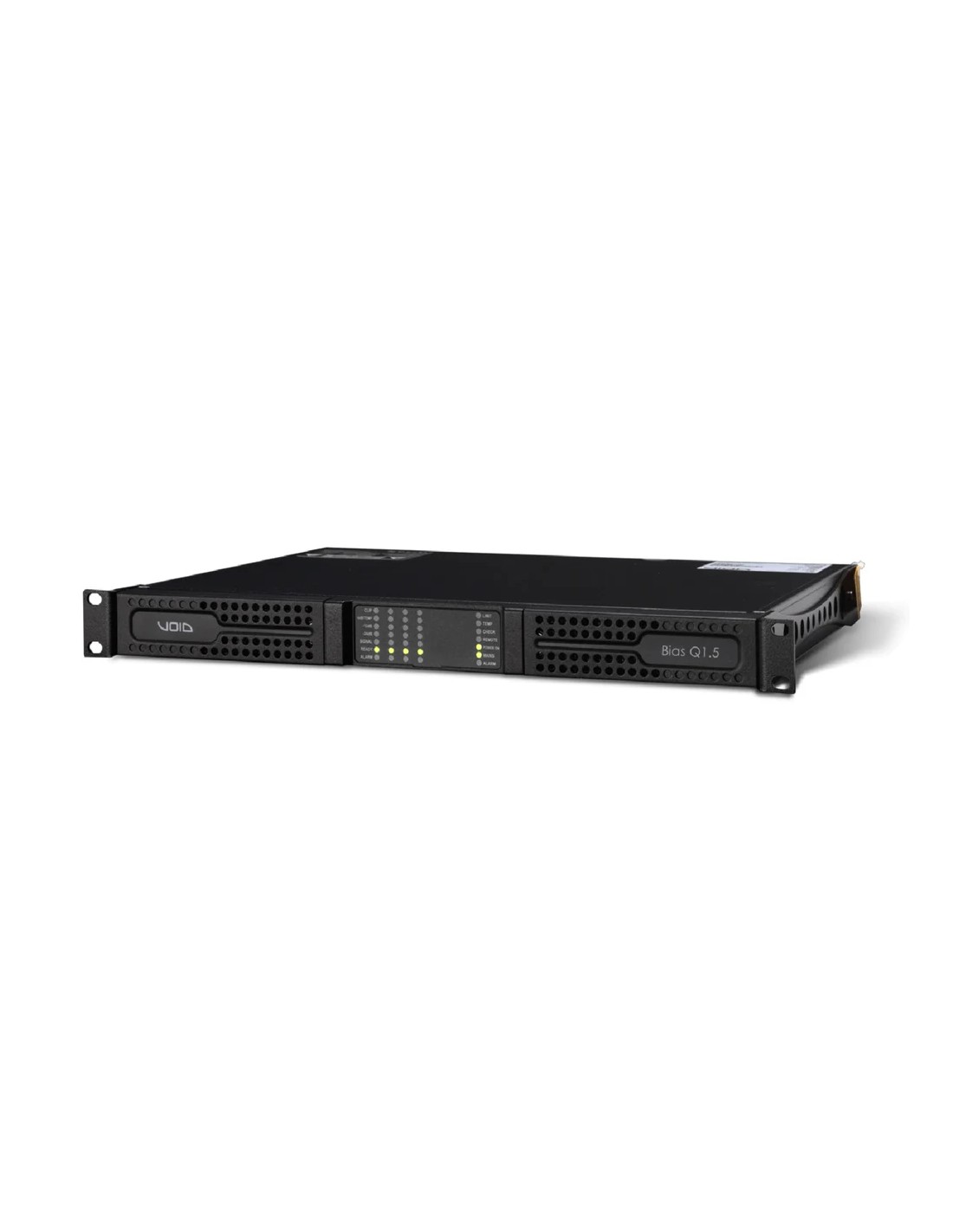

Bias Q1.5 - AES
CVOIT4382
Consultar disponibilidad
Tacto ligero, potencia pesada
Consigue una calidad de sonido insuperable
Con más potencia que un Q1 y menos que un Q2, Bias Q1.5 es capaz de alimentar productos como Air 8, Airten V3 y Air Vantage. Bias Q1.5 ofrece una calidad de sonido impresionante en una unidad ligera y compacta, y es realmente fiable.
Dimensiones más reducidas, menor peso
El amplificador de cuatro canales incorpora tecnología inteligente con una fuente de alimentación controlada por microprocesador de alta eficiencia con corrección del factor de potencia incorporada para un funcionamiento impecable, junto con la tecnología patentada Smart Rails Management de Powersoft.
- Temperatura de funcionamiento
- -10° - 35° C / 14° - 95° F
- Dimensiones
- 483 x 44.5 x 358 mm/ 19.0 x 1.75 x 14.1 in
- Peso
- 7.0 Kg (15.4 lb)
- Estado
- New
- Código EAN
- IT4382
- Código arancelario
- 8518400000
- Lugar de envío
- Spain
- Frequency response
- 20 Hz - 20 kHz (±0.5 dB , 1 W @ 8 Ω)
- Sensibilidad de entrada
- 2.48/ 1.76/ 1.24/ 0.88 Vrms
- Crosstalk
- typical -70 dB @ 1 kHz
- AC mains requirement
- 100-240 V @ 50-60Hz (±10%)
- Alimentación
- Universal regulated switch mode with PFC, SRM ( 0.95 ( 500 W ouput))
Universal regulated switch mode with PFC, SRM (> 0.95 (> 500 W ouput)) - Output connection type
- Phoenix PC 5/8-STF1-7,62
- Number of output channels
- 4 Hi-Z or Lo-Z (bridgeable per ch. pair)
- Number of input channels
- 4

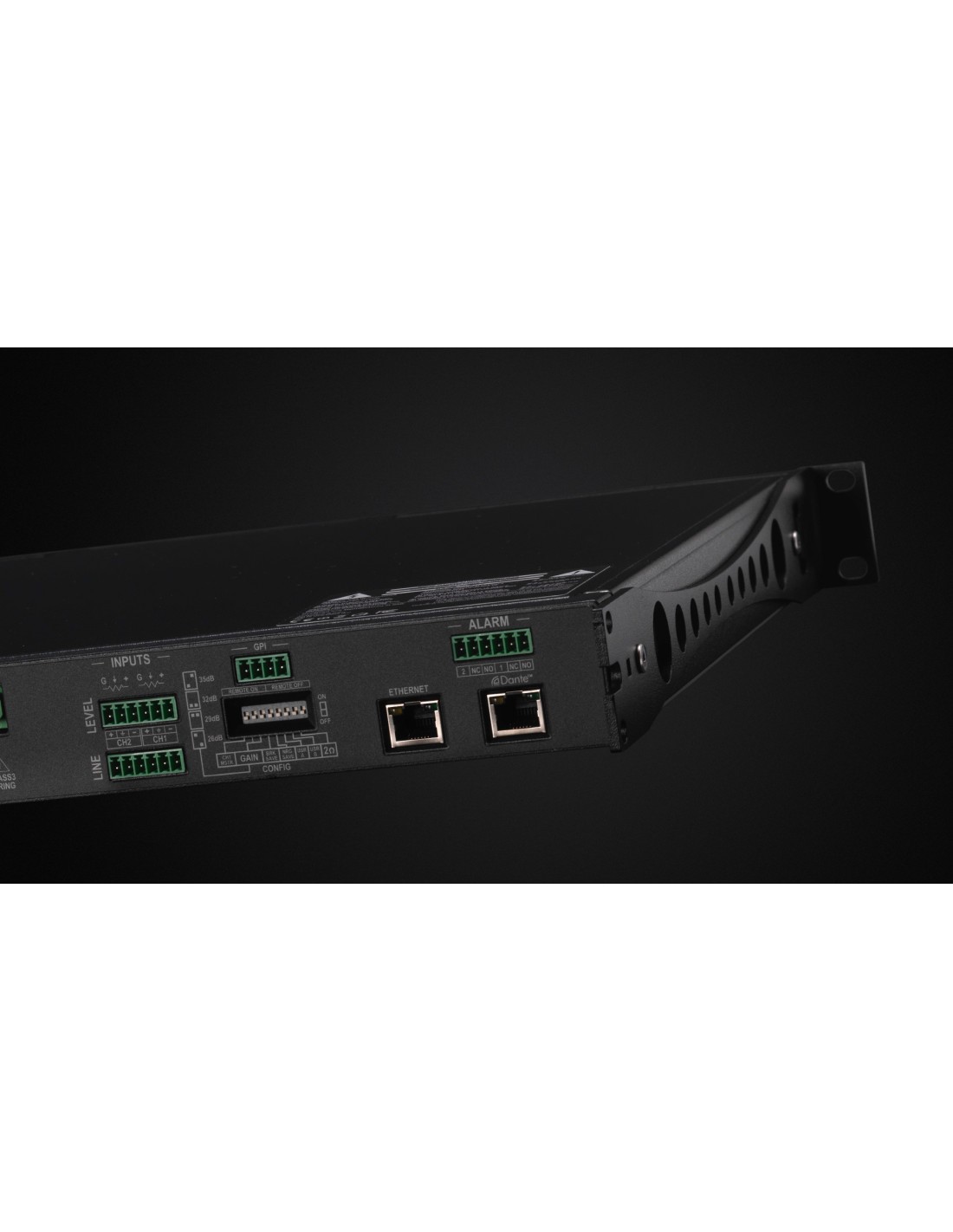

- Input connection type
- 1 x RJ45
Phoenix MC 1,5/12-ST-3,81
Phoenix MC 1,5/12-ST-3,81
1 x RJ45 - Number of digital inputs
- 4
- Max output power @ 100V
- 300 w
- Max output power @ 70V
- 300 w
- Input impedance
- 20 kΩ balanced
- Max input level
- 20 dBu
- THD + Ruido
- 0.1% (typical 0.05%) (from 0.1 W to Full Power)
< 0.1% (typical < 0.05%) (from 0.1 W to Full Power) - Damping factor
- 500 @ input filter bypassed @ 8 Ω
> 500 @ input filter bypassed @ 8 Ω - Slew rate
- 50 V/μs @ 8 Ω, input filter bypassed
> 50 V/μs @ 8 Ω, input filter bypassed - Cooling
- Fan, continuously variable speed, temperature controlled, front to rear airflow
- Gain
- 26/ 29/ 32/ 35 dB
- AD converters
- 24 Bit Tandem™ @ 48 kHz
125 dB-A Dynamic Range - 0.005 % THD+N - DA converters
- 24 Bit Tandem™ @ 48 kHz
117 dB-A Dynamic Range - 0.003 % THD+N - Sample rate converter
- 24 Bit @ 44.1 kHz to 192 kHz
140 dB Dynamic Range - 0.0001 % THD+N - Internal precision
- 32 bit floating point
- Latency
- 2.5 ms fixed latency architecture
- Memory/Presets
- 128 MB (RAM) plus 512 MB flash for presets
- Delay
- 2 s (input) + 100 ms (output) for time alignment
- Equalizer
- Raised-cosine, custom FIR, parametric IIR:
peaking, hi/lo-shelving, all-pass, band-pass, band-stop, hi/lo-pass - Crossover
- linear phase (FIR), Butterworth, Linkwitz-Riley, Bessel: 6 dB/oct to 48 dB/oct (IIR)
- Limiters
- TruePower™, RMS voltage, RMS current, Peak limiter
- Damping control
- Active DampingControl™ and LiveImpedance™ measurement
- Power Consumption (IDLE)
- 31.1 W/ 31.5 W
Servicios e instalaciones implementadas
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SISTEMA
| Number of input channels |
4 |
|---|
FÍSICO
| Temperatura de funcionamiento |
-10° - 35° C / 14° - 95° F |
|---|---|
| Dimensiones |
483 x 44.5 x 358 mm/ 19.0 x 1.75 x 14.1 in |
| Peso |
7.0 Kg (15.4 lb) |
LOGÍSTICA
| Estado |
New |
|---|---|
| Código EAN |
IT4382 |
| Código arancelario |
8518400000 |
| Lugar de envío |
Spain |
ELECTRICAL
| AC mains requirement |
100-240 V @ 50-60Hz (±10%) |
|---|---|
| Alimentación |
Universal regulated switch mode with PFC, SRM (> 0.95 (> 500 W ouput)) Universal regulated switch mode with PFC, SRM ( 0.95 ( 500 W ouput)) |
AUDIO CONVERTERS
| Latency |
2.5 ms fixed latency architecture |
|---|
ANALOGUE AUDIO OUTPUT PORTS
| Crosstalk |
typical -70 dB @ 1 kHz |
|---|
CHANNELS
| Number of output channels |
4 Hi-Z or Lo-Z (bridgeable per ch. pair) |
|---|---|
| Number of digital inputs |
4 |
SIGNAL
| Damping factor |
> 500 @ input filter bypassed @ 8 Ω 500 @ input filter bypassed @ 8 Ω |
|---|---|
| Slew rate |
> 50 V/μs @ 8 Ω, input filter bypassed 50 V/μs @ 8 Ω, input filter bypassed |
POWER CONSUMPTION
| Power Consumption (IDLE) |
31.1 W/ 31.5 W |
|---|
TECHNOLOGIES
| Cooling |
Fan, continuously variable speed, temperature controlled, front to rear airflow |
|---|
SETTINGS
| Gain |
26/ 29/ 32/ 35 dB |
|---|
DSP
| AD converters |
24 Bit Tandem™ @ 48 kHz
125 dB-A Dynamic Range - 0.005 % THD+N |
|---|---|
| DA converters |
24 Bit Tandem™ @ 48 kHz
117 dB-A Dynamic Range - 0.003 % THD+N |
| Sample rate converter |
24 Bit @ 44.1 kHz to 192 kHz
140 dB Dynamic Range - 0.0001 % THD+N |
| Internal precision |
32 bit floating point |
| Memory/Presets |
128 MB (RAM) plus 512 MB flash for presets |
| Delay |
2 s (input) + 100 ms (output) for time alignment |
| Equalizer |
Raised-cosine, custom FIR, parametric IIR:
peaking, hi/lo-shelving, all-pass, band-pass, band-stop, hi/lo-pass |
| Crossover |
linear phase (FIR), Butterworth, Linkwitz-Riley, Bessel: 6 dB/oct to 48 dB/oct (IIR) |
| Limiters |
TruePower™, RMS voltage, RMS current, Peak limiter |
| Damping control |
Active DampingControl™ and LiveImpedance™ measurement |
ANALOGUE AUDIO INPUTS
| Sensibilidad de entrada |
2.48/ 1.76/ 1.24/ 0.88 Vrms |
|---|
LINE INPUTS
| Input connection type |
Phoenix MC 1,5/12-ST-3,81 1 x RJ45 Phoenix MC 1,5/12-ST-3,81 1 x RJ45 |
|---|---|
| Input impedance |
20 kΩ balanced |
| Max input level |
20 dBu |
LINE OUTPUTS
| Frequency response |
20 Hz - 20 kHz (±0.5 dB , 1 W @ 8 Ω) |
|---|---|
| Output connection type |
Phoenix PC 5/8-STF1-7,62 |
| THD + Ruido |
< 0.1% (typical < 0.05%) (from 0.1 W to Full Power) 0.1% (typical 0.05%) (from 0.1 W to Full Power) |
OUTPUT POWER - All channels driven @ 1%THD
| Max output power @ 100V |
300 w |
|---|---|
| Max output power @ 70V |
300 w |
