Nuevo

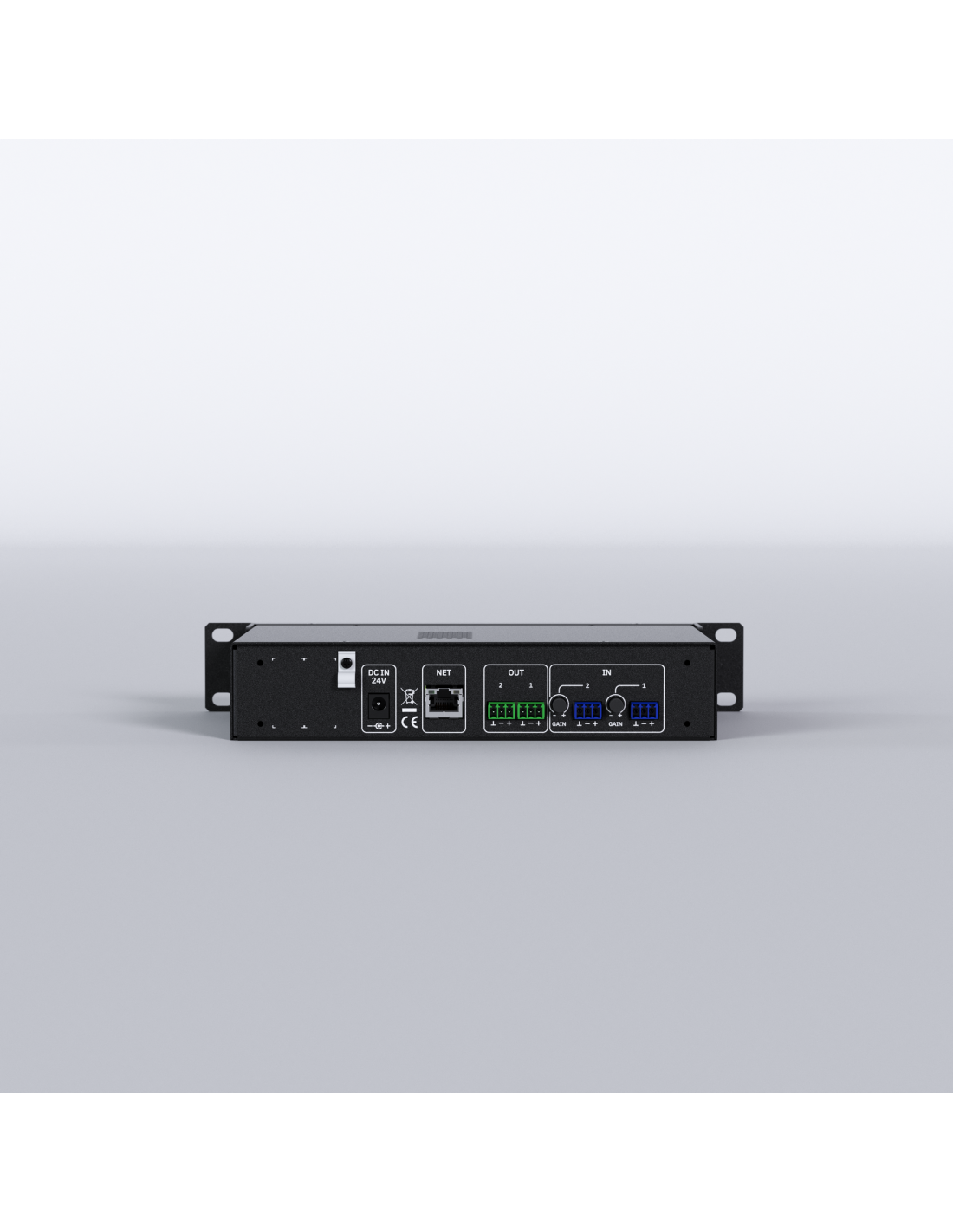

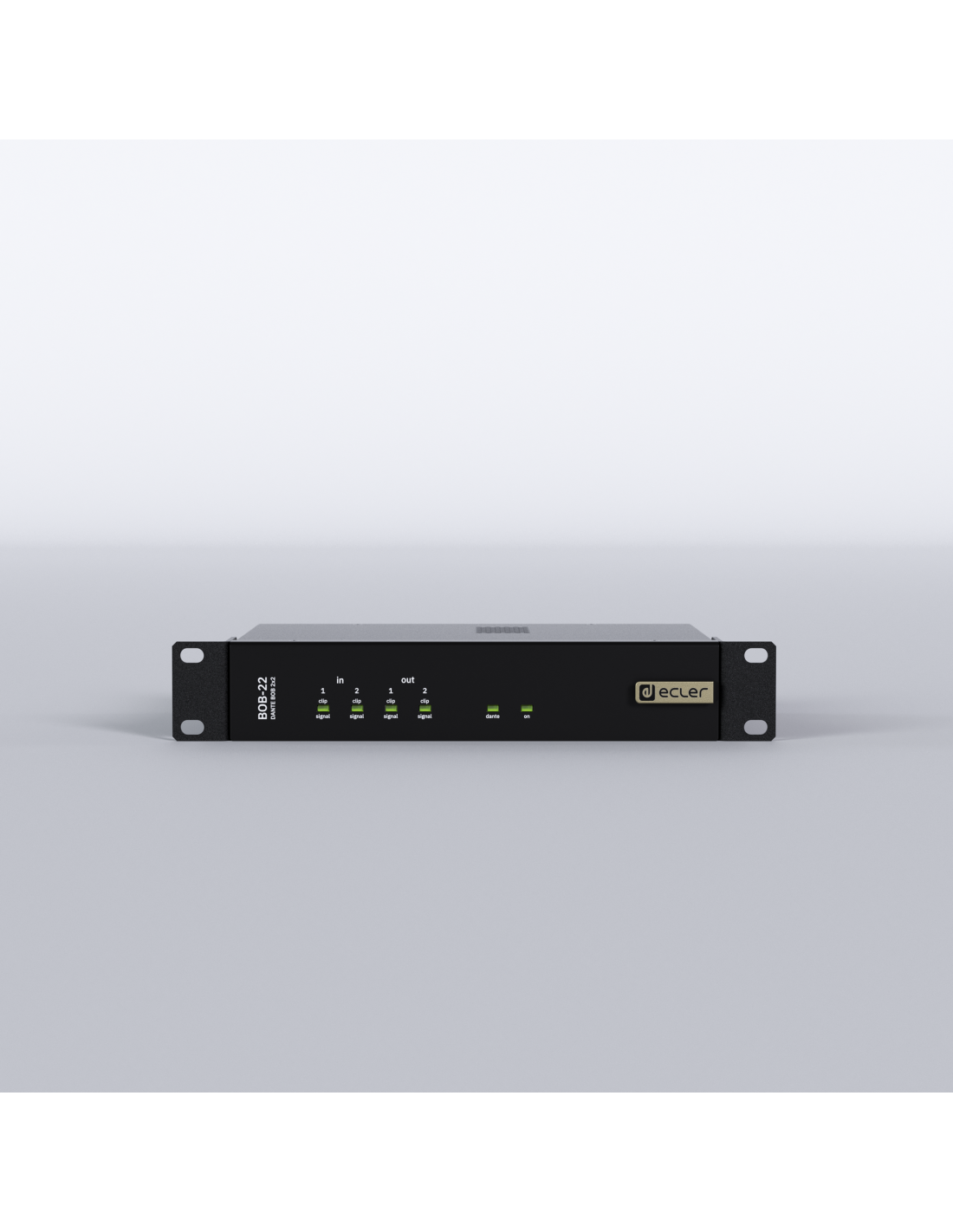

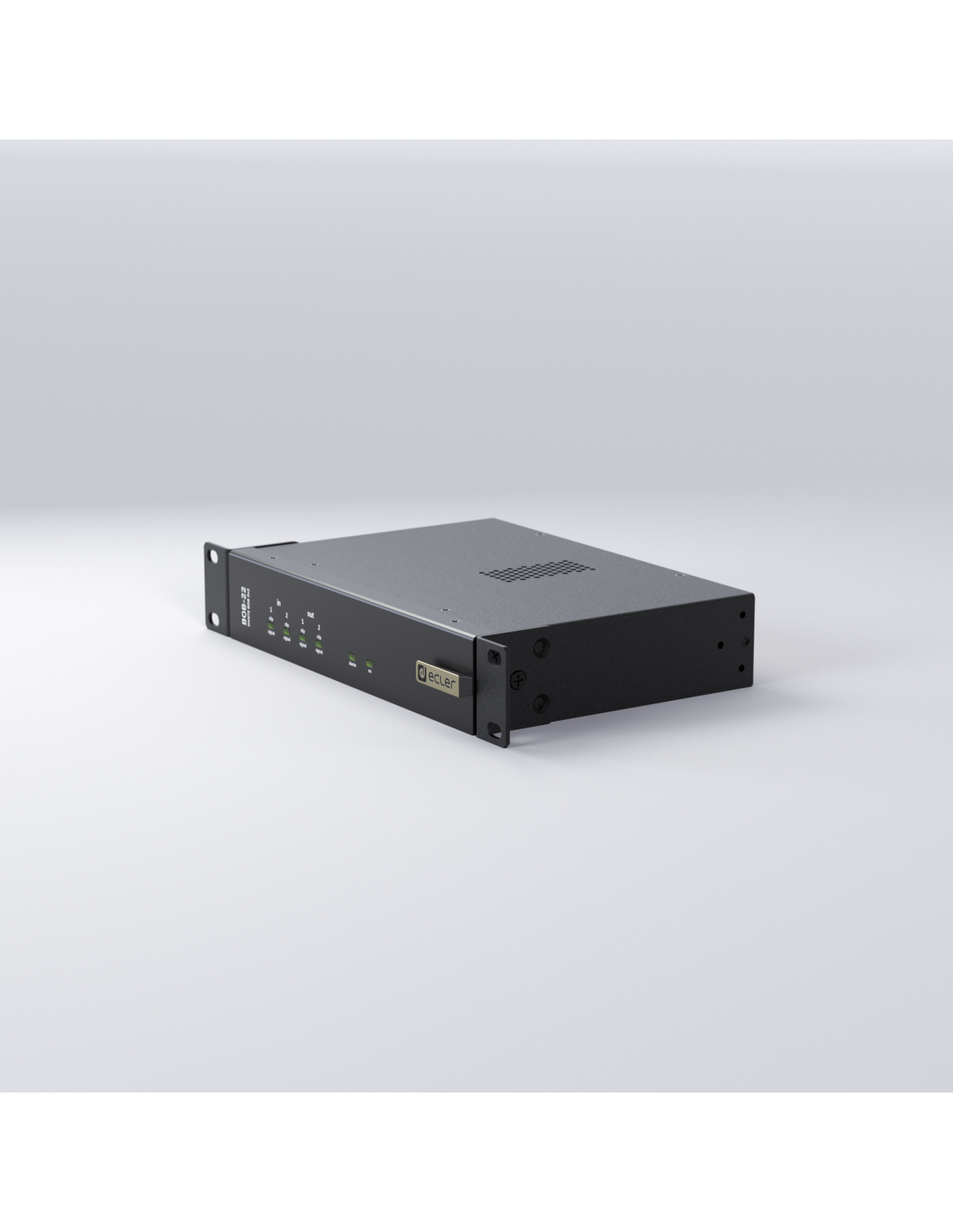

BOB 2x2 Dante

Referencia CBOB22DN

Consultar disponibilidad

Ver más Características

Descripción
Detalles del producto

Tipo de conexión: Euroblock, 3-pin, balanced
Opciones de instalación: Desktop, 19" racks (1RU)
Temperatura de funcionamiento: Min: -10°C ; 14°F
Max: 40°C ; 104°F
Humedad de funcionamiento: 85% HR
Temperatura de almacenamiento: Min: -10°C ; 14°F
Max: 40°C ; 104°F
Humedad de almacenamiento: 90% HR
Accesorios incluidos: 4x Euroblock 3-pin connectors, 4x Rubber feet, 1x Frontal Support Half-Rack accessory, 4x Washer
Dimensiones: 266.1 x 32 x 156.2mm / 10.48 x 1.26 x 6.15 in. (WxHxD)
266.1 x 44 x 156.2mm / 10.48 x 1.73 x 6.15 in. (WxHxD)
Peso: 1.1 Kg / 2.43 lb.
Dimensiones de envío: 430 x 52 x 261 mm / 16.93 x 2.05 x 10.28 in. (WxHxD)
Peso del envío: 1.7 Kg / 3.75 lb.
Sampling rate: 48 kHz
Resolution: 24 bit
Frequency response: 0 - 20 kHz
Number of input ports: 2, MIC/LINE level
Sensibilidad de entrada: -50dBV to +0dBV
Input impedanc: 4 kΩ
CMRR: 56dB typ.
Number of output ports: 2, LINE level
Output impedance: 316 ohms
Crosstalk: better than 95 dB
Programing and control: Dante® Controller
AC mains requirement: 90-265VAC @ 50-60Hz (External PSU: 24VDC)
Consumo de energía: 14 VA / 8 W
Alimentación: 24VDC External PSU (sold separately)
Phantom power: +48VDC, Internal jumper activation
Input impedance: 4 kΩ
Max input level: +18dBV +20dBu
THD + Ruido: THD+Noise @ 1kHz, 0dBV input (line) 0.005%
THD+Noise @ 1kHz, -40dBV input (mic.) 0.40%
Latency: ADC 0.81 ms DAC 0.56 ms Total 1.37 ms
Ethernet: 1, RJ-45 connector
10 /100Mb, 1GB Auto X-Over
Ventilation: Passive
Dynamic range: ADC:110dB, DAC:115dB
Max output level: +18dBV +20dBu
Protocols: Dante® / AES67 (2/2 flows)
Number of digital input ports: 2
Number of digital output ports: 2
Interfaces: 1 x RJ-45
Secondary power supply: PoE: class 0 802.3af Poe PD compliant

FÍSICO

Tipo de conexión	Euroblock, 3-pin, balanced
Opciones de instalación	Desktop, 19" racks (1RU)
Temperatura de funcionamiento	Min: -10°C ; 14°F Max: 40°C ; 104°F
Humedad de funcionamiento	85% HR
Temperatura de almacenamiento	Min: -10°C ; 14°F Max: 40°C ; 104°F
Humedad de almacenamiento	90% HR
Accesorios incluidos	4x Euroblock 3-pin connectors, 4x Rubber feet, 1x Frontal Support Half-Rack accessory, 4x Washer
Dimensiones	266.1 x 32 x 156.2mm / 10.48 x 1.26 x 6.15 in. (WxHxD) 266.1 x 44 x 156.2mm / 10.48 x 1.73 x 6.15 in. (WxHxD)
Peso	1.1 Kg / 2.43 lb.
Dimensiones de envío	430 x 52 x 261 mm / 16.93 x 2.05 x 10.28 in. (WxHxD)
Peso del envío	1.7 Kg / 3.75 lb.

MICS

Output impedance	316 ohms

ELECTRICAL

AC mains requirement	90-265VAC @ 50-60Hz (External PSU: 24VDC)
Consumo de energía	14 VA / 8 W
Alimentación	24VDC External PSU (sold separately)
Ventilation	Passive
Secondary power supply	PoE: class 0 802.3af Poe PD compliant

AUDIO CONVERTERS

Sampling rate	48 kHz
Latency	ADC 0.81 ms DAC 0.56 ms Total 1.37 ms
Dynamic range	ADC:110dB, DAC:115dB

ANALOGUE AUDIO INPUT PORTS

Number of input ports	2, MIC/LINE level
Input impedanc	4 kΩ

ANALOGUE AUDIO OUTPUT PORTS

Number of output ports	2, LINE level
Crosstalk	better than 95 dB

AUDIO OVER IP

Protocols	Dante® / AES67 (2/2 flows)
Number of digital input ports	2
Number of digital output ports	2
Interfaces	1 x RJ-45

CONNECTIVITY

Programing and control	Dante® Controller
Ethernet	1, RJ-45 connector 10 /100Mb, 1GB Auto X-Over

ANALOGUE AUDIO INPUTS

Sensibilidad de entrada	-50dBV to +0dBV

MIC INPUTS

Phantom power	+48VDC, Internal jumper activation

LINE INPUTS

CMRR	56dB typ.
Input impedance	4 kΩ
Max input level	+18dBV +20dBu

LINE OUTPUTS

Frequency response	0 - 20 kHz
THD + Ruido	THD+Noise @ 1kHz, 0dBV input (line) 0.005% THD+Noise @ 1kHz, -40dBV input (mic.) 0.40%
Max output level	+18dBV +20dBu

SCREEN/DISPLAY

Resolution	24 bit
