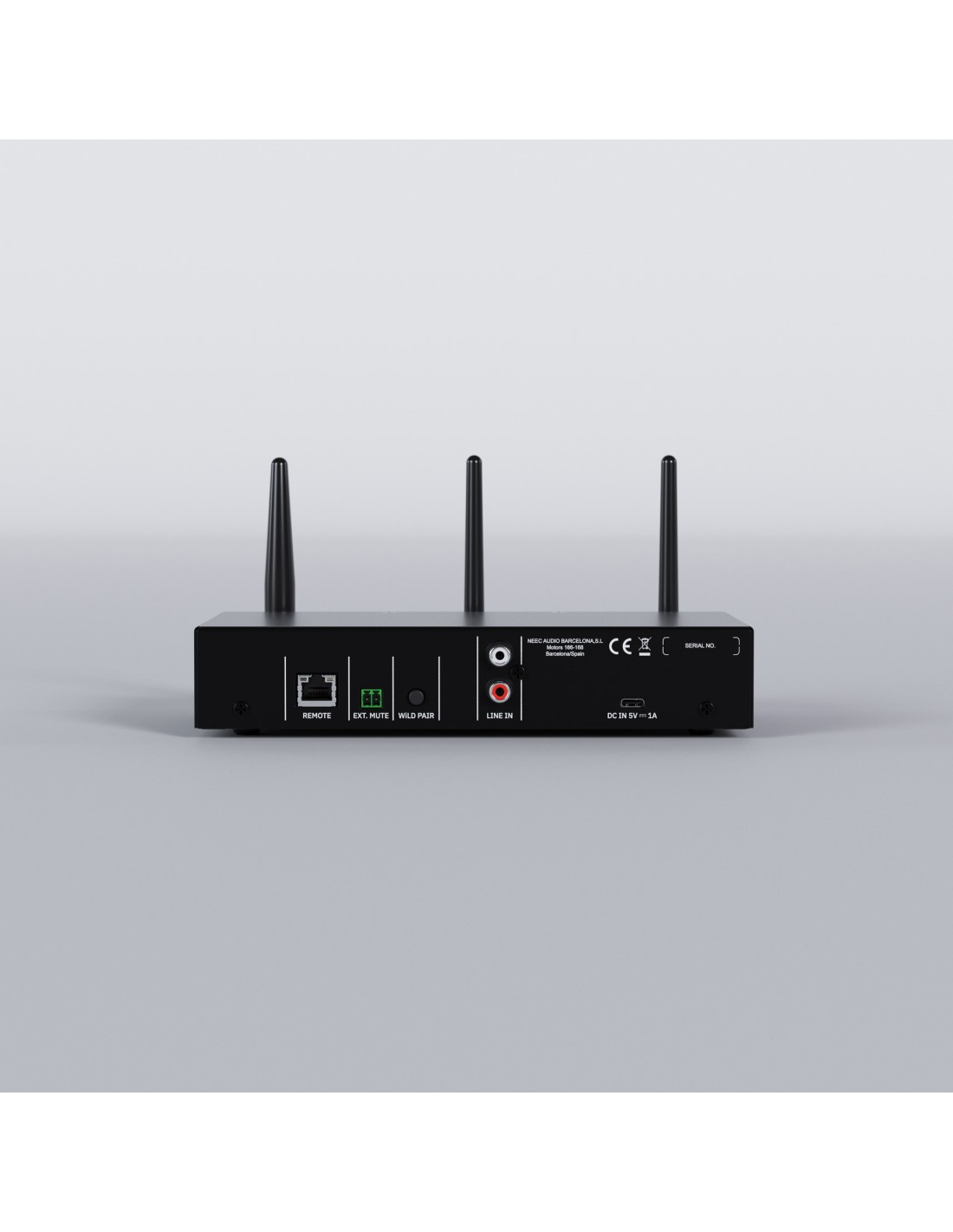

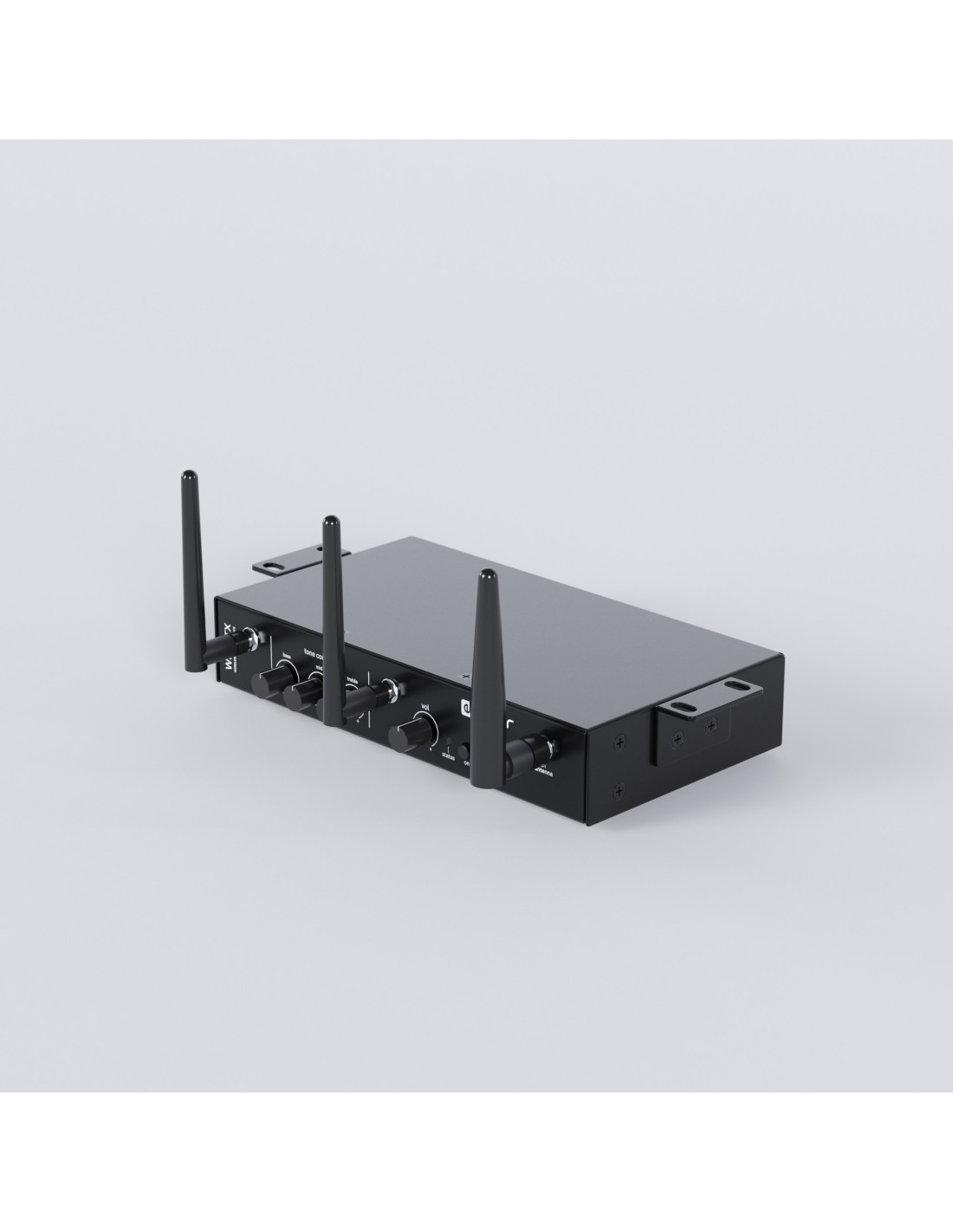

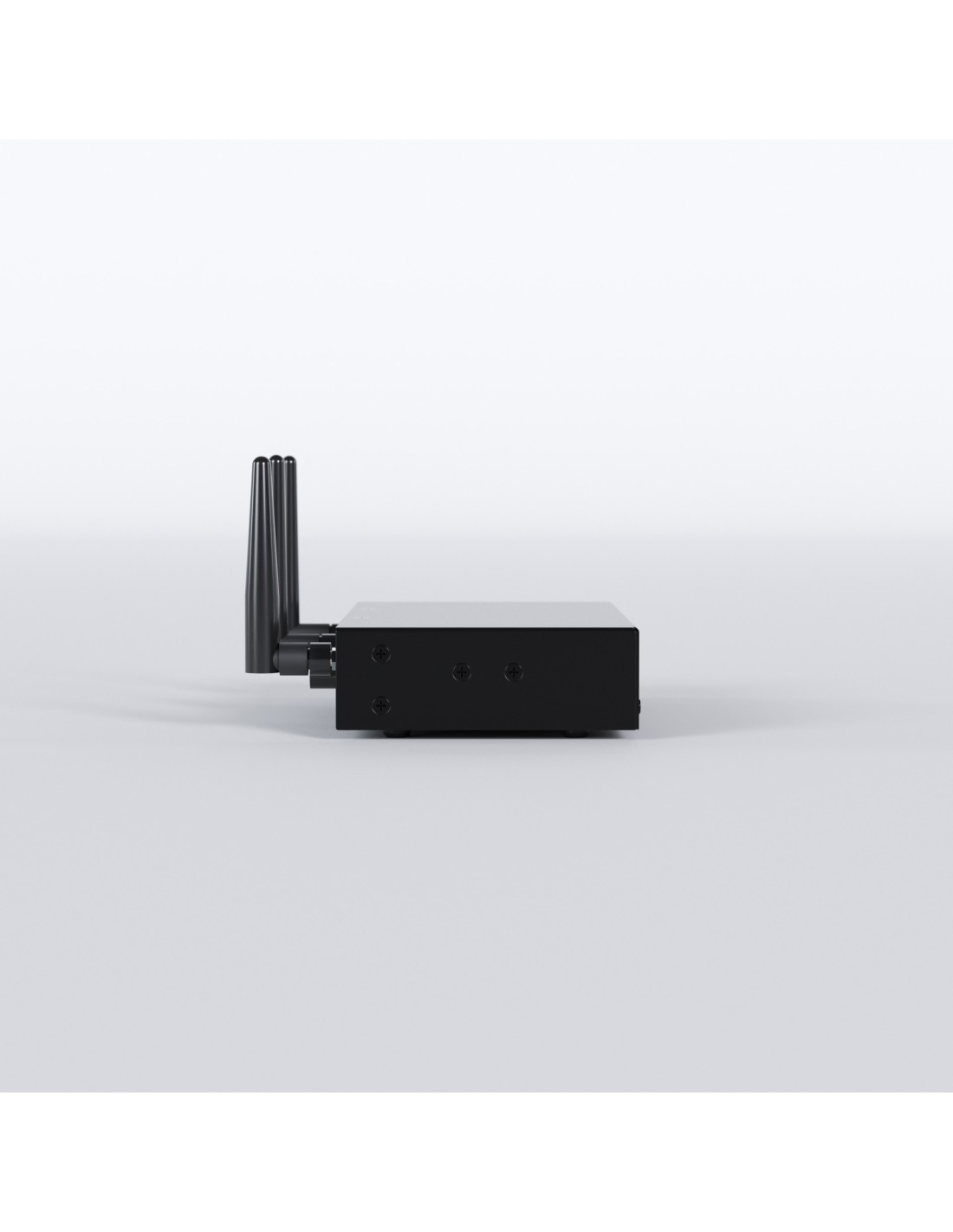

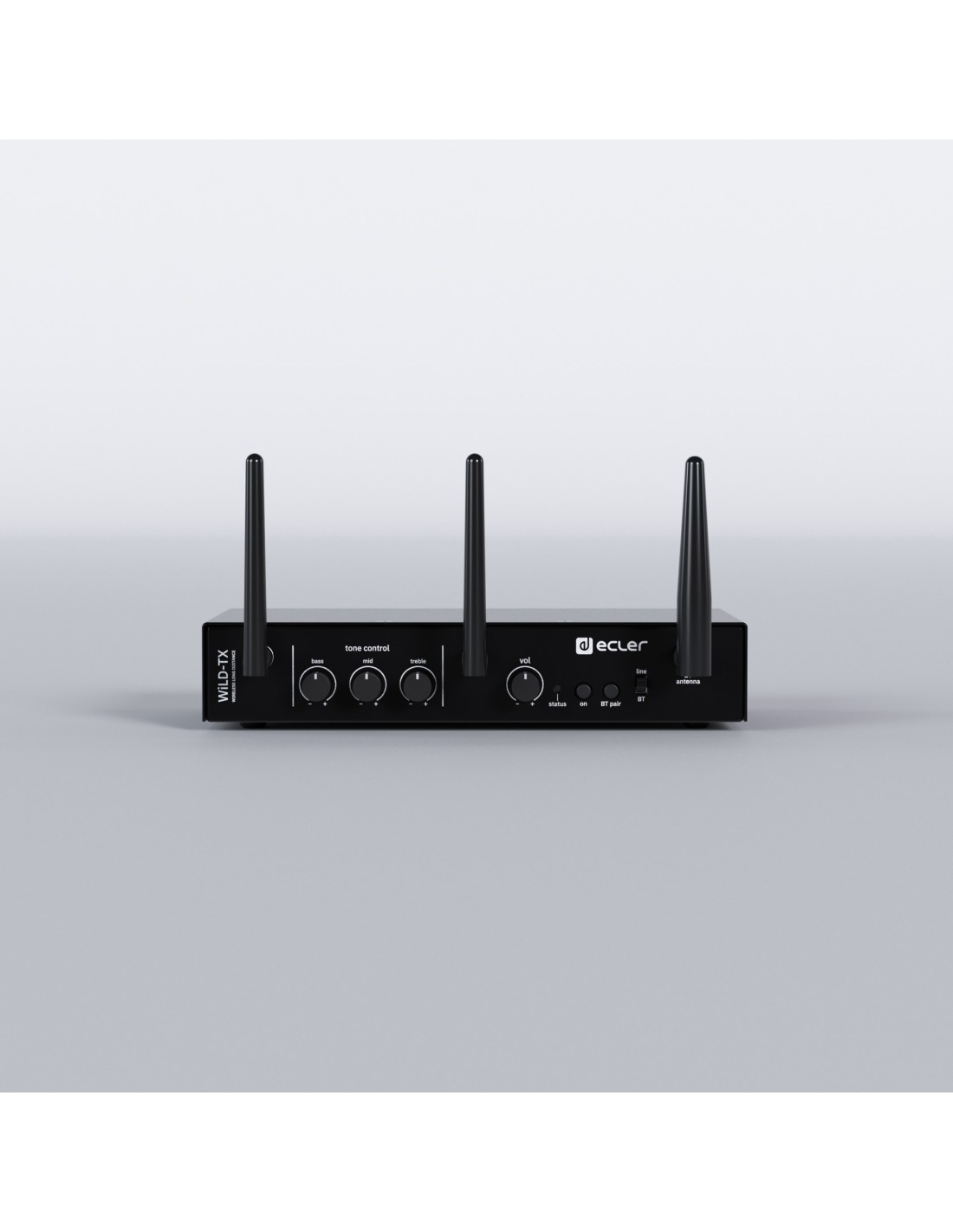

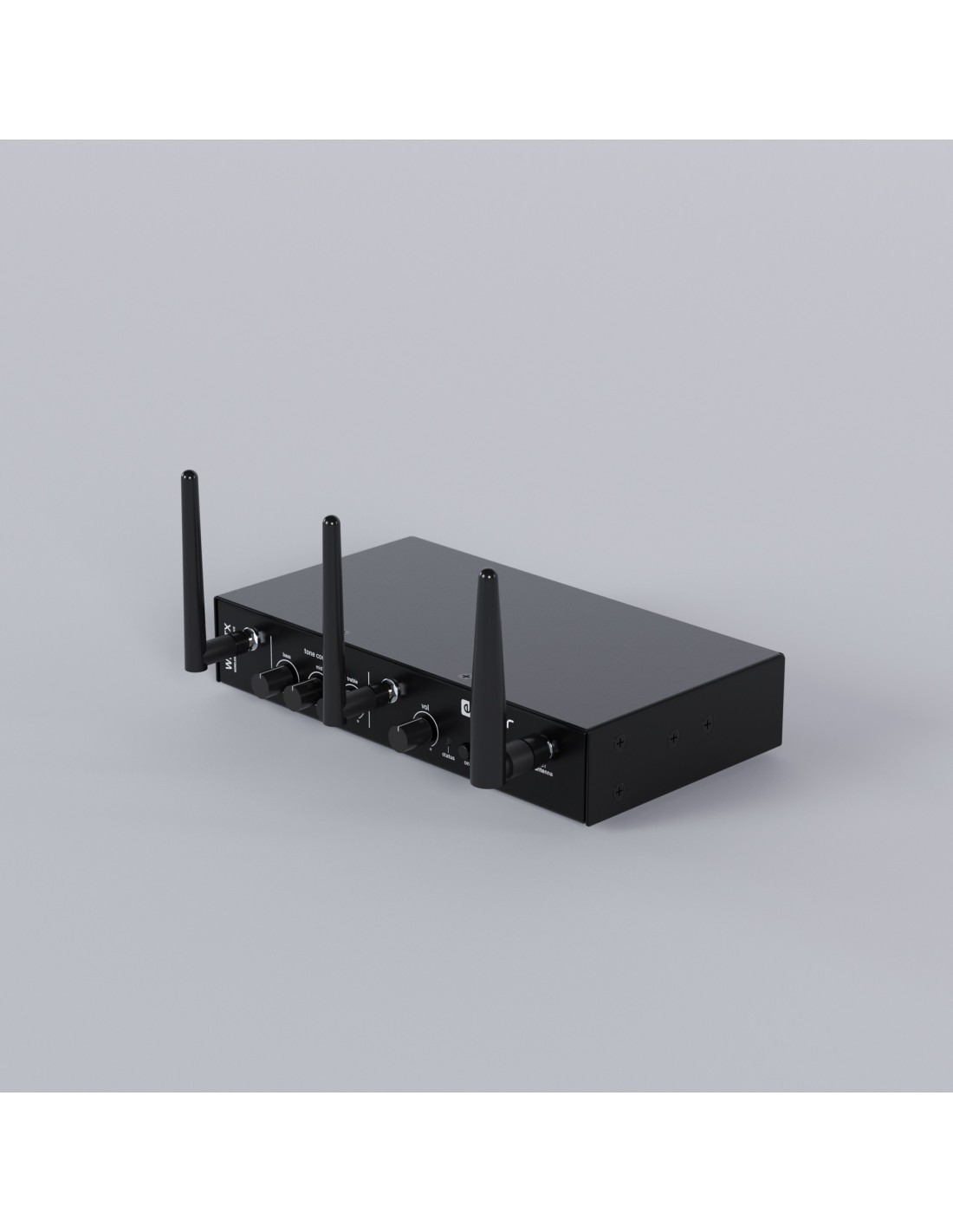

WiLD Series Audio Trasmitter
CWILDTX
Stock disponible
- Tipo de conexión
- 2 xRCA unbalanced
- Opciones de instalación

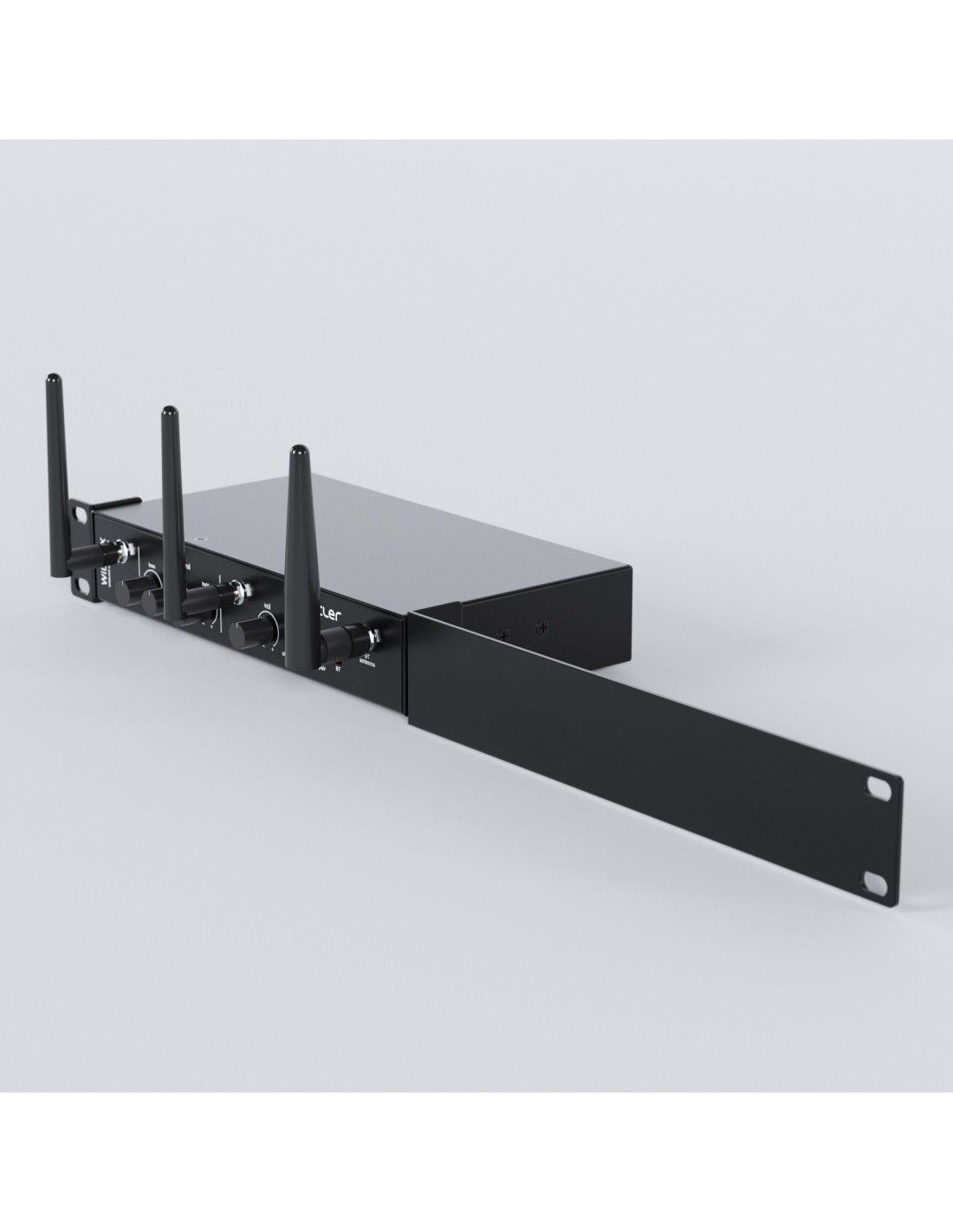

- 1 Rack U, Wall or under a surface (table, shelf, cupboard, etc.)
- Material de cerramiento
- Metal
- Temperatura de funcionamiento
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Humedad de funcionamiento
- 85% HR
- Temperatura de almacenamiento
- Min: -10°C ; 14°F
Max: 50°C ; 122°F - Humedad de almacenamiento
- 90% HR
- Accesorios incluidos
- 1x External universal Power Supply, 2x DECT antennas, 1x BT Antenna, 1 x Half Rack Front Adapter, 2x Mounting ears, 1x Wall-mount. bracket, 1x Euroblock connector (mute).
- Accesorios opcionales
- WPaVOL for volume control
- Color acabado
- Black (RAL 9005)
- Dimensiones
- 217 x 44 x 117 mm / 8.54 x 1.73 x 4.61 in. (WxHxD)
217 x 111 x117 mm / 8.54 x 4.37 x 4.61 in. (WxHxD) (including antennas) - Peso
- 0.9 kg / 1.98 lb
- Piezas por caja
- 1 unit
- Dimensiones de envío
- 300 x 60 x 240 mm / 11.81 x 2.36 x 9.45 in. (WxHxD)
- Peso del envío
- 1.5 kg / 3.31 lb
- Sensibilidad de entrada
- -10dBV to 0dBV
- AC mains requirement
- 100-240 VAC @ 50-60Hz, using supplied DC adapter
- AC mains connector
- 5VDC IN mains USB-C
- Consumo de energía
- 1A at 5V
- Alimentación
- External, universal Power Supply
- Sistema de montaje
- Surface & Rack ears
- Indicadores LED
- Status
- Input impedance
- 20kΩ
- Max input level
- +6.021dBV
- Latency
- From TX Analog Audio IN to RX Speaker 26ms
- External MUTE
- Normally Open
- Control de tono
- front panel knob
- Frequency band
- 1880 - 1930MHz,EU DECT, US DECT
- Coverage range
- Up to 150m from a TX to any paired RX, direct line of sight
- Audio channels
- 1 stereo audio ch received from the WiLD-TX network
- Audio transmission
- 16 bit uncompressed, 48kHz SR
- Digital Audio Sample size
- 16bit
- Digital Audio Sampling rate
- 48kHz
- Digital Audio Frequency Response
- 10Hz – 15kHz (-1dB)
- Digital Audio converters
- ADC Resolution: 24 bits
Dynamic range
ADC: 96 dB - Number of inputs
- 1
- THD + Ruido
- 1% (1kHz)
- Class
- Compliant 5.3, Class 2&3
- Range
- 25m (ideal conditions)
- Profiles
- A2DP1.3.2/AVRCP1.6.2
- Supported codecs
- SBC
- USB
- Power supply and Service & firmware updates
- Analogue remote control
- Compatible with WPa series analogue volume control panels
- Paring control
- back panel button
- Source selection
- front panel switch
- Control de volumen
- front panel knob
- MUTE control
- GPI
- Tiempo de espera automático
- 1200 seg
- Umbral de espera automático
- 20 dB
FÍSICO
| Tipo de conexión |
2 xRCA unbalanced |
|---|---|
| Opciones de instalación |
1 Rack U, Wall or under a surface (table, shelf, cupboard, etc.) |
| Material de cerramiento |
Metal |
| Temperatura de funcionamiento |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Humedad de funcionamiento |
85% HR |
| Temperatura de almacenamiento |
Min: -10°C ; 14°F
Max: 50°C ; 122°F |
| Humedad de almacenamiento |
90% HR |
| Accesorios incluidos |
1x External universal Power Supply, 2x DECT antennas, 1x BT Antenna, 1 x Half Rack Front Adapter, 2x Mounting ears, 1x Wall-mount. bracket, 1x Euroblock connector (mute). |
| Accesorios opcionales |
WPaVOL for volume control |
| Color acabado |
Black (RAL 9005) |
| Dimensiones |
217 x 44 x 117 mm / 8.54 x 1.73 x 4.61 in. (WxHxD)
217 x 111 x117 mm / 8.54 x 4.37 x 4.61 in. (WxHxD) (including antennas) |
| Peso |
0.9 kg / 1.98 lb |
| Piezas por caja |
1 unit |
| Dimensiones de envío |
300 x 60 x 240 mm / 11.81 x 2.36 x 9.45 in. (WxHxD) |
| Peso del envío |
1.5 kg / 3.31 lb |
| Sistema de montaje |
Surface & Rack ears |
ELECTRICAL
| AC mains requirement |
100-240 VAC @ 50-60Hz, using supplied DC adapter |
|---|---|
| AC mains connector |
5VDC IN mains USB-C |
| Consumo de energía |
1A at 5V |
| Alimentación |
External, universal Power Supply |
AUDIO CONVERTERS
| Latency |
From TX Analog Audio IN to RX Speaker 26ms |
|---|
WiS (RF WIRELESS DIGITAL AUDIO)
| Frequency band |
1880 - 1930MHz,EU DECT, US DECT |
|---|---|
| Coverage range |
Up to 150m from a TX to any paired RX, direct line of sight |
| Audio channels |
1 stereo audio ch received from the WiLD-TX network |
| Audio transmission |
16 bit uncompressed, 48kHz SR |
| Digital Audio Sample size |
16bit |
| Digital Audio Sampling rate |
48kHz |
| Digital Audio Frequency Response |
10Hz – 15kHz (-1dB) |
| Digital Audio converters |
ADC Resolution: 24 bits
Dynamic range
ADC: 96 dB |
ANALOGUE AUDIO INPUTS
| Sensibilidad de entrada |
-10dBV to 0dBV |
|---|---|
| Number of inputs |
1 |
| THD + Ruido |
1% (1kHz) |
BLUETOOTH AUDIO INPUT
| Class |
Compliant 5.3, Class 2&3 |
|---|---|
| Range |
25m (ideal conditions) |
| Profiles |
A2DP1.3.2/AVRCP1.6.2 |
| Supported codecs |
SBC |
CONTROL CONNECTIVITY
| External MUTE |
Normally Open |
|---|---|
| USB |
Power supply and Service & firmware updates |
| Analogue remote control |
Compatible with WPa series analogue volume control panels |
MONITORING AND CONTROL
| Indicadores LED |
Status |
|---|---|
| Control de tono |
front panel knob |
| Paring control |
back panel button |
| Source selection |
front panel switch |
| Control de volumen |
front panel knob |
| MUTE control |
GPI |
| Tiempo de espera automático |
1200 seg |
| Umbral de espera automático |
20 dB |
LINE INPUTS
| Input impedance |
20kΩ |
|---|---|
| Max input level |
+6.021dBV |
