Nuevo

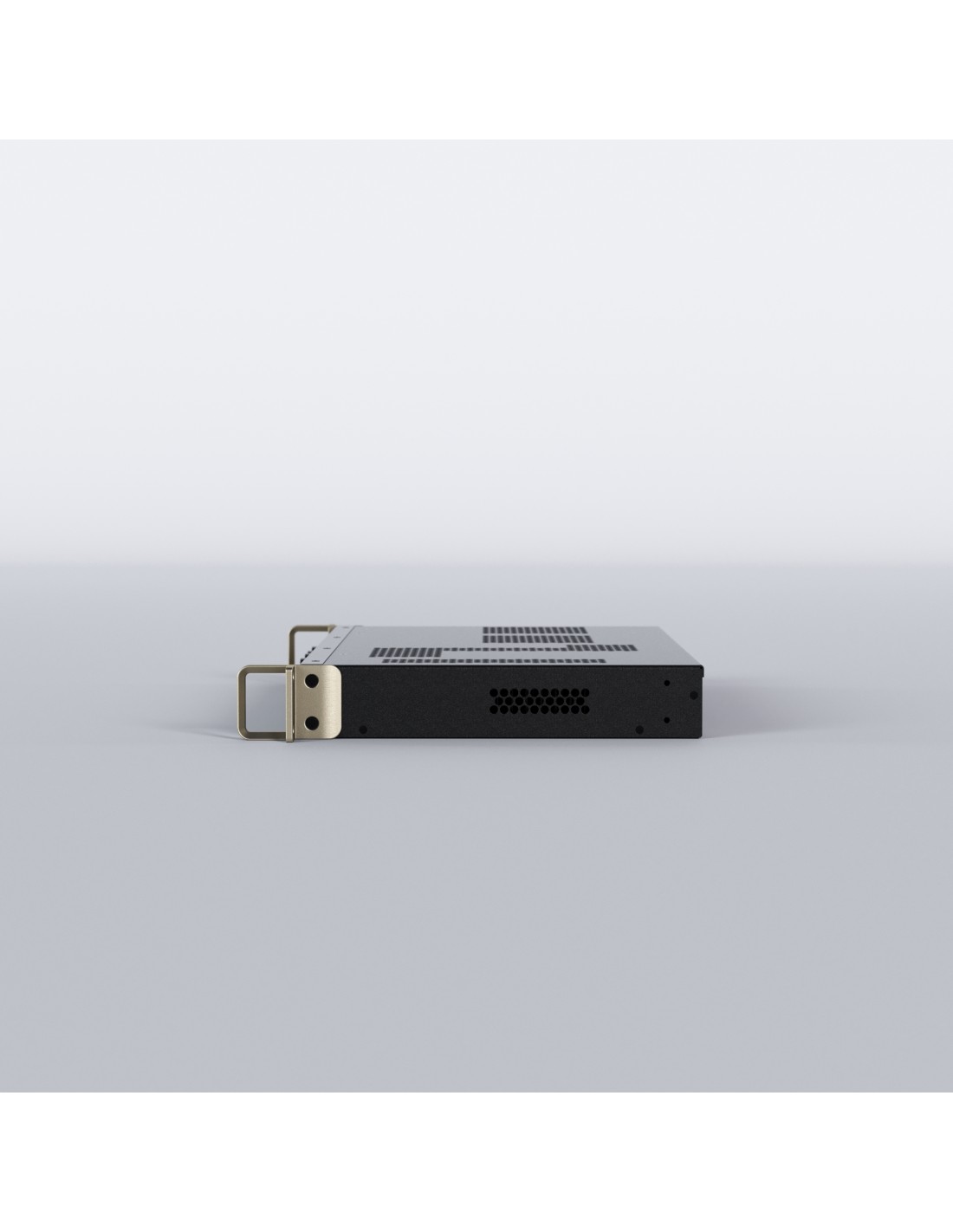

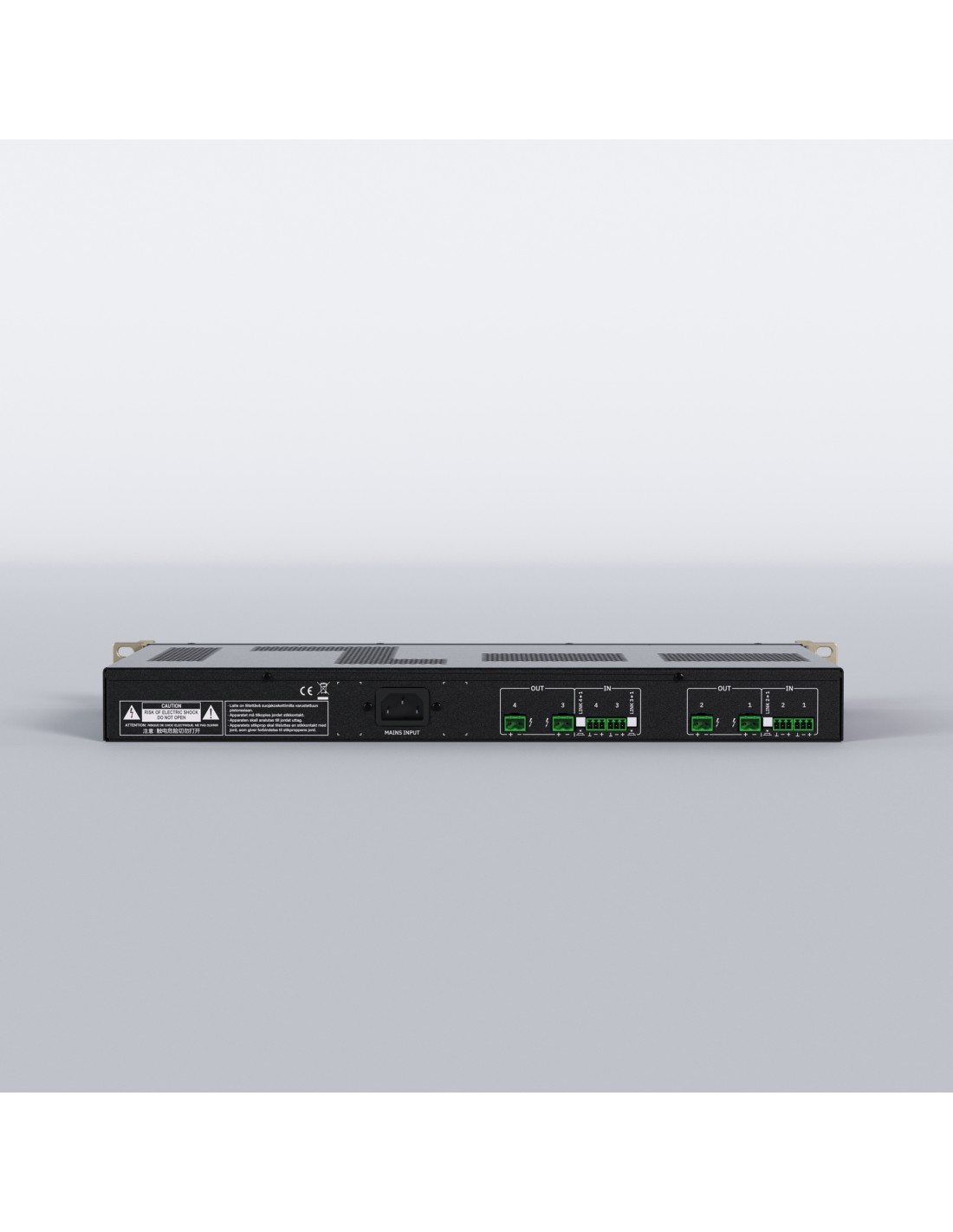

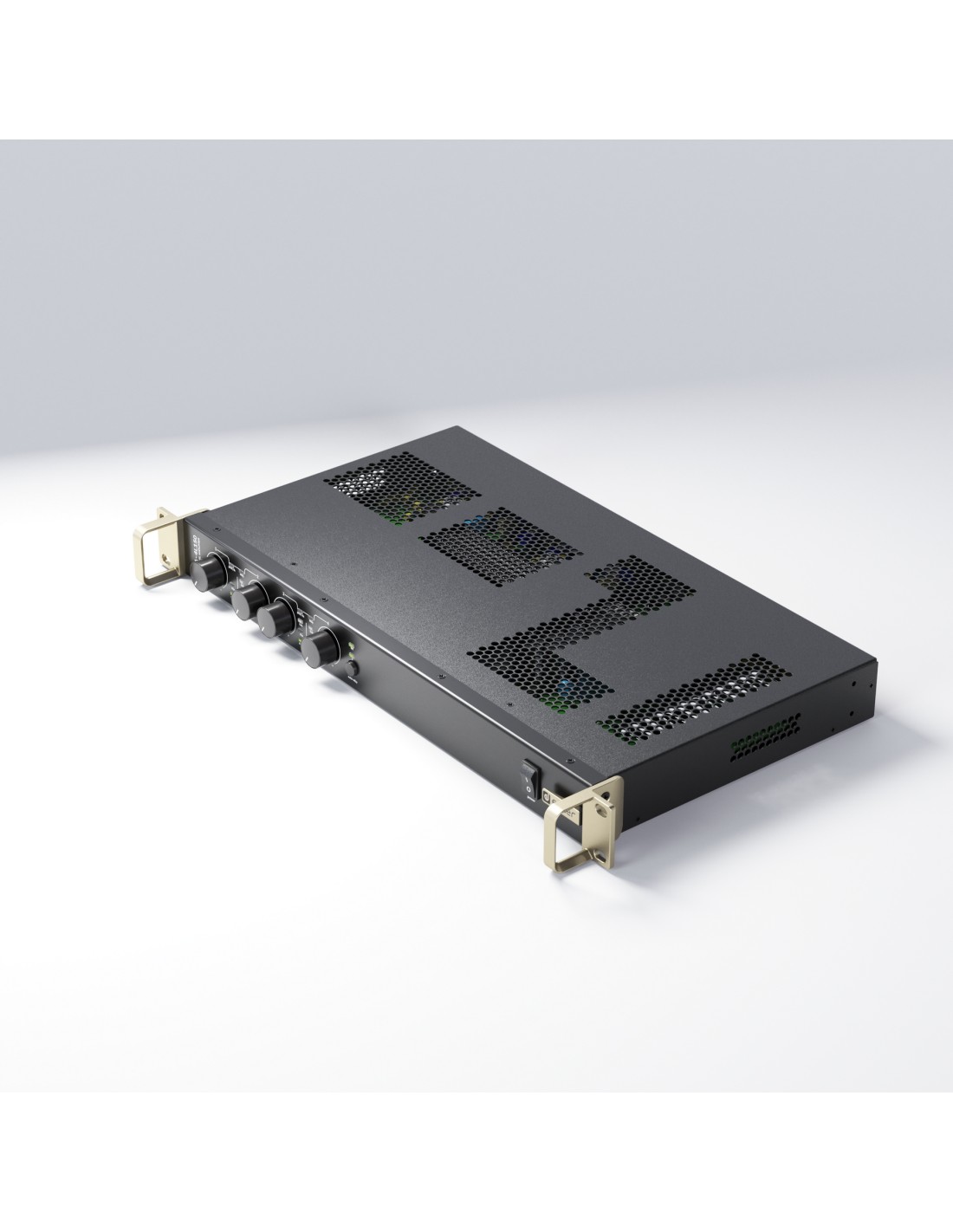

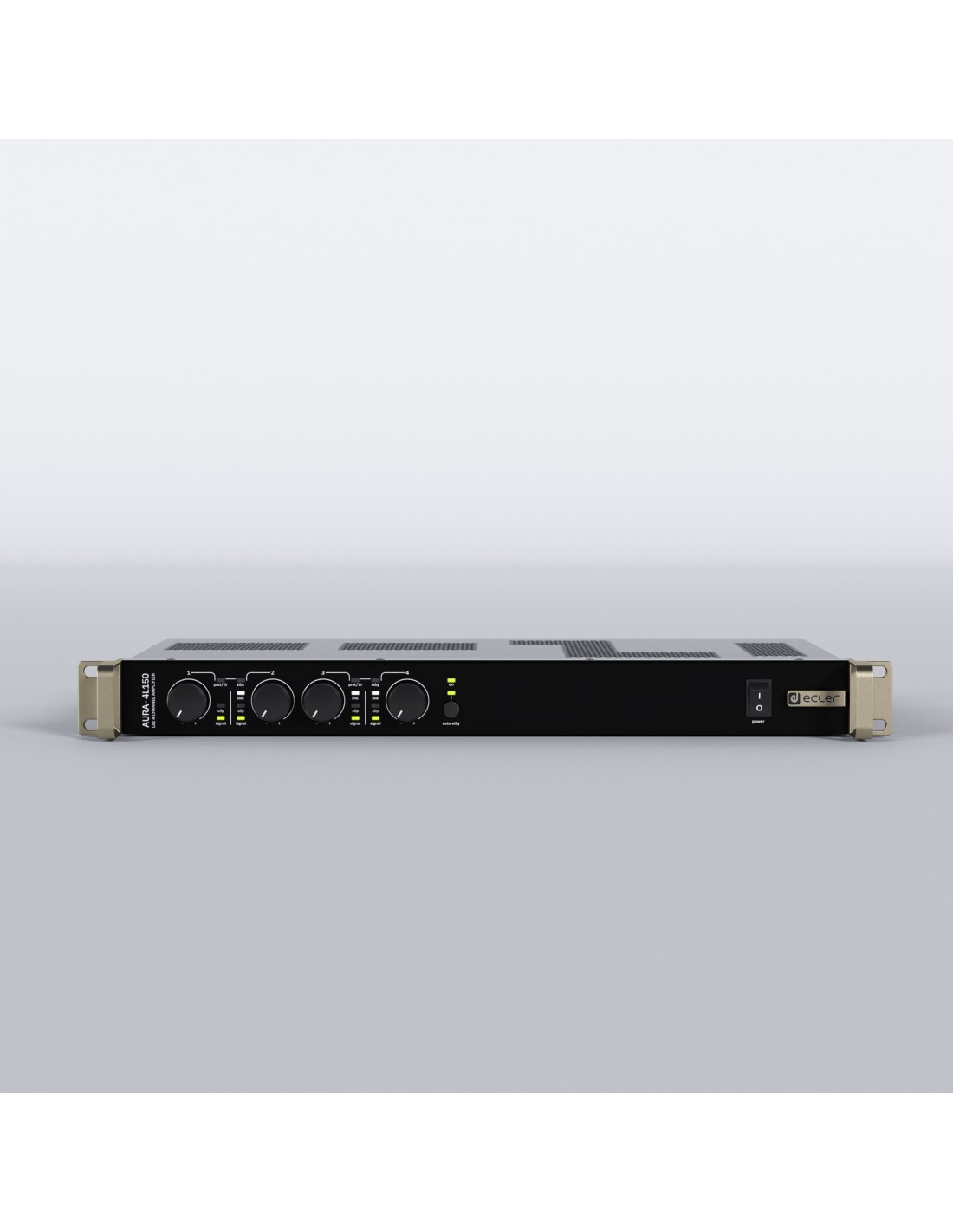

AMP serie AURA 4x150W LoZ

Referencia CAURA4L150

Consultar disponibilidad

Ver más Características

Descripción
Detalles del producto

Temperatura de funcionamiento: -10º to 50º C
14º to 122º F
Humedad de funcionamiento: 5-85% RH, non-condensing
Temperatura de almacenamiento: -10⁰ to 50⁰ C
14⁰ to 122⁰ F
Humedad de almacenamiento: 5-85% RH, non-condensing
Dimensiones: 482.6x44x275 mm. / 19x1.73x10.83 in. (WxHxD)
Peso: 3.7 kg / 8.16 lb
Dimensiones de envío: 590x75x400mm / 23.23x2.95x15.75 in. (WxHxD)
Peso del envío: 5.25 Kg / 11.57 lb
Estado: New
Origen Producción: China
Código EAN: 8435071343930
Anchura (cm): 59
Altura (cm): 7.5
Profundidad (cm): 40
Vol. (dm3): 17.70
Peso bruto (kg): 5.25
Peso neto (kg): 3.7
Formato: Unit
Garantía (meses): 60
Frequency response: 15Hz-30kHz (-3dB, 1W @ 4Ω)
Sensibilidad de entrada: 0 dBV
2,21 dBu
1 Vrms
CMRR: 55 Typ (from 20Hz-20kHz)
Crosstalk: 80dB (@ 1kHz)
AC mains requirement: 100-240 V @ 50-60Hz (±10%)
AC mains connector: IEC C14 inlet (10Amax, Power cord 10Amax)
Alimentación: Universal, regulated SMPS with PFC
SNR: 100 dBA (from 20Hz - 20kHz)
Output connection type: 2-pin Euroblock. Pitch: 5 mm
Potencia: 11,2 W
26,6 VA
11,65 W
15,5 VA
16,75 W
33,26 VA
17,03 W
20,47 VA
108,4 W
122,6 VA
110,5 W
113,25 VA
199,15 W
215,7 VA
203,4 W
207,5 VA
Number of output channels: 4
Number of input channels: 4
Input connection type: Analogue 3-pin Euroblock, balanced, pitch 3,5 mm
Input impedance: 500kΩ (balanced)
Max input level: +12dBV
14,21 dBu
THD + Ruido: 0,01 % (from 1W to full power output @ 4Ω)
Damping factor: 150 (DF @ 8 Ω, 20 Hz - 400 Hz)
Cooling: Convection (fanless)
Input configuration: Input link to CH1 selector per input
Efficiency: 76% (1/4 POWER, @ 4Ω, 230VAC)
DC protection: Yes
Short-circuit protection: Yes
Clip limiter: Yes
Thermal protection: Yes
Attenuators: Front panel knobs per channel

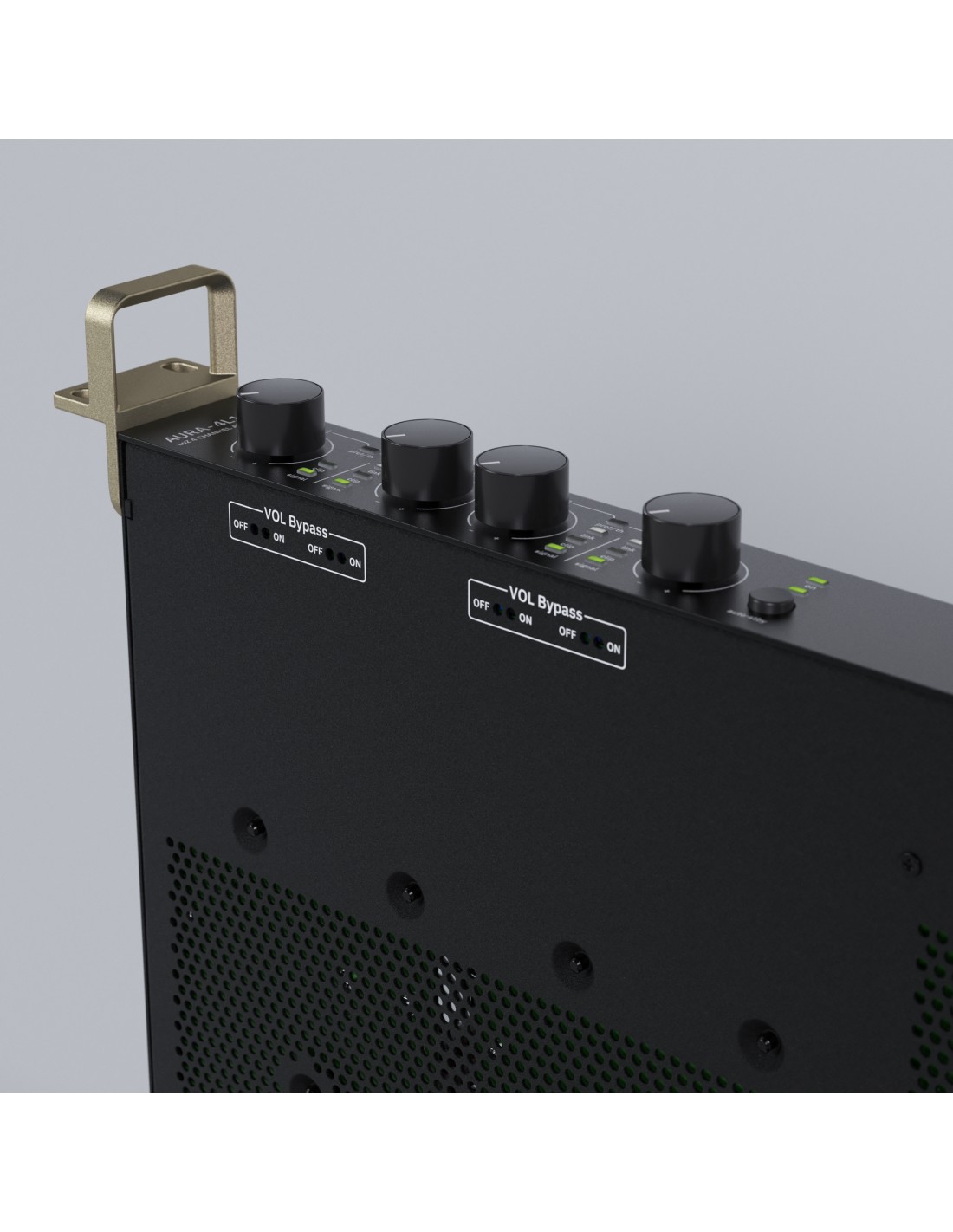

VOL (default)/BYPASS option) (VOL/BYPASS selectable by a switch at the bottom)
Signal Present: SIGNAL LED (Green) per channel (trigger @- 40 dBV)
Cliping: CLIP LED (Red) per channel
Standby: AUTO STANDBY ON/OFF LED (Green) per unit
Amplification technology: Class D
Power ON/OFF: Front panel switch (green LED indicator)
Thermal: TH LED (Orange) by pairs of channels (combined PROT/TH LED)
Protect: PROT LED (Red) by pairs of channels (Combined PROT/TH LED)
Voltage gain: 27,8 dB
Power factor correction: 0,92 (Output Power 1/4 Max Output Power)
HF protection: Yes
Standby / Mute: AUTO STANDBY (Orange) by pairs of channels
On: ON LED (Green) per unit
Energy saving: Auto Standby function selectable (Auto Standby by pairs of channels)
Current Draw: 0,116 Arms
0,135 Arms
0,145 Arms
0,178 Arms
0,534 Arms
0,939 Arms
0,988 Arms
1,815 Arms
Thermal Loss: 9,61 kcal/h
38,16 BTU/h
10,02 kcal/h
39,76 BTU/h
14,41 kcal/h
57,17 BTU/h
14,65 kcal/h
58,12 BTU/h
29,41 kcal/h
116,7 BTU/h
31,25 kcal/h
124,03 BTU/h
41,07 kcal/h
162,97 BTU/h
44,75 kcal/h
177,61 BTU/h
RUN/SLEEP mode: Auto Standby function
Front panel button
(Auto Standby ON/OFF button per unit. -50dB (default) or -40dB, internally selectable. Auto stand-by time: 60 seconds)
Link: LINK LED (White) per chanel

SISTEMA

Number of input channels	4

FÍSICO

Temperatura de funcionamiento	-10º to 50º C 14º to 122º F
Humedad de funcionamiento	5-85% RH, non-condensing
Temperatura de almacenamiento	-10⁰ to 50⁰ C 14⁰ to 122⁰ F
Humedad de almacenamiento	5-85% RH, non-condensing
Dimensiones	482.6x44x275 mm. / 19x1.73x10.83 in. (WxHxD)
Peso	3.7 kg / 8.16 lb
Dimensiones de envío	590x75x400mm / 23.23x2.95x15.75 in. (WxHxD)
Peso del envío	5.25 Kg / 11.57 lb
Formato	Unit

POTENCIADO

Potencia	199,15 W 215,7 VA 108,4 W 122,6 VA 16,75 W 33,26 VA 11,2 W 26,6 VA 11,65 W 15,5 VA 17,03 W 20,47 VA 203,4 W 207,5 VA 110,5 W 113,25 VA

LOGÍSTICA

Estado	New
Origen Producción	China
Código EAN	8435071343930
Anchura (cm)	59
Altura (cm)	7.5
Profundidad (cm)	40
Vol. (dm3)	17.70
Peso bruto (kg)	5.25
Peso neto (kg)	3.7
Garantía (meses)	60

ELECTRICAL

AC mains requirement	100-240 V @ 50-60Hz (±10%)
AC mains connector	IEC C14 inlet (10Amax, Power cord 10Amax)
Alimentación	Universal, regulated SMPS with PFC
Power factor correction	0,92 (Output Power 1/4 Max Output Power)

ANALOGUE AUDIO OUTPUT PORTS

Crosstalk	80dB (@ 1kHz)

CHANNELS

Number of output channels	4
Input configuration	Input link to CH1 selector per input

SIGNAL

SNR	100 dBA (from 20Hz - 20kHz)
Damping factor	150 (DF @ 8 Ω, 20 Hz - 400 Hz)
Voltage gain	27,8 dB

TECHNOLOGIES

Cooling	Convection (fanless)
Efficiency	76% (1/4 POWER, @ 4Ω, 230VAC)
Amplification technology	Class D
Energy saving	Auto Standby function selectable (Auto Standby by pairs of channels)

PROTECTIONS

DC protection	Yes
Short-circuit protection	Yes
Clip limiter	Yes
Thermal protection	Yes
HF protection	Yes

MONITORING

Signal Present	SIGNAL LED (Green) per channel (trigger @- 40 dBV)
Cliping	CLIP LED (Red) per channel
Standby	AUTO STANDBY ON/OFF LED (Green) per unit
Thermal	TH LED (Orange) by pairs of channels (combined PROT/TH LED)
Protect	PROT LED (Red) by pairs of channels (Combined PROT/TH LED)
Standby / Mute	AUTO STANDBY (Orange) by pairs of channels
On	ON LED (Green) per unit
Link	LINK LED (White) per chanel

ANALOGUE AUDIO INPUTS

Sensibilidad de entrada	0 dBV 2,21 dBu 1 Vrms

LINE INPUTS

CMRR	55 Typ (from 20Hz-20kHz)
Input connection type	Analogue 3-pin Euroblock, balanced, pitch 3,5 mm
Input impedance	500kΩ (balanced)
Max input level	+12dBV 14,21 dBu

LINE OUTPUTS

Frequency response	15Hz-30kHz (-3dB, 1W @ 4Ω)
Output connection type	2-pin Euroblock. Pitch: 5 mm
THD + Ruido	0,01 % (from 1W to full power output @ 4Ω)

LOCAL CONTROL

Attenuators	Front panel knobs per channel VOL (default)/BYPASS option) (VOL/BYPASS selectable by a switch at the bottom)
Power ON/OFF	Front panel switch (green LED indicator)
RUN/SLEEP mode	Auto Standby function Front panel button (Auto Standby ON/OFF button per unit. -50dB (default) or -40dB, internally selectable. Auto stand-by time: 60 seconds)

OUTPUT POWER - All channels driven @ 1%THD

POWER & HEAT @120VAC - STANDBY/SLEEP MODE

Current Draw	0,988 Arms 0,939 Arms 0,534 Arms 0,145 Arms 0,116 Arms 0,135 Arms 0,178 Arms 1,815 Arms
Thermal Loss	41,07 kcal/h 162,97 BTU/h 29,41 kcal/h 116,7 BTU/h 14,41 kcal/h 57,17 BTU/h 9,61 kcal/h 38,16 BTU/h 10,02 kcal/h 39,76 BTU/h 14,65 kcal/h 58,12 BTU/h 44,75 kcal/h 177,61 BTU/h 31,25 kcal/h 124,03 BTU/h
