Bias D1 - Sin Dante
CVOIT3941
Consultar disponibilidad
Etapa de 2 canales para instalación.

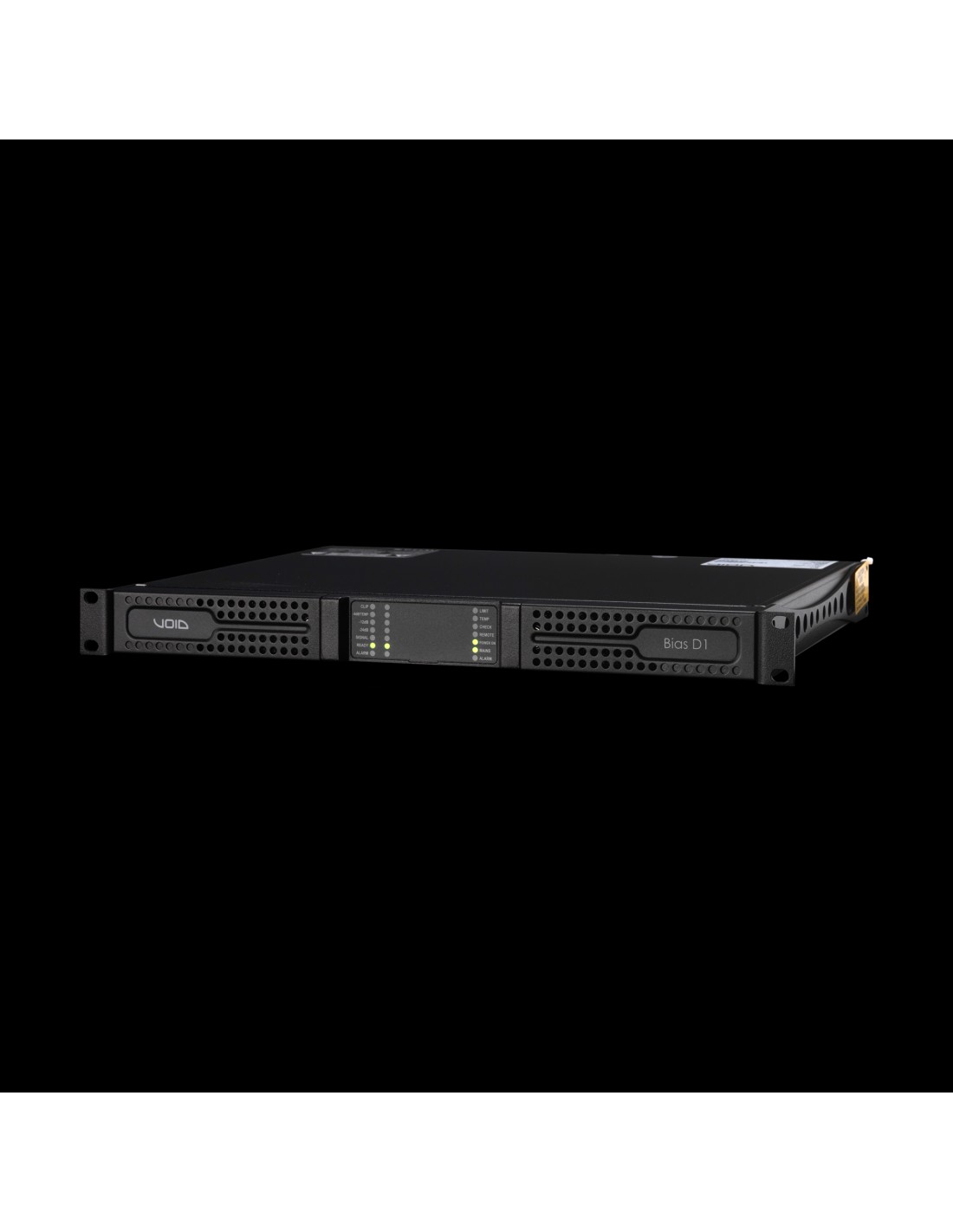

El amplificador Bias D1 es muy versátil y fácil de configurar. Su pantalla LED del panel frontal proporciona información de estado, que también se puede obtener conectando el amplificador a un PC con el software Armonia Pro Audio Suite™. Un DSP de última generación totalmente integrado ofrece amplias funciones de gestión del sistema, incluida la funcionalidad de modelado del sonido y limitador. Las versiones DSP+D del Bias D1 amplían el rendimiento del sistema, con el apoyo de la arquitectura de red de audio digital Dante™ y el procesamiento de señal de alta gama integrado.
- Dimensiones
- 483 x 44.5 x 358 mm/ 19.0 x 1.75 x 14.1 in
- Peso
- 7.0 Kg (15.4 lb)
- Estado
- New
- Código EAN
- IT1916
IT3941
IT3941 - Código arancelario
- 8518400000
- Lugar de envío
- Spain
- Frequency response
- Lo-Z output @ 8 Ω: 20 Hz - 20 kHz (±0.5 dB)
- Sensibilidad de entrada
- 4.08/ 2.89/ 2.04/ 1.45 Vrms
- Crosstalk
- typical -70 dB @ 1 kHz
- AC mains requirement
- 100-240 V @ 50-60Hz (±10%)
- Alimentación
- Universal regulated switch mode with PFC, SRM (Power factor ( 500 W ouput) 0.95)
Universal regulated switch mode with PFC, SRM (Power factor (> 500 W ouput)> 0.95) - Output connection type
- Phoenix PC 5/8-STF1-7,62
- Number of output channels
- 2 Hi-Z or Lo-Z (bridgeable per ch. pair)
- Number of input channels
- 2
- Input connection type
- 1 x RJ45
Phoenix MC 1,5/12-ST-3,81
Phoenix MC 1,5/12-ST-3,81
1 x RJ45 - Number of digital inputs
- 2
- Max output power @ 100V
- 800 W
- Max output power @ 70V
- 800 W
- Input impedance
- 20 kΩ balanced
- Max input level
- 20 dBu
- THD + Ruido
- 0.1% (typical 0.05%)
< 0.1% (typical < 0.05%) - Damping factor
- 500 @ 8 Ω, 20 Hz - 100 Hz
> 500 @ 8 Ω, 20 Hz - 100 Hz - Slew rate
- 50 V/μs (input filter bypassed @ 8 Ω)
> 50 V/μs (input filter bypassed @ 8 Ω) - Cooling
- Fan, continuously variable speed, temperature controlled, front to rear airflow
- Gain
- 26/ 29/ 32/ 35 dB
- AD converters
- 24 Bit Tandem™ @ 48 kHz
24 Bit Tandem™ @ 48 kHz
125 dB-A Dynamic Range - 0.005 % THD+N - DA converters
- 24 Bit Tandem™ @ 48 kHz
117 dB-A Dynamic Range - 0.003 % THD+N - Sample rate converter
- 24 Bit @ 44.1 kHz to 192 kHz
140 dB Dynamic Range - 0.0001 % THD+N - Internal precision
- 32 bit floating point
- Latency
- 2.5 ms fixed latency architecture
- Memory/Presets
- 128 MB (RAM) plus 512 MB flash for presets
- Delay
- 2 s (input) + 100 ms (output) for time alignment
- Equalizer
- Raised-cosine, custom FIR, parametric IIR:
peaking, hi/lo-shelving, all-pass, band-pass, band-stop, hi/lo-pass - Crossover
- linear phase (FIR), Butterworth, Linkwitz-Riley, Bessel: 6 dB/oct to 48 dB/oct (IIR)
- Limiters
- TruePower™, RMS voltage, RMS current, Peak limiter
- Damping control
- Active DampingControl™ and LiveImpedance™ measurement
Los clientes que adquirieron este producto también compraron:
Los clientes que adquirieron este producto también compraron:
Servicios e instalaciones implementadas
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SISTEMA
| Number of input channels |
2 |
|---|
FÍSICO
| Dimensiones |
483 x 44.5 x 358 mm/ 19.0 x 1.75 x 14.1 in |
|---|---|
| Peso |
7.0 Kg (15.4 lb) |
LOGÍSTICA
| Estado |
New |
|---|---|
| Código EAN |
IT1916
IT3941 IT3941 |
| Código arancelario |
8518400000 |
| Lugar de envío |
Spain |
ELECTRICAL
| AC mains requirement |
100-240 V @ 50-60Hz (±10%) |
|---|---|
| Alimentación |
Universal regulated switch mode with PFC, SRM (Power factor (> 500 W ouput)> 0.95) Universal regulated switch mode with PFC, SRM (Power factor ( 500 W ouput) 0.95) |
AUDIO CONVERTERS
| Latency |
2.5 ms fixed latency architecture |
|---|
ANALOGUE AUDIO OUTPUT PORTS
| Crosstalk |
typical -70 dB @ 1 kHz |
|---|
CHANNELS
| Number of output channels |
2 Hi-Z or Lo-Z (bridgeable per ch. pair) |
|---|---|
| Number of digital inputs |
2 |
SIGNAL
| Damping factor |
> 500 @ 8 Ω, 20 Hz - 100 Hz 500 @ 8 Ω, 20 Hz - 100 Hz |
|---|---|
| Slew rate |
> 50 V/μs (input filter bypassed @ 8 Ω) 50 V/μs (input filter bypassed @ 8 Ω) |
TECHNOLOGIES
| Cooling |
Fan, continuously variable speed, temperature controlled, front to rear airflow |
|---|
SETTINGS
| Gain |
26/ 29/ 32/ 35 dB |
|---|
DSP
| AD converters |
24 Bit Tandem™ @ 48 kHz
125 dB-A Dynamic Range - 0.005 % THD+N 24 Bit Tandem™ @ 48 kHz |
|---|---|
| DA converters |
24 Bit Tandem™ @ 48 kHz
117 dB-A Dynamic Range - 0.003 % THD+N |
| Sample rate converter |
24 Bit @ 44.1 kHz to 192 kHz
140 dB Dynamic Range - 0.0001 % THD+N |
| Internal precision |
32 bit floating point |
| Memory/Presets |
128 MB (RAM) plus 512 MB flash for presets |
| Delay |
2 s (input) + 100 ms (output) for time alignment |
| Equalizer |
Raised-cosine, custom FIR, parametric IIR:
peaking, hi/lo-shelving, all-pass, band-pass, band-stop, hi/lo-pass |
| Crossover |
linear phase (FIR), Butterworth, Linkwitz-Riley, Bessel: 6 dB/oct to 48 dB/oct (IIR) |
| Limiters |
TruePower™, RMS voltage, RMS current, Peak limiter |
| Damping control |
Active DampingControl™ and LiveImpedance™ measurement |
ANALOGUE AUDIO INPUTS
| Sensibilidad de entrada |
4.08/ 2.89/ 2.04/ 1.45 Vrms |
|---|
LINE INPUTS
| Input connection type |
Phoenix MC 1,5/12-ST-3,81 1 x RJ45 Phoenix MC 1,5/12-ST-3,81 1 x RJ45 |
|---|---|
| Input impedance |
20 kΩ balanced |
| Max input level |
20 dBu |
LINE OUTPUTS
| Frequency response |
Lo-Z output @ 8 Ω: 20 Hz - 20 kHz (±0.5 dB) |
|---|---|
| Output connection type |
Phoenix PC 5/8-STF1-7,62 |
| THD + Ruido |
< 0.1% (typical < 0.05%) 0.1% (typical 0.05%) |
OUTPUT POWER - All channels driven @ 1%THD
| Max output power @ 100V |
800 W |
|---|---|
| Max output power @ 70V |
800 W |
