VEO-XPT24
CVEOXPT24
Consultar disponibilidad

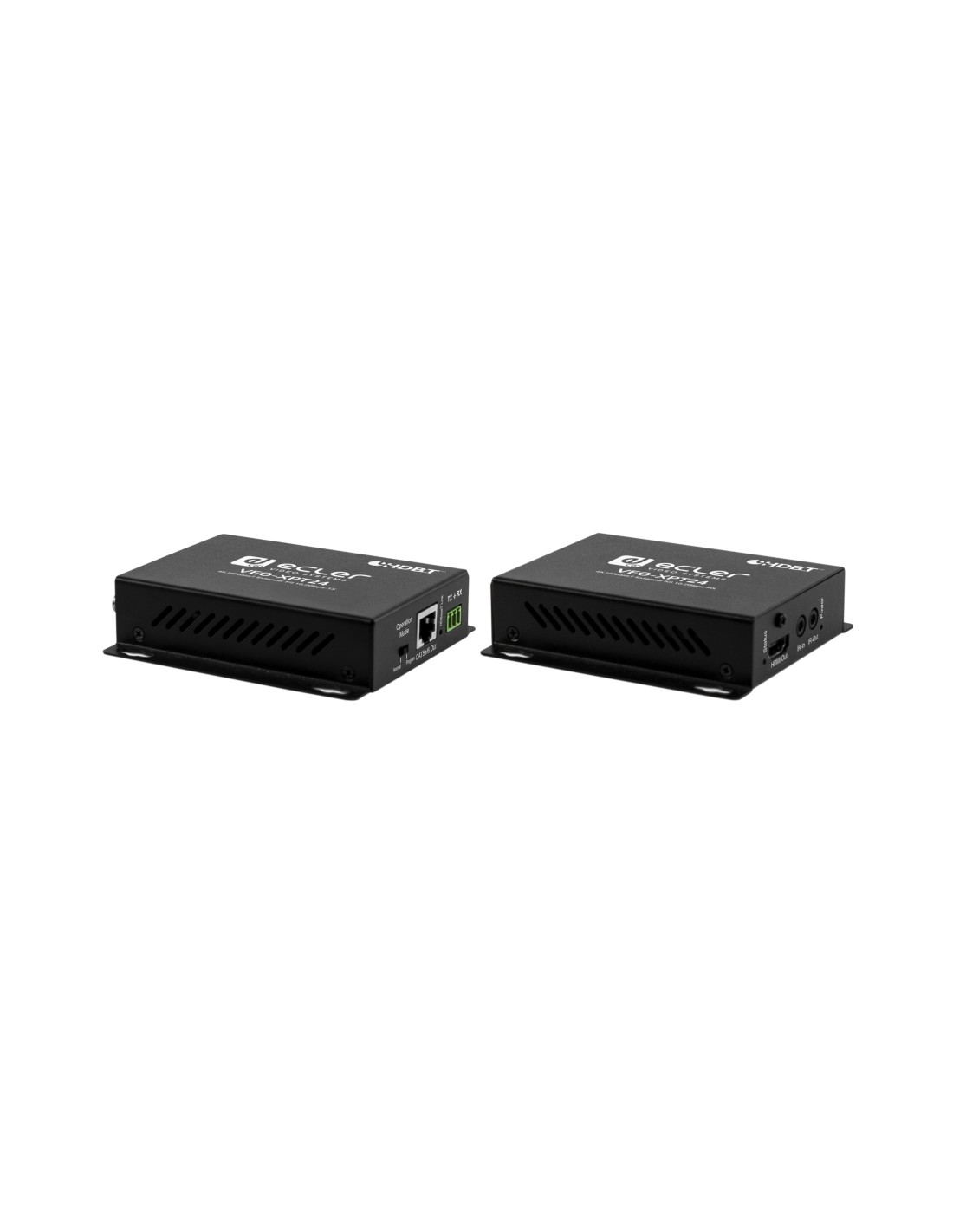

Kit extensor 4K HDBaseT
VEO-XPT24 permite extender una señal de vídeo con resolución 4K hasta 40 metros de distancia sobre un único cable Cat.5e/6, o una señal Full HD hasta 70 metros. Incluye funciones de transporte de control RS-232 e IR bidireccional, siendo la solución perfecta donde se requieren extensiones de vídeo HDMI® 1.4 y control.
- Opciones de instalación
- Desktop, VEO-RACK19
- Temperatura de funcionamiento
- Min: -5°C ; 41°F
Max: 35°C ; 95°F - Humedad de funcionamiento
- 5 to 90 % RH (no condensation)
- Accesorios incluidos
- 1 x 12V DC International power supply (One PSU for both units), 2 x IR Blaster unit, 2 x IR Receiver unit, 2 x Phoenix plugs
- Color acabado
- Black
- Dimensiones
- 71 x 105 x 25 mm / 2.79 x 4.13 x 0.98 in. (WxHxD)
- Peso
- 0.7 kg / 1.54 lb (Pair)
- Dimensiones de envío
- 320 x 60 x 250 mm/
- Peso del envío
- 1.0 kg /
- Estado
- Eol
- Origen Producción
- China
- Código EAN
- 8435071307635
- Código arancelario
- 8517620000
- Lugar de envío
- Spain
- Consumo de energía
- 2.5W (TX), 5W (RX) Maximum
- Video Input Connectors
- HDMI Type A Female, 2.0, 10.2 Gbps
- Video Output Connectors
- HDMI Type A Female, 2.0, 10.2 Gbps
- Video Input Resolutions
- 4096x2160@24/25/30/50*/60Hz*, 3840x2160@24/25/30/50*/60Hz*(UHD),
2048x1080p,1080p@23.98/24/25/29.97/30/50/5
9.94/60Hz,
1080i@50/59.94/60Hz,720p@50/59.94/60Hz,
576p, 576i, 480p, 480i
- Video Output Resolutions
- 4096x2160@24/25/30/50*/60Hz*, 3840x2160@24/25/30/50*/60Hz*(UHD),
2048x1080p,1080p@23.98/24/25/29.97/30/50/5
9.94/60Hz,
1080i@50/59.94/60Hz,720p@50/59.94/60Hz,
576p, 576i, 480p, 480i - Chroma Subsampling
- 4:4:4, 4:2:2, 4:2:0
- Colour Depth
- 8-bit, 10-bit, 12-bit, 16-bit only @1080p
- Colour Space
- YCbCr, RGB
- HDCP
- 2.2/1.4 Compliant
- HDR
- HDR10
- HDMI Distance
- up to 10 meters (33 ft) with Ecler VEO cables
- Audio Formats
- PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital,
DTS 5.1, Dolby TrueHD, DTS-HD Master Audio - Sample Rate
- 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz,
176.4kHz, 192kHz - Bit Depth
- Up to 24-bit
- Control Buttons
- RS-232 Function switch (Normal - Pass through, Program - firmware upgrade)
- Status Indicators
- HDBaseT Link Indicator, HDMI Input/Output link indicator, Power LED indicator

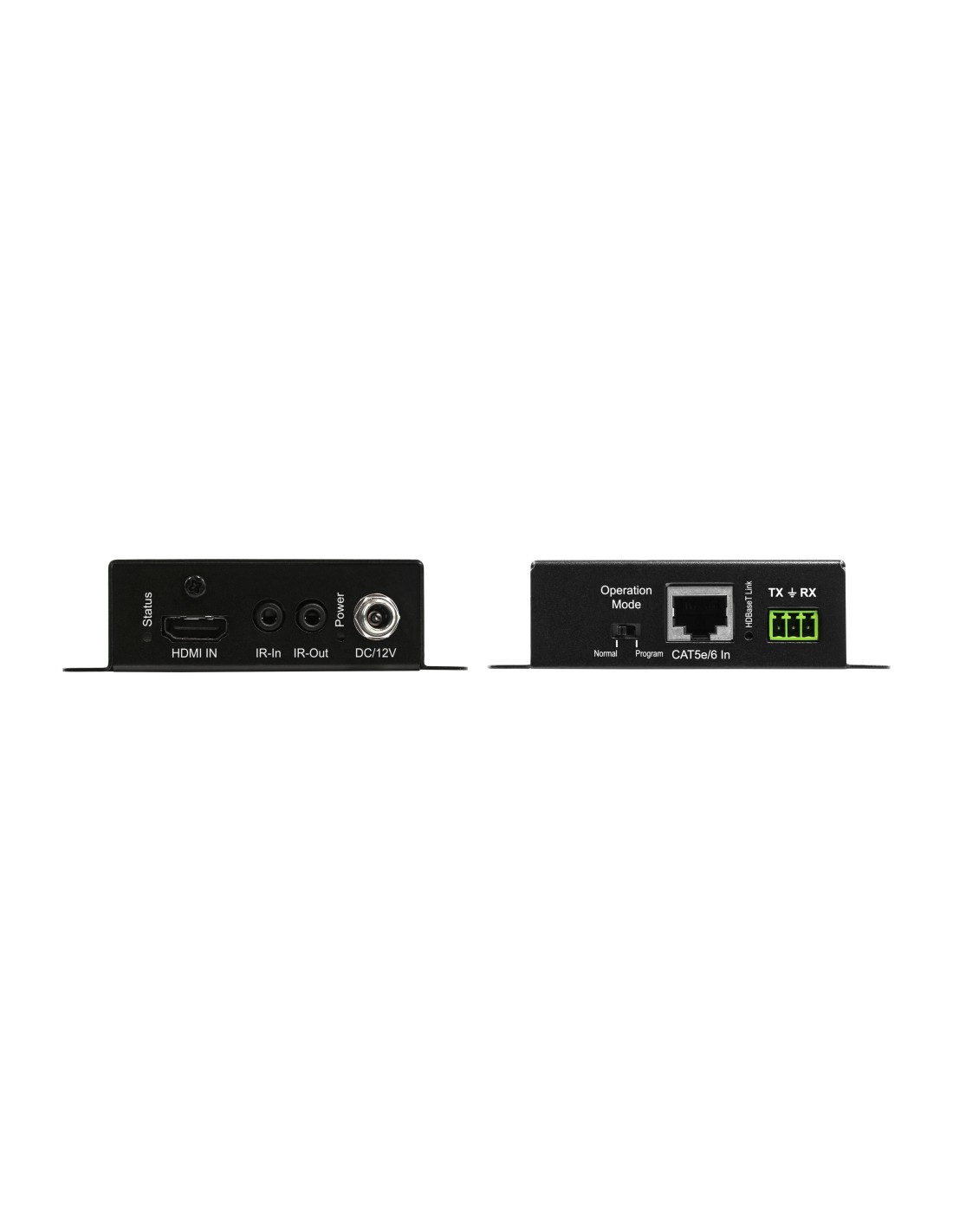

- Pass-through Connectors
- 3-pin Euroblock
- Alimentación
- AC100 - 240V 50/60Hz Output: DC 12VDC 2A
- DC mains connector
- DC 12V connector
- Chassis material
- Metal
- Pass-through Protocols
- RS-232, CEC
- Control Connectors
- 3-pin Euroblock, Minijack 3.5mm
- Control Protocols
- IR, RS-232
- Transmission Distance
- Cat5e/6 @ 4K up to 35 meters / 115 feet
Cat6a/7 @ 4K up to 40 meters / 130 feet
Cat5e/6 @ 1080p up to 60 meters / 197 feet
Cat6a/7 @ 1080p up to 70 meters / 230 feet
Servicios e instalaciones implementadas
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
FÍSICO
| Opciones de instalación |
Desktop, VEO-RACK19 |
|---|---|
| Temperatura de funcionamiento |
Min: -5°C ; 41°F
Max: 35°C ; 95°F |
| Humedad de funcionamiento |
5 to 90 % RH (no condensation) |
| Accesorios incluidos |
1 x 12V DC International power supply (One PSU for both units), 2 x IR Blaster unit, 2 x IR Receiver unit, 2 x Phoenix plugs |
| Color acabado |
Black |
| Dimensiones |
71 x 105 x 25 mm / 2.79 x 4.13 x 0.98 in. (WxHxD) |
| Peso |
0.7 kg / 1.54 lb (Pair) |
| Dimensiones de envío |
320 x 60 x 250 mm/ |
| Peso del envío |
1.0 kg / |
| Chassis material |
Metal |
LOGÍSTICA
| Estado |
Eol |
|---|---|
| Origen Producción |
China |
| Código EAN |
8435071307635 |
| Código arancelario |
8517620000 |
| Lugar de envío |
Spain |
ELECTRICAL
| Consumo de energía |
2.5W (TX), 5W (RX) Maximum |
|---|---|
| Alimentación |
AC100 - 240V 50/60Hz Output: DC 12VDC 2A |
| DC mains connector |
DC 12V connector |
DEVICE CONTROL
| Control Buttons |
RS-232 Function switch (Normal - Pass through, Program - firmware upgrade) |
|---|---|
| Status Indicators |
HDBaseT Link Indicator, HDMI Input/Output link indicator, Power LED indicator |
| Control Connectors |
3-pin Euroblock, Minijack 3.5mm |
| Control Protocols |
IR, RS-232 |
VIDEO PERFOMANCES
| Video Input Connectors |
HDMI Type A Female, 2.0, 10.2 Gbps |
|---|---|
| Video Output Connectors |
HDMI Type A Female, 2.0, 10.2 Gbps |
| Video Input Resolutions |
4096x2160@24/25/30/50*/60Hz*, 3840x2160@24/25/30/50*/60Hz*(UHD),
2048x1080p,1080p@23.98/24/25/29.97/30/50/5
9.94/60Hz,
1080i@50/59.94/60Hz,720p@50/59.94/60Hz,
576p, 576i, 480p, 480i
|
| Video Output Resolutions |
4096x2160@24/25/30/50*/60Hz*, 3840x2160@24/25/30/50*/60Hz*(UHD),
2048x1080p,1080p@23.98/24/25/29.97/30/50/5
9.94/60Hz,
1080i@50/59.94/60Hz,720p@50/59.94/60Hz,
576p, 576i, 480p, 480i |
| Chroma Subsampling |
4:4:4, 4:2:2, 4:2:0 |
| Colour Depth |
8-bit, 10-bit, 12-bit, 16-bit only @1080p |
| Colour Space |
YCbCr, RGB |
| HDCP |
2.2/1.4 Compliant |
| HDR |
HDR10 |
| HDMI Distance |
up to 10 meters (33 ft) with Ecler VEO cables |
AUDIO PERFORMANCES
| Audio Formats |
PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital,
DTS 5.1, Dolby TrueHD, DTS-HD Master Audio |
|---|---|
| Sample Rate |
32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz,
176.4kHz, 192kHz |
| Bit Depth |
Up to 24-bit |
PASS-THROUGH CONTROL
| Pass-through Connectors |
3-pin Euroblock |
|---|---|
| Pass-through Protocols |
RS-232, CEC |
HDBaseT SPECIFICATION
| Transmission Distance |
Cat5e/6 @ 4K up to 35 meters / 115 feet
Cat6a/7 @ 4K up to 40 meters / 130 feet
Cat5e/6 @ 1080p up to 60 meters / 197 feet
Cat6a/7 @ 1080p up to 70 meters / 230 feet |
|---|
