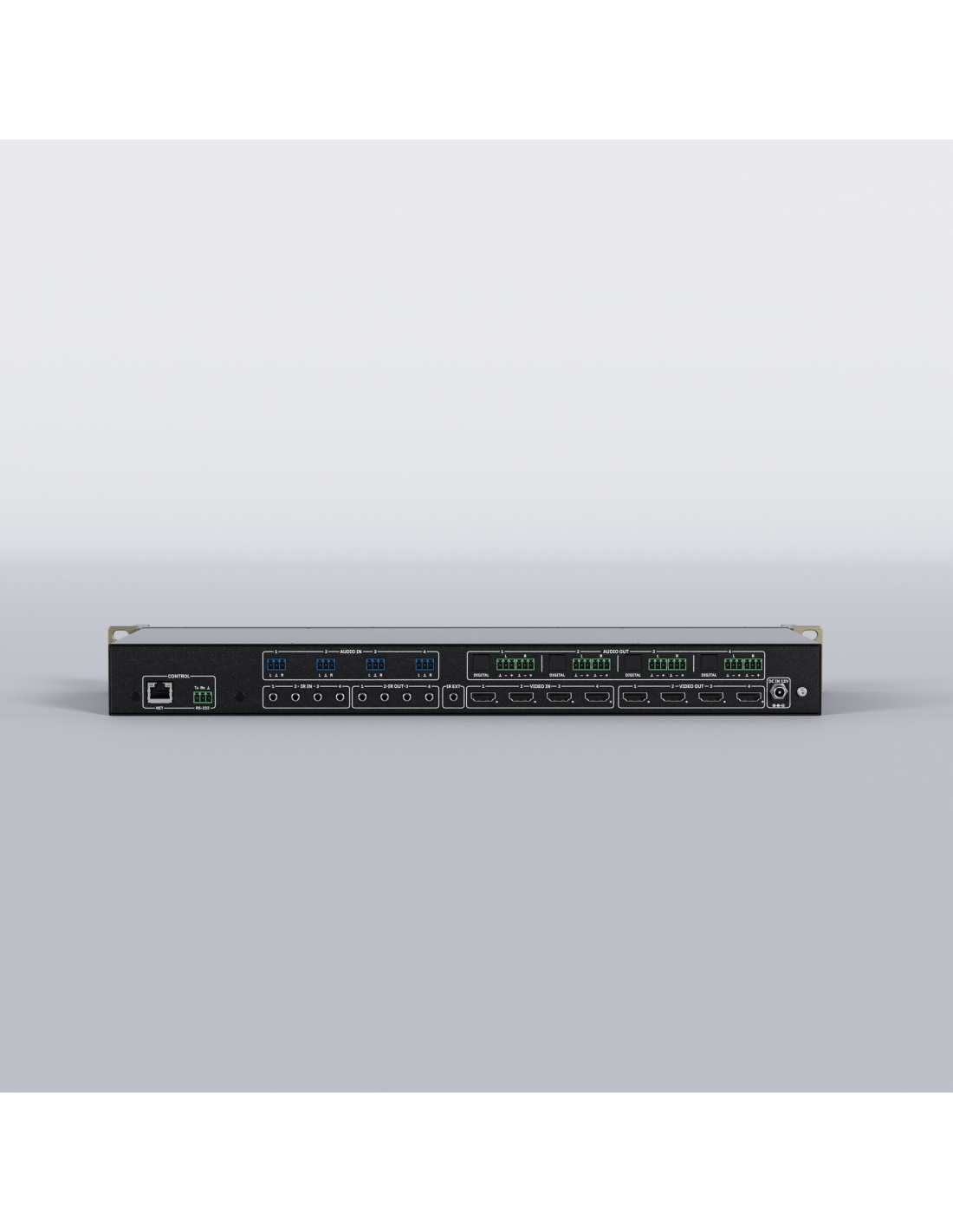

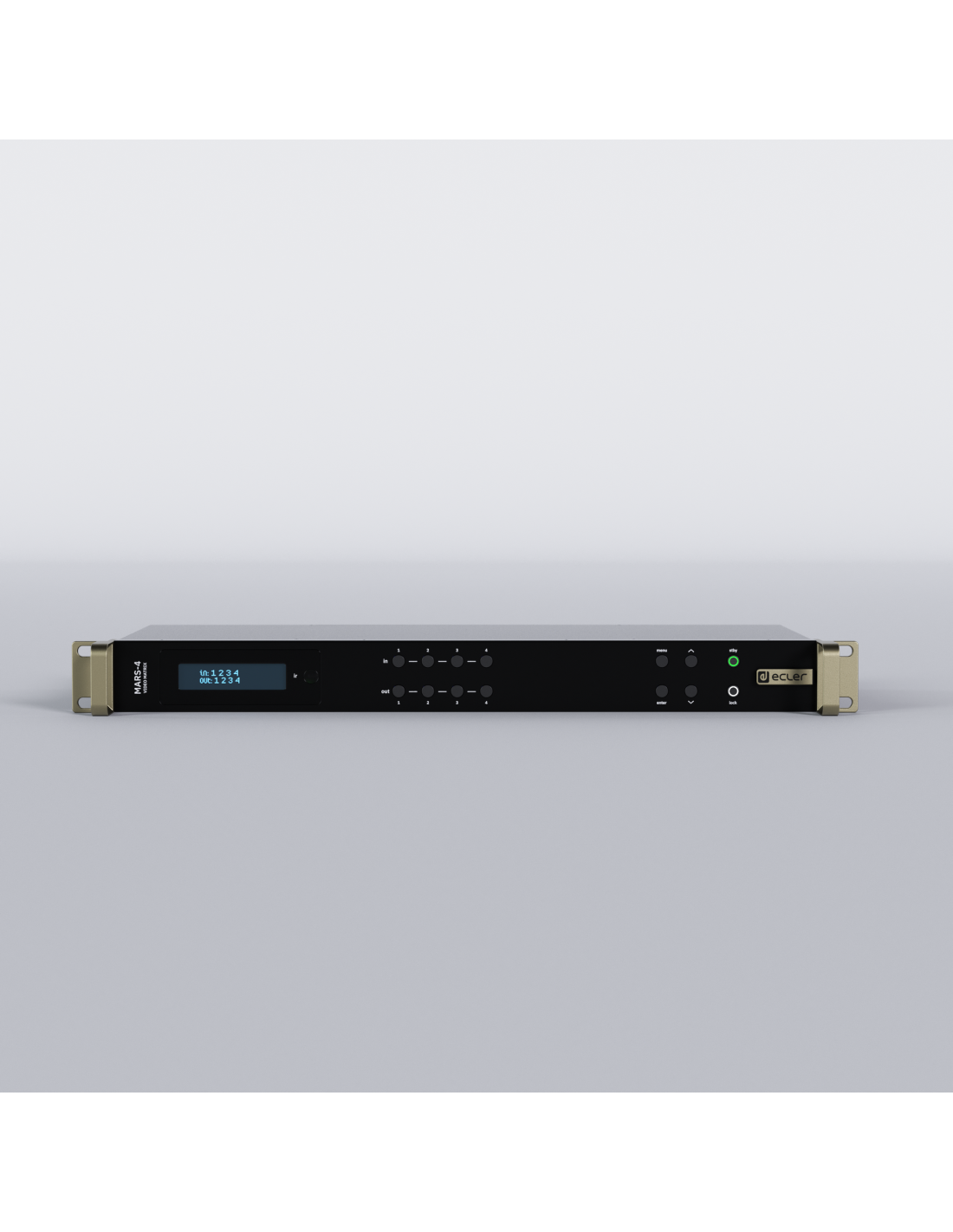

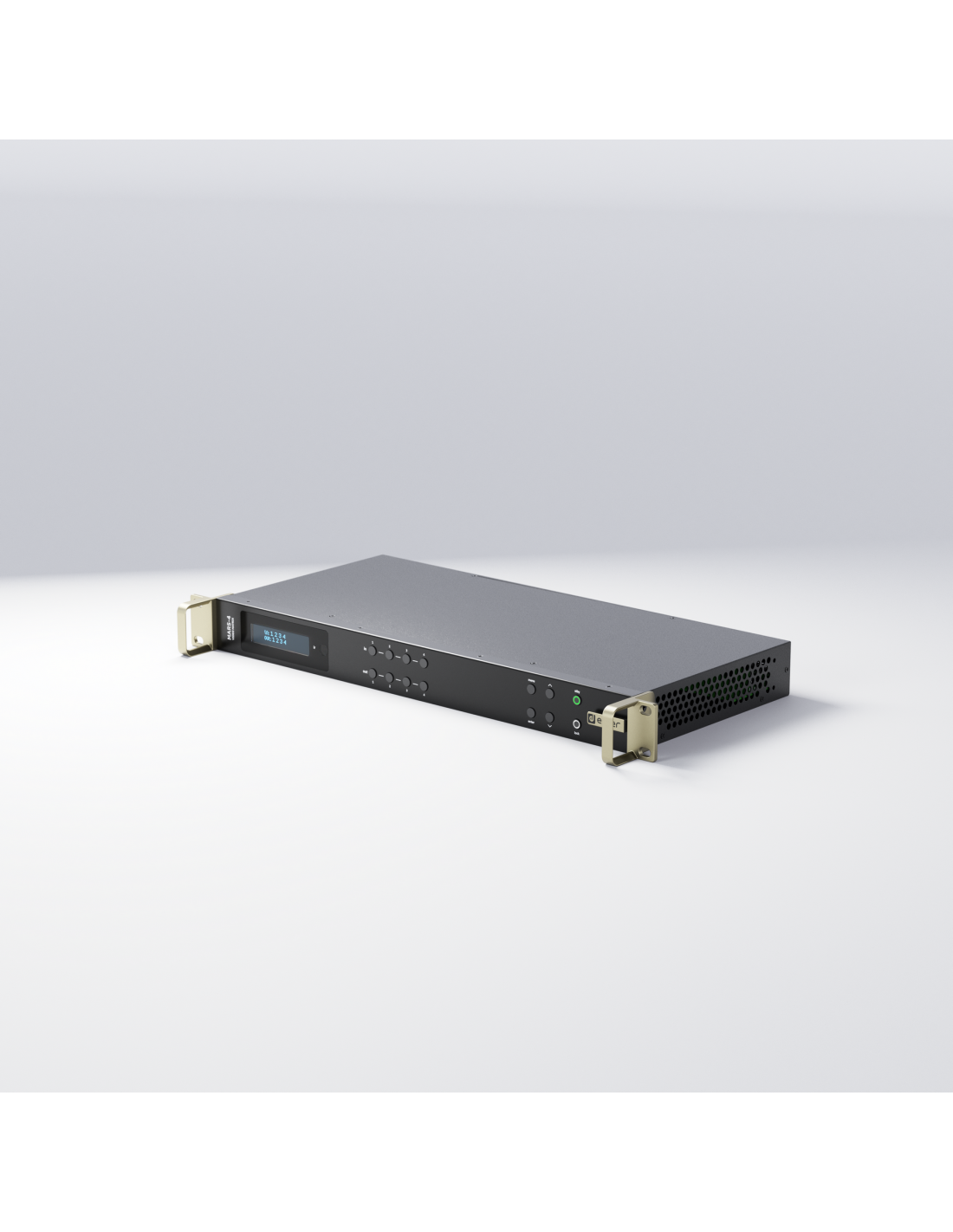

MARS-4
CMARS4
Check availability
- Installation options
- Desktop, 19" rack
- Operating temperature
- Min: 0°C ; 32°F
Max: 40°C ; 104°F
- Operating humidity
- 20 - 90% RH, no-condensing
- Storage temperature
- Min: -20°C ; -4°F
Max: 60°C ; 140°F
- Included accessories
- 1 x 12V/2.5A EU power cord, 4 x Euroblock 3-pin connectors (Blue), 9 x Euroblock 3-pin connectors (Green), 5 x IR receiver,
4 × IR Blaster, 1 x Remote Control
- Finished colour
- Black
- Dimensions
- 432 × 44 × 201,5 mm / 17.01 × 1.73 × 7.93 in. (WxHxD)
- Weight
- 2.56 Kg / 5.64 Ib
- Shipping dimensions
- 590 × 80 × 390 mm / 23.23 × 3.15 × 15.35 in. (WxHxD)
- Shipping weight
- 4.8 Kg / 10.58 Ib
- Frequency response
- 20Hz-20KHz (±3dB)
- AC mains connector
- External PSU. Included 4 region power blades (UK,US,AU,EU)
- Power consumption
- 25W
- Video Input Connectors
- 4 x HDMI® Type A Female, 2.0, 18 Gbps
- Video Output Connectors
- 4 x HDMI® Type A Female, 2.0, 18 Gbps
- Video Input Resolutions
- 480i, 480p, 720i, 720p, 1080i, 1080p, 4K up to 60Hz
- Video Output Resolutions
- 480i, 480p, 720i, 720p, 1080i, 1080p, 4K up to 60Hz
- Chroma Subsampling
- 4:4:4, 4:2:2, 4:2:0
- Colour Depth
- 8-bit (4K 60Hz 4:4:4), 10-bit / 12-bit (4K 60Hz 4:2:2 – 4:2:0)
- Colour Space
- RGB, YCbCr
- HDCP
- 2.2
- HDR
- HDR, HDR10, HDR10+, Dolby Vision, HLG
- Audio Input Connectors
- 4 x 3-pin Euroblock connector
- Audio Output Connectors
- 8 x 3-pin Euroblock connector (4 x Stereo Balanced Out), 4 x Toslink Out connector
- Audio Formats
- LPCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio
- Sample Rate
- 24KHz, 96KHz
- Bit Depth
- Up to 24-bit
- ARC/eARC
- No
- Control Buttons
- Stby, Lock, Settings, Input/Output Selection
- EDID Management
- Control Screen, Web GUI, Remote control commands
- Status Indicators
- Stby LED, Lock LED, LCD Display
- Pass-through Connectors
- 1 x RS-232, 8 x Jack 3,5mm, 1 x HDMI®
- Power supply
- External Power supply External: Input 100-240 VAC-50/60Hz, Output: 12VDC-2.5A
- DC mains connector
- DC Coaxial
- Chassis material
- Metal
- Pass-through Protocols
- IR, CEC
- Control Connectors
- 1 x RJ45, 1 x RS-232, 1 x 3-pin Euroblock, 8 x Jack 3,5mm
- Audio De-Embedding
- Yes
- Audio Embedding
- Yes
- Control Protocols
- Web, TCP, Telnet, RS-232, IR, IR remote Control
- Video Composing Capabilities
- Videowall: up to 4 screens with splicing feature
Multiviewing: up to 4 windows
- Scaling Features
- Yes
- Seamless Switching
- Yes
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
PHYSICAL
| Installation options |
Desktop, 19" rack |
|---|---|
| Operating temperature |
Min: 0°C ; 32°F
Max: 40°C ; 104°F
|
| Operating humidity |
20 - 90% RH, no-condensing |
| Storage temperature |
Min: -20°C ; -4°F
Max: 60°C ; 140°F
|
| Included accessories |
1 x 12V/2.5A EU power cord, 4 x Euroblock 3-pin connectors (Blue), 9 x Euroblock 3-pin connectors (Green), 5 x IR receiver,
4 × IR Blaster, 1 x Remote Control
|
| Finished colour |
Black |
| Dimensions |
432 × 44 × 201,5 mm / 17.01 × 1.73 × 7.93 in. (WxHxD) |
| Weight |
2.56 Kg / 5.64 Ib |
| Shipping dimensions |
590 × 80 × 390 mm / 23.23 × 3.15 × 15.35 in. (WxHxD) |
| Shipping weight |
4.8 Kg / 10.58 Ib |
| Chassis material |
Metal |
ELECTRICAL
| AC mains connector |
External PSU. Included 4 region power blades (UK,US,AU,EU) |
|---|---|
| Power consumption |
25W |
| Power supply |
External Power supply External: Input 100-240 VAC-50/60Hz, Output: 12VDC-2.5A |
| DC mains connector |
DC Coaxial |
DEVICE CONTROL
| Control Buttons |
Stby, Lock, Settings, Input/Output Selection |
|---|---|
| EDID Management |
Control Screen, Web GUI, Remote control commands |
| Status Indicators |
Stby LED, Lock LED, LCD Display |
| Control Connectors |
1 x RJ45, 1 x RS-232, 1 x 3-pin Euroblock, 8 x Jack 3,5mm |
| Control Protocols |
Web, TCP, Telnet, RS-232, IR, IR remote Control |
LINE OUTPUTS
| Frequency response |
20Hz-20KHz (±3dB) |
|---|
VIDEO PERFOMANCES
| Video Input Connectors |
4 x HDMI® Type A Female, 2.0, 18 Gbps |
|---|---|
| Video Output Connectors |
4 x HDMI® Type A Female, 2.0, 18 Gbps |
| Video Input Resolutions |
480i, 480p, 720i, 720p, 1080i, 1080p, 4K up to 60Hz |
| Video Output Resolutions |
480i, 480p, 720i, 720p, 1080i, 1080p, 4K up to 60Hz |
| Chroma Subsampling |
4:4:4, 4:2:2, 4:2:0 |
| Colour Depth |
8-bit (4K 60Hz 4:4:4), 10-bit / 12-bit (4K 60Hz 4:2:2 – 4:2:0) |
| Colour Space |
RGB, YCbCr |
| HDCP |
2.2 |
| HDR |
HDR, HDR10, HDR10+, Dolby Vision, HLG |
| Video Composing Capabilities |
Videowall: up to 4 screens with splicing feature
Multiviewing: up to 4 windows
|
| Scaling Features |
Yes |
| Seamless Switching |
Yes |
AUDIO PERFORMANCES
| Audio Input Connectors |
4 x 3-pin Euroblock connector |
|---|---|
| Audio Output Connectors |
8 x 3-pin Euroblock connector (4 x Stereo Balanced Out), 4 x Toslink Out connector
|
| Audio Formats |
LPCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio |
| Sample Rate |
24KHz, 96KHz |
| Bit Depth |
Up to 24-bit |
| ARC/eARC |
No |
| Audio De-Embedding |
Yes |
| Audio Embedding |
Yes |
PASS-THROUGH CONTROL
| Pass-through Connectors |
1 x RS-232, 8 x Jack 3,5mm, 1 x HDMI® |
|---|---|
| Pass-through Protocols |
IR, CEC |
